EFR 9180 Street Port Dyno Results

Old 02-15-18, 11:39 AM
  #1
Full Member
Thread Starter

infinit1's Avatar

Join Date: Aug 2001
Location: Los Angeles
Posts: 237
Received 1 Like on 1 Post
EFR 9180 Street Port Dyno Results

Been a long road with many changes throughout the years but it is finally done.
This is a Street car. Registered and insured.

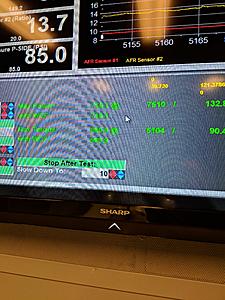

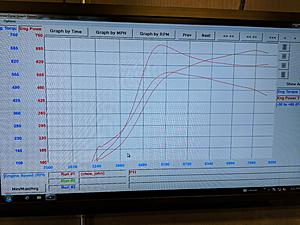

710 hp and 589 ft lbs on World Motorsports Wind Tunnel Dyno

Specs:
All fabrication done by Eric and Marc at Twins Turbo and World Motorsports
Custom intake manifold
Custom Exhaust manifold
Custom V-mount
All the miles and limes of plumbing

Motec M400 and PDM15 Tuned By Shane T

Wired By G

Street Port Pinned and Built by Robert at Rotary Shack
EFR 9180 @ 40psi
E85

Painted by Buddha Customs

The list goes on and on. If there is anything you want to know about just ask.

from Shane T
Attached Thumbnails EFR 9180 Street Port Dyno Results-mvimg_20180213_154859.jpg   EFR 9180 Street Port Dyno Results-mvimg_20180213_155526.jpg

Last edited by infinit1; 02-15-18 at 11:54 AM. Reason: additional info
infinit1 is offline
Old 02-15-18, 03:33 PM
  #2
Automotive Designer

RGHTBrainDesign's Avatar

Join Date: Aug 2012
Location: San Jose, CA
Posts: 1,468
Received 41 Likes on 38 Posts
This was one of my favorite dyno videos of all time. Thanks for creating such an amazing car.
RGHTBrainDesign is offline
Old 02-15-18, 03:56 PM
  #3
www.lms-efi.com
iTrader: (27)

C. Ludwig's Avatar

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 5,106
Received 30 Likes on 23 Posts
Kudos to you, Twins Turbo, Robert, and ShaneT. Great combination there. This build has always been one of my favorites.
C. Ludwig is offline
Old 02-15-18, 06:00 PM
  #4
No phonebook but OG calls
iTrader: (30)

BurntOrangeT2's Avatar

Join Date: Aug 2008
Location: Kansas City, MO
Posts: 1,013
Likes: 0
Received 2 Likes on 2 Posts
Link to build?

This is very sexy.....hats off sir.
BurntOrangeT2 is offline
Old 02-15-18, 06:07 PM
  #5
Arrogant Wankeler

Slides's Avatar

Join Date: Nov 2006
Location: Newcastle NSW Australia
Posts: 384
Received 16 Likes on 15 Posts
Nice setup. What brand dyno is that? Reads about what I would expect from a mainline or DD. That would be 800+ on most US dynos wouldn't it?

I assume it will spin second and maybe third gearing dependant on the street unless on semi slicks or drag radials?

what box are you running?
Slides is offline
Old 02-15-18, 06:07 PM
  #6
Senior Member

Join Date: Mar 2001
Location: Walnut, CA
Posts: 720
Likes: 0
Received 2 Likes on 2 Posts
nice !

how was the power at 25-30psi range?

what kind of injector and fuel pump setup are you using?
Alpine is offline
Old 02-15-18, 08:28 PM
  #7
BECAUSE RACECAR
iTrader: (3)

Arca_ex's Avatar

Join Date: Jan 2014
Location: Arizona
Posts: 155
Likes: 0
Received 0 Likes on 0 Posts
That's awesome.

What A/R housing are you using? 1.45?
Arca_ex is offline
Old 02-16-18, 12:20 AM
  #8
Senior Member
iTrader: (8)

Join Date: Jul 2011
Location: AZ
Posts: 481
Received 5 Likes on 4 Posts
Very nice! Would love some specs on the fuel and ignition system and some shots for the engine bay.
Neutron is online now
Old 02-16-18, 03:13 PM
  #9
Full Member
Thread Starter

infinit1's Avatar

Join Date: Aug 2001
Location: Los Angeles
Posts: 237
Received 1 Like on 1 Post
Originally Posted by BurntOrangeT2 View Post
Link to build?

This is very sexy.....hats off sir.
Here is an old thread. Most of it is still the same but a few things were updated over the years
https://www.rx7club.com/single-turbo...ifolds-663385/
infinit1 is offline
Old 02-16-18, 03:14 PM
  #10
Full Member
Thread Starter

infinit1's Avatar

Join Date: Aug 2001
Location: Los Angeles
Posts: 237
Received 1 Like on 1 Post
Originally Posted by Slides View Post
Nice setup. What brand dyno is that? Reads about what I would expect from a mainline or DD. That would be 800+ on most US dynos wouldn't it?

I assume it will spin second and maybe third gearing dependant on the street unless on semi slicks or drag radials?

what box are you running?
It was on a Mustang Dyno at World Motorsports in Torrance, CA. Amazing facility with a wind tunnel that is set up to change wind speed according to dyno speed. Next level Dyno Room
infinit1 is offline
Old 02-16-18, 03:17 PM
  #11
Full Member
Thread Starter

infinit1's Avatar

Join Date: Aug 2001
Location: Los Angeles
Posts: 237
Received 1 Like on 1 Post
Originally Posted by Slides View Post
Nice setup. What brand dyno is that? Reads about what I would expect from a mainline or DD. That would be 800+ on most US dynos wouldn't it?

I assume it will spin second and maybe third gearing dependant on the street unless on semi slicks or drag radials?

what box are you running?
It def spins 2nd and 3rd on the street with 295/30/18 Toyo R888's

I am using a motec M400
infinit1 is offline
Old 02-16-18, 03:23 PM
  #12
Full Member
Thread Starter

infinit1's Avatar

Join Date: Aug 2001
Location: Los Angeles
Posts: 237
Received 1 Like on 1 Post
Originally Posted by Alpine View Post
nice !

how was the power at 25-30psi range?

what kind of injector and fuel pump setup are you using?
At 25-30 psi I was getting around 600 range in power if I recall correctly.

The fuel set up is kind of unique. It is running 2x ID 2000 and 2x Atomizer 575lb for secondary. The fuel pumps are 1x magna fuel 4303 and 1x Weldon 2345A that comes on under boost.
infinit1 is offline
Old 02-16-18, 03:24 PM
  #13
Full Member
Thread Starter

infinit1's Avatar

Join Date: Aug 2001
Location: Los Angeles
Posts: 237
Received 1 Like on 1 Post
Originally Posted by Arca_ex View Post
That's awesome.

What A/R housing are you using? 1.45?
I am pretty sure we are using the 1.05 AR. Wanted to be streetable.
infinit1 is offline
Old 02-16-18, 03:38 PM
  #14
Full Member
Thread Starter

infinit1's Avatar

Join Date: Aug 2001
Location: Los Angeles
Posts: 237
Received 1 Like on 1 Post
Originally Posted by Neutron View Post
Very nice! Would love some specs on the fuel and ignition system and some shots for the engine bay.
Ignition is pretty simple. We are using some basic coils and ignitors that we got from Shane T as he recommended.

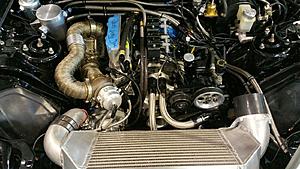

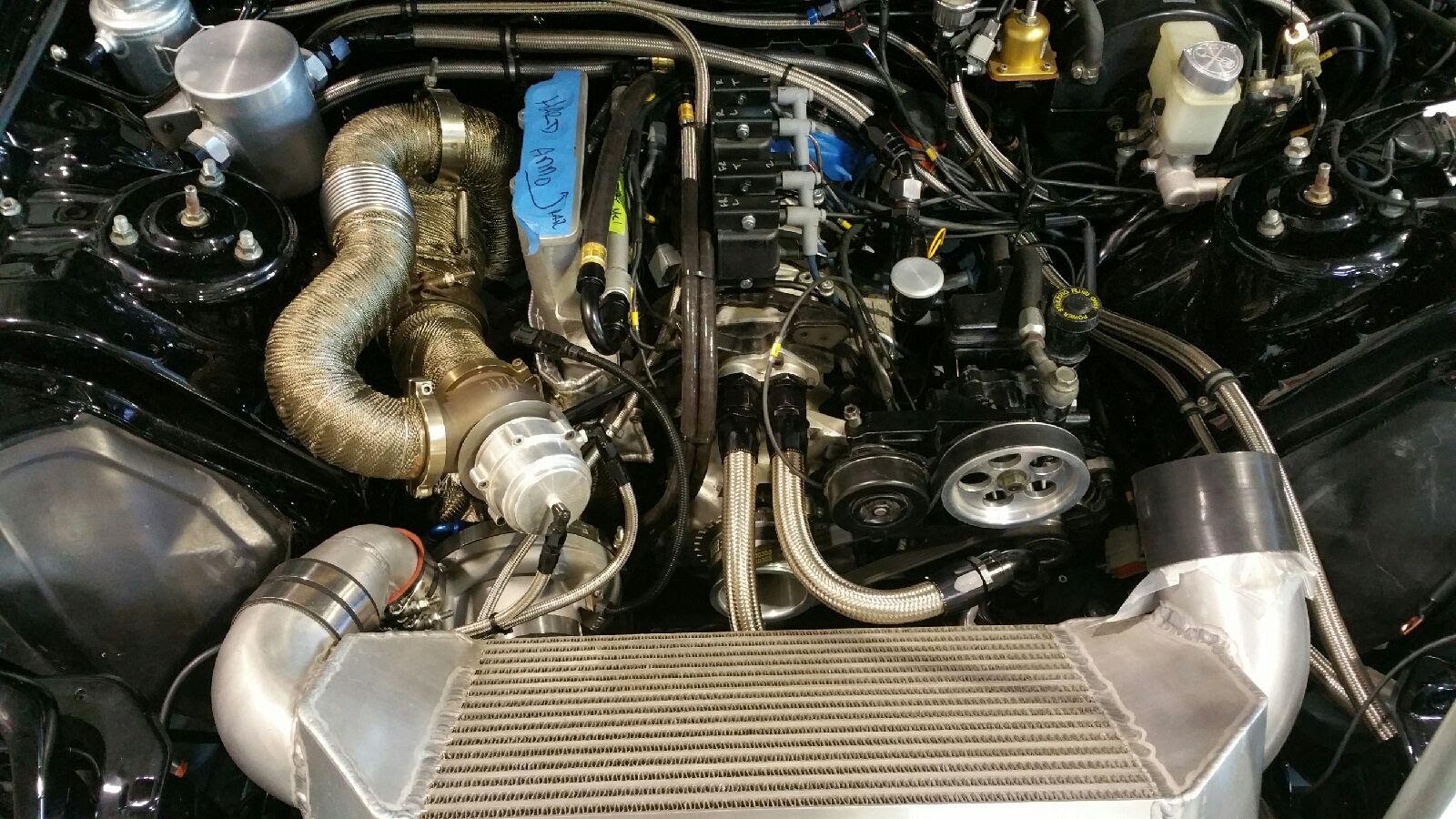

Here are a couple pics I found on my phone. I can take more pics later when I get home
Attached Thumbnails EFR 9180 Street Port Dyno Results-20170117_135846.jpg   EFR 9180 Street Port Dyno Results-2017052595093442.jpg
infinit1 is offline
Old 02-17-18, 07:42 AM
  #15
Arrogant Wankeler

Slides's Avatar

Join Date: Nov 2006
Location: Newcastle NSW Australia
Posts: 384
Received 16 Likes on 15 Posts
Originally Posted by infinit1 View Post
It def spins 2nd and 3rd on the street with 295/30/18 Toyo R888's

I am using a motec M400
Thanks for details, I actually meant gearbox. Seems really odd, a lot of non drift us guys seem to get reasonable life out of boxes. Everyone is Australia is shredding them.
Slides is offline
Old 02-17-18, 07:10 PM
  #16
REPU Garage
iTrader: (17)

Join Date: Jun 2007
Location: Northern Colorado
Posts: 623
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by infinit1 View Post
This is a Street car. Registered and insured.
Is the vehicle emissions legal in California? Not trying to be a dick, genuinely curious, I've always struggled around emissions issues/restrictions. Awesome result either way.

Originally Posted by SirLaughsALot View Post
This was one of my favorite dyno videos of all time. Thanks for creating such an amazing car.
Link?
Turbo8 is offline
Old 02-18-18, 01:52 PM
  #17
Full Member
Thread Starter

infinit1's Avatar

Join Date: Aug 2001
Location: Los Angeles
Posts: 237
Received 1 Like on 1 Post
Originally Posted by Slides View Post
Thanks for details, I actually meant gearbox. Seems really odd, a lot of non drift us guys seem to get reasonable life out of boxes. Everyone is Australia is shredding them.
Its a stock gear box for now. I dont plan on doing any drifting or drag racing so it should be okay for now but I do want to do a gear box upgrade at some point. Maybe something simple like a T56.
infinit1 is offline
Old 02-18-18, 01:54 PM
  #18
Full Member
Thread Starter

infinit1's Avatar

Join Date: Aug 2001
Location: Los Angeles
Posts: 237
Received 1 Like on 1 Post
Originally Posted by Turbo8 View Post
Is the vehicle emissions legal in California? Not trying to be a dick, genuinely curious, I've always struggled around emissions issues/restrictions. Awesome result either way.



Link?
The car is registered in Montana and they have no smog there.
infinit1 is offline
Old 02-18-18, 11:06 PM
  #19
Junior Member

Join Date: Jun 2007
Location: Peoples Republik of Kaliforniastan
Posts: 36
Likes: 0
Received 0 Likes on 0 Posts


Twins Turbo Motorsports is offline
Old 02-18-18, 11:08 PM
  #20
Junior Member

Join Date: Jun 2007
Location: Peoples Republik of Kaliforniastan
Posts: 36
Likes: 0
Received 0 Likes on 0 Posts




Twins Turbo Motorsports is offline
Old 02-21-18, 05:13 AM
  #21
JZG
Full Member

Join Date: Jun 2009
Location: 3116
Posts: 148
Likes: 0
Received 3 Likes on 3 Posts
Well done.

That is a maxed out turbo at both ends! I'm picking the last 5psi gave minimal power increase. The street port bit may be your saving grace.
JZG is offline
Old 02-21-18, 08:07 AM
  #22
B O R I C U A
iTrader: (14)

KNONFS's Avatar

Join Date: Mar 2001
Location: VA
Posts: 5,376
Received 9 Likes on 9 Posts
Impressive!

Is that a cat on the downpipe?
KNONFS is offline
Old 02-21-18, 11:06 AM
  #23
Full Member
Thread Starter

infinit1's Avatar

Join Date: Aug 2001
Location: Los Angeles
Posts: 237
Received 1 Like on 1 Post
Originally Posted by KNONFS View Post
Impressive!

Is that a cat on the downpipe?
Yup! There is a high flow 100 cell 3" cat on the car right now. It is so quiet you wouldnt know it is running! I am gonna try to run it without the cat next week to see if it is still quiet enough. I'm getting old.
infinit1 is offline
The following users liked this post:
KNONFS (02-22-18)
Old 02-21-18, 02:28 PM
  #24
Junior Member

Join Date: Jun 2007
Location: Peoples Republik of Kaliforniastan
Posts: 36
Likes: 0
Received 0 Likes on 0 Posts

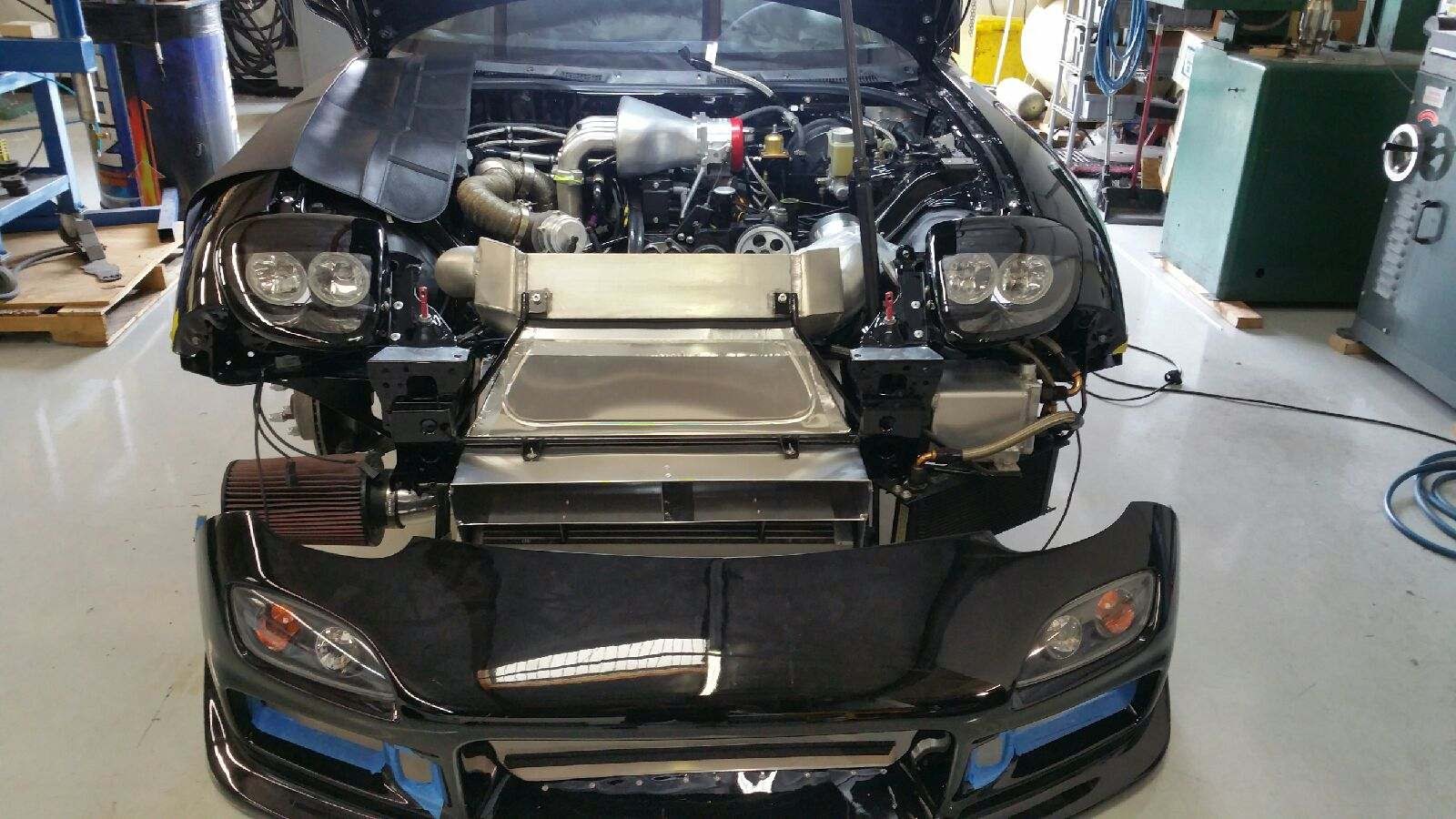

a few more pics for the interested folks.

Last edited by Twins Turbo Motorsports; 02-21-18 at 02:32 PM. Reason: internet failure
Twins Turbo Motorsports is offline
Old 02-21-18, 02:38 PM
  #25
Junior Member

Join Date: Jun 2007
Location: Peoples Republik of Kaliforniastan
Posts: 36
Likes: 0
Received 0 Likes on 0 Posts





Twins Turbo Motorsports is offline
