2RotorsNaDream

iTrader: (7)

I've been looking this up and couldn't find any straight answers. I want to know if I can run a Borg Warner S362 or S366 using a Greddy turbo manifold? Same with an HKS manifold. I've read that the S366 is a really tight fit with the Greddy manifold but that it does fit. I haven't heard anything about the HKS manifold.

Also, I'm looking for a max ~500-530whp with nice spool. I'm curious what you guys think, should i go with the smaller S362 or the bigger S366? I DD the car so I don't want to be maxing out the turbo to make that power. I want it to be a nice solid ~425whp for normal everyday driving but have the ability to make ~500whp when I want it. I have enough fuel, etc to run the turbo and the car to my knowledge is stock ports but alot of old school guys swear it sounds like it has a street port. We'll assume its stock port for this comparison. Thanks.

GoodfellaFD3S

iTrader: (213)

For those kind of power goals you'll want the S366. A buddy has one (the 'XL' i think) and he made an honest 480 at 20 psi with pump gas and water/meth. Car flies down the road, very streetable powerband... he does have a nice streetport though.

I can't speak to the mani compatibility, sorry.

C. Ludwig

iTrader: (27)

The HKS FD manifold will not work with the 366. It's very close but the turbo will hit the strut tower.

rxspeed7

iTrader: (5)

i know for a fact that the s360 fits a fc hks cast manifold. idk how much larger in size the housings are for a 366 are though but if may be a tight fit. this is in a fc also.

2RotorsNaDream

iTrader: (7)

I read about some guy here making 561 with the s362 at 23 psi with stock port motor. That sounds crazy. I will most likely end up with the s366 like you recommend regardless. Just interested in the s362 because of the slightly better spool, curious how much better it really is.

Thanks a lot, now I just need someone to chime in about the greddy manifold.

2RotorsNaDream

iTrader: (7)

I have an fd. Thank you anyway for taking time out to answer.

C. Ludwig

iTrader: (27)

You know what, I was not thinking correctly when I posted the info above. We test fitted a 372, not 366. So, I have no idea if it will fit. Sorry.

TwinCharged RX7

iTrader: (14)

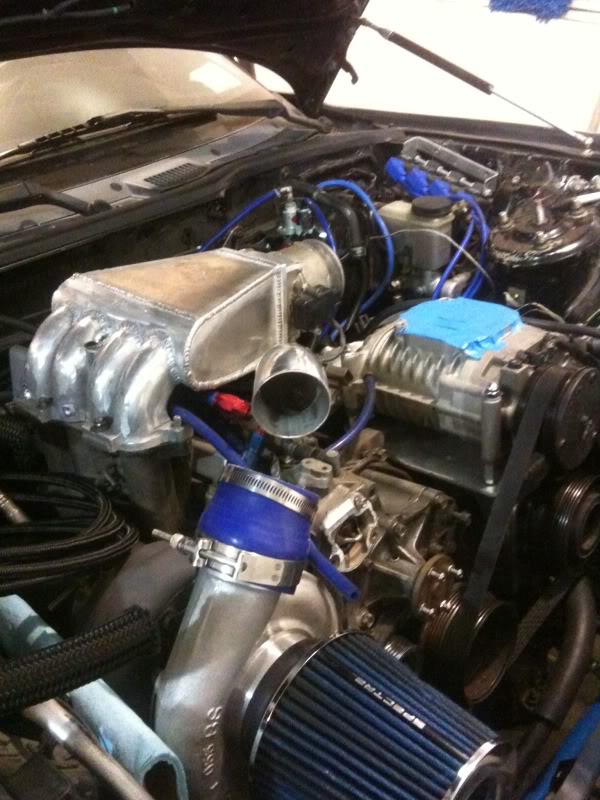

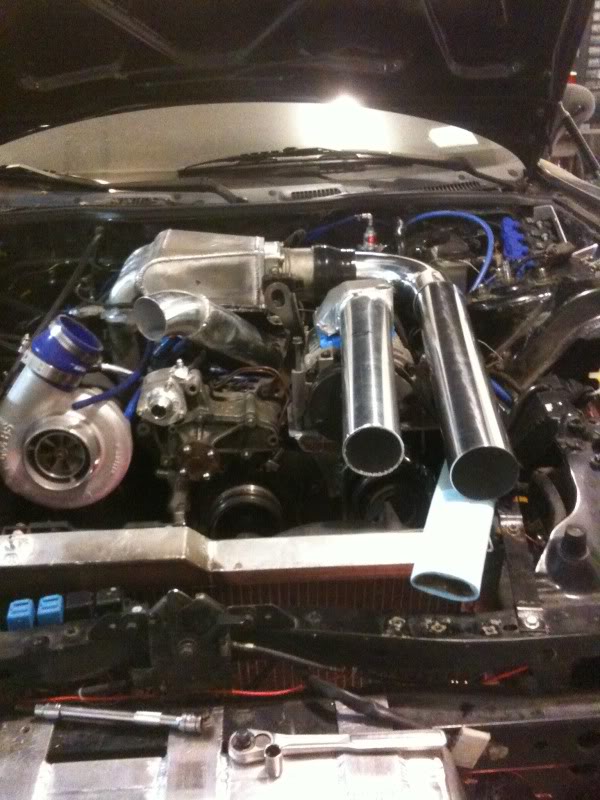

I have a greddy T78 manifold with the S366. The only problem is the vband clamp. The turbo fits fine. But I had to trim a bit off the clamp itself to squeeze it by the LIM.

TwinCharged RX7

iTrader: (14)

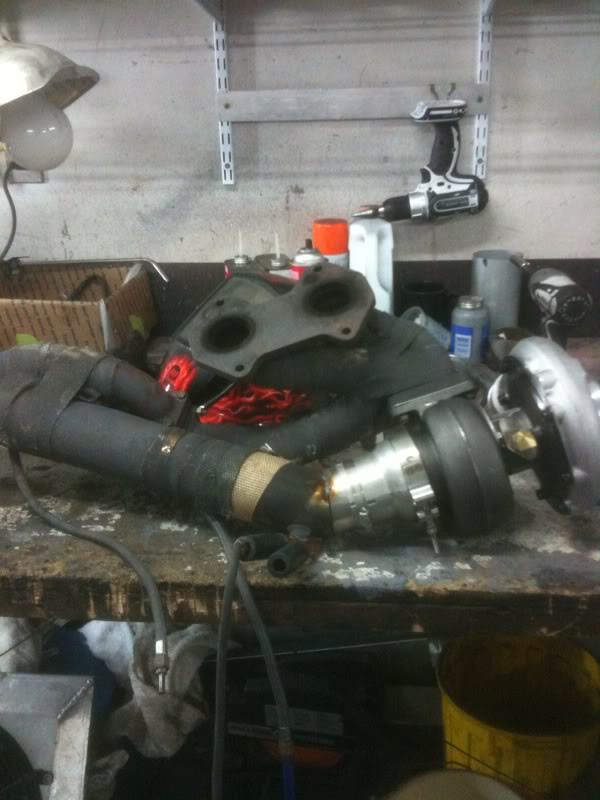

Adapted the Greddy kit's downpipe to work with the S366 (T78 uses a 4 bolt flange)


Pretty tight but it fits

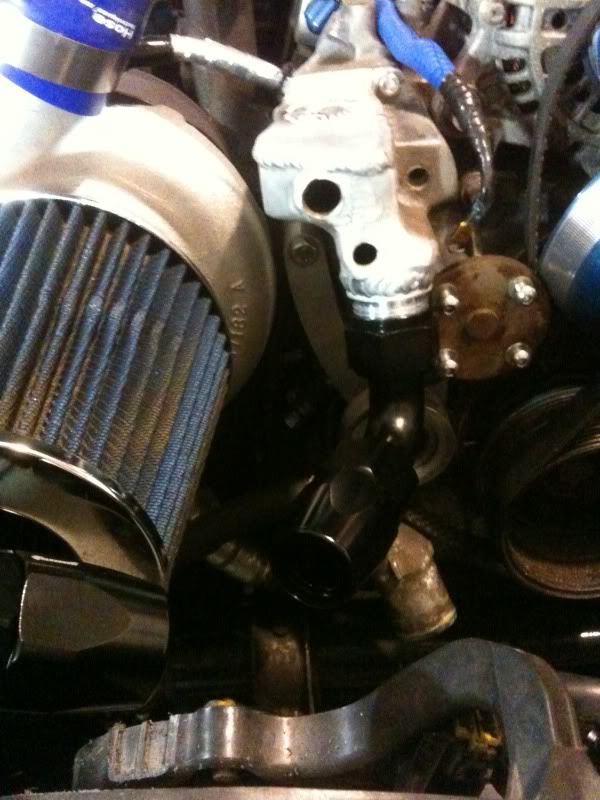

You can kind of see about where I had to notch the side of the V-Band Clamp (not the vband flange itseft) to clear the front runner on the LIM. I trimmed off a 1/4" wide piece of material about 1" long. The clamp still had plenty of meat on it to do its job.

2RotorsNaDream

iTrader: (7)

That's what I was looking for, thanks a lot. At least that's one less thing to worry about.

The car looks like it's coming out good man, you think it'll be ready for next years meets?

TwinCharged RX7

iTrader: (14)

It will be done prior to Deals Gap so I should be able to get to some meets next year. The only thing I probably won't be done with is the BBK, but that can wait until next winter.

2RotorsNaDream

iTrader: (7)

Anyone know about an HKS manifold that came with the T04Z kit? I have both the HKS and Greddy, if the HKS fits better I can use that.

MOBEONER

iTrader: (18)

The greddy fits better
HKS is for babys, lol

backroad-junkie

iTrader: (3)

bump for having the same dilemma

Supraman522

iTrader: (4)

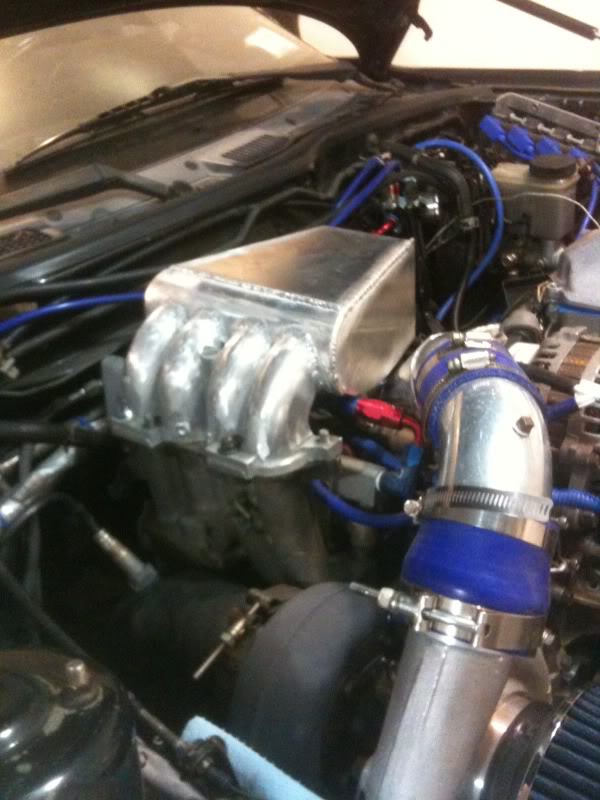

That is an interesting intake..Did you fab that yourself?
