Hey guys, I bought my FD with most of the mods already done to it. I spent the last few months updating the fuel system to make it more dependable and wanted some incite on my setup before I get it tuned.
First of all, I am shooting for 550rwhp on E85. This fall/winter I would like to buy the Xcessive LIM and ID 1000cc Primaries and 2000cc Secondaries. Please let me know of any weak points in my current setup.
1993 RX7 R1
Garrett T04Z Turbo
Tial 44mm Waste Gate
Tial 50MM BOV
3" Down Pipe with Magnaflow Cat
HKS Ti 3" Exhaust
Walbro 450lph Pump
-8 Feed Line
-6 Return Line
Summit Racing Fuel Filter
Aeromotive FPR
Bosch 850cc Primaries
Bosch 1650cc Secondaries
Custom V-Mount Intercooler/Rad Setup
3" Intercooler Pipes
Emissions Removed
AEM V1 EMS
GM 3bar MAP Sensor
Stock Twin Oil Coolers
Greddy Elbow
NGK Plug Wires
HKS Twin Power
Battery Relocation To Passenger Side Storage Box
On to the part that I can not verify. Old owner stated the engine was rebuilt 6k miles ago which I can confirm with a rebuild tag on the front of the engine. I can not however confirm that the engine is street ported. It pulls -20 at idle so it seems a bit high for a ported engine. I am thinking about pulling the motor this winter for a rebuild as the oil pan leaks and it puffs a very little white smoke on start up.

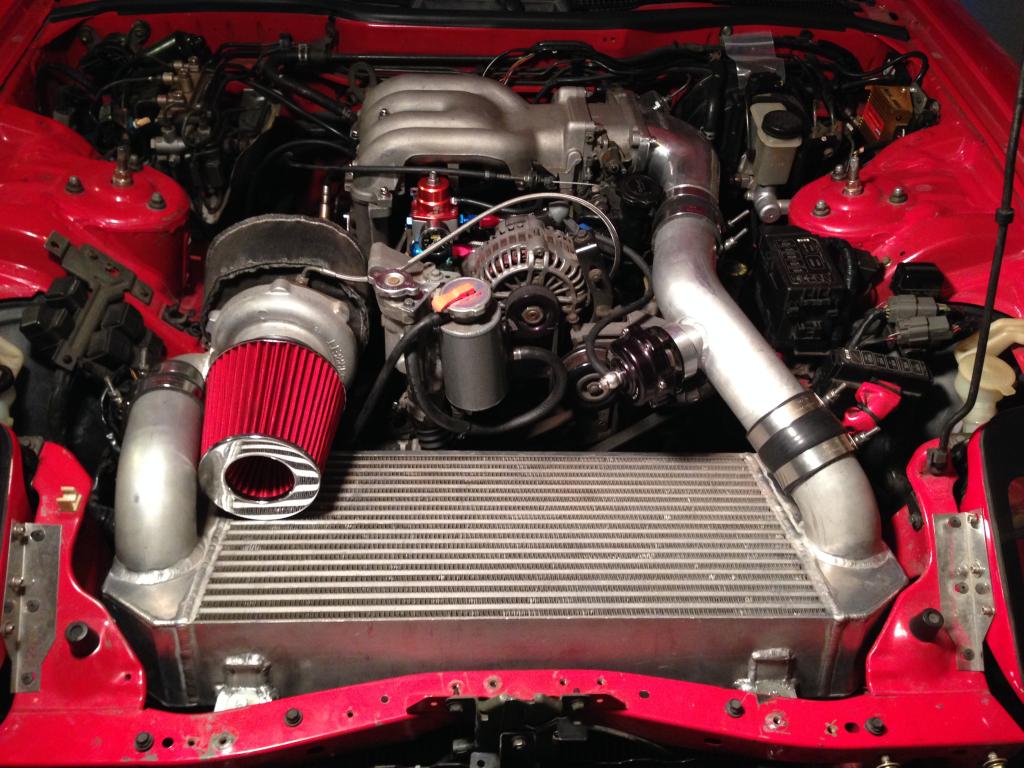

Photo: Dont mind the super awesome intake filter... It didnt come with one so I had to run out and get one from a parts store.
First of all, I am shooting for 550rwhp on E85. This fall/winter I would like to buy the Xcessive LIM and ID 1000cc Primaries and 2000cc Secondaries. Please let me know of any weak points in my current setup.
1993 RX7 R1
Garrett T04Z Turbo
Tial 44mm Waste Gate
Tial 50MM BOV
3" Down Pipe with Magnaflow Cat
HKS Ti 3" Exhaust
Walbro 450lph Pump
-8 Feed Line
-6 Return Line
Summit Racing Fuel Filter
Aeromotive FPR
Bosch 850cc Primaries
Bosch 1650cc Secondaries
Custom V-Mount Intercooler/Rad Setup
3" Intercooler Pipes
Emissions Removed
AEM V1 EMS
GM 3bar MAP Sensor
Stock Twin Oil Coolers
Greddy Elbow
NGK Plug Wires
HKS Twin Power
Battery Relocation To Passenger Side Storage Box
On to the part that I can not verify. Old owner stated the engine was rebuilt 6k miles ago which I can confirm with a rebuild tag on the front of the engine. I can not however confirm that the engine is street ported. It pulls -20 at idle so it seems a bit high for a ported engine. I am thinking about pulling the motor this winter for a rebuild as the oil pan leaks and it puffs a very little white smoke on start up.
Photo: Dont mind the super awesome intake filter... It didnt come with one so I had to run out and get one from a parts store.
#3
I am running two 1000cc primary injectors and four 2000cc secondary injectors. Not to hijack your thread but I am wondering why you are recommending six 1300cc injectors. Also why ID?
Thanks!
-Andrew
Thanks!
-Andrew
#6
So I will need to run six injectors to hit my 550whp goal on E85? The guy I bought the car from has a dyno sheet showing 485 with ignition breakup before he installed the HKS Twin Power.
How would I run 6 injectors? I think I would opt for 2 1000cc and 4 2000cc if I went that route. I would assume I would then have to upgrade to twin pumps (which I dont want to do) or get a larger, higher flow pump.
Also the Cat was coming out when I redo the midpipe with a mid muffler. The car is stupid loud right now.
How would I run 6 injectors? I think I would opt for 2 1000cc and 4 2000cc if I went that route. I would assume I would then have to upgrade to twin pumps (which I dont want to do) or get a larger, higher flow pump.
Also the Cat was coming out when I redo the midpipe with a mid muffler. The car is stupid loud right now.
#7
Racing Rotary Since 1983
iTrader: (6)
let's start w the basics... here's your turbo
it is a "mid-size" turbo w 7.0 average sq inches of compressor area. turbos in this range generally make about 550 tops. the TO4Z is a bit unusual in that it has a 63 trim. less spool, midrange, more top end. many turbos in the 7 inch area have 52 trims.
it takes about 73 pounds per minute to make 550 on a rotary. the map is a bit odd because it stops at 68% efficiency. there is a bit more output as you slide down to the more normal endpoint of 60% albeit at less oxygen per pound.
so you could extend the map a bit but note the RPM lines at around 70 becoming almost vertical. vertical is the end of the trail.
as to fuel....
73 pounds of air.... 7.3 pounds of fuel or 4349 CC per minute X 1.35 to adjust for lag and 85% duty cycle = 5871 CC/Minute of nominal injector requirements X 1..4 for E85 = 8219 CC to do 550 on E 85. this allows a reasonable reserve.
i just run 4 2200 cc Bosch EV14 injectors and have significant reserve at 577 SAE, 588 STD. it has yet to be determined exactly what the requirements are for E85 V gas.... 1.4 is conservative. i see less.
as to injectors... i have no problems w ID but they are fundamentally Bosch EV14 injectors and are all similar inside. all EV14s work w gas or alcohol. EV14s are the 21 st century injector w a fifth of the dynamic weight of your injectors. since they are far more controllable a 2200 CC injector can work very well in the primary position.
i don't know what your ECU capabilities are w re to running injectors but mine runs 2200 in the primary spots and they work just fine. IMO you don't need 6 injectors although there is nothing wrong w going that route.
since you are in Wisconsin my very best advice is to talk w Luke Stubbs at Beyond Redline in Green Bay and listen carefully.
mid muffler... Borla 40944. you will love it. i do
good luck,
Howard
it is a "mid-size" turbo w 7.0 average sq inches of compressor area. turbos in this range generally make about 550 tops. the TO4Z is a bit unusual in that it has a 63 trim. less spool, midrange, more top end. many turbos in the 7 inch area have 52 trims.
it takes about 73 pounds per minute to make 550 on a rotary. the map is a bit odd because it stops at 68% efficiency. there is a bit more output as you slide down to the more normal endpoint of 60% albeit at less oxygen per pound.
so you could extend the map a bit but note the RPM lines at around 70 becoming almost vertical. vertical is the end of the trail.
as to fuel....
73 pounds of air.... 7.3 pounds of fuel or 4349 CC per minute X 1.35 to adjust for lag and 85% duty cycle = 5871 CC/Minute of nominal injector requirements X 1..4 for E85 = 8219 CC to do 550 on E 85. this allows a reasonable reserve.
i just run 4 2200 cc Bosch EV14 injectors and have significant reserve at 577 SAE, 588 STD. it has yet to be determined exactly what the requirements are for E85 V gas.... 1.4 is conservative. i see less.
as to injectors... i have no problems w ID but they are fundamentally Bosch EV14 injectors and are all similar inside. all EV14s work w gas or alcohol. EV14s are the 21 st century injector w a fifth of the dynamic weight of your injectors. since they are far more controllable a 2200 CC injector can work very well in the primary position.
i don't know what your ECU capabilities are w re to running injectors but mine runs 2200 in the primary spots and they work just fine. IMO you don't need 6 injectors although there is nothing wrong w going that route.
since you are in Wisconsin my very best advice is to talk w Luke Stubbs at Beyond Redline in Green Bay and listen carefully.
mid muffler... Borla 40944. you will love it. i do
good luck,
Howard
Last edited by Howard Coleman; 09-04-14 at 01:02 PM.
