borg warner s300-66 (s366) Feedback

Single Turbo RX-7's Questions about all aspects of single turbo setups.

borg warner s300-66 (s366) Feedback

Reply




Old 04-22-12, 02:12 AM
  #1
500+hp club
5 Year Member
Thread Starter
iTrader: (26)

silverfdturbo6port's Avatar

Join Date: Sep 2007
Location: Spokane Wa
Posts: 2,212
Thanks: 0
Thanked 0 Times in 0 Posts
borg warner s300-66 (s366) Feedback

Im looking into getting a borg warner s366 turbo to replace my recent precison 6765 turbo. I enjoyed the precision response it offered but was not fond of the turbine wheel size for high boost applications. I know that the borg warner turbo has a considerably larger more rotary friendly wheel. I ran a .96 turbine housing on the precision turbo but would the 1.0 be necessary for they borg warner since the turbine wheel flow more? Id like to have good response and good flow for high boost like 30 psi on my street ported REW. Im also aware that I might be asking for too much and in order to have response I sacrifice flow or vise versa. But i figure its a shot in the dark. Any feedback from anyone with experience with the s366 would be greatly appreciated. thanks
silverfdturbo6port is offline
Reply With Quote
Old 04-22-12, 09:49 AM
  #2
Committee Member #3
iTrader: (7)

jm93rx7's Avatar

Join Date: Sep 2003
Location: S. Florida
Posts: 3,156
Thanks: 0
Thanked 0 Times in 0 Posts
Street port
.88 AR.... Love mines. You have already seen some of my videos. FC3S1991 has the same turbo maybe he can chime in on what he thinks also.
jm93rx7 is offline
Reply With Quote
Old 04-22-12, 12:55 PM
  #3
FD Project
iTrader: (58)

BLACK MAMBA's Avatar

Join Date: Apr 2009
Location: Palm Beach, FL
Posts: 2,352
Thanks: 0
Thanked 0 Times in 0 Posts
pretty happy with my S366, i have the divided .91 housing and this thing spools pretty quick, im still running a rough tune at 15 psi on the car.
BLACK MAMBA is offline
Reply With Quote
Old 04-22-12, 06:43 PM
  #4
500+hp club
5 Year Member
Thread Starter
iTrader: (26)

silverfdturbo6port's Avatar

Join Date: Sep 2007
Location: Spokane Wa
Posts: 2,212
Thanks: 0
Thanked 0 Times in 0 Posts
Hmm im still curious if .91 is big enough for 30psi and keep the backpressure down
silverfdturbo6port is offline
Reply With Quote
Old 04-22-12, 07:34 PM
  #5
FD Project
iTrader: (58)

BLACK MAMBA's Avatar

Join Date: Apr 2009
Location: Palm Beach, FL
Posts: 2,352
Thanks: 0
Thanked 0 Times in 0 Posts
The S366 XL has the option turbine housing. 1.00, 1.10, 1.25 a/r
BLACK MAMBA is offline
Reply With Quote
Old 04-22-12, 11:51 PM
  #6
d k
Junior Member
5 Year Member

Join Date: Jul 2009
Location: on a boat
Posts: 29
Thanks: 0
Thanked 0 Times in 0 Posts
Do you have the FMW?

Flat tip or cupped turbine?

At what rpm do you start spooling?


Originally Posted by FC3S1991 View Post
pretty happy with my S366, i have the divided .91 housing and this thing spools pretty quick, im still running a rough tune at 15 psi on the car.
d k is offline
Reply With Quote
Old 04-23-12, 12:48 AM
  #7
500+hp club
5 Year Member
Thread Starter
iTrader: (26)

silverfdturbo6port's Avatar

Join Date: Sep 2007
Location: Spokane Wa
Posts: 2,212
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by FC3S1991 View Post
The S366 XL has the option turbine housing. 1.00, 1.10, 1.25 a/r
yes i seen that. but with a bigger wheel they 1.0 might be laggy where the 1.0 on a 6766 precision might stop flowing
silverfdturbo6port is offline
Reply With Quote
Old 04-23-12, 08:54 AM
  #8
100% Rotary Since 1983
iTrader: (6)

Join Date: Oct 2001
Location: Wisconsin
Posts: 5,295
Thanked 27 Times in 20 Posts
i have no direct experience w the S366. i do have some dyno time on the 366's sister turbo, the S363.

if you go to Borg Warner's site, go to AirWerks and S300 you will find compressor maps for both turbos.

while the S363 is a 7.0 sq inch compressor wheel, the S366 is 7.7 sq inches... you would think it would flow around 10% more air... which is 10% more potential hp.

BW says NO.

both the 63 and the 66 flow 77 pounds per minute. the 63 at 35 PSI boost and the 66 at 41 PSI.

77 pounds of air is 580 rw rotary SAE hp max.

this is backed up by a PFS dyno sheet for an S366 which made 610 rwhp. this, however is Standard not SAE so the SAE number is 597. dynos of course vary a bit and my estimate is an estimate and can vary + or - a touch.

so is the 366 a better choice than the 363???

i found the 363 to work very well at higher rpms as evidenced by the lowest egts over 20 psi i have recorded... a stable 1540 F from 4500 to 8600. generally egts rise w RPM as backpressure/heat accumulates preturbo.

i attribute this to the large (in relation to the compressor) turbine wheel and 1.0 A/R on the hotside.

i don't see an advantage in going w the 66 over the 63 as you are swinging bigger wheels and getting no more air.

BTW, anything BW oriented... ScorpionT has the correct answer for you.

howard

Last edited by Howard Coleman CPR; 04-23-12 at 08:56 AM.
Howard Coleman CPR is offline
Reply With Quote
Old 04-23-12, 01:33 PM
  #9
500+hp club
5 Year Member
Thread Starter
iTrader: (26)

silverfdturbo6port's Avatar

Join Date: Sep 2007
Location: Spokane Wa
Posts: 2,212
Thanks: 0
Thanked 0 Times in 0 Posts
That is pretty good egt's.
Thanks for the info Howard but dont you mena the s362 (s300 series turbo)?
I also have another problem. I built my manifold off of a precision 6765 and im wondering if the bw would sit any different on the manifold and have fitment issues?

Last edited by silverfdturbo6port; 04-23-12 at 01:38 PM.
silverfdturbo6port is offline
Reply With Quote
Old 04-23-12, 03:29 PM
  #10
100% Rotary Since 1983
iTrader: (6)

Join Date: Oct 2001
Location: Wisconsin
Posts: 5,295
Thanked 27 Times in 20 Posts
i am no expert on BW nomenclature. they win the award for zillions of "different" turbos if you just look at the tags. and they all vary a zillionth. i think the problem is marketing and doesn't lie w BW, rather the dealers attempting to gain a proprietary foothold. (which i do not condemn, it is good old american capitalism but does muddy the water)

anyway, if you go to the source.... BW...

you will find they have a series of turbos that share the same general frame/size.

in the S300 category you have the 62, 63 and 66. (inducer size)

so you can call one of them an S300/63, or a S363. each do have different wheel dimensions.

my BW is the S300/63 or if you want to get technical BW PN 177283. 1.00 T4 divided hotside. V band back end.

it will bolt to any T4 manifold and you will need to alter your downpipe, as it has a larger than 3 inch V band.

if your P is a T3, of course, you would need to swap in a T4 flange.

howard

Last edited by Howard Coleman CPR; 04-23-12 at 09:20 PM.
Howard Coleman CPR is offline
Reply With Quote
Old 04-23-12, 04:22 PM
  #11
FD Project
iTrader: (58)

BLACK MAMBA's Avatar

Join Date: Apr 2009
Location: Palm Beach, FL
Posts: 2,352
Thanks: 0
Thanked 0 Times in 0 Posts
i don't know about the turbo fitment, i think the s366 is a little bigger than the precision.

but your down pipe wont work with it, the BW turbos have a special exhaust housing outlet that uses 20 degree taper "marmon" style V-Band flanges also the size of this V-band is 3.5"
BLACK MAMBA is offline
Reply With Quote
Old 04-23-12, 06:09 PM
  #12
500+hp club
5 Year Member
Thread Starter
iTrader: (26)

silverfdturbo6port's Avatar

Join Date: Sep 2007
Location: Spokane Wa
Posts: 2,212
Thanks: 0
Thanked 0 Times in 0 Posts
I apreciate the input and great info. I will put all into consideration before choosing
silverfdturbo6port is offline
Reply With Quote
Old 04-23-12, 06:44 PM
  #13
PDF
Full Member
10 Year Member

Join Date: Nov 2003
Location: .
Posts: 181
Thanks: 0
Thanked 0 Times in 0 Posts
The S363 is a great turbo with excellent response. For what its worth the 62mm FMW will flow 71lb max, and the 60mm cast (S360) 68lb. As mentioned above the 63mm cast wheel will do 77lb, very similar to the 66mm cast.
PDF is offline
Reply With Quote
Old 04-23-12, 06:49 PM
  #14
Cav Scout
5 Year Member
iTrader: (4)

MazdaSpeedDan's Avatar

Join Date: Jul 2005
Location: Indiana
Posts: 1,091
Thanks: 0
Thanked 0 Times in 0 Posts
I just bought a BW s366, the vband that comes with it does it make it 3'? or do you need a reducer from 3 1/2 to 3'?
MazdaSpeedDan is offline
Reply With Quote
Old 04-23-12, 07:33 PM
  #15
FD Project
iTrader: (58)

BLACK MAMBA's Avatar

Join Date: Apr 2009
Location: Palm Beach, FL
Posts: 2,352
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by MazdaSpeedDan View Post
I just bought a BW s366, the vband that comes with it does it make it 3'? or do you need a reducer from 3 1/2 to 3'?
some people insert their 3" pipe inside the 3.5 flange and fill the gap when they weld it, or you could get a reducer. I went with a full 3.5 downpipe and reduce it at the midpipe.
BLACK MAMBA is offline
Reply With Quote
Old 04-23-12, 08:41 PM
  #16
Cav Scout
5 Year Member
iTrader: (4)

MazdaSpeedDan's Avatar

Join Date: Jul 2005
Location: Indiana
Posts: 1,091
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by FC3S1991 View Post
some people insert their 3" pipe inside the 3.5 flange and fill the gap when they weld it, or you could get a reducer. I went with a full 3.5 downpipe and reduce it at the midpipe.
Ok, i ended up picking up a reducer just in case, thanks
MazdaSpeedDan is offline
Reply With Quote
Old 04-23-12, 09:45 PM
  #17
500+hp club
5 Year Member
Thread Starter
iTrader: (26)

silverfdturbo6port's Avatar

Join Date: Sep 2007
Location: Spokane Wa
Posts: 2,212
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by MazdaSpeedDan View Post
Ok, i ended up picking up a reducer just in case, thanks
Most exhaust benders has a tubing flare tool on it so just flare the 3" to fit tight into the 3.5" and you save your self money on a reducer and a cleaner more professional look.

On a side note Ive been talking to Turboblown Engineering and comp turbo is going to make me a custom turbo. A 6771 with a ct43 compressor 1.0 turbine housing. Not sure if i want ball bearing or not yet
silverfdturbo6port is offline
Reply With Quote
Old 04-23-12, 10:42 PM
  #18
FD Project
iTrader: (58)

BLACK MAMBA's Avatar

Join Date: Apr 2009
Location: Palm Beach, FL
Posts: 2,352
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by silverfdturbo6port View Post
Most exhaust benders has a tubing flare tool on it so just flare the 3" to fit tight into the 3.5" and you save your self money on a reducer and a cleaner more professional look.

On a side note Ive been talking to Turboblown Engineering and comp turbo is going to make me a custom turbo. A 6771 with a ct43 compressor 1.0 turbine housing. Not sure if i want ball bearing or not yet

if your going custom, might as well and spend the extra money for ball bearing setup.

Elliot will build you a nice turbo and you will be very happy with it.
BLACK MAMBA is offline
Reply With Quote
Old 04-23-12, 10:53 PM
  #19
500+hp club
5 Year Member
Thread Starter
iTrader: (26)

silverfdturbo6port's Avatar

Join Date: Sep 2007
Location: Spokane Wa
Posts: 2,212
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by FC3S1991 View Post
if your going custom, might as well and spend the extra money for ball bearing setup.

Elliot will build you a nice turbo and you will be very happy with it.
Ball bearing costs more and ive never had a laggy turbo that was jb so in a sense I dont think i really need a bb turbo.
We will see what happens.
silverfdturbo6port is offline
Reply With Quote
Old 04-29-12, 07:25 PM
  #20
Cav Scout
5 Year Member
iTrader: (4)

MazdaSpeedDan's Avatar

Join Date: Jul 2005
Location: Indiana
Posts: 1,091
Thanks: 0
Thanked 0 Times in 0 Posts
We just installed my BW s366 and I can tell you that it is a great turbo, has a awesome whine right when it comes out of vacuum. It fits a bit tight in there though.
MazdaSpeedDan is offline
Reply With Quote
Old 04-29-12, 08:10 PM
  #21
FD Project
iTrader: (58)

BLACK MAMBA's Avatar

Join Date: Apr 2009
Location: Palm Beach, FL
Posts: 2,352
Thanks: 0
Thanked 0 Times in 0 Posts

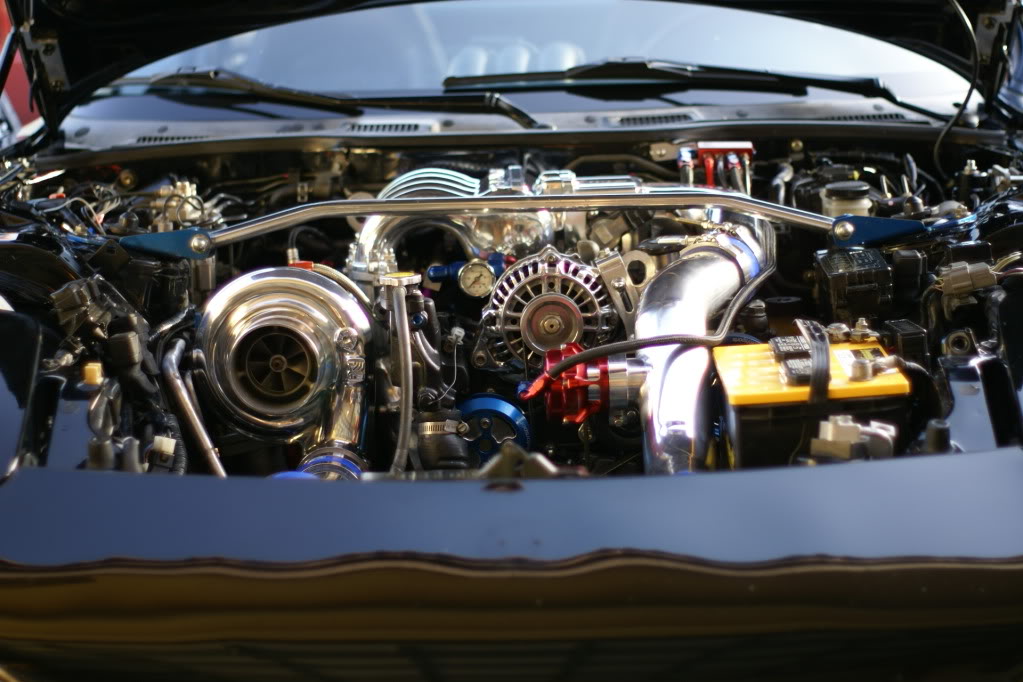

mine fits perfect.

Name:  005-30.jpg
Views: 891
Size:  115.0 KB
BLACK MAMBA is offline
Reply With Quote
Old 04-29-12, 08:27 PM
  #22
Cav Scout
5 Year Member
iTrader: (4)

MazdaSpeedDan's Avatar

Join Date: Jul 2005
Location: Indiana
Posts: 1,091
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by FC3S1991 View Post
mine fits perfect.

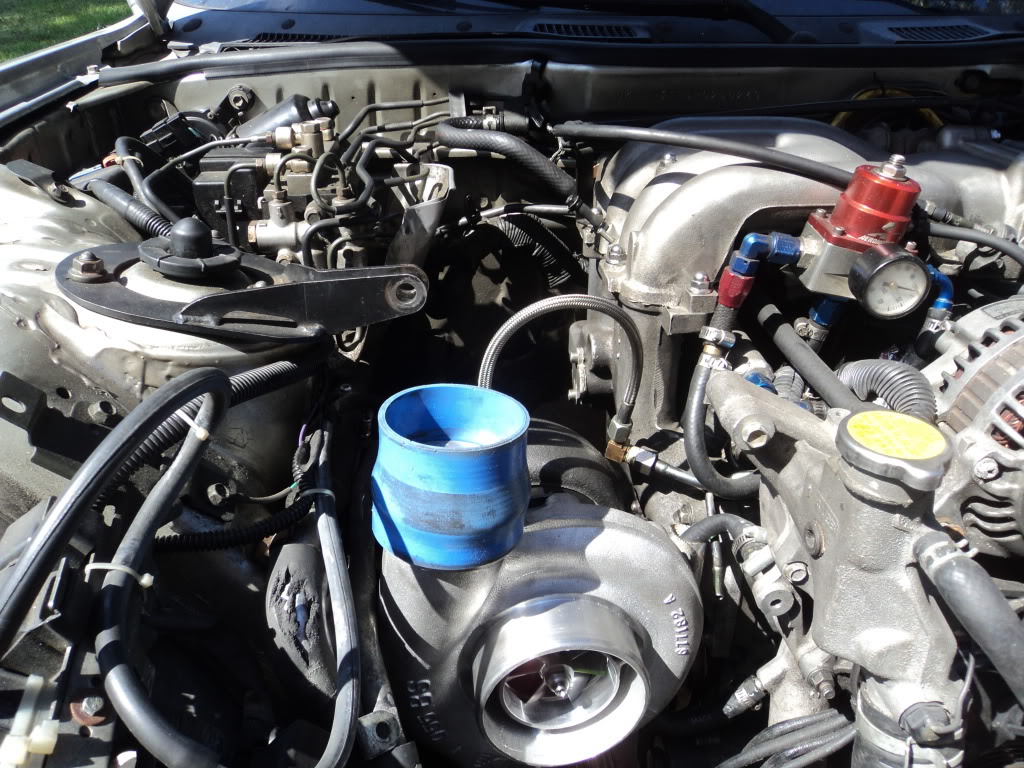

Mine is a tight fit, due to my manifold apparantly.

Name:  DSC01356.jpg
Views: 769
Size:  191.2 KB
MazdaSpeedDan is offline
Reply With Quote
Old 04-29-12, 09:54 PM
  #23
Full Member
iTrader: (7)

Join Date: Mar 2010
Location: Bahamas
Posts: 222
Thanks: 0
Thanked 0 Times in 0 Posts
What manifolds are you guys running?
Highboost242 is offline
Reply With Quote
Old 04-29-12, 10:03 PM
  #24
Committee Member #3
iTrader: (7)

jm93rx7's Avatar

Join Date: Sep 2003
Location: S. Florida
Posts: 3,156
Thanks: 0
Thanked 0 Times in 0 Posts

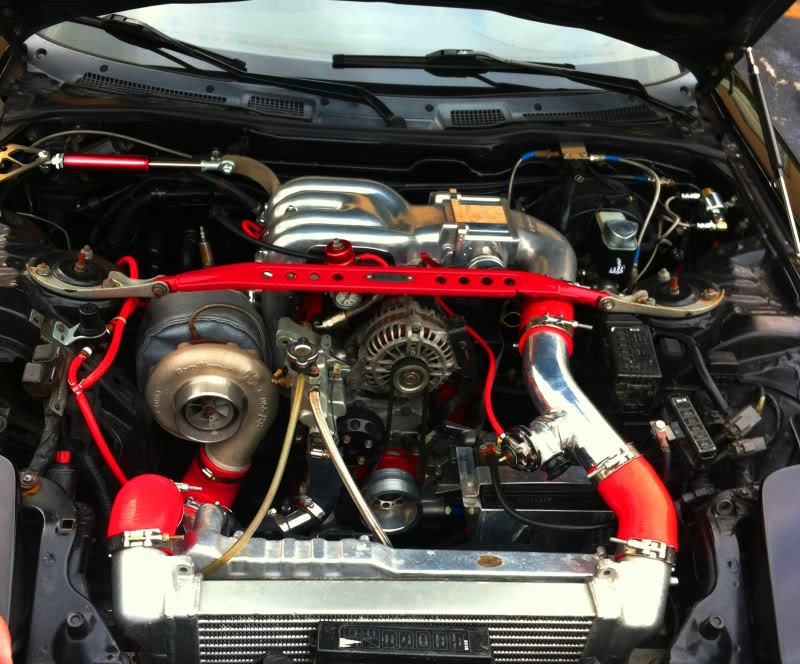

Modified Ebay manifold for now. New sturdy manifold being built..

Name:  EngineBay12-17-11.jpg
Views: 1207
Size:  127.6 KB
jm93rx7 is offline
Reply With Quote
Old 04-29-12, 11:08 PM
  #25
Original Gangster/Rotary!

iTrader: (204)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 29,970
Thanked 104 Times in 91 Posts
Damn, those compressor covers are freaking huge.

Mazdaspeed Dan, that oil feed setup looks er, less than ideal.
GoodfellaFD3S is offline
Reply With Quote

Thread Tools
Search this Thread
Quick Reply: borg warner s300-66 (s366) Feedback


Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
