Single Turbo RX-7's Questions about all aspects of single turbo setups.

Borg Warner EFR 9180

Old 12-13-16, 04:05 PM
  #301
Full Member

Brettus's Avatar

Join Date: Apr 2010
Location: New Zealand
Posts: 130
Received 0 Likes on 0 Posts
Originally Posted by thewird View Post

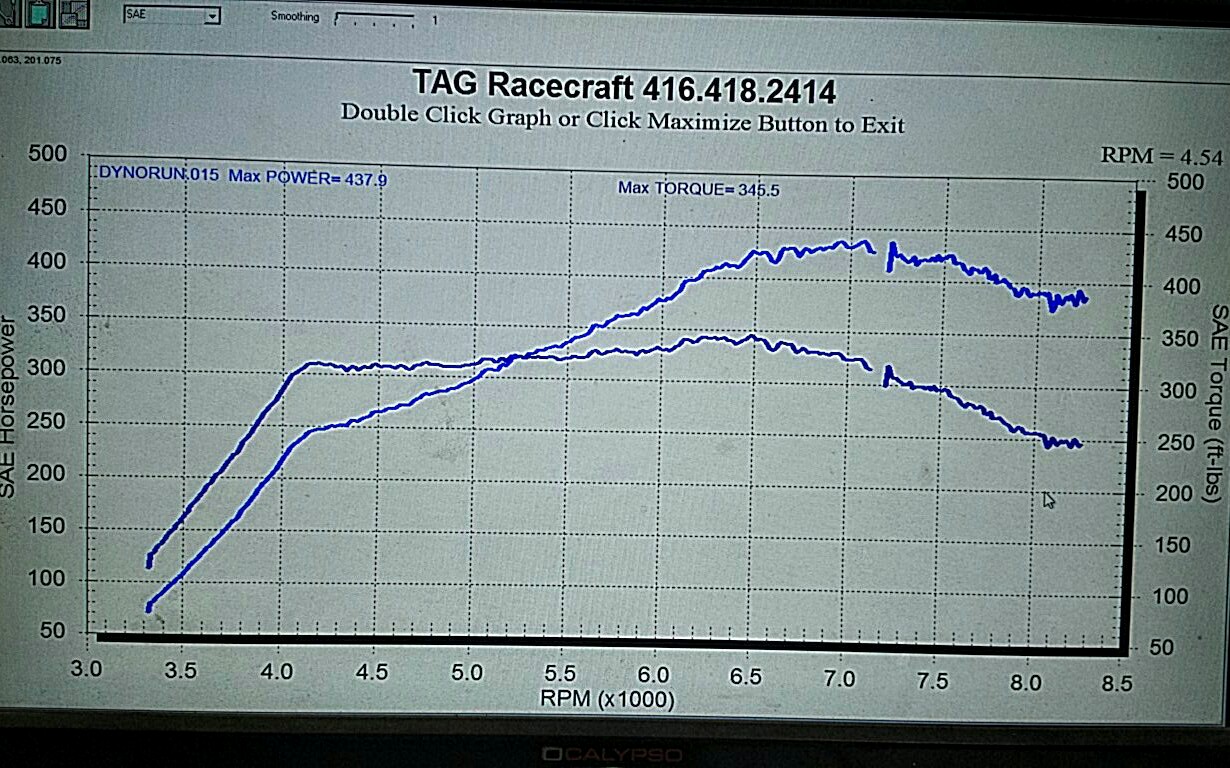

Here's a car I tuned a couple of weeks ago, 17 psi on pump gas... I didn't build the engine, only put it in and did the turbo install and whatnot so don't know about internals other then its an rew with some kind of not too big streetport.





thewird
Great to see these awesome results coming through . Any idea on why the peak power is so early and then tapers off ?
Brettus is online now
Old 12-13-16, 06:33 PM
  #302
Lives on the Forum
iTrader: (8)

thewird's Avatar

Join Date: Oct 2006
Location: Toronto, Canada
Posts: 6,586
Likes: 0
Received 1 Like on 1 Post
Originally Posted by Brettus View Post
Great to see these awesome results coming through . Any idea on why the peak power is so early and then tapers off ?
It's a small streetport or it would be holding torque. I didn't build the engine or it would have had a large streetport to match the big turbo hehe. The customer is probably going water/meth next year so it will be interesting to see how much torque it makes at 25 psi, I think the 9180 billet wheel is just starting to wake up (billet wheels typically need more boost to see the bigger advantage)

thewird
thewird is offline
Old 12-13-16, 08:48 PM
  #303
Full Member

Brettus's Avatar

Join Date: Apr 2010
Location: New Zealand
Posts: 130
Received 0 Likes on 0 Posts
Originally Posted by thewird View Post
It's a small streetport or it would be holding torque. I didn't build the engine or it would have had a large streetport to match the big turbo hehe. The customer is probably going water/meth next year so it will be interesting to see how much torque it makes at 25 psi, I think the 9180 billet wheel is just starting to wake up (billet wheels typically need more boost to see the bigger advantage)

thewird
So .... limited by the intake porting ?
Brettus is online now
Old 12-13-16, 11:13 PM
  #304
Lives on the Forum
iTrader: (8)

thewird's Avatar

Join Date: Oct 2006
Location: Toronto, Canada
Posts: 6,586
Likes: 0
Received 1 Like on 1 Post
Originally Posted by Brettus View Post
So .... limited by the intake porting ?
I wouldn't say limited per say but it is the cause of the peak torque at 6500 followed by a drop off vs a bigger port that holds torque longer. There definitely isn't a restriction in the exhaust system as its a 4" downpipe followed by the 3" straight through all the way to the back and the wastegates are open dump.

There are a multitude of reasons why any particular setup isn't making max power. This car was actually only making like 330 rwhp at the same boost a month earlier. After checking some stuff like boost leaks, I suggested addressing an ignition upgrade (even though it technically shouldn't need it with the HKS twin power) to the Sakebomb ignition kit. This would eliminate coils and wires instead of having to spend time/money testing/replacing those components while upgrading the system at the same time. After installing the ignition kit power went up to about ~407 rwhp (again boost unchanged). I remembered the car was still running stock 9 plugs (new) and put in the colder race plugs and the power went up to the 437.9 rwhp that you see on the dyno I posted. I decided that was close enough to expected results and left it at that giving the car back to the customer since he was happy at that point.

thewird

Last edited by thewird; 12-13-16 at 11:19 PM.
thewird is offline
Old 12-15-16, 06:49 AM
  #305
F'n Newbie...
iTrader: (5)

fendamonky's Avatar

Join Date: Sep 2006
Location: Nokesville, Va
Posts: 3,269
Received 46 Likes on 34 Posts
Originally Posted by thewird View Post
Here's a car I tuned a couple of weeks ago, 17 psi on pump gas... I didn't build the engine, only put it in and did the turbo install and whatnot so don't know about internals other then its an rew with some kind of not too big streetport.
This makes me happy to see. I've got a 9174 EWG with the aluminum center housing that I'll be running on the next motor. REALLY not looking for more than 500whp, just want linear power and the option to go mid-400whp without stressing the turbo.

If the 9180 looks like this, ideally the 9174 will do the same, but with boost coming on a little more to the left ^_^
fendamonky is offline
Old 12-15-16, 11:12 AM
  #306
Adaptronic Distributor
RX7Club Vendor
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,892
Received 26 Likes on 24 Posts
T4 1.05 efr 9180, semi pport 13bre, 22 to 23 psi, id2000 x 4 maxed out on e85, adaptronic e440d, ign1a DF, forgot exhaust size buts its 3.5 I think( definitly not 4).
Turblown is online now
Old 12-15-16, 11:27 AM
  #307
Lives on the Forum
iTrader: (8)

thewird's Avatar

Join Date: Oct 2006
Location: Toronto, Canada
Posts: 6,586
Likes: 0
Received 1 Like on 1 Post
.

Last edited by thewird; 12-15-16 at 08:02 PM.
thewird is offline
Old 12-15-16, 11:27 AM
  #308
Lives on the Forum
iTrader: (8)

thewird's Avatar

Join Date: Oct 2006
Location: Toronto, Canada
Posts: 6,586
Likes: 0
Received 1 Like on 1 Post
Originally Posted by Turblown View Post
T4 1.05 efr 9180, semi pport 13bre, 22 to 23 psi, id2000 x 4 maxed out on e85, adaptronic e440d, ign1a DF, forgot exhaust size buts its 3.5 I think( definitly not 4).
Do you have the full dyno graph?

thewird

Last edited by thewird; 12-15-16 at 08:01 PM.
thewird is offline
Old 12-15-16, 11:32 AM
  #309
Full Member

MaD^94Rx7's Avatar

Join Date: Dec 2002
Location: Malta (Europe)
Posts: 166
Received 2 Likes on 2 Posts
Have you got a few Eugene maps for E85 2 rotors ?
MaD^94Rx7 is offline
Old 01-10-17, 02:39 PM
  #310
Garage Hero
iTrader: (93)

mannykiller's Avatar

Join Date: Aug 2009
Location: Quartz Hill
Posts: 4,203
Likes: 0
Received 8 Likes on 8 Posts
Originally Posted by thewird View Post
Do you have the full dyno graph?

thewird
Hey whats up man!

This is my Tuner/Engine Builders Personal Street car I didn't video his last couple runs when he cranked up the boost. But here was one of the runs

mannykiller is offline
Old 01-11-17, 03:43 AM
  #311
Lives on the Forum
iTrader: (8)

thewird's Avatar

Join Date: Oct 2006
Location: Toronto, Canada
Posts: 6,586
Likes: 0
Received 1 Like on 1 Post
Any idea on why the turbo is waking up so late?

thewird
thewird is offline
Old 01-11-17, 02:23 PM
  #312
Garage Hero
iTrader: (93)

mannykiller's Avatar

Join Date: Aug 2009
Location: Quartz Hill
Posts: 4,203
Likes: 0
Received 8 Likes on 8 Posts
Originally Posted by thewird View Post
Any idea on why the turbo is waking up so late?

thewird

Hmmh.....Not that late in comparison to say a GTX40.... It's still only a 2 Rotor.


On my car running the 9174... I noticed the lazier response immediately. And my engine isn't nearly as aggressively ported as Abels Rx2 Above. For my needs....the 9174 is too lazy. I want full boost asap all the time, which is why i'm going back to the 8374
mannykiller is offline
Old 01-11-17, 02:56 PM
  #313
Garage Hero
iTrader: (93)

mannykiller's Avatar

Join Date: Aug 2009
Location: Quartz Hill
Posts: 4,203
Likes: 0
Received 8 Likes on 8 Posts
But looking at the video graph, He's still got 400 Ftlbs at 5k RPM.


Also.. Abel does this thing on the dyno where he rolls in the TPS. Where a lot of Tuners Hold 100% from a real low RPM all the way to redline. That could be it as well.

Here's my Dyno graph with the 9174...same style...rolling in the TPS
9174 17Lbs
Name:  20161214_221045_zps8wyxpn70.jpg
Views: 240
Size:  7.67 MB
8374 20 lbs Same rolling in TPS
Name:  20160519_000036_zpsm1ufpvtn.jpg
Views: 242
Size:  7.44 MB
mannykiller is offline
Old 01-11-17, 03:20 PM
  #314
Very Stable Genius
iTrader: (1)

WANKfactor's Avatar

Join Date: May 2011
Location: omnipresent
Posts: 1,262
Received 65 Likes on 58 Posts
Those two graphs, is it just that the pulls were started at 4500 and 3600 rpm? If so it doesnt really represent turbo response, not that any dyno pull really does, but neither turbo is going to be nothing, nothing, wham like that. From i can see they both got up there pretty smartly.
WANKfactor is offline
Old 01-11-17, 04:13 PM
  #315
Garage Hero
iTrader: (93)

mannykiller's Avatar

Join Date: Aug 2009
Location: Quartz Hill
Posts: 4,203
Likes: 0
Received 8 Likes on 8 Posts
Originally Posted by WANKfactor View Post
Those two graphs, is it just that the pulls were started at 4500 and 3600 rpm? If so it doesnt really represent turbo response, not that any dyno pull really does, but neither turbo is going to be nothing, nothing, wham like that. From i can see they both got up there pretty smartly.
Yezzir. Thats what I had meant by "rolling tps."

All the EFR's are going to be responsive. I've just been spoiled...so what may seem like a resposive set up to someone who using a GTX is kind of meh.... for someone who's used a few different sizes of EFR.
mannykiller is offline
Old 01-12-17, 06:22 AM
  #316
Very Stable Genius
iTrader: (1)

WANKfactor's Avatar

Join Date: May 2011
Location: omnipresent
Posts: 1,262
Received 65 Likes on 58 Posts
Ah yes of course. My apologies. In my bleary eyed state I got the post where someone was asking why it was waking up so late mixed up with those graphs.
WANKfactor is offline
Old 01-12-17, 11:39 AM
  #317
Garage Hero
iTrader: (93)

mannykiller's Avatar

Join Date: Aug 2009
Location: Quartz Hill
Posts: 4,203
Likes: 0
Received 8 Likes on 8 Posts
Originally Posted by WANKfactor View Post
Ah yes of course. My apologies. In my bleary eyed state I got the post where someone was asking why it was waking up so late mixed up with those graphs.
Aint nothing to apologize for man
mannykiller is offline
