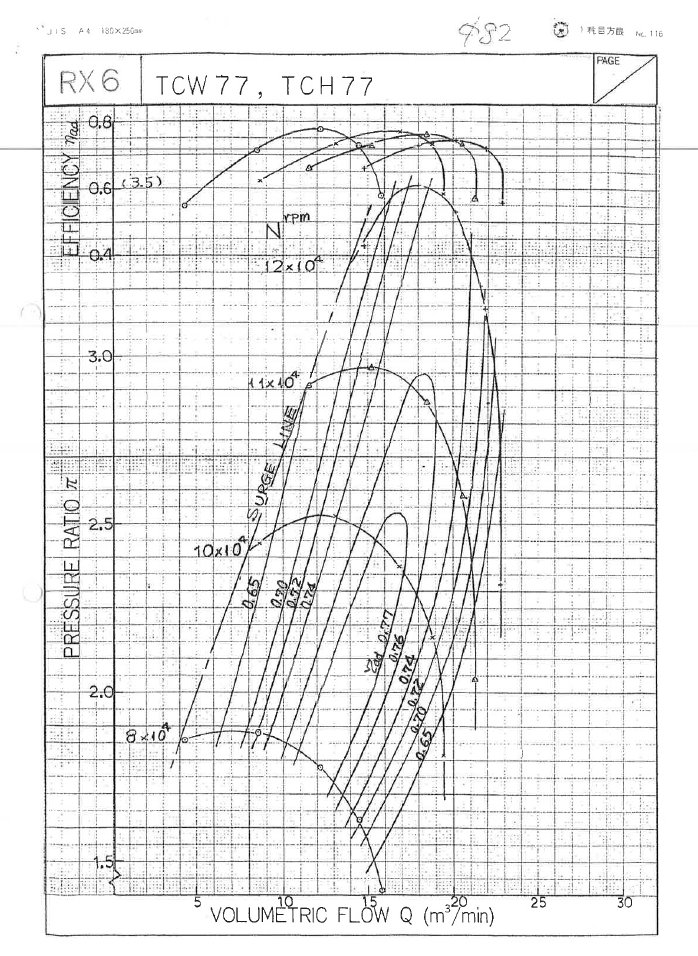

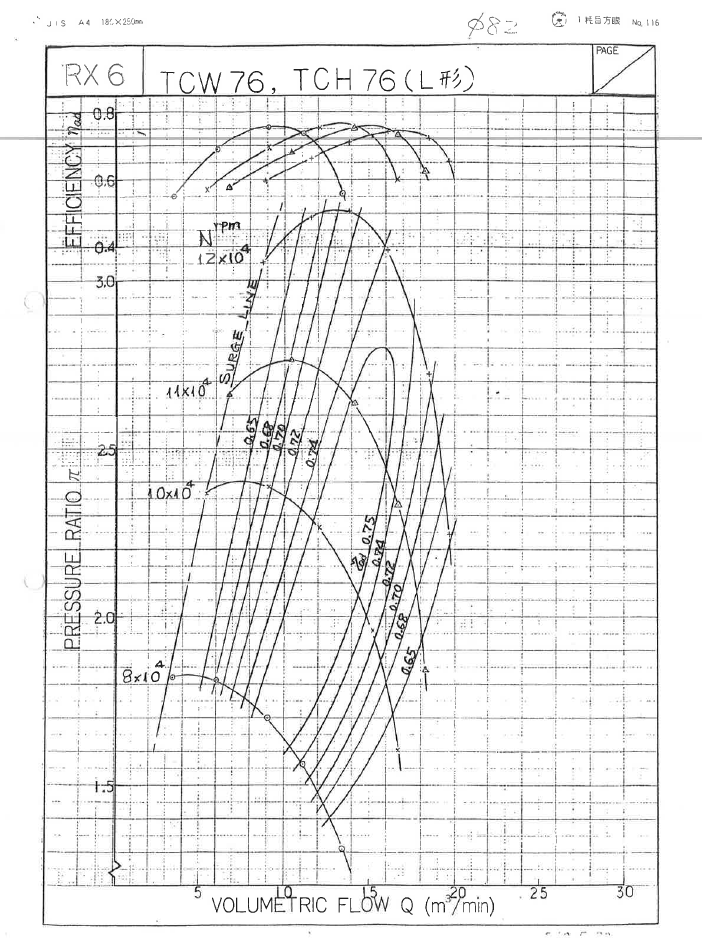

To the best of my knowledge, no one has ever posted compreossor maps for the RX6. Well, here you go.

https://www.dropbox.com/s/vsn59356al911wc/20151026110414.pdf?dl=0

Late news by now perhaps, but I thought it was interesting enough to share.



Thanks very much for the info! I'm in the midst of a build with a RX6D TCW77 P27 housing also so looking forward to your results.



No problem. where did you find yours ? If you need the turbo flanges you can still get them from power Enterprises if you email them directly.



Can you attach them as images to this thread so it's searchable in case the dropbox disappears?



I plan to but I only have it as a PDF file and between work and going to sleep last night I haven't been able to get on my computer to cut it into an image so that I could just post it into the forum. So I posted it through dropbox on my phone just to get it out there



Attached

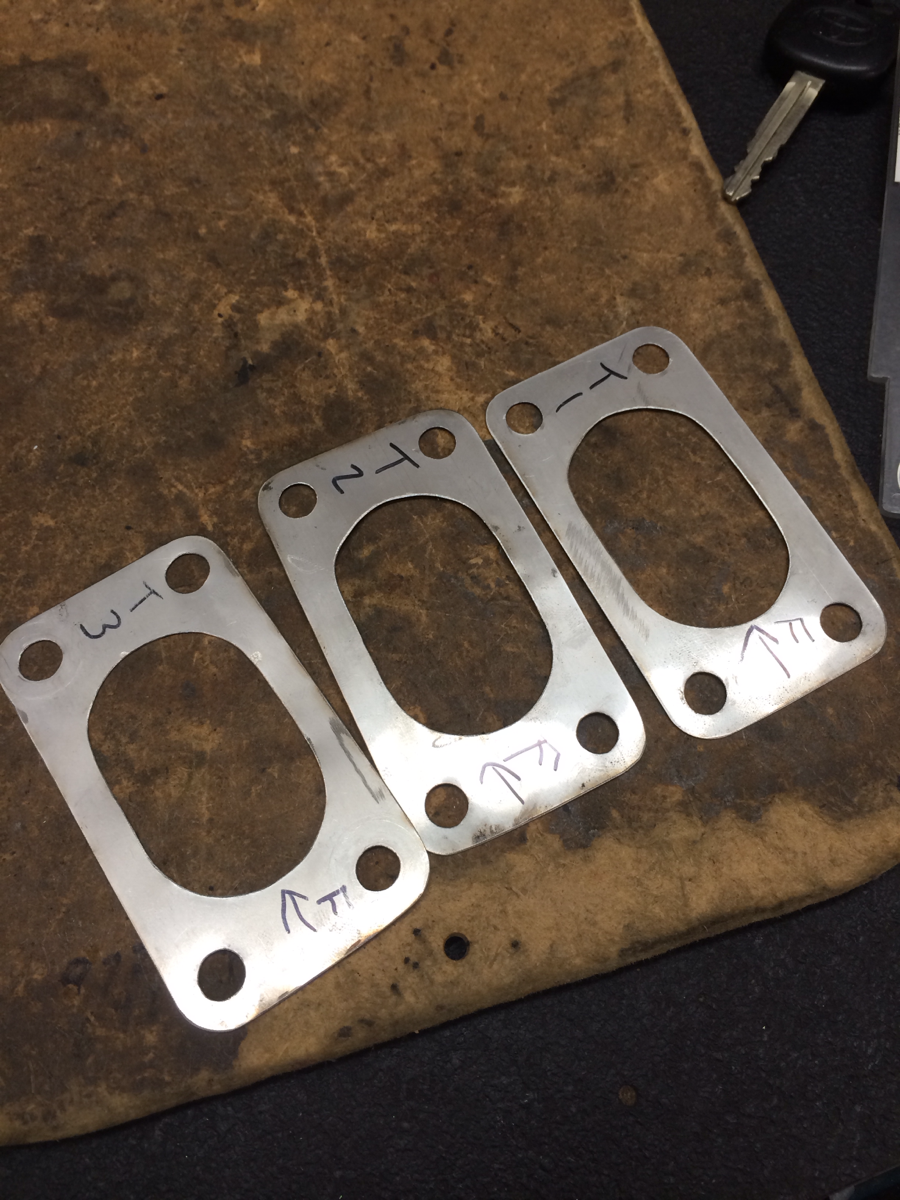

Wow thanks very much for the info about power enterprises. And I just spent around 3 hours making a new gasket for the turbo inlet. And looks like they sell one for about 25$. I searched and could not find the gasket anywhere.... Disappointed in my interwebz skillz



Haha, well you didn't do too bad for cutting your own gaskets. I used to cut a lot of them in the Coast Guard, but it was usually out of Garlock or graphite. Didn't quite take 3 hours lol. at least you can order the down pipe flange.

What stage of your build are you on?
