Front Wide Fenders 20mm

Reply



Old 06-10-14, 03:59 AM
  #1
Junior Member
10 Year Member
Thread Starter
iTrader: (3)

Join Date: May 2006
Location: dallas, tx
Posts: 29
Thanks: 0
Thanked 0 Times in 0 Posts
Smile Front Wide Fenders 20mm

Does anyone have this? Any pictures?

Thanks in advance!
tofu is offline
Reply With Quote
Old 06-10-14, 06:36 AM
  #2
Lives on the Forum
iTrader: (4)

David Hayes's Avatar

Join Date: Jun 2002
Location: FL
Posts: 6,046
Thanks: 0
Thanked 6 Times in 4 Posts

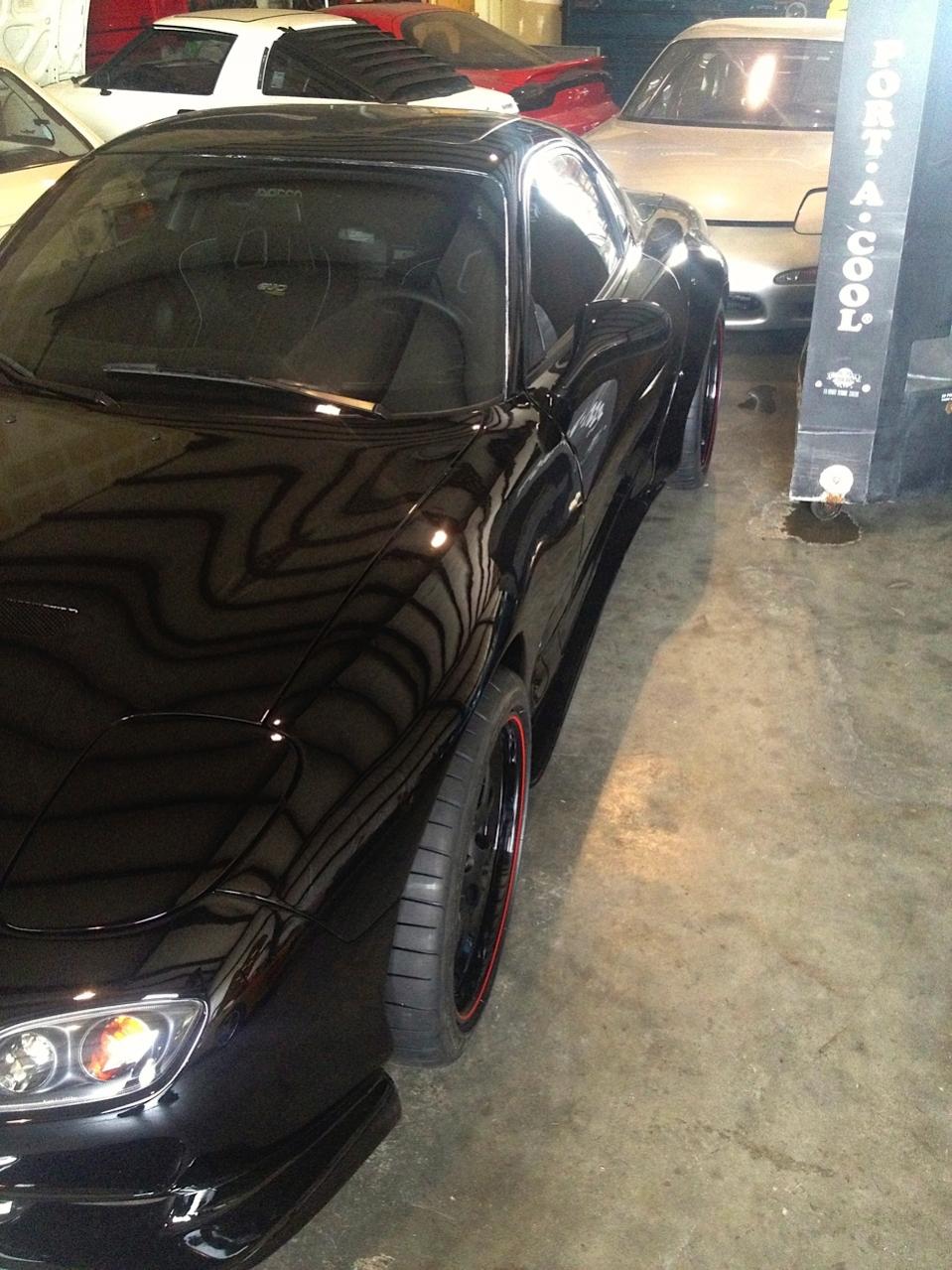

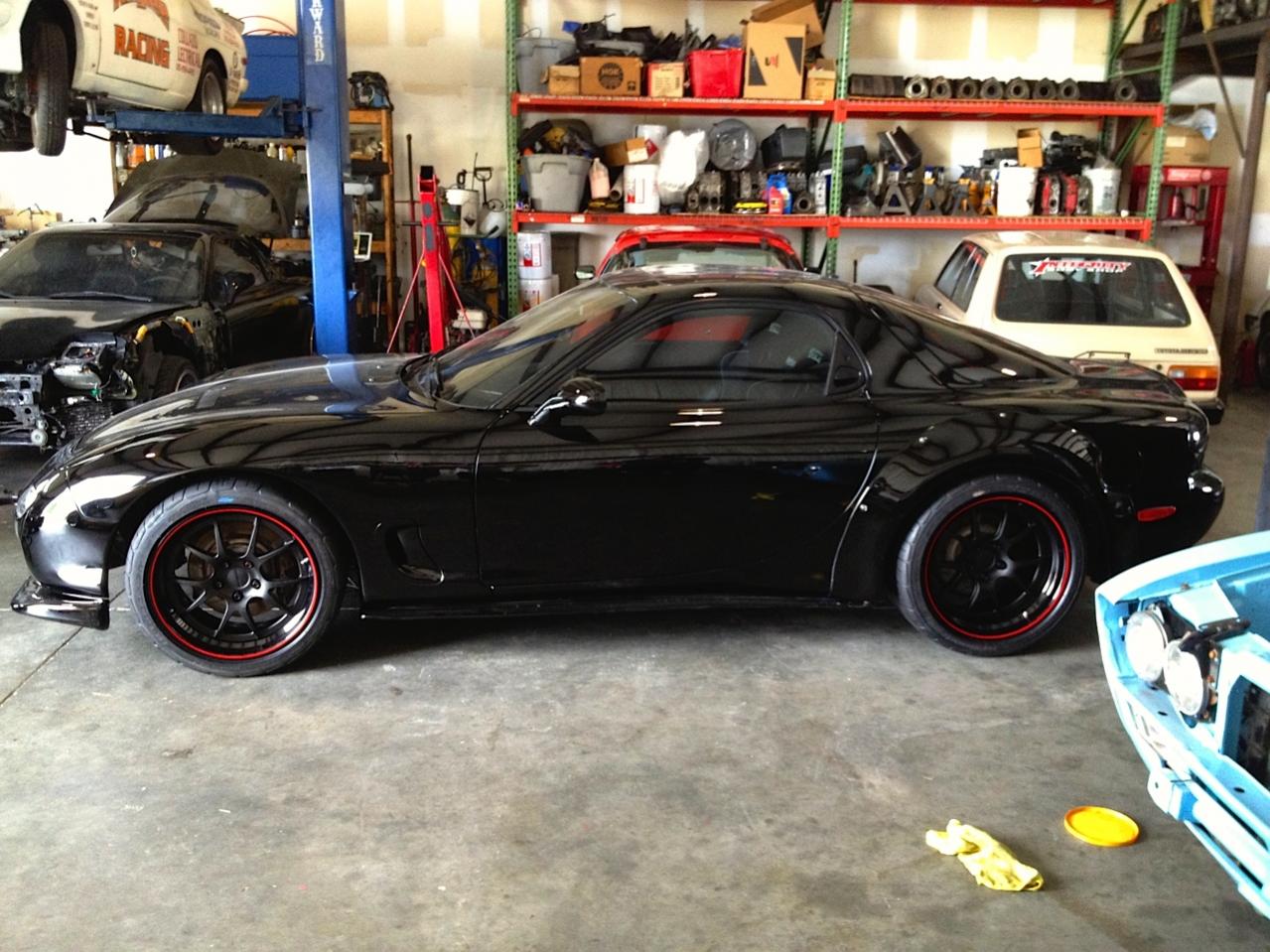

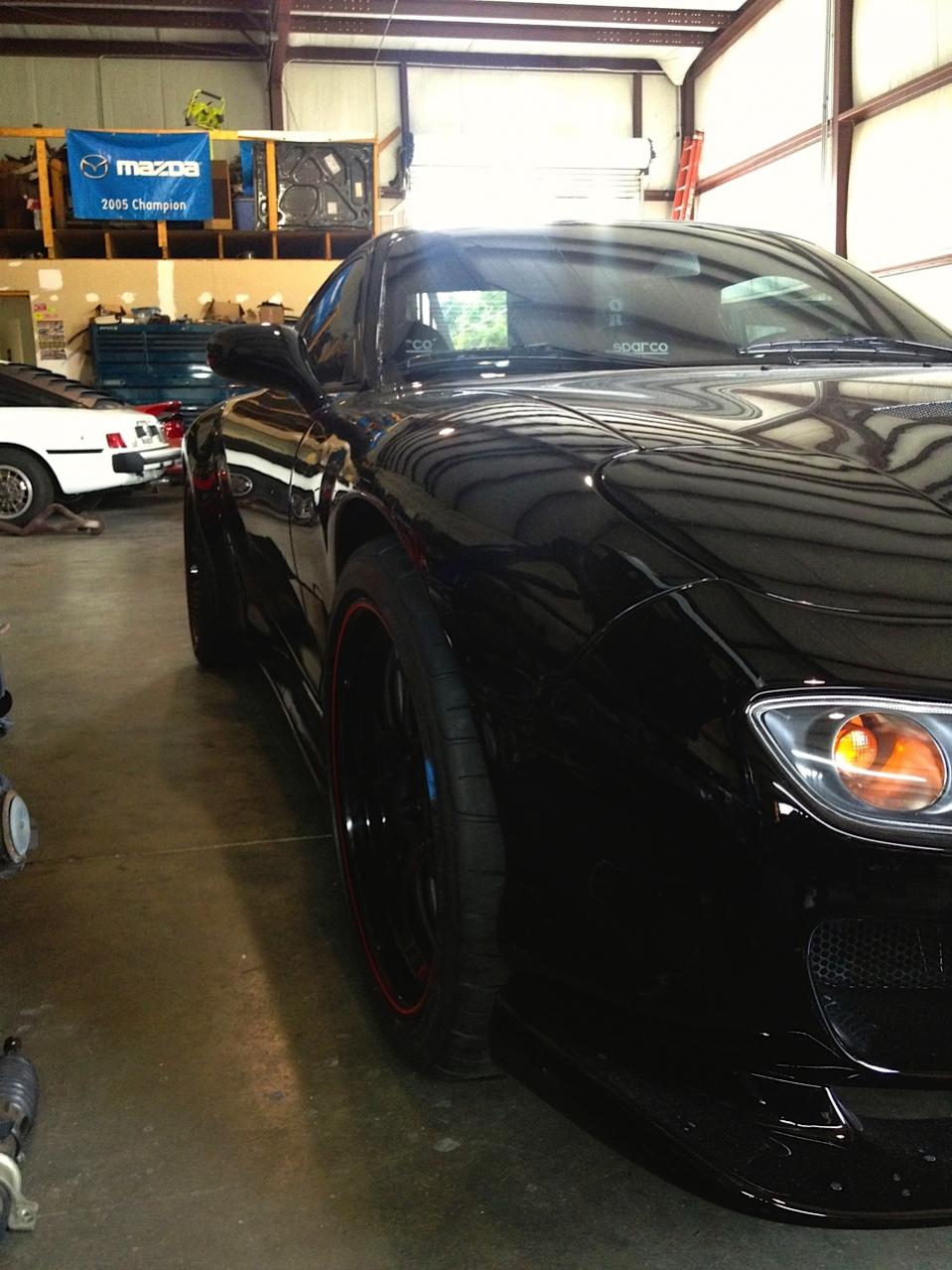

These are the Shine fenders which are 20mm wider. The rims are Forgeline GA3 three-piece matte black aluminum wheels, 10.0 X 18 on the front with a +30mm offset.







Attached Thumbnails Front Wide Fenders 20mm-image-2.jpg   Front Wide Fenders 20mm-image-3.jpg   Front Wide Fenders 20mm-image-5.jpg   Front Wide Fenders 20mm-image.jpg
David Hayes is offline
Reply With Quote
Old 06-10-14, 10:38 AM
  #3
Forum Vendor
iTrader: (3)

fd3s777's Avatar

Join Date: Sep 2003
Location: NY<=>TW
Posts: 2,116
Thanks: 0
Thanked 0 Times in 0 Posts
fd3s777 is offline
Reply With Quote
Old 01-06-16, 07:54 PM
  #4
dvo
Modern Mix
5 Year Member
iTrader: (22)

dvo's Avatar

Join Date: Apr 2009
Location: Los Angeles
Posts: 716
Thanks: 0
Thanked 0 Times in 0 Posts
Not my car, this used to belong to a friend but he sold the car. He did have the front fenders though.










dvo is offline
Reply With Quote
Old 09-13-17, 05:04 PM
  #5
Senior Member
iTrader: (6)

DJF(NJ)'s Avatar

Join Date: Sep 2005
Location: NJ
Posts: 342
Thanked 0 Times in 0 Posts
David Hayes, the fitment appears identical to stock from these pictures. Was there a considerable amount of prep work involved? How do, if at all, the fender liners attach being that the fenders are 20mm wider? What size tires are you running on the front?

Last edited by DJF(NJ); 09-13-17 at 05:06 PM.
DJF(NJ) is offline
Reply With Quote
Old 09-18-17, 10:19 AM
  #6
Lives on the Forum
iTrader: (4)

David Hayes's Avatar

Join Date: Jun 2002
Location: FL
Posts: 6,046
Thanks: 0
Thanked 6 Times in 4 Posts
The fitment is pretty much stock. Shine makes a good product but the fenders do come with some ripple in them that a body shop can take care of. I had a bit of an issue lining up the panel fitment on one on the back, where the panel meets the passenger door. Massaged it enough to be acceptable but could still use some work. Compared to other after market parts though, not much prep work needed.

Regarding the fender liners, there is a company out of the UK (Concept-7 - Quality, Innovative products for the FDRX7) that makes extenders for wider fenders like these. They are pretty inexpensive and I'd contact them as that would be the easiest way to go. You epoxy them to the Shine fender on the outer inside (if that makes sense) and then affix the stock liners to them. I did not have the time to wait for the extenders so we cut the OEM liner in half longways and then inserted a plastic liner extension in the middle to widen them out. We used a plastic trash can (no kidding) I bought from Lowes and them riveted the materials together. Looks really stock.

Hope this helps.
David Hayes is offline
Reply With Quote
The Following User Says Thank You to David Hayes For This Useful Post:
DJF(NJ) (09-19-17)
Old 09-19-17, 06:16 AM
  #7
Senior Member
iTrader: (6)

DJF(NJ)'s Avatar

Join Date: Sep 2005
Location: NJ
Posts: 342
Thanked 0 Times in 0 Posts
Helps quite a bit! Thanks so much!
