Rtek Stubborn.I need advice on the 2.1
#1
Retired Moderator, RIP
Thread Starter
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
Stubborn.I need advice on the 2.1
I got ths 2.1 from a Member and I don't know how he Configured it.I am running all 720's.
I don;t know If it is the Palm pilot itself or User error(me).I turn the Key on ,I get the [] on it,then Tap tune.I can't get the set up to go past that,and get the Injector Tab up to set the Injectors to Say all 720's
It leads me to a Fuel Map.
am I doing something wrong?
Please someone help.
If they have a Decent map for running all 720's and a S5 hybrid.please send it over..(misterstyx69@hotmail.com) I will try to load it up and see what the heck happens.
as of now,the car will start but Not Idle and shoots up to 3500..it will Keep running if I tap the gas,..suddenly after I tap the gas,it is like it Says"oh ya Gas",and Takes off on a REV..then starts to die down again to 500
I have to Finesse the gas in order to keep it going.
Honestly I think it may be a Vacuum leak involved with this.But Any suggestions are welcome,as I will try them all.
Thanks Gentlemen.Dave.
I don;t know If it is the Palm pilot itself or User error(me).I turn the Key on ,I get the [] on it,then Tap tune.I can't get the set up to go past that,and get the Injector Tab up to set the Injectors to Say all 720's
It leads me to a Fuel Map.
am I doing something wrong?
Please someone help.
If they have a Decent map for running all 720's and a S5 hybrid.please send it over..(misterstyx69@hotmail.com) I will try to load it up and see what the heck happens.
as of now,the car will start but Not Idle and shoots up to 3500..it will Keep running if I tap the gas,..suddenly after I tap the gas,it is like it Says"oh ya Gas",and Takes off on a REV..then starts to die down again to 500
I have to Finesse the gas in order to keep it going.
Honestly I think it may be a Vacuum leak involved with this.But Any suggestions are welcome,as I will try them all.
Thanks Gentlemen.Dave.
#3
Top Down, Boost Up
iTrader: (7)
When you're at the tune screen (w/ the fuel & timing maps up), you need to press the menu button on the palm. A drop-down menu will come up, and you select "ECU setup". See how it runs with the proper injector setting, then troubleshoot if the idle/driving problems are still there.
#4
Retired Moderator, RIP
Thread Starter
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
When you're at the tune screen (w/ the fuel & timing maps up), you need to press the menu button on the palm. A drop-down menu will come up, and you select "ECU setup". See how it runs with the proper injector setting, then troubleshoot if the idle/driving problems are still there.
I read the manual..I turned the key to ON and it would automatically take me to a Graph.
I will Try what you said RR..and see what it does.
BTW.I got it to RUN>it was a Vacuum leak.I put a Fighter's Garage IAT on it also..(that is How I found the Leak!!.)
It will Run Not Bad,with the STOCK ECU(N333) but it Flooded with the RTEK,and I could not start it.
I put the Stock Ecu back on,would not Start.deflooded and ran.It will not run Below 2500,smoothly.it will just fade down to Nothing.
So I need to Do something about the Rtek.(which I will do Tomorrow.)
.I do not have this Car ON the road right now.there are too many things getting done all at once(body kit.,gauge install,Fan install..etc,etc.).
I'll post with Results.
I really would like to Keep this ECU in my Car and run it.I sold the Megasquirt because Nobody would Give any support for it.
Thanks gents.STYX.
#5
Rotary Freak

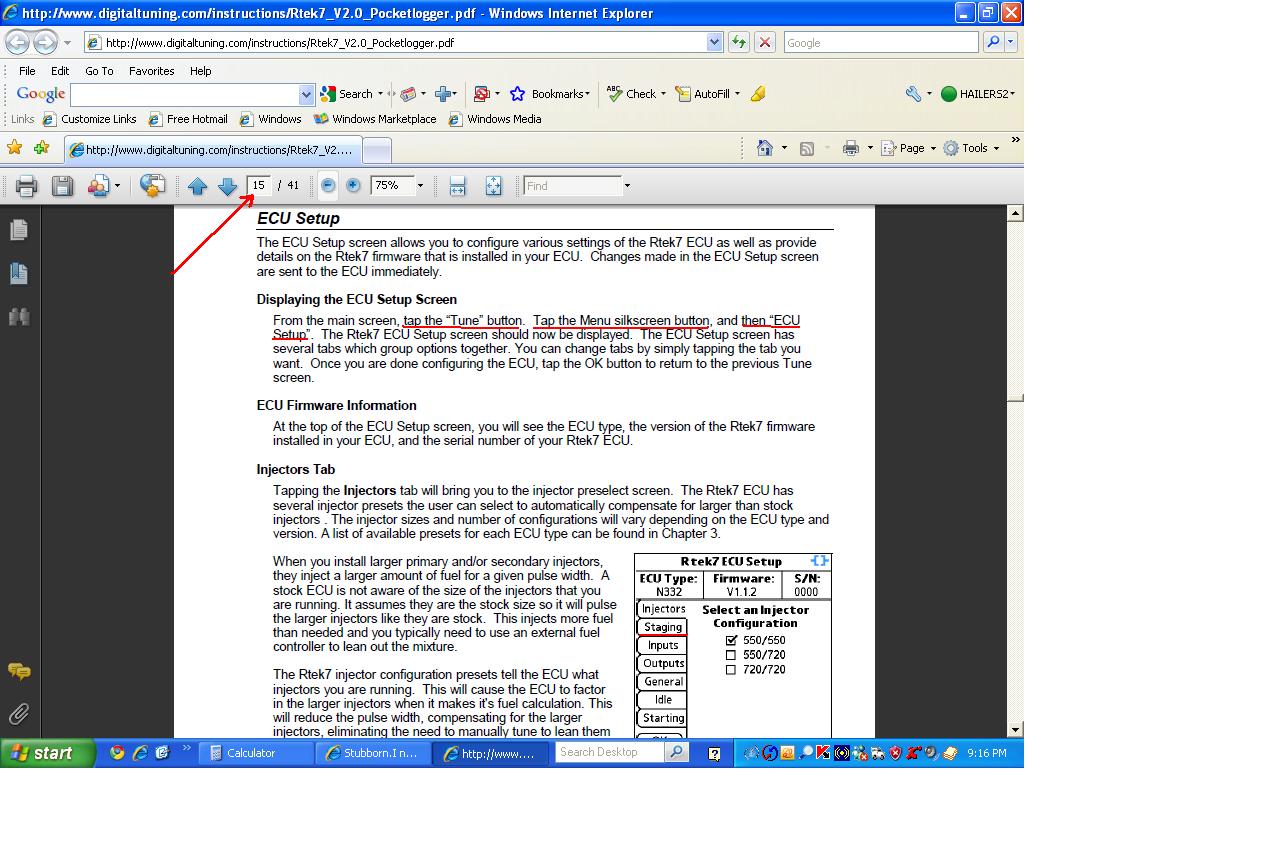

You've already gotten the answers, but I throw in page 15 in the attachment for further review.
While I"m here, does anybody know for sure what the latest greatest BUILD is???? Reason: laptop died a sudden death and my Palms all were dead as door nails to boot. So I'm *reloading* everything from scratch.
While I"m here, does anybody know for sure what the latest greatest BUILD is???? Reason: laptop died a sudden death and my Palms all were dead as door nails to boot. So I'm *reloading* everything from scratch.
#6
Top Down, Boost Up
iTrader: (7)
You've already gotten the answers, but I throw in page 15 in the attachment for further review.
While I"m here, does anybody know for sure what the latest greatest BUILD is???? Reason: laptop died a sudden death and my Palms all were dead as door nails to boot. So I'm *reloading* everything from scratch.
While I"m here, does anybody know for sure what the latest greatest BUILD is???? Reason: laptop died a sudden death and my Palms all were dead as door nails to boot. So I'm *reloading* everything from scratch.
http://www.digitaltuning.com/software/rtek.zip
