Ignition dwell

Is ignition dwell adjustable through the rtek?
rotarygod is offline
Old 05-29-09, 06:49 PM
  #2
Rotary Enthusiast
iTrader: (1)

Join Date: Jul 2003
Location: ..
Posts: 1,311
Likes: 0
Received 2 Likes on 2 Posts
No it's not.
turbo2ltr is offline
Old 05-30-09, 03:48 PM
  #3
Say NO to aux. bridging!
Thread Starter
iTrader: (1)

rotarygod's Avatar

Join Date: Jul 2002
Location: Houston
Posts: 4,176
Likes: 0
Received 5 Likes on 5 Posts
Well that sucks. Maybe that's something that could be looked into for a future upgrade?
rotarygod is offline
Old 05-30-09, 07:39 PM
  #4
Rotary Enthusiast
iTrader: (1)

Join Date: Jul 2003
Location: ..
Posts: 1,311
Likes: 0
Received 2 Likes on 2 Posts
You are the only person thats ever asked for that feature since we started in 2003. Thats not to say it's a bad feature, but my limited knowledge of ignition systems (Please enlighten me if you think otherwise) tells me the gain is not worth the effort. You're better off getting an MSD box.
turbo2ltr is offline
Old 05-30-09, 07:51 PM
  #5
Home-brew Rotary
10 Year Member

NoviceRotaryTech.'s Avatar

Join Date: Nov 2004
Location: GooseCreek SC
Posts: 902
Likes: 0
Received 0 Likes on 0 Posts
what is stock dwell?
NoviceRotaryTech. is offline
Old 06-01-09, 09:21 AM
  #6
Say NO to aux. bridging!
Thread Starter
iTrader: (1)

rotarygod's Avatar

Join Date: Jul 2002
Location: Houston
Posts: 4,176
Likes: 0
Received 5 Likes on 5 Posts
Originally Posted by turbo2ltr View Post
You are the only person thats ever asked for that feature since we started in 2003. Thats not to say it's a bad feature, but my limited knowledge of ignition systems (Please enlighten me if you think otherwise) tells me the gain is not worth the effort. You're better off getting an MSD box.
It's not to say that not having it is a bad thing. Stock dwell settings are perfectly fine with stock coils and an MSD box used with them is a good upgrade. The only reason I asked was that it leaves the door open for alternative ignition coils later on. Specifically the LS7 coils since their dwell requirements are so different. If someone were to just swap coils to other units and not adjust dwell, they probably wouldn't get anything beneficial out of it and would probably get worse performance. The stock 2nd gen coils are actually quite nice. Better than even most aftermarket units. The LS7 coils are just awesome though!

NoviceRotaryTech: Stock dwell isn't a set number. Well actually it is but it isn't. There is a base minimum and maximum dwell setting but there is a correction table. Depending on voltage and rpm, the ecu will make adjustments to the base number. They are typically expressed in % of original value. It may be less or it may be more. Dwell is basically the amount of time the coil is allowed to rest and recharge between firings. Obivously as rpm's rise, the available amount of total dwell time available decreases. This also has to change with voltage as a lower voltage will take longer to get the coil charged back up.

Ignition systems are actually quite interesting but not terribly simple. I'm far more comfortable telling people how to tune fuel and timing than I am telling them how to play with dwell. You need to think about things such as wasted spark and multiple discharge setups. Is one intense spark really worse than several? To answer that you need to think of how the flame front in the engine propagates as well as how it does it under different rpms and loads. How does wasted spark and firing the leading coils twice as often as non wasted spark affect total coil output due to necessary dwell settings? You get the idea.

No big deal if it isn't available. It's something I like to play with but most people don't. The rtek is still a very nice easy thing to work with compared to the alternatives.
rotarygod is offline
Old 06-03-09, 10:51 AM
  #7
rotorhead
iTrader: (3)

arghx's Avatar

Join Date: Aug 2004
Location: cold
Posts: 15,630
Received 51 Likes on 51 Posts
if the OEM coils weren't so good people would be more interested in a dwell feature. Their design is such that a simple ignition amplifier solves most ignition problems on the car. I feel like you are applying some of the issues with the Renesis coils to a platform just doesn't have that problem.

The Power FC for example can change dwell on OEM coils (2nd and 3rd gen) but it doesn't matter much because people just hook up HKS Twin Powers and those dynamically change dwell somehow.
arghx is offline
Old 06-03-09, 02:44 PM
  #8
Say NO to aux. bridging!
Thread Starter
iTrader: (1)

rotarygod's Avatar

Join Date: Jul 2002
Location: Houston
Posts: 4,176
Likes: 0
Received 5 Likes on 5 Posts
I know how to wire in the LS7 coils in non wasted spark mode through 2 stock 2nd gen trailing ignitors on a stock ecu. The issue becomes that I want to adjust the dwell accordingly but can't. I agree the stock coils are pretty darn good with an ignition amplifier but I also want a stronger trailing spark without having to revert to 3 ignition amplifiers to do it as I want to run negative split in cruise with very lean a/f ratios. I need a good solid trailing light off to get what I want.
rotarygod is offline
Old 06-04-09, 10:11 AM
  #9
rotorhead
iTrader: (3)

arghx's Avatar

Join Date: Aug 2004
Location: cold
Posts: 15,630
Received 51 Likes on 51 Posts

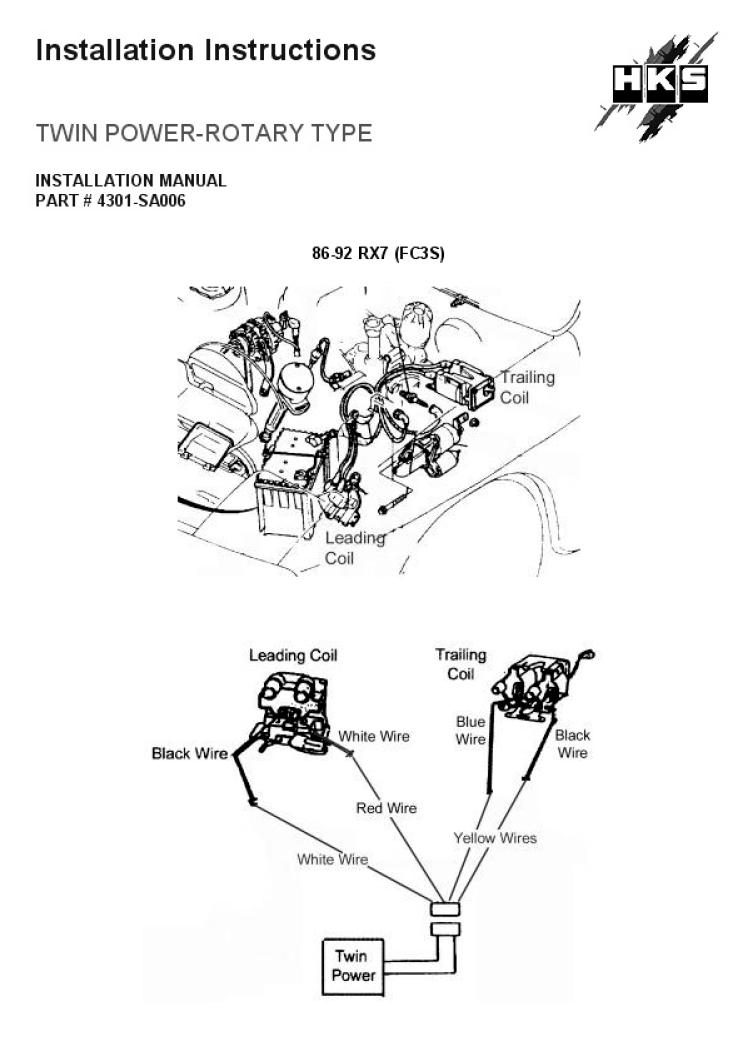

I went with the HKS twin power on my FC, which also amplifies trailing spark and is just a small box about half the size of one MSD. It's only 5 wires: Leading has 1 wire and trailing has two wires, both spliced in with no wires cut. Then there is a power and ground wire. They recommend you wire the power wire into the leading coil.



I ran that at 21psi no problem. It's not cheap, but it's cheaper than 3 MSD boxes, way less wires, and much cleaner. The box is listed as 91mm (L) x 80mm(W) x 34.5mm (H). I had relocated my battery, so I installed the Twin power behind the driver side headlight. There was an empty M6 bolt hole there into which I installed a stud. Then I glued some rubber feet to the bottom of the box to dampen vibration and bolted it down.

Anyway, it's something to consider. I would never have 3 MSD boxes in my car either.
Attached Thumbnails Ignition dwell-fc_twin_power.jpg
arghx is offline
Old 06-04-09, 03:44 PM
  #10
Say NO to aux. bridging!
Thread Starter
iTrader: (1)

rotarygod's Avatar

Join Date: Jul 2002
Location: Houston
Posts: 4,176
Likes: 0
Received 5 Likes on 5 Posts
The twin power definitely looks like a nice option and definitely simpler than 3 MSD boxes. Then again if I could run a twin power along with LS7 coils and then have proper dwell control for those coils...
rotarygod is offline
Old 05-01-15, 07:44 AM
  #11
247 RWBBQ

ColinShark's Avatar

Join Date: Jul 2004
Location: Detroit, MI
Posts: 305
Likes: 0
Received 2 Likes on 2 Posts
Will the Rtek/Stock ECU run these?

https://www.rx7club.com/3rd-generati...-992444/page2/

Looks like an interesting upgrade.
