AnthonyNYC

iTrader: (3)

Guys,

I spent Saturday night with a few friends at Speedtek getting a new rear ready. None of us have ever rebuilt a Ford Rear before but followed instructions online. I have a few questions about the tooth pattern.

Preload and backlash is all set. Preload was 25 inch lbs and backlash was .009

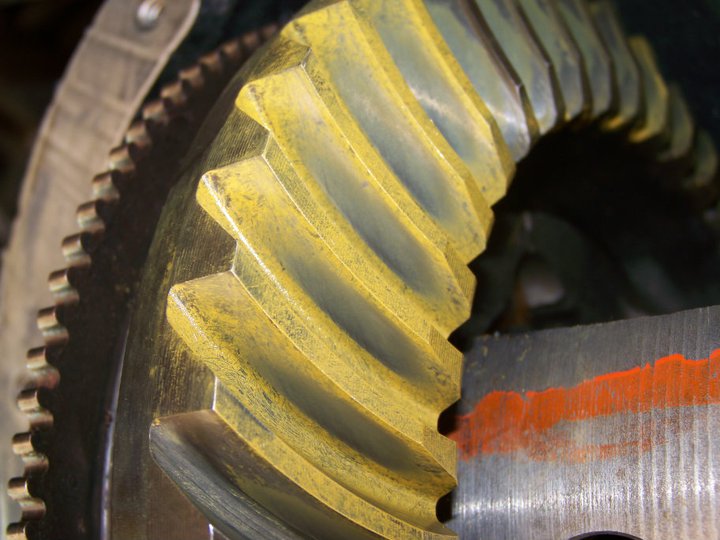

I would like some opinions on the gear patterns please. Let me know what you guys think. Thanks Allen for the advice earlier.

Thanks,

Anthony

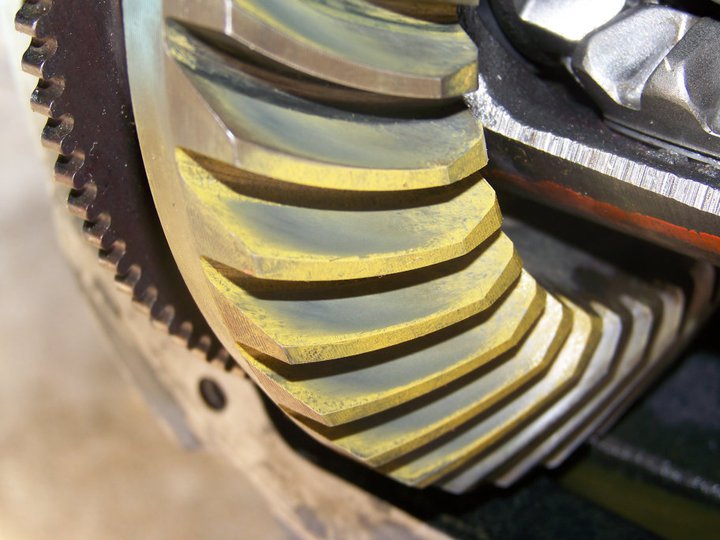

You can see all the pictures here, one is below. I also took pics of the coast side.

http://www.rx7s.com/rear/

sk8world

iTrader: (5)

Post that mustang **** on the yellow bullet.. just messin with you but you will get the anwsers you need over there quick.

Bacon

iTrader: (12)

Contact patch looks shallow, like the pinion depth is short. what'd you set pinion depth at? any # on the pinion? sometimes ive seen ford pinions with +\- #'s to give you baseline on pinion depth.

atached is nice contact pattern on a 8.8

enzo250

There's more to it then backlash.
You need to set pinion depth as bacon stated. You'll need to shim it according.
Using ford motorsport gears would allow u to use the factory shim if it was an opened rear.

13B-RX3

iTrader: (2)

http://www.richmondgear.com/ringandpinion.pdf


Enjoy!

Bacon

iTrader: (12)

theres also
http://www.youtube.com/user/WeberAuto

I like it better than reading

A diff is a diff, ford, toyota, mazda. Some are just harder to make minor shim changes to. Using a non lock nut for the pinion, helps for the multiple shim changes. (replace with locking nut once you get shimed it right)

AnthonyNYC

iTrader: (3)

Thanks!!! I think I should have taken pics of the other teeth when the gear marking compound walked over. The pics I took were the wrong ones no? We set the pinion depth according to the instructions. It should be perfect but I will double check. Yes the top of the pinion gear did have the numbers on there too.

Thanks Enzo, the first thing we did was sent the pinion depth and then the preload, I'm going to double check everything again. I bought a crush washer elimination kit so I can easily double check it.

Thanks Allen

I love videos lol Thanks!!!

RoTaRyBoYz

Take it to mustang magic in Deer park.. That's what I did Less stress for me

I rebuilt those sucks like 10yrs ago in tech school but forgot just about everything :-(

AnthonyNYC

iTrader: (3)

Yeah I know, funny thing is that they are walking distance from my house too so I was thinking the same thing. I really just want to learn how to do it properly myself. There are so many little tricks. For example, I spoke to Allen and told him I hated having to press the pinion bearing on and off and he explained to me an easy way to do it.

Hone your OLD bearing so it slides on and off, then take your measurements, once pinion depth is set correctly, press the new bearing on. That's pretty smart.

I'm surprised Allen and Cris are still taking my calls lol.

RoTaRyBoYz

Did he tell you about the ole Pinion in the oven trick to get the bearing on?

Told you I have a new 8.8 rebuilt kit here with everything.. Hope you didn't go out and buy all new bearings etc

Judge Ito

anthony is feeling the pressure!!!

SPEED_NYC

iTrader: (3)

LOL

I'll be helping Anthony install the 8.8 tomorrow night over at speed tek. I have a strong feeling he'll be in the very low 9's this season..... but I'm enjoying the view from up top for the short time i'll be here....

MOBEONER

iTrader: (18)

It's gonna be a good year
I can't wait to see everyone at the track this year, it's going to be a pleasure to see the rotaries put it down.

sk8world

iTrader: (5)

What gear ratio you guys running now?

ultimatejay

iTrader: (1)

There's too much competition for secrets now.

AnthonyNYC

iTrader: (3)

I'm running a 4.3, Roan is on a 4.56, both are Ford Motorsports gears.


Never!

Thanks Roan, we'll know soon.

Yes lol!

AnthonyNYC

iTrader: (3)

Thanks for the videos and help with the rear. I am done with it. Roan and I spent quite some time at Speedtek and put it in the car. I swapped over to a 94 subframe so the Justin Samberg rear bolted easily into place. All should be good. Just waiting on a driveshaft now...

ultimatejay

iTrader: (1)

Anthony, do you have any pictures of the rearend in your car?

ErnieT

iTrader: (2)

I predict he'll skip the 9's.....

sk8world

iTrader: (5)

me too!

AnthonyNYC

iTrader: (3)

No way! It's still a 2800lb FD making 600HP!!! I'm just trying to get into the 9s right now lol.

Yes Jay, I'll pull them off my phone in a few minutes and post them.

AnthonyNYC

iTrader: (3)

Jay,

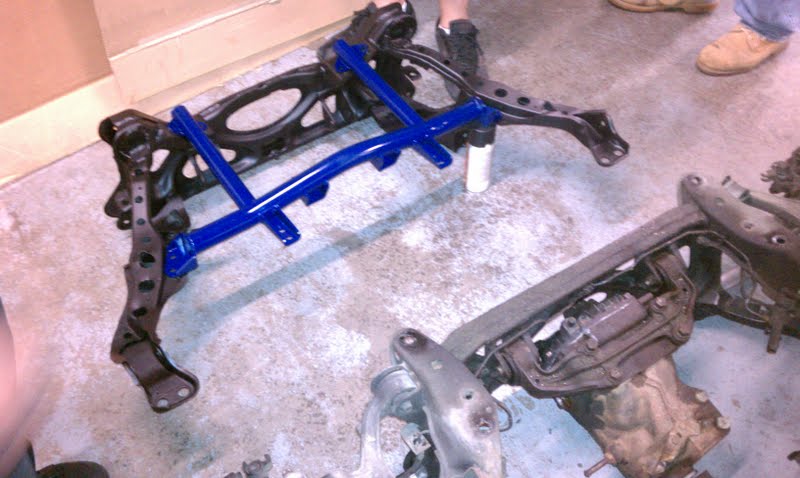

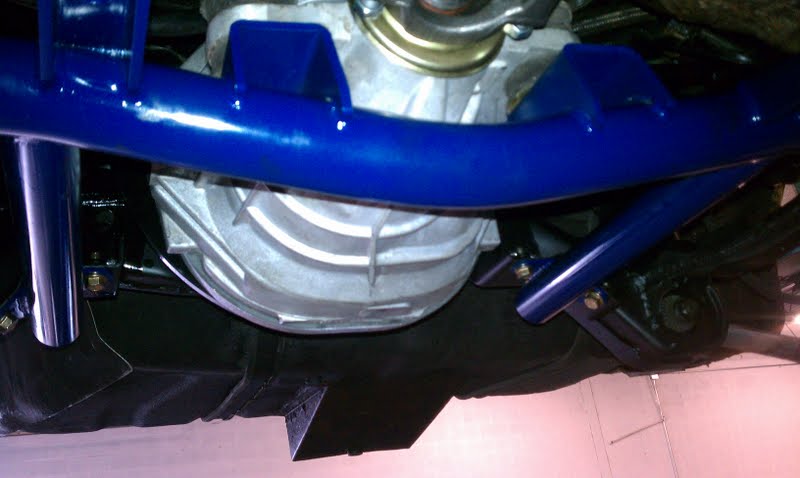

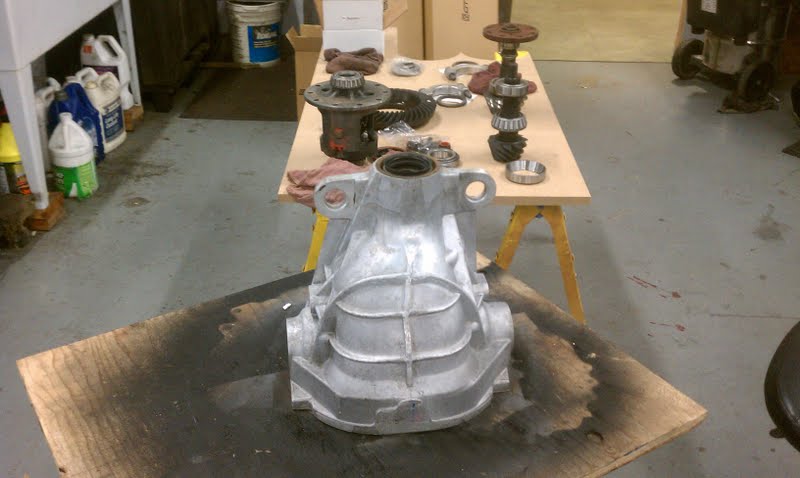

Here are 2 pics, one of the in the car. The subframe adapter is made by Justin Samberg but I got it through SpeedNYC. He knows Justin and has bought a few so I paid him and he took care of it for me. I believe others also bought their subframes from Roan.

justturbo2

iTrader: (4)

Looking good Ant.
