Help Me Pass Inspection!!! Irwindale Sept 5th!!!
08-22-09, 03:22 AM
#1
Help Me Pass Inspection!!! Irwindale Sept 5th!!!
Guys I need as much help as possible so i can pass inspection for the sept 5th drag race event going down at Irwindale...I need your Guy's help cause i haven't been to the track in 2.5yrs and not to mention all my medical issues...
My car is pretty much 95% done if he/she has been following my build thread...
Please chime and let me know key factors the officials will be looking for inorder to pass inspection..
I have the following Done or getting ready to be put in this weekend/week!!!
Battery box with vent tube mounted in rear...

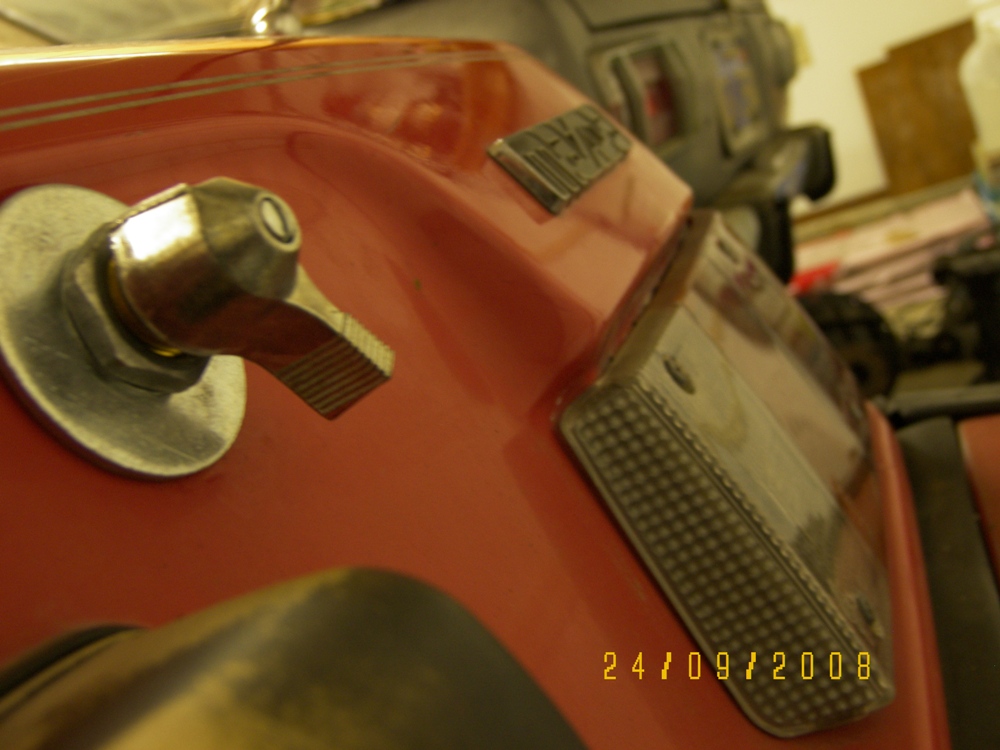

Kill switch is already mounted and working
Drive Shaft loop
Aluminum Dash mounted with switches working

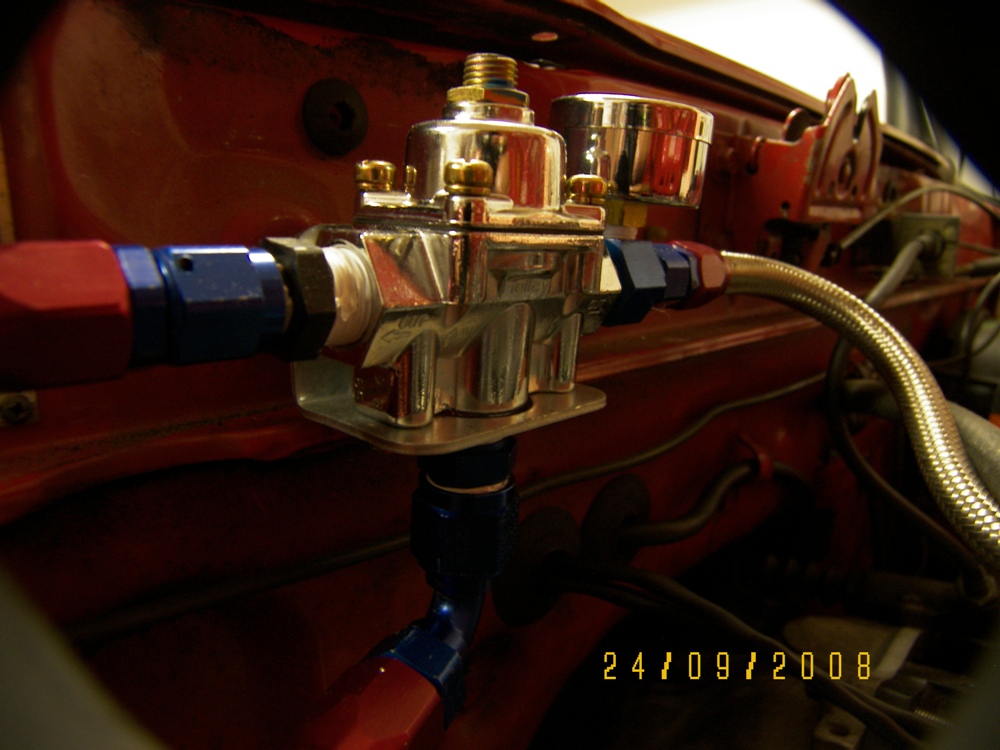

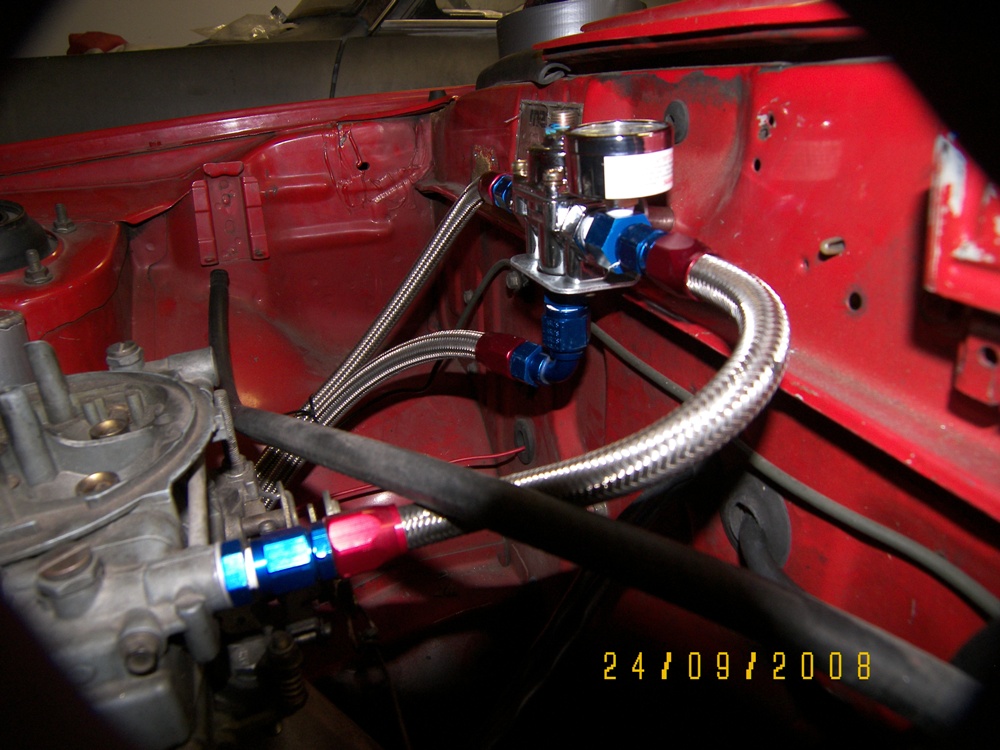

Relocated the FPR AGAIN!!! 6inches from firewall

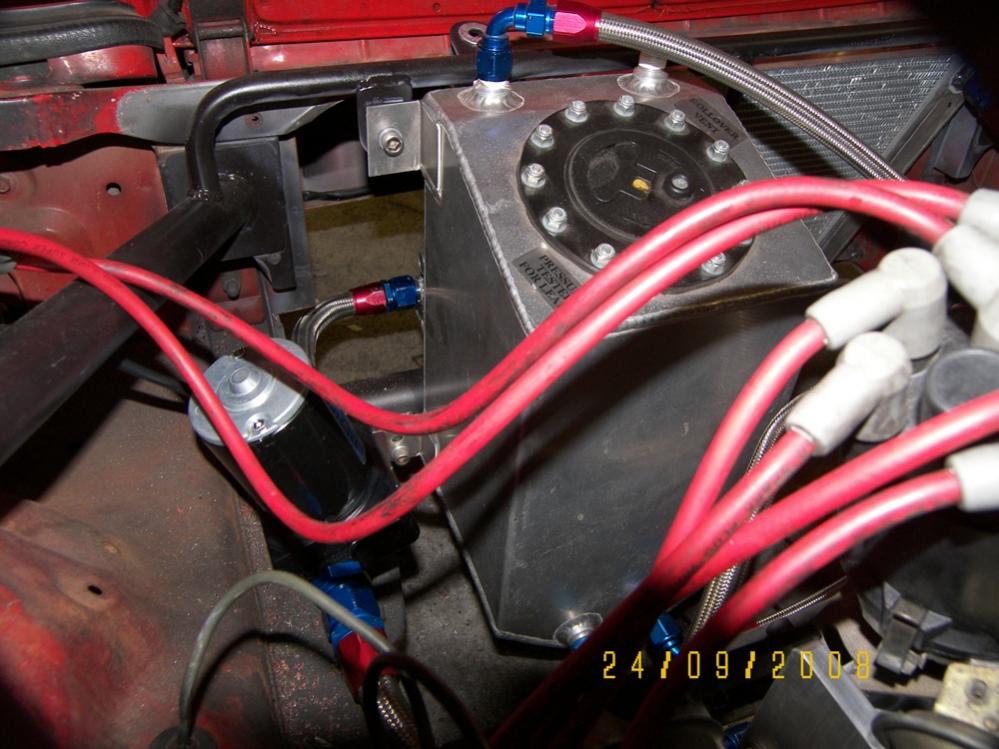

Front mounted fuel cell caped off extra male fittings
Replaced all wheel studs and Lug nuts
Kirkey seat mounted securely in place
Using stock steat belt!!!
No leaks
What im i missing or need to check or do...Please chime and help me out thanks
My car is pretty much 95% done if he/she has been following my build thread...
Please chime and let me know key factors the officials will be looking for inorder to pass inspection..
I have the following Done or getting ready to be put in this weekend/week!!!
Battery box with vent tube mounted in rear...
Kill switch is already mounted and working
Drive Shaft loop
Aluminum Dash mounted with switches working
Relocated the FPR AGAIN!!! 6inches from firewall
Front mounted fuel cell caped off extra male fittings
Replaced all wheel studs and Lug nuts
Kirkey seat mounted securely in place
Using stock steat belt!!!
No leaks
What im i missing or need to check or do...Please chime and help me out thanks
08-22-09, 07:22 PM
#7
E85+Boost+Rx2=zoom zoom
iTrader: (2)
Join Date: Oct 2004
Location: Long Island NY
Posts: 499
Likes: 0
Received 0 Likes
on
0 Posts
My fpr is on the firewall never gave me a problem. If it's a turbo car you need a jacket. And as what zinx said you will be fine as long as you don't crack 11.50's.
Trending Topics
08-22-09, 07:57 PM
#9
E85+Boost+Rx2=zoom zoom
iTrader: (2)
Join Date: Oct 2004
Location: Long Island NY
Posts: 499
Likes: 0
Received 0 Likes
on
0 Posts
I went to etown for summer slam and they said all turbo cars must have a jacket, and sure enough I left my jacket at home and had to purchase one from the track. They said it was a new rule as of Feb this year.
Last edited by rex3; 08-22-09 at 08:01 PM. Reason: add to thread
08-22-09, 09:40 PM
#10
okay thanks guys on those answers up there...Ima leave the FPR where its at...it wil save me money on AN fittings...
MY next questions is the drive shaft loop...How far in-between the rear end and the tranny does the loop have to be??? Dead center is fine??
brake lights have to be working??? Both sides or just one side needs to light up??
MY next questions is the drive shaft loop...How far in-between the rear end and the tranny does the loop have to be??? Dead center is fine??
brake lights have to be working??? Both sides or just one side needs to light up??
08-23-09, 02:24 AM
#11
Full Member
Join Date: Jan 2009
Location: riverside ca
Posts: 219
Likes: 0
Received 0 Likes
on
0 Posts
You ca do it
fisrt of all the race is going to be at california speedway Fontana not irwindale.as for your fuel pressure regulator it should not be on the fire wall.I think the rule book says 6 inches forward or to the rear of the flywheel.if you have slicks you must have drive shaft loops.the loops should be six inches from your ujoints front and rear.if you have any other questions send me a message and I will give you my phone number.
Last edited by mazda rx2 rotary; 08-23-09 at 02:28 AM.
08-23-09, 07:39 PM
#12
Teddy, if you're going to go slower than 11.50 then all you need is a helmet, factory seat belts and a driveshaft loop. Make sure you wear long pants- No shorts and not sandles/thongs! A t shirt or long sleeve shirt and jeans with tennis shoes will do. The tech inspection at the last IDRC event that I went to was pretty weak. They will ask you how fast you are going and will inspect the car accroudingly. Tell them the truth- that you run 13.99's.
Kidding, just tell them you run mid 12's or something and they will pass you easily. Just make sure your battery is secure and you have a driveshaft loop and good lug bolts. Make sure you have a coolant overflow bottle. Looks like you have everything covered so far. As far as the fuel pressure regulator on the firewall- you will probably get away with it but you're supposed to have it at least 6" from the firewall like I told you 10x already. You may get away with it at a couple of events but sooner or later a picky tech inspector will nail you so you might as well mount it correctly right now.
Ps. Here is the IDRC website. click on the rulebook and read.
http://www.importdrag.com/
Kidding, just tell them you run mid 12's or something and they will pass you easily. Just make sure your battery is secure and you have a driveshaft loop and good lug bolts. Make sure you have a coolant overflow bottle. Looks like you have everything covered so far. As far as the fuel pressure regulator on the firewall- you will probably get away with it but you're supposed to have it at least 6" from the firewall like I told you 10x already. You may get away with it at a couple of events but sooner or later a picky tech inspector will nail you so you might as well mount it correctly right now.Ps. Here is the IDRC website. click on the rulebook and read.
http://www.importdrag.com/
