To buy or not to by (Drag RX3)?
08-25-09, 12:51 AM
#1
To buy or not to by (Drag RX3)?

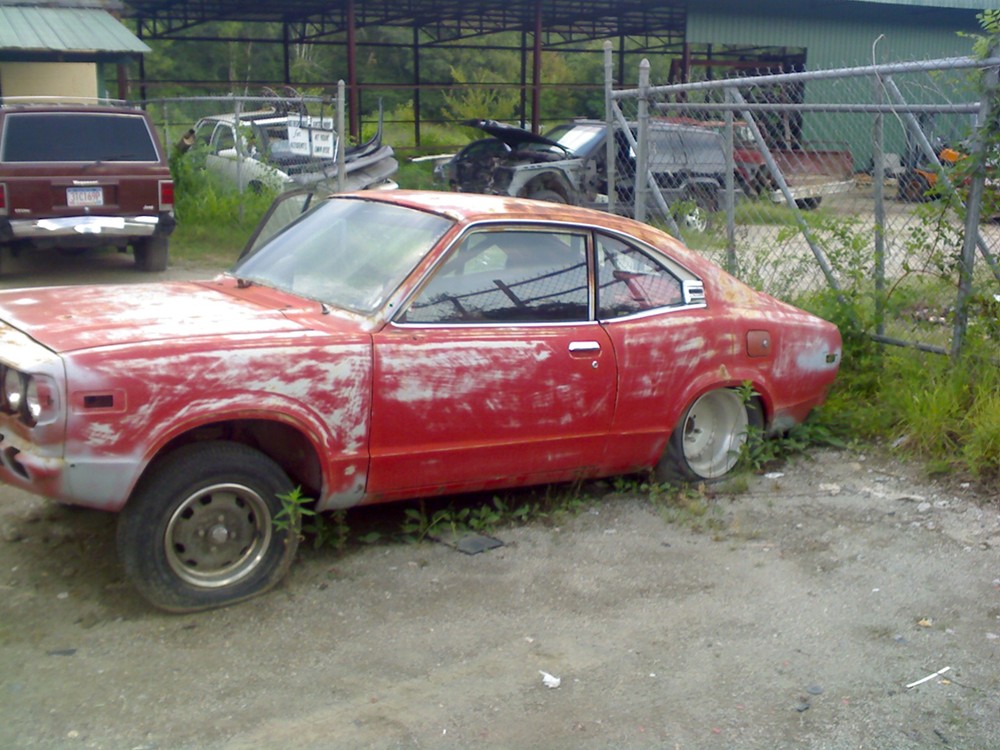

I have eyed this rx3 for over 1 year now. Guy wants it gone and contacted me today. I can buy it for very cheap. Its been sitting for quite awhile now., Has a full cage and 9 inch housing only and a 4 link. Comes with grill and other parts for body. Body is in good shape with no major rust. So what $$ are we talking for me to get this thing up to par? Say 9 second car on e85. Not worried about motor or turbo in the price build but suspension wise and supporting parts. Give me your thoughts. Not looking for a show car just something to do as fun project.
08-25-09, 02:29 AM
#4
Full Member
Join Date: Jan 2009
Location: riverside ca
Posts: 219
Likes: 0
Received 0 Likes
on
0 Posts
it is about how much you want to do something!
i am no ball-er by any means, i have just stayed focused at the job at hand.it is all in how much you want to do something.anything other then a stock chassis is a big deal to build.what i have found out in the 18+ years of doing what i enjoy, (building and racing **** wagons) it is very hard to do if you have a negative influence in the process of building your next project.the wife who hates the car,to many projects and not staying focused at the task at hand.a good supporting group of friends and shops,(if you do not have the tooling and skills) is a must.from what i have seen so far in my limited rotary experience is that WE are the smallest group of drag racers out there.the only way to keep it all moving forward is to build more cars.my vote is to buy it,build it,race it,brake it,fix it
08-25-09, 02:51 AM
#5
Full Member
Join Date: Aug 2008
Location: New Zealand
Posts: 65
Likes: 0
Received 0 Likes
on
0 Posts
Buy it!!! If i got offered that i wouldn't be able to help myself haha. imo you could spend anywhere from 2 to 20k on the body and setup. I'd just take my time on the car (only cause iv'e got 2 other rx3's)
It looks tuff as it is now, just imagine with a nice paint job
It looks tuff as it is now, just imagine with a nice paint job
08-25-09, 05:29 AM
#6
I say buy it....like others here have said...a good project is fun project without letting the neg. in...Take your time with it and as time goes by the project will take shape and form.
Nice project and seems as though from what you have posted the car is almost somewhat done and near ready for the track...
Nice project and seems as though from what you have posted the car is almost somewhat done and near ready for the track...
Trending Topics
08-25-09, 10:26 AM
#10

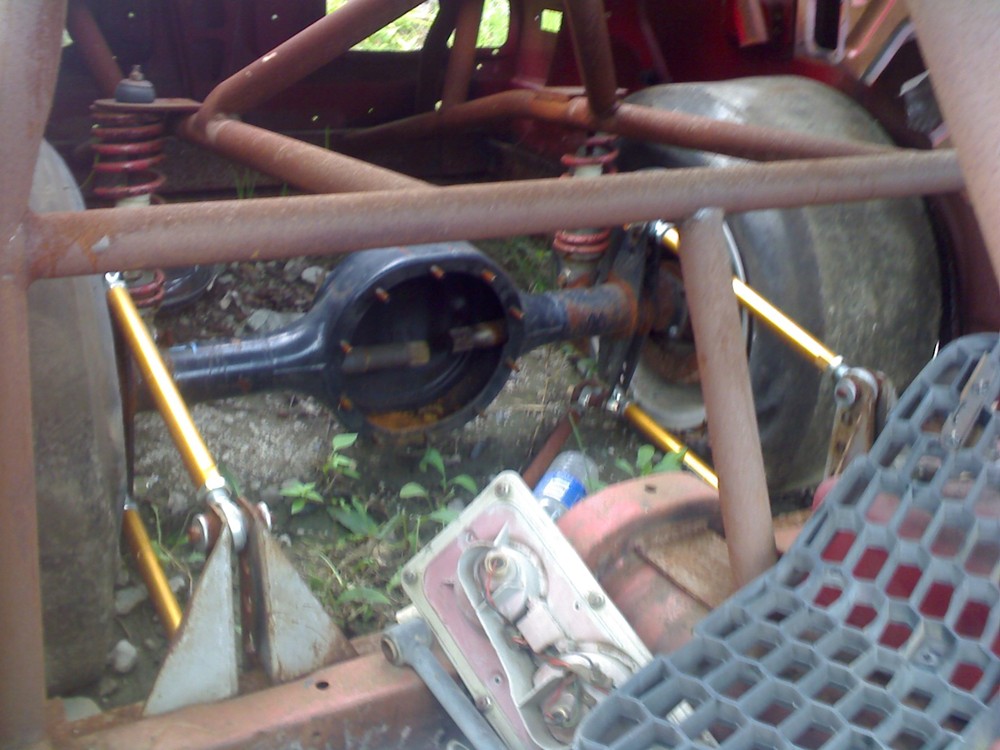

From the photo I'd say the integrity of the metal is OK. Have someone media blast it and you'll probably be good as new. I'm no chassis expert but it look like there needs to be some more work done on the upper shock mounts and the four-link mounts. IMO they'll need to be tied into something much better than they are currently.
Buy it!
Buy it!
08-25-09, 12:40 PM
#13
The guy had a datsun caged with rotary that he already sold. Last time I was there he had 2-3 20b's on the shelf. Also has his own custom built lapping table! He knows a little
So how the hell do I learn to tin (guessing thats the interior part?)= sheet metal? CAn I sand blast it , whats media blast ?
08-25-09, 12:59 PM
#14
*** Bless The USA
iTrader: (8)
Join Date: Jan 2007
Location: Saint Louis / Illinois
Posts: 7,139
Received 0 Likes
on
0 Posts
The guy had a datsun caged with rotary that he already sold. Last time I was there he had 2-3 20b's on the shelf. Also has his own custom built lapping table! He knows a little
So how the hell do I learn to tin (guessing thats the interior part?)= sheet metal? CAn I sand blast it , whats media blast ?
So how the hell do I learn to tin (guessing thats the interior part?)= sheet metal? CAn I sand blast it , whats media blast ?
I built my tubs and rear panels from scratch. I didn’t know jack about it. I just got a bunch of cardboard and masking tape and went to town. I made everything with cardboard first until I was happy with how it looked.
I then went and bought some $30 harbor freight electric metal shears, a $40 sheet of 20 gauge metal and starting cutting and stitch welding it all together, I then followed that up with some NAPA seam sealer.
You might not need to get crazy since it will be a track car I’m assuming and it won’t need to be completely sealed.
Just start measuring and playing with some cardboard, that should give you a idea of what to do.
FYI, I also used ½” square tubing underneath to brace everything.
08-25-09, 01:22 PM
#16
not sure about the blasting.. I know media is better but not sure if it's needed in your case.
I built my tubs and rear panels from scratch. I didn’t know jack about it. I just got a bunch of cardboard and masking tape and went to town. I made everything with cardboard first until I was happy with how it looked.
I then went and bought some $30 harbor freight electric metal shears, a $40 sheet of 20 gauge metal and starting cutting and stitch welding it all together, I then followed that up with some NAPA seam sealer.
You might not need to get crazy since it will be a track car I’m assuming and it won’t need to be completely sealed.
Just start measuring and playing with some cardboard, that should give you a idea of what to do.
FYI, I also used ½” square tubing underneath to brace everything.
I built my tubs and rear panels from scratch. I didn’t know jack about it. I just got a bunch of cardboard and masking tape and went to town. I made everything with cardboard first until I was happy with how it looked.
I then went and bought some $30 harbor freight electric metal shears, a $40 sheet of 20 gauge metal and starting cutting and stitch welding it all together, I then followed that up with some NAPA seam sealer.
You might not need to get crazy since it will be a track car I’m assuming and it won’t need to be completely sealed.
Just start measuring and playing with some cardboard, that should give you a idea of what to do.
FYI, I also used ½” square tubing underneath to brace everything.
Thanks for the info man.. What type of welder did you use for this?
Going to pick it up in the next day or 2.
08-25-09, 03:02 PM
#20
As far as the blasting you can shoot about anything at it with enough air pressure.
Sand is common but it can be very abrasive and pit the metal. Media is a more generic term for anything from plastic pellets to walnut shells. For something like this with light surface rust you'd want a media that's not going to pit everything it touches. Soda is a good media for this type of thing as it dissolves with water and washes right out. Anything else will still be falling out of the body panels 5 years after the fact.
I'll say again, I'd take a look at all the construction before simply tinning out the rear and hitting the track. That's just common sense anyway. The upper shock mounts in the rear and simply tied into a piece of fairly thin plate. When you launch the car those plates are going to be supporting a very large portion of the sprung weight of the car. Doesn't look like they're well designed IMO.
Sand is common but it can be very abrasive and pit the metal. Media is a more generic term for anything from plastic pellets to walnut shells. For something like this with light surface rust you'd want a media that's not going to pit everything it touches. Soda is a good media for this type of thing as it dissolves with water and washes right out. Anything else will still be falling out of the body panels 5 years after the fact.I'll say again, I'd take a look at all the construction before simply tinning out the rear and hitting the track. That's just common sense anyway. The upper shock mounts in the rear and simply tied into a piece of fairly thin plate. When you launch the car those plates are going to be supporting a very large portion of the sprung weight of the car. Doesn't look like they're well designed IMO.
08-25-09, 03:55 PM
#22
*** Bless The USA
iTrader: (8)
Join Date: Jan 2007
Location: Saint Louis / Illinois
Posts: 7,139
Received 0 Likes
on
0 Posts
do you have any hotrod buddies, someone with some chassis experience? have them go look at it with you...
yeah, those shock plates will bend upwards after a launch or two.... might be able to somewhat box them in but I'd just cut them out and run a normal shock bar across...
After further inspection, the entire design just looks weird. Normally, if you were to back half a car, you would run the shocks/coilovers inside the frame rails, not on the outside. That definitely doesn’t look like a shop built car, but more of a backyard/hillbilly build.
I’m not saying that it won’t work, but I would want someone to make sure everything is atleast square and safe.
Tubs would be a mother to build with the shocks outboard like that…
yeah, those shock plates will bend upwards after a launch or two.... might be able to somewhat box them in but I'd just cut them out and run a normal shock bar across...
After further inspection, the entire design just looks weird. Normally, if you were to back half a car, you would run the shocks/coilovers inside the frame rails, not on the outside. That definitely doesn’t look like a shop built car, but more of a backyard/hillbilly build.
I’m not saying that it won’t work, but I would want someone to make sure everything is atleast square and safe.
Tubs would be a mother to build with the shocks outboard like that…
08-25-09, 04:50 PM
#23
Full Member
Join Date: Jan 2009
Location: Midland Ga
Posts: 187
Likes: 0
Received 0 Likes
on
0 Posts
If you don't want it I might be looking for anothe rproject like this.. Tin work sucks.. it can look good with a good bit of work but most people half **** it ...
not much of it left except for a shell hih?
not much of it left except for a shell hih?
08-25-09, 05:27 PM
#24
*** Bless The USA
iTrader: (8)
Join Date: Jan 2007
Location: Saint Louis / Illinois
Posts: 7,139
Received 0 Likes
on
0 Posts
take a look at this thread, it will give you some idea's of what's and what not's.
http://www.yellowbullet.com/forum/sh...ghlight=rotary
http://www.yellowbullet.com/forum/sh...ghlight=rotary
