What is the reason for positioning the turbo in the pictured location? Turbo outlet to throttle body?



You are correct. Turbo direct to TB, I like running the manifold long and far away from the motor, I can control boost better and 2 step will spool it up on launch so I'm not worried about lag on the line. It a straight Drag car so I'm going for easy access and easy assembly/disassembly.



Enjoyed the read , gives me flash backs to when I started years ago , your gonna hate the factory box , I did as I was wasting 1.2 seconds per pass in shifts , data logs on an off throttle .4 a second , so it's not like that translates to 1.2 on the time card but it's more time off throttle than I needed :/



Thank you Beefcake, I know I will "not" enjoy the factory box. I really need to look at options but as for now I will see what I can make work with this setup, hope to see 10's within the next year. I'm sure once I can get some passes under my belt and see what changes I need to make, that will be one of them, but if I change it all in my first build I will never get it done to make a pass.



Ohh you will get tens out of that setup easy !
There is easy 9s in that if you can push through the gears and not launch too roughly , weight will be your killer but power will overcome that



I would be jazzed to get into 9's! I'm trying to get into 8.5's one day down the road, not trying to break any standing record, all I want to do is have some fun and meet fellow enthusiast along the way. Where are you located?



I'm based down in western Australia mate , not as much rota action in my area compared to over east



Thats awesome I'm glad your digging the thread lot hope for this little car. We will see what spring brings me. I'm going to try to test and tune in Florida over the winter at one point.

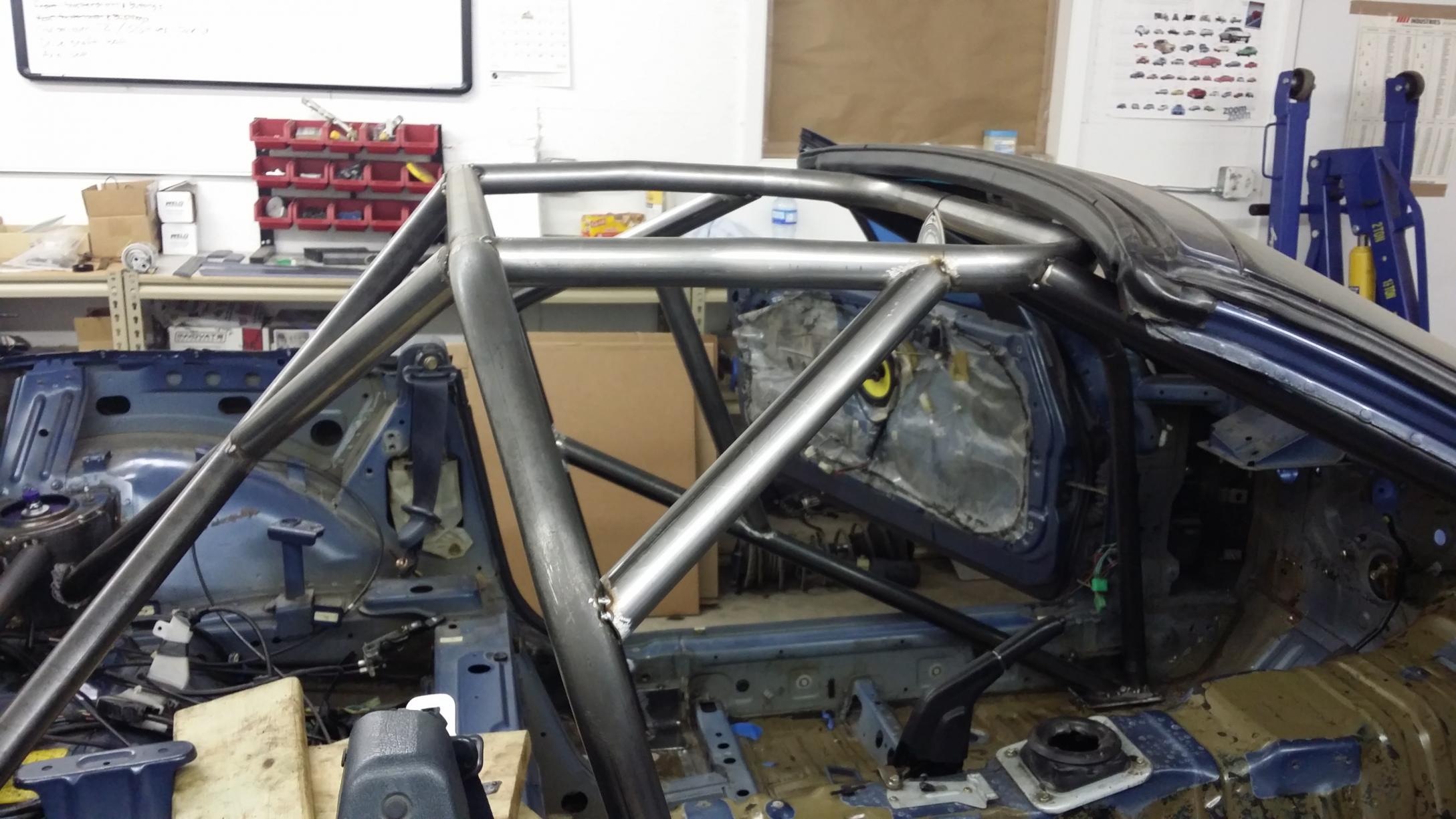

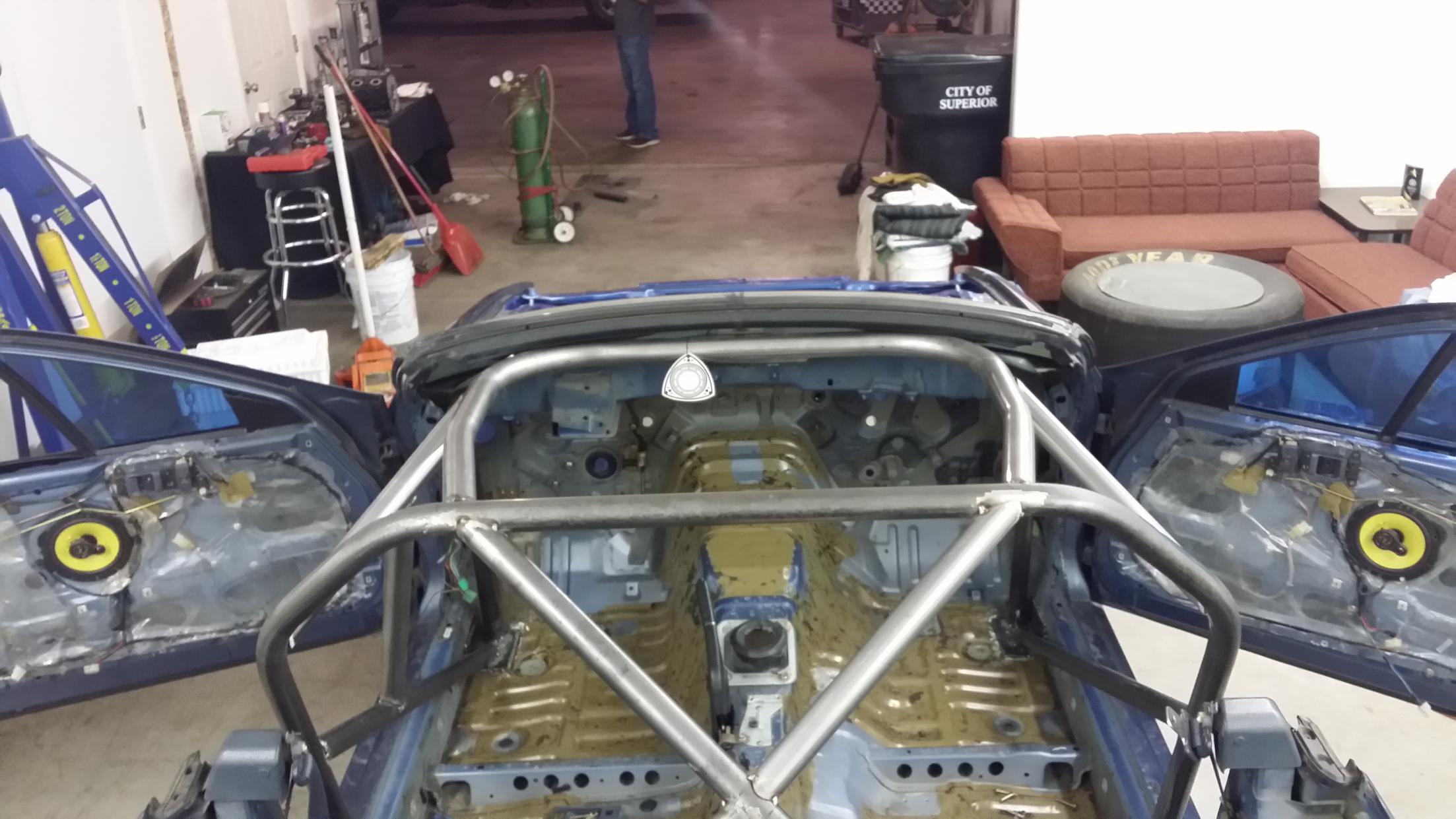

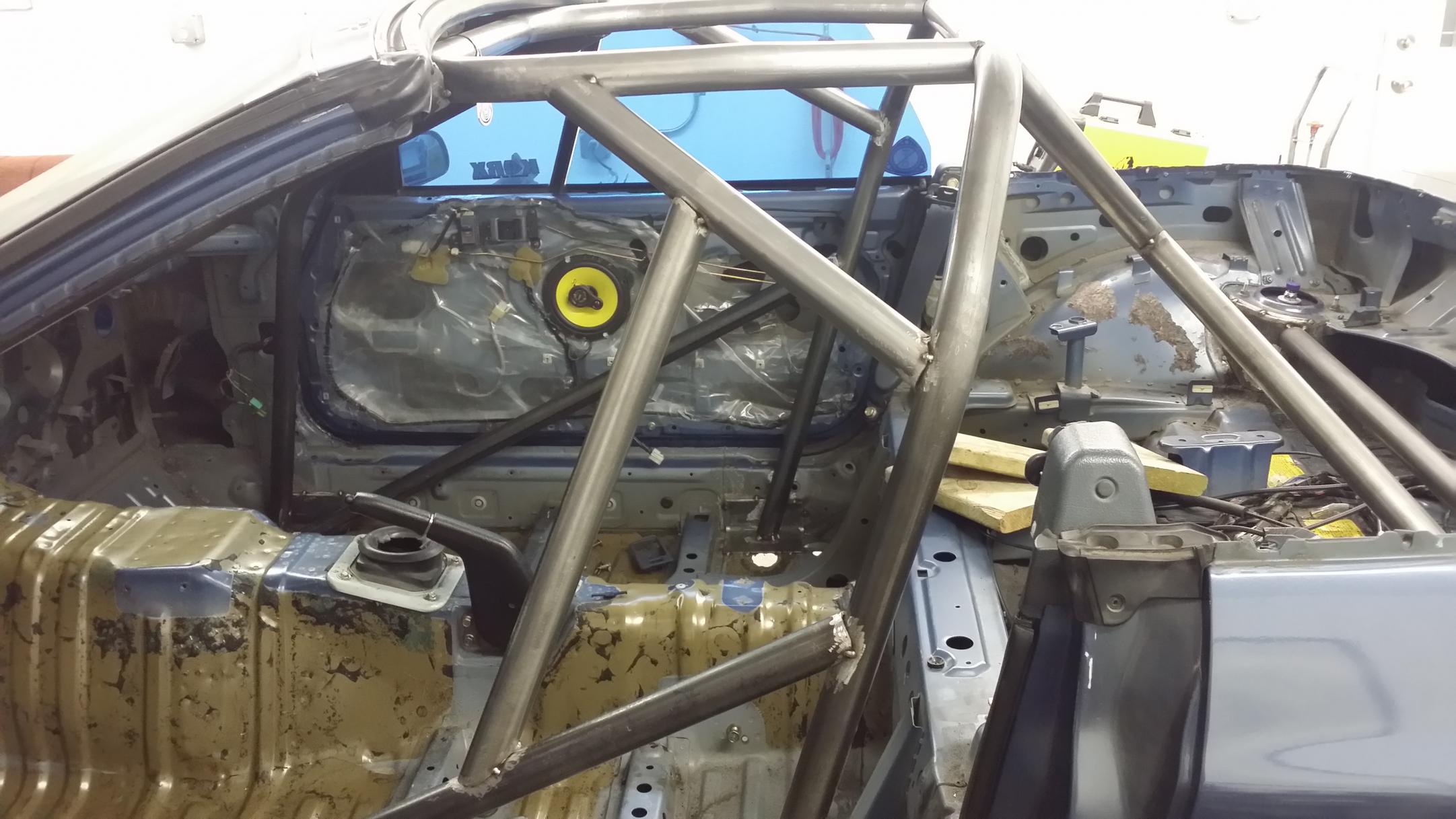

I'm finally done with the cage mock up and had it looked at by a SFI inspector before I weld it up completely incase any changes needed to be made. Looks like everything is good to go, I just need to mount the seat and driver restraints. I'm thinking Kirkey Drag racing seat, any opinions on a Aluminum seat?



If you get an aluminum seat make sure you get one that actually fits you. They are actually quite comfortable when fitted correctly.



As I've said before I'm not a big guy, and all the seats that I have sat in are alway to big. I can get a Kirkey which comes in just about any size. Question is with the seat with, is it measured off my hip with, so if my hips are 15" across I need a 15" wide seat or should I go 16" to take in consideration of gear?

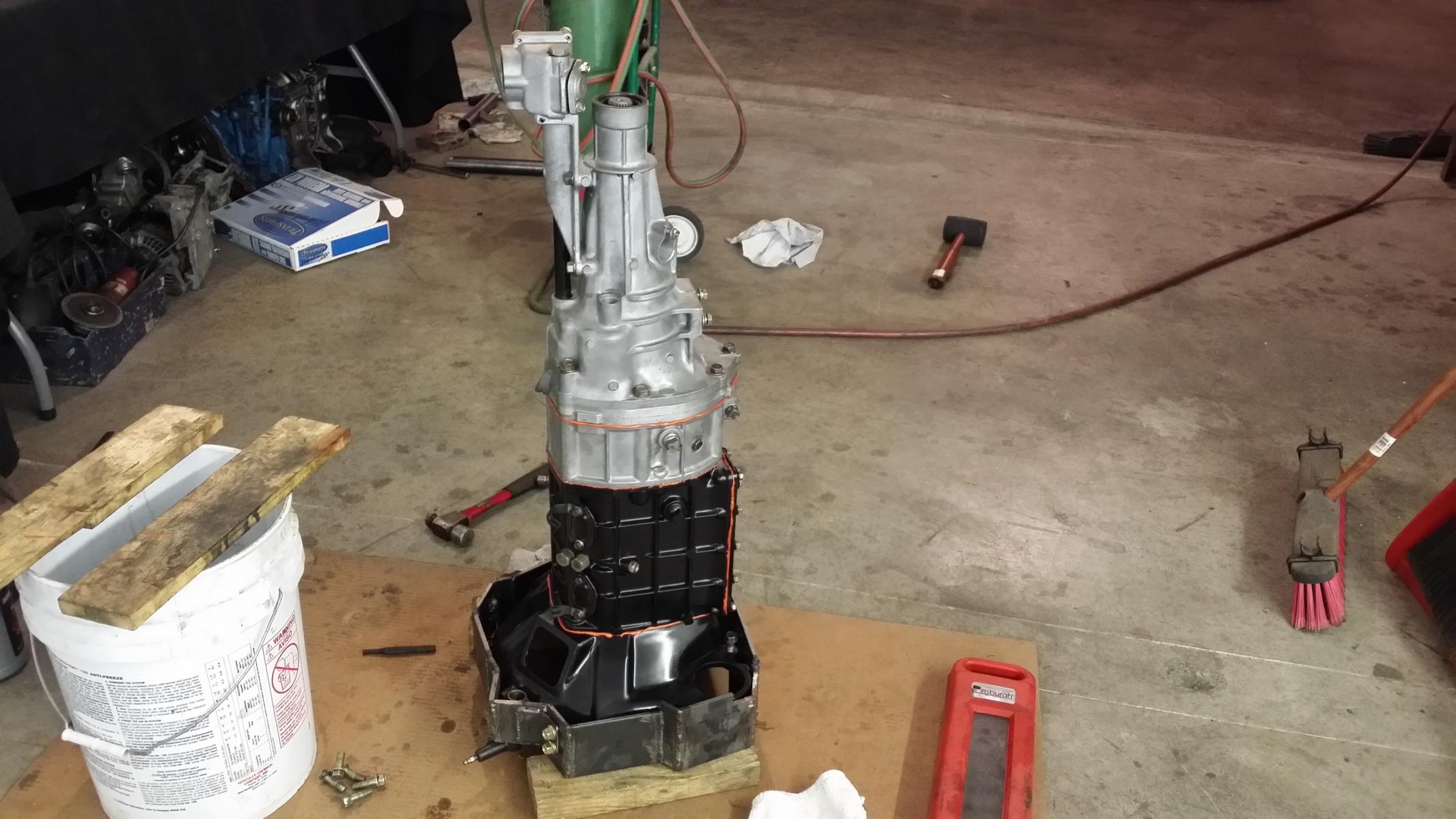

Transmission Rebuild and ready for Soild Mounts and mock up in the car for drive shaft loop getting closer.

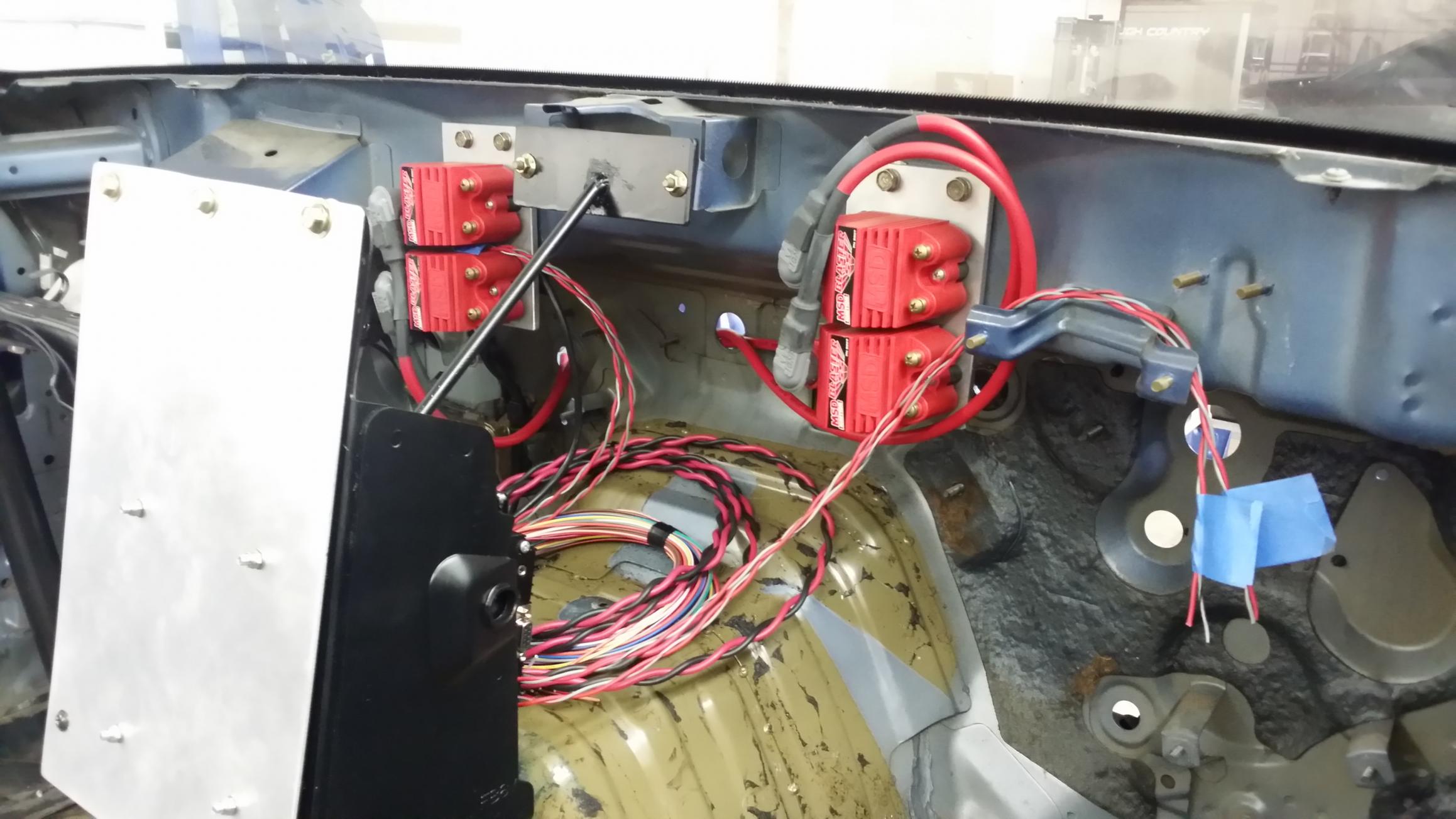

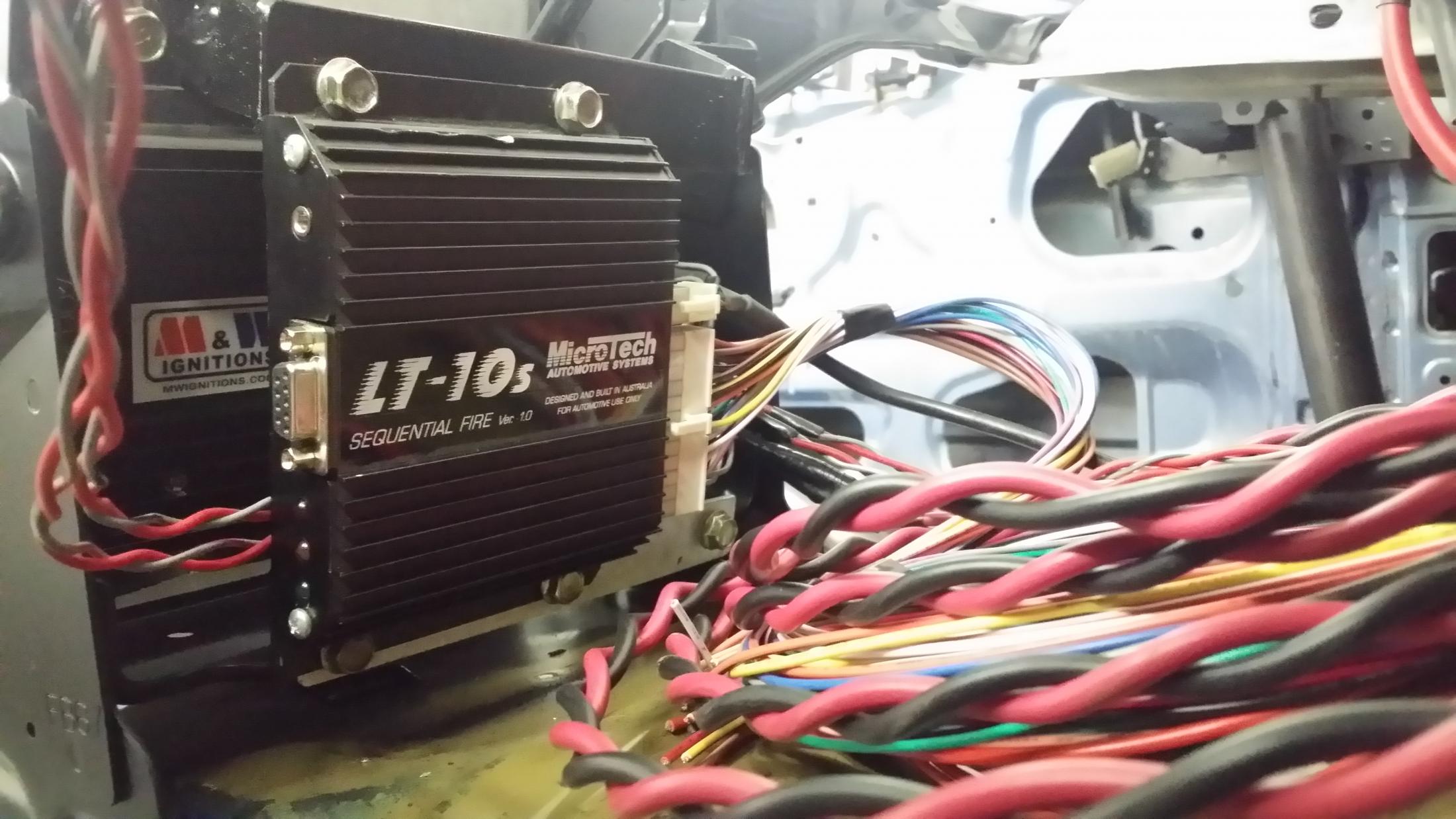

Making progress on the wiring, long way to go but the game plan is taking shape.



Very Nice!!

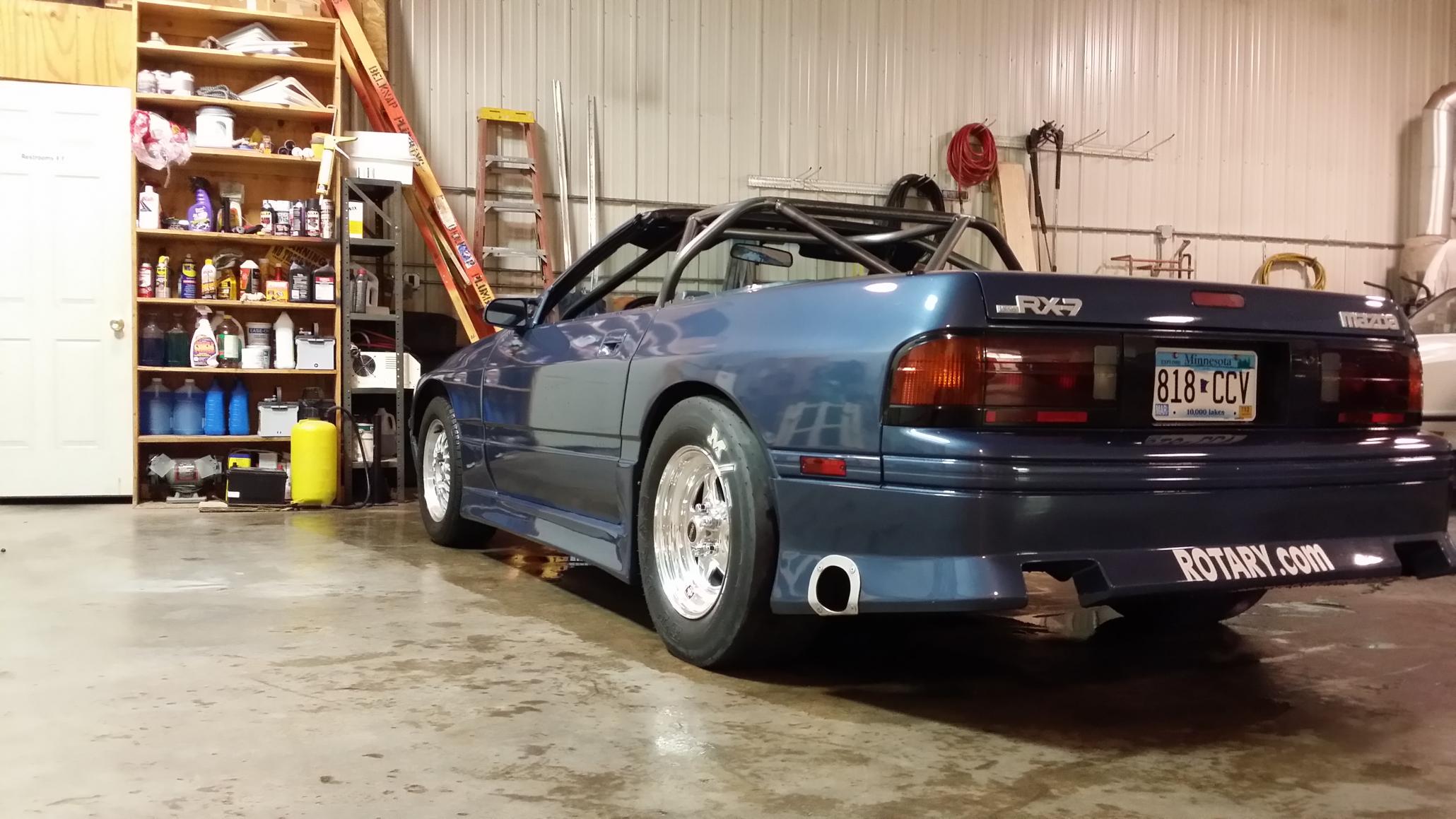

Stance is just right

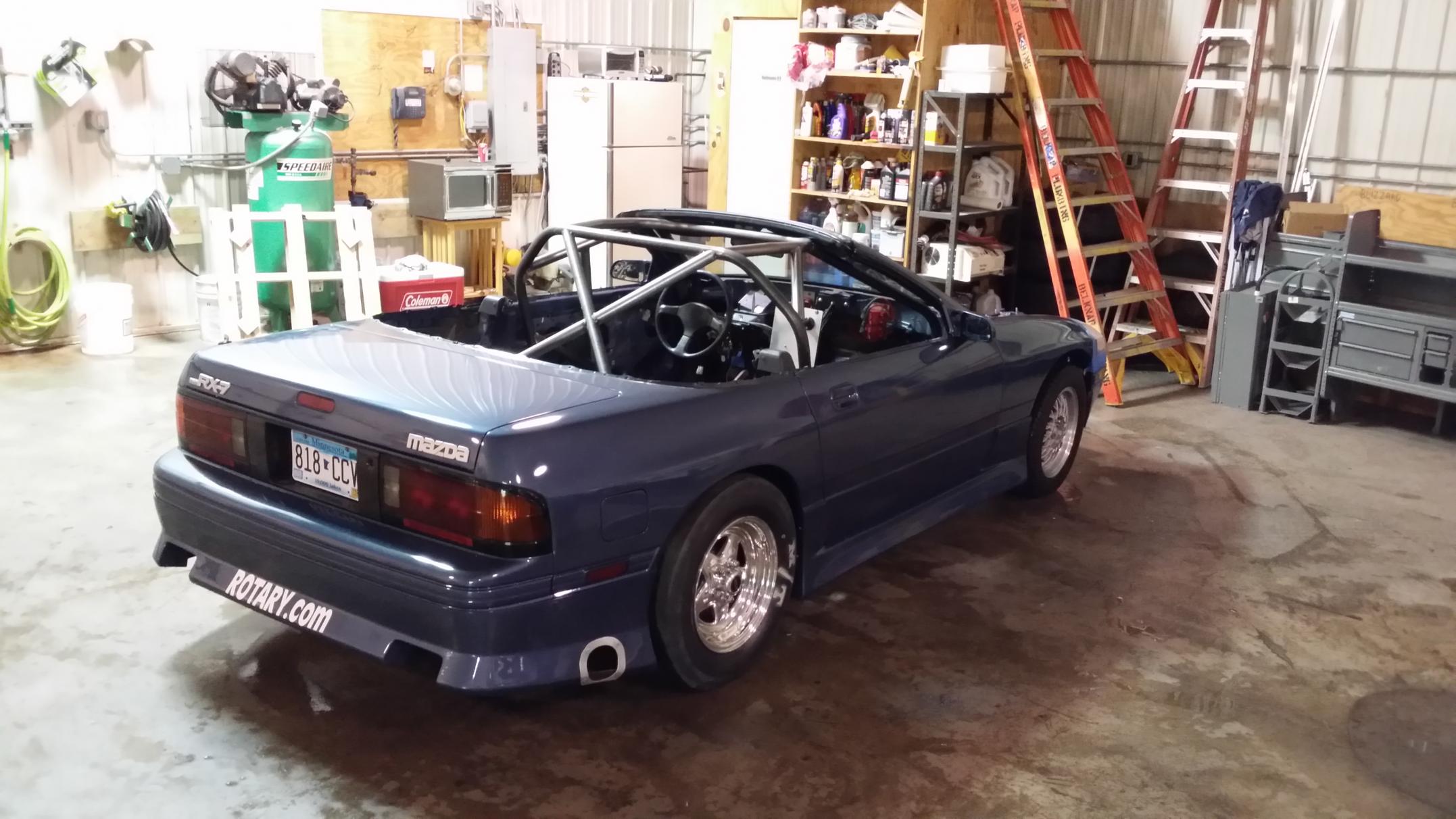

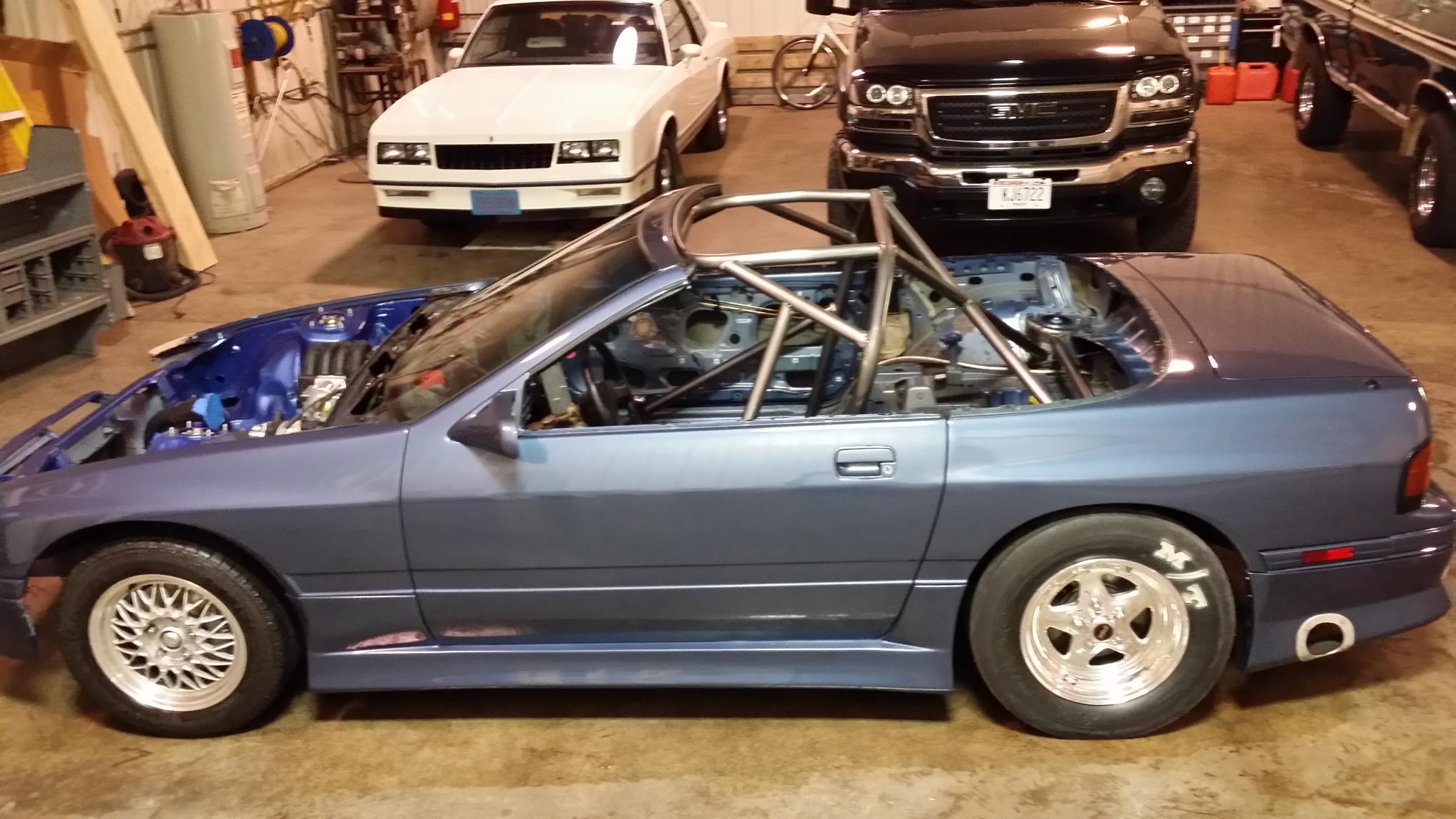

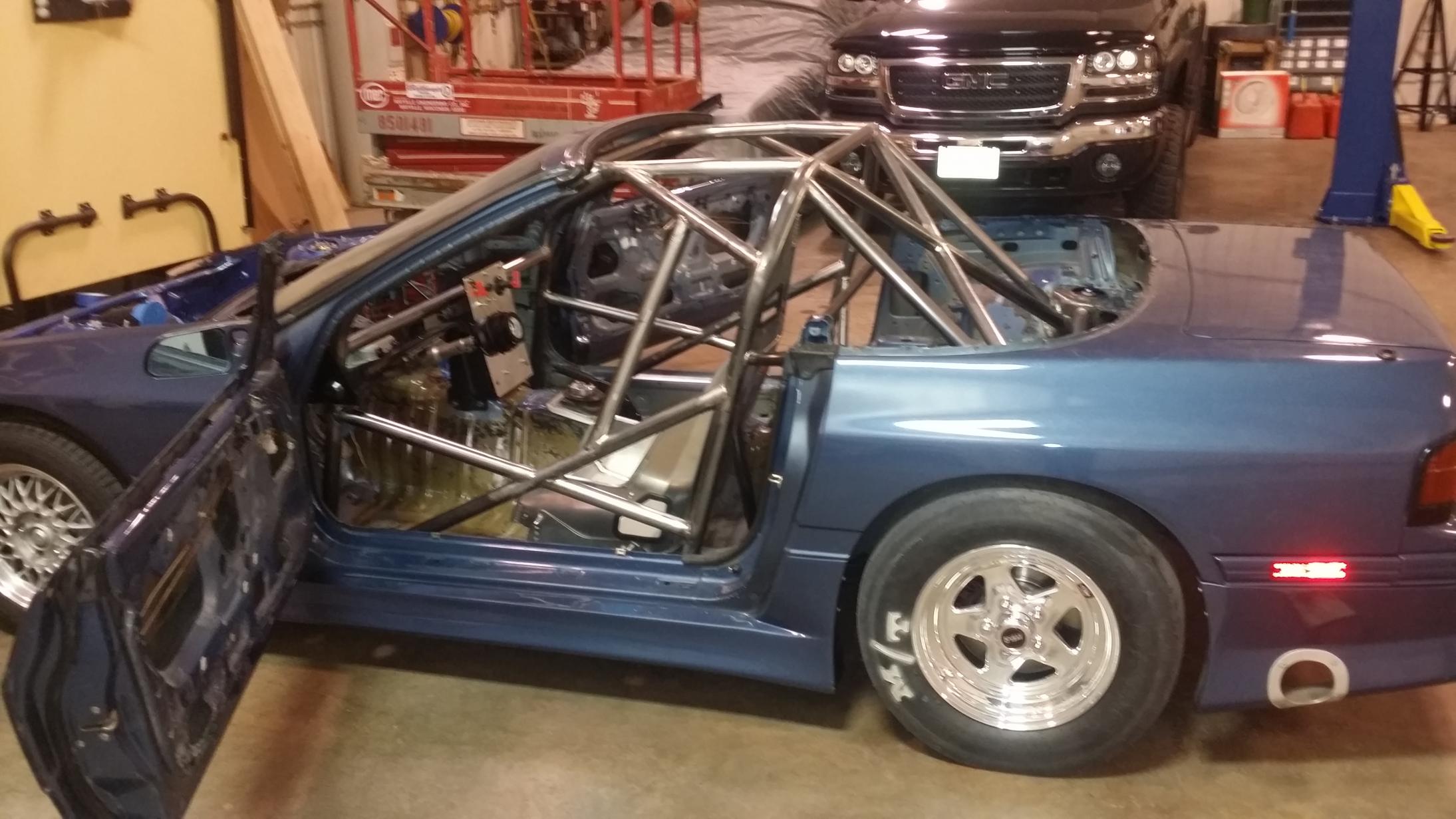

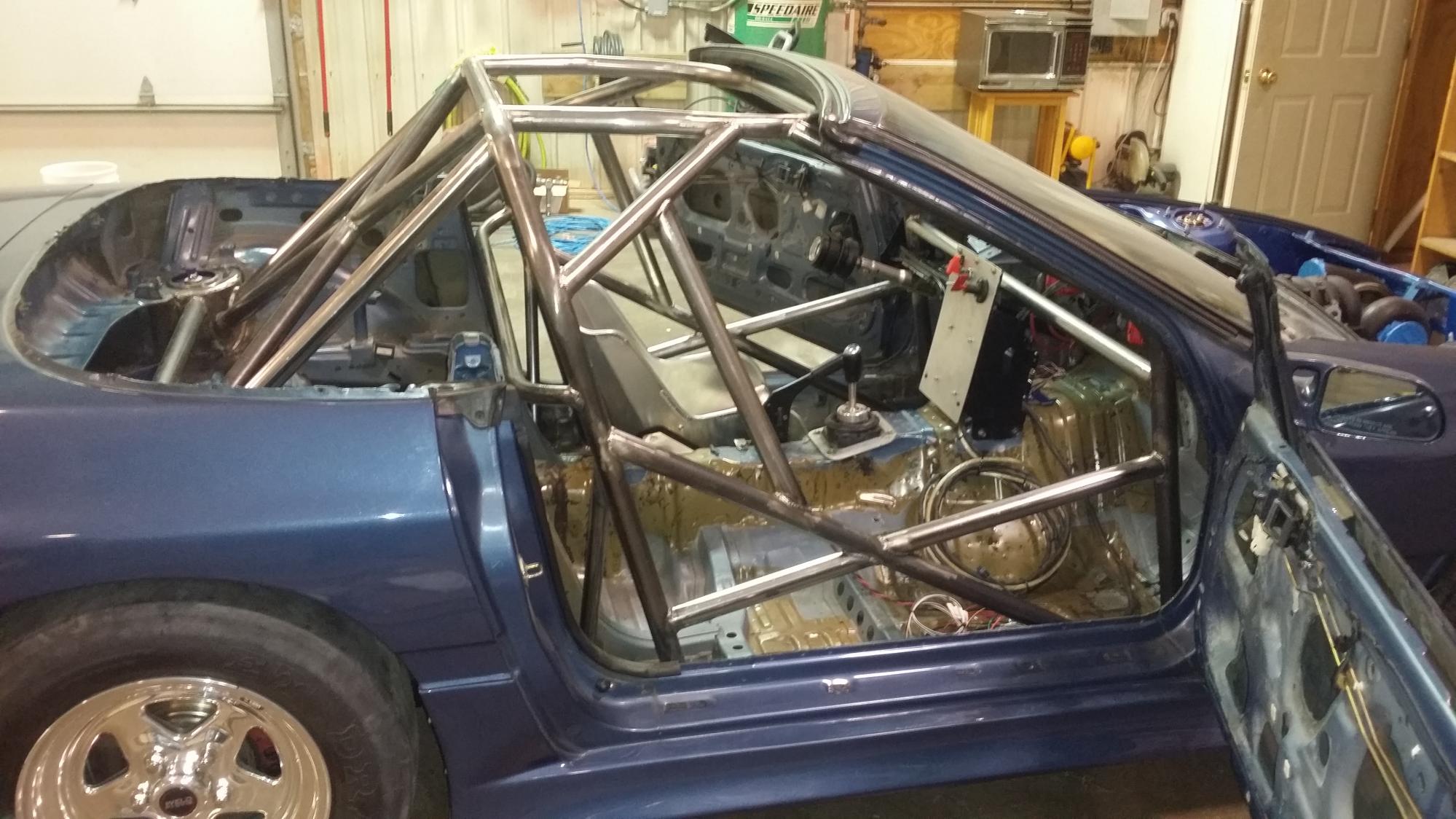

Roll cage is done and done. Now I need to paint it and get it inspected, hopefully I over built the **** out of it, and I can be certified for 8.50 in the future that is

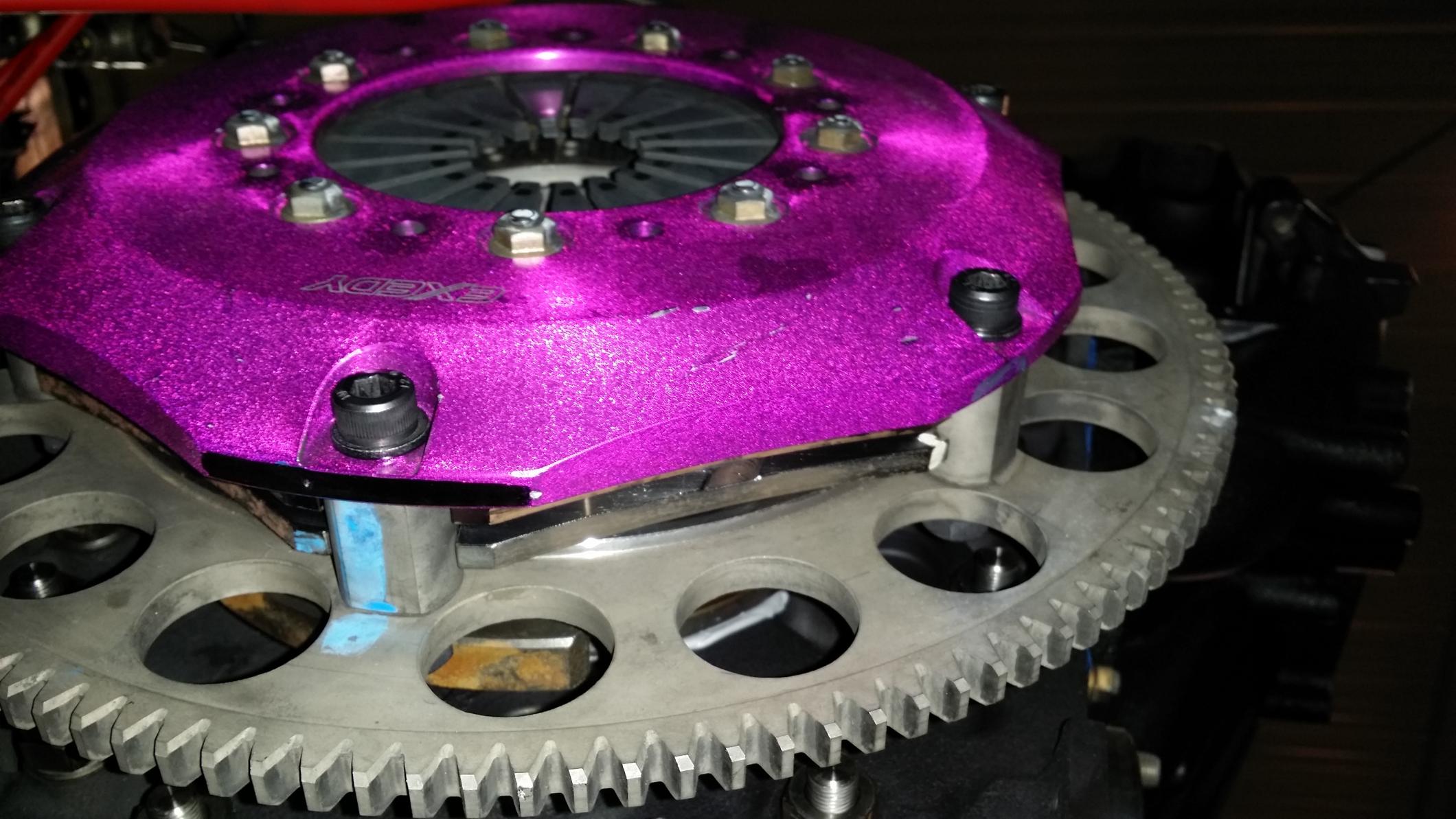

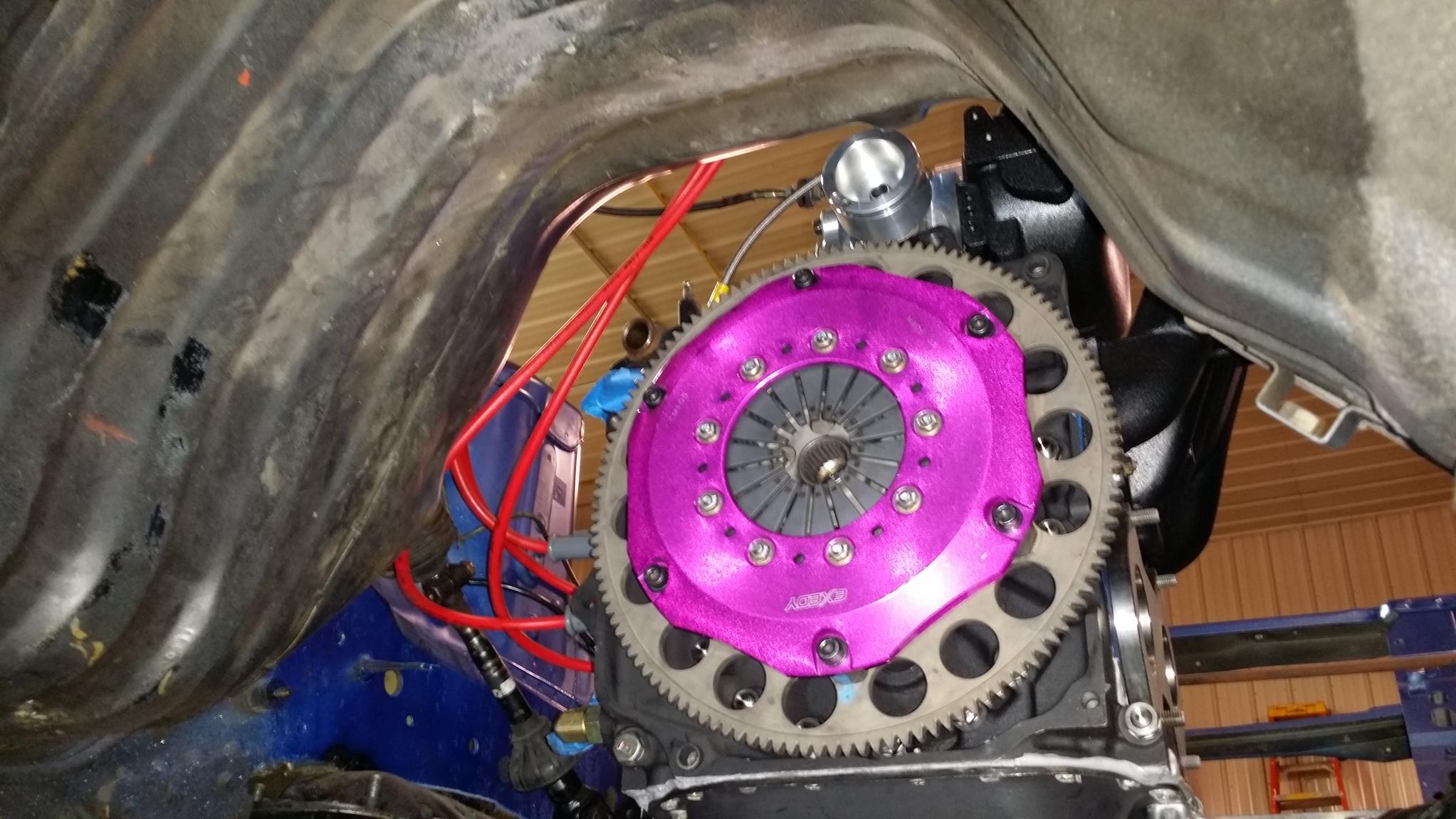

Put in a late night getting the twin disk installed that I purchased for 1FAASTFD3S on the forum. We shall see if this will give enough slip off the line so not to explode parts, but still grab like a SOB down the track. BTW anyone ever install an Exedy Twin? The installation instructions recommend to line up all of the blue marks on float disks, flywheel and top hat. Unfortunately the top hat had two blue marks next to each other, one of which had o dimple impression so I figured that was the important one of the two. By the picture would you say I'm right. Supposedly it is balanced by these marks and even more noisy if not done correctly.



Inspection is Sunday. Never been so excited to get a sticker. Give this guy a gold star

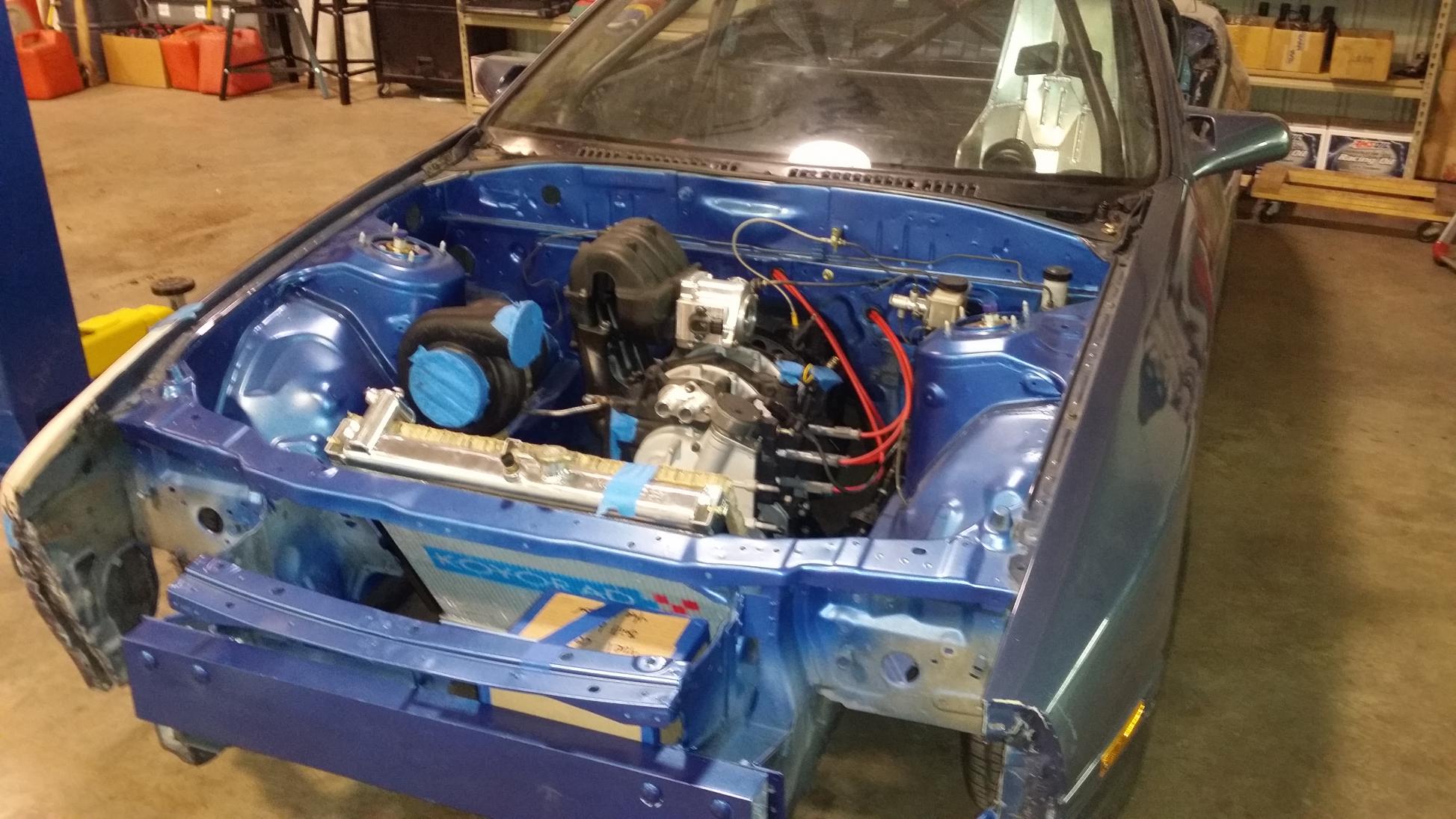

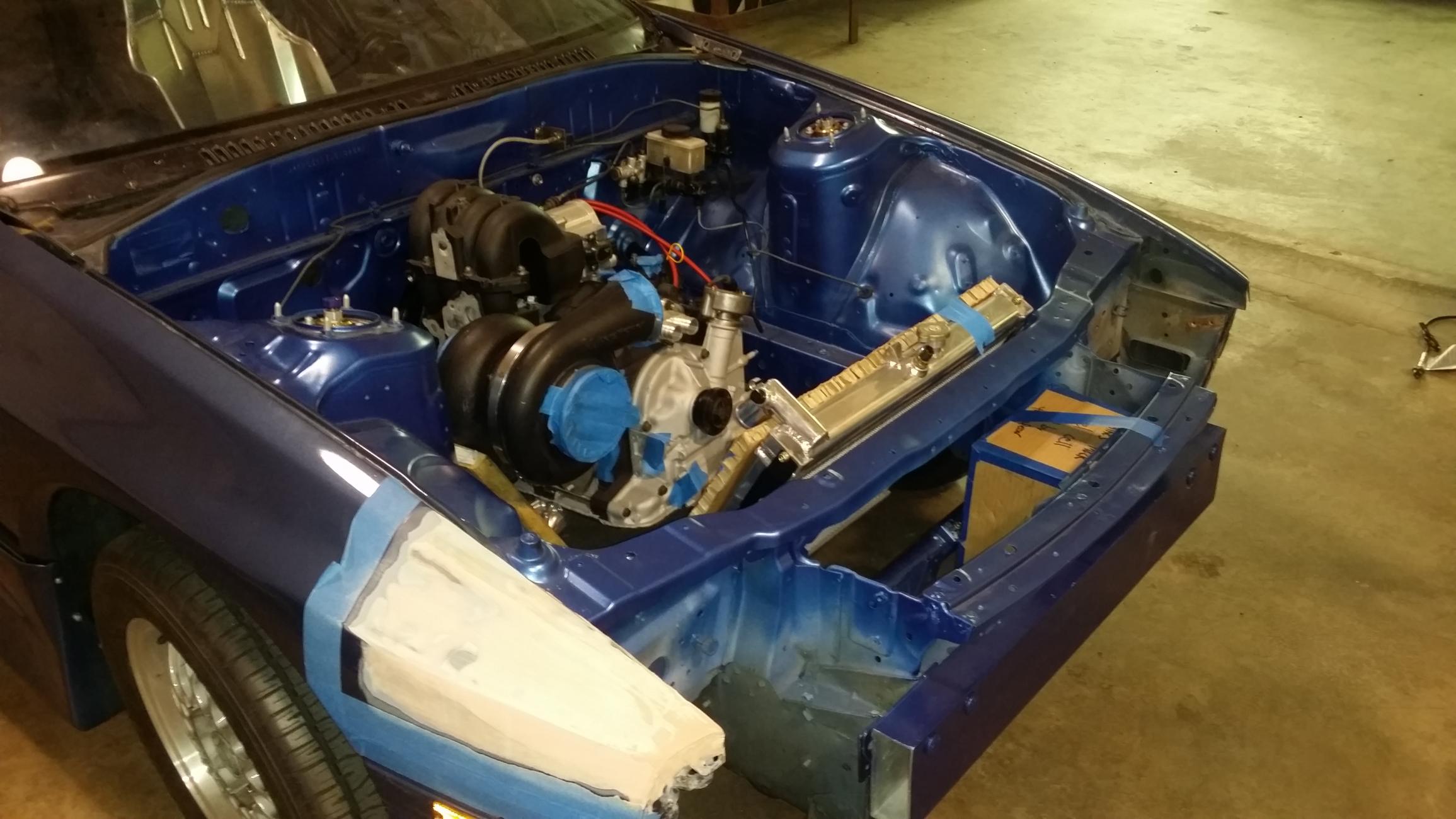

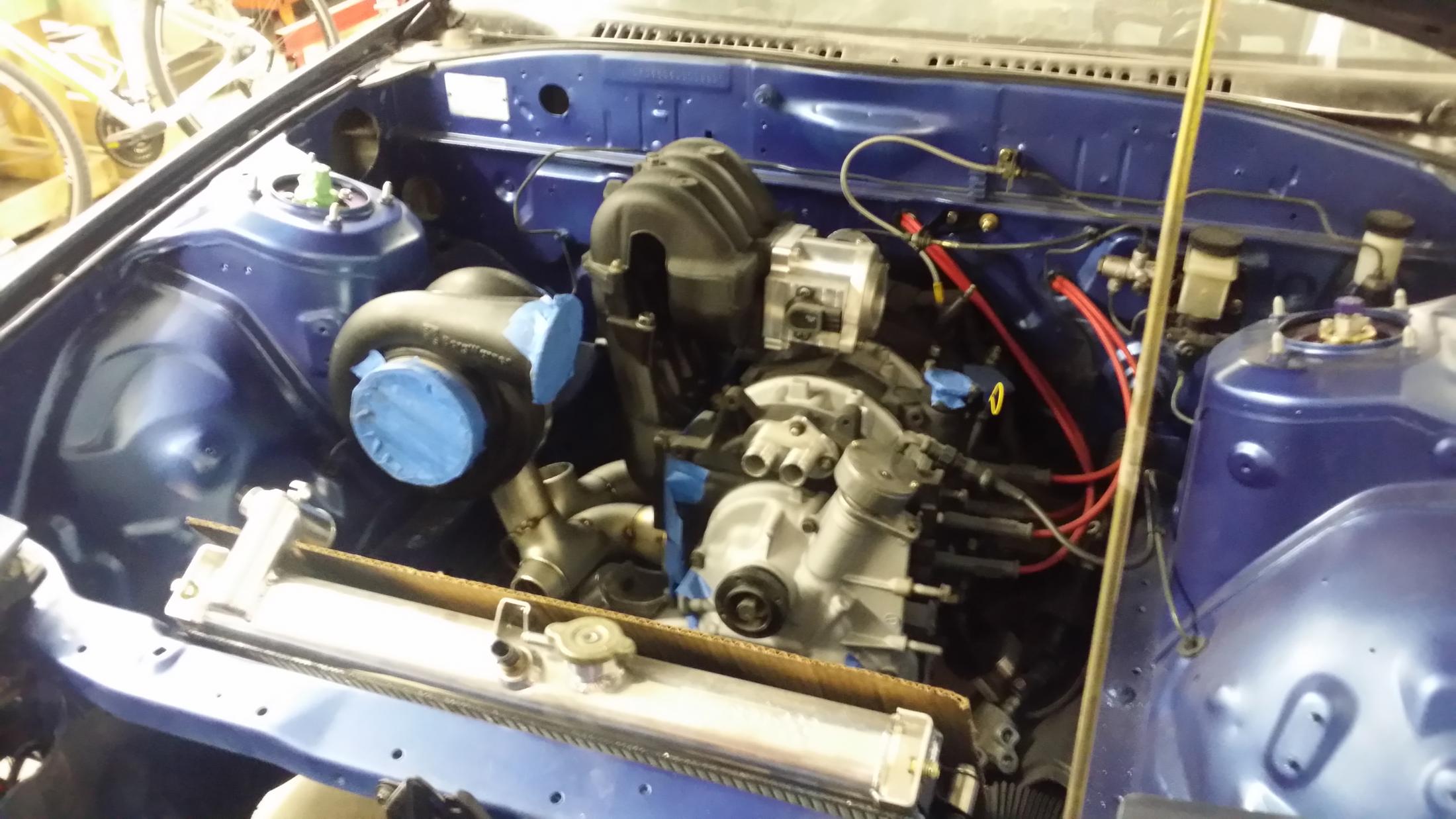

Last minute changes to the turbo location. I mounted the radiator and there's no way to fit a shroud and electric fan with the turbo where it was. Keep it simple, on the bright side plenty of room for a water to air IC.

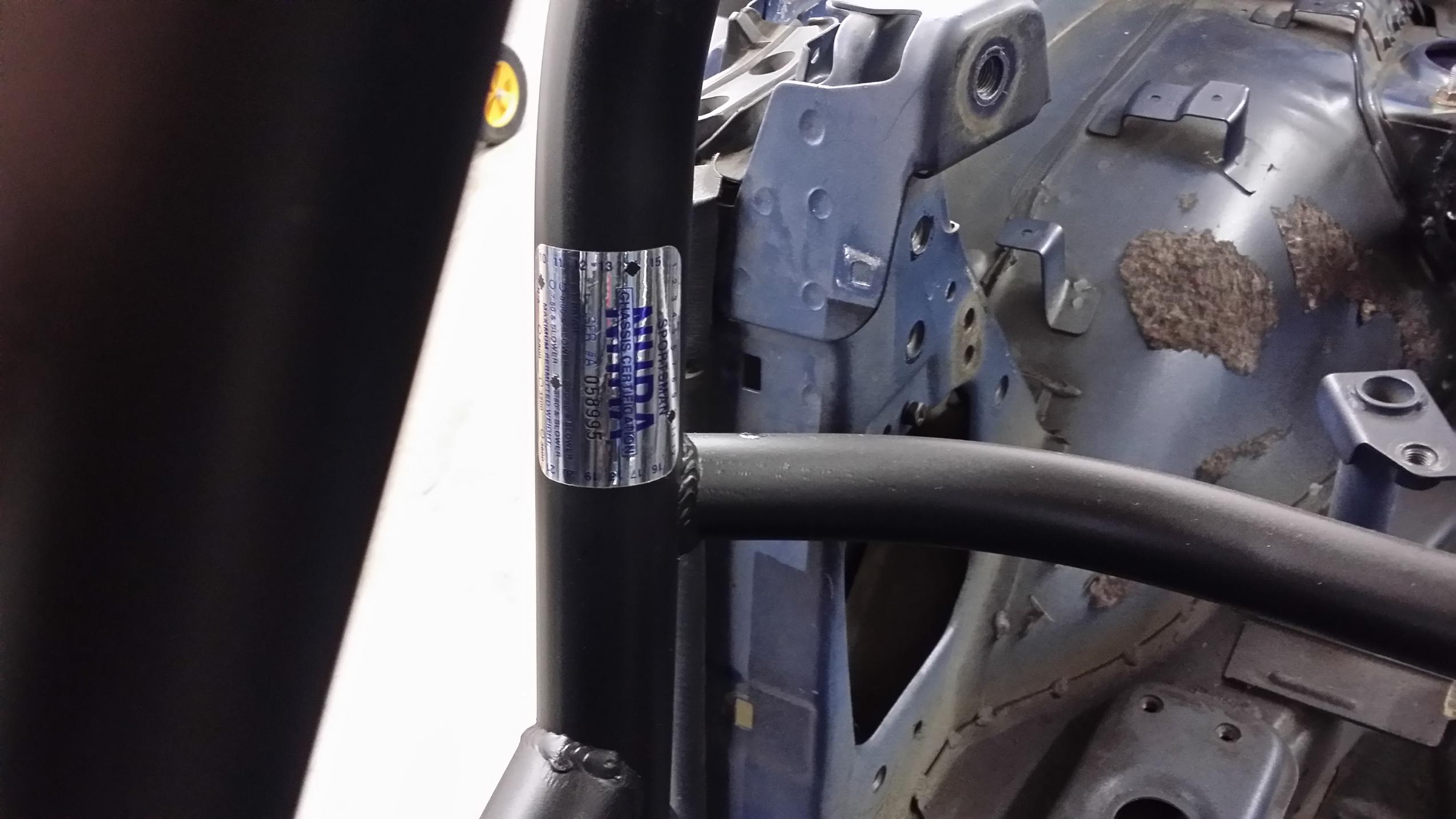

Milestone of the roll cage inspection today. I passed!!! I feel like I won something, a sticker away For my first cage the Tech said over the 10,000 cages he has inspected over the years mine rates at a B+. Totally stoked



Nice clutch.. friend of me was just too late to buy it.. He now ordered a new one off ebay. . the clutch is also available on the RHD japan website for really good price but they say it has been discontinued by exedy..

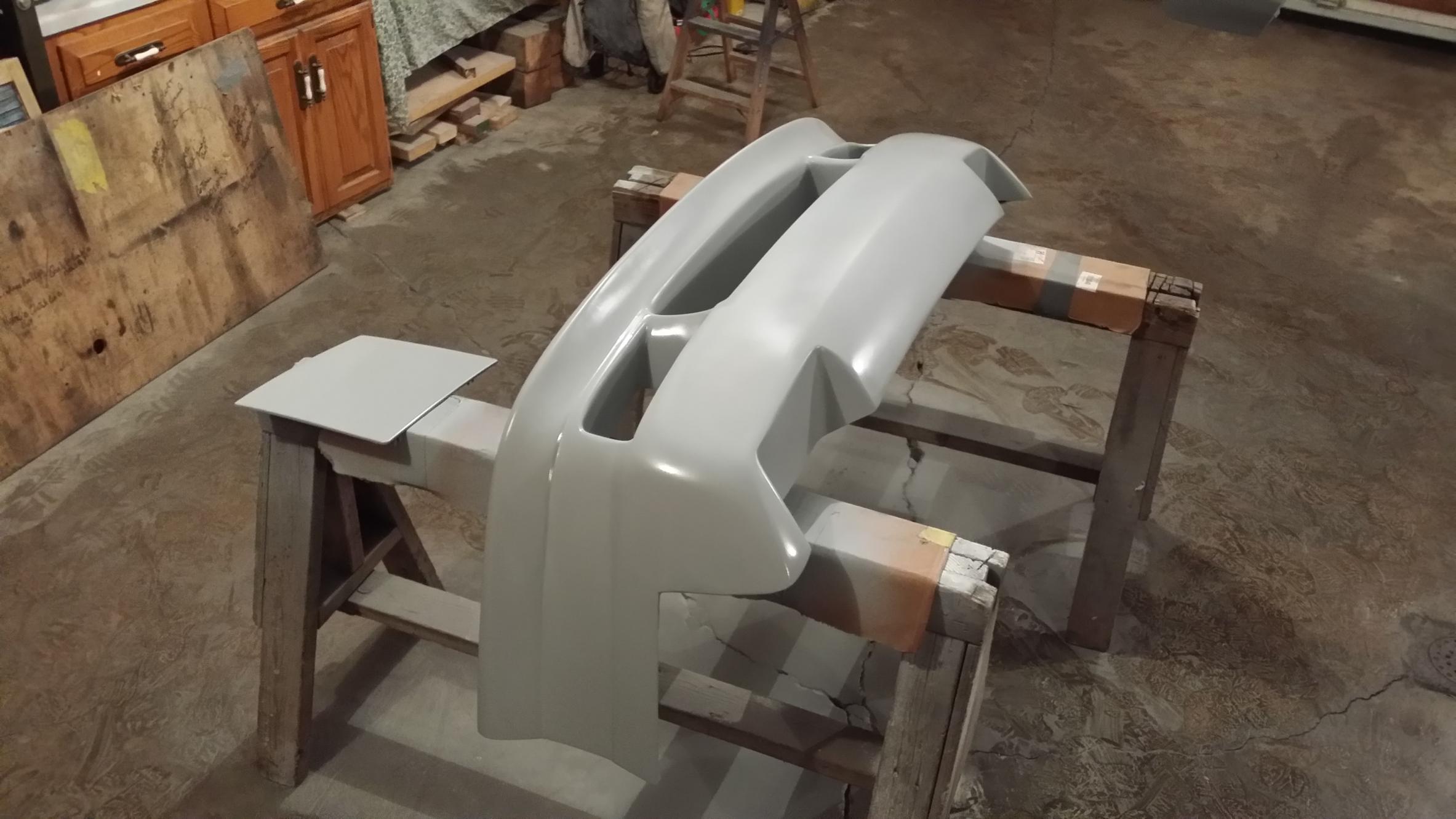

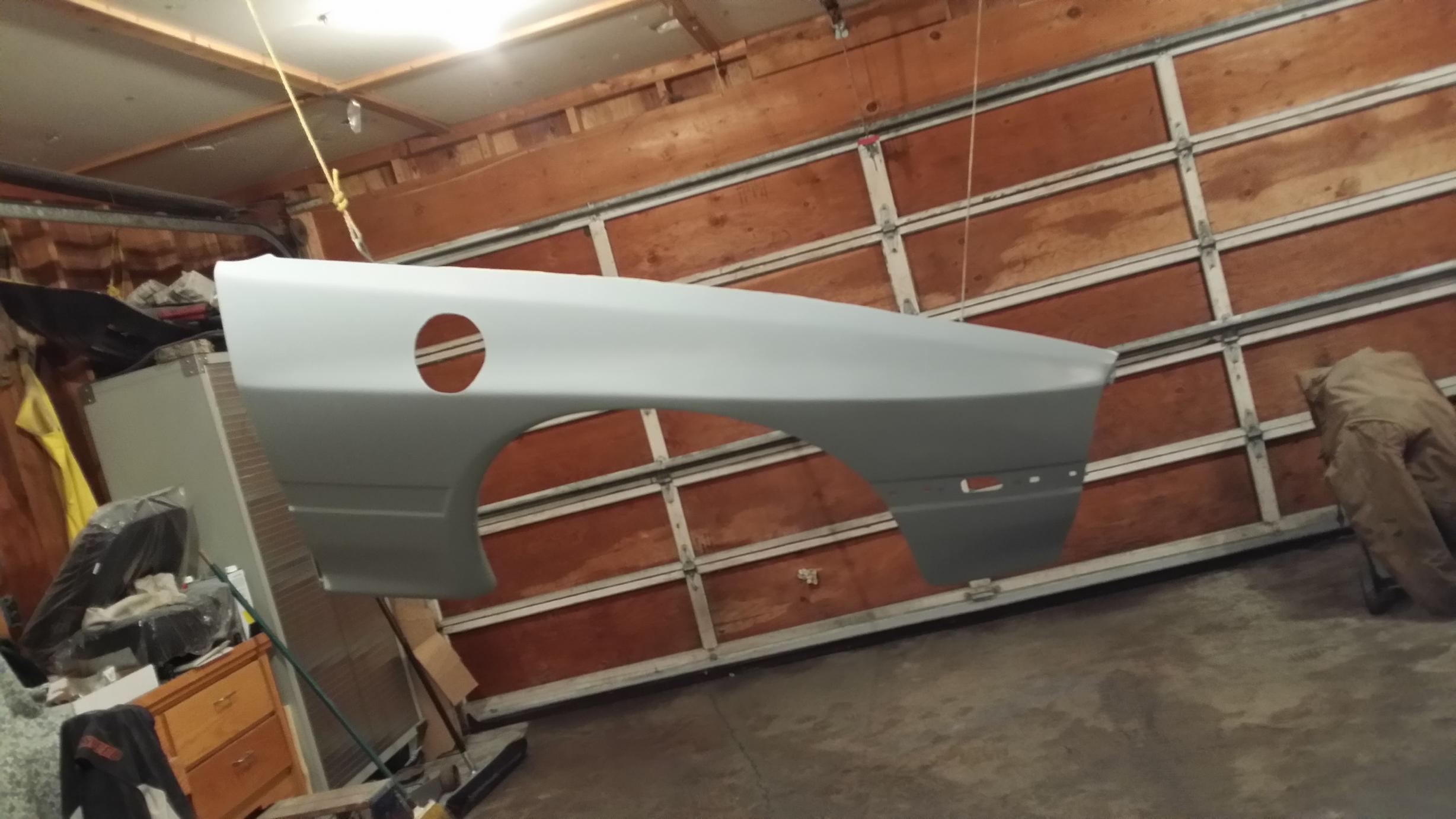

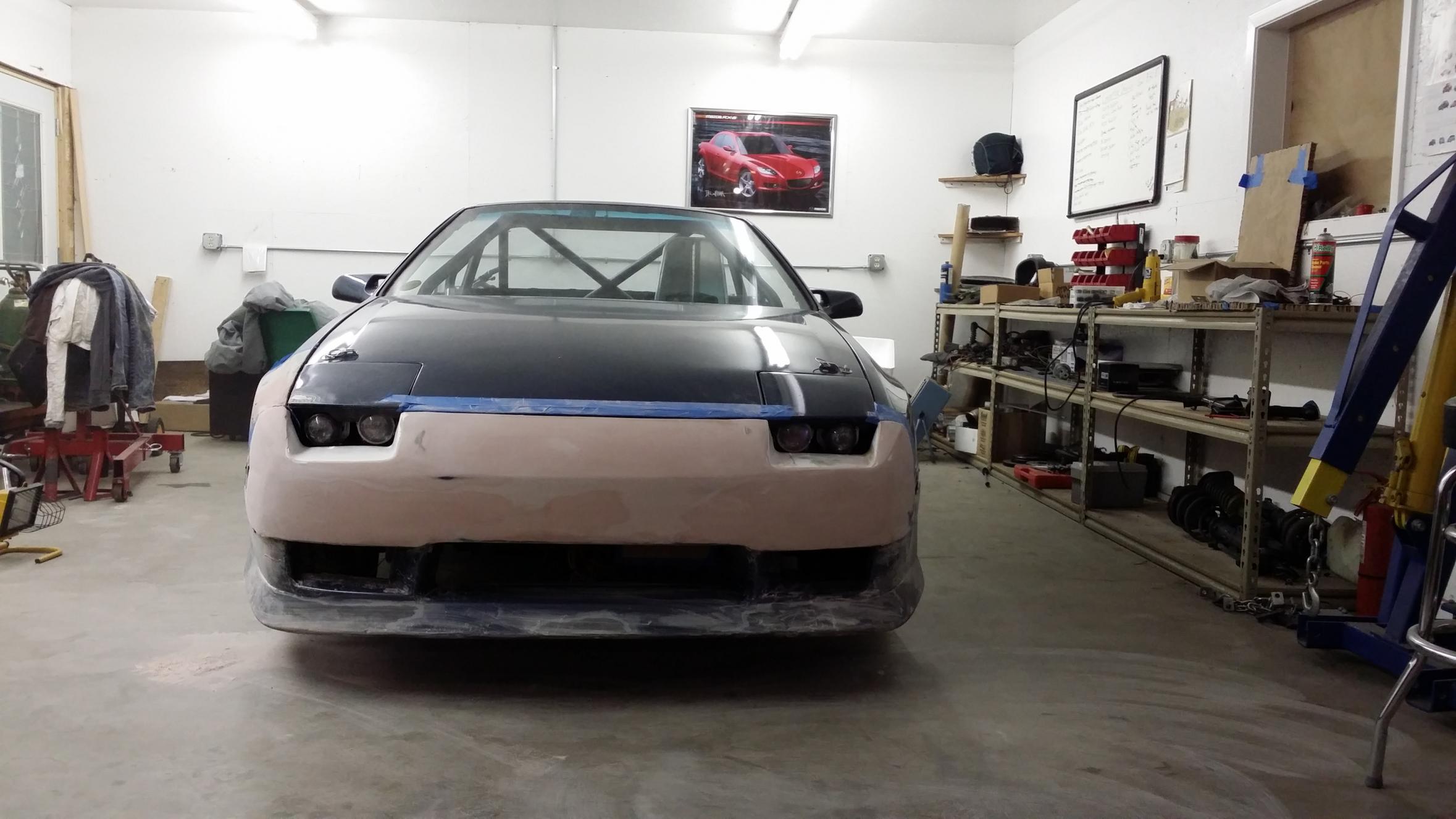

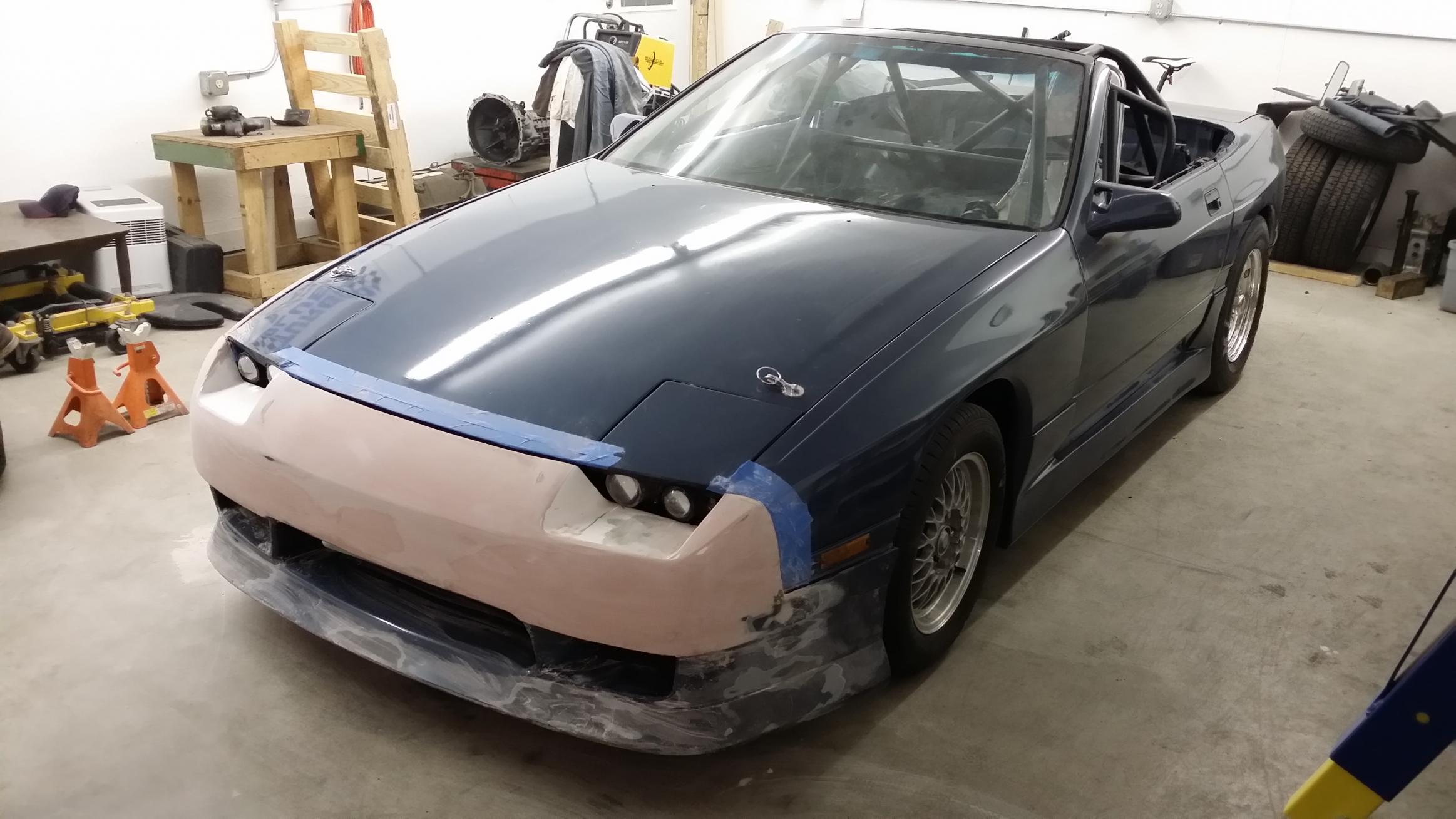

First look at a car again. Little more sanding and filler and it's time to have a car all in one color again.

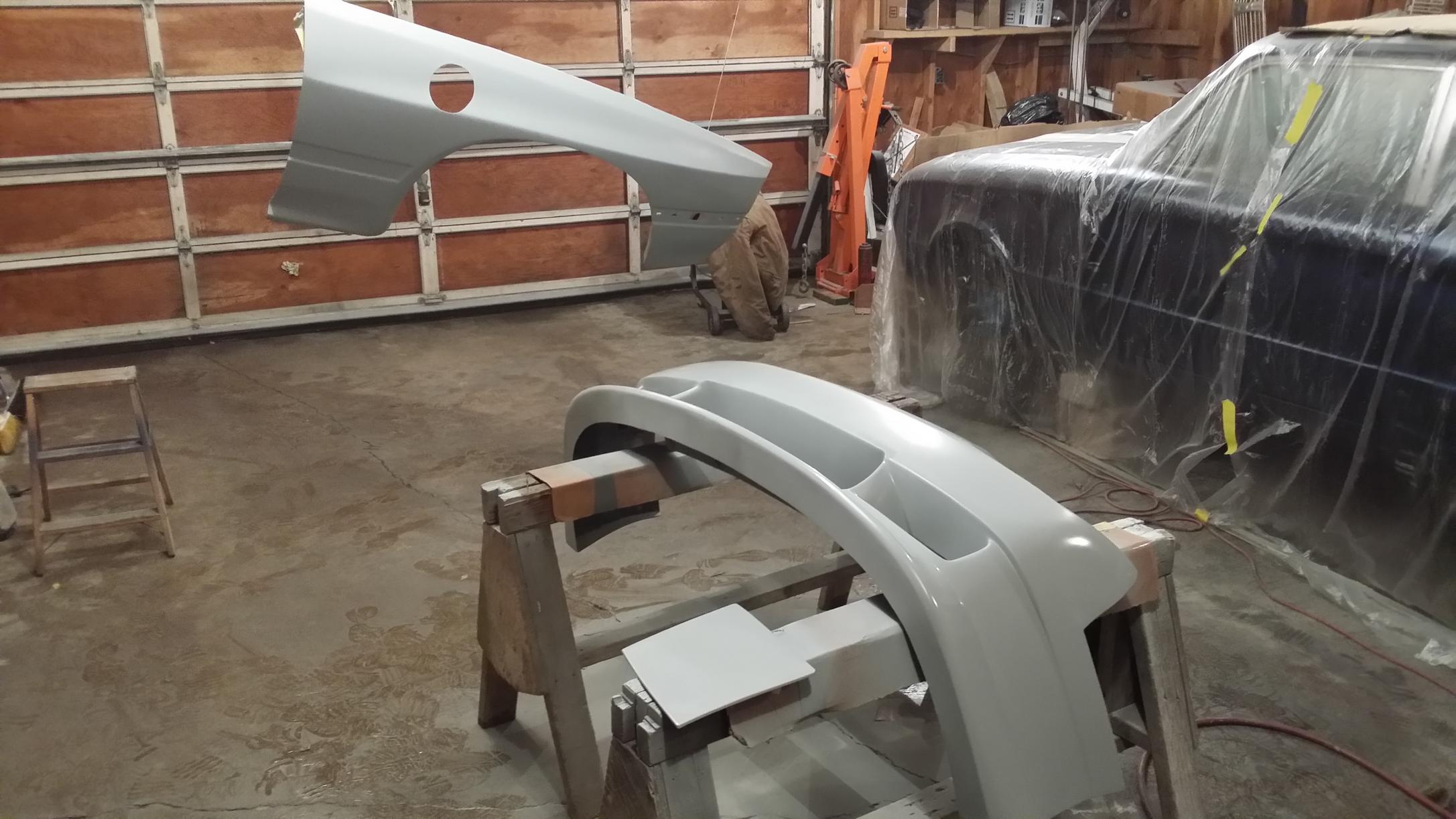

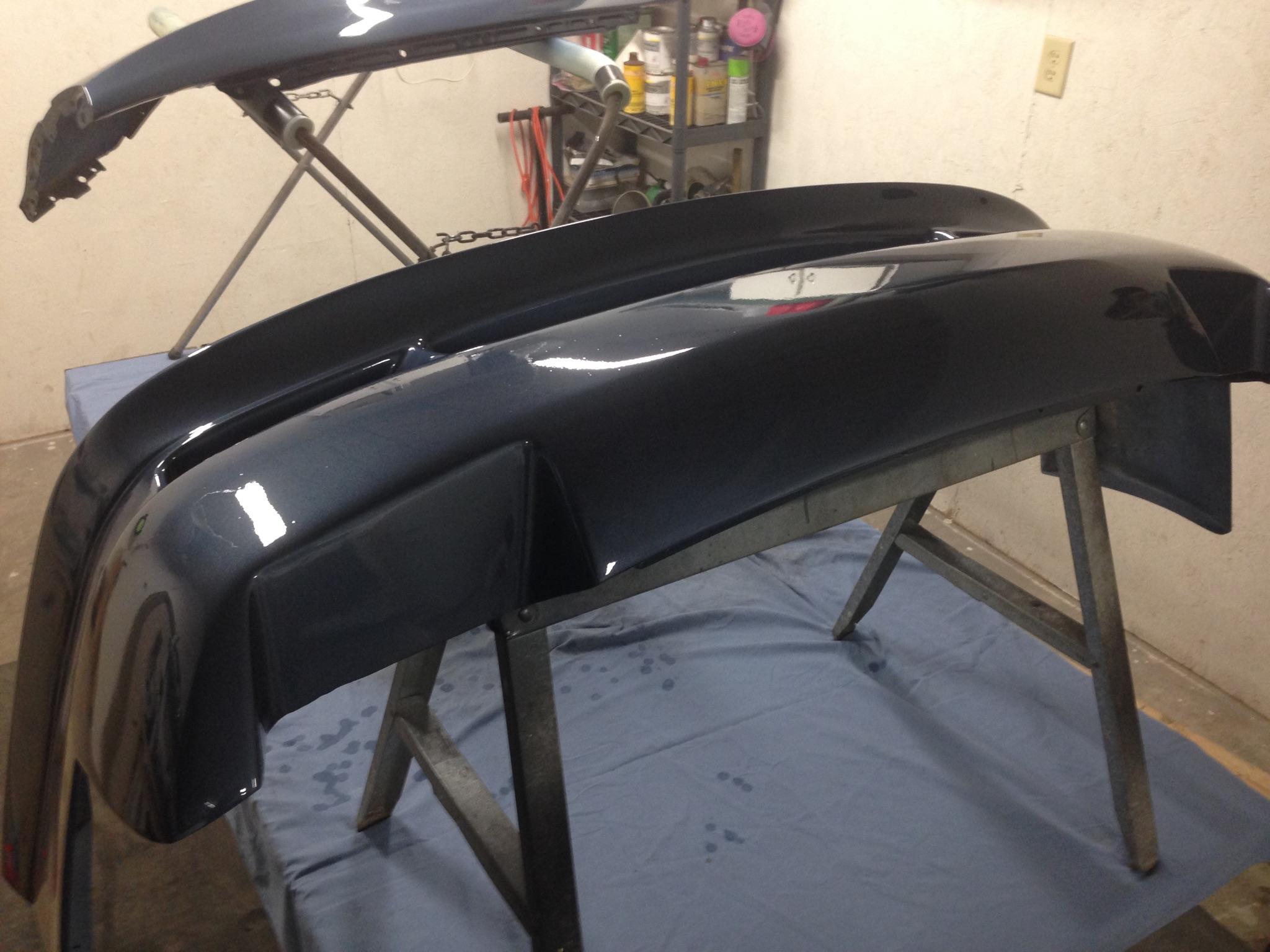

Progress to paint. Hopefully this weekend warms up to get some base and clear coat on.

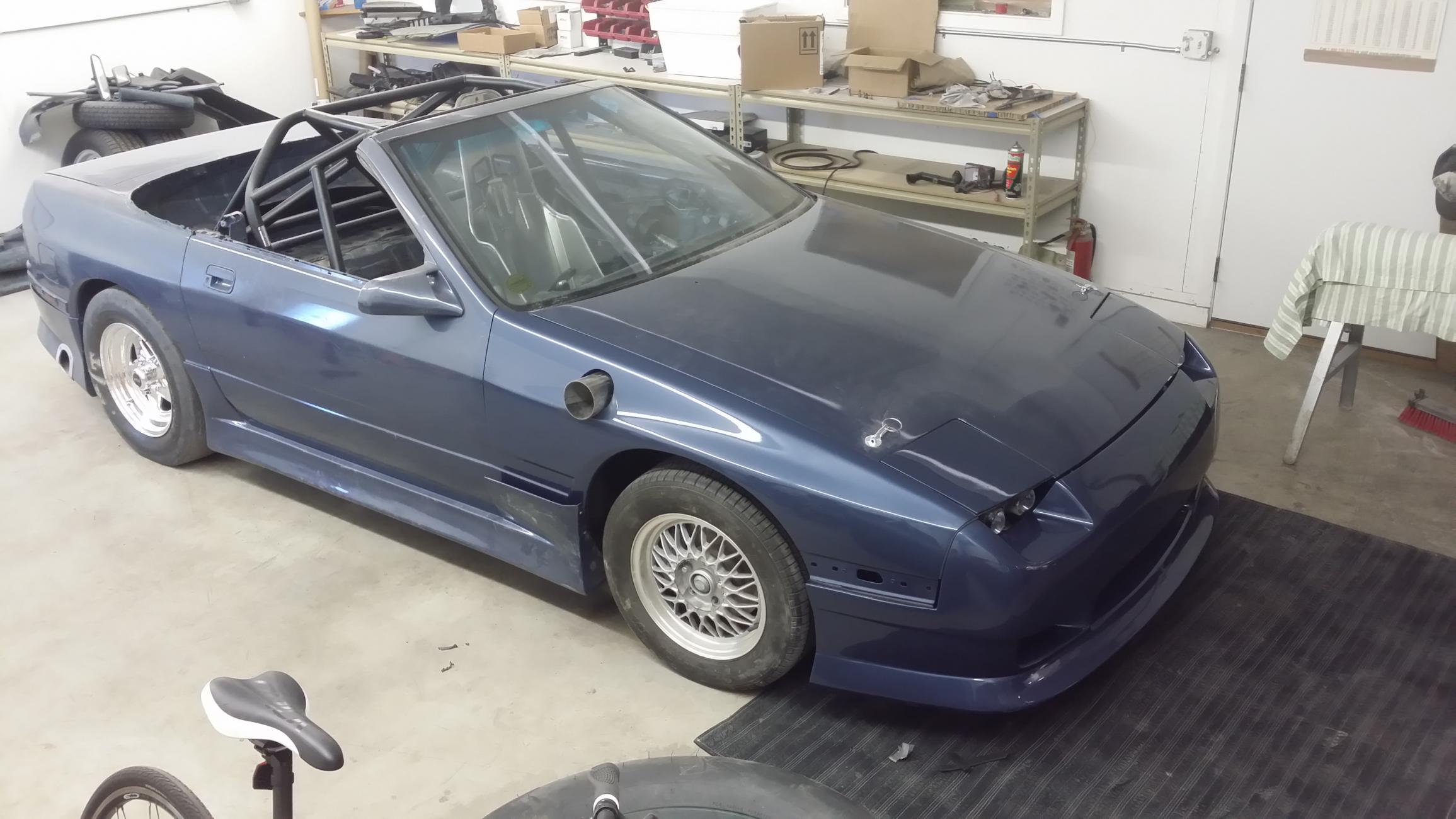

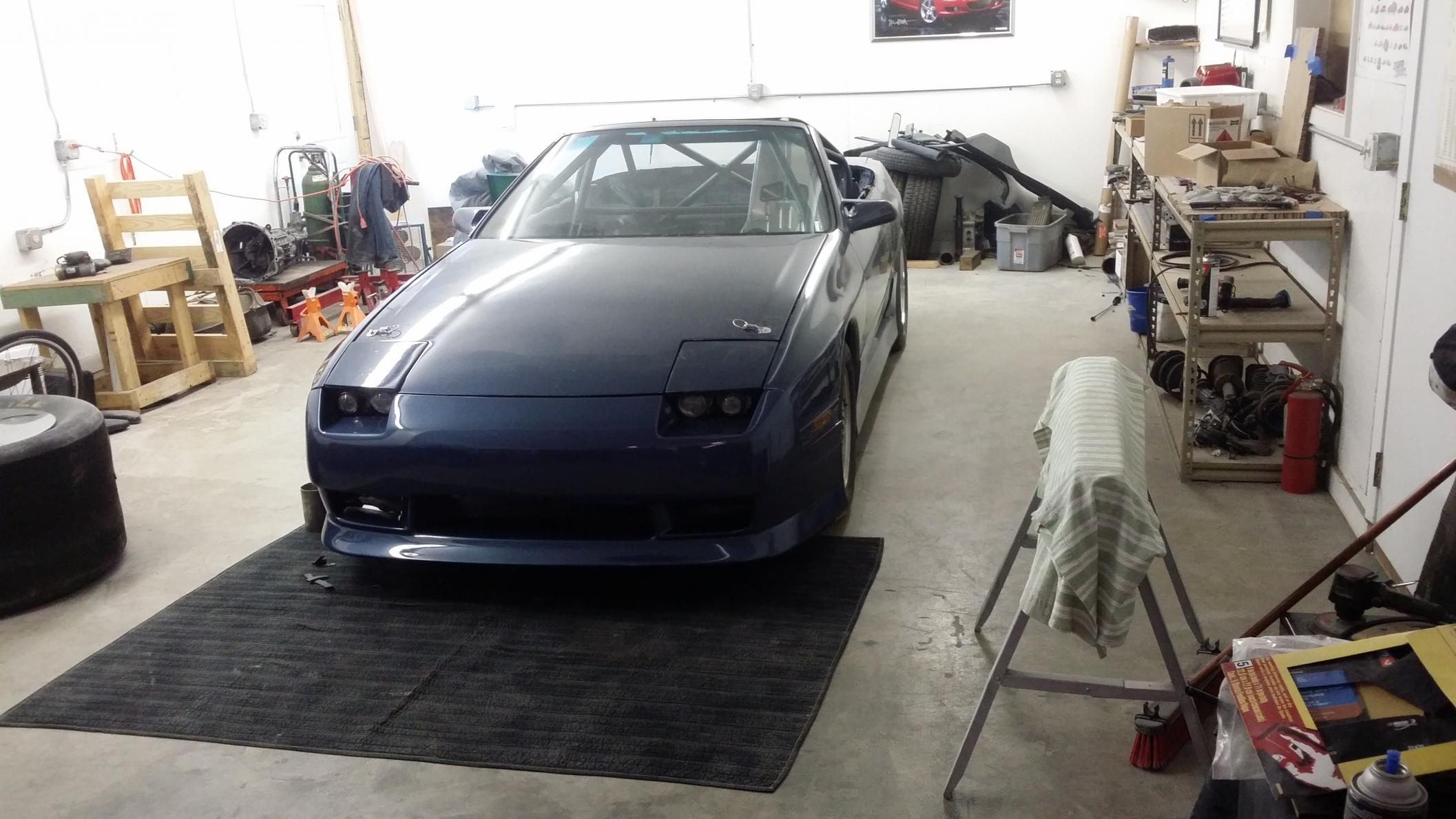

Just focusing on motor and electronics from here on out. Car is back to one shiny color.



Manifold progress, put a few buggers on, and the turbo is where I want it.
