Exactly why I would want it, because of the already welded AN fittings



Unfortunately flying Mazda again.....



Well I figured I would through an update to my project as a install note for anyone thinking about purchasing or already purchased Rotary-Works Titanium Studs. I filled my motor with water last week, and this week went to finish up a few things. To my surprise I had a water spot under the car and it was dripping between the motor and trans. Pretty obvious what had to be done, so I removed the trans, and Clutch/Flywheel assembly. Very top Stud was leaking, which didn't make sense, I used the Mazda OEM tention bolt washers, and Rotary-Works provides the second washer for there nut. I installed as there pictures suggest on there website so why the leak??? Well this is why, the pictures shown on the website show the Studs installed backwards. Which makes the threads of the stud a perfect place for water to seep through.... drip......drip......drip. Anyways I reversed the studs one by one, which then the OEM tension bolt washer lined up perfectly with the nonthreaded section of the stud, and sealed, and the Rotary-Works provided washer allows clearance for the nut to be torqued down to 30lb with no bottoming out issues. So moral of the story, Rotary-Works Titanium Stud kits, great product, Shitty install picture directions.

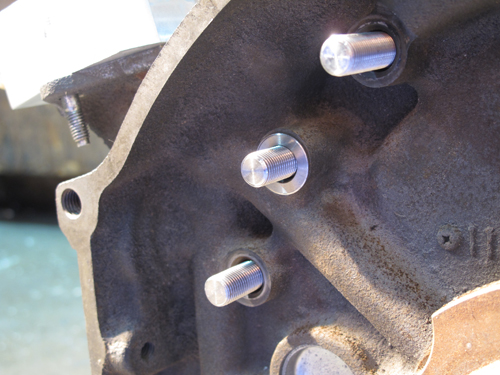

here is there install direction picture.

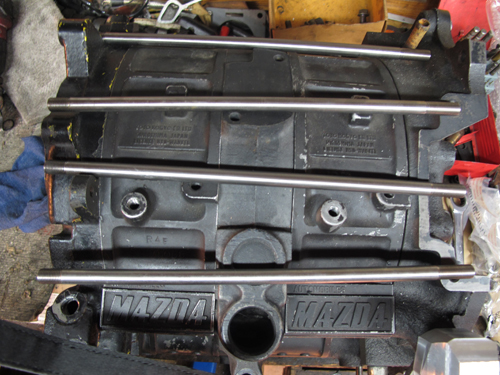

Here is how I installed them.



And this is where you can expect water to come through if you install them this way.



So if you don't want you motor to leak when using these studs, make sure you have the less threaded side of the stud facing up.



No matter how you do them, put a small dab of Silicone on the nut to avoid leaks later.



First start up video, turn up the volume and enjoy. Lots of tuning to do but a huge step in the right direction.



Hell yeah! Sounds great!



^This!

How soon will it be hitting the dyno?



Thanks, Dyno will be soon, right now I'm getting it ready for a event to just show up at do some short pulls, and make sure all the bolts are tight. Dyno will probably be in August or September.



Getting some testing done before next weekends Powercruise Event. Should be able to dyno at the event, and I'm entered in the Roll Race, and 1/8 mile Drag Racing. We shall see what happens. Here's a quick video of a few short burnout logs I did in our parking lot.



^NICE, love the sound!



I've been busy with a new job and bringing my car back home since I was able to finish heating and insulating my garage. Here's what I've been up to getting ready for 2016.

<a href="http://s1380.photobucket.com/user/janousekmike/media/BF2FA4A4-7D9E-4950-A85D-95D130BA63F3_zpsomrirln8.jpg.html" target="_blank"><img src="http://i1380.photobucket.com/albums/ah164/janousekmike/BF2FA4A4-7D9E-4950-A85D-95D130BA63F3_zpsomrirln8.jpg" border="0" alt=" photo BF2FA4A4-7D9E-4950-A85D-95D130BA63F3_zpsomrirln8.jpg"/></a>

<a href="http://s1380.photobucket.com/user/janousekmike/media/C76B90A8-568C-4017-94C5-3F289799EE60_zpsyrctbbhx.jpg.html" target="_blank"><img src="http://i1380.photobucket.com/albums/ah164/janousekmike/C76B90A8-568C-4017-94C5-3F289799EE60_zpsyrctbbhx.jpg" border="0" alt=" photo C76B90A8-568C-4017-94C5-3F289799EE60_zpsyrctbbhx.jpg"/></a>

<a href="http://s1380.photobucket.com/user/janousekmike/media/5A2A2560-F2BE-45BC-96D5-30733E66ED3F_zpsflkmiloy.jpg.html" target="_blank"><img src="http://i1380.photobucket.com/albums/ah164/janousekmike/5A2A2560-F2BE-45BC-96D5-30733E66ED3F_zpsflkmiloy.jpg" border="0" alt=" photo 5A2A2560-F2BE-45BC-96D5-30733E66ED3F_zpsflkmiloy.jpg"/></a>

<a href="http://s1380.photobucket.com/user/janousekmike/media/90E57C13-2313-46A0-AB76-54B6D33BC9DA_zpspwwf2ezi.jpg.html" target="_blank"><img src="http://i1380.photobucket.com/albums/ah164/janousekmike/90E57C13-2313-46A0-AB76-54B6D33BC9DA_zpspwwf2ezi.jpg" border="0" alt=" photo 90E57C13-2313-46A0-AB76-54B6D33BC9DA_zpspwwf2ezi.jpg"/></a>

<a href="http://s1380.photobucket.com/user/janousekmike/media/BD3C2444-0D99-4FCF-8764-BBA03C54E27D_zpsm54x30ix.jpg.html" target="_blank"><img src="http://i1380.photobucket.com/albums/ah164/janousekmike/BD3C2444-0D99-4FCF-8764-BBA03C54E27D_zpsm54x30ix.jpg" border="0" alt=" photo BD3C2444-0D99-4FCF-8764-BBA03C54E27D_zpsm54x30ix.jpg"/></a>

<a href="http://s1380.photobucket.com/user/janousekmike/media/354A77D2-6702-4D06-849C-7E4E436303D9_zpsjvp2tb0s.jpg.html" target="_blank"><img src="http://i1380.photobucket.com/albums/ah164/janousekmike/354A77D2-6702-4D06-849C-7E4E436303D9_zpsjvp2tb0s.jpg" border="0" alt=" photo 354A77D2-6702-4D06-849C-7E4E436303D9_zpsjvp2tb0s.jpg"/></a>

<a href="http://s1380.photobucket.com/user/janousekmike/media/F6D05F96-F808-445B-9BB9-F5F768CEEE7A_zpsapypwzg5.jpg.html" target="_blank"><img src="http://i1380.photobucket.com/albums/ah164/janousekmike/F6D05F96-F808-445B-9BB9-F5F768CEEE7A_zpsapypwzg5.jpg" border="0" alt=" photo F6D05F96-F808-445B-9BB9-F5F768CEEE7A_zpsapypwzg5.jpg"/></a>

<a href="http://s1380.photobucket.com/user/janousekmike/media/17875231-375C-444D-9E3E-B1EE9E6D84EC_zpsgrlf3jqw.jpg.html" target="_blank"><img src="http://i1380.photobucket.com/albums/ah164/janousekmike/17875231-375C-444D-9E3E-B1EE9E6D84EC_zpsgrlf3jqw.jpg" border="0" alt=" photo 17875231-375C-444D-9E3E-B1EE9E6D84EC_zpsgrlf3jqw.jpg"/></a>

<a href="http://s1380.photobucket.com/user/janousekmike/media/25C37774-A10D-4012-9B9C-46C4BF20D2A8_zpszpjczg0m.jpg.html" target="_blank"><img src="http://i1380.photobucket.com/albums/ah164/janousekmike/25C37774-A10D-4012-9B9C-46C4BF20D2A8_zpszpjczg0m.jpg" border="0" alt=" photo 25C37774-A10D-4012-9B9C-46C4BF20D2A8_zpszpjczg0m.jpg"/></a>

<a href="http://s1380.photobucket.com/user/janousekmike/media/66B2454D-0DC2-448E-B06A-6C4BE7101F19_zpsrbfnnao2.jpg.html" target="_blank"><img src="http://i1380.photobucket.com/albums/ah164/janousekmike/66B2454D-0DC2-448E-B06A-6C4BE7101F19_zpsrbfnnao2.jpg" border="0" alt=" photo 66B2454D-0DC2-448E-B06A-6C4BE7101F19_zpsrbfnnao2.jpg"/></a>

<a href="http://s1380.photobucket.com/user/janousekmike/media/D2F6B9FD-47F3-4653-95D8-FF94369AB8A0_zpsueles8rx.jpg.html" target="_blank"><img src="http://i1380.photobucket.com/albums/ah164/janousekmike/D2F6B9FD-47F3-4653-95D8-FF94369AB8A0_zpsueles8rx.jpg" border="0" alt=" photo D2F6B9FD-47F3-4653-95D8-FF94369AB8A0_zpsueles8rx.jpg"/></a>

<a href="http://s1380.photobucket.com/user/janousekmike/media/69A05DAE-26C1-4A2D-B146-A14FD7D564AB_zpsaajhs49h.jpg.html" target="_blank"><img src="http://i1380.photobucket.com/albums/ah164/janousekmike/69A05DAE-26C1-4A2D-B146-A14FD7D564AB_zpsaajhs49h.jpg" border="0" alt=" photo 69A05DAE-26C1-4A2D-B146-A14FD7D564AB_zpsaajhs49h.jpg"/></a>



Since I've had the car home I've had a lot more time to spend getting bugs worked out from last year, biggest improvement is the L/A IC setup. Here is some progress I still need to connect the turbo side but the hard part is done.


<a href="http://s1380.photobucket.com/user/janousekmike/media/3B8BFAC9-EBD4-4FB9-95A2-2543B3928060_zps30zjcq1t.jpg.html" target="_blank"><img src="http://i1380.photobucket.com/albums/ah164/janousekmike/3B8BFAC9-EBD4-4FB9-95A2-2543B3928060_zps30zjcq1t.jpg" border="0" alt=" photo 3B8BFAC9-EBD4-4FB9-95A2-2543B3928060_zps30zjcq1t.jpg"/></a>


<a href="http://s1380.photobucket.com/user/janousekmike/media/5A7473D5-E302-4FA3-A568-2DBAC81CB413_zpsgcxqo6oo.jpg.html" target="_blank"><img src="http://i1380.photobucket.com/albums/ah164/janousekmike/5A7473D5-E302-4FA3-A568-2DBAC81CB413_zpsgcxqo6oo.jpg" border="0" alt=" photo 5A7473D5-E302-4FA3-A568-2DBAC81CB413_zpsgcxqo6oo.jpg"/></a>

<a href="http://s1380.photobucket.com/user/janousekmike/media/CEF583EF-0A03-4C5D-880B-1A5DD36B7087_zpsaaxsvrow.jpg.html" target="_blank"><img src="http://i1380.photobucket.com/albums/ah164/janousekmike/CEF583EF-0A03-4C5D-880B-1A5DD36B7087_zpsaaxsvrow.jpg" border="0" alt=" photo CEF583EF-0A03-4C5D-880B-1A5DD36B7087_zpsaaxsvrow.jpg"/></a>



<a href="http://s1380.photobucket.com/user/janousekmike/media/A05A2673-B542-4452-A4FB-66E1FED1ADB1_zpsgmmsocpu.jpg.html" target="_blank"><img src="http://i1380.photobucket.com/albums/ah164/janousekmike/A05A2673-B542-4452-A4FB-66E1FED1ADB1_zpsgmmsocpu.jpg" border="0" alt=" photo A05A2673-B542-4452-A4FB-66E1FED1ADB1_zpsgmmsocpu.jpg"/></a>

<a href="http://s1380.photobucket.com/user/janousekmike/media/EF80BB54-386C-40B0-8C1E-9977DB1FAFC7_zpsllu6xsyo.jpg.html" target="_blank"><img src="http://i1380.photobucket.com/albums/ah164/janousekmike/EF80BB54-386C-40B0-8C1E-9977DB1FAFC7_zpsllu6xsyo.jpg" border="0" alt=" photo EF80BB54-386C-40B0-8C1E-9977DB1FAFC7_zpsllu6xsyo.jpg"/></a>

<a href="http://s1380.photobucket.com/user/janousekmike/media/CBF3F0E3-C274-4533-BD51-0486602ACBDB_zpsqj97ctve.jpg.html" target="_blank"><img src="http://i1380.photobucket.com/albums/ah164/janousekmike/CBF3F0E3-C274-4533-BD51-0486602ACBDB_zpsqj97ctve.jpg" border="0" alt=" photo CBF3F0E3-C274-4533-BD51-0486602ACBDB_zpsqj97ctve.jpg"/></a>



<a href="http://s1380.photobucket.com/user/janousekmike/media/C18A1CF4-6651-452C-861D-282754D1123E_zpshyzic6mp.jpg.html" target="_blank"><img src="http://i1380.photobucket.com/albums/ah164/janousekmike/C18A1CF4-6651-452C-861D-282754D1123E_zpshyzic6mp.jpg" border="0" alt=" photo C18A1CF4-6651-452C-861D-282754D1123E_zpshyzic6mp.jpg"/></a>



Looks Great!!

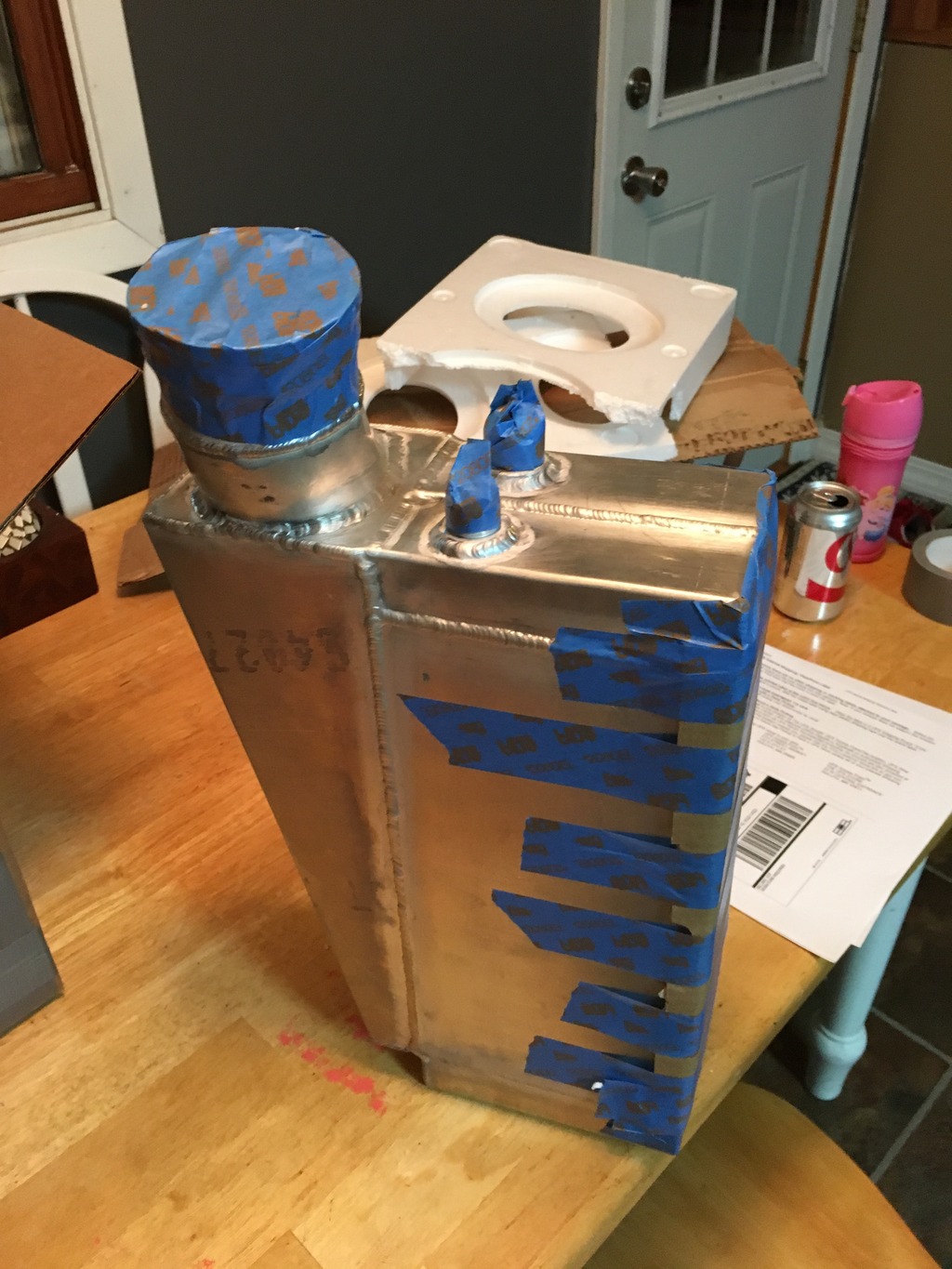

This didn't turn out to plan, plumbed the car for the L/A IC and the Core leaks "F--- ME". So I called Bell Intercoolers they said send it back in its current state and 99% chance they can fix the braze points...... We'll see they will have it by Tuesday.



OUCH!

Looking good, for s second, I thought you were going to mount the BOVs to the cold side of the intercooler.



It hurt to stop the progress for a leaky core let me tell ya, but it was that and get it fixed right or have built in water injection. Both BOVs are going on the cool side just on the pipe, same as the mock up pics. I like your thinking tho, on the IC would free up some serious room over my spark plugs.

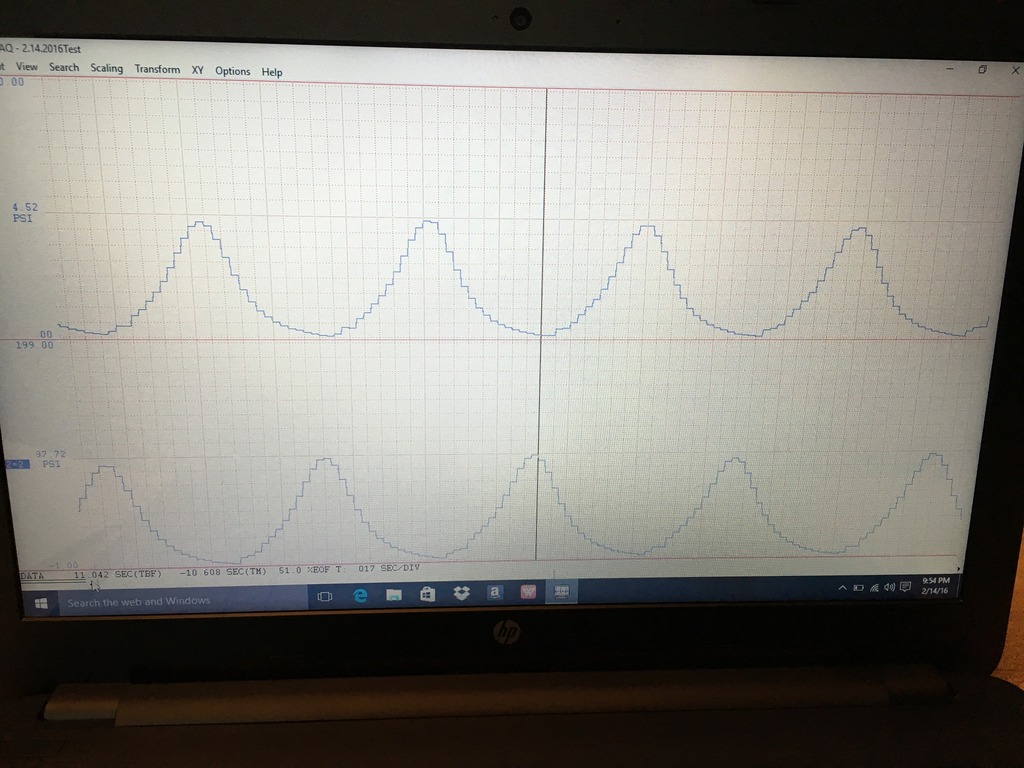

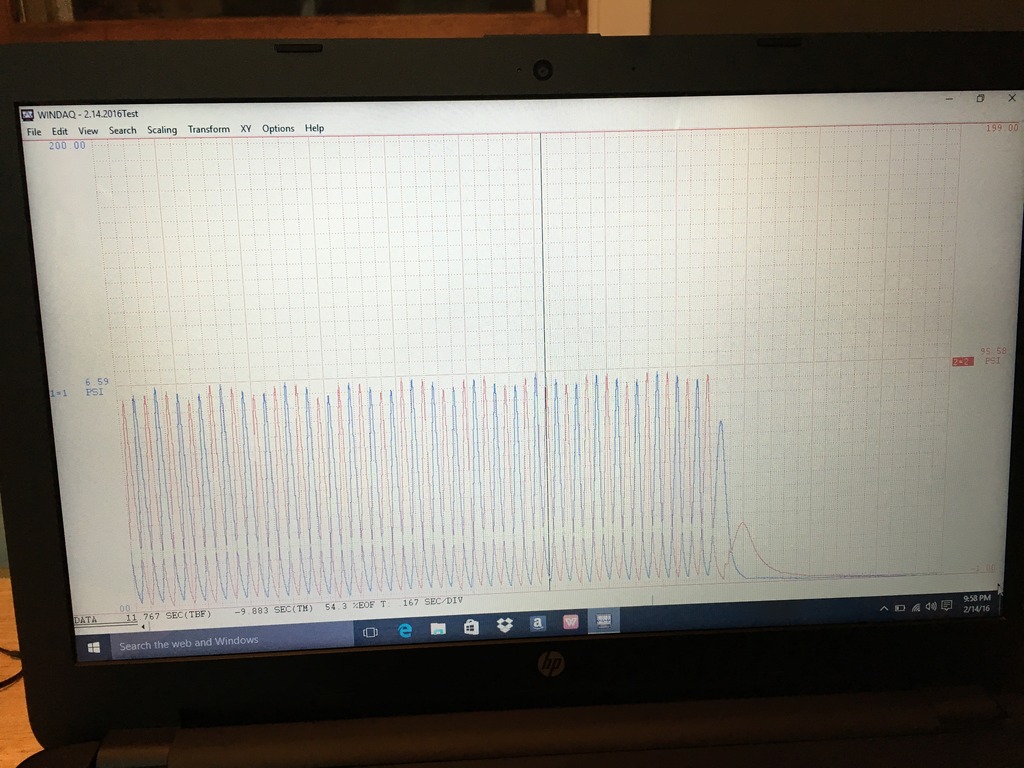

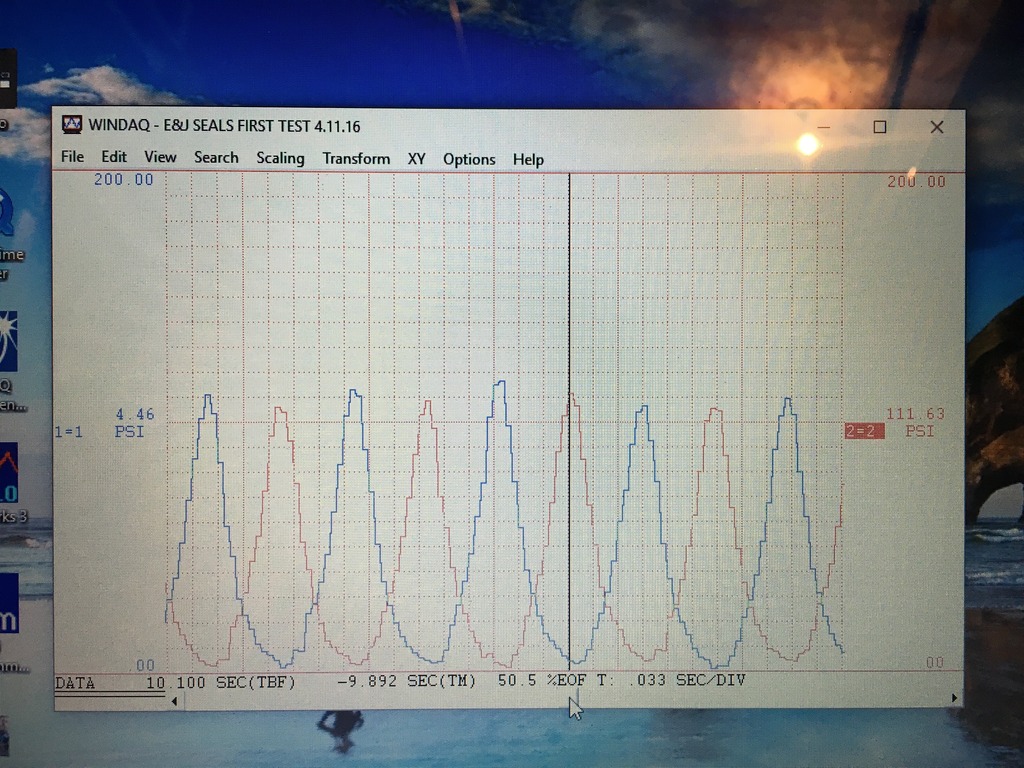

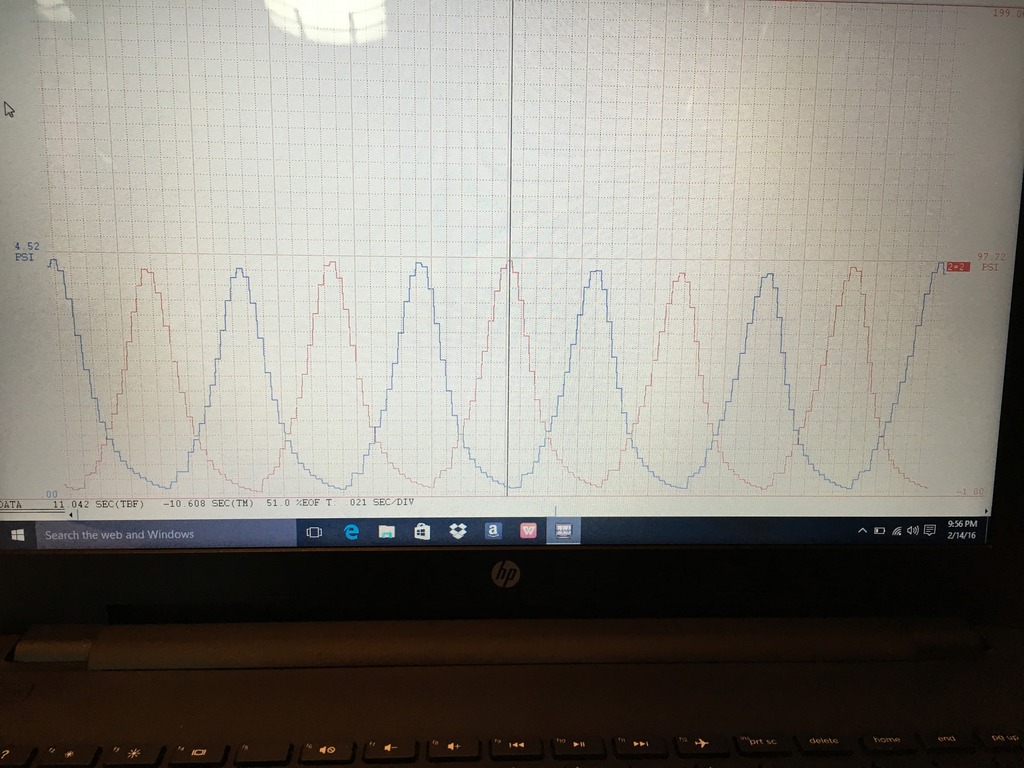

Got a new toy to play with. Digital Rotary Compression Tester this thing is AWESOME! All faces average 98PSI and only a average of .96PSI difference. I will sleep well tonight

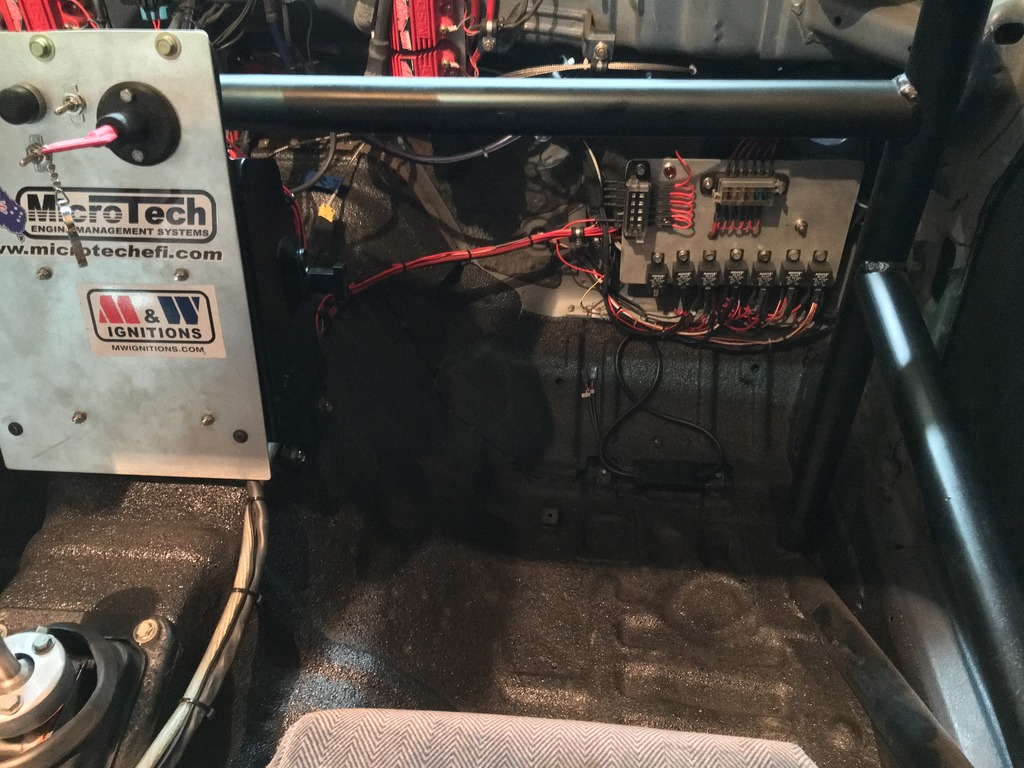

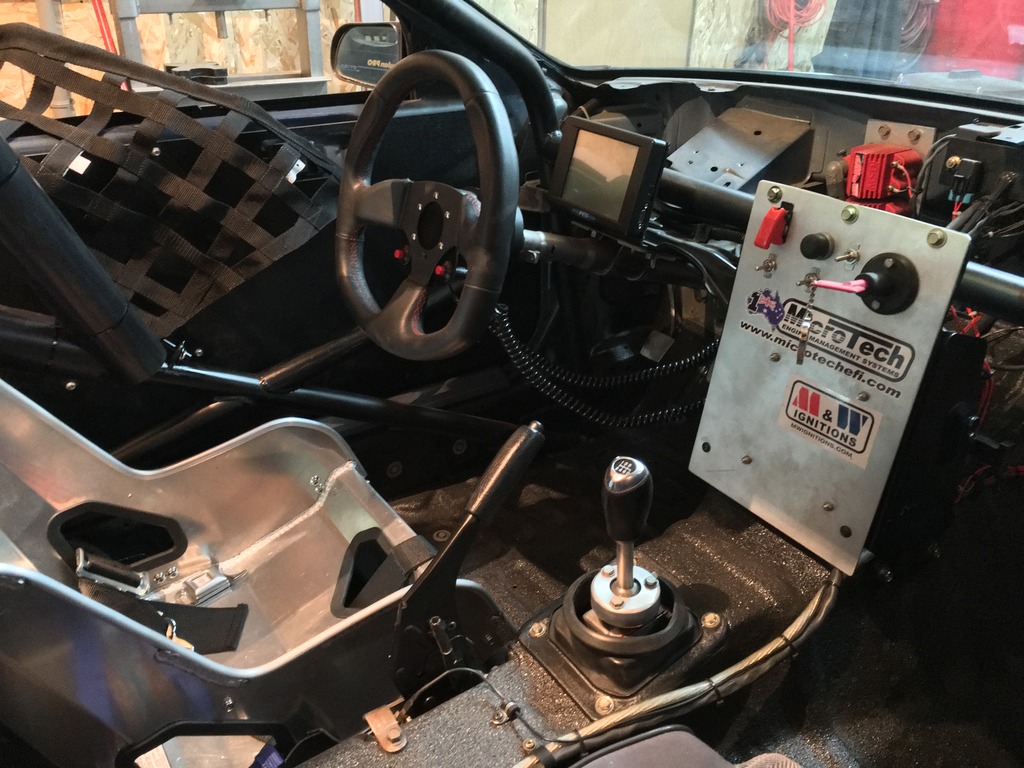

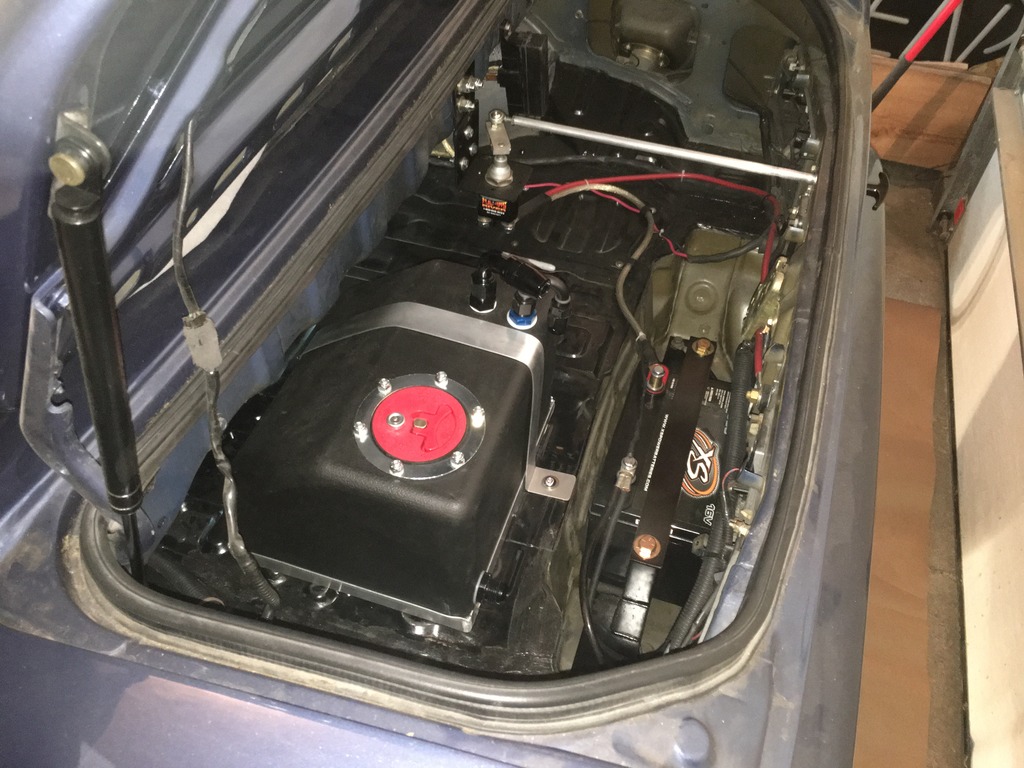

It's back and ready, intercooler tested and final fitment completed. Also in the mean time waiting for the return I got my pump system electrical complete, line locks wired to steering wheel switch, and window net installed. Added one more switch for future parachute launcher.😄



Updates? Heard (more like read) somewhere that you are running 3 pcs apex seals, and that you are dynoing on the 23rd?



looking nice

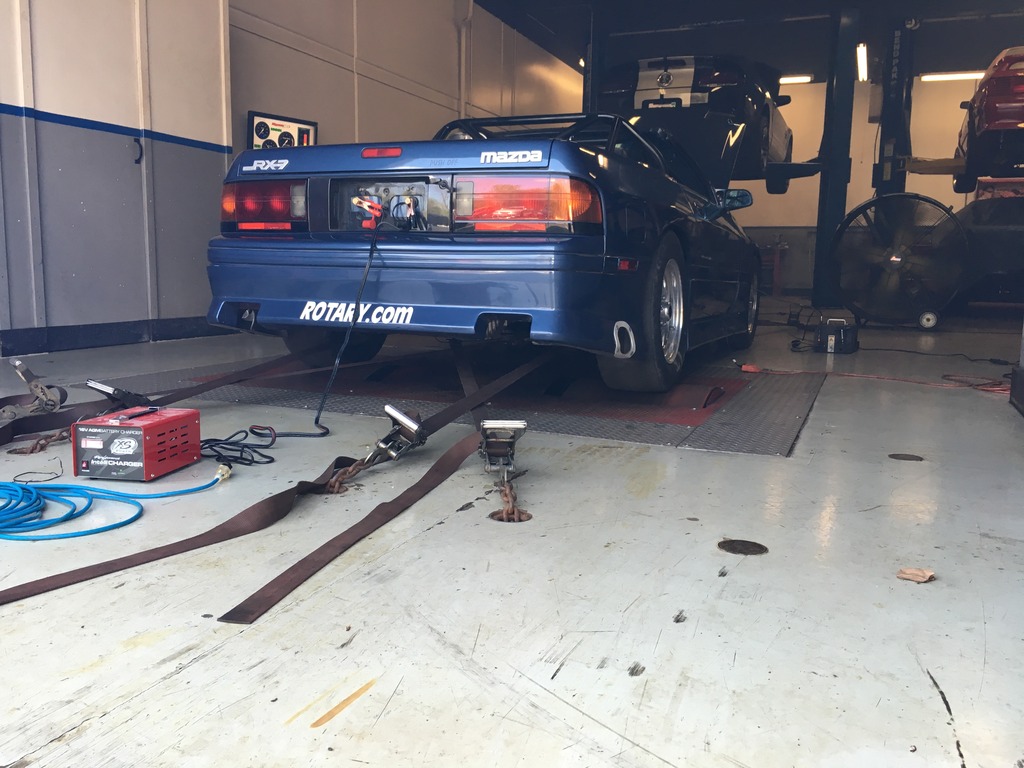

Yes I am and yes I did Dyno the car. Seals did amazing E&J are the ****! The cars first time on the Dyno nothing broke had an injector issue that I had to make the call to stop but got some nice info and will be back for WOT shortly



LOVE that FREAKING brap brap brap brap sound

Congrats on not breaking anything on the dyno, for me, hitting the dyno is a nerver wrecking moment LOL

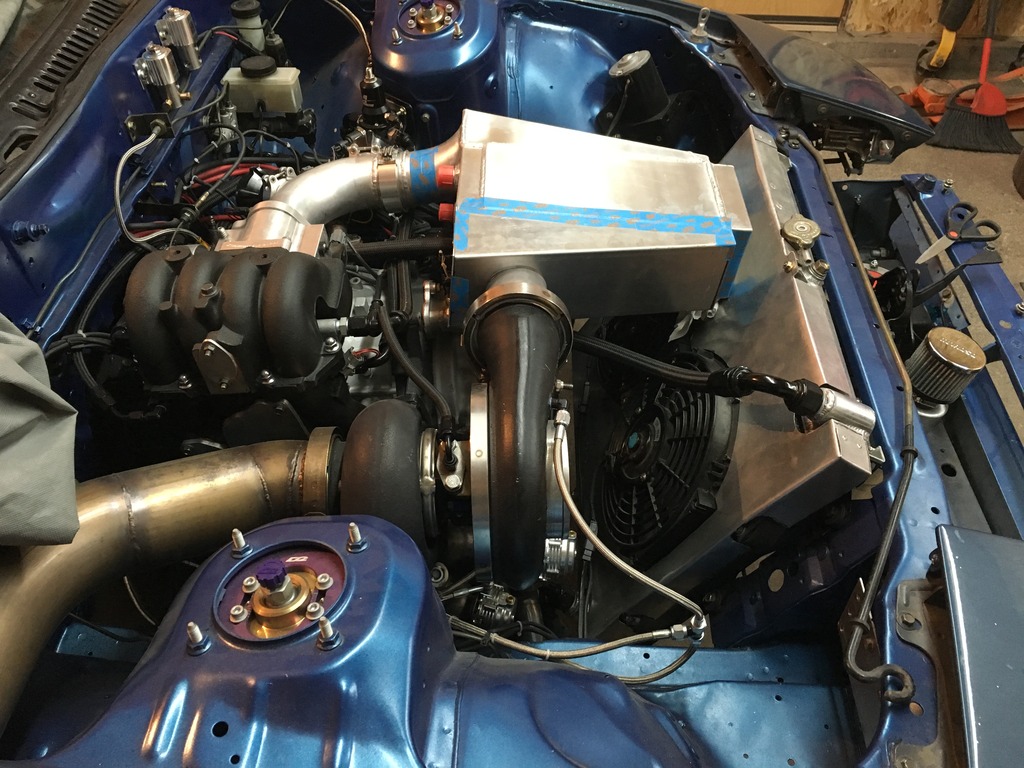

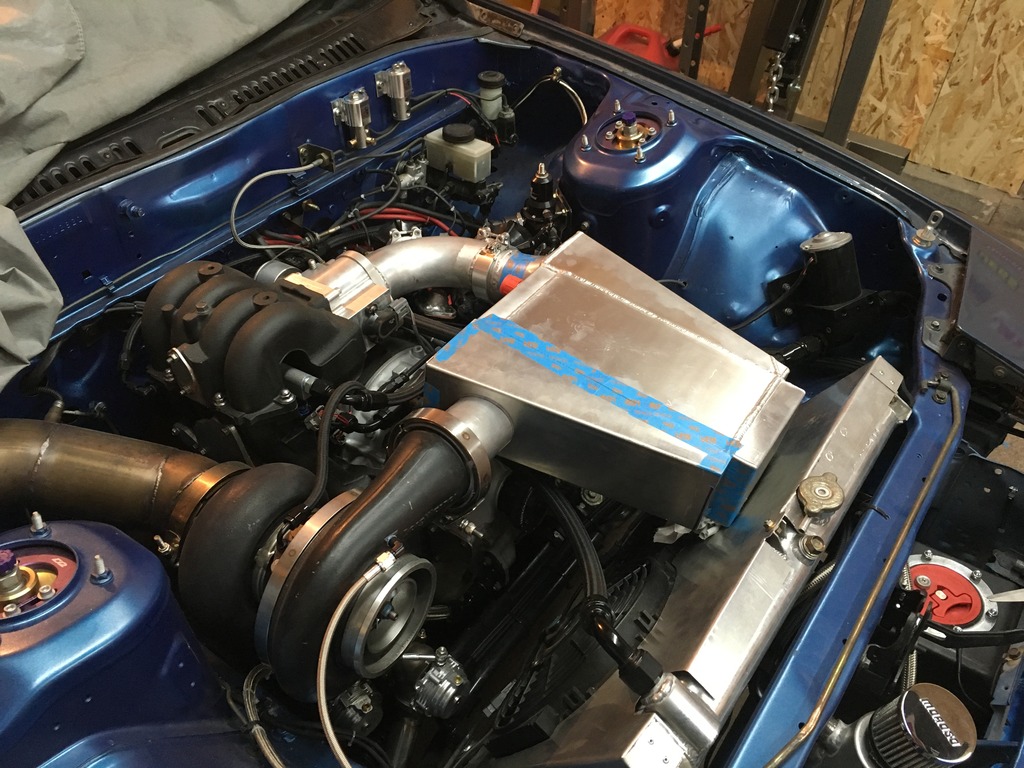

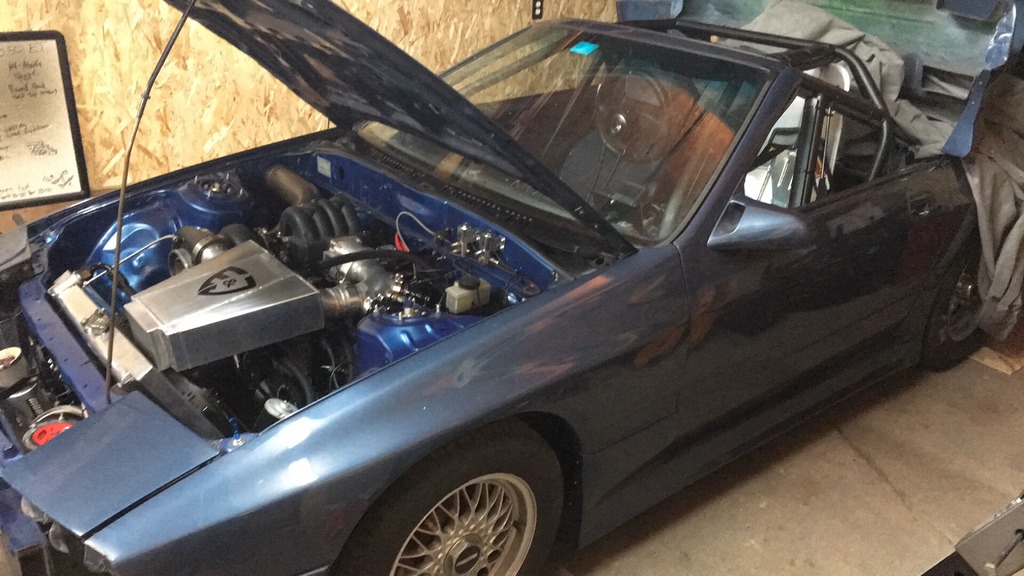

Pics of the "new" intercooler mounted on the engine bay



Some pics to keep this thread going, I have some testing when the injectors come back, and if all goes well the car will get a WOT tune at a 1/8 mile fun run event in my area at a air strip. Plenty on room to log some pulls and get some passes on the new setup.

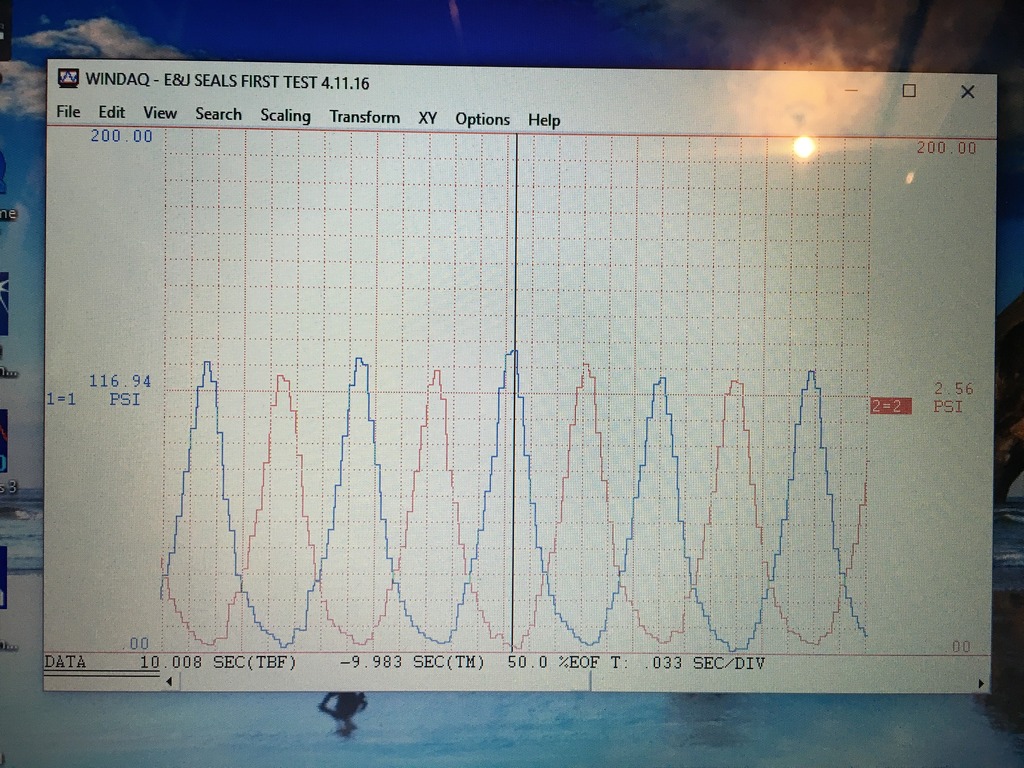

By the way for those who were curious about my E&J results vs OEM Mazda the pics in previous post are Mazda OEM. Here are the results of E&J 3 piece. All same motor just balanced and clearanced from Balance Whiz. FYI the compression even got better and more consistsnt after the dyno



I should change the name of my thread to "about to be the worlds fastest Stock Body IRS Mazda RX7 convertible"
Here is a glimpse of my weekend beating out over 30 V8 cars and being the only import.
1st in ET at 6.1 in the 1/8
2 in MPH at 108mph in the 1/8

Cars ready for more
