good discussion!



Adam,

I can't wait to see the pictures of the tear-down! Please post here or tell us where you have published them.

Barry



dgemotorsports,

Adam, (afgmoto1978) did a similar mod on his housings. We would like to see your mods.

Barry



My eyes and ears are open. Please share...



I don't have any photos of that project. That was something I did years ago for a customer and I don't have access to the car but I will do my best to convey what I did along with some other photos with descriptions.

1. First I drilled and tapped into the pressure side, (engine in) of the water pump housing on top and installed a 90 degree fitting with pipe threads on one end and hose barb on the other. I think I used 5/16 hose but don't remember now. 3/8 would probably be better. Tapping water form this point gives you the coolest water in the entire cooling system. No photo here. Pretty much self explanatory.

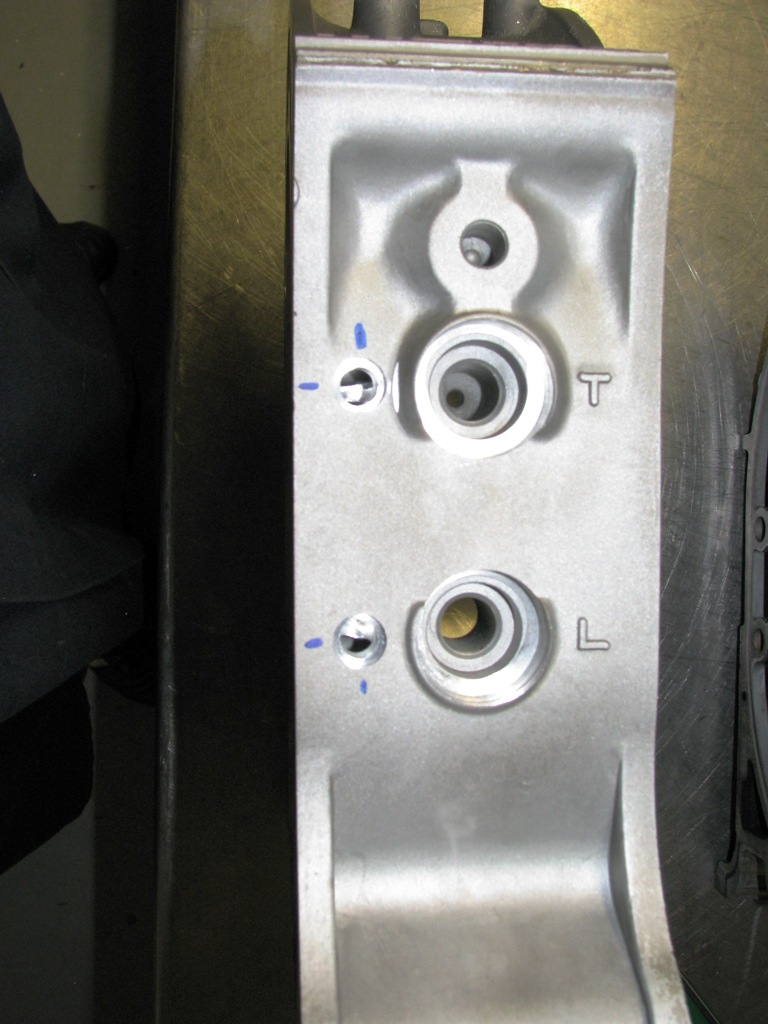

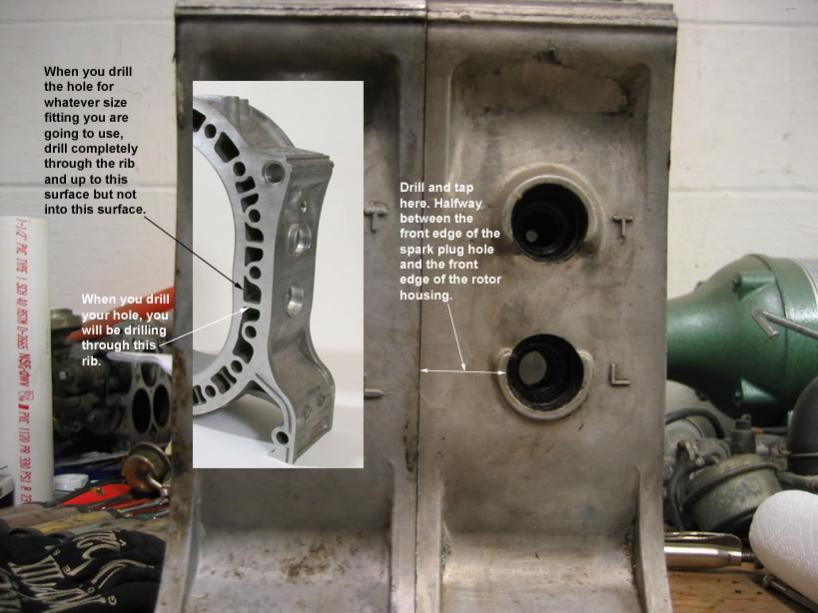

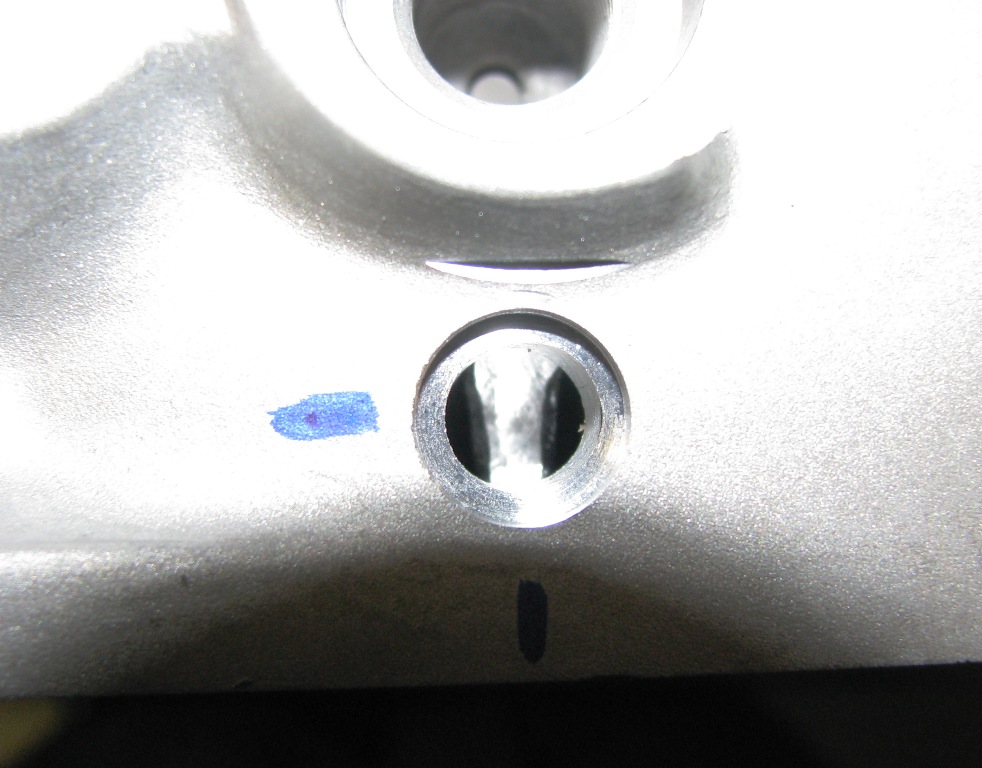

2. I drilled and tapped a hole centered between the front edge of the spark plug hole and the front edge of the rotor housing. I used a couple banjo fittings I had laying around that had about 2 inches of hard line that I could attach the rubber hose to. I ran the hose for both rotor housing to a tee and into the fitting in the water pump housing.

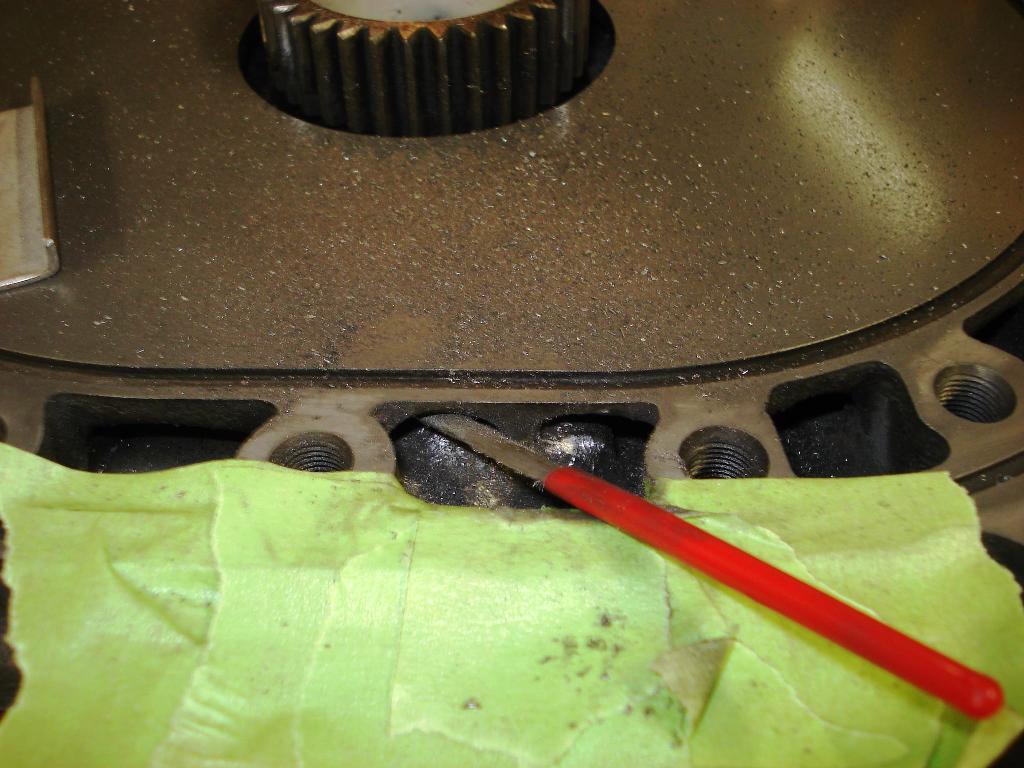

By drilling through the rib inside the water jacket you allow the cooler water to flow to the top and the bottom of the spark plug hole.

I am building an enduro motor for my Miata and am going to do the same thing but with steel braided lines. I will take detailed photos when I get time to work on that project.



Sounds awesome. For laymen you should take a pic of a water pump and show exactly where you drilled. Not saying I'm a laymen or anything



Yes more fuel will cool it. Timing wont have that much effect.

I need a stronger ignition setup to get it richer.

I wont be messing with my car though anymore. Building a new car more track dedicated. That will have a much stronger ignition setup on it.



Hey mate. In case you haven't decided on an ignition yet ICE has a new 4 channel 16volt inductive ignition that runs 8ms of dwell. It's designed to work with most aftermarket ecu's and apparently it's better than CDI. It's not on their website yet though.



love the thread!



So just wondering where does the Yoken LS1 coils fall into place??? good, bad, or just not bad. On the rx8 site they claim those are the best coils to date for the rx8. If they was so great why haven't I heard you guys mention them.... I currently do use them and I have no issues with the dwell set at 5ms I believe. They have built in heat sinks



i'd go out on a limb and propose two reasons, though i may be way off base.

1. the Rx-8's stock ignition coils are utter CRAP! a healthy toddler could blow them out after a few miles of use. almost anything that can plug in and work with the stock ignition system would be an upgrade.

2. many guys run amplifiers on Rx-7s whereas i don't see much over at the Rx-8 board (granted, i bypass many of the turbo build threads because i just can't stand the nonsense over there). add that to the fact that i believe the factory coils on the Rx-7s were superior to begin with, i don't see why an Rx-7 owner would need to source GM ignition hardware. i have seen a few using other coils, but they were very rare cases of owners at their wit's end trying to solve a specific problem.



I would never even think about drilling and tapping the housing. It kinda seems like a good idea, i wonder how many people has done this nad what the results are. i would think nothing but good results



Well, Scoot did it with their 26B and I've seen it on 20B race engines as well.

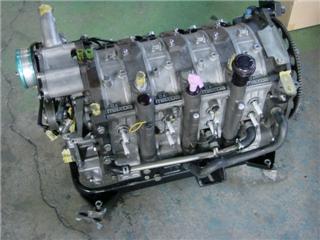

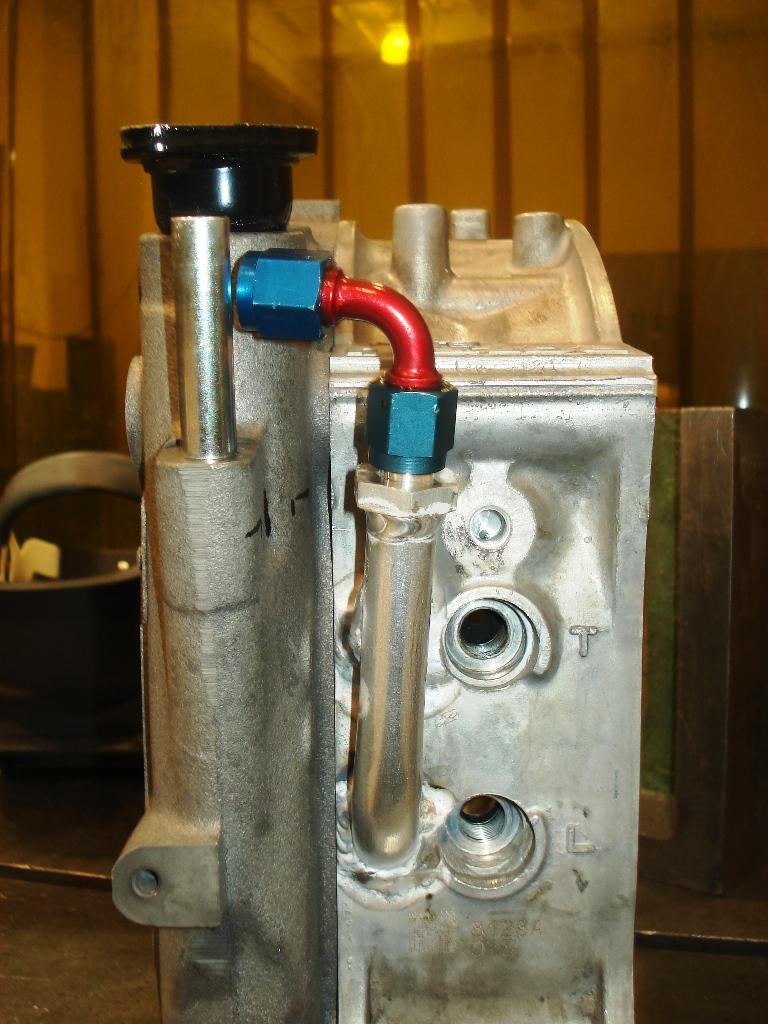

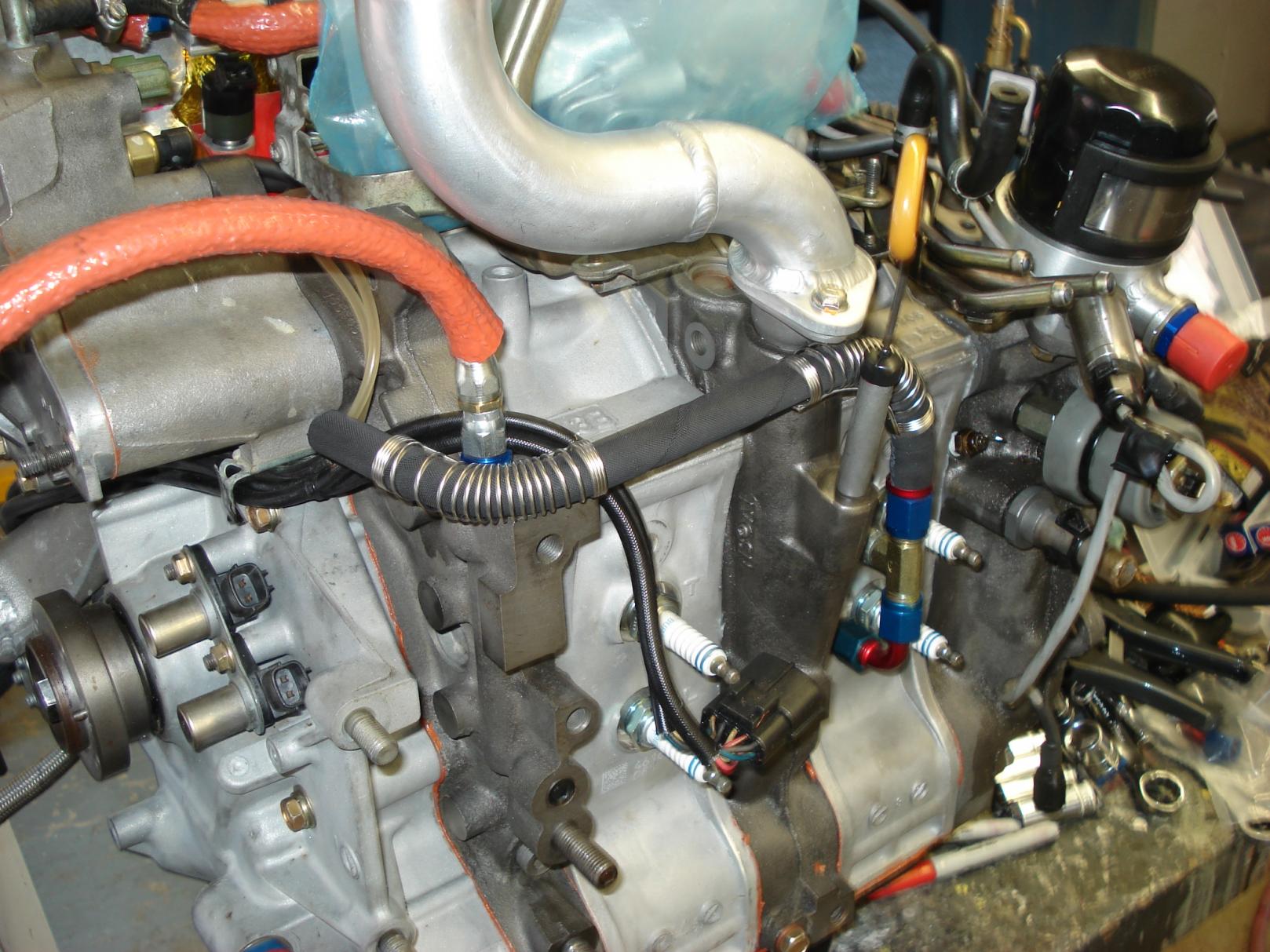

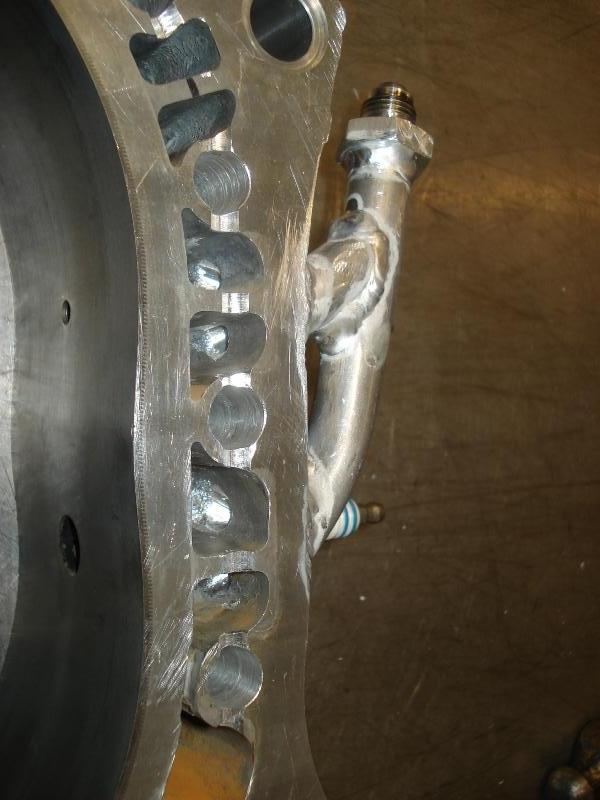

Didn't see pictures of my mod on this listing, so here are some photos for reference. Including the Mazda 26B motor.

Adam



Moar!



Hey afgmoto1978, I see your just across the river from me. We should hook up some time.

Is there a reason you don't do this mod to the front rotor housing? I realize the rear housing is typically hotter than the front but why not do both housings?



Yeah the rx8 coils are crap...and everyone talks that the gm coils are the greatest things ever. They do spark rather hot and do..do a good job..but should I have a amplifier???

and if the rx7 coils are that great why would they change them???



Yeah, for sure, my dad lives up in Sasquamuchacallit, so I go up there every once in awhile.

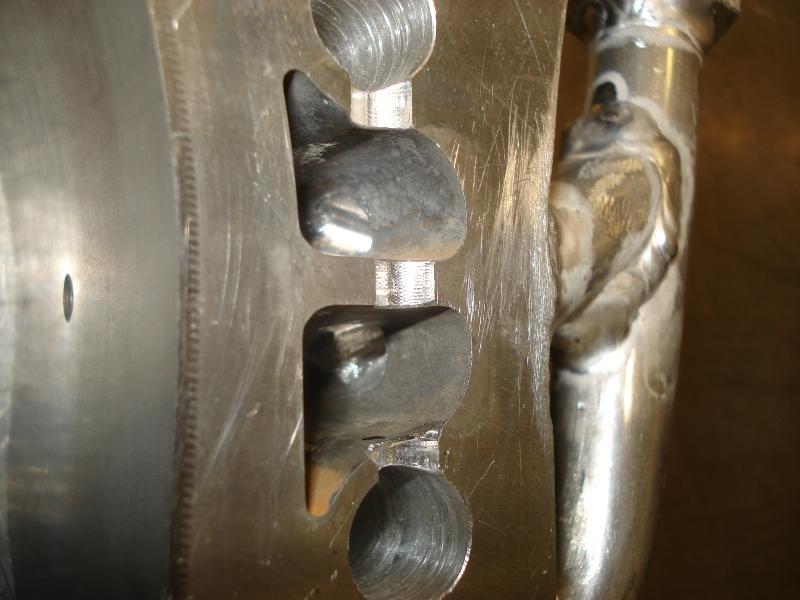

Well, there's no real reason to due to the proximity of the water pump to the ports that direct coolant to the front spark plugs. I did however port out the coolant ports that go to the spark plugs.

For the next motor I will be a bit more aggressive on the porting among other things to improve oil flow and coolant flow. Crossing my fingers the rear rotor housing isn't damaged. It's a real pain to do the rear external coolant line mod.



[QUOTE=afgmoto1978;9627956]Yeah, for sure, my dad lives up in Sasquamuchacallit, so I go up there every once in awhile.

Not sure if your thinking I live in Vancouver B.C but I don't. I live in Vancouver, WA. literally just across the river from you if your in Portland, OR.



A couple of things I do to improve oil flow is tap into the front oil passage for the front bearing and run a line from the rear of the motor to the front bearing essentially eliminating the need for the oil to travel through the inside of the engine and through all of those 90 degree corners to get to the front bearing. I also port the oil pump inlet and outlet to get rid of the sharp corners so the oil will flow better.

I'm going to make an oil mod on the rear stationary gear on the motor I am building now that will improve oil flow to the rear main bearing.

If you have time some evening you should come by my shop. I'm in the Salmon Creek area.



Oh, my bad, cool, pm your address.

You mean line loop it, yeah I'm thinking of that or enlarging the oil passages. Haven't decided yet.

Already port the inlet and outlet of the oil pump.



Sorry it took so long to post this.

After opening the motor I'm even more upset. Very minimal wear over 5K hard miles. No cracking at the spark plug bosses, noticable apex seal skip though.

New motor has used parts in it to keep cost down and turn around time minimal. Will be refleshing the motor later in the year when time and funds become available.

Reference on the previous engine build - https://www.rx7club.com/rotary-car-performance-77/latest-experiment%85failure-751977/page8/

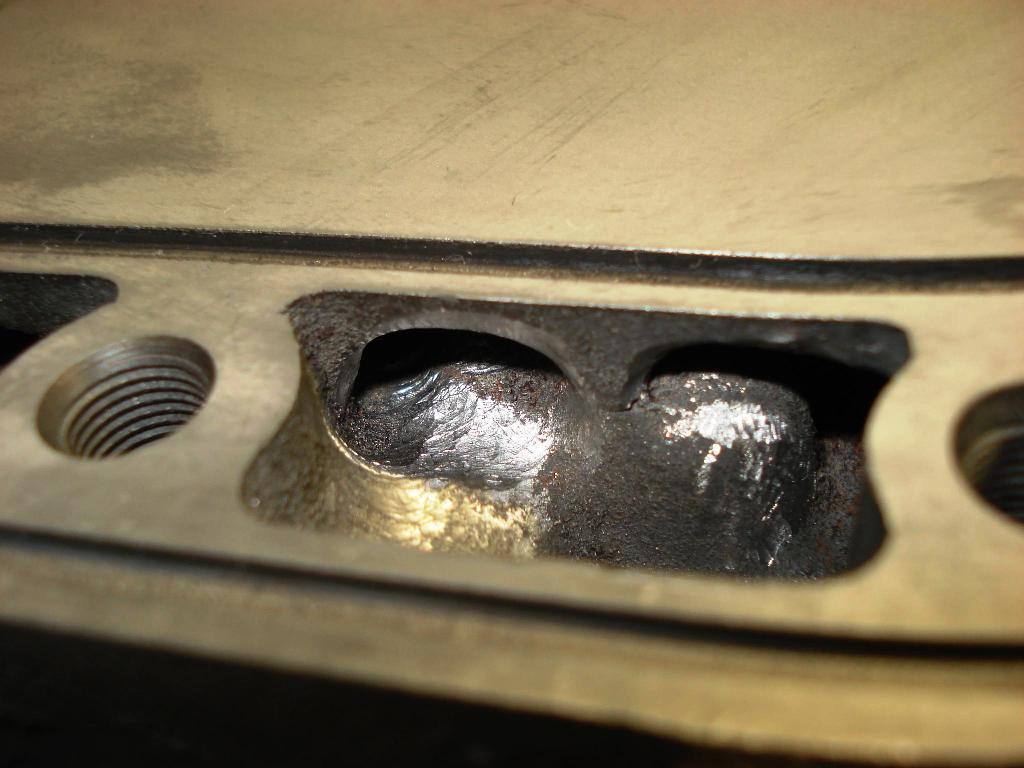

Chunked Side



Adam,

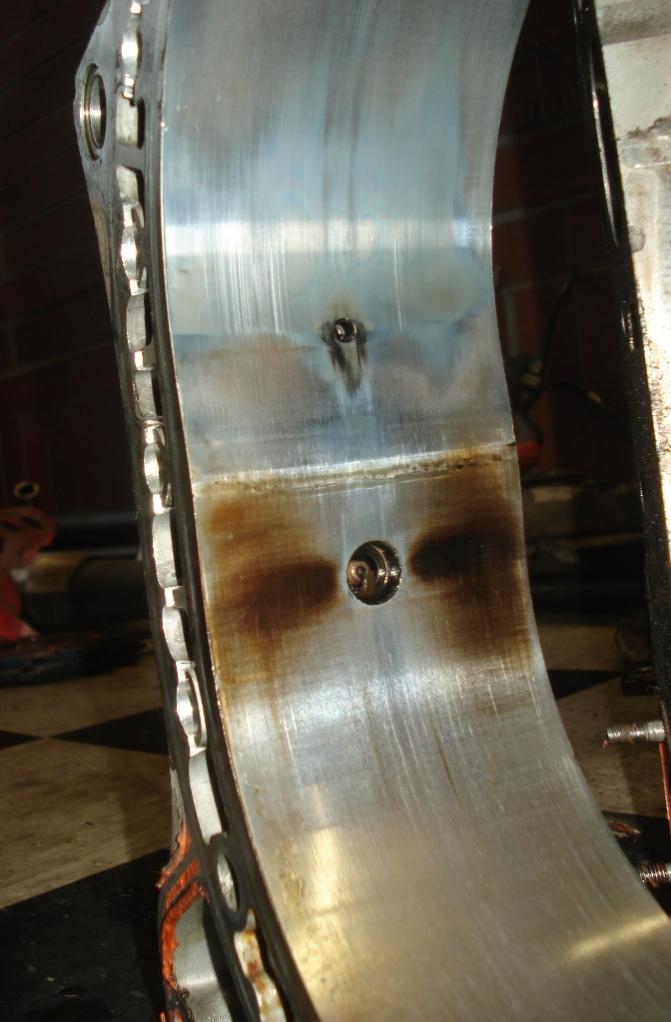

the rear housing looks good around the plugs after you put the scotchbrite to it. Your mod seems to have done its job there.

Were you running the rubber plugs in the corner seals?

Were you premixing? The exhaust sleeve is clean but the port itself has really collected a lot of carbon. I wonder if the 2 stroke oil only OMP mod would help?

How much chamfer did you use on the exhaust port? The top seems to be feeling the apex seal as it passes.

Barry



Yeah for sure, the combination of supporting cooling system and engine mods seems to be making a real difference.

I was running rubber plugs at the corner seals. Noticed a good amount of carbon build at the corners on the side faces of the rotors. 0.004" clearances all around.

I am premixing as well as oil omp injection. I think it would, but will have to do something custom instead of the aviation premix adaptor, no room. May mod the front cover when I refresh the motor later this year.

I left the chamfer at the top stock so it may have been just carbon build up. Nothing else stood out.



Adam there is a thread on making a metalgasket-block off plate and threading the pump itself so no extra room is needed. The 2 stk oil would run cleaner.

I will see if I can find it. Trout2 sent it to me but I deleted it. He wants to use your breather tank as the 2 stk oil tank.

Barry
