Rotor Beveling engine builder discussions
#1
Passing life by
Thread Starter
Rotor Beveling engine builder discussions
Sorry for cross posting this but I think I had it in the wrong section before.
Looking to chat with other builders about experience and thoughts on rotor beveling.
I have been playing with this and sacrificing port timing changes and using the rotors to adjust the advance and or closing times to some degree.
The porting itself tends to be more time consuming and more costly doing this. But the results seem to be far more drastic then just adjusting the porting on the iron. I feel like I have been getting a more aggressive sounding and more responsive overlap by milling the rotors. Throttle response also seems good.
Does anyone have some input or experience perhaps learned information on this particular method.

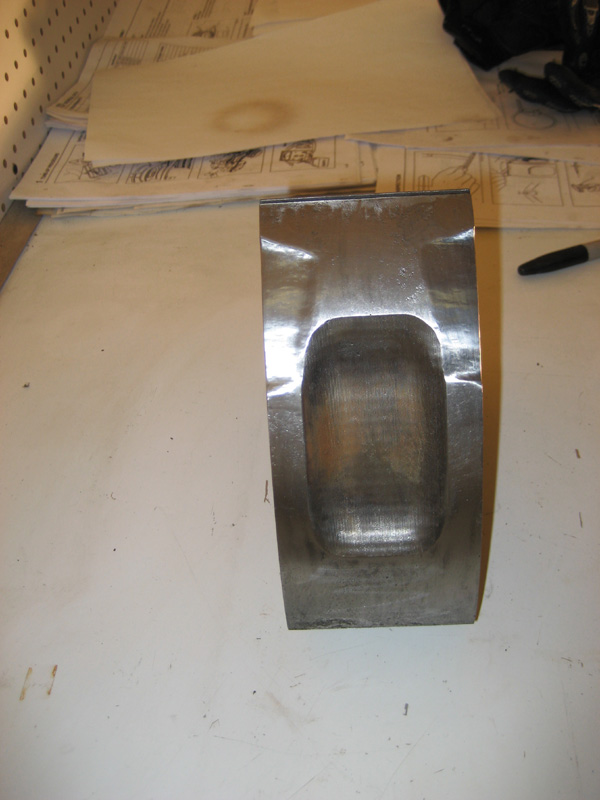

I have been testing several styles over the past 8 months or so. I posted pics of the latest variance I am running right now. I have tried more of the RX8 and differing angles and so far this one is by far the most promonet I have assembled. They are not CNC'ed yet I have been doing them by hand. I have not figured out how far I can go yet but I also have not dug into a bad rotor to find out, also afraid of making the side seal support to thin.
Looking to chat with other builders about experience and thoughts on rotor beveling.
I have been playing with this and sacrificing port timing changes and using the rotors to adjust the advance and or closing times to some degree.
The porting itself tends to be more time consuming and more costly doing this. But the results seem to be far more drastic then just adjusting the porting on the iron. I feel like I have been getting a more aggressive sounding and more responsive overlap by milling the rotors. Throttle response also seems good.
Does anyone have some input or experience perhaps learned information on this particular method.
I have been testing several styles over the past 8 months or so. I posted pics of the latest variance I am running right now. I have tried more of the RX8 and differing angles and so far this one is by far the most promonet I have assembled. They are not CNC'ed yet I have been doing them by hand. I have not figured out how far I can go yet but I also have not dug into a bad rotor to find out, also afraid of making the side seal support to thin.
#2
Racing Rotary Since 1983
iTrader: (6)
congrats for making something new... of course it isn't new... Carlos has been doing them for a while and probably he isn't the first.
i spent some time recently considering the bevel deal and was about to take a set to my local CNC guy but the thing that stopped me was compression.
it seems to me that the total additional volume from the bevels will work against compression. sort of another set of combustion chambers.
what do you think?
howard
i spent some time recently considering the bevel deal and was about to take a set to my local CNC guy but the thing that stopped me was compression.
it seems to me that the total additional volume from the bevels will work against compression. sort of another set of combustion chambers.
what do you think?
howard
#5
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,805
Received 2,578 Likes
on
1,831 Posts
congrats for making something new... of course it isn't new... Carlos has been doing them for a while and probably he isn't the first.
i spent some time recently considering the bevel deal and was about to take a set to my local CNC guy but the thing that stopped me was compression.
it seems to me that the total additional volume from the bevels will work against compression. sort of another set of combustion chambers.
what do you think?
howard
i spent some time recently considering the bevel deal and was about to take a set to my local CNC guy but the thing that stopped me was compression.
it seems to me that the total additional volume from the bevels will work against compression. sort of another set of combustion chambers.
what do you think?
howard
it could upset combustion too, but you'd prolly have to go nuts with it
#6
Passing life by
Thread Starter
800grams or so per rotor and yes they were rebalanced. Not really sure on compression possible minute amount but theres no compression numbers to go by one build to another can yield entirely different results.. I have just been documenting performance and effects compared to adjusting on the port itself that why I have this thread to speak with other builders who also have experience doing this. The usage is slim most builders stay away from uncharted territory and I like living a little bit different.
#7
Stay tuned...
iTrader: (3)
Join Date: Jul 1997
Location: West Islip, Long Island NY
Posts: 2,917
Likes: 0
Received 1 Like
on
1 Post
I have just been documenting performance and effects compared to adjusting on the port itself that why I have this thread to speak with other builders who also have experience doing this. The usage is slim most builders stay away from uncharted territory and I like living a little bit different.
