Revised FD Rotors
12-03-02, 05:14 PM
#1
Senior Member
Thread Starter
Revised FD Rotors
I just recieved two new rotors from M-comp, and to my surprise there was a slight shoulder on the rotor sides where it appears Mazda now mills the rotors down by ~.002" to reduce the width. I've never seen this on any of the original rotors I've inspected.
This is interesting to me because I had planned on having the rotors milled down ~.004" on each side to increase the clearance, so now I'm tempted to just have the milling start at that shoulder vs: all the way at the outter oil control ring journal.
Anyhow, just wanted to pass on my findings. Any input is welcome.
Eric.
This is interesting to me because I had planned on having the rotors milled down ~.004" on each side to increase the clearance, so now I'm tempted to just have the milling start at that shoulder vs: all the way at the outter oil control ring journal.
Anyhow, just wanted to pass on my findings. Any input is welcome.
Eric.

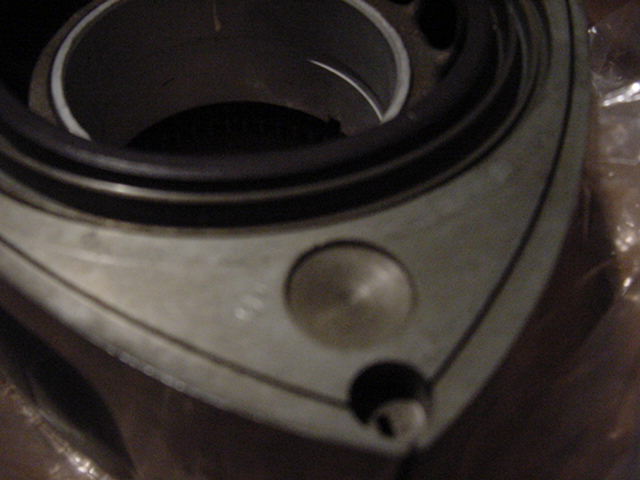

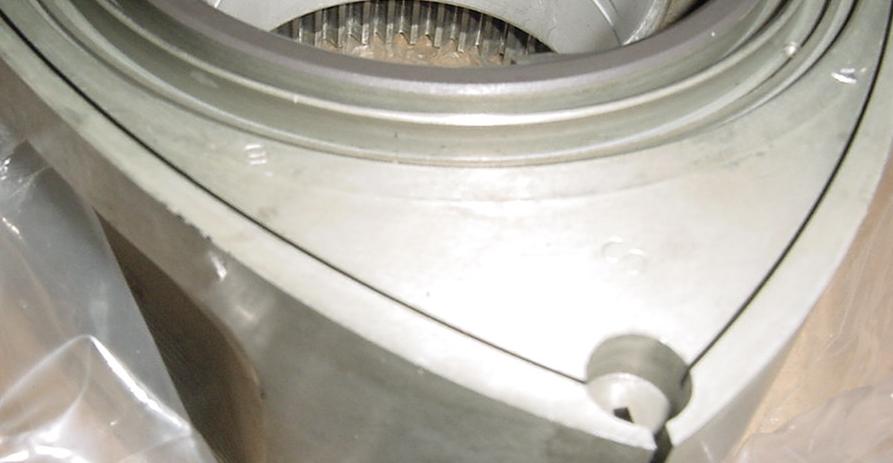

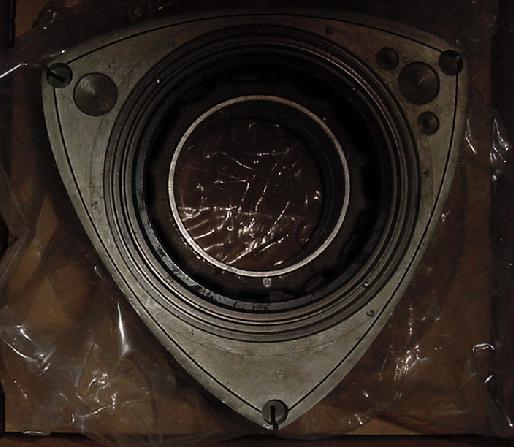

You can see the ridge in these pics.
Trending Topics
12-05-02, 07:57 AM
#8
Senior Member
Thread Starter
Originally posted by nimrodTT
Interesting, I wonder why they didn't go all the way down to the oil control ring...
Interesting, I wonder why they didn't go all the way down to the oil control ring...
12-05-02, 10:13 AM
#9
Hey, where did my $$$ go?
Join Date: Feb 2001
Location: Bimingham, AL
Posts: 4,413
Likes: 0
Received 0 Likes
on
0 Posts
Maybe the oil control ring wouldnt seat or seal properly
Interesting, I wonder why Mazda started doing this??? Maybe insead of them being truley "new" they are remanufactored and cut down to get rid of wear signs or something. lol
Of course I guess if that was the case the apex seal grove wouldnt meet spec.
STEPHEN
Interesting, I wonder why Mazda started doing this??? Maybe insead of them being truley "new" they are remanufactored and cut down to get rid of wear signs or something. lol
Of course I guess if that was the case the apex seal grove wouldnt meet spec.
STEPHEN
12-06-02, 08:41 AM
#11
Twin Turbo LSX
Well, since you're so upset with them I'll give you tree-fiddy for both.
heh
Seriously though. I took a look at them in person it is a very noticeable step. You ought to measure the thickness of these rotor's vs a set without the stepping.
I'm speculating that the area my the oil ring is the standard thickness and they are slightly "clearanced" towards the sides seals. Either way, I'll still give you treee-fiddy.
hehSeriously though. I took a look at them in person it is a very noticeable step. You ought to measure the thickness of these rotor's vs a set without the stepping.
I'm speculating that the area my the oil ring is the standard thickness and they are slightly "clearanced" towards the sides seals. Either way, I'll still give you treee-fiddy.
12-06-02, 05:01 PM
#15
Rotary Enthusiast
Join Date: Oct 2002
Location: California, Bay Area
Posts: 1,165
Likes: 0
Received 0 Likes
on
0 Posts
its prolly to keep a full heat dam for the outer oil control ring, and then the tips of the rotor are clearenced,.. arnt the tips the only things that hit anyhow?
