Need help sizing exhaust port
#1
Hot Dicken's Cider
Thread Starter
iTrader: (2)
Join Date: May 2003
Location: Marion, Ohio
Posts: 1,428
Likes: 0
Received 0 Likes
on
0 Posts
Need help sizing exhaust port
I need help sizing my exhaust port to my new bridged intake ports. I don't have a template for the exhaust, so I'm just going to make my own template. The exhaust ports were streetported by RX7store previously, but I think I should make them a bit bigger and put a larger radius on them. Can someone give me an idea of how much I should port up or down? I've already got a pretty good idea of the shape and radius size I'm going to make, I just need some experienced input on how much to port up or down.
Pic of current port size:
Here is a pic of the bridge size:
Pic of current port size:
Here is a pic of the bridge size:
#2
Senior Member
This is a racing beat template on a practice housng. I used this on the street port motor I'm building. Others said it is pretty big so it would probably be pretty good for your bridge. Almost no material is removed from the top of the port so it opens earlier but has stock port closing time.
#5
Moderator
iTrader: (3)

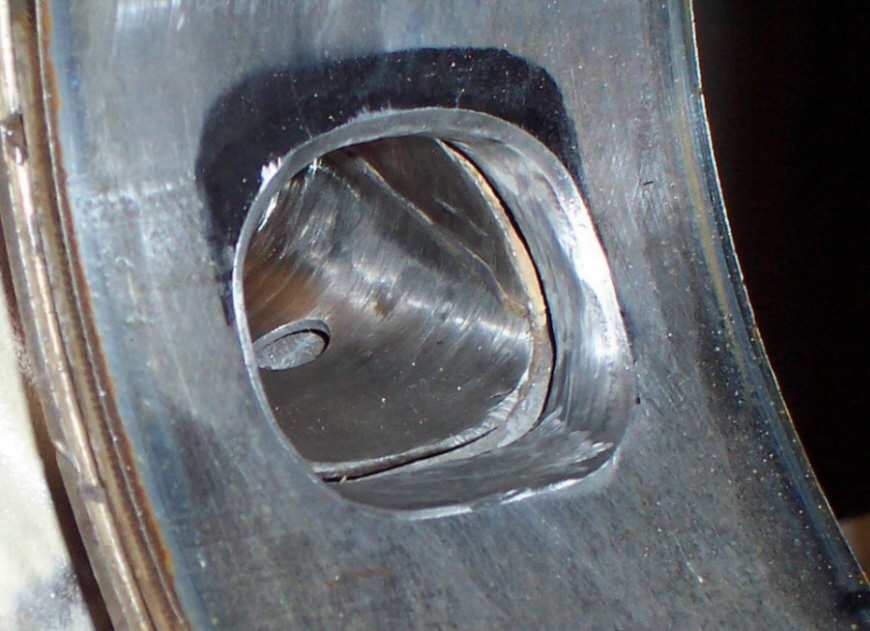

okay ... not very pretty at this stage, but here is one of the preliminary photos just after i got my race templates from RB. keep in mind this is a 12A, but ... it's the basic shape that you wanted, right? as you can see, it's a bit wider and it closes much later.
Last edited by diabolical1; 12-31-06 at 01:30 PM.
