what angle to build splitter?

Old 11-02-05, 08:20 PM
  #1
Senior Member
10 Year Member
Thread Starter

designfreak's Avatar

Join Date: Jan 2005
Location: miami FL
Posts: 352
Likes: 0
Received 0 Likes on 0 Posts
what angle to build splitter?

Im getting ready to make a fiberglass molded splitter for my IT-s FC this weekend and wanted to get some advise about what angle to build it at relative to the ground. The splitter will not be adjustable in the end, and I pretty much have to get it right the first time.

thanks for any advise
designfreak is offline
Old 11-03-05, 07:56 AM
  #2
Banned. I got OWNED!!!
iTrader: (3)

Join Date: Nov 2001
Location: London, Ontario
Posts: 2,483
Likes: 0
Received 0 Likes on 0 Posts
On a non-adjustable splitter I would think the angle should be positive rake at static ride height. How much positive rake would depend on how much rear squat your car will see when accelerating as well as how much rear squat under top speed. The object would be to make sure you never create lift with the splitter.

Scientifically you can use shock travel indicators on the rear during some high speed runs and accelerations out of corners. This would tell you haw much squat you will see. Non-Scientific way would be to remove your shocks and springs from the rear and lower the car with a jack until you reach bump stops or maximum squat and then mount the splitter horizontal to the ground.


-billy
Re-Speed.com is offline
Old 11-03-05, 08:00 AM
  #3
Full Member
iTrader: (2)

its66's Avatar

Join Date: Oct 2004
Location: central fl
Posts: 131
Received 2 Likes on 2 Posts
What are you trying to accomplish with the splitter? Downforce, or just better air control through the coolers? IF it is the latter, just make it parallel to the bottom of the nose of the car.

Last edited by its66; 11-03-05 at 08:03 AM.
its66 is offline
Old 11-03-05, 09:44 AM
  #4
Full Member
5 Year Member

ITS_Rx-7's Avatar

Join Date: Nov 2005
Location: Miami Lakes
Posts: 110
Likes: 0
Received 0 Likes on 0 Posts
whts up....i have a fiberglass spliter on my car and i belive u can either get from van stenberg or speed source..
ITS_Rx-7 is offline
Old 11-03-05, 12:38 PM
  #5
Full Member
5 Year Member

ITS_Rx-7's Avatar

Join Date: Nov 2005
Location: Miami Lakes
Posts: 110
Likes: 0
Received 0 Likes on 0 Posts

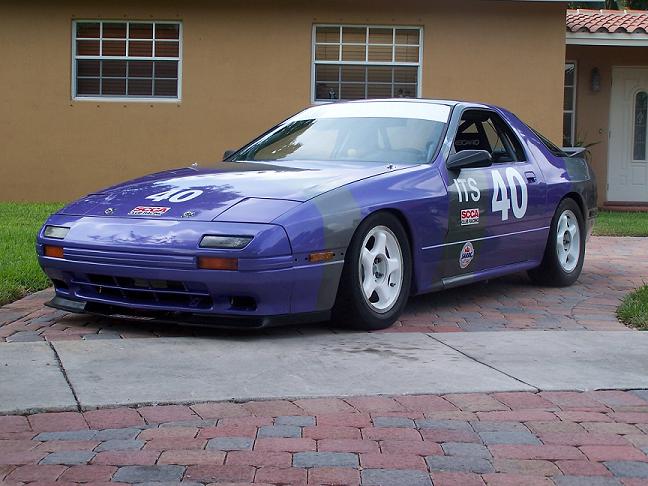

heres a pic of my Rx-7
Attached Thumbnails what angle to build splitter?-rx-7-002.jpg
ITS_Rx-7 is offline
Old 11-07-05, 05:52 PM
  #6
Senior Member
10 Year Member
Thread Starter

designfreak's Avatar

Join Date: Jan 2005
Location: miami FL
Posts: 352
Likes: 0
Received 0 Likes on 0 Posts
thanks guys for the info, I am attmpting to make a splitter to both direct air, as well as create some downforce and clean up the airflow under the car a bit. Most of the pro touring cars seem to be running angles of 8-10 degrees, and as they see higher speeds than I will, I was thinking of runing something in the neighborhood of 10-12.

What do you guys think?
designfreak is offline
Old 11-07-05, 05:56 PM
  #7
Senior Member
10 Year Member
Thread Starter

designfreak's Avatar

Join Date: Jan 2005
Location: miami FL
Posts: 352
Likes: 0
Received 0 Likes on 0 Posts
damn..on a side note I just realized that this is quicklly becoming a Florida discussion..Im probably 5 -10 minutes from Miami lakes
designfreak is offline
Old 11-08-05, 08:30 AM
  #8
Full Member
5 Year Member

ITS_Rx-7's Avatar

Join Date: Nov 2005
Location: Miami Lakes
Posts: 110
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by designfreak
damn..on a side note I just realized that this is quicklly becoming a Florida discussion..Im probably 5 -10 minutes from Miami lakes
if your tht close 2 miami lakes pm so you can come by and check out my set up on my car
ITS_Rx-7 is offline
Old 11-08-05, 10:03 AM
  #9
Rotary Freak
10 Year Member

Join Date: Apr 2003
Location: DC Area
Posts: 2,702
Likes: 0
Received 0 Likes on 0 Posts

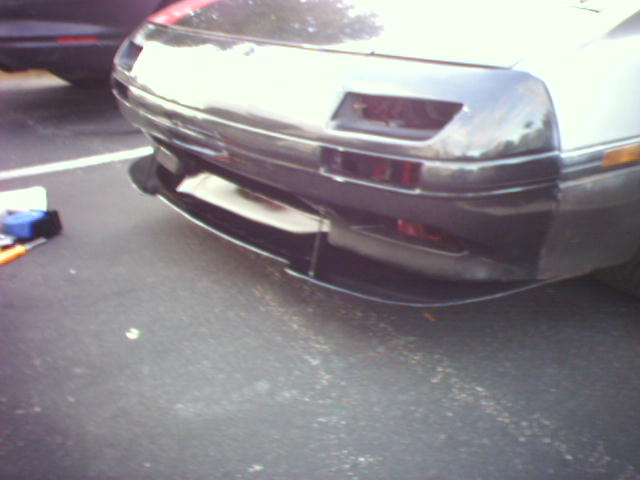

we have been working on a Carbon Fiber splitter for the FC that fits a s5 and s4. This gives 8 inches of air that would have passed under your oil cooler. Should be for sale around december ish for about 100 bucks. Most of these splitters and lips are just for looks and do nothing for performance
Attached Thumbnails what angle to build splitter?-lipmod.jpg
Bukwild is offline
Old 11-08-05, 10:10 AM
  #10
Full Member
iTrader: (2)

its66's Avatar

Join Date: Oct 2004
Location: central fl
Posts: 131
Received 2 Likes on 2 Posts
Originally Posted by designfreak
<DELETE> Most of the pro touring cars seem to be running angles of 8-10 degrees, and as they see higher speeds than I will, I was thinking of runing something in the neighborhood of 10-12.

What do you guys think?

While I'm certainly no engineer, I don't think I would go that aggressive with the front splitter. That is more drag to overcome. We don't have nearly the HP or Torque of the Pro Touring cars. We also don't have as much top speed potential to require the downforce.

Another point, the greater angle of attack will require a stronger splitter as it will be subject to increased loads. You will not be able to simply run a few bolts into the stock holes and clips in the bottom of the front bumper cover.

If you are building your own splitter, plan on using it to a cooling advantage also.

Jim
its66 is offline
Old 11-08-05, 12:35 PM
  #11
Mad Man


Carl Byck's Avatar

Join Date: Jan 2002
Location: Big Island Hawaii
Posts: 2,758
Likes: 0
Received 0 Likes on 0 Posts
I use one that is parralel to the ground, it creates alot of DF, before my wing, you could see the cars attitude(angle) change on the straights. It is quite large, but the point is agree, not to go "too" aggressive. My car is in an unlimited class, and the spliter is part of a partial flat bottom. Thwe wing, and splitter in combination reduced my top speed on the straight at thunderhill by ~5-7 mph. This is in a 450+ rwhp car @ ~130 mph. Carl
Carl Byck is offline
Old 11-08-05, 01:24 PM
  #12
Senior Member
10 Year Member
Thread Starter

designfreak's Avatar

Join Date: Jan 2005
Location: miami FL
Posts: 352
Likes: 0
Received 0 Likes on 0 Posts
so If I toned it down a bit and still went with something around 8 degrees. so you guys think it would be too much. I was essencially trying to create something that was more or less flat, however I dont want it to work against me as the rear squats.
designfreak is offline
Old 11-08-05, 01:26 PM
  #13
Senior Member
10 Year Member
Thread Starter

designfreak's Avatar

Join Date: Jan 2005
Location: miami FL
Posts: 352
Likes: 0
Received 0 Likes on 0 Posts
Bukwild, that looks great by the way..is the nose CF too? keep us informed on when these go on sale
designfreak is offline
Old 11-08-05, 04:10 PM
  #14
Mad Man


Carl Byck's Avatar

Join Date: Jan 2002
Location: Big Island Hawaii
Posts: 2,758
Likes: 0
Received 0 Likes on 0 Posts
Here are some pics of mine. Double click the images to view full screen. http://www.teamfc3s.org/forum/member...tos&car_id=562

Profile is essentially the same. I have since learned that I should not have made the cut in the center. The reduction in surface supposedly dramatically decreases DF. I will be testing this next season with a larger splitter w/out the nice looking cut-out. The one on my car is a sheet of AL, and goes all the way back to the front crossmember (about 4 feet) i then have vertical returns wich direct all the airflw through the FMIC, and coolers. Carl
Carl Byck is offline
Old 11-08-05, 10:05 PM
  #15
Full Member
iTrader: (2)

its66's Avatar

Join Date: Oct 2004
Location: central fl
Posts: 131
Received 2 Likes on 2 Posts
df,
Remember, you will already have approximately a 2-3 degree rake to your car anyway. Now, add 8 degrees of spoiler on top of that. I think that would be too much. I think if you make the flat of the splitter parallel with the bottom of your car, the 2-3 degrees you get will be enough to channel the air and provide plenty of downforce.
My splitter stops at the leading edge of the front wheel opening. ITS rules dictate that, even though you may see several cars with the splitter going back to the cross member. Carl is lucky, he doesn't have to deal with some of the silly IT rules.

Think of it analytically. What problem are you trying to solve by adding a splitter? a high speed push??? cooling??? aesthetics??? a little of each. The trade off is drag. The solution is create as little drag as possible while still solving your problem.

Carl,
Thanks for reminding me how much i enjoy staring at your car.

jim
its66 is offline
Old 11-09-05, 08:16 AM
  #16
Lives on the Forum
15 Year Member

DamonB's Avatar

Join Date: Feb 2001
Location: Dallas
Posts: 9,617
Likes: 0
Received 0 Likes on 0 Posts
I built a splitter for my FD a while back to use during trackdays. I notice no difference in front end handling, but I sure do get more air through the nose. Cooling wise it really works.

Mine wasn't scientific other than "that looks about right" It's parallel to the bottom of the nose.

DamonB is offline
Old 11-09-05, 11:41 PM
  #17
Lives on the Forum
10 Year Member

Black91n/a's Avatar

Join Date: Sep 2003
Location: BC, Canada
Posts: 5,707
Likes: 0
Received 1 Like on 1 Post
If you go too aggressive on the splitter angle you can have flow separation which will cause increased drag and decreased downforce. This is bad. The pro's have analytical computer models and test in wind tunnels, they know what they're doing, so try to stick with what they're doing, but don't just do something because you see others doing it, you have to know why. More isn't always better!
Black91n/a is offline
Old 11-10-05, 05:13 AM
  #18
moon ******
5 Year Member

Nihilanthic's Avatar

Join Date: May 2005
Location: Jacksonville, Florida
Posts: 1,308
Likes: 0
Received 0 Likes on 0 Posts
By aggressive angle do you mean that the leading edge of the splitter is higher than the trailing edge, or the trailing edge is higher than the leading? And uh for that matter, what angle do you want the splitter to be at anyway? Even if the leading edge is higher than the trailing edge it will still force air down and it will go below the car at a higher velocity because its squeezed, which would create DF, wouldnt it?

Im still trying to figure out splitters myself, I dont plan on being able to seriously track race anytime soon but Im planning on building a FC for HPDEs, and Id just want a splitter up front to help with cooling and as a little safety insurance, along with a wing. I dont want to end up catching air and flying off a track.

Well, actually, I think I should ask if theres any necessity for DF for safetys sake taking a street car in a HPDE, granted you already have coilovers which would drop the car a little. I know anecdotally a well set up splitter has even helped (though it might be psychosomatic) cars in autox's, but would a wing and splitter be a safety margin at all?

As far as the build, Im gonna find a cheap shell and go w/ a V8 or a 2.3T (I can get **** VERY cheap for either, its a budget thing, not hating on rotaries!). LACK of power or torque wont be an issue - but I was wondering if I should even care about aerodynamics with the money Id save or if I should put it into the tires, brakes, and coilovers/struts more.

Sorry to ask so many questions at once, but I got a lot to learn, and this section seems to have a lot of people who know their stuff.
Nihilanthic is offline
Old 11-11-05, 10:50 PM
  #19
Lives on the Forum
10 Year Member

Black91n/a's Avatar

Join Date: Sep 2003
Location: BC, Canada
Posts: 5,707
Likes: 0
Received 1 Like on 1 Post
You want the leading edge of the splitter lower than the trailing edge at something like 5-7 degrees. This causes downforce by causing a pressure reduction under the noze of the car.

The stock car won't fly away or anything, there's lots of nearly stock bodied racers out there and lots of stock bodied cars have been on the track and have stayed earthbound.

You don't need downforce for "insurance", it can make you faster though.
Black91n/a is offline
Old 11-12-05, 04:09 AM
  #20
moon ******
5 Year Member

Nihilanthic's Avatar

Join Date: May 2005
Location: Jacksonville, Florida
Posts: 1,308
Likes: 0
Received 0 Likes on 0 Posts
Oh, that makes sense. You want it so that at maximum rear weight transfer its still raked positive (is positive rake the same as positive caster?), right?

And well, coilovers that lower the car a lil more than stock ride height also takes some of the risk of a draft getting under your car and causing lift away, right?

Thanks!
Nihilanthic is offline
Old 11-12-05, 04:33 AM
  #21
www.lms-efi.com
iTrader: (27)

C. Ludwig's Avatar

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 5,106
Received 30 Likes on 23 Posts
Getting the front of an FC to stick is the least of your worries. There is a reason every ITS RX-7 I'm aware of runs without a rear sway bar.
C. Ludwig is offline
Old 11-12-05, 04:49 AM
  #22
moon ******
5 Year Member

Nihilanthic's Avatar

Join Date: May 2005
Location: Jacksonville, Florida
Posts: 1,308
Likes: 0
Received 0 Likes on 0 Posts
As light as the car is and as stiff as the springs/shocks are, I dont see why it would really need a huge rollbar.

Some theory behind tuning Ive heard is that with racecars its better to just stiffen up the springs and use less rollbar. Hell, Ive heard the Ultima GTR doesnt have em. Street cars want to (generally) use softer springs all around but rollbars... in a full race car its not so important.

BTW, is ITS generally FB or FC? Both have very different rear suspensions - I wouldnt compare tuning a watts linked solid axle (or a PHB if they converted) to a semi trailing arm :P
Nihilanthic is offline
Old 11-12-05, 09:00 AM
  #23
Junior Member
5 Year Member

Join Date: Mar 2005
Location: Illinois/Indiana
Posts: 25
Likes: 0
Received 0 Likes on 0 Posts
Splliters are *supposed* to be horizontal. When you drive you build up a high pressure "bubble" of air in front of the car and by putting a horizontal splitter there, the pressure will push straight down on it. There is virtually no increase in drag with a horizontal splitter. The only reason to make it angled is if you have a smooth underbody (that is low enough to the ground, ~5-10cm) so that you can take advantage of ground-effects. By angling it, you would reduce the amount of air passing underneath the car, and thus increase the pressure difference between the bottom and top of the car. Pick up an aerodynamics book sometime, they can really teach you a lot if you take the time to read them.

Greg
ernestgj is offline
Old 11-12-05, 10:29 AM
  #24
Full Member
5 Year Member

ITS_Rx-7's Avatar

Join Date: Nov 2005
Location: Miami Lakes
Posts: 110
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Nihilanthic
As light as the car is and as stiff as the springs/shocks are, I dont see why it would really need a huge rollbar.

Some theory behind tuning Ive heard is that with racecars its better to just stiffen up the springs and use less rollbar. Hell, Ive heard the Ultima GTR doesnt have em. Street cars want to (generally) use softer springs all around but rollbars... in a full race car its not so important.

BTW, is ITS generally FB or FC? Both have very different rear suspensions - I wouldnt compare tuning a watts linked solid axle (or a PHB if they converted) to a semi trailing arm :P
hey man if you think tht u just run stiffer springs and no sway bar at all then you need to go back to suspension school or attend a skip barber racing school....ITS is mostly FC......FB is IT7 suspension is different on both cars FB you have solid axle and FC is independent rear......most guys in ITS running FCs are running anywere from 400-475spring rate up front with a stiffer swaybar.....and 300-375 spring rate in the rear with no sway bar........with koni double adjustable shocks and hypercoil springs......suspension is everything on a race car do some more research be for you give your .02.....
ITS_Rx-7 is offline
Old 11-12-05, 01:08 PM
  #25
Mad Man


Carl Byck's Avatar

Join Date: Jan 2002
Location: Big Island Hawaii
Posts: 2,758
Likes: 0
Received 0 Likes on 0 Posts
I actually run 600lb fronts, and 400 lb rears.
