Suggestions for fixing oil catch can problem
#126
-
iTrader: (3)
Join Date: Nov 2002
Location: SF Bay Area
Posts: 624
Likes: 0
Received 0 Likes
on
0 Posts
heres my cheap one so that everyone can ignore it again https://www.rx7club.com/showthread.p...hreadid=252344
#127
50mpg - oooooh yeah!
Join Date: Mar 2003
Location: UK
Posts: 527
Likes: 0
Received 0 Likes
on
0 Posts
Hmm...new idea.....even cheaper.......
Why not fit a large housing directly on top of the oil filler pipe?
As soon as any oil forms, it would simply pour straight back down the filler - and a bit of pipe a couple of inches long on one side linked to a breather would eliminate any oil managing to get out of there.
cost = $3 for filter, and a couple of dollars for a saucepan (lid welded on)
lol, even cheaper than yours rockshox
Why not fit a large housing directly on top of the oil filler pipe?
As soon as any oil forms, it would simply pour straight back down the filler - and a bit of pipe a couple of inches long on one side linked to a breather would eliminate any oil managing to get out of there.
cost = $3 for filter, and a couple of dollars for a saucepan (lid welded on)
lol, even cheaper than yours rockshox
#128
Corn-to-Noise Converter
iTrader: (6)
Join Date: Mar 2002
Location: The Elysian Fields (Texas)
Posts: 1,527
Received 386 Likes
on
154 Posts
The solution, like all else that is Good and Pure, is and will always be witnessed by the modern Oracle that is <trumpet blaring> eBay"...
THE eBay catch can solution
THE eBay catch can solution
#131
Lives on the Forum
Originally posted by chairchild
Hmm...new idea.....even cheaper.......
Why not fit a large housing directly on top of the oil filler pipe?
As soon as any oil forms, it would simply pour straight back down the filler
Hmm...new idea.....even cheaper.......
Why not fit a large housing directly on top of the oil filler pipe?
As soon as any oil forms, it would simply pour straight back down the filler
Your idea would still allow the engine to inhale the oil into the intake. You have to essentially route the oil slosh outside the oil filler tube. Remember, the whole reason of the catch can is to keep from sucking oil into the intake tract.
#133
PV = nRT
Join Date: Jan 2003
Location: New Zealand (was California)
Posts: 2,250
Likes: 0
Received 0 Likes
on
0 Posts
This may be a stupid question,
But why not just fabricate a new oil filler neck entirely? It's not like the stock one is anything high-tech - and I've seen this done before on other rotaries.
But why not just fabricate a new oil filler neck entirely? It's not like the stock one is anything high-tech - and I've seen this done before on other rotaries.
#135
PV = nRT
Join Date: Jan 2003
Location: New Zealand (was California)
Posts: 2,250
Likes: 0
Received 0 Likes
on
0 Posts
No, because what we've already got obviously sucks.
A new design would rotate the filler neck 90 degrees clock-wise or as much as possible and use larger PCV outlets.
A new design would rotate the filler neck 90 degrees clock-wise or as much as possible and use larger PCV outlets.
#136
Lives on the Forum
Back from the dead. Race season is coming and I had an idea'r.
The turkey baster mod on the cap seems to really limit the amount of oil ingested. My idea is to make it harder for the oil to climb the fill tube in the first place by putting a restrictor in the tube. I pictured unbolting my stock FD fill tube at its elbow and placing a metal plate in there that only has a 3/8" diameter hole in it for instance. Seems to me this would limit the amount of oil that is capable of sloshing up the filler neck and you could even add another turkey baster into the plate. It would be the Stage II turkey baster mod
Only downside I see to this is that when adding oil to the car you may not be able to just dump it in; you may have to pour more slowly to keep it from running over. Am I missing anything?
The turkey baster mod on the cap seems to really limit the amount of oil ingested. My idea is to make it harder for the oil to climb the fill tube in the first place by putting a restrictor in the tube. I pictured unbolting my stock FD fill tube at its elbow and placing a metal plate in there that only has a 3/8" diameter hole in it for instance. Seems to me this would limit the amount of oil that is capable of sloshing up the filler neck and you could even add another turkey baster into the plate. It would be the Stage II turkey baster mod
Only downside I see to this is that when adding oil to the car you may not be able to just dump it in; you may have to pour more slowly to keep it from running over. Am I missing anything?
#137
Damon,
I have something like this. It is an angled plate at the bottom of the upper portion of the filler neck. Basically a piece of cut AL that i have wedged down in the filler neck. I dunno how well it works if at all. Sure does making the filling of oil a VERY slow process though
Wouldn't hurt to try it though. My thought is though if you are going to do this why not just install a pan baffle plate and reduce the ampount of oil even entering the filler neck base?
[*sigh*]
Crispy
I have something like this. It is an angled plate at the bottom of the upper portion of the filler neck. Basically a piece of cut AL that i have wedged down in the filler neck. I dunno how well it works if at all. Sure does making the filling of oil a VERY slow process though
Wouldn't hurt to try it though. My thought is though if you are going to do this why not just install a pan baffle plate and reduce the ampount of oil even entering the filler neck base?
[*sigh*]
Crispy
#138
Lives on the Forum
Originally posted by CrispyRX7
My thought is though if you are going to do this why not just install a pan baffle plate and reduce the ampount of oil even entering the filler neck base?
[*sigh*]
Crispy
My thought is though if you are going to do this why not just install a pan baffle plate and reduce the ampount of oil even entering the filler neck base?
[*sigh*]
Crispy
#139
PV = nRT
Join Date: Jan 2003
Location: New Zealand (was California)
Posts: 2,250
Likes: 0
Received 0 Likes
on
0 Posts
Another question on this:
Adv/Dis of sealed catch cans vs unsealed.
I would think the one major adv. would be a lack of oil everywhere when the can does fill up. A dis. would be that the blowby gasses would be ingested by the engine due to no vent filter. Kind of a trade-off in that oil itself is left in the can, but the vapours are still combusted (which is how OEM is anyways, sans the oil that goes through the piping).
Adv/Dis of sealed catch cans vs unsealed.
I would think the one major adv. would be a lack of oil everywhere when the can does fill up. A dis. would be that the blowby gasses would be ingested by the engine due to no vent filter. Kind of a trade-off in that oil itself is left in the can, but the vapours are still combusted (which is how OEM is anyways, sans the oil that goes through the piping).
#140
clayne, but when the oil catch can fils you are then going to be ingesting oil back intot he engine and not just gasses...kinda defeats the purpose of the catch can no? The solution is to stop oil from getting to the catch can in the first place.
Since this thread has been revivied I thought I'd share an observation I made last week while looking at the engine bay of a new RX-8. Seems like Mazda recognized this oil "slosh/pickup"problem too. If you look at the filler neck on the RENISIS engine the pickup tube is located in the same place it is on all 13B blocks however the upper portion of the neck now bends all the way over such that the filler cap is in the ***CENTER OF THE ENGINE!!!*** Well I'll be darned. I wonder if there is some internal changes to the filler neck that are not visible also? Take a look the neck time you get a chance and you will see what I mean.
Regards
Crispy
Since this thread has been revivied I thought I'd share an observation I made last week while looking at the engine bay of a new RX-8. Seems like Mazda recognized this oil "slosh/pickup"problem too. If you look at the filler neck on the RENISIS engine the pickup tube is located in the same place it is on all 13B blocks however the upper portion of the neck now bends all the way over such that the filler cap is in the ***CENTER OF THE ENGINE!!!*** Well I'll be darned. I wonder if there is some internal changes to the filler neck that are not visible also? Take a look the neck time you get a chance and you will see what I mean.
Regards
Crispy
#141
Senior Member
Join Date: Apr 2001
Location: Connecticut
Posts: 421
Likes: 0
Received 0 Likes
on
0 Posts
Could you tell if the oil filler tube was a two piece like the FD? Maybe those that have removed a lot of clutter in the engine bay (single or non-seq) could install just this part.
Rebuilding engine next week with a friend and he has an RX-8. I'll take a look and take pics.
R
Rebuilding engine next week with a friend and he has an RX-8. I'll take a look and take pics.
R
#142
Lives on the Forum
My plan is two build a new oil fill tube to replace the stock plastic one. I'm going to cap the two lines from the stock filler and not use them, merely going to vent my new filler with a crankcase breather. Since there will be no path to the intake the engine can't ingest the oil and since there is also no catch can the engine can't loose the oil in filling the can. All oil will stay put If I get emissions worried I just put the old filler back on and plug the lines in.
#143
rceron,
Yes the neck appeared to be a two piece design. And yes I also was looking at could just the upper portion be retrofitted. Doesn't look likely....at leats not without some extra work. The RX8 upper filler neck literally sits right over the top of the motor...rouighly where the frotn two intake runners of the FD UIM are
But please take pics and let us all know what you think
Regards,
Crispy
Yes the neck appeared to be a two piece design. And yes I also was looking at could just the upper portion be retrofitted. Doesn't look likely....at leats not without some extra work. The RX8 upper filler neck literally sits right over the top of the motor...rouighly where the frotn two intake runners of the FD UIM are
But please take pics and let us all know what you think
Regards,
Crispy
#144
Mr. Links
iTrader: (1)
Originally posted by DamonB
My plan is two build a new oil fill tube to replace the stock plastic one. I'm going to cap the two lines from the stock filler and not use them, merely going to vent my new filler with a crankcase breather. Since there will be no path to the intake the engine can't ingest the oil and since there is also no catch can the engine can't loose the oil in filling the can. All oil will stay put If I get emissions worried I just put the old filler back on and plug the lines in.
My plan is two build a new oil fill tube to replace the stock plastic one. I'm going to cap the two lines from the stock filler and not use them, merely going to vent my new filler with a crankcase breather. Since there will be no path to the intake the engine can't ingest the oil and since there is also no catch can the engine can't loose the oil in filling the can. All oil will stay put If I get emissions worried I just put the old filler back on and plug the lines in.
Can you post some pics and thoughts when you get done?
I'm curious to hear about how it works out as well as any extra nasty fumes you might get.
#145
_________________________
For now, I am going to stick with the stock Filler tube and add a baffle which will sit inside. I still think, like crispy and others had said. If you can stop the oil before it has a chance to rise far enough up the filler tube, then it won't have a chance to enter the Vac hoses/engine.

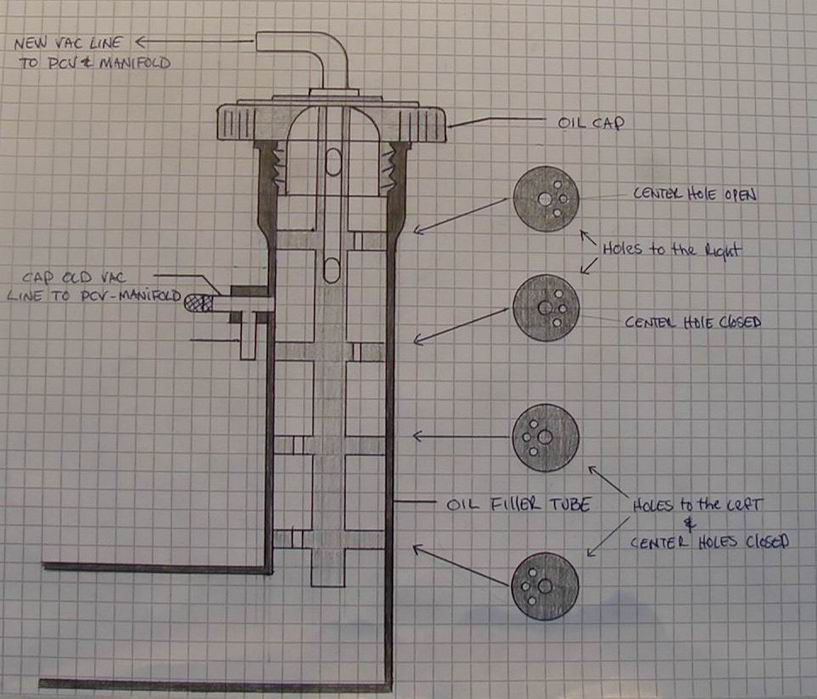

This is what I am going to make.
Make a cylinder which has 4 chambers. The 1st and 2nd chambers (starting from the bottom) should slow the oil. Those chamber will have holes on the left side only. Chambers 3 and 4 will have holes on the right side.
I think this should work. The question is, the size and location of the holes? I also have a 2 larger holes, one below the 4th chamber and one just under the filler cap. The larger holes are for the relocated vac hose (tapped into the filler cap) to the manifold.
Please..any suggestions are welcome, such as locations of the holes or maybe the number of chambers I have planned to use.
The idea is not to rely on a catch tank, but to just slow the oil or stop it completely. If this does not work then I hope others like Damons will work.
This is what I am going to make.
Make a cylinder which has 4 chambers. The 1st and 2nd chambers (starting from the bottom) should slow the oil. Those chamber will have holes on the left side only. Chambers 3 and 4 will have holes on the right side.
I think this should work. The question is, the size and location of the holes? I also have a 2 larger holes, one below the 4th chamber and one just under the filler cap. The larger holes are for the relocated vac hose (tapped into the filler cap) to the manifold.
Please..any suggestions are welcome, such as locations of the holes or maybe the number of chambers I have planned to use.
The idea is not to rely on a catch tank, but to just slow the oil or stop it completely. If this does not work then I hope others like Damons will work.
#147
PV = nRT
Join Date: Jan 2003
Location: New Zealand (was California)
Posts: 2,250
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by CrispyRX7
clayne, but when the oil catch can fils you are then going to be ingesting oil back intot he engine and not just gasses...kinda defeats the purpose of the catch can no? The solution is to stop oil from getting to the catch can in the first place.
clayne, but when the oil catch can fils you are then going to be ingesting oil back intot he engine and not just gasses...kinda defeats the purpose of the catch can no? The solution is to stop oil from getting to the catch can in the first place.
Since this thread has been revivied I thought I'd share an observation I made last week while looking at the engine bay of a new RX-8. Seems like Mazda recognized this oil "slosh/pickup"problem too. If you look at the filler neck on the RENISIS engine the pickup tube is located in the same place it is on all 13B blocks however the upper portion of the neck now bends all the way over such that the filler cap is in the ***CENTER OF THE ENGINE!!!*** Well I'll be darned. I wonder if there is some internal changes to the filler neck that are not visible also? Take a look the neck time you get a chance and you will see what I mean.
Regards
Crispy
Regards
Crispy
#148
Senior Member
Join Date: Apr 2001
Location: Connecticut
Posts: 421
Likes: 0
Received 0 Likes
on
0 Posts
Yes the neck appeared to be a two piece design. And yes I also was looking at could just the upper portion be retrofitted. Doesn't look likely....at leats not without some extra work. The RX8 upper filler neck literally sits right over the top of the motor...rouighly where the frotn two intake runners of the FD UIM are
Just came back from the NYC autoshow. You are right. There is no way the top half of the RX-8's oil filler tube would work with the FD. It basically goes over the front rotor so it would hit either the throttle mechanism, alternator or UIM.
Plan B required.
R
#149
PV = nRT
Join Date: Jan 2003
Location: New Zealand (was California)
Posts: 2,250
Likes: 0
Received 0 Likes
on
0 Posts
Another option is no neck whatsoever. Use a block off plate and integrate a seperate "crankcase" vent. When you need to fill the oil, pull a bolt off the plate, rotate it out of the way, and fill it up with a funnel. Or one could integrate some kind of baffling/valving into the plate and place the vent nipple there - leading to a catch can. This would be more difficult as the same issue would persist, however.
Last edited by clayne; 04-16-04 at 06:13 PM.
#150
Lives on the Forum
Originally posted by clayne
Another option is no neck whatsoever. Use a block off plate and integrate a seperate "crankcase" vent.
Another option is no neck whatsoever. Use a block off plate and integrate a seperate "crankcase" vent.
