Rotor Direction!

Old 01-23-12, 07:30 AM
  #1
Full Member
10 Year Member
Thread Starter

yelwoci's Avatar

Join Date: Mar 2005
Location: London, UK
Posts: 60
Likes: 0
Received 0 Likes on 0 Posts
Cool Rotor Direction!

So ladies & gentlemen.............

Is there any conceivable reason why you would put the rotors in backwards; ie the front in the rear and vis a versa?

PS Its a race engine!

Y
yelwoci is offline
Old 01-23-12, 09:45 AM
  #2
Passion for Racing

REAmemiya_fan's Avatar

Join Date: Aug 2010
Location: Crown Point, Indiana
Posts: 1,066
Likes: 0
Received 1 Like on 1 Post
NO, never do this ever.
REAmemiya_fan is offline
Old 01-23-12, 11:20 AM
  #3
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 24,576
Likes: 0
Received 123 Likes on 112 Posts
Originally Posted by yelwoci View Post
So ladies & gentlemen.............

Is there any conceivable reason why you would put the rotors in backwards; ie the front in the rear and vis a versa?

PS Its a race engine!

Y
it depends. on the 13B engines, from 1974-2003 the front and rear rotors are the same, so nothing happens.

on the 76-85 12A engines, they have an LDR combustion recess so if you put em in backwards, you change it to TDR, which should just suck.

the Rx8 engines have a little cut on the side to open the ports a little early, so if you put em in backwards you loose there too.
j9fd3s is offline
Old 01-27-12, 08:11 AM
  #4
Full Member
10 Year Member
Thread Starter

yelwoci's Avatar

Join Date: Mar 2005
Location: London, UK
Posts: 60
Likes: 0
Received 0 Likes on 0 Posts
Angry

Its as 1980 12A engine with scallop'd edges to increase effective inlet.
scalloping is in wrong place if we put rotors back the right way!

Not a cheap engine from a 'renown' US builder.
Guess he had a 'bad day'
yelwoci is offline
Old 01-27-12, 05:13 PM
  #5
Likes to swear....alot
iTrader: (3)

R.P.M.'s Avatar

Join Date: Dec 2002
Location: Kitchener Ontario Canada
Posts: 3,791
Likes: 0
Received 0 Likes on 0 Posts
How do you know they are in the wrong place?
R.P.M. is offline
Old 01-27-12, 05:16 PM
  #6
Sharp Claws
iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,135
Likes: 0
Received 14 Likes on 13 Posts
did you ask the builder if he intended to open the port sooner or to close it later? that can determine if the scallop is on the leading edge or the trailing edge and will affect torque and the power band depending on the build's chosen purpose.

in reality it is a very minor difference either way
RotaryEvolution is offline
Old 01-28-12, 05:28 AM
  #7
Full Member
5 Year Member

Join Date: Dec 2003
Location: uk
Posts: 76
Likes: 0
Received 0 Likes on 0 Posts

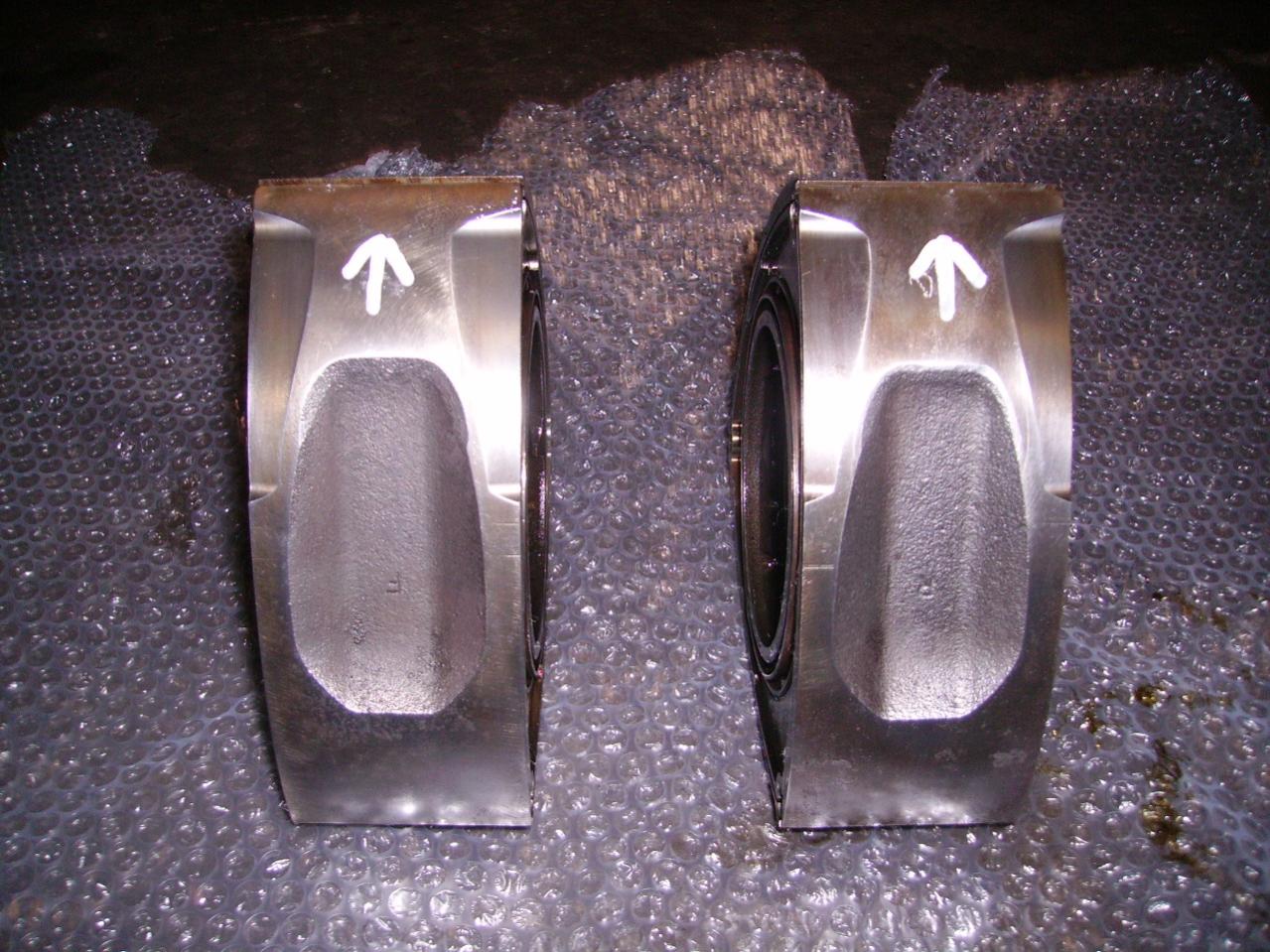

They were installed this way round,with the chambers upsidedown.
Attached Thumbnails Rotor Direction!-pict1242.jpg
timrxmotors is offline
Old 01-30-12, 11:47 AM
  #8
Likes to swear....alot
iTrader: (3)

R.P.M.'s Avatar

Join Date: Dec 2002
Location: Kitchener Ontario Canada
Posts: 3,791
Likes: 0
Received 0 Likes on 0 Posts
Ahhhh so the scallops were on the leading edge but the combustion chambers are backwards.

Hmmm interesting.
R.P.M. is offline
Old 02-02-12, 10:15 AM
  #9
Full Member
10 Year Member
Thread Starter

yelwoci's Avatar

Join Date: Mar 2005
Location: London, UK
Posts: 60
Likes: 0
Received 0 Likes on 0 Posts
As door stops they have a certain attraction; one that one can stub one's toe on and remind oneself of the 'wonderful individual from the free world who built it'/'the consummate professional who values his reputation'.

Calm - Calm - OMM - OMM - OMM - OMM - OMM - AAAAAAAAAAAAAARRRRRRRRRRRRRGGGGGHHHH !
yelwoci is offline
Old 02-02-12, 12:29 PM
  #10
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,079
Received 145 Likes on 128 Posts
1) Talk to the builder first to resolve the issue.

2) If it was indeed an oops, have him machine the other rotor flanks for early opening as well as late closing and press for a full rotating assembly balance in the deal.

MDR, LDR, TDR seem to just affect the timing of peak charge velocity in regards to the gas charge switching from the trailing to leading side of minor axis.

They experimented with all three styles and it is just as likely that Mazda used the LDR rotors and the LDR motors unique ignition configuration for emissions alone.
BLUE TII is offline
