ROLEX cup rx8 info

I was going to go on rx8 forum, but Im too lazy to create an account for one question.

I was wondering the specs on the rolex cup rx8's? Weight power mods suspension, brakes?

Im watching it right now on speedvision, and its doing very well.
initial D is REAL! is offline
Old 04-28-07, 08:30 PM
  #2
Senior Member
10 Year Member

SomeGuy_sg's Avatar

Join Date: Dec 2002
Location: singapore
Posts: 535
Likes: 0
Received 0 Likes on 0 Posts
Why not just hit up speedsource's wedsite? they would have the specs on the RX8 there
SomeGuy_sg is offline
Old 04-28-07, 08:31 PM
  #3
Rotary Enthusiast
Thread Starter

initial D is REAL!'s Avatar

Join Date: Mar 2007
Location: Pasadena
Posts: 1,485
Likes: 0
Received 0 Likes on 0 Posts
got it. thanks
initial D is REAL! is offline
Old 04-28-07, 08:44 PM
  #4
Rotary Enthusiast
Thread Starter

initial D is REAL!'s Avatar

Join Date: Mar 2007
Location: Pasadena
Posts: 1,485
Likes: 0
Received 0 Likes on 0 Posts
Im wondering the specs for this rolex race. The rx8 is racing porsche gt3's. There is a huge hp difference, but the rx8 is doing really well. Im doubting if it really jsut has 238hp
initial D is REAL! is offline
Old 04-28-07, 09:07 PM
  #5
Resident Retard
10 Year Member

weaklink's Avatar

Join Date: Apr 2001
Location: Cockaigne
Posts: 1,919
Likes: 0
Received 0 Likes on 0 Posts
it's a 3 rotor
weaklink is offline
Old 04-28-07, 09:08 PM
  #6
Resident Retard
10 Year Member

weaklink's Avatar

Join Date: Apr 2001
Location: Cockaigne
Posts: 1,919
Likes: 0
Received 0 Likes on 0 Posts
MAZDASPEED announced the continuation of its partnership with Florida-based SpeedSource, Inc. in the Grand American Road Racing Association Rolex Series GT-class. The SpeedSource Grand Am GT Mazda RX-8 is based on a tube-frame chassis jointly developed by SpeedSource and Riley Technologies, and powered by Mazda's three-rotor 20B Renesis rotary engine
weaklink is offline
Old 04-28-07, 10:03 PM
  #7
No Paypal Accepted!
10 Year Member

Join Date: Sep 2005
Location: san antonio, Texas
Posts: 849
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by initial D is REAL!
Im wondering the specs for this rolex race. The rx8 is racing porsche gt3's. There is a huge hp difference, but the rx8 is doing really well. Im doubting if it really jsut has 238hp
PP 20B sounds great.

http://s156.photobucket.com/albums/t...t=MVI_1601.flv

Not my stuff, I believe trackaddict from rx8club is the man for all those shots/video.
Buzzardsluck is offline
Old 04-30-07, 07:22 AM
  #8
Old Rotary Dog
10 Year Member

wrankin's Avatar

Join Date: Feb 2003
Location: Durham, NC
Posts: 1,461
Likes: 0
Received 2 Likes on 2 Posts
Is the Rolex engine a PP engine or a 20B Renesis (side port)?

-bill "too lazy to surf for it" rankin
wrankin is offline
Old 04-30-07, 08:46 AM
  #9
Mr. Links
15 Year Member
iTrader: (1)

Mahjik's Avatar

Join Date: Aug 2001
Location: Kansas City, MO
Posts: 27,592
Likes: 0
Received 5 Likes on 5 Posts
Originally Posted by wrankin
Is the Rolex engine a PP engine or a 20B Renesis (side port)?

-bill "too lazy to surf for it" rankin
Everything I've read says it's a 20B based on the Renesis. It's also a tube-frame chassis which it why its so damn light (which helps its competitiveness with the Porsches).
Mahjik is offline
Old 04-30-07, 12:06 PM
  #10
Senior Member
5 Year Member
iTrader: (1)

Join Date: Oct 2006
Location: wisconsin
Posts: 519
Likes: 0
Received 0 Likes on 0 Posts
450 advertised horsepower
bean13 is offline
Old 04-30-07, 12:34 PM
  #11
It's only Rock and Roll
10 Year Member
iTrader: (1)

Turbo II's Avatar

Join Date: Sep 2004
Location: In a house...
Posts: 2,509
Likes: 0
Received 0 Likes on 0 Posts
And it sounds great in person! VIR Rolex was this weekend.
Turbo II is offline
Old 04-30-07, 01:30 PM
  #12
Old Rotary Dog
10 Year Member

wrankin's Avatar

Join Date: Feb 2003
Location: Durham, NC
Posts: 1,461
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by Turbo II
And it sounds great in person! VIR Rolex was this weekend.
Don't rub it in. I live 45 minutes from the track but had to go out of town. I volunteered as a corner worker for a couple years.

-bill
wrankin is offline
Old 04-30-07, 06:30 PM
  #13
Full Member

Join Date: Jan 2003
Location: n.c.
Posts: 136
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by wrankin
Is the Rolex engine a PP engine or a 20B Renesis (side port)?

-bill "too lazy to surf for it" rankin

It is a PPort motor.
sccagt3 is offline
Old 04-30-07, 08:03 PM
  #14
www.lms-efi.com
iTrader: (27)

C. Ludwig's Avatar

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 5,106
Received 30 Likes on 23 Posts
Originally Posted by sccagt3
It is a PPort motor.

+1

Nothing Renesis about it. The rotary they were running in the ALMS LMP2 car was a side port Renesis. The GA GT cars use a p-port.
C. Ludwig is offline
Old 04-30-07, 10:35 PM
  #15
Say NO to aux. bridging!
iTrader: (1)

rotarygod's Avatar

Join Date: Jul 2002
Location: Houston
Posts: 4,176
Likes: 0
Received 5 Likes on 5 Posts
Originally Posted by C. Ludwig
The rotary they were running in the ALMS LMP2 car was a side port Renesis.
No it wasn't. It was a 13G peripheral port 3 rotor that had rotors in it that supposedly shared "Renesis technology" or whatever the hell that means. It put out right at 450 hp and the Speedsource 3 rotor P-port puts out right at 420 hp. Keep in mind this info came from David Haskell at Sevenstock who is a driver of that car.

He told us exactly what the Speedsource engine is built from. No secrets. Awesome. Too bad there are people out there that are too chicken to show off their work. The Speedsource 3 rotor uses Racing Beat peripheral port housings. The first engine used Mazda factory Peripheral port housings. They actually found that although the Mazda housings made slightly more ultimate top end horsepower, it was down on power to the RB housings almost everywhere else. They understand that it's the average power through the powerband that matters and not the ultimate peak. As a result of their testing they decided to settle on the RB housings. It has S5 n/a 9.7:1 compression rotors. 13G peripheral port end and intermediate housings. The rest is pretty standard. Their engine makes less peak horsepower than the Courage did because of the longer intake runners. It wasn't intended to be revved as high. As a result it does have more average torque than the Courage did. Motec controls it all. The air filter is on top of the engine. The airbox is shielded with insulating materials. It looks like the Lunar Lander. It draws in air from the high pressure zone at the base of the windshield using the cowl induction design.

The car itself is a complete tube frame purpose built race car. The strange part is the engine and transmission. The engine as we all know is a 3 rotor. It is mounted so far back that it is nearly next to the driver. Much farther back than the engine mounts in a street car and this one has 3 rotors. The transmission is in the rear of the car. It is a modified Porsche transaxle. The clutch is still attached to the engine but it ties in to a driveshaft much like the Corvettes do which then enters into the transmission at the rear. This setup keeps perfect weight distribution through the car. There was a big long slideshow about the design of the car and how it was built back at Sevenstock. You'd really be impressed if you saw the lengths they went through to build it. Wonderful piece of work and definitely a car and team to respect.

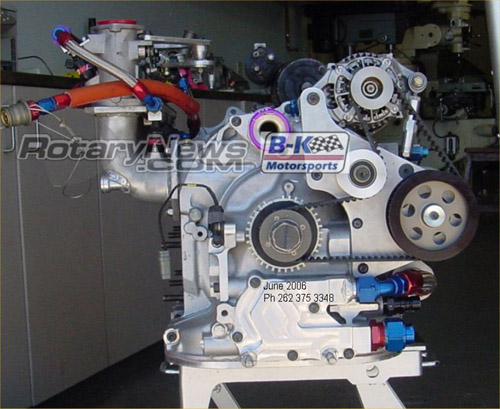

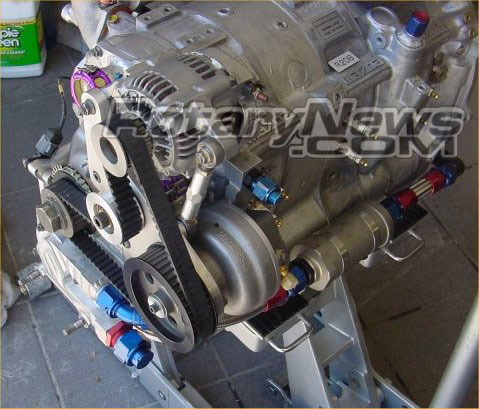

Here's the BK engine from last year. I've got pictures of the Speedsource engine bay somewhere. I'll try to find them.
Attached Thumbnails ROLEX cup rx8 info-bk-motorsportr20b_web.jpg   ROLEX cup rx8 info-bk-motorsportr20b_web_a.jpg
rotarygod is offline
Old 04-30-07, 11:02 PM
  #16
Rotary Enthusiast
Thread Starter

initial D is REAL!'s Avatar

Join Date: Mar 2007
Location: Pasadena
Posts: 1,485
Likes: 0
Received 0 Likes on 0 Posts
wow, great info. Thanks.
initial D is REAL! is offline
Old 05-01-07, 06:43 AM
  #17
www.lms-efi.com
iTrader: (27)

C. Ludwig's Avatar

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 5,106
Received 30 Likes on 23 Posts
Well I stand corrected on the LMP car. I do distinctly remember seeing photos of that car with a side exhaust engine in it. Was the p-port engine something that came along during the development after beginning the first year with a side port engine?

As always, great info at Mulsanne's Corner.

http://www.mulsannescorner.com/couragec65-9.html


Pics of the Team Spencer GA GT RX-8. Virtual twin of the Speedsource cars.

http://www.kyrotary.com/images/themi.../IMG_1728.html

http://www.kyrotary.com/images/themi.../IMG_1729.html
C. Ludwig is offline
Old 05-01-07, 06:43 PM
  #18
Say NO to aux. bridging!
iTrader: (1)

rotarygod's Avatar

Join Date: Jul 2002
Location: Houston
Posts: 4,176
Likes: 0
Received 5 Likes on 5 Posts

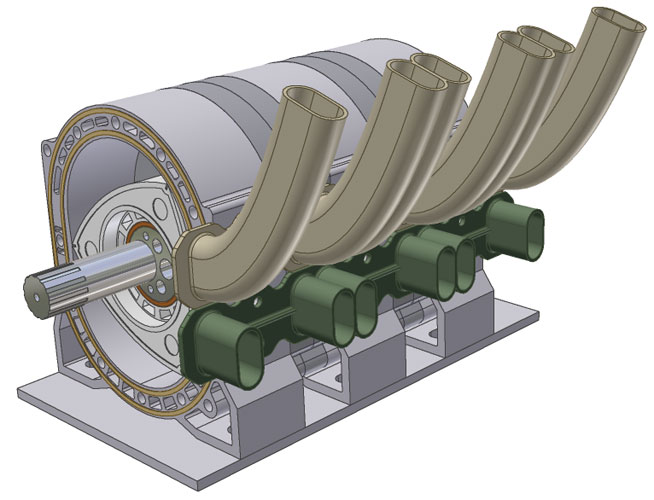

The Courage engine was always a peripheral port. Many were confused because it was called a Renesis and then on top of that a CAD drawn 3 rotor side port engine was circulated around that was assumed was the new engine when the whole time it was a 13G. Here's that picture.
Attached Thumbnails ROLEX cup rx8 info-renesis3rotorcad.jpg
rotarygod is offline
Old 05-01-07, 07:22 PM
  #19
www.lms-efi.com
iTrader: (27)

C. Ludwig's Avatar

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 5,106
Received 30 Likes on 23 Posts
Originally Posted by rotarygod
The Courage engine was always a peripheral port. Many were confused because it was called a Renesis and then on top of that a CAD drawn 3 rotor side port engine was circulated around that was assumed was the new engine when the whole time it was a 13G. Here's that picture.

Yeah. I swear I saw a real pic of that engine in the car. I distinctly remember the header. Easily distinguished between the p-port and side port exhaust header. Oh well. I remember a lot of stuff everyone else said never happened. Part of getting old I guess.
C. Ludwig is offline
Old 05-03-07, 08:40 AM
  #20
Rotary Enthusiast
iTrader: (1)

Join Date: Jul 2004
Location: Rocket City, Alabama
Posts: 1,035
Likes: 0
Received 1 Like on 1 Post
The orange #63 3 rotor peripheral (not Renesis) port RX-8 was at the Mitty race at Road Atlanta last weekend, in my IMSA car run group (but thankfully not in my 2 rotor GTU class.) He blew by my 2 rotor PP really fast; 50% more rotors = 50% more horsepower.
speedturn is offline
Old 05-03-07, 10:58 PM
  #21
'Tuna'

crispeed's Avatar

Join Date: Feb 2001
Location: Miami,Fl,USA
Posts: 4,637
Likes: 0
Received 1 Like on 1 Post
Originally Posted by speedturn
50% more rotors = 50% more horsepower.
Not neccessary. Depends on the rest of the combination and intent of use.
If that were the case then I could build a 600hp 3-rotor based on what I've done with a 2-rotor PP.
But then again a friend of mines is making over 550rwhp with his 3-rotor. I guess that qualifies him over 600hp at the flywheel.
crispeed is offline
Old 05-21-07, 01:43 PM
  #22
Senior Member
5 Year Member

wlfpkrcn's Avatar

Join Date: Jul 2005
Location: CA
Posts: 305
Likes: 0
Received 0 Likes on 0 Posts
I went out to Laguna on saturday. The Speed Source cars are awesome. They sound incredible. I'll try to post some pics tonight
