Oil Pan Baffle Design

Old 02-23-05, 07:21 PM
  #1
Rotary Enthusiast
10 Year Member
Thread Starter

Jahoo88's Avatar

Join Date: Apr 2001
Location: Mississauga
Posts: 974
Likes: 0
Received 0 Likes on 0 Posts
Oil Pan Baffle Design

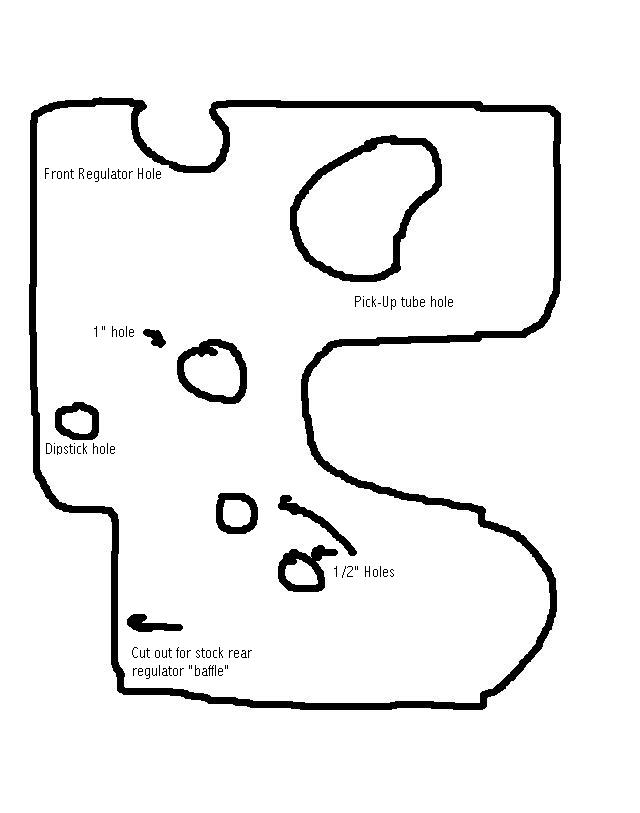

Im trying to make an oil pan baffle for my street/track car. Im not sure how many holes will be enough to let all the oil drain in time to avoid any pick up starvation problems. I attached a pic of what im thinking of doing so far.

It seems like the RB design has a lot of holes on the outsides of the plate, right where i would think it should be sealed to prevent oil from sloshing up the sides under high Gs.

What do you guys think, is this enough holes for oil to drain?

Im also upgrading the stock S5 T2 Rear Oil Pressure Regulator to an FD one. Is this safe for the S5 engine or will the pressure be too high?

Does anyone know if the Front Oil Pressure Regulator needs to be shimmed with an FD ROPR like it does with the RB 130psi race regulator?
Attached Thumbnails Oil Pan Baffle Design-oil-pan-baffle-3.jpg
Jahoo88 is offline
Old 02-23-05, 07:29 PM
  #2
Safety Guy
10 Year Member
iTrader: (3)

Turbo 3's Avatar

Join Date: Jan 2002
Location: Apple Valley area in MN
Posts: 1,433
Likes: 0
Received 0 Likes on 0 Posts
I have one from Mazdaspeed for sale if you want. Don't have to go through all the hassel.
Turbo 3 is offline
Old 02-23-05, 11:54 PM
  #3
10 lb. boost, 5lb. bag
10 Year Member
iTrader: (1)

Gene's Avatar

Join Date: Mar 2001
Location: New York, NY
Posts: 1,076
Likes: 0
Received 0 Likes on 0 Posts
I have the RB baffle (this is FC I assume?) and it works great. I used to get oil all over my engine bay at VIR, but no more with it installed. I installed a catch can at the same time, and the catch can stays pretty empty.
Gene is offline
Old 02-24-05, 02:27 AM
  #4
Junior Member
10 Year Member

Join Date: Mar 2003
Location: Canada
Posts: 44
Likes: 0
Received 0 Likes on 0 Posts
I am interested to know too, as I am doing the same as Jahoo88
TwoFun is offline
Old 02-24-05, 03:25 PM
  #5
Rotary Enthusiast
10 Year Member
Thread Starter

Jahoo88's Avatar

Join Date: Apr 2001
Location: Mississauga
Posts: 974
Likes: 0
Received 0 Likes on 0 Posts
Yes, this is FC, i think im going to go ahead and run that design. I will find out if tehre are enough holes if the buzzer comes on i guess!

Does anyone have any info about the Front Oil Pressure Regulator?
Jahoo88 is offline
