Gold vs Aluminum heat barrier

Old 04-09-10, 03:46 PM
  #1
Please somebody help!!!
10 Year Member
Thread Starter
iTrader: (1)

Join Date: Sep 2005
Location: Woodridge, IL
Posts: 1,442
Likes: 0
Received 0 Likes on 0 Posts
Gold vs Aluminum heat barrier

I'm looking to apply some heat barrier to the bottom of my LIM to mitigate heatsoak. The write up for gold seems to have more information than aluminum, but I'm looking for real world experiences.

Has anyone used either of these products? Thoughts?
NissanConvert is offline
Old 04-09-10, 09:05 PM
  #2
Racing is life!
10 Year Member
iTrader: (2)

cpa7man's Avatar

Join Date: Jan 2003
Location: Grapevine, TX
Posts: 2,174
Likes: 0
Received 0 Likes on 0 Posts
I purchased some of that gold reflective film from pegasus racing, it seems to work well.

http://www.pegasusautoracing.com/pro...p?Product=1838
cpa7man is offline
Old 04-09-10, 11:05 PM
  #3
Senior Member

Join Date: Jan 2006
Location: nanaimo
Posts: 428
Likes: 0
Received 5 Likes on 5 Posts
inproheat.com.

get some blast furnace insolation and pack it between the exhaust and intake. its good to 2200 degrees. we use it on the 20b turbo roadracer
racingdriver is offline
Old 04-10-10, 09:31 AM
  #4
SCCAEP
iTrader: (3)

SCCAITS's Avatar

Join Date: Dec 2006
Location: Dallas
Posts: 1,080
Likes: 0
Received 0 Likes on 0 Posts
I use the silver stuff. I do not think it would wrap a LIM though, it's too thick and I just don't think it would work as far as conforming to all the curves and staying in place with the adhesive. I had thought about wrapping LIM and UIM in either silver or gold as well. If you get it to work I'd be interested to hear more.

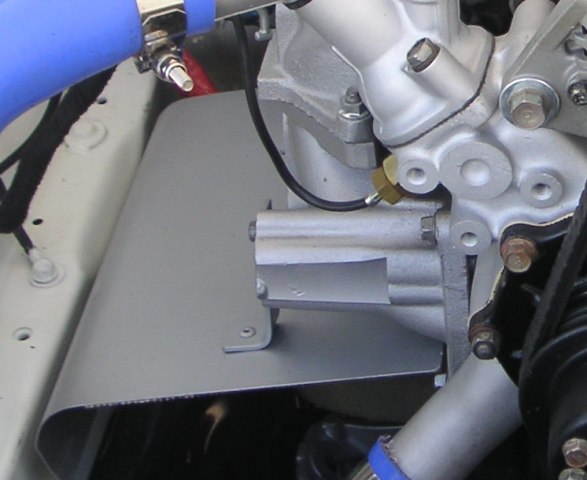

I made an aluminum heat shield that sits in between the header and LIM and I covered the bottom of the aluminum shield with the silver stuff. It seems to work fine.
Attached Thumbnails Gold vs Aluminum heat barrier-limshield.jpg
SCCAITS is offline
Old 04-10-10, 10:05 AM
  #5
Please somebody help!!!
10 Year Member
Thread Starter
iTrader: (1)

Join Date: Sep 2005
Location: Woodridge, IL
Posts: 1,442
Likes: 0
Received 0 Likes on 0 Posts
I apologize, I meant UIM, but I'd use the remainder on the LIM.

Originally Posted by SCCAITS View Post
I use the silver stuff. I do not think it would wrap a LIM though, it's too thick and I just don't think it would work as far as conforming to all the curves and staying in place with the adhesive. I had thought about wrapping LIM and UIM in either silver or gold as well. If you get it to work I'd be interested to hear more.

I made an aluminum heat shield that sits in between the header and LIM and I covered the bottom of the aluminum shield with the silver stuff. It seems to work fine.
Turbo or N/A? Is it easily removable?
NissanConvert is offline
Old 04-10-10, 10:38 AM
  #6
Mr. Links
15 Year Member
iTrader: (1)

Mahjik's Avatar

Join Date: Aug 2001
Location: Kansas City, MO
Posts: 27,592
Likes: 0
Received 4 Likes on 4 Posts
I used the aluminum stuff on my IC end tanks. The adhesive didn't work as well as I expected on all surfaces. It should work ok on the under (rough) part of the UIM. The adhesive doesn't stick well on smoothed surfaces (if you've polished your upper UIM).
Mahjik is offline
Old 04-10-10, 12:10 PM
  #7
I'll blow it up real good
10 Year Member
iTrader: (1)

RX-Heven's Avatar

Join Date: May 2001
Location: San Francisco, CA
Posts: 2,390
Likes: 0
Received 0 Likes on 0 Posts
The stuff Pegasus sells isn't the highest quality and isn't even real gold tape though it does work.

http://www.coastfab.com/heattape.html
Some general data from the manufacturer:
http://www.coastfab.com/images/pdf/HEAT_TAPE_WEB.pdf
RX-Heven is offline
Old 04-10-10, 07:12 PM
  #8
SCCAEP
iTrader: (3)

SCCAITS's Avatar

Join Date: Dec 2006
Location: Dallas
Posts: 1,080
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by NissanConvert View Post
I apologize, I meant UIM, but I'd use the remainder on the LIM.



Turbo or N/A? Is it easily removable?
N/A streetport road race car. It can be removed but is not reusable. I've tried. The adhesive can be cleaned off with various chemicals. I would coat the intake before I tried to wrap it, too many curves and the stuff doesn't conform to different shapes well. Think of it like adhesive backed fiberglass cloth with a thin aluminum coating.

Read this http://www.engineceramics.com/coating_a_manifold.htm

Not sure if he is still around or he sold the business. I might give it a try next winter during the off-season.
SCCAITS is offline
Old 04-10-10, 11:09 PM
  #9
Please somebody help!!!
10 Year Member
Thread Starter
iTrader: (1)

Join Date: Sep 2005
Location: Woodridge, IL
Posts: 1,442
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by SCCAITS View Post
N/A streetport road race car. It can be removed but is not reusable. I've tried. The adhesive can be cleaned off with various chemicals. I would coat the intake before I tried to wrap it, too many curves and the stuff doesn't conform to different shapes well. Think of it like adhesive backed fiberglass cloth with a thin aluminum coating.

Read this http://www.engineceramics.com/coating_a_manifold.htm

Not sure if he is still around or he sold the business. I might give it a try next winter during the off-season.
I was asking more about the shield than the barrier tape, but since you're n/a there's not a whole lot you'd have to get to anyway. I'm looking in to coating too, but it's out of my budget for the time being.
NissanConvert is offline
Old 04-11-10, 01:50 AM
  #10
Searching for 10th's
iTrader: (11)

jkstill's Avatar

Join Date: May 2002
Location: Portland OR
Posts: 2,192
Received 4 Likes on 3 Posts
Originally Posted by SCCAITS View Post
I use the silver stuff. I do not think it would wrap a LIM though, it's too thick and I just don't think it would work as far as conforming to all the curves and staying in place with the adhesive.
It works well if you cut it up in smaller pieces to conform to curves.

The heavy aluminum insulation has been on my LIM for 2 years with no problem.

I also used aluminum tape to seal the edges.
jkstill is offline
Old 11-28-13, 02:21 PM
  #11
Searching for 10th's
iTrader: (11)

jkstill's Avatar

Join Date: May 2002
Location: Portland OR
Posts: 2,192
Received 4 Likes on 3 Posts
Originally Posted by jkstill View Post
It works well if you cut it up in smaller pieces to conform to curves.

The heavy aluminum insulation has been on my LIM for 2 years with no problem.

I also used aluminum tape to seal the edges.
Revisited this thread as a result of looking for info on gold vs aluminum tape.

The aluminum tape has been on my Intercooler, IC pipes, LIM and ABS Heat shield for 5 years now without much issue.

Just been looking to redo it in spots, as some of the bits on the IC pipes is starting to unravel.

After looking at the specs at DEI's website, there does not seem to be much incentive to switch to the gold foil.

The silver stuff is good up to 1200f, while the gold is good to 850f.

DEI Heat Shield Specs
jkstill is offline
