FC Double A-Arm Conversion

Old 03-29-13, 01:17 AM
  #1
Junior Member
5 Year Member
Thread Starter

Join Date: Jan 2006
Location: Surprise! AZ
Posts: 24
Likes: 0
Received 0 Likes on 0 Posts
FC Double A-Arm Conversion

Converting an FC to A-Arm suspension for F Prepared Autox. I've Attached the current mockup, current goal is -3.0 static with a camber gain of -1.0 per inch(comments welcome). I did a lot of googling and outside of the Locost community this hasn't been documented to my knowledge, so here ya go. Not a ton done yet, but it's accelerating. All Fabrication is courtesy of Frank Adams.

As an aside. I have a complete ISC Bilstein Coilover setup for sale as a result of the suspension change, pm/email for details. I bought functional camber plates for the kit instead of the shock shaft bending original design---
Attached Thumbnails FC Double A-Arm Conversion-rx7-upright.jpg
ChopsMcgraw is offline
Old 03-29-13, 03:21 AM
  #2
RE for life

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,180
Likes: 0
Received 18 Likes on 15 Posts
Originally Posted by ChopsMcgraw View Post
Converting an FC to A-Arm suspension for F Prepared Autox. I've Attached the current mockup, current goal is -3.0 static with a camber gain of -1.0 per inch(comments welcome). I did a lot of googling and outside of the Locost community this hasn't been documented to my knowledge, so here ya go. Not a ton done yet, but it's accelerating. All Fabrication is courtesy of Frank Adams.

As an aside. I have a complete ISC Bilstein Coilover setup for sale as a result of the suspension change, pm/email for details. I bought functional camber plates for the kit instead of the shock shaft bending original design---
Very cool set up

cant wait to see finish result !!
diyman25 is offline
Old 03-29-13, 06:08 AM
  #3
Senior Member
5 Year Member
iTrader: (3)

Keeble's Avatar

Join Date: Oct 2007
Location: Rockwall, TX
Posts: 658
Likes: 0
Received 0 Likes on 0 Posts
Looks awesome! And the locost clguys ate usually pretty helpful, been thinking about building one for years!
Keeble is offline
Old 03-29-13, 04:14 PM
  #4
1308ccs of awesome
iTrader: (9)

eage8's Avatar

Join Date: Sep 2003
Location: Woodbine, MD
Posts: 6,176
Received 10 Likes on 10 Posts
Contact Tripoint engineering.

They build a FP (maybe EP back then?) FC in the 90s with double wishbones in the front. I'm sure you could ask them about it.

I've never seen any pictures of it though.

awesome project
eage8 is offline
Old 03-29-13, 05:39 PM
  #5
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 24,583
Likes: 0
Received 123 Likes on 112 Posts
its the holy grail! we have looked into it on and off over the years, and the only real "hard" part is that the FC uses the FWD style ball joint, every other RWD Mazda uses a tapered seat ball joint.

so you can't take a spindle say from and Rx8, fab up an upper arm and a couple of brackets and be done!
j9fd3s is offline
Old 03-29-13, 09:00 PM
  #6
Senior Member
5 Year Member
iTrader: (3)

Keeble's Avatar

Join Date: Oct 2007
Location: Rockwall, TX
Posts: 658
Likes: 0
Received 0 Likes on 0 Posts
S4 control arms have bolt on ball joints so all you would have to do is fabricate a ball joint holder?
Keeble is offline
Old 03-29-13, 10:57 PM
  #7
Junior Member
5 Year Member
Thread Starter

Join Date: Jan 2006
Location: Surprise! AZ
Posts: 24
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by j9fd3s View Post
its the holy grail! we have looked into it on and off over the years, and the only real "hard" part is that the FC uses the FWD style ball joint, every other RWD Mazda uses a tapered seat ball joint.

so you can't take a spindle say from and Rx8, fab up an upper arm and a couple of brackets and be done!

Yeah, would be awesome to be able to parts bin it, the reason you stated is why we are retaining the stock spindle. Still, I'm amazed at how relatively simple this is appearing, waiting for the other shoe to fall . Currently waiting on a ball joint reamer to move farther, man those are pricey, any one know where to source a cheap one for two time use?
ChopsMcgraw is offline
Old 03-29-13, 11:01 PM
  #8
Junior Member
5 Year Member
Thread Starter

Join Date: Jan 2006
Location: Surprise! AZ
Posts: 24
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Keeble View Post
S4 control arms have bolt on ball joints so all you would have to do is fabricate a ball joint holder?
Lower Ball Joint is bolt on, we used the stock spindle-mcstrut attachments and my buddy fabbed an adapter to utilize a generic circle-track ball joint. We will then do some measuring, bend some tube, do some welding, cut some holes, weld some brackets, and call it done-
ChopsMcgraw is offline
Old 03-30-13, 12:55 PM
  #9
Death to Infinite Scroll

peejay's Avatar

Join Date: May 2001
Location: Cleveland, Ohio, USA
Posts: 11,702
Received 43 Likes on 40 Posts
How much does your roll center move with that camber curve?

Thinking about what j9fd3s said... and knowing that the Miata and FC steering racks are the same except for width... I wonder if it'd be practical to get a Miata front suspension, widen the subframe by the difference in widths, use the RX-7 rack, and merge it with the FC nose.

Or tweak the strut geometry to get your desired camber curve. Mostly a factor of moving the strut towers inboard. If you need camber bolts to REDUCE negative camber, you're on the right track.
peejay is offline
Old 03-30-13, 01:19 PM
  #10
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 24,583
Likes: 0
Received 123 Likes on 112 Posts
Originally Posted by peejay View Post
How much does your roll center move with that camber curve?

Thinking about what j9fd3s said... and knowing that the Miata and FC steering racks are the same except for width... I wonder if it'd be practical to get a Miata front suspension, widen the subframe by the difference in widths, use the RX-7 rack, and merge it with the FC nose.

Or tweak the strut geometry to get your desired camber curve. Mostly a factor of moving the strut towers inboard. If you need camber bolts to REDUCE negative camber, you're on the right track.
well since the FC uses a FWD ball joint that means 626 spindles go right on, use 626 struts, and go 4WD!
j9fd3s is offline
Old 03-31-13, 09:12 PM
  #11
Junior Member
5 Year Member
Thread Starter

Join Date: Jan 2006
Location: Surprise! AZ
Posts: 24
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by peejay View Post
How much does your roll center move with that camber curve?

Thinking about what j9fd3s said... and knowing that the Miata and FC steering racks are the same except for width... I wonder if it'd be practical to get a Miata front suspension, widen the subframe by the difference in widths, use the RX-7 rack, and merge it with the FC nose.

Or tweak the strut geometry to get your desired camber curve. Mostly a factor of moving the strut towers inboard. If you need camber bolts to REDUCE negative camber, you're on the right track.

There would be additional penalties for modifications/substitutions of the subframe. If I stuck with the struts I would have just run a ton of static negative camber like I have in the past, but I've dealt with strut cars for the last 6 years and am going to try and eliminate that compromise-
ChopsMcgraw is offline
Old 03-31-13, 09:14 PM
  #12
Junior Member
5 Year Member
Thread Starter

Join Date: Jan 2006
Location: Surprise! AZ
Posts: 24
Likes: 0
Received 0 Likes on 0 Posts

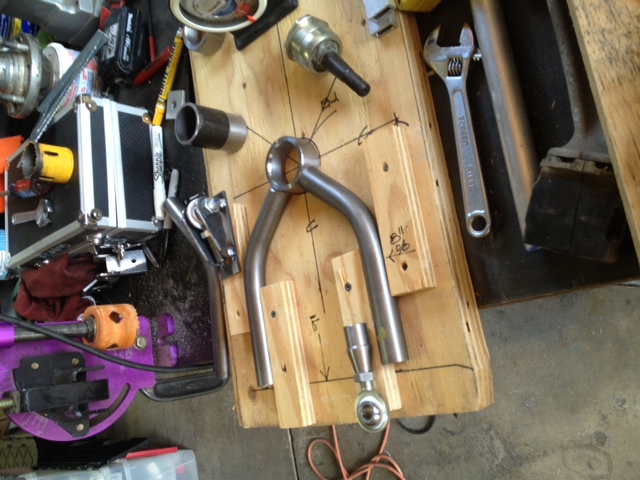

Upper Control Arm laid out-
Attached Thumbnails FC Double A-Arm Conversion-photo.jpg
ChopsMcgraw is offline
Old 04-01-13, 10:20 AM
  #13
Senior Member
5 Year Member
iTrader: (3)

Keeble's Avatar

Join Date: Oct 2007
Location: Rockwall, TX
Posts: 658
Likes: 0
Received 0 Likes on 0 Posts
Looks good!
Keeble is offline
Old 04-01-13, 11:11 AM
  #14
Senior Member
10 Year Member

designfreak's Avatar

Join Date: Jan 2005
Location: miami FL
Posts: 352
Likes: 0
Received 0 Likes on 0 Posts
A guy I know did this on his v8 FC racecar. Very well done. He replicated the FD geometry as much as possible. Im considering doing something similar.

http://www.norotors.com/index.php?topic=8044.0
designfreak is offline
Old 04-01-13, 10:36 PM
  #15
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,081
Received 145 Likes on 128 Posts
I remember seeing pics of a 510 with double wishbone front based off of FC parts years ago online. Wonder if I can find it again.
BLUE TII is offline
Old 04-01-13, 10:47 PM
  #16
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,081
Received 145 Likes on 128 Posts
I think it was this car, but the links are down. FC lower arm and spindle with supra alum. upper arm.

Datsun 510 custom 5 lug and rotor conversion
BLUE TII is offline
Old 04-02-13, 01:21 AM
  #17
Junior Member
5 Year Member
Thread Starter

Join Date: Jan 2006
Location: Surprise! AZ
Posts: 24
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by designfreak View Post
A guy I know did this on his v8 FC racecar. Very well done. He replicated the FD geometry as much as possible. Im considering doing something similar.

http://www.norotors.com/index.php?topic=8044.0
Cool link, wish I had seen it earlier.

We are just planning on mounting the shock to the lower arm, and a circle-track weld-in balljoint on the uppers.
ChopsMcgraw is offline
Old 04-02-13, 08:39 AM
  #18
1308ccs of awesome
iTrader: (9)

eage8's Avatar

Join Date: Sep 2003
Location: Woodbine, MD
Posts: 6,176
Received 10 Likes on 10 Posts
Originally Posted by ChopsMcgraw View Post
Cool link, wish I had seen it earlier.

We are just planning on mounting the shock to the lower arm, and a circle-track weld-in balljoint on the uppers.
I like your design a lot better. maybe it's a good thing you didn't see it earlier
eage8 is offline
Old 04-03-13, 01:03 AM
  #19
Junior Member
5 Year Member
Thread Starter

Join Date: Jan 2006
Location: Surprise! AZ
Posts: 24
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by eage8 View Post
I like your design a lot better. maybe it's a good thing you didn't see it earlier
Thanks, hopefully it's strong enough
ChopsMcgraw is offline
Old 04-03-13, 01:05 AM
  #20
Junior Member
5 Year Member
Thread Starter

Join Date: Jan 2006
Location: Surprise! AZ
Posts: 24
Likes: 0
Received 0 Likes on 0 Posts

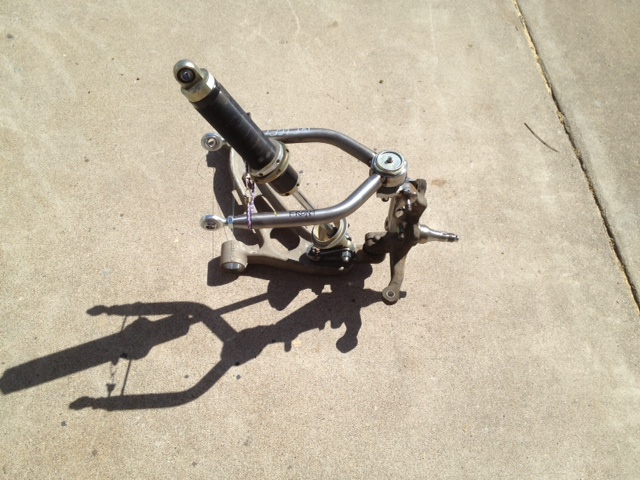

Current Mockup
Attached Thumbnails FC Double A-Arm Conversion-photo-1-.jpg
ChopsMcgraw is offline
Old 04-03-13, 12:47 PM
  #21
Rotary Enthusiast
15 Year Member

abeomid's Avatar

Join Date: Mar 2001
Location: Vancouver, BC, Canada
Posts: 815
Likes: 0
Received 0 Likes on 0 Posts
Very nicely done! I am really considering doing this before the chassis is painted We have made the front end tubular, so This will be pretty straight forward.

However I am not a big fan of the lower ball joint that comes with the FC due to lack of adjustment. Are you doing anything in that department? It appears you are using the stock lower ball. I know AWR has a custom one built, but a local guy we know had some issues with it.

It might be easier/better on the long run for me to just buy an upright and build the double a-arms from scratch!
abeomid is offline
Old 04-03-13, 03:50 PM
  #22
Junior Member
5 Year Member
Thread Starter

Join Date: Jan 2006
Location: Surprise! AZ
Posts: 24
Likes: 0
Received 0 Likes on 0 Posts
I just put the balljoint on top of the arm for the time being. If pish comes to shove, we may try to modify a stock one.



Originally Posted by abeomid View Post
Very nicely done! I am really considering doing this before the chassis is painted We have made the front end tubular, so This will be pretty straight forward.

However I am not a big fan of the lower ball joint that comes with the FC due to lack of adjustment. Are you doing anything in that department? It appears you are using the stock lower ball. I know AWR has a custom one built, but a local guy we know had some issues with it.






It might be easier/better on the long run for me to just buy an upright and build the double a-arms from scratch!
ChopsMcgraw is offline
Old 04-03-13, 06:48 PM
  #23
Rotary Enthusiast
15 Year Member

abeomid's Avatar

Join Date: Mar 2001
Location: Vancouver, BC, Canada
Posts: 815
Likes: 0
Received 0 Likes on 0 Posts
I was telling one of the guys I am working on a tubular lower arms which will mostly likely allow some adjustment for the lower ball joint. Will keep you updated on the progress.
abeomid is offline
Old 04-03-13, 07:52 PM
  #24
trying to build a racecar

Travis R's Avatar

Join Date: Sep 2002
Location: Austin, Tx.
Posts: 579
Received 1 Like on 1 Post
Glad to see someone else trying this out. I'm doing the same thing, for the same class too!
Curious about the other specs, like roll center migration, caster, scrub, steering axis inclination etc. You don't have to give away ALL your secrets, but just wondering how you settled on the setup/dimensions that you did.
Travis R is offline
Old 04-03-13, 11:08 PM
  #25
Rotary Freak
10 Year Member
iTrader: (3)

Join Date: Jan 2003
Location: Gresham, OR
Posts: 2,024
Likes: 0
Received 0 Likes on 0 Posts
looks like the upper arm is longer than lower? that seems unlikely to have any kinda of decent camber gain unless you run a subterranean roll center
Josh18_2k is offline
