Lapping Day
Finally got a decent exterior photo of the now complete car.
Here is a video of it running on lapping day last Friday.
Specs this day:
11lbs Boost
1200cc Primary Injectors
1600cc Seconary Injectors
Megasquirt II V3.0 Fuel Controller
There is one large problem now (other than the syncros on my tranny are gone)...shortly after this video was taken, I went out for one last run and I think the rear iron let go.
I pumped 7qt's of oil out between the rear iron and the bellhousing. I just got the car home and it may be a few weekends before I get to look at it.
Here is the general Idea of how the car was performing: (the good stuff doesn't really happen 'till about the 2min mark...sorry, I'm still new to the whole home movie making thing!)
http://www.youtube.com/watch?v=lz5Vd6Hrc1s
Here is a video of it running on lapping day last Friday.
Specs this day:
11lbs Boost
1200cc Primary Injectors
1600cc Seconary Injectors
Megasquirt II V3.0 Fuel Controller
There is one large problem now (other than the syncros on my tranny are gone)...shortly after this video was taken, I went out for one last run and I think the rear iron let go.
I pumped 7qt's of oil out between the rear iron and the bellhousing. I just got the car home and it may be a few weekends before I get to look at it. Here is the general Idea of how the car was performing: (the good stuff doesn't really happen 'till about the 2min mark...sorry, I'm still new to the whole home movie making thing!)
http://www.youtube.com/watch?v=lz5Vd6Hrc1s
Last edited by nofords; 08-28-10 at 09:35 PM.
11-29-10, 04:11 PM
#78
Mr. September FB 2011
Thread Starter
iTrader: (9)
Join Date: Mar 2009
Location: Winnipeg, Manitoba
Posts: 489
Likes: 0
Received 0 Likes
on
0 Posts
S4 Oil Pedestal Issues
Back from the dead!
I finally got a chance to tear down the race engine. I clamped it all together using turnbuckles and the intake manifold so that I wouldn't disturb the other seals and gaskets.
Got the rear iron off and the oil pedestal dowel pin boss cracked. To be expected I suppose.
Other than that, the engine looks to be in decent shape. no signs of other wear. I'm going to port another Iron and slap it back together.
Photos...
I finally got a chance to tear down the race engine. I clamped it all together using turnbuckles and the intake manifold so that I wouldn't disturb the other seals and gaskets.
Got the rear iron off and the oil pedestal dowel pin boss cracked. To be expected I suppose.
Other than that, the engine looks to be in decent shape. no signs of other wear. I'm going to port another Iron and slap it back together.
Photos...
11-30-10, 10:16 PM
#80
Mr. September FB 2011
Thread Starter
iTrader: (9)
Join Date: Mar 2009
Location: Winnipeg, Manitoba
Posts: 489
Likes: 0
Received 0 Likes
on
0 Posts
Thank you. I've worked very hard for 14mos or so to get it rolling again!!
In the end, I would have changed some things but you always do no matter what...right?
In the end, I would have changed some things but you always do no matter what...right?
12-01-10, 08:53 AM
#82
Mr. September FB 2011
Thread Starter
iTrader: (9)
Join Date: Mar 2009
Location: Winnipeg, Manitoba
Posts: 489
Likes: 0
Received 0 Likes
on
0 Posts
you know, i really like the way it is set up right now. I haven't really pushed into the corners yet other than what is seen on the videos.
The largest problem right now is that the suspension is too soft for the wheels to stick out of the wells. they rub the factory steel and I will have to stiffen it up so it doesn't do that anymore.
As the track isn't the smoothest, having a little cushion is nice. it holds the corners over the bumps!
The largest problem right now is that the suspension is too soft for the wheels to stick out of the wells. they rub the factory steel and I will have to stiffen it up so it doesn't do that anymore.
As the track isn't the smoothest, having a little cushion is nice. it holds the corners over the bumps!
12-01-10, 10:36 AM
#83
"Elusive, not deceptive!”
Nofords, Nice build. You are an innovative fabricator.

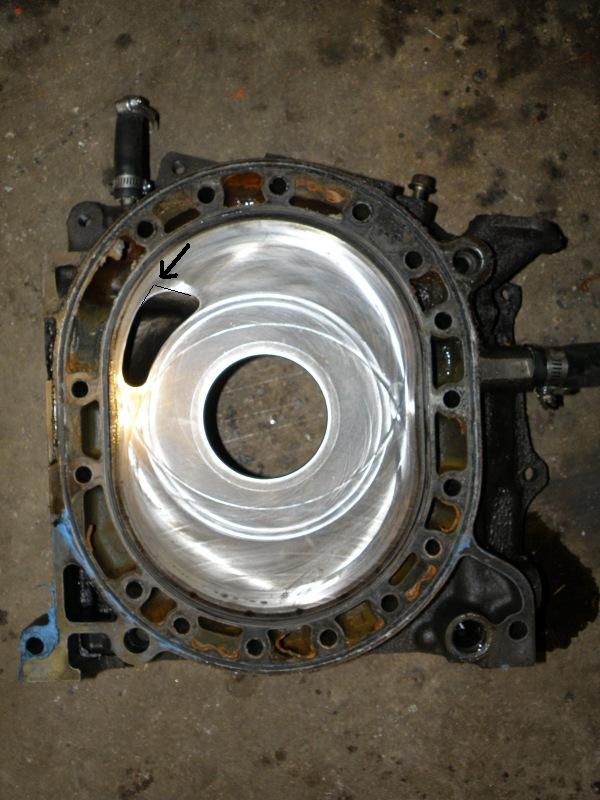

Could you take a close-up picture of the closing top corner of your intake port as shown in the picture? There appears to be a wear scratch on it from the side seals? I usually square that corner off more for that reason.
Barry
Could you take a close-up picture of the closing top corner of your intake port as shown in the picture? There appears to be a wear scratch on it from the side seals? I usually square that corner off more for that reason.
Barry
12-02-10, 07:48 AM
#87
Mr. September FB 2011
Thread Starter
iTrader: (9)
Join Date: Mar 2009
Location: Winnipeg, Manitoba
Posts: 489
Likes: 0
Received 0 Likes
on
0 Posts
I'm a little lost here. I see what your saying in your attachment but I would have to say that it is possible that the side seal will better in a rounded closure?
Not sure if I understand correctly...
Not sure if I understand correctly...
12-02-10, 07:48 AM
#88
"Elusive, not deceptive!”
Nofords,
Here are the tracks of the side seals on the plate. The closing side of the port should be straight till the seal has scissors completely back onto the plate. (at taught by Judge ITO and Lynn Hanover)
Barry
Here are the tracks of the side seals on the plate. The closing side of the port should be straight till the seal has scissors completely back onto the plate. (at taught by Judge ITO and Lynn Hanover)
Barry
