Chassis straightener FD specsheet

I'm looking at buying ChassisSim Lite.
http://www.chassissim.com/

I need the dimensions of the FD suspension geometry.
I figure the best way to do it is to get a chassis machine set-up sheet for FD.
I don't know what you call the sheet, the one they use to see if your crashed FD is straight before they put it back together

That will give me the suspension point locations then i need to measure the suspension arms.

Q1 has anyone already done this and can you give me the data
Q2 has any one got an FD chassis machine set-up sheet for the FD chassis?

I don't mind drawing it up in 3D if some one can find the sheet for me.
FD:) is offline
Old 08-08-08, 08:34 AM
  #2
Mr. Links
15 Year Member
iTrader: (1)

Mahjik's Avatar

Join Date: Aug 2001
Location: Kansas City, MO
Posts: 27,592
Likes: 0
Received 4 Likes on 4 Posts
Arrow

You want the Collision Repair Manual:
http://www.wrex-racing.com/web/fd/info.htm
Mahjik is offline
Old 08-08-08, 05:35 PM
  #3
Rotary Freak
10 Year Member
iTrader: (7)

sub9lulu's Avatar

Join Date: Jun 2003
Location: FL
Posts: 2,739
Likes: 0
Received 0 Likes on 0 Posts
do they have 1 of those for the FC ? I need some misc parts
sub9lulu is offline
Old 08-08-08, 05:50 PM
  #4
Crash Auto?Fix Auto.
iTrader: (3)

classicauto's Avatar

Join Date: May 2003
Location: Hagersville Ontario
Posts: 7,830
Likes: 0
Received 1 Like on 1 Post
In industry its simply called "frame specs"

Any body shop with a Mitchell Estimating system should be able to provide you with them, they may charge a fee though - that system is pricey.

It'll give you a few measurements from various chassis points as well as measurements for heights of those points from a datum line.
classicauto is offline
Old 08-14-08, 05:30 AM
  #5
FD-Kai NZ
10 Year Member
Thread Starter

FD:)'s Avatar

Join Date: Jan 2002
Location: N.Z.
Posts: 80
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Mahjik View Post
You want the Collision Repair Manual:
http://www.wrex-racing.com/web/fd/info.htm
Nah the collision repair manual is just a bunch of replacement part numbers
FD:) is offline
Old 08-14-08, 05:31 AM
  #6
FD-Kai NZ
10 Year Member
Thread Starter

FD:)'s Avatar

Join Date: Jan 2002
Location: N.Z.
Posts: 80
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by classicauto View Post
In industry its simply called "frame specs"

Any body shop with a Mitchell Estimating system should be able to provide you with them, they may charge a fee though - that system is pricey.

It'll give you a few measurements from various chassis points as well as measurements for heights of those points from a datum line.
"frame specs"
OK I will ask a few "panel beaters" with Chassis machines
FD:) is offline
Old 08-18-08, 10:50 AM
  #7
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 24,573
Likes: 0
Received 123 Likes on 112 Posts
Originally Posted by FD:) View Post
Nah the collision repair manual is just a bunch of replacement part numbers
there is another collision repair book that gives dimensions and tells how HOW to fix the unibody properly (where to cut, where to weld etc)
j9fd3s is offline
Old 08-27-08, 06:09 AM
  #8
FD-Kai NZ
10 Year Member
Thread Starter

FD:)'s Avatar

Join Date: Jan 2002
Location: N.Z.
Posts: 80
Likes: 0
Received 0 Likes on 0 Posts
Rhino 3D FD

I've been a bit busy but i did get an Fd chassis data sheet. I just went and brought one.

I will draw it up in Rhino.

Does any one else use Rhino or some other 3D drawing software?

If we split the FD down the middle and a few people drew one part each (fender, door... etc..) we could draw a hole FD in no time.

If we could find someone with a CMM Faro arm digitiser or even better a laser scanner arm.
Once there is a 3D model it can be put through some CFD and we can get get some aero data.



Glen
FD:) is offline
Old 08-27-08, 06:10 AM
  #9
FD-Kai NZ
10 Year Member
Thread Starter

FD:)'s Avatar

Join Date: Jan 2002
Location: N.Z.
Posts: 80
Likes: 0
Received 0 Likes on 0 Posts
Rhino 3D FD

I've been a bit busy but i did get an Fd chassis data sheet. I just went and brought one.

I will draw it up in Rhino.

Does any one else use Rhino or some other 3D drawing software?

If we split the FD down the middle and a few people drew one part each (fender, door... etc..) we could draw a hole FD in no time.

If we could find someone with a CMM Faro arm digitiser or even better a laser scanner arm it would be even quicker and better!
Once there is a 3D model it can be put through some CFD and we can get get some aero data.



Glen
FD:) is offline
Old 08-27-08, 06:47 AM
  #10
FD-Kai NZ
10 Year Member
Thread Starter

FD:)'s Avatar

Join Date: Jan 2002
Location: N.Z.
Posts: 80
Likes: 0
Received 0 Likes on 0 Posts
Rhino 3d

I have started a page where i will put 3D drawings of the FD as I do them or as others submit them.

http://www.rx7.net.nz/rx7netindex.html

go to RX7 dot net
FD 3D Drawing project
FD:) is offline
Old 08-29-08, 10:08 AM
  #11
Senior Member

TrentO's Avatar

Join Date: Jul 2003
Location: Edmonton, AB, Canada
Posts: 408
Likes: 0
Received 0 Likes on 0 Posts
I've got some 3D modelling experience. I haven't used Rhino, but Ill be looking at at in the next little bit. I'm doing a tube frame 3rd gen road race car, so I'm as interested in the chassis data as you are. I've just started the parts pile. How could I get the data off you?

cheers,
-Trent
TrentO is offline
Old 08-30-08, 04:44 AM
  #12
FD-Kai NZ
10 Year Member
Thread Starter

FD:)'s Avatar

Join Date: Jan 2002
Location: N.Z.
Posts: 80
Likes: 0
Received 0 Likes on 0 Posts
3d Fd

Well... I have started a site where i will put part drawings sent to me.
http://www.rx7.net.nz/rx7netindex.html
go to RX7 dot net
FD 3D Drawing project


You just have to send me some 3D FD part drawings.
I will add a list of parts required in order of importance (as far as an accurate model for track simulation is concerned)

It doesn't have to be a Rhino drawing, any 3D format will do. Rhino can import just about anything.

As for the Chassis drawing it's a bit hard to read. The lateral positions are OK but the vertical positions are measured using special clamps with alphabetical designations + an additional measurement.
Like clamp F + 165mm + 16 mm bolt head pick-up.

I need to get down to a chassis machine place and measure the various standard clamp lengths so i can work out the vertical measurements.

( I know where a machine is as I had the Chassis checked on the machine before I had the cage put in)


>>I've got some 3D modelling experience. I haven't used Rhino, but Ill be looking at at in the next little bit. I'm doing a tube frame 3rd gen road race car, so I'm as interested in the chassis data as you are. I've just started the parts pile. How could I get the data off you?
FD:) is offline
Old 09-12-08, 03:19 PM
  #13
Senior Member

TrentO's Avatar

Join Date: Jul 2003
Location: Edmonton, AB, Canada
Posts: 408
Likes: 0
Received 0 Likes on 0 Posts
Post up the measurements when you have them.

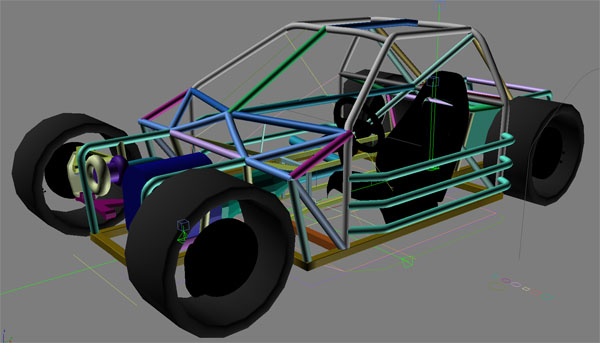

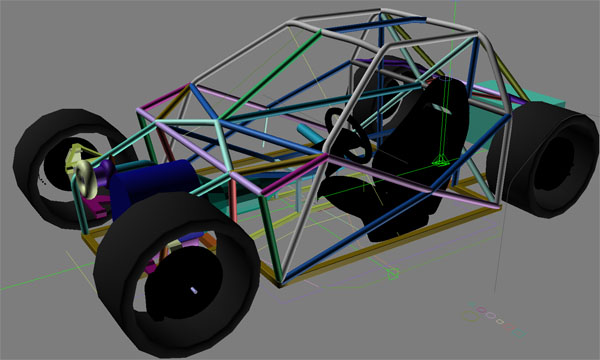

I've been playing with some chassis designs in max, just sorting out ideas on what goes where. The scale is off a bit as I don't have any measurements, just ballpark guesses.


-Trent
Attached Thumbnails Chassis straightener FD specsheet-3rdgen1.jpg   Chassis straightener FD specsheet-3rdgen2.jpg
TrentO is offline
Old 10-05-08, 03:37 PM
  #14
FAST BATTY
5 Year Member

Join Date: Aug 2008
Location: New Zealand
Posts: 29
Likes: 0
Received 0 Likes on 0 Posts
Hi FD,

The Fd Chassis data sheet, where did you purchase this from, I'm interested in getting a copy - helpful with racecar repairs etc.

Cheers,
BatmanNZ3 is offline
Old 10-07-08, 01:43 PM
  #15
Rotary Freak
10 Year Member
iTrader: (14)

Julian's Avatar

Join Date: Jan 2004
Location: Longview, Texas
Posts: 1,855
Likes: 0
Received 1 Like on 1 Post
FD can you post the chassis data sheet.

Yes I know you paid good money for it but please realize that some of us donated a lot of shop manuals, electrical manuals to the sticky section of the 3rd Gen site. I know that I paid hundreds for what I donated in the greater interest of the marquee.
Julian is offline
Old 10-07-08, 08:24 PM
  #16
Moderator
iTrader: (7)

dgeesaman's Avatar

Join Date: May 2002
Location: Fort Kickass
Posts: 12,298
Likes: 0
Received 4 Likes on 4 Posts
Heh, we just go a couple of those high-accuracy Faro arms at work. One is designated as the "portable" unit. It sure would be badass to take it home for a weekend and scan points all the way around the car. Then import the data into a CAD system and scale one of those 3D models to fit the actual data and chassis spec sheets.

Unfortunately that will never happen. The dept manager is a ***** and those things are like his little dicks.
dgeesaman is offline
Old 02-01-09, 03:14 AM
  #17
FD-Kai NZ
10 Year Member
Thread Starter

FD:)'s Avatar

Join Date: Jan 2002
Location: N.Z.
Posts: 80
Likes: 0
Received 0 Likes on 0 Posts
It only cost $10...

It only cost $10... I haven't looked on the forum for a while. I'll dig it out and post it up.


Originally Posted by Julian View Post
FD can you post the chassis data sheet.

Yes I know you paid good money for it but please realize that some of us donated a lot of shop manuals, electrical manuals to the sticky section of the 3rd Gen site. I know that I paid hundreds for what I donated in the greater interest of the marquee.
FD:) is offline
Old 10-23-16, 08:22 PM
  #18
Senior Member

Join Date: Mar 2001
Location: Walnut, CA
Posts: 720
Likes: 0
Received 2 Likes on 2 Posts
bringing this back, has anyone completed a model for ChassisSim?
