Any one runing 18x11j non-staggered wheel

Race Car Tech Discuss anything related to road racing and auto X.

Any one runing 18x11j non-staggered wheel

Old 01-07-16, 08:44 AM
  #1
RE for life
Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,173
Likes: 0
Liked 17 Times in 14 Posts
Any one runing 18x11j non-staggered wheel

Plan to run this 18x11j et12. With TCP wide body

Any one running 305 on the front ? Any mod to be done on body
On my old set up 18x10 et20 with 285 the tire will rub on full lock ,but still do able on track
Thanks for ur time

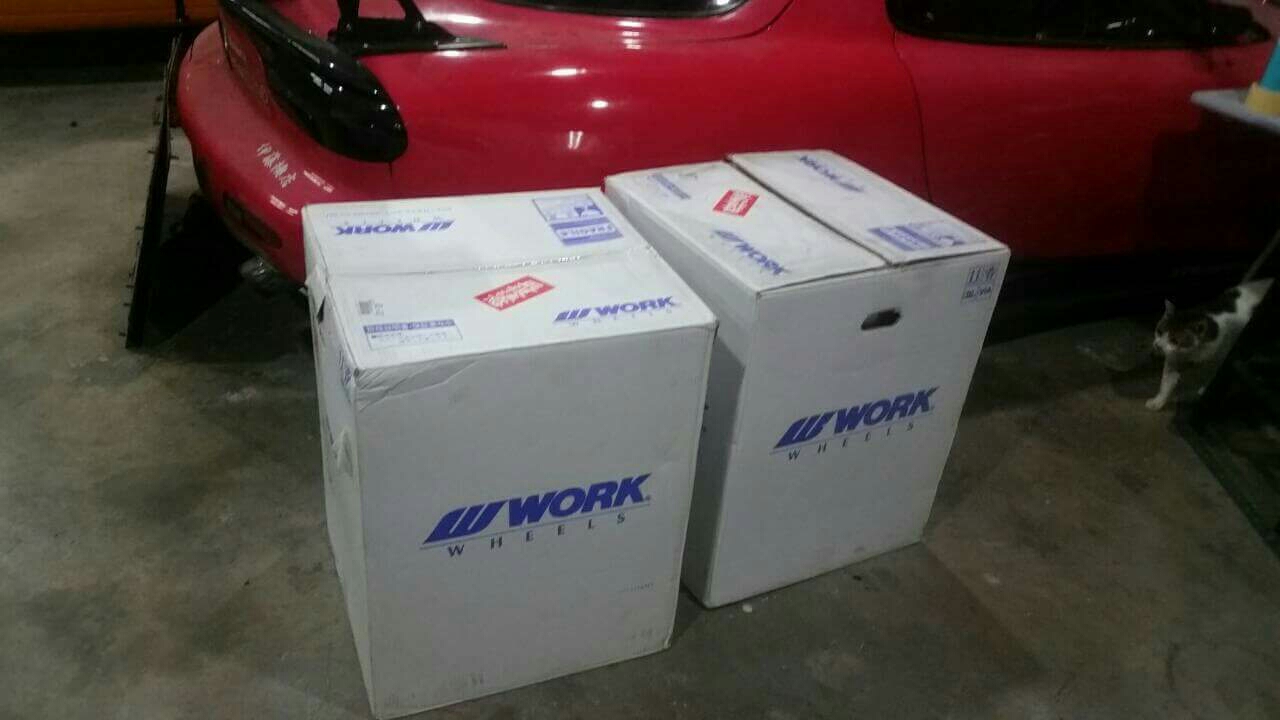

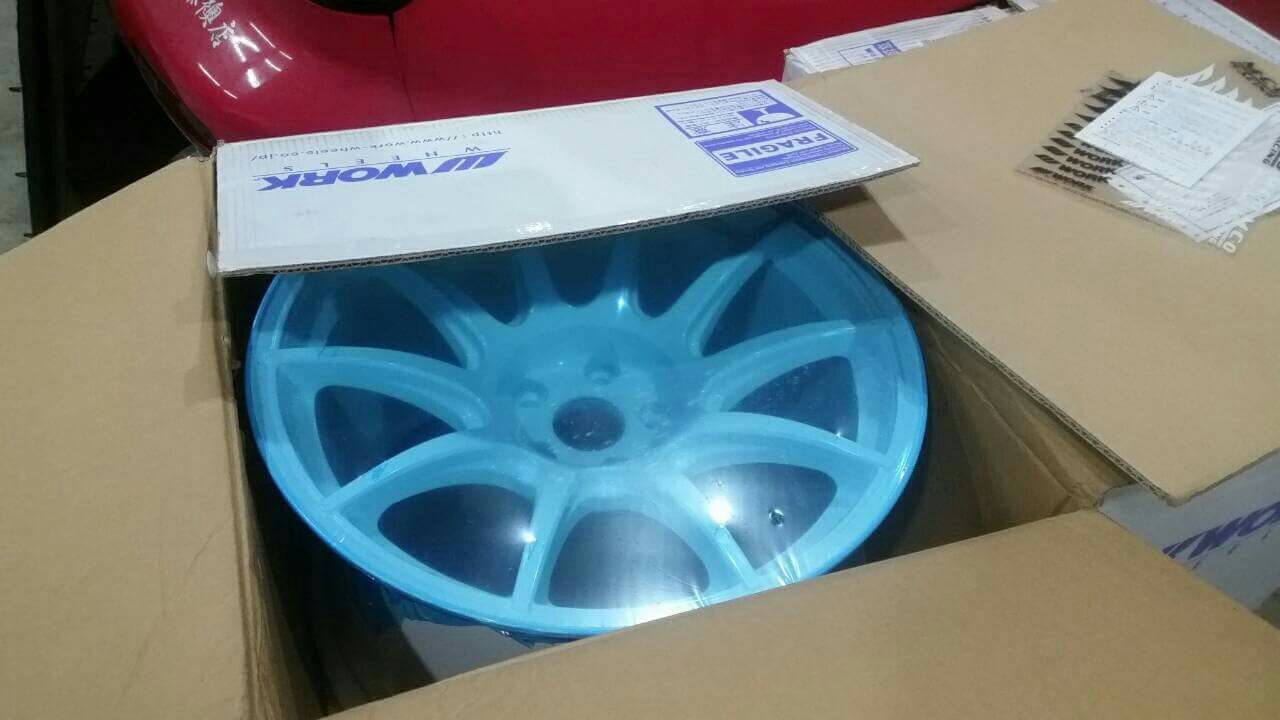

Attached Thumbnails Any one runing 18x11j non-staggered wheel-received_10153466453344005.jpeg   Any one runing 18x11j non-staggered wheel-received_10153466453349005.jpeg
diyman25 is offline
Old 01-07-16, 10:53 AM
  #2
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,070
Liked 145 Times in 128 Posts


I run 18x11 +45 with 295/30-18 Hankook Z221 Ventus TD (narrow tire) and 295/30-18 Toyo R888 (wide tire) front and rear on stock body rolled fenders.

With TCP wide body you should be able to run 18x12 +30 with 305/30-18 easily- you will just have problems with the taller tire not from the width.

Show the Japanese wide wheels/tires fit the FD (and this fitment also works on RX-8).
BLUE TII is offline
Old 01-07-16, 10:56 AM
  #3
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,070
Liked 145 Times in 128 Posts
Oh, I see you have the wrong offset wheels already.

Yes, this is the problem- Japanese don't make wide wheels in offsets that are useful for the FD- you have to get Chinese wheels.

I used Forgestar F14- available up to 12" wide and any offset you want. My 18x11 are just under 22lbs and I quite strong and under $1,500 set.
BLUE TII is offline
Old 01-07-16, 11:09 AM
  #4
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,070
Liked 145 Times in 128 Posts
Hmmn, you are running a lot of negative camber... It might just work.

Use this site to show you the difference between old and new set-up.

Online Wheel and Tyre Fitment Calculator. Offset, Tyre Stretch and Speedo Error | Will They Fit

18x11 +12 wheel would be 4.7mm closer to the inside wheel well than you old 18x10 +20, but tire looks to be in about the same spot on the inside (same amount of rub).
BLUE TII is offline
Old 01-08-16, 03:22 AM
  #5
RE for life
Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,173
Likes: 0
Liked 17 Times in 14 Posts

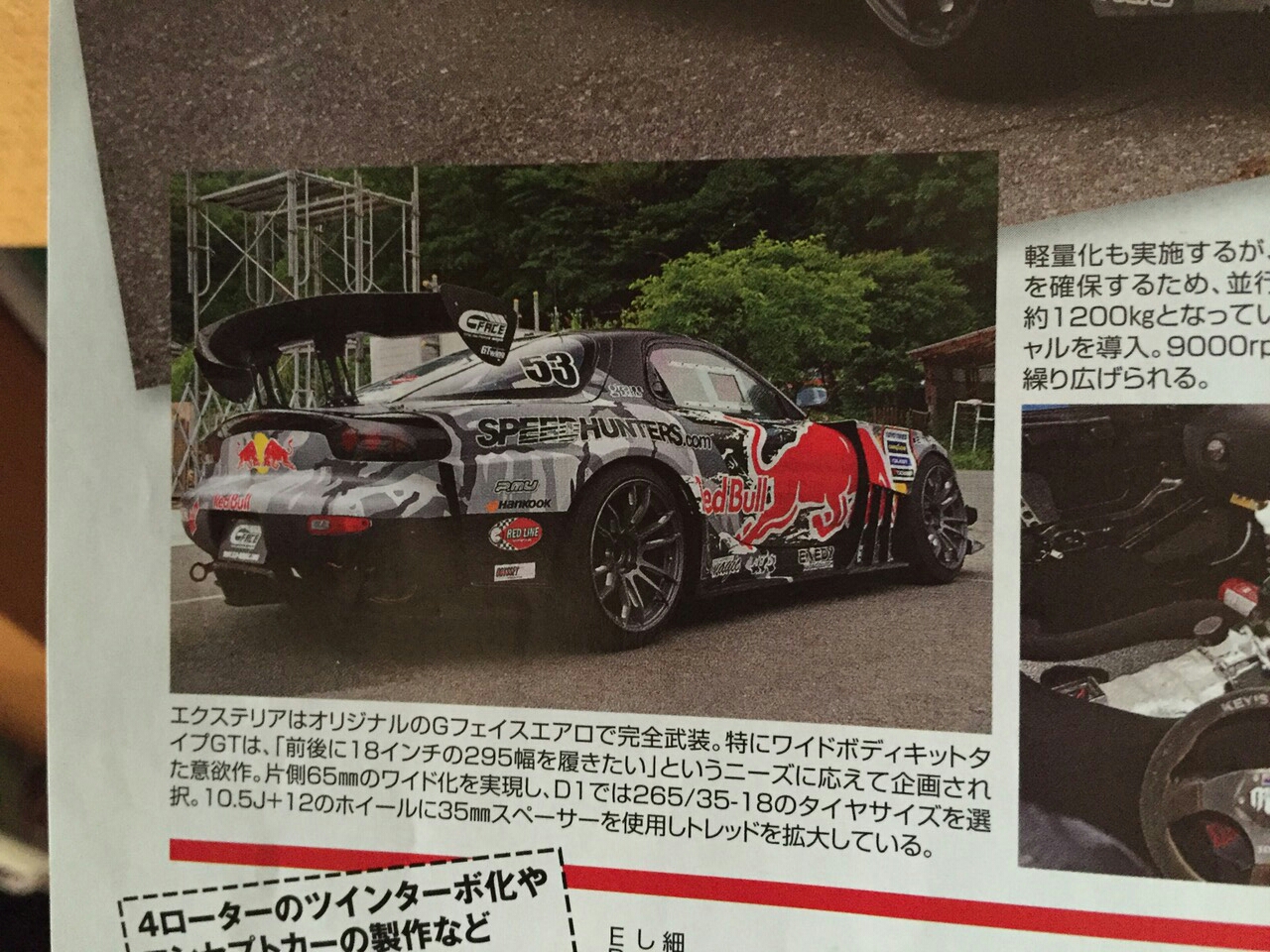

According to tcp
This kit is 65mm wider( I dont know is front or back)
On their D1car is come with.18x 10j et 12
With 35mm spacer
Any one runing 18x11j non-staggered wheel-1452243733614.jpg
diyman25 is offline
Old 01-21-16, 11:18 AM
  #6
Sua Sponte
15 Year Member
iTrader: (31)

Brent Dalton's Avatar

Join Date: Aug 2001
Location: Savannah
Posts: 3,122
Likes: 0
Liked 1 Time in 1 Post
I ran Hoosier 315's in the front and 335's in the rear. Hoosier is about as wide as you can get apples to apples. You will need to cut and re-weld your headlight frame to be able to go lock to lock. The only time I ever did that was in the paddock so it was never a deal breaker for me.

A few pictures for reference. First two are on 17x11, last one is 18x11 front:
Name:  VIR.jpg
Views: 56
Size:  155.8 KB
Name:  0k6x9920.jpg
Views: 54
Size:  75.4 KB
Name:  0k6x7159.jpg
Views: 53
Size:  56.2 KB
Brent Dalton is offline
Old 01-21-16, 12:39 PM
  #7
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,070
Liked 145 Times in 128 Posts

diyman25


According to tcp
This kit is 65mm wider( I dont know is front or back)
On their D1car is come with.18x 10j et 12
With 35mm spacer
Any one runing 18x11j non-staggered wheel-1452243733614.jpg


Brent Dalton I ran Hoosier 315's in the front and 335's in the rear. Hoosier is about as wide as you can get apples to apples. You will need to cut and re-weld your headlight frame to be able to go lock to lock. The only time I ever did that was in the paddock so it was never a deal breaker for me.


The limit for front tire width on the FD is the attendant tire diameter since lower than 30 series sidewall tires are not readily available in 18" diameter.

We are pretty much limited to 315/30-18 up front unless we start cutting unibody inboard of wheel mounting surface.

If TCP car has that fitment you say and has enough negative camber for your purpose, you could run 18x13 +18 with 315/30-18 and have the same fitment to the outside fender and full steering lock at 25" to fender arch and full lock at lower heights as outlined by Brent.

The outside edge of the tire will rub the plastic fender liner (if you still had it) while turning in front.

You could run a wider tire if one were made in the requisite 25"-25.5" height.

This is one reason I like RX-8 chassis, it fits 26.5" + front tire fine and same fitment/widths as FD. 335/30-18 just needs +40mm fender up front.

Last edited by BLUE TII; 01-21-16 at 12:44 PM.
BLUE TII is offline
Old 01-23-16, 01:46 AM
  #8
www.Speed.Academy
iTrader: (16)

KenSpeC's Avatar

Join Date: Aug 2008
Location: Ancaster, ON, Canada
Posts: 1,222
Likes: 0
Liked 0 Times in 0 Posts
Im running Volk Racing ZE40s 18 x 11, +15 all around with 315s Toyo r888 (which is actually closer to a 320 lol)

Had to modify the headlight area frame to clear lock to lock..... then widen the fronts and rear flares too..

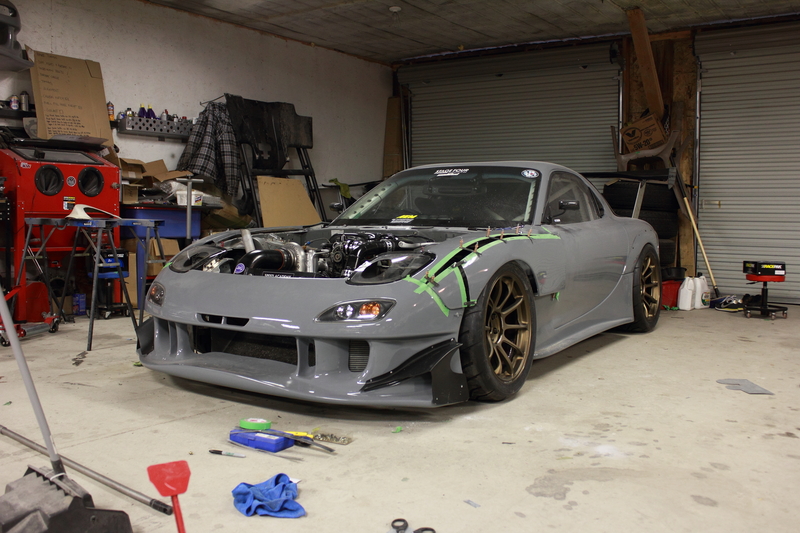

Name:  front1_zpsnfk6htuy.jpg
Views: 98
Size:  395.7 KB

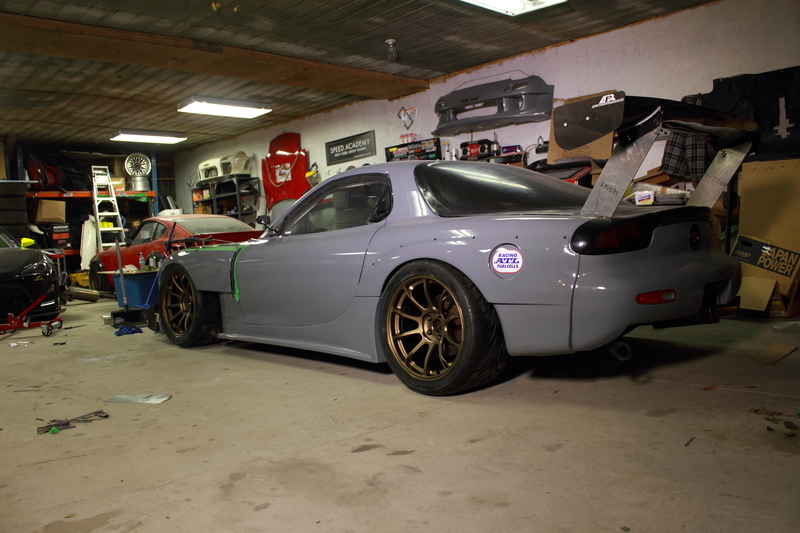

Name:  rear1_zpsaavhckjv.jpg
Views: 114
Size:  378.9 KB

Last edited by KenSpeC; 01-23-16 at 01:48 AM.
KenSpeC is offline
Old 01-23-16, 06:40 PM
  #9
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,070
Liked 145 Times in 128 Posts
Sexy set up!

Forgestar can get you up to 18x12 +25 for ~$1,500 (fits the same to fender as current set-up and clears suspension on inside), but they aren't as sexy as Volks.
BLUE TII is offline
Old 01-27-16, 02:00 AM
  #10
RE for life
Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,173
Likes: 0
Liked 17 Times in 14 Posts
Originally Posted by KenSpeC
Im running Volk Racing ZE40s 18 x 11, +15 all around with 315s Toyo r888 (which is actually closer to a 320 lol)

Had to modify the headlight area frame to clear lock to lock..... then widen the fronts and rear flares too..



Nice
This is very close to my set up
U have the area need to be love tap in
To clear the wheel ?
Thanks
J
diyman25 is offline
Old 03-23-16, 10:37 PM
  #11
RE for life
Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,173
Likes: 0
Liked 17 Times in 14 Posts

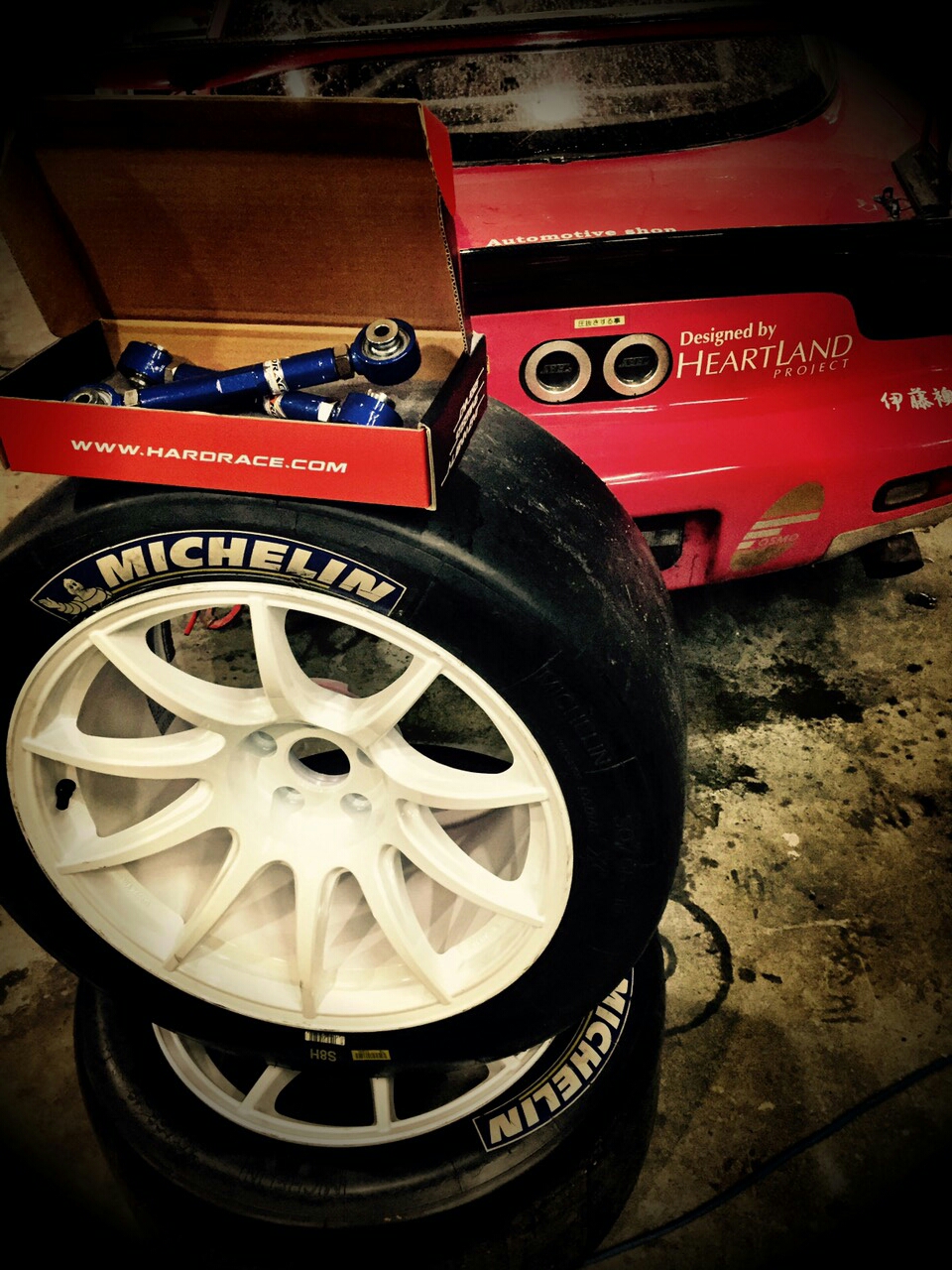

That is really tall tire
30/68-18 on my 18x11J

I might have extremely tall ride high………



Any one runing 18x11j non-staggered wheel-1458750807026.jpg
diyman25 is offline
Old 03-25-16, 12:15 AM
  #12
RE for life
Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,173
Likes: 0
Liked 17 Times in 14 Posts

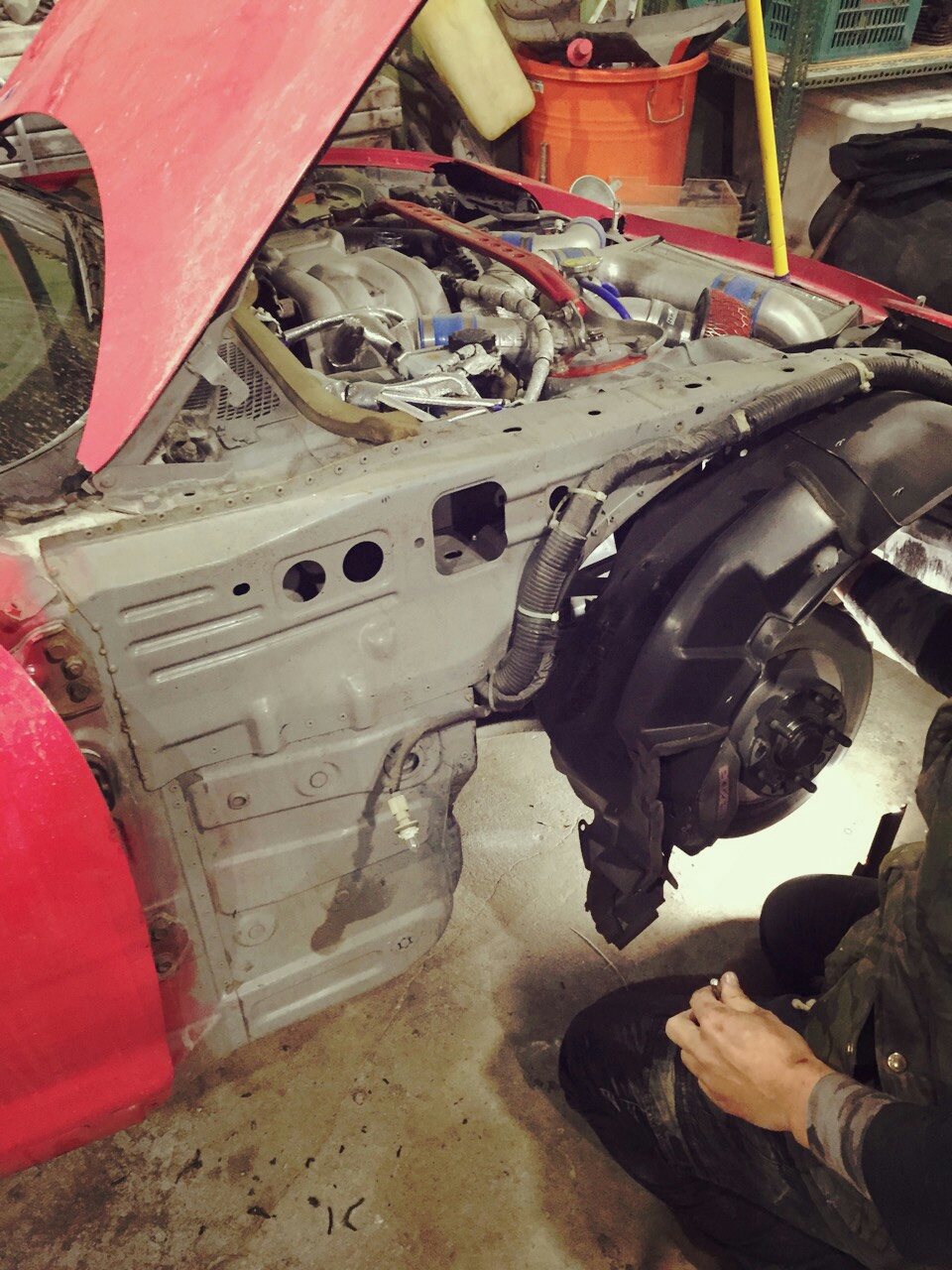

Not sure how I will do it , but need to find
the way to fit

Guess time to bring out grinder and big hammer

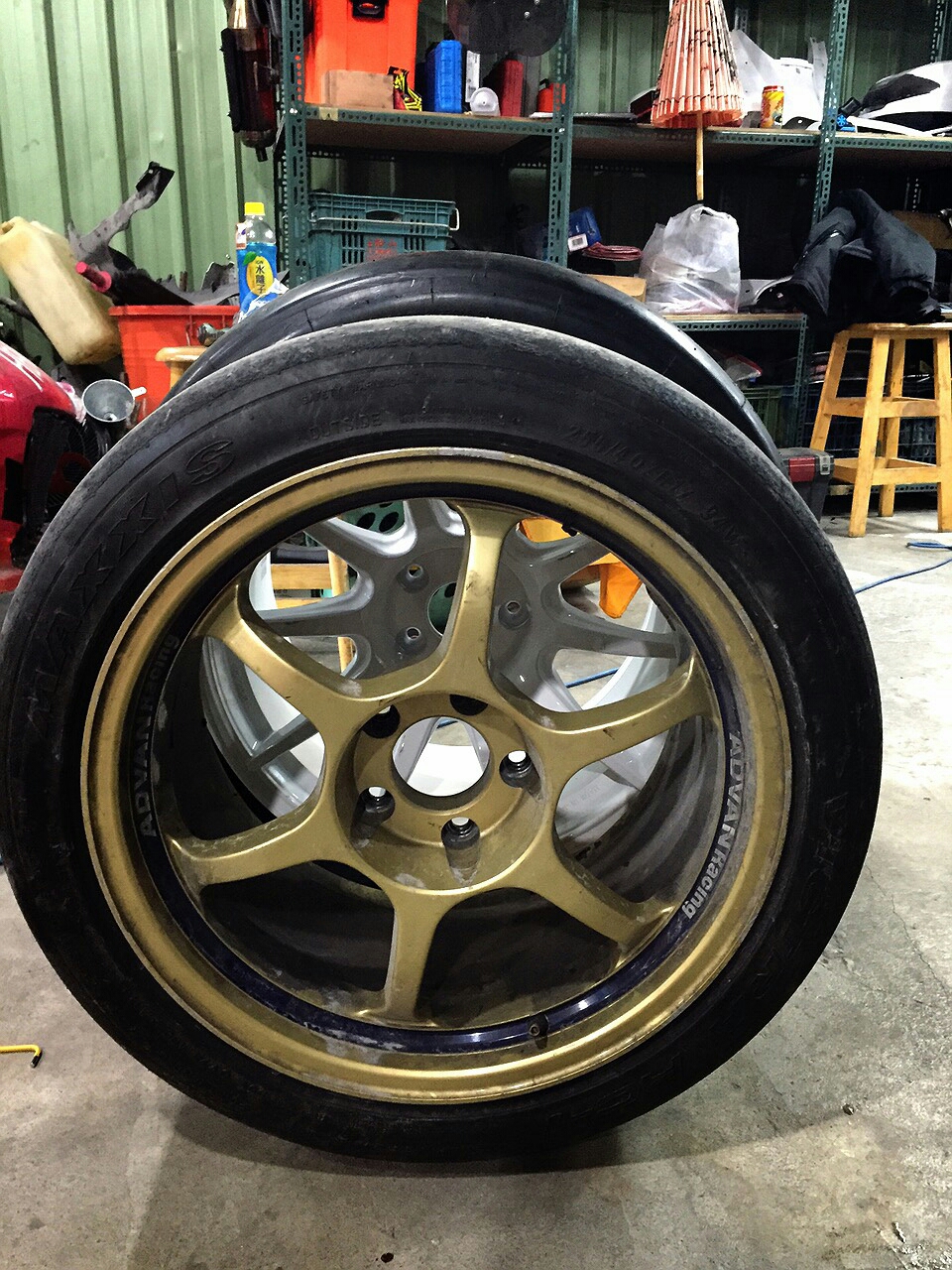

Any one runing 18x11j non-staggered wheel-1458882652464.jpg
Compare to Maxxis RC1

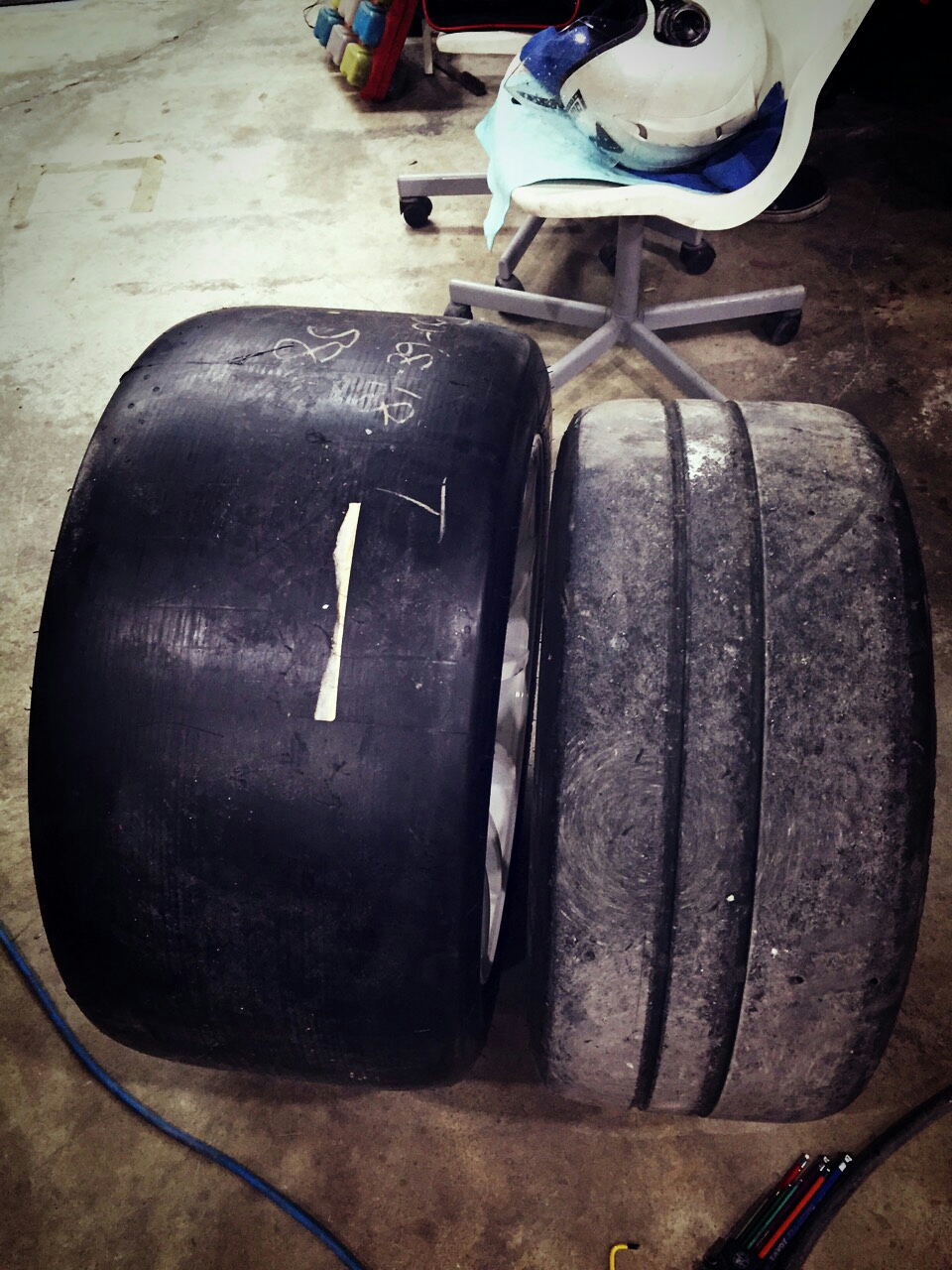

Any one runing 18x11j non-staggered wheel-1458882655512.jpg

300 VS 255

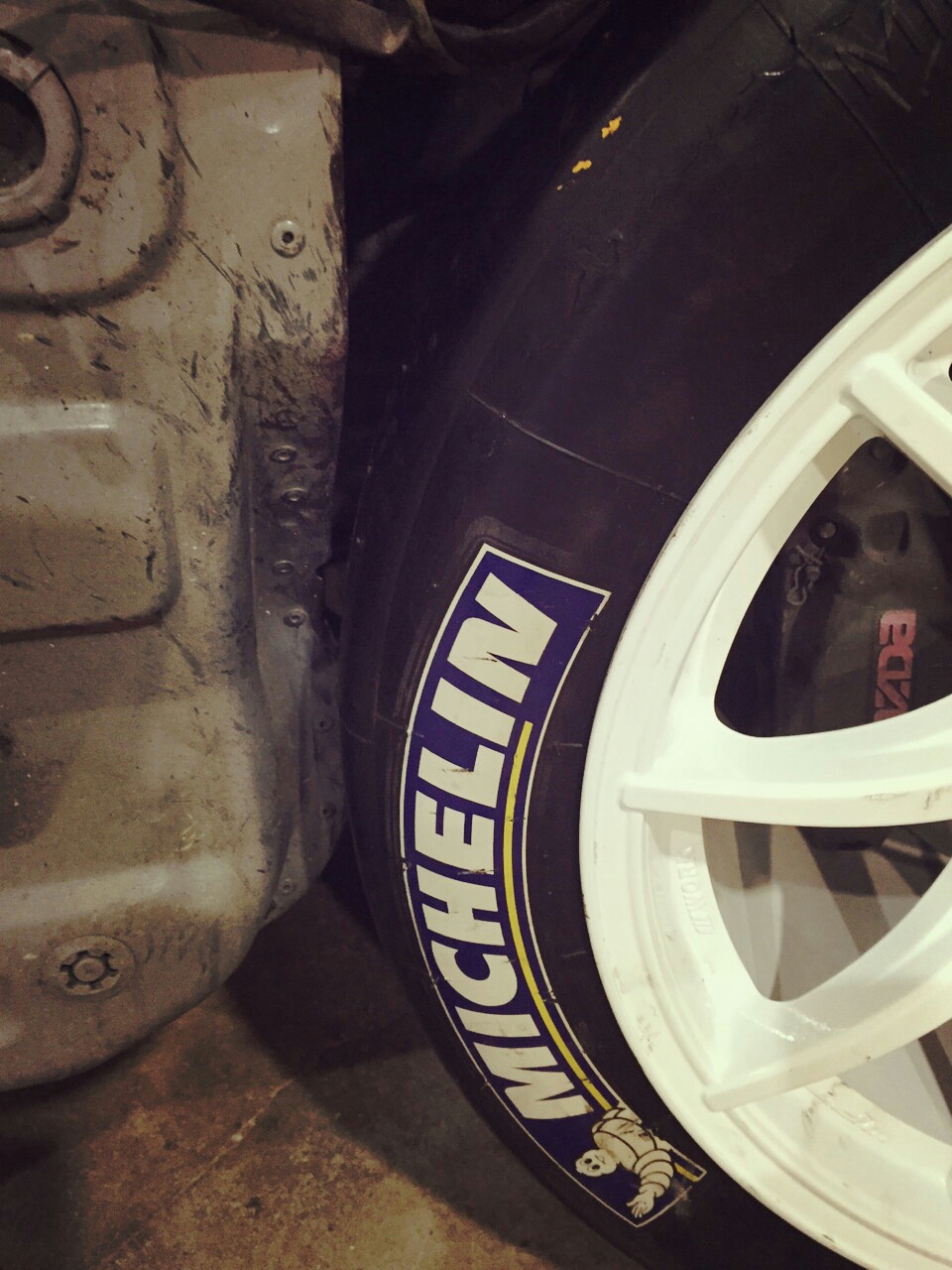

Any one runing 18x11j non-staggered wheel-1458882665718.jpg

Only one full turn

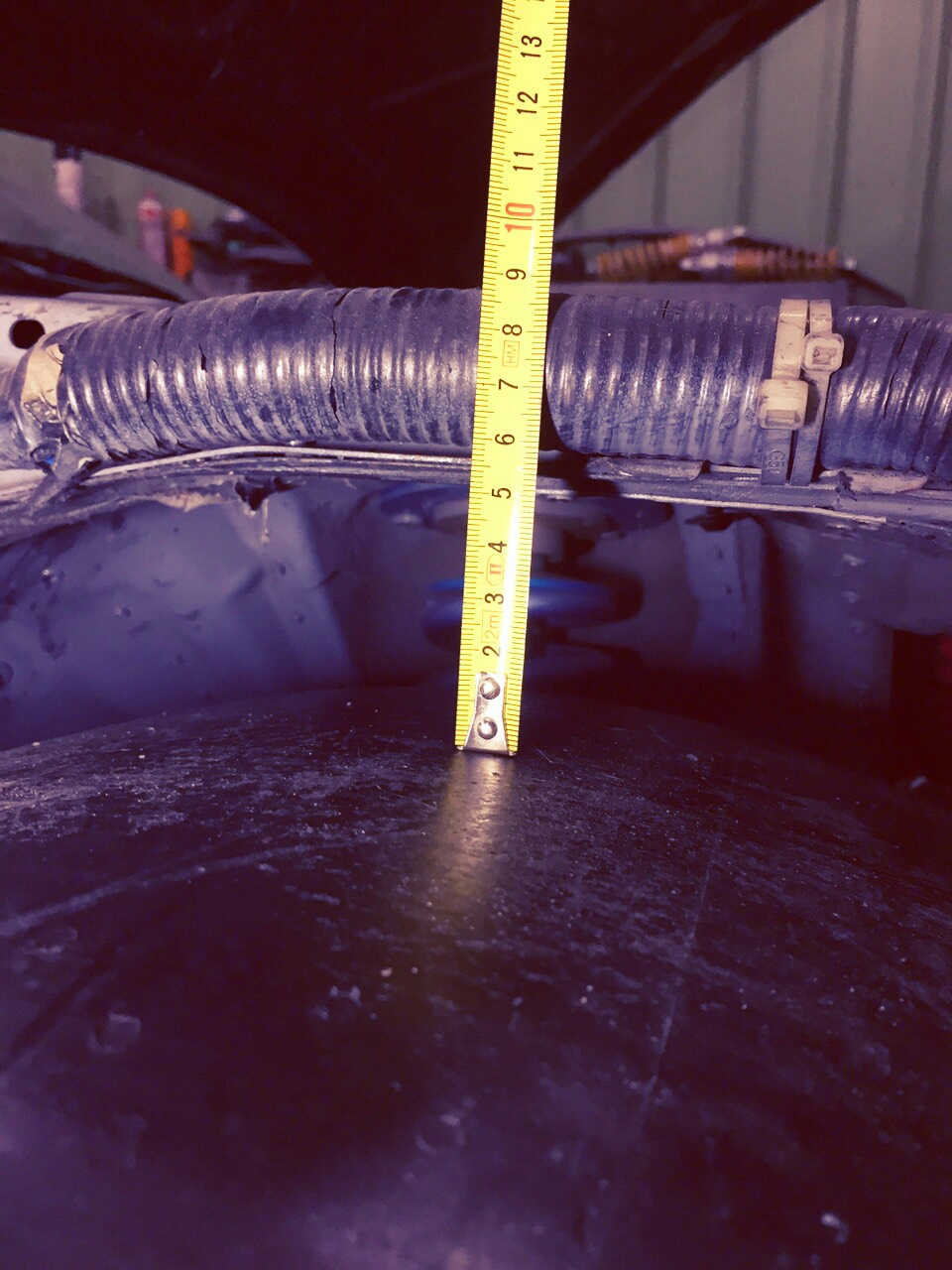

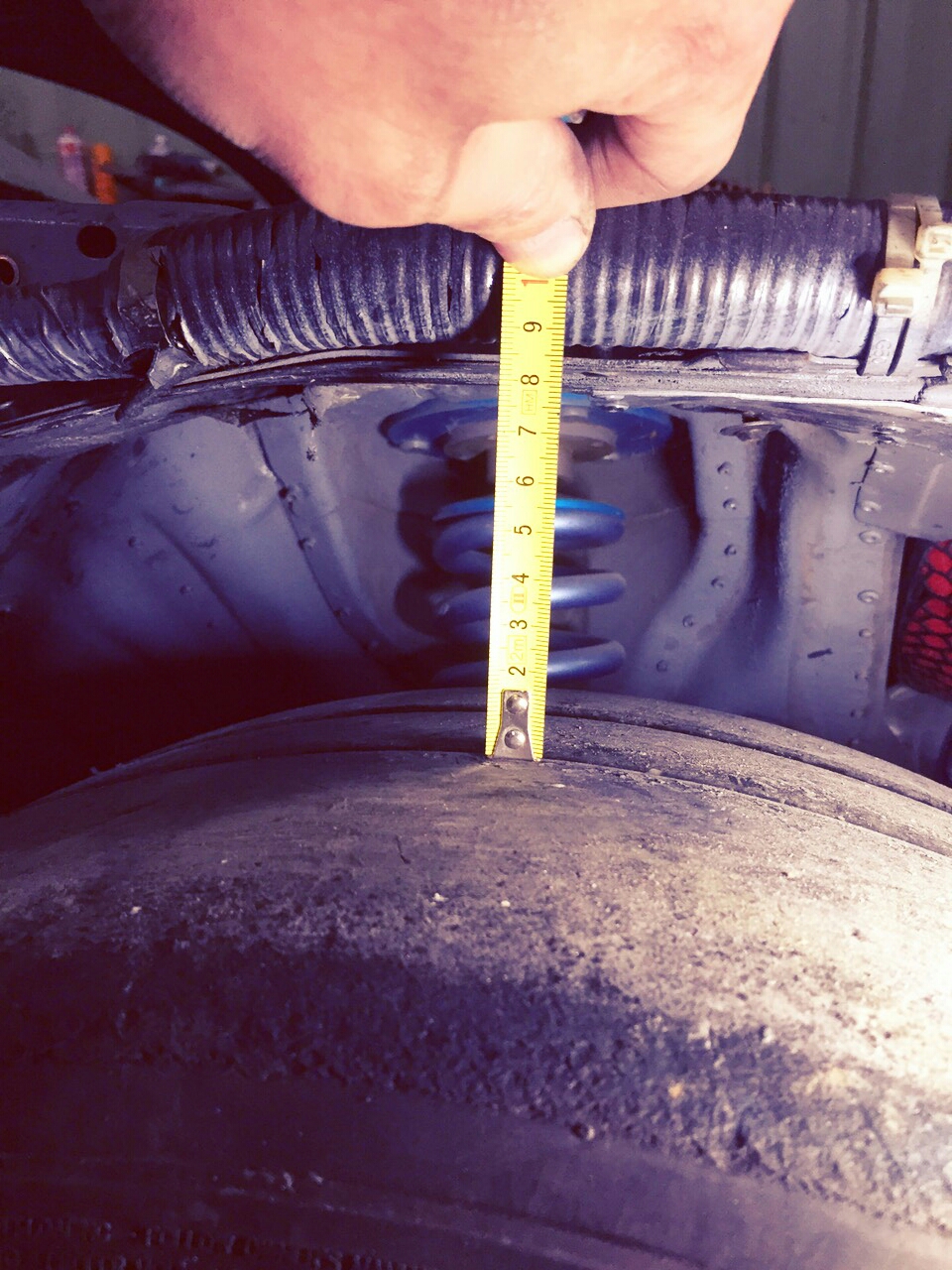

Any one runing 18x11j non-staggered wheel-1458882644775.jpg

Not much room even with RC1



Any one runing 18x11j non-staggered wheel-1458882658739.jpg

Wider always better
Attached Thumbnails Any one runing 18x11j non-staggered wheel-1458882646582.jpg   Any one runing 18x11j non-staggered wheel-1458882661405.jpg   Any one runing 18x11j non-staggered wheel-1458882649682.jpg
diyman25 is offline
Old 03-30-16, 01:17 AM
  #13
RE for life
Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,173
Likes: 0
Liked 17 Times in 14 Posts

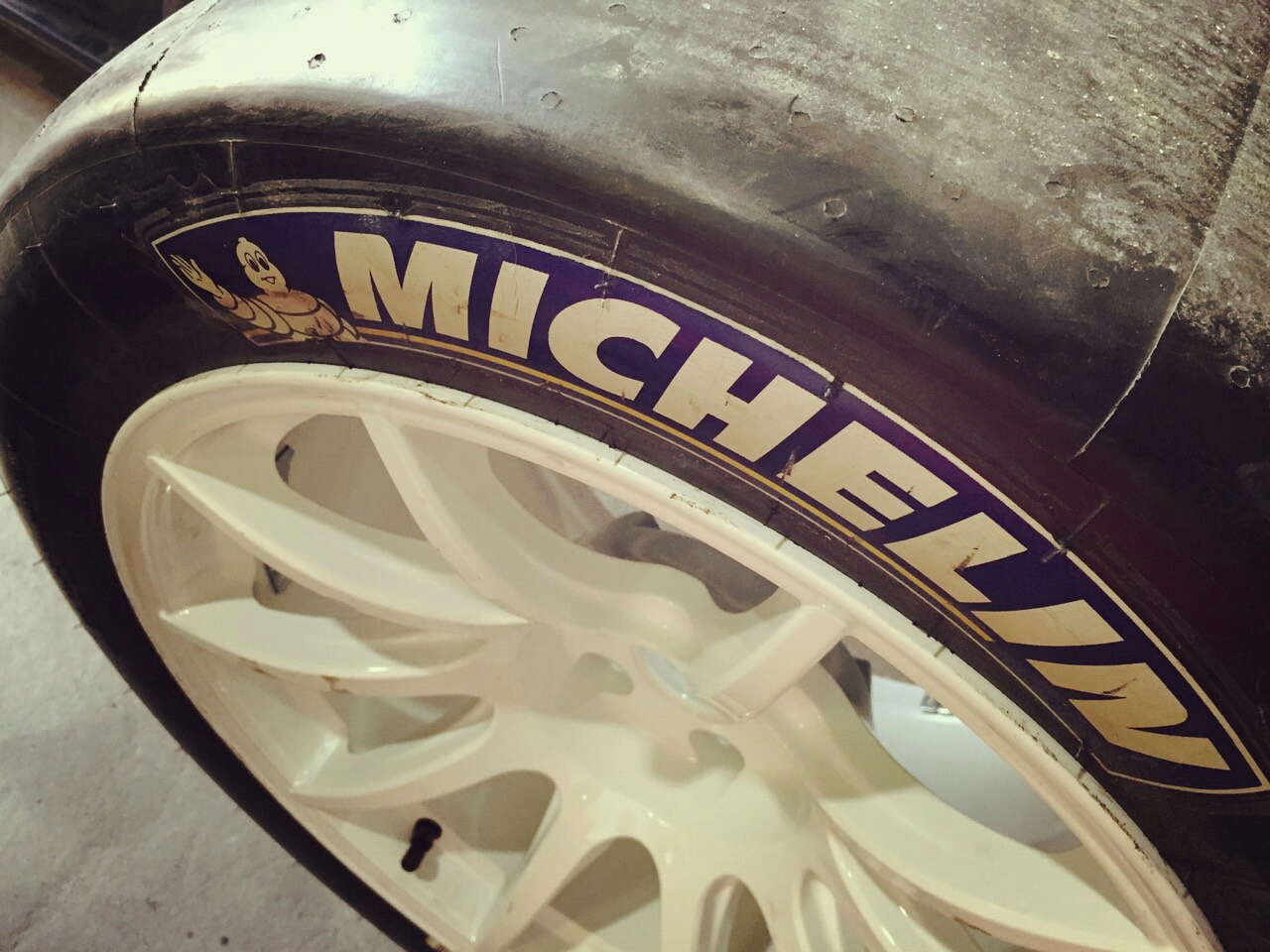

Any one runing 18x11j non-staggered wheel

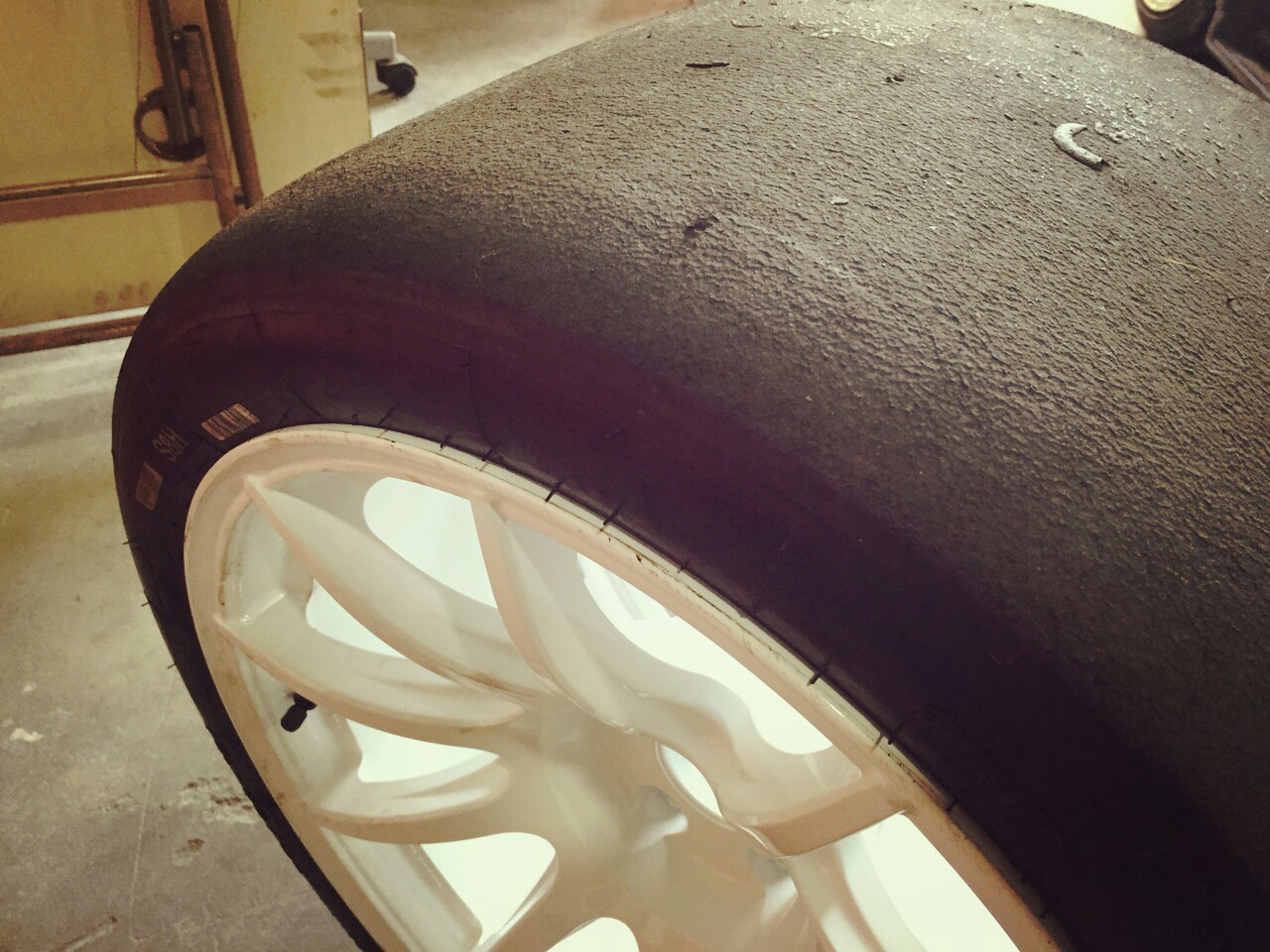

30/650-18

30/680-18

On same wheel 18x11J
Attached Thumbnails Any one runing 18x11j non-staggered wheel-1459318402212.jpg   Any one runing 18x11j non-staggered wheel-1459318404485.jpg
diyman25 is offline
Old 04-11-16, 10:34 AM
  #14
RE for life
Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,173
Likes: 0
Liked 17 Times in 14 Posts
Originally Posted by BLUE TII View Post
Sexy set up!

Forgestar can get you up to 18x12 +25 for ~$1,500 (fits the same to fender as current set-up and clears suspension on inside), but they aren't as sexy as Volks.
Just saw this is, hopely this just one off acident……

diyman25 is offline
Old 06-19-16, 05:08 PM
  #15
www.Speed.Academy
iTrader: (16)

KenSpeC's Avatar

Join Date: Aug 2008
Location: Ancaster, ON, Canada
Posts: 1,222
Likes: 0
Liked 0 Times in 0 Posts

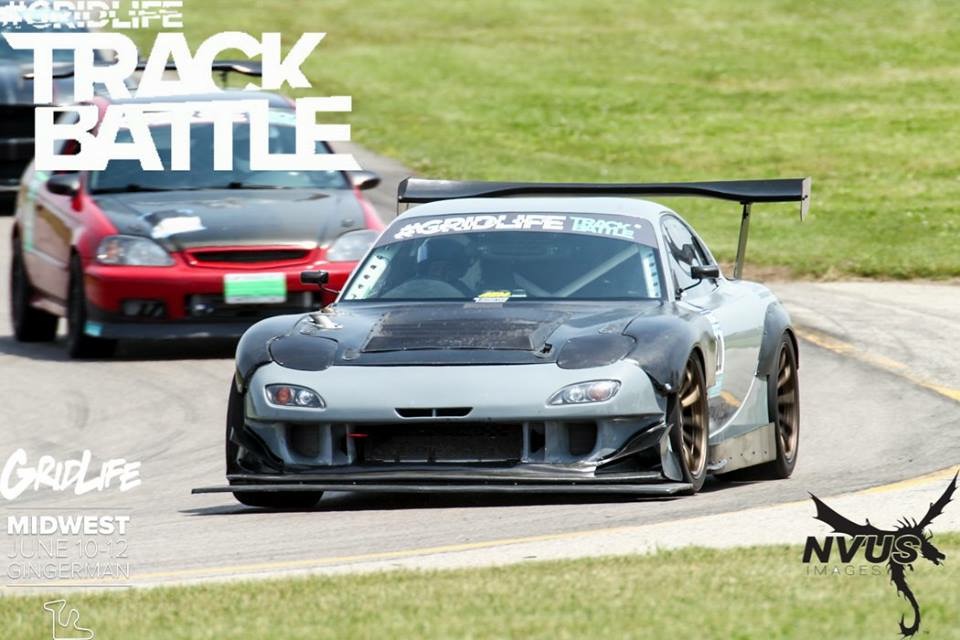

Name:  image_zps1b6av2c9.jpeg
Views: 81
Size:  135.6 KB
KenSpeC is offline
Old 06-19-16, 07:04 PM
  #16
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,070
Liked 145 Times in 128 Posts

BLUE TII
Forgestar can get you up to 18x12 +25 for ~$1,500 (fits the same to fender as current set-up and clears suspension on inside), but they aren't as sexy as Volks.


diyman25
Just saw this is, hopely this just one off acident……


Not a one off accident- any wheel will do that and the cast centers of the Forgestars will crack sooner than the forged centers of a monoblock Volk.

This is why you can get centerlock 18x13 Volk TE17 very cheap from JGTC teams used. They discard them before they start to crack.

In USA teams usually drill a hole in the wheels so they can't be used for anything but display, but Japanese teams do not seem to do this.
BLUE TII is offline
Old 06-20-16, 08:12 AM
  #17
RE for life
Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,173
Likes: 0
Liked 17 Times in 14 Posts
Any one runing 18x11j non-staggered wheel-fb_img_1466428254257.jpg

My 18x11j Work MCO ET+18 with 280/650/18 slick
diyman25 is offline
Old 06-25-16, 11:07 AM
  #18
RE for life
Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,173
Likes: 0
Liked 17 Times in 14 Posts
Originally Posted by KenSpeC
Im running Volk Racing ZE40s 18 x 11, +15 all around with 315s Toyo r888 (which is actually closer to a 320 lol)

Had to modify the headlight area frame to clear lock to lock..... then widen the fronts and rear flares too..



Wonder is this ur FD
Look very much like it ~
diyman25 is offline
Old 07-01-16, 06:05 PM
  #19
Old Member
iTrader: (15)

wutangben's Avatar

Join Date: Jul 2002
Location: IL
Posts: 516
Liked 10 Times in 10 Posts
Originally Posted by BLUE TII View Post

BLUE TII
Forgestar can get you up to 18x12 +25 for ~$1,500 (fits the same to fender as current set-up and clears suspension on inside), but they aren't as sexy as Volks.


diyman25
Just saw this is, hopely this just one off acident……


Not a one off accident- any wheel will do that and the cast centers of the Forgestars will crack sooner than the forged centers of a monoblock Volk.

This is why you can get centerlock 18x13 Volk TE17 very cheap from JGTC teams used. They discard them before they start to crack.

In USA teams usually drill a hole in the wheels so they can't be used for anything but display, but Japanese teams do not seem to do this.
wait what?
cast centers crack sooner than forged centers crack, and that is why you can get forged centerlock wheels for cheap from jgtc teams?

I'm sure the forgestars serve their purpose, but who names their non-forged wheel company forgestar? sigh..
wutangben is offline
Old 07-01-16, 07:13 PM
  #20
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,070
Liked 145 Times in 128 Posts

wutangben

cast centers crack sooner than forged centers crack, and that is why you can get forged centerlock wheels for cheap from jgtc teams?


You can get the very best most durable wheels cheap used because even these most durable wheels are used only for a short while for racing and then discarded before they start cracking.

I'm sure the forgestars serve their purpose, but who names their non-forged wheel company forgestar? sigh..


Maybe they feared calling them RotaryForgedStar because rotaries have such a bad reputation for reliability?
BLUE TII is offline
Old 07-02-16, 01:20 PM
  #21
www.Speed.Academy
iTrader: (16)

KenSpeC's Avatar

Join Date: Aug 2008
Location: Ancaster, ON, Canada
Posts: 1,222
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by diyman25 View Post
Wonder is this ur FD
Look very much like it ~
yep, exact same one....those pics were before I did all the carbon work and splitter
KenSpeC is offline
