Accusump in Rotaries? roadracers?

Hey guys, I was just planning my oiling system and I was wondering if anyone here is running an accusump on their Rotary engine? Had to specify as there are a few LSx conversions here.

Anybody running these?
KenSpeC is offline
Old 02-11-13, 08:56 PM
  #2
SCCAEP
iTrader: (3)

SCCAITS's Avatar

Join Date: Dec 2006
Location: Dallas
Posts: 1,080
Likes: 0
Received 0 Likes on 0 Posts
3qt with manual valve. I close the valve around 80-100psi before shutting the engine off and open before starting. Never have a dry start and the added oil capacity only helps, no reason not to run one.
SCCAITS is offline
Old 02-11-13, 09:02 PM
  #3
www.Speed.Academy
Thread Starter
iTrader: (16)

KenSpeC's Avatar

Join Date: Aug 2008
Location: Ancaster, ON, Canada
Posts: 1,222
Likes: 0
Received 0 Likes on 0 Posts
can you post up pics of your setup? I was debating between electric vs. manual valve
KenSpeC is offline
Old 02-12-13, 08:18 AM
  #4
SCCAEP
iTrader: (3)

SCCAITS's Avatar

Join Date: Dec 2006
Location: Dallas
Posts: 1,080
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by KenSpeC View Post
can you post up pics of your setup? I was debating between electric vs. manual valve
I don't have any on my computer and my shop is 20 mins away. I will be there tomorrow and try to remember to get some. Mine is setup with a T fitting off the rear iron oil inlet, on the front side of the T is a check valve (when I pressurize a cold system the oil goes into the motor rather than oil cooler) and then a line to the oil cooler, on the other side of the T is a line looping over the motor and to a bulkhead fitting on the passenger firewall, from there it goes to a manual valve located near the shifter area and then proceeds to the Accusump which is mounted in the center in the rear bin area (passenger floorboard was already congested and wanted minimum angles in the lines). It's all -10AN braided hose and fittings which is where the cost adds up but I think worth it. An electric valve is one more thing to malfunction or break, manual valve just becomes part of the normal start/stop process. Kill - ign - fuel - valve - start button, shut down is reverse minus the start button.
SCCAITS is offline
Old 02-12-13, 08:31 AM
  #5
Senior Member
5 Year Member

wlfpkrcn's Avatar

Join Date: Jul 2005
Location: CA
Posts: 305
Likes: 0
Received 0 Likes on 0 Posts
3qt with electric valve on our car. Mounted where passenger seat used to be. I also shut it off with 80-100psi. Works great. Plumbing is similar to the above description
wlfpkrcn is offline
Old 02-12-13, 10:32 AM
  #6
Senior Member
iTrader: (2)

DaveEstey's Avatar

Join Date: Jun 2012
Location: MA
Posts: 339
Likes: 0
Received 0 Likes on 0 Posts
I know two IT7 guys, one runs an accusump, the other does not. As cheap as they are I don't see a good reason not to have the extra insurance.
DaveEstey is offline
Old 02-12-13, 10:54 AM
  #7
www.Speed.Academy
Thread Starter
iTrader: (16)

KenSpeC's Avatar

Join Date: Aug 2008
Location: Ancaster, ON, Canada
Posts: 1,222
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by SCCAITS View Post
I don't have any on my computer and my shop is 20 mins away. I will be there tomorrow and try to remember to get some. Mine is setup with a T fitting off the rear iron oil inlet, on the front side of the T is a check valve (when I pressurize a cold system the oil goes into the motor rather than oil cooler) and then a line to the oil cooler, on the other side of the T is a line looping over the motor and to a bulkhead fitting on the passenger firewall, from there it goes to a manual valve located near the shifter area and then proceeds to the Accusump which is mounted in the center in the rear bin area (passenger floorboard was already congested and wanted minimum angles in the lines). It's all -10AN braided hose and fittings which is where the cost adds up but I think worth it. An electric valve is one more thing to malfunction or break, manual valve just becomes part of the normal start/stop process. Kill - ign - fuel - valve - start button, shut down is reverse minus the start button.
Please do! pics would be greatly appreciated. I have pretty much made up my mind to run this, if anything for the insurance...
KenSpeC is offline
Old 02-13-13, 08:11 AM
  #8
Love your Fabricator!
10 Year Member

BigAl...'s Avatar

Join Date: Sep 2004
Location: Miami, FL
Posts: 353
Likes: 0
Received 0 Likes on 0 Posts
I'm running something a little different.

Peterson Fluid Systems : Spin On Filter Mounts

I simply attach my dewalt drill with a 7/16 socket and it produces 42psi within 2-3 seconds. It's not cheap but it works very well.

I've never used an accusump but I have heard good things from people who do.

BigAl...
BigAl... is offline
Old 02-14-13, 08:39 AM
  #9
SCCAEP
iTrader: (3)

SCCAITS's Avatar

Join Date: Dec 2006
Location: Dallas
Posts: 1,080
Likes: 0
Received 0 Likes on 0 Posts

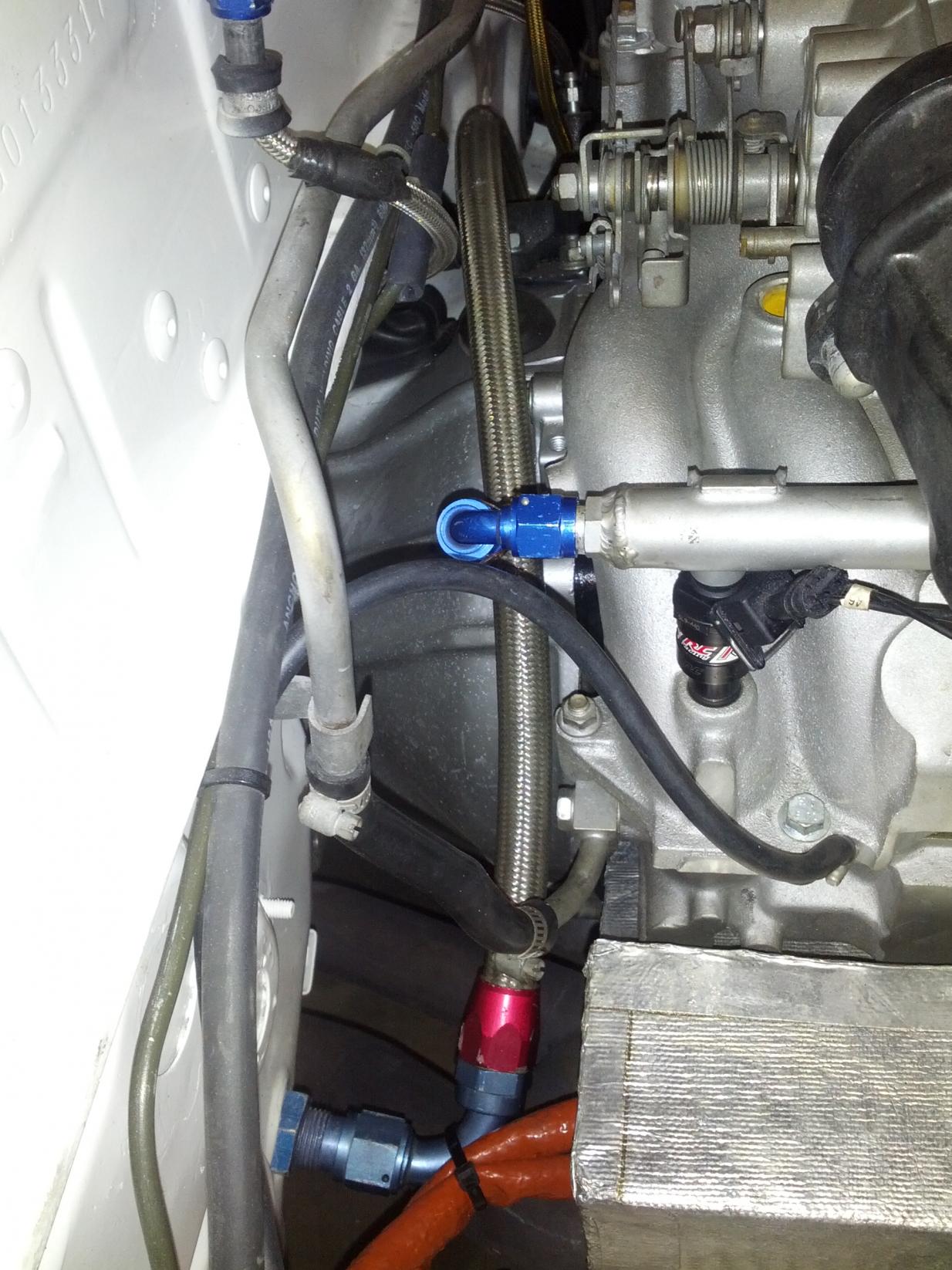

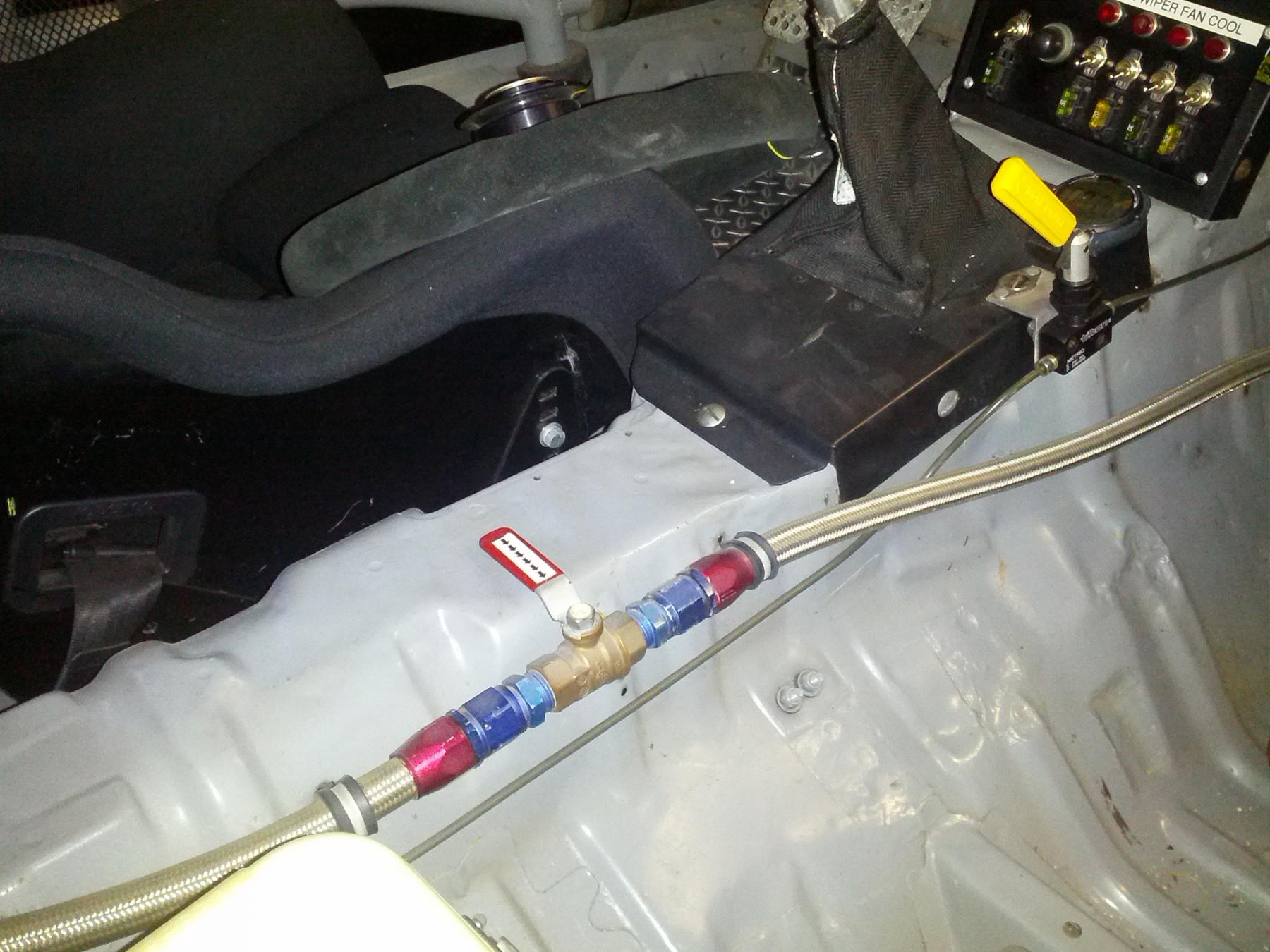

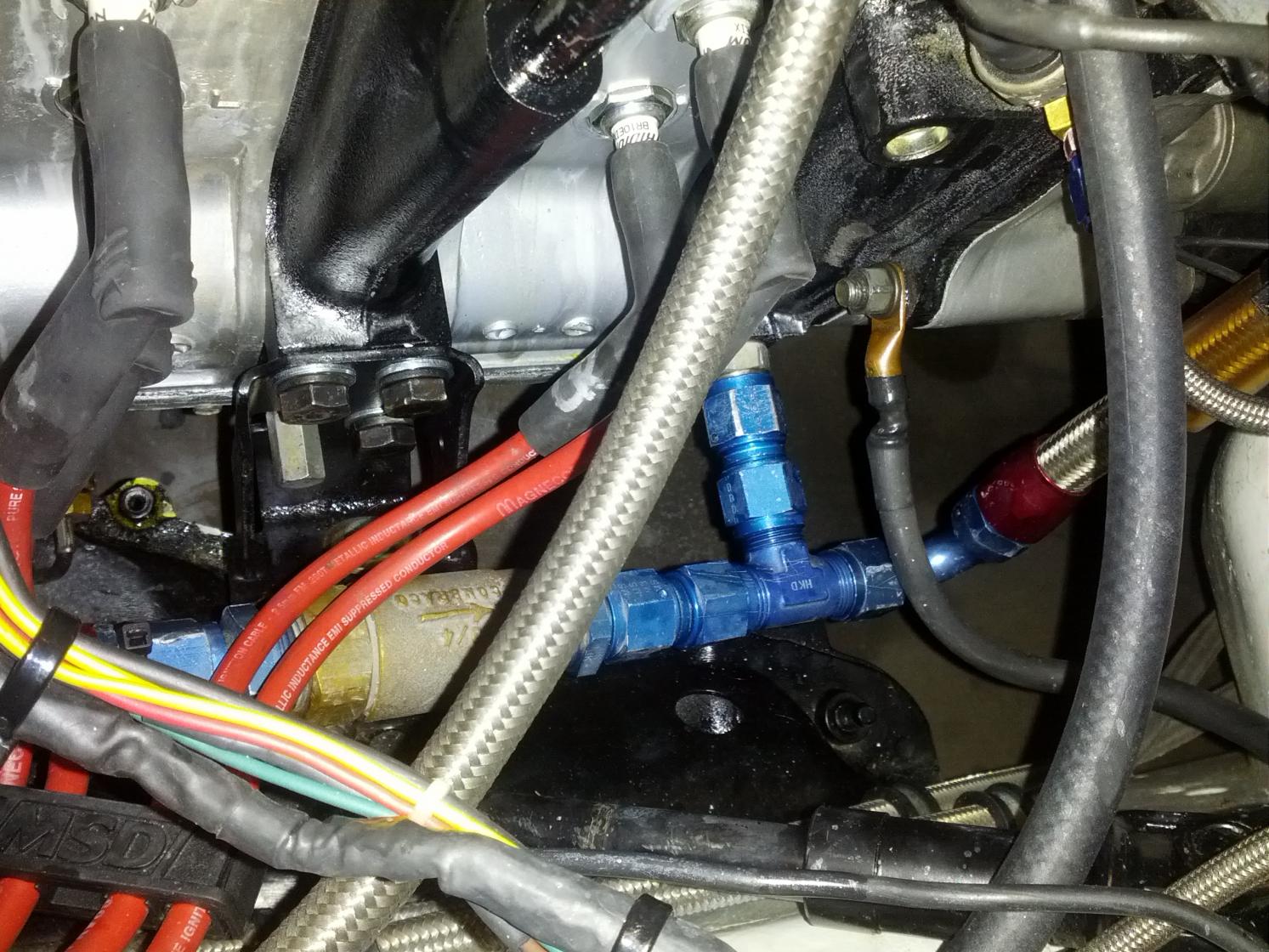

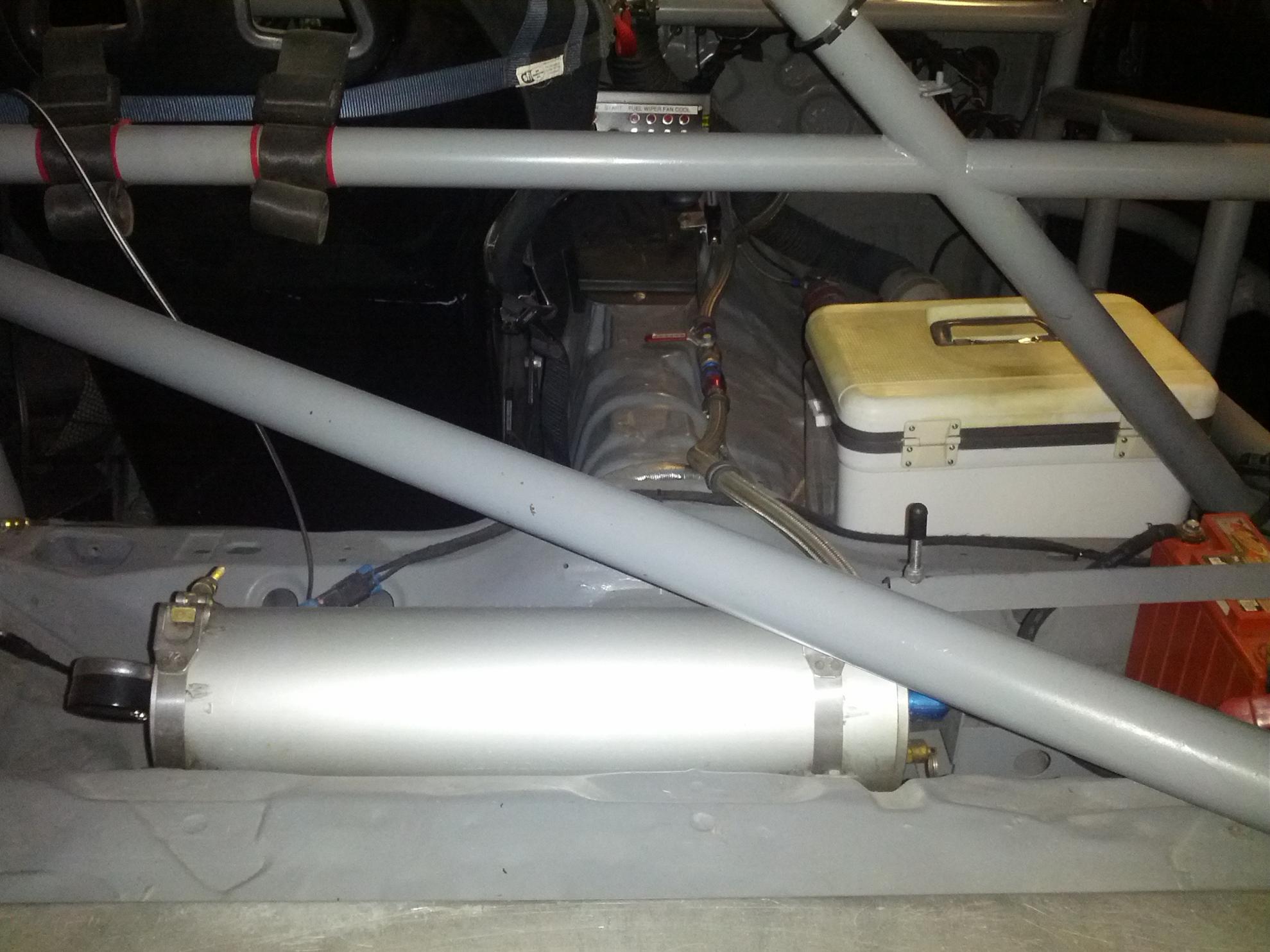

Here you go.
Attached Thumbnails Accusump in Rotaries? roadracers?-img_20130213_122930.jpg   Accusump in Rotaries? roadracers?-img_20130213_123231.jpg   Accusump in Rotaries? roadracers?-img_20130213_123041.jpg   Accusump in Rotaries? roadracers?-img_20130213_123026.jpg
SCCAITS is offline
Old 02-16-13, 09:15 PM
  #10
www.Speed.Academy
Thread Starter
iTrader: (16)

KenSpeC's Avatar

Join Date: Aug 2008
Location: Ancaster, ON, Canada
Posts: 1,222
Likes: 0
Received 0 Likes on 0 Posts
Thank you very much!! This helps a lot!
