94 RX-7 Track Car Project Begins
06-29-06, 12:33 PM
#79
Where has my $ gone?
iTrader: (12)
Join Date: Feb 2004
Location: Bay Area, Cal/Phoenix, AZ
Posts: 1,654
Likes: 0
Received 7 Likes
on
2 Posts
Originally Posted by DamonB
Because on the left front a main wiring harness is attached just behind. If you wear through the top of the liner you then wear through the electrical wiring...
09-16-06, 01:15 PM
#83
Injected with a Poison
Thread Starter
iTrader: (1)
Join Date: Jul 2003
Location: Miami, FL
Posts: 795
Likes: 0
Received 0 Likes
on
0 Posts
Track Car updates

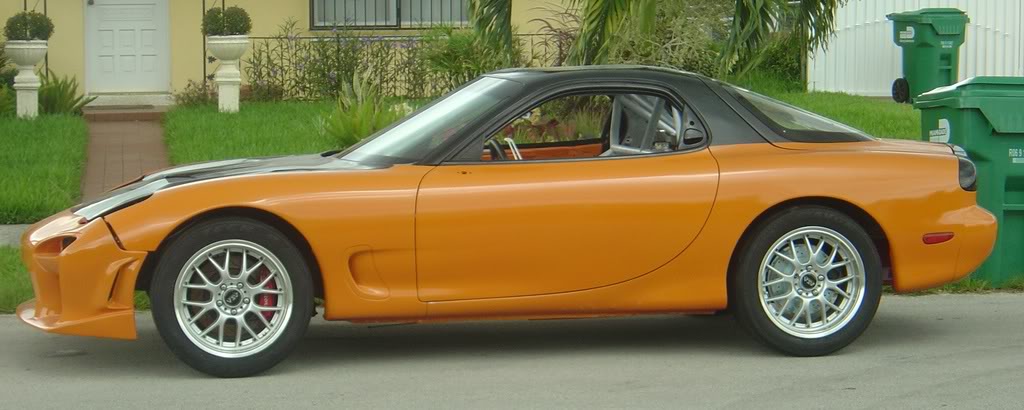

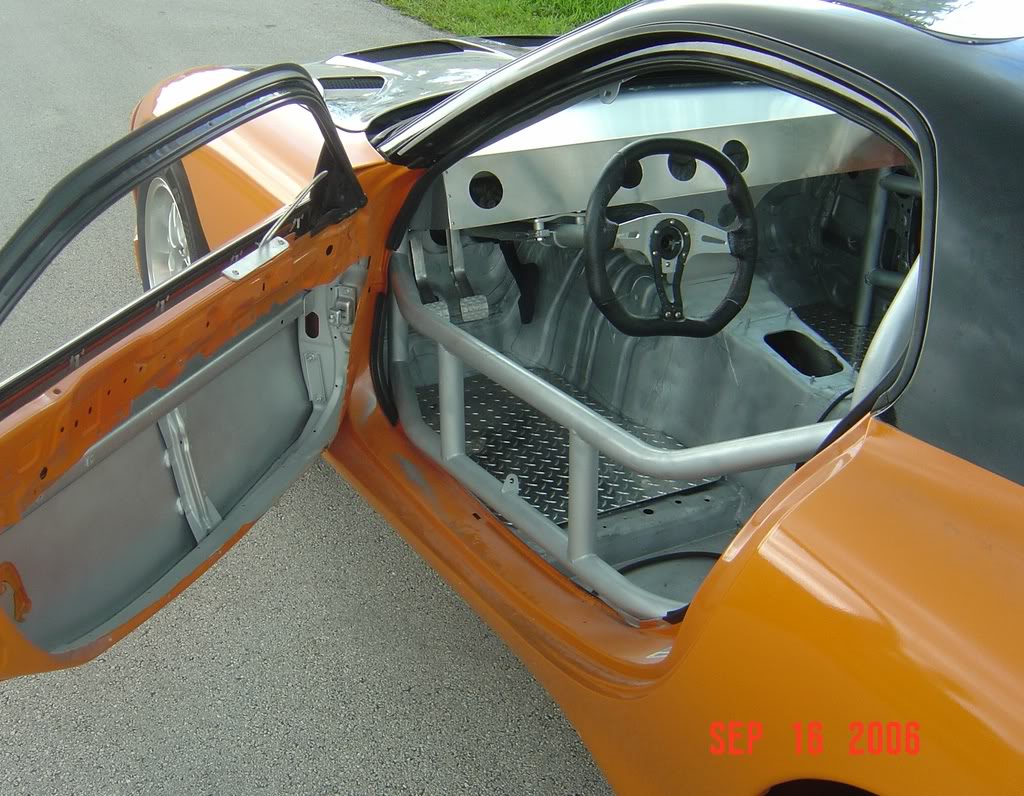

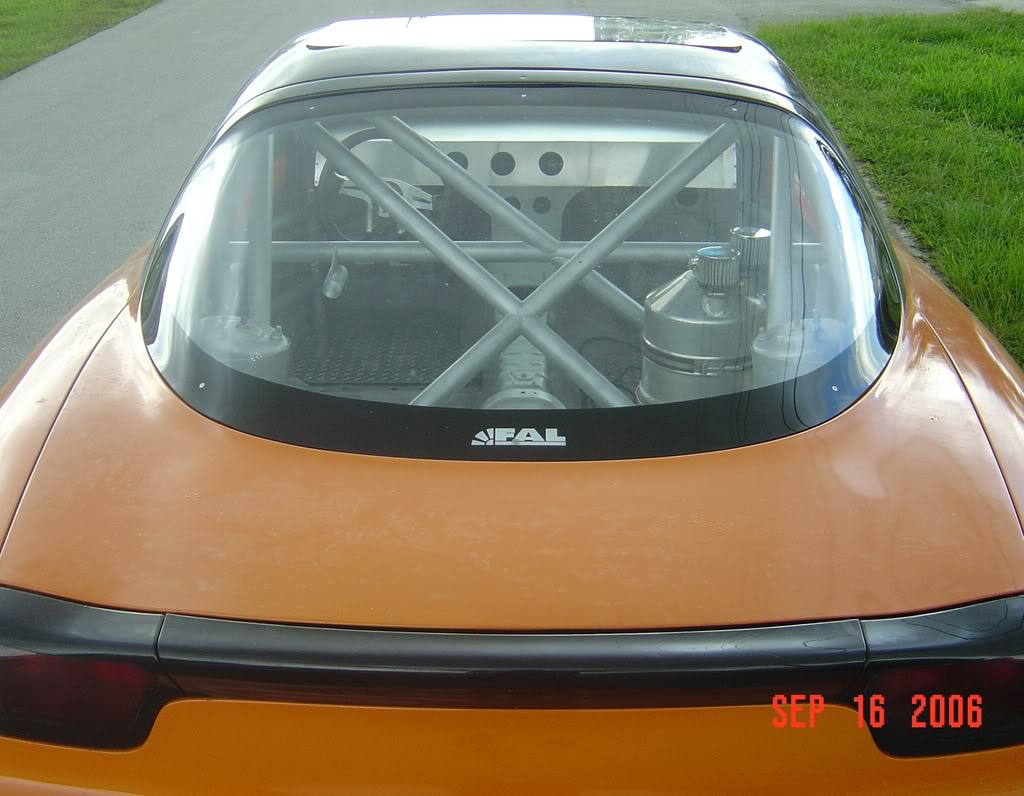

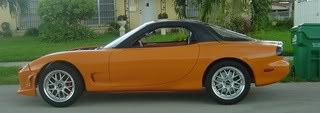

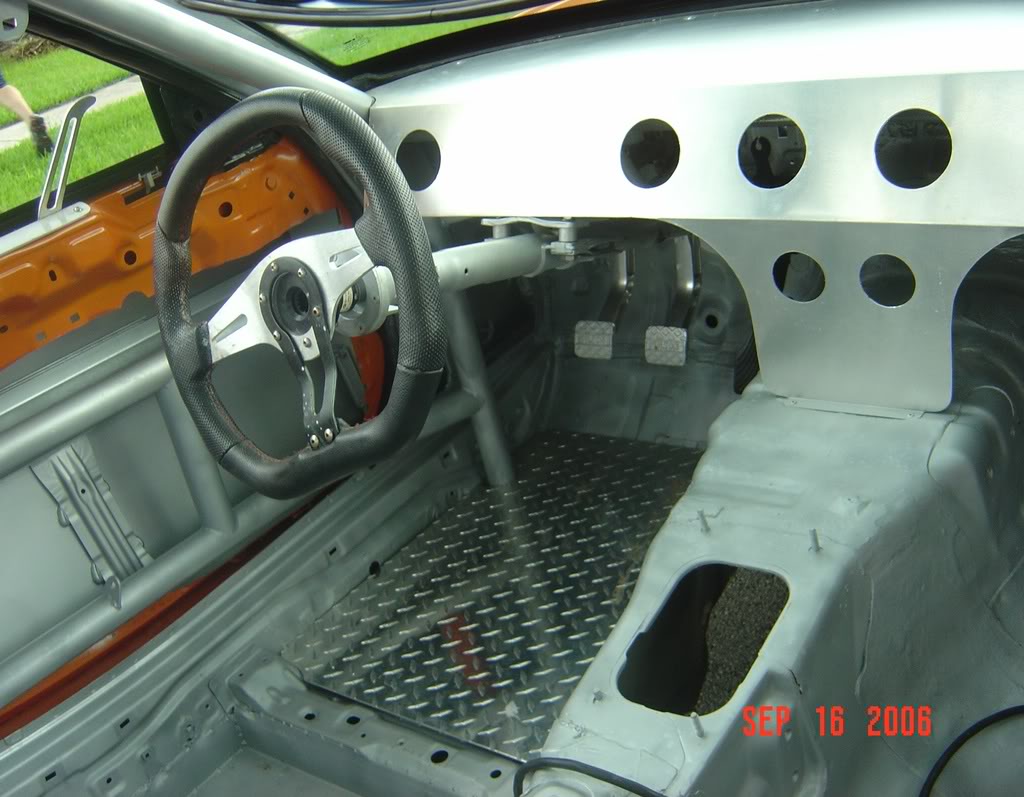

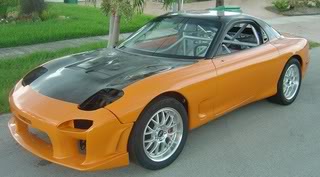

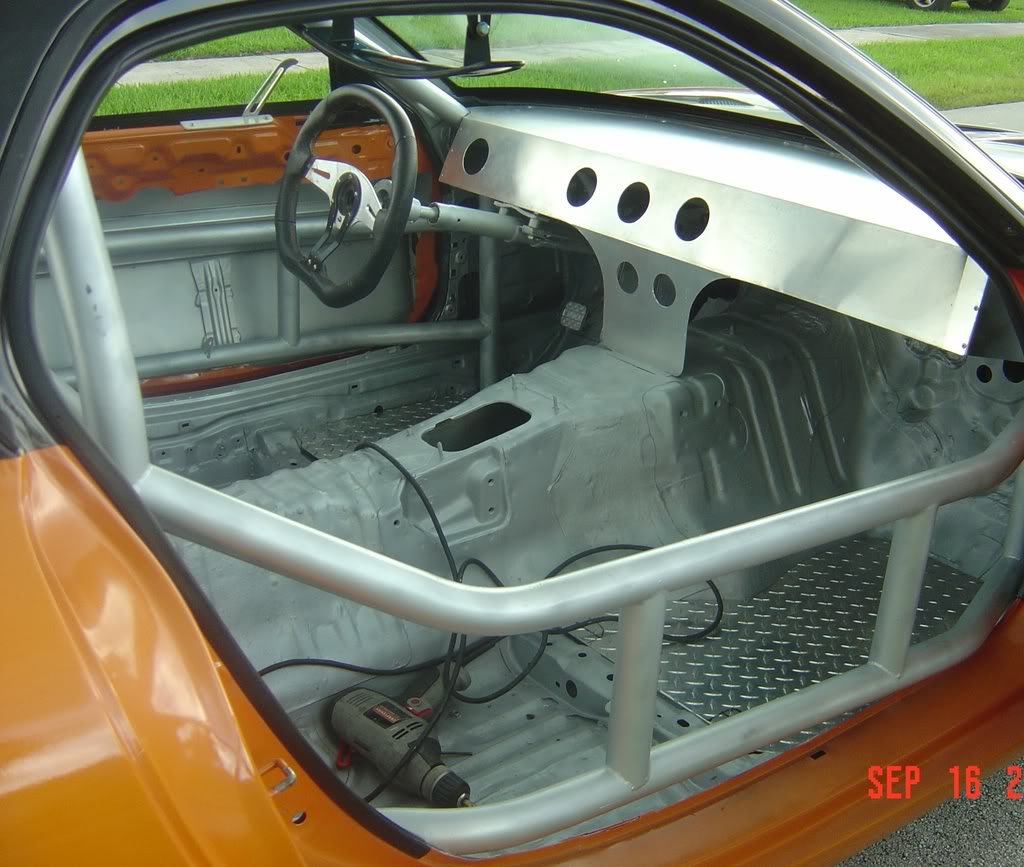

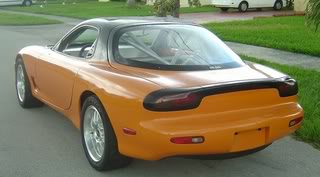

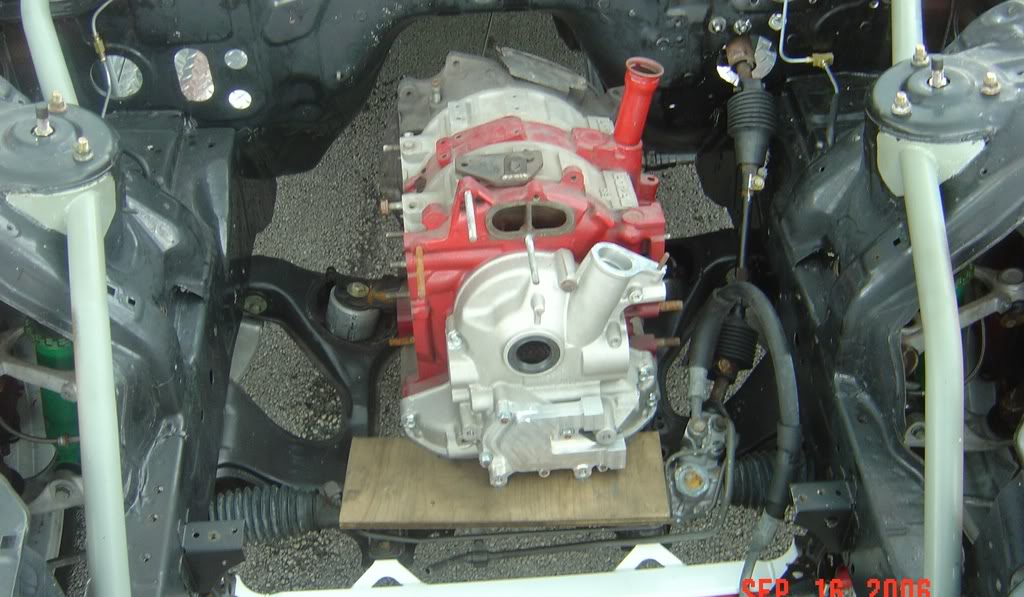

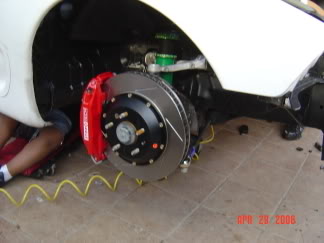

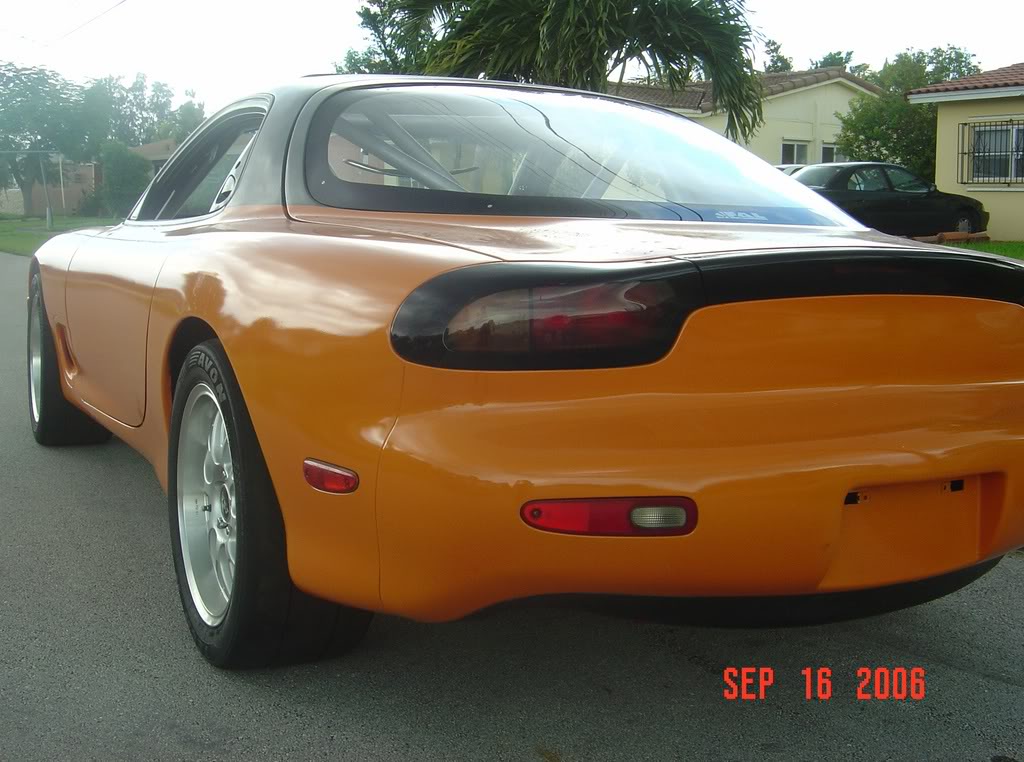

here are some pics i shot today. I know i havnt posted any but as we sit. im waiting on the housings to get peripheral ported. (Put sleeve through them) and then build the motor. I pretty much have everything purchased already except for the plumbing which is my next step now. The brakes have been installed and brake line run and connected. I will next install the tranny with the dummy engine and start measuring the lengths for all the plumbing so i can order everything. im shooting for November to be completed but this all really depends on the engine builder.
Laters!
Laters!
09-16-06, 07:52 PM
#87
Injected with a Poison
Thread Starter
iTrader: (1)
Join Date: Jul 2003
Location: Miami, FL
Posts: 795
Likes: 0
Received 0 Likes
on
0 Posts

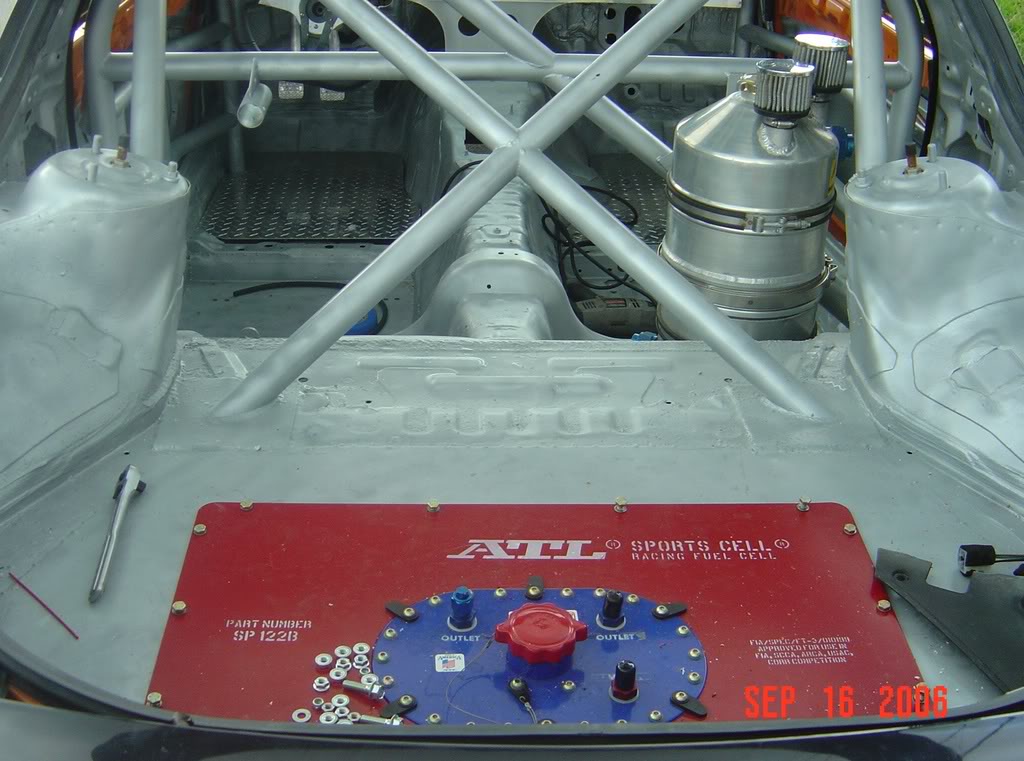

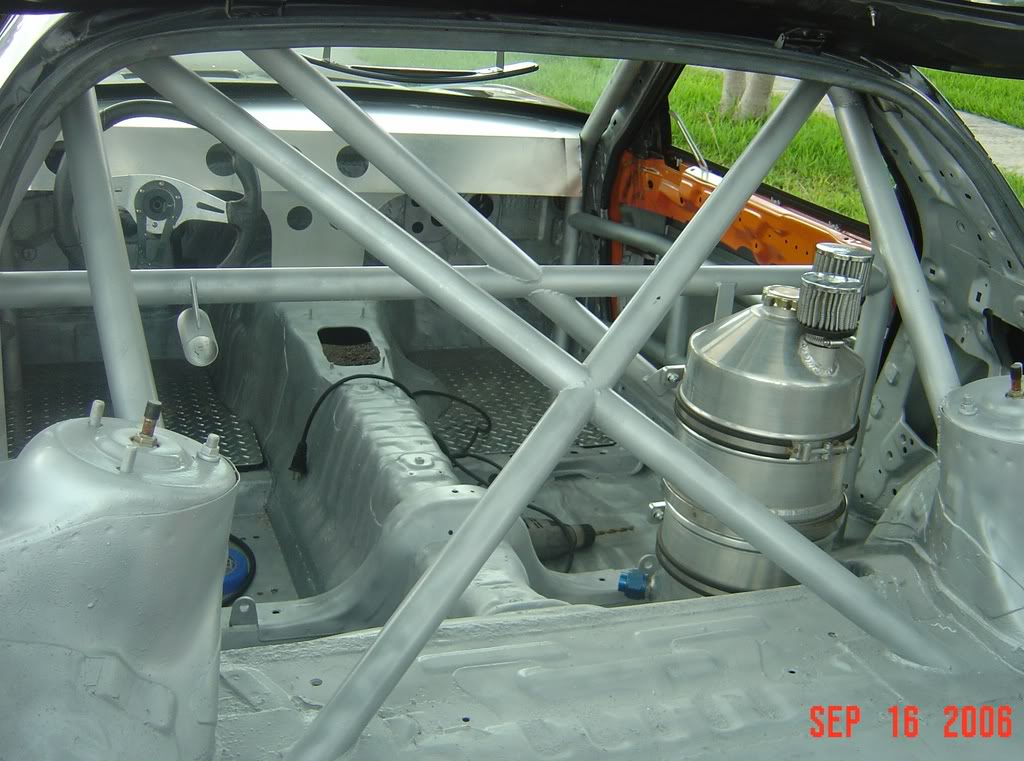

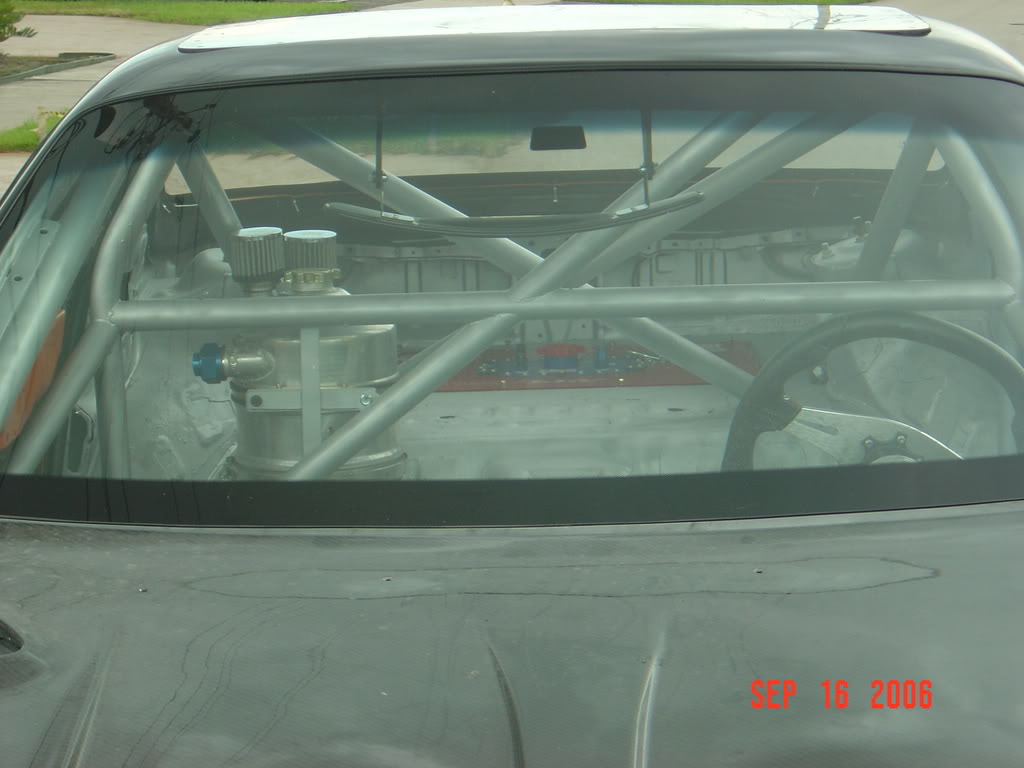

Im sure for scca i will have to make a splitter for both the fuel tank and the oil tank. but for now im planning on running NASA to get the car set up. when im ready then i will finish teching the car for SCCA which will be the Points competion series i plan on running in. specificly GT2
09-16-06, 11:59 PM
#88
Make an assessment...
iTrader: (3)

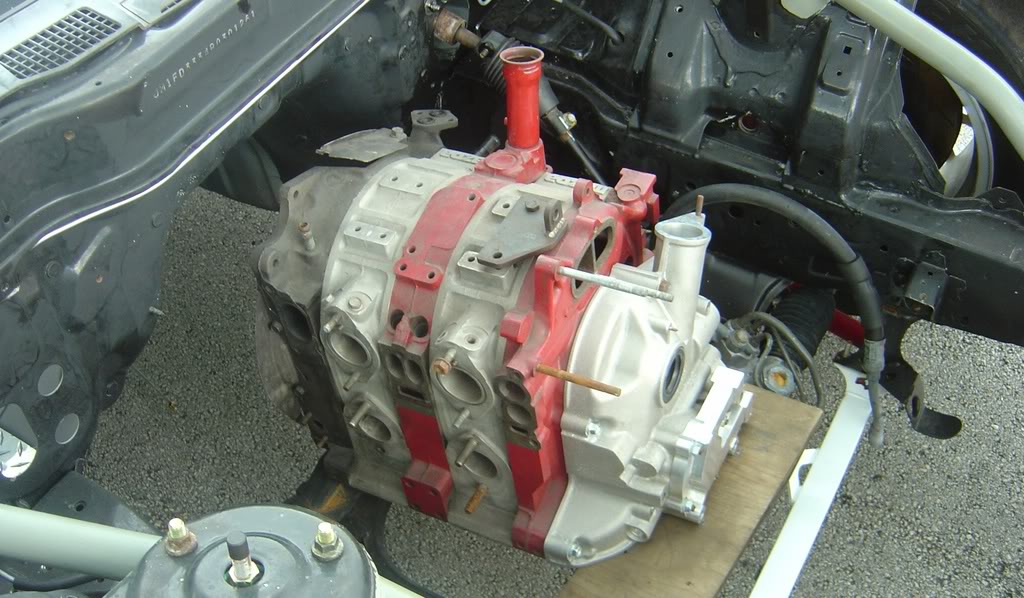

Damn. There is definitely no mistaking that for a street car, haha. It's funny how small just the short block looks sitting in the engine bay with no accessories. Looks really good.
10-18-06, 01:08 AM
#91
Injected with a Poison
Thread Starter
iTrader: (1)
Join Date: Jul 2003
Location: Miami, FL
Posts: 795
Likes: 0
Received 0 Likes
on
0 Posts
Ok Here we go!

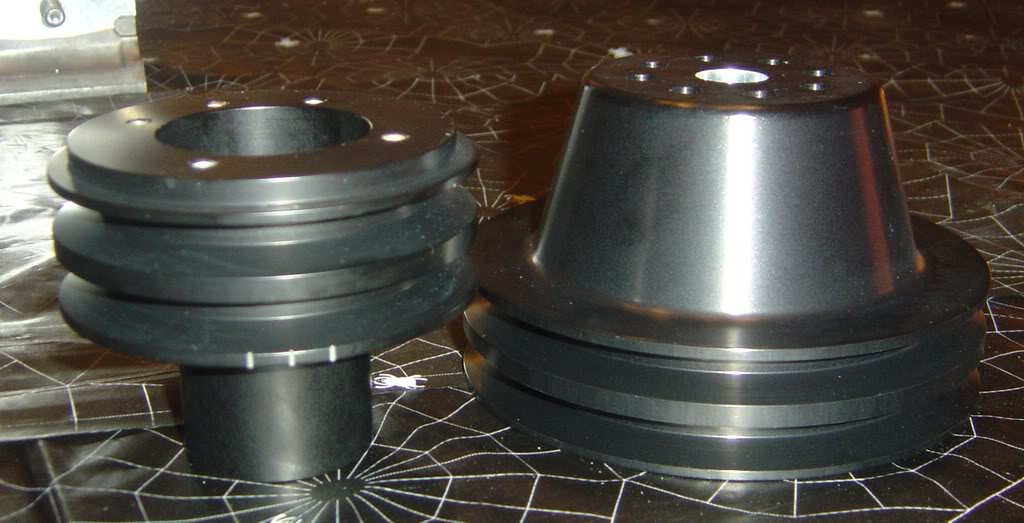

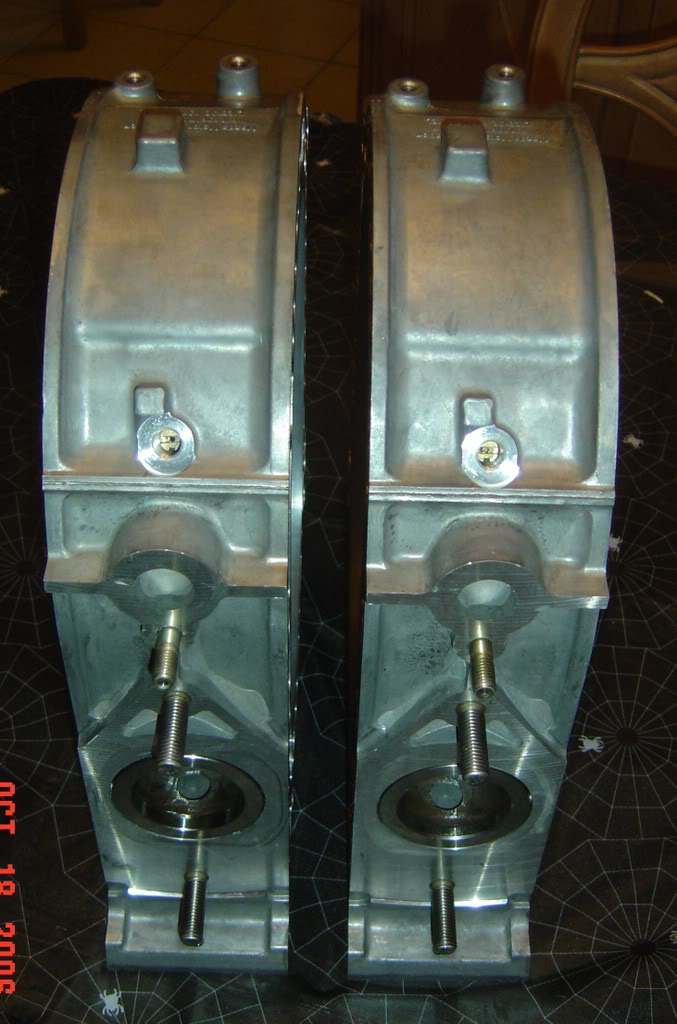

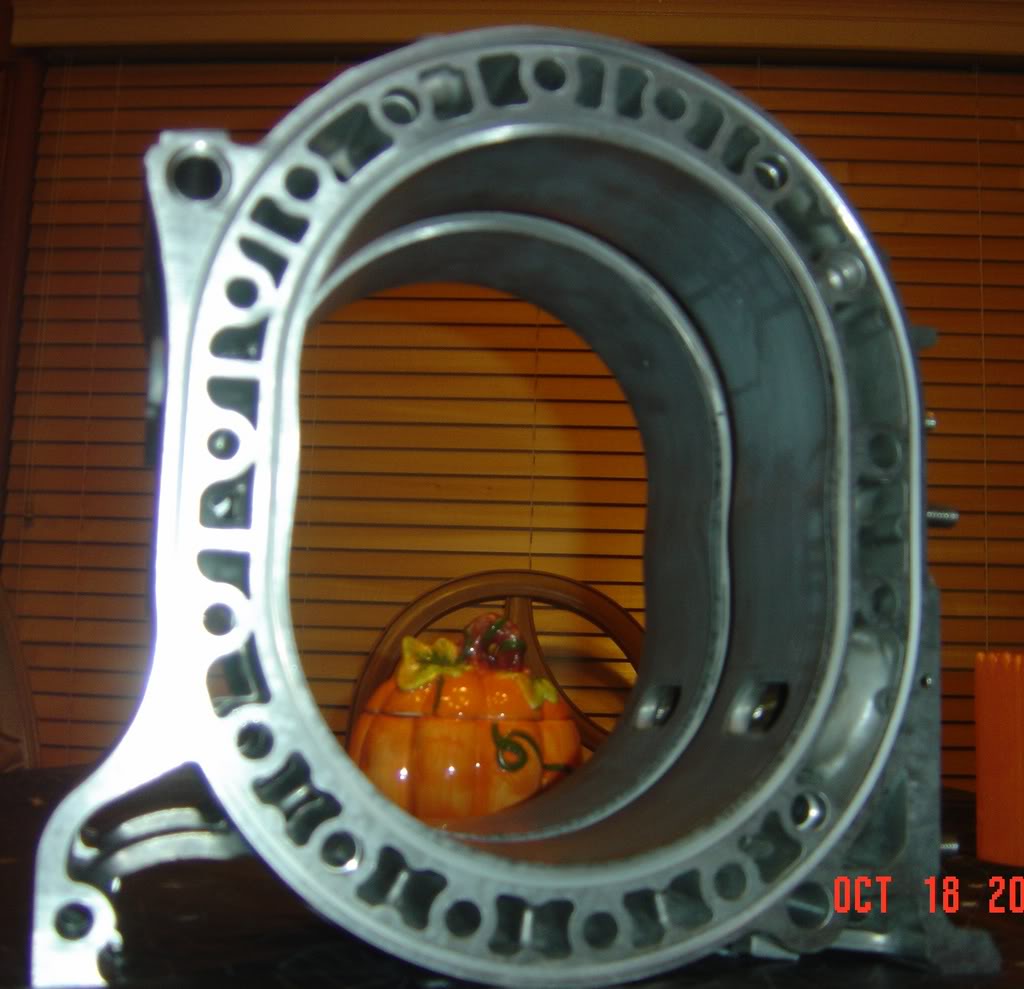

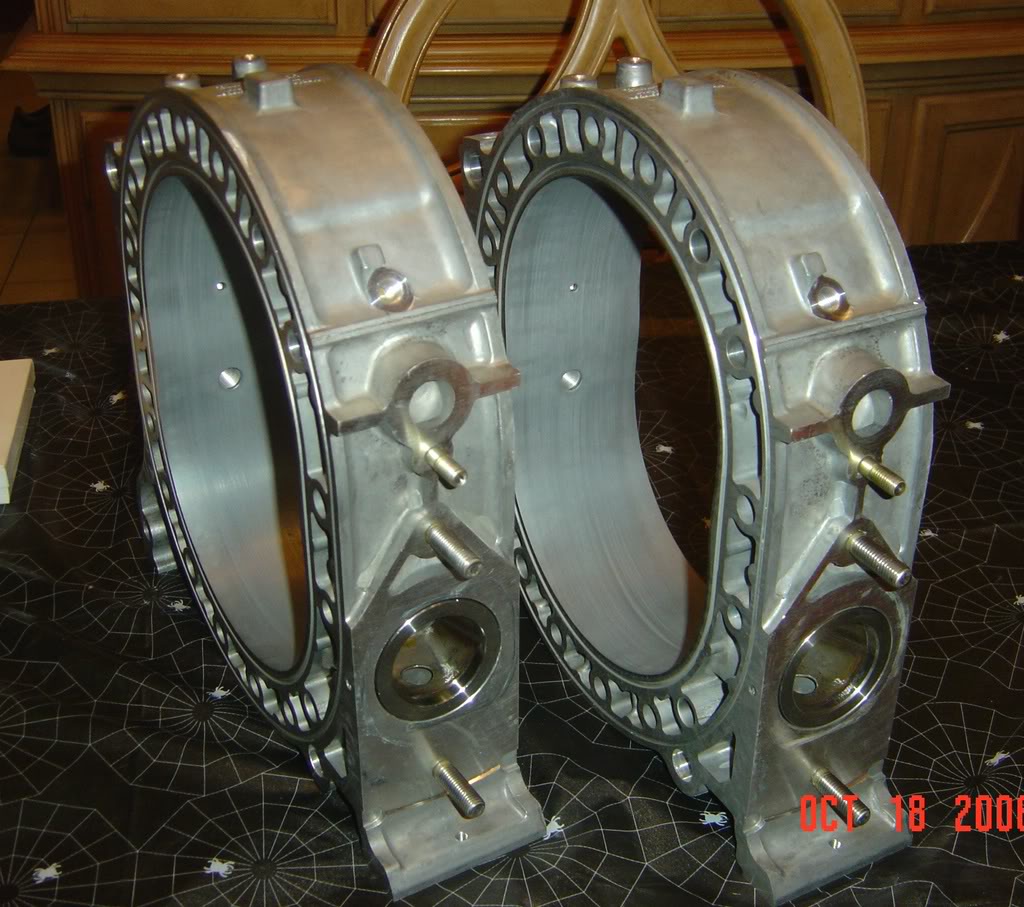

Got the Rotor housings in today. Along with Ianetti Ceramic Apex seals and also a set of Special Star Mazda Crank and water pullies. Next step is to send housings out to get machined and have Peripheral Port Sleeve installed.
Just for info, these are regular 13B GSL-SE housings and they will be machined around the area above the exaust to have a sleeve installed for Peripheral Port. I will post pics when i get them back. Hopefully around the weekend of the 28th.
Just for info, these are regular 13B GSL-SE housings and they will be machined around the area above the exaust to have a sleeve installed for Peripheral Port. I will post pics when i get them back. Hopefully around the weekend of the 28th.
10-18-06, 09:45 AM
#93
Injected with a Poison
Thread Starter
iTrader: (1)
Join Date: Jul 2003
Location: Miami, FL
Posts: 795
Likes: 0
Received 0 Likes
on
0 Posts
Well im not aware of that rule but that doesnt mean it doesnt exist. I can however assure you that i can not afford 2500.00 per housing. So if this is the case. I will be a happy NASA running ****.... LOL
10-19-06, 08:16 AM
#95
Injected with a Poison
Thread Starter
iTrader: (1)
Join Date: Jul 2003
Location: Miami, FL
Posts: 795
Likes: 0
Received 0 Likes
on
0 Posts
Im using old school Front and Intermidiate plates and the rear plate will be a 3rd Gen Plate to mount to the subframe. As for the water o-rings. the engine builder uses double and then a special seal bonder to complete the bond. This works flawlessly on N/A Motors.
10-21-06, 10:57 AM
#96
Gone Race'n
iTrader: (4)
Join Date: Dec 2001
Location: Rockford, IL
Posts: 1,544
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by rob20rx7
Im using old school Front and Intermidiate plates and the rear plate will be a 3rd Gen Plate to mount to the subframe. As for the water o-rings. the engine builder uses double and then a special seal bonder to complete the bond. This works flawlessly on N/A Motors.
10-22-06, 01:24 PM
#97
Originally Posted by Black91n/a
For SCCA racing don't you need to run MFR PP housings or whatever other authorized housings? I thought that home made housings are illegal.
The correct name is "Alternate Rotor Housing"
The rules for GT as per the GCR states : The standart production or specified alternate rotor housing shall be used.
Many rule changes have come about in recent years once EFI was finally adopted for GT.
The GCR ( General Competition Rules & Specificationsm ) is available on lime at www.scca.com
10-22-06, 03:15 PM
#98
Lives on the Forum
It says approved alternates though, unless a homebuilt is an approved alternate I'd interprate the rule such that it's illegal.
I'd remembered this from reading Racing Beat's site where they said that their PP housings aren't legal in the SCCA, so if theirs aren't...
Anyway, it's probably not a big deal, they'll probably let you run with them anyway, and only the most **** competitor would protest over that. If not you can always run in SPO, or SPM (which is for the PP 13B?) in the SCCA.
I'd remembered this from reading Racing Beat's site where they said that their PP housings aren't legal in the SCCA, so if theirs aren't...
Anyway, it's probably not a big deal, they'll probably let you run with them anyway, and only the most **** competitor would protest over that. If not you can always run in SPO, or SPM (which is for the PP 13B?) in the SCCA.
10-23-06, 08:56 AM
#99
Originally Posted by Black91n/a
It says approved alternates though, unless a homebuilt is an approved alternate I'd interprate the rule such that it's illegal.
I'd remembered this from reading Racing Beat's site where they said that their PP housings aren't legal in the SCCA, so if theirs aren't...
Anyway, it's probably not a big deal, they'll probably let you run with them anyway, and only the most **** competitor would protest over that. If not you can always run in SPO, or SPM (which is for the PP 13B?) in the SCCA.
I'd remembered this from reading Racing Beat's site where they said that their PP housings aren't legal in the SCCA, so if theirs aren't...
Anyway, it's probably not a big deal, they'll probably let you run with them anyway, and only the most **** competitor would protest over that. If not you can always run in SPO, or SPM (which is for the PP 13B?) in the SCCA.
Always with "made up" Rotor Housings.
