wired porblem w/ power fc in FB
Mods of the FB are as follows
Engine - 13B-RE (Cosmo) w/GSL-SE Front cover
Turbo - Stock S4 TII
Exhaust - 3" DP all the way back into 2.5" muffler
Injectors - 550 Primary 880 Secondary
Electronics - S5 AP enginering Power FC w/ banzai adapter for S4 harness kit and S4 crank angle sensor
Here is the problem, I loaded in the base map I got from Banzai Tuning and it had a lil' trouble idleing. So I search for a 3rd gen map in the FC forum and loaded that in. when I did that the car was idleing better. The car's idle goes up to 1300 rpm when started up cold and settles down to 900 rpm. then the car just dies out. When i take the car for a spin around the block , it feels like drives fine. When I look at the FC Commander the numbers from the leading and trailing are 15L and 10T at idle. Sometimes it would be at 10 Leading and 0 Traling. Would the cause the car to die all of a sudden? Another thing about the car is that everytime i start the car a cloud of smoke would come out the exhaust and it smells like gas. Has anybody ever experienced this?
Engine - 13B-RE (Cosmo) w/GSL-SE Front cover
Turbo - Stock S4 TII
Exhaust - 3" DP all the way back into 2.5" muffler
Injectors - 550 Primary 880 Secondary
Electronics - S5 AP enginering Power FC w/ banzai adapter for S4 harness kit and S4 crank angle sensor
Here is the problem, I loaded in the base map I got from Banzai Tuning and it had a lil' trouble idleing. So I search for a 3rd gen map in the FC forum and loaded that in. when I did that the car was idleing better. The car's idle goes up to 1300 rpm when started up cold and settles down to 900 rpm. then the car just dies out. When i take the car for a spin around the block , it feels like drives fine. When I look at the FC Commander the numbers from the leading and trailing are 15L and 10T at idle. Sometimes it would be at 10 Leading and 0 Traling. Would the cause the car to die all of a sudden? Another thing about the car is that everytime i start the car a cloud of smoke would come out the exhaust and it smells like gas. Has anybody ever experienced this?
#2
Did you tell us that you were installing our adapter on an AP PFC? The reason I ask is there is a wire that needs to be cut.
Did you follow our how to for wiring up the Cosmo TPS? Did you adjust the TPS? What map sensor are you using? Did you buy Kit #1 or #2?
If you are using the FD MAP sensor then you may have to change the settings on our map to "normal" from "option 2"
Did you install the FD IAT?
Did you keep the TB coolant lines for the thermowax? You may just need to adjust the watertemp correction values.
You would be better off reloading the map we sent and adjusting the fuel in the idle cells. The stock FD map is not that great.
Try this
Did you follow our how to for wiring up the Cosmo TPS? Did you adjust the TPS? What map sensor are you using? Did you buy Kit #1 or #2?
If you are using the FD MAP sensor then you may have to change the settings on our map to "normal" from "option 2"
Did you install the FD IAT?
Did you keep the TB coolant lines for the thermowax? You may just need to adjust the watertemp correction values.
You would be better off reloading the map we sent and adjusting the fuel in the idle cells. The stock FD map is not that great.
Try this
Last edited by Banzai-Racing; 12-12-08 at 06:16 AM.
#3
Full Member
Thread Starter
Join Date: Oct 2003
Location: San Francisco
Posts: 216
Likes: 0
Received 0 Likes
on
0 Posts
no i did not tell you i was installing the kit on the AP power fc. which wire am i suppose to cut? cosmo tps is adjusted correctly. Running a GM 3bar map sensor and FD IAT. I am not running the TB coolant lines. Would that be the problem?
#4
Cut the PFC 2B wire in the adapter harness.
Not running the TB coolant is fine as long as you eliminated the mechanism as well. You also need to lean out the water temp correction as the throttle plates will not be open allowing the extra air in.
You followed our how to on the TPS? http://www.banzai-racing.com/how_to_cosmo_tps.htm
Not running the TB coolant is fine as long as you eliminated the mechanism as well. You also need to lean out the water temp correction as the throttle plates will not be open allowing the extra air in.
You followed our how to on the TPS? http://www.banzai-racing.com/how_to_cosmo_tps.htm
Trending Topics
#10
Can't help you there. You can look at our engine bay, but I used -4an braided hose for all of our vacuum/boost lines. The BOV I have routed to the back side of the UIM. If you have an adjustment screw on the BOV, like the Greddy or Blitz, then just loosen it so that that it doesn't take as much pressure to keep it open.
http://www.banzai-racing.com/br_projects_vert_pg5.htm
http://www.banzai-racing.com/br_projects_vert_pg5.htm
#11
Full Member
Thread Starter
Join Date: Oct 2003
Location: San Francisco
Posts: 216
Likes: 0
Received 0 Likes
on
0 Posts

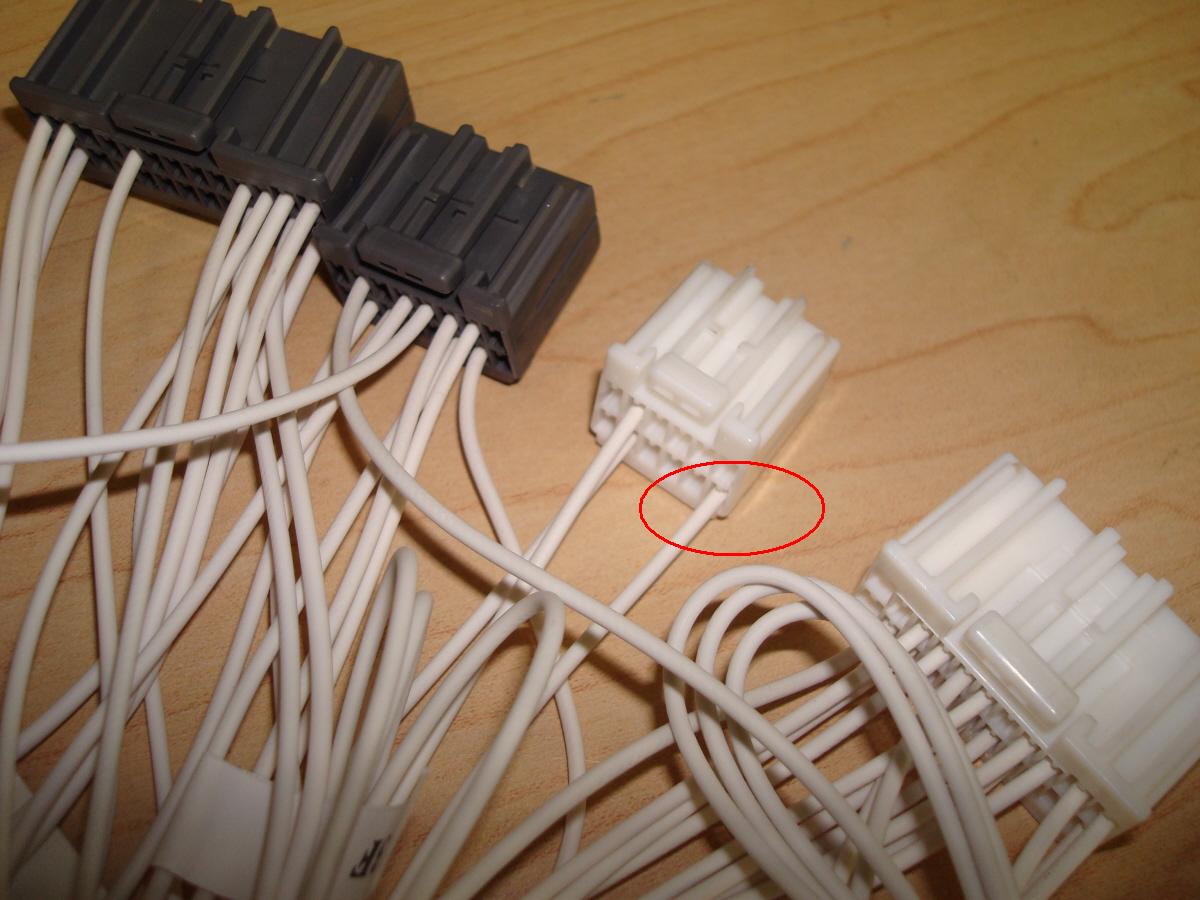

i was looking at the smallest plug on the fc adapter and it has 3 wires on it. i bought the s4 adapter harness. i cut the wire that is on right side. single. on the left side of the plug there is 2 wire. did i cut the right wire?
#14
Full Member
Thread Starter
Join Date: Oct 2003
Location: San Francisco
Posts: 216
Likes: 0
Received 0 Likes
on
0 Posts
okay, that's the wire i cut. thanks for the help. now i just have to load the base map in but i can't seem to get the datalogit to connect to the power fc. again thank you very much for the help banzai-racing
