93 rx7 2JZ turbo/r154 widebody

i have been delaying putting up a build thread for long enough. i have been building and working for about 2 years. ill start with the early pics and eventually get to the good stuff.

this is what she looked like when i got her

Name:  IMG_1368.jpg
Views: 613
Size:  106.7 KB

the old engine. bye bye rotary

Name:  Photo_031009_003.jpg
Views: 534
Size:  86.1 KB

the engine first arrived, aristo 2j and an sr20. the sr20 seems like half the size.

Name:  Photo_032108_002.jpg
Views: 517
Size:  104.7 KB

Name:  Photo_032108_004.jpg
Views: 503
Size:  105.2 KB

Name:  jerrod2jz008.jpg
Views: 523
Size:  141.8 KB
Name:  jerrod2jz062-1.jpg
Views: 514
Size:  163.0 KB

Name:  jerrod2jz063.jpg
Views: 500
Size:  229.3 KB
fully torn down and heading to the machine shop
protunedperformance is offline
Old 06-05-10, 08:07 PM
  #2
Full Member
5 Year Member
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: NOLA
Posts: 195
Likes: 0
Liked 1 Time in 1 Post
got rid of where it used to be plastic and filled it with metal.

Name:  IMG_1508.jpg
Views: 397
Size:  166.0 KB

Name:  IMG_1509.jpg
Views: 371
Size:  182.9 KB


Name:  photo.jpg
Views: 394
Size:  15.7 KB

Name:  jkkbnm.jpg
Views: 371
Size:  15.7 KB

primed to prevent rust for the time being.

Name:  IMG_2024.jpg
Views: 402
Size:  164.1 KB

where all my fuse boxes are going to be located
Name:  IMG_1654.jpg
Views: 379
Size:  107.7 KB

Name:  IMG_1656.jpg
Views: 376
Size:  124.5 KB

Name:  IMG_1657.jpg
Views: 370
Size:  122.5 KB


had to remove a part of the fire wall in order to get the engine to fit

Name:  IMG_1510.jpg
Views: 378
Size:  176.7 KB

Name:  IMG_1622.jpg
Views: 380
Size:  146.2 KB

this is the front support where basically every thing bolts up to. took the old flimsy one and replaced it with 1/8 inch angle iron.

Name:  IMG_1512.jpg
Views: 375
Size:  139.1 KB

Name:  IMG_1621.jpg
Views: 374
Size:  125.1 KB
protunedperformance is offline
Old 06-06-10, 12:30 AM
  #3
Barrel Roll
iTrader: (1)

fstbckgt's Avatar

Join Date: Oct 2009
Location: HI
Posts: 279
Likes: 0
Liked 0 Times in 0 Posts
lookin very good, subscribed
fstbckgt is offline
Old 06-06-10, 01:04 PM
  #4
CHECK ENGINE

Join Date: Jun 2010
Location: baltimore
Posts: 4
Likes: 0
Liked 0 Times in 0 Posts
good stuff so far, lookin forward to more progress
xerospeed is offline
Old 06-07-10, 04:01 PM
  #5
Boost makes cars smile.
5 Year Member
iTrader: (5)

TrboSpdAnt's Avatar

Join Date: May 2005
Location: ...
Posts: 1,424
Likes: 0
Liked 0 Times in 0 Posts
Subscribed; PM sent.
TrboSpdAnt is offline
Old 06-08-10, 09:28 PM
  #6
Full Member
5 Year Member
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: NOLA
Posts: 195
Likes: 0
Liked 1 Time in 1 Post
built a mini paint booth just for knocking out the engine bay.

Name:  IMG_2021.jpg
Views: 386
Size:  79.7 KB

Name:  IMG_2022.jpg
Views: 396
Size:  115.2 KB

almost ready for paint. sanded and sanded like u would never believe. ended up redoing all the seam sealer . it looked like someone just threw it on from across the room. i took me about 2 days to get it looking good. u can see it in some of the previous pics.

Name:  IMG_2025.jpg
Views: 660
Size:  155.6 KB

and all done

Name:  IMG_2038.jpg
Views: 399
Size:  136.4 KB

Name:  IMG_2039.jpg
Views: 373
Size:  132.3 KB

Name:  IMG_2040.jpg
Views: 372
Size:  119.0 KB
protunedperformance is offline
Old 06-12-10, 09:07 PM
  #7
Full Member
5 Year Member
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: NOLA
Posts: 195
Likes: 0
Liked 1 Time in 1 Post

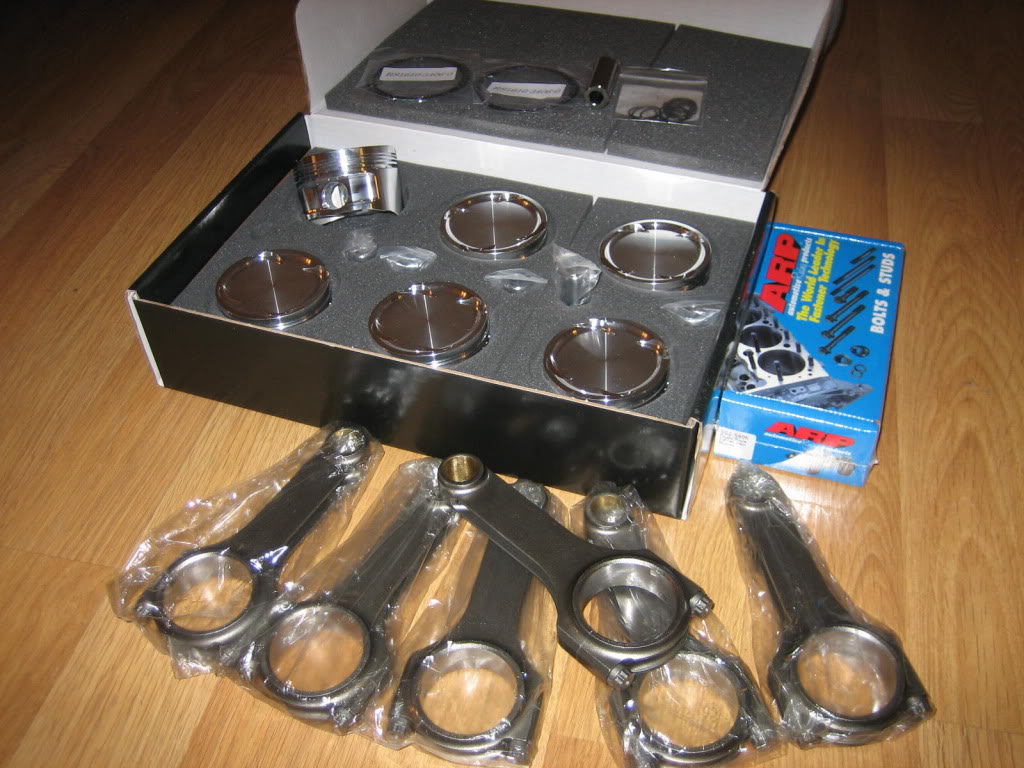

heres the internals. carrillo rods, cp pistons, upgraded wrist pins, arp main studs

Name:  IMG_1386.jpg
Views: 386
Size:  153.0 KB

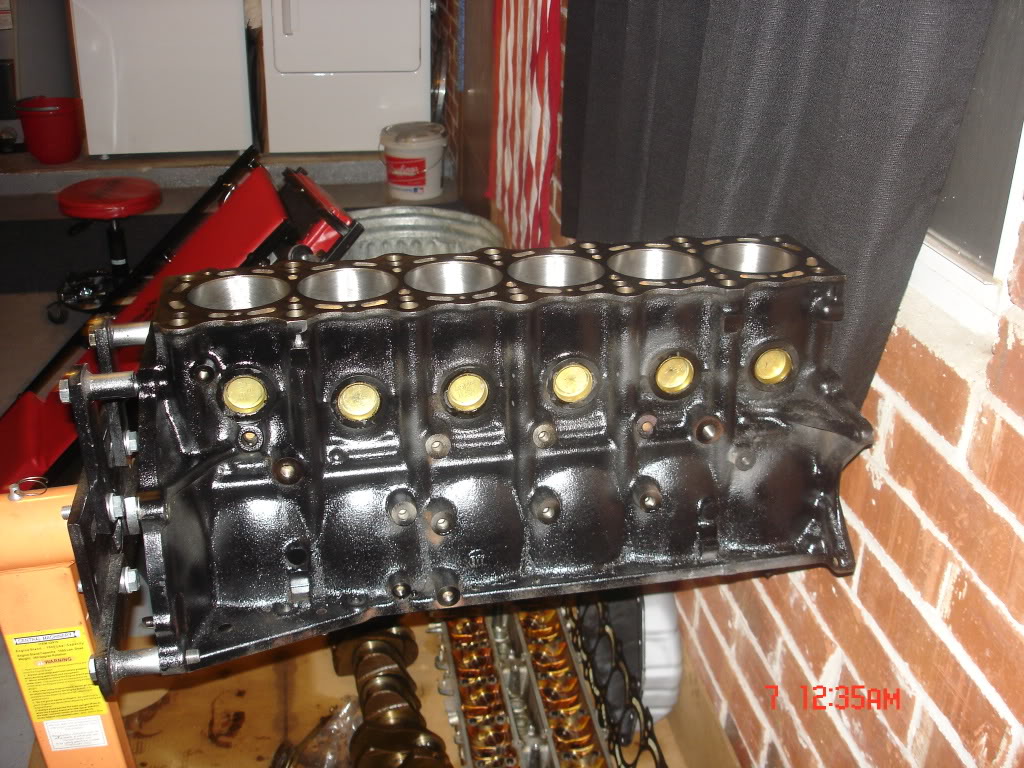

this the engine when it originally came back

Name:  DSC02604.jpg
Views: 377
Size:  208.7 KB

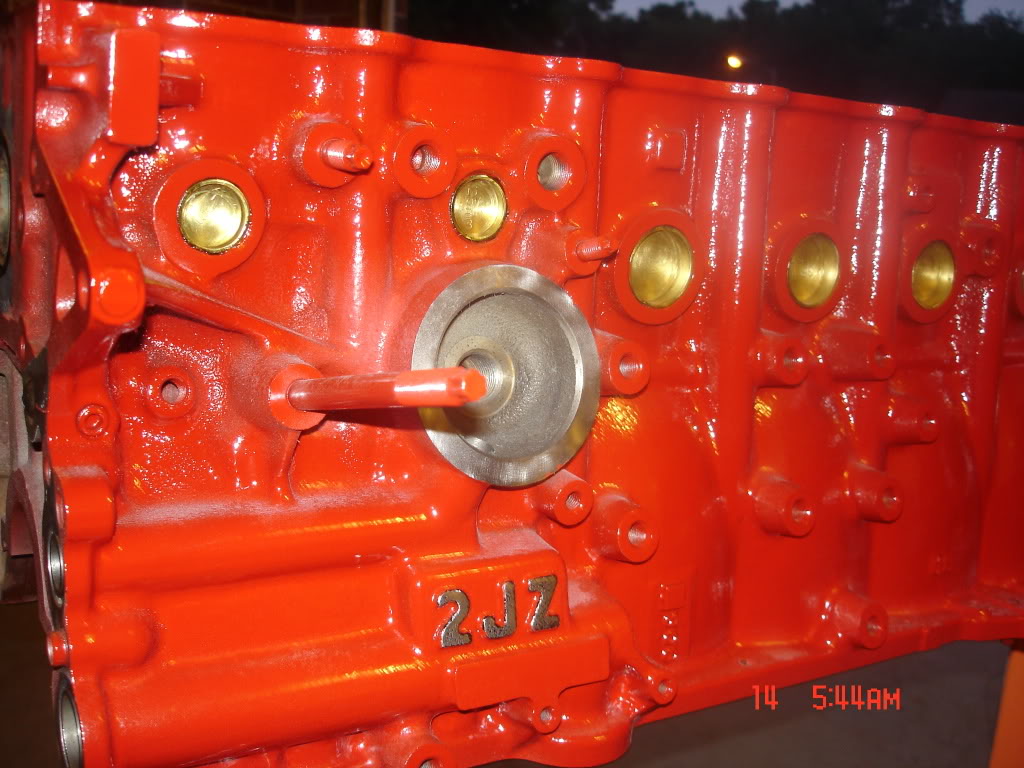

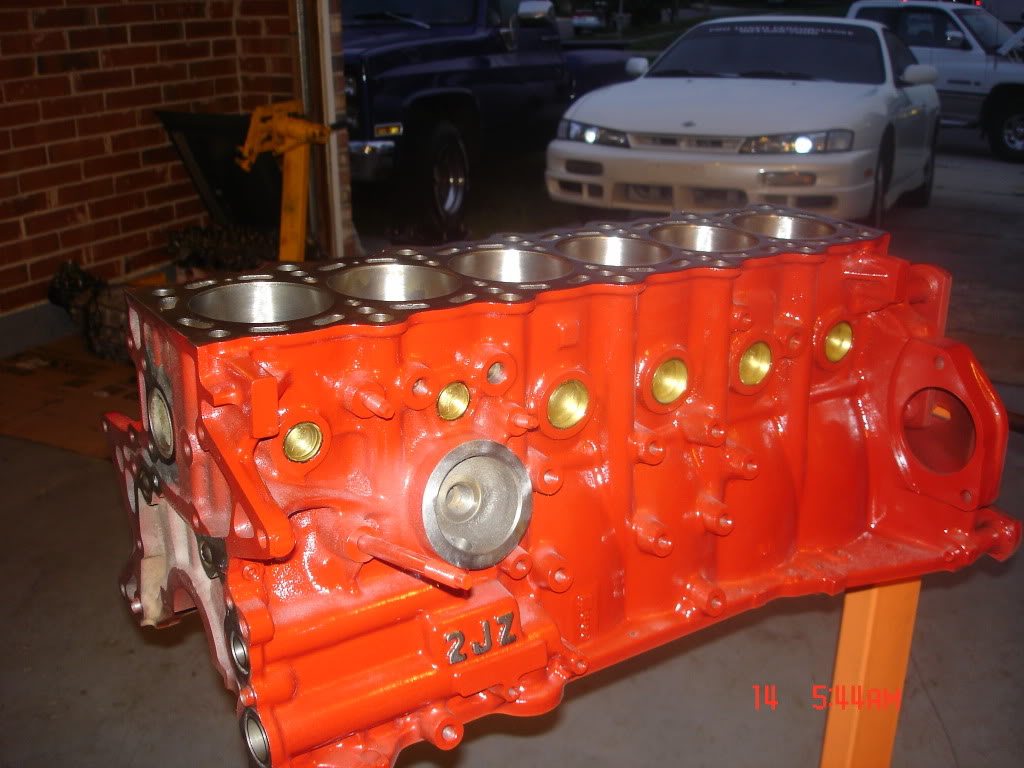

wasnt happy with the color so i did this

Name:  DSC02663.jpg
Views: 401
Size:  130.3 KB

Name:  DSC02664.jpg
Views: 375
Size:  156.2 KB
protunedperformance is offline
Old 06-12-10, 09:08 PM
  #8
Full Member
5 Year Member
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: NOLA
Posts: 195
Likes: 0
Liked 1 Time in 1 Post

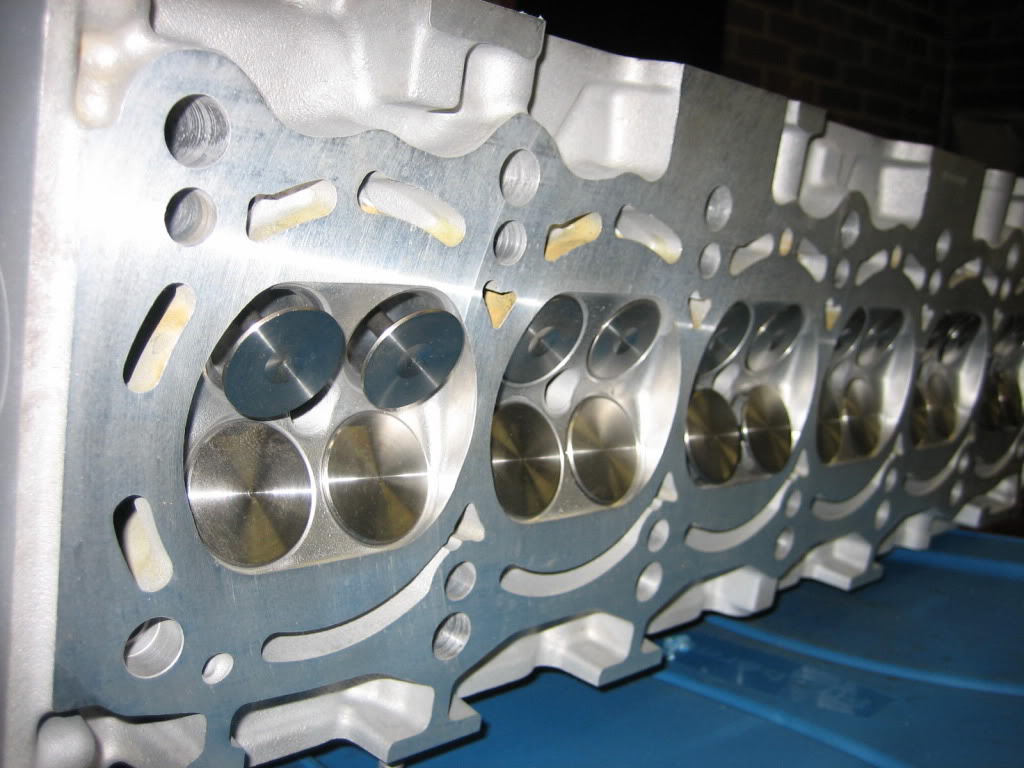

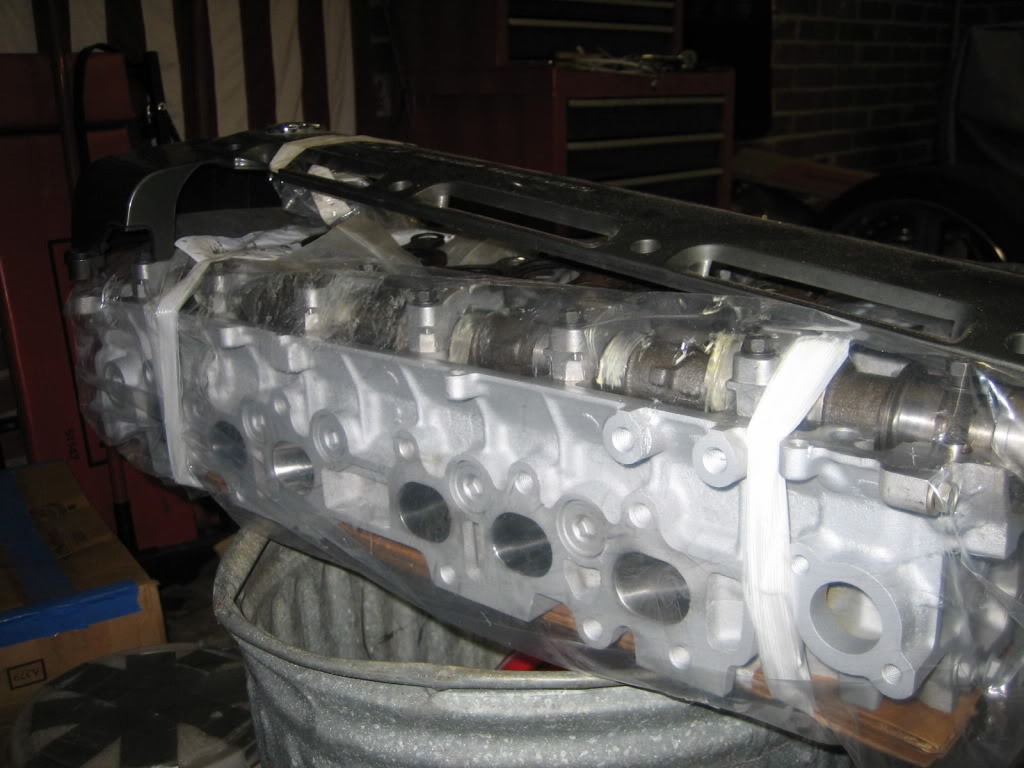

got the head back, brian crower 1mm over valves and springs and full port and polish, stock cams for now but that will change.

Name:  IMG_1404.jpg
Views: 372
Size:  109.5 KB

Name:  IMG_1413.jpg
Views: 372
Size:  118.7 KB

protunedperformance is offline
Old 06-12-10, 09:23 PM
  #9
*** Bless The USA
5 Year Member
iTrader: (8)

Viking War Hammer's Avatar

Join Date: Jan 2007
Location: Saint Louis / Illinois
Posts: 7,136
Likes: 0
Liked 0 Times in 0 Posts
all that work and you painted over the shock bolts?
Viking War Hammer is offline
Old 06-13-10, 02:40 AM
  #10
Boost makes cars smile.
5 Year Member
iTrader: (5)

TrboSpdAnt's Avatar

Join Date: May 2005
Location: ...
Posts: 1,424
Likes: 0
Liked 0 Times in 0 Posts
God, that's HOT.
TrboSpdAnt is offline
Old 06-16-10, 09:24 PM
  #11
Full Member
10 Year Member

Oscar8404's Avatar

Join Date: May 2005
Location: New York
Posts: 87
Likes: 0
Liked 0 Times in 0 Posts
What subframe is that??
Oscar8404 is offline
Old 06-17-10, 12:41 PM
  #12
Full Member
5 Year Member
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: NOLA
Posts: 195
Likes: 0
Liked 1 Time in 1 Post
the subframe is from tech 2 motorsports
protunedperformance is offline
Old 06-17-10, 01:41 PM
  #13
Full Member

Join Date: May 2009
Location: New Hampshire
Posts: 227
Likes: 0
Liked 0 Times in 0 Posts
so youve got an fd that your putting the 2jz in, and a kouki which your putting the s14 sr into?? im jealous. i miss my s14's. and my damn rb'd FD isnt done yet
ByeByeSti is offline
Old 06-21-10, 10:19 AM
  #14
Full Member
5 Year Member
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: NOLA
Posts: 195
Likes: 0
Liked 1 Time in 1 Post

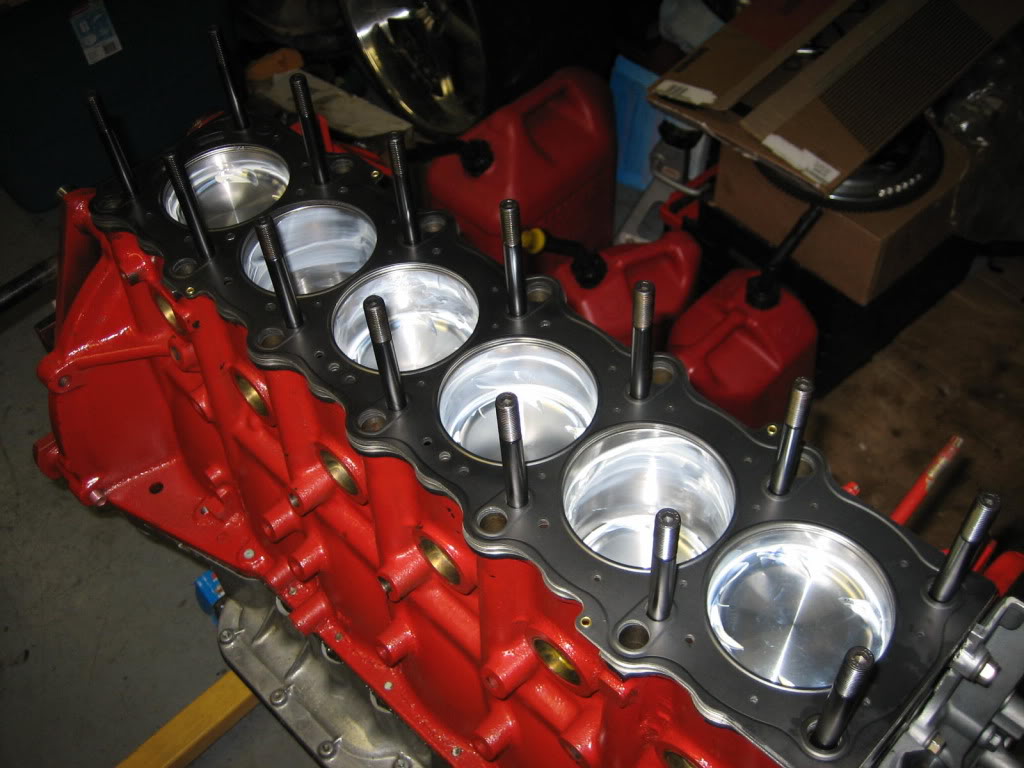

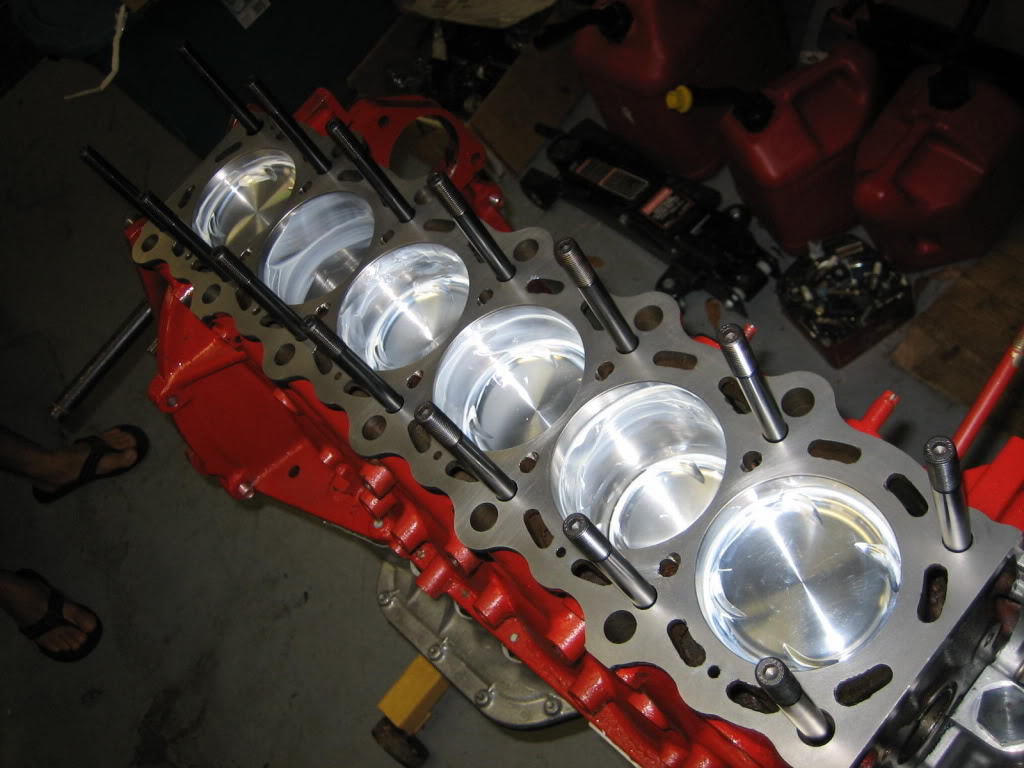

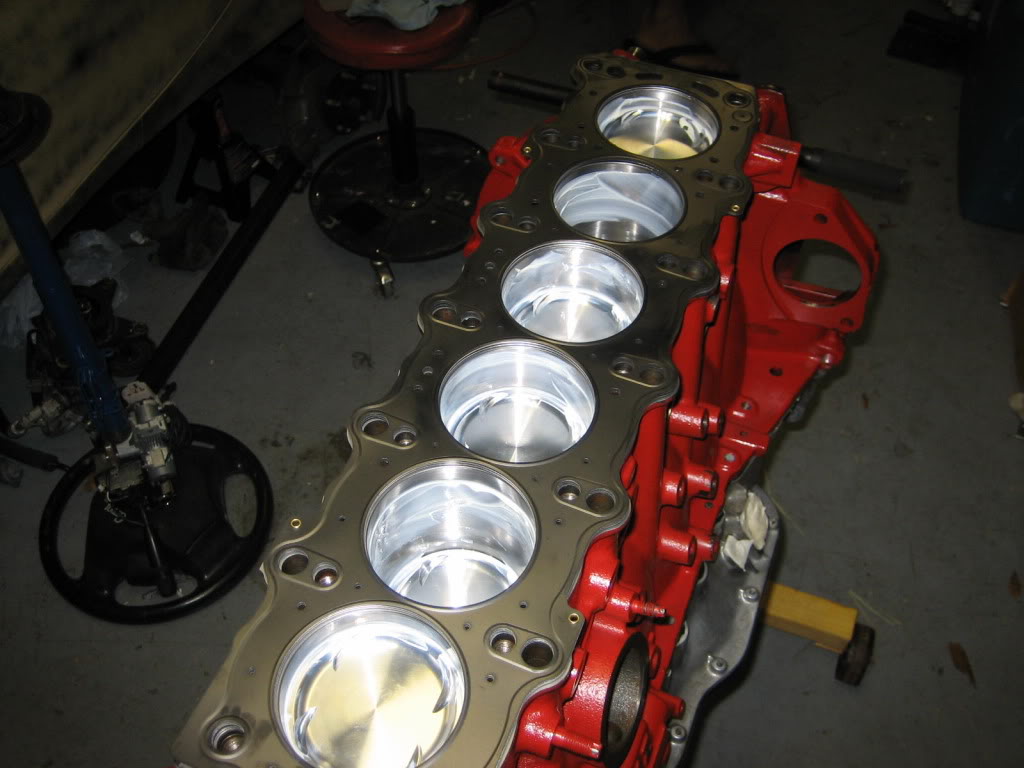

fully assembled short block

Name:  IMG_1410.jpg
Views: 375
Size:  111.6 KB

Name:  IMG_1407.jpg
Views: 376
Size:  57.2 KB

Name:  IMG_1412.jpg
Views: 371
Size:  117.9 KB

Name:  IMG_1409.jpg
Views: 400
Size:  99.6 KB
protunedperformance is offline
Old 06-21-10, 10:20 AM
  #15
Full Member
5 Year Member
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: NOLA
Posts: 195
Likes: 0
Liked 1 Time in 1 Post

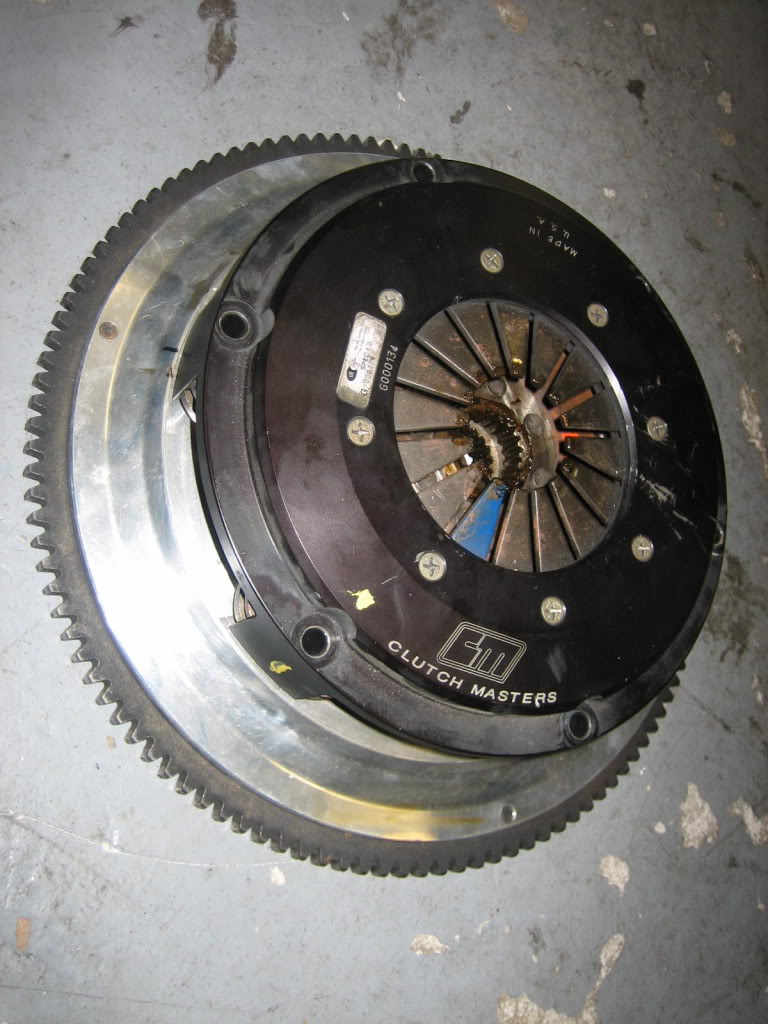

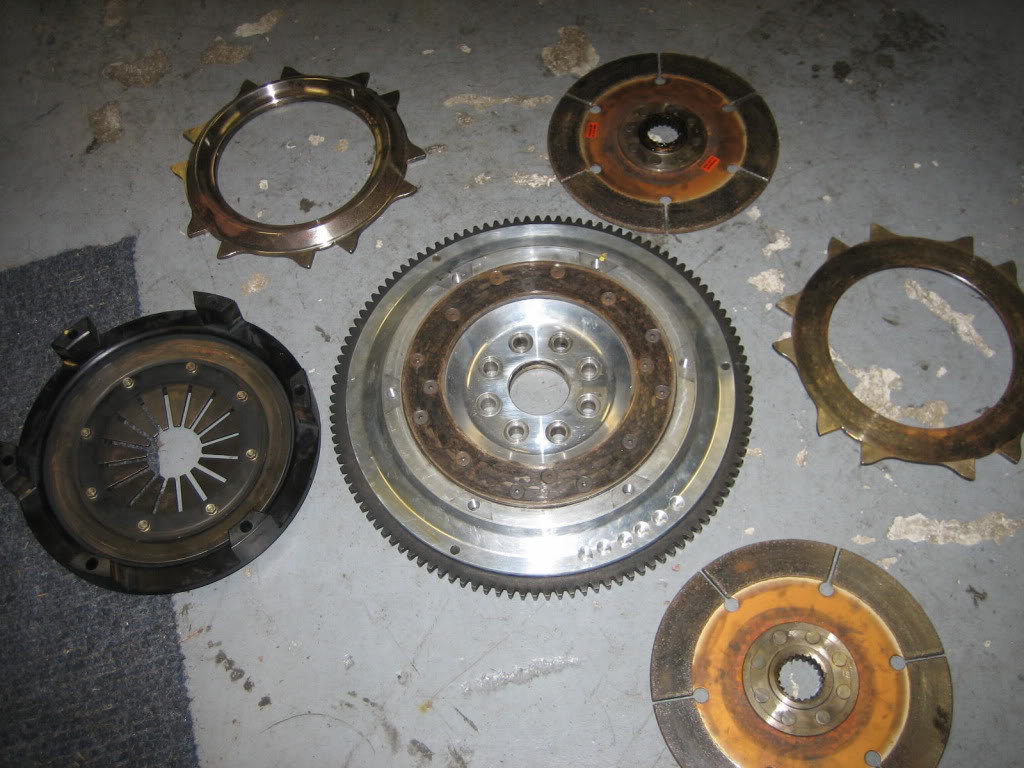

twin disk clutch masters clutch.

Name:  IMG_1914.jpg
Views: 375
Size:  129.7 KB

Name:  IMG_1917.jpg
Views: 411
Size:  139.4 KB

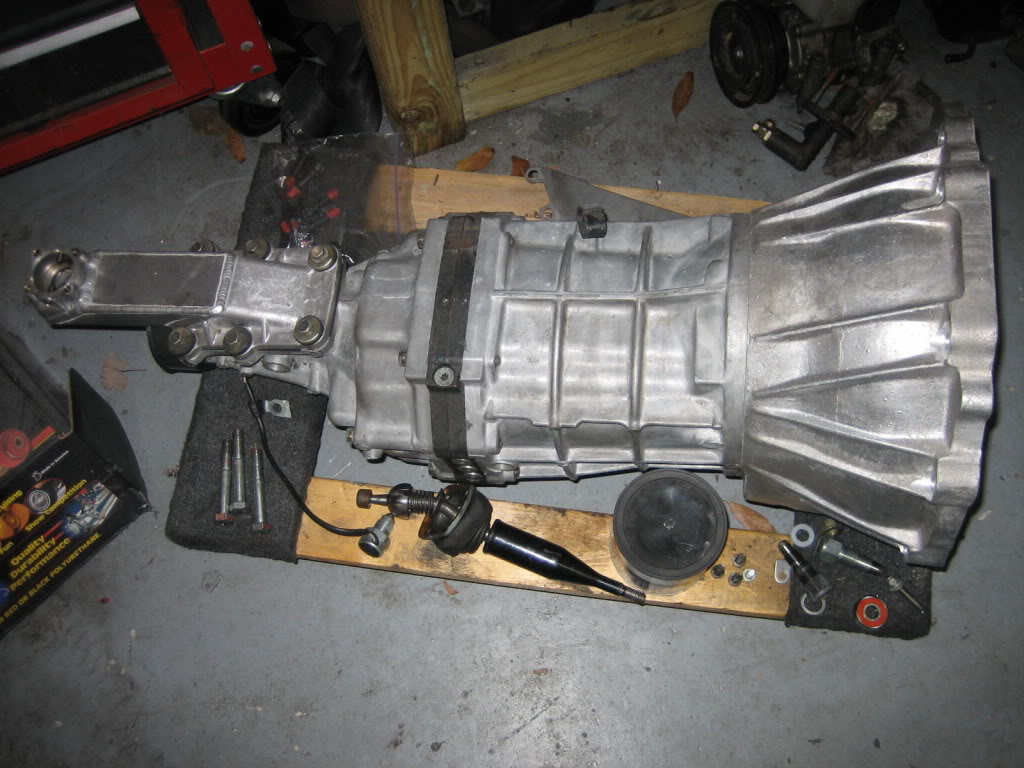

and the r154 transmission with upgraded parts and shifter extension.


Name:  IMG_1918.jpg
Views: 453
Size:  138.8 KB

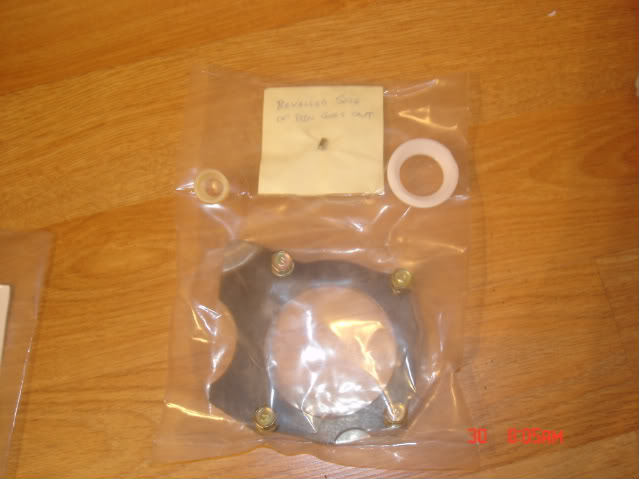

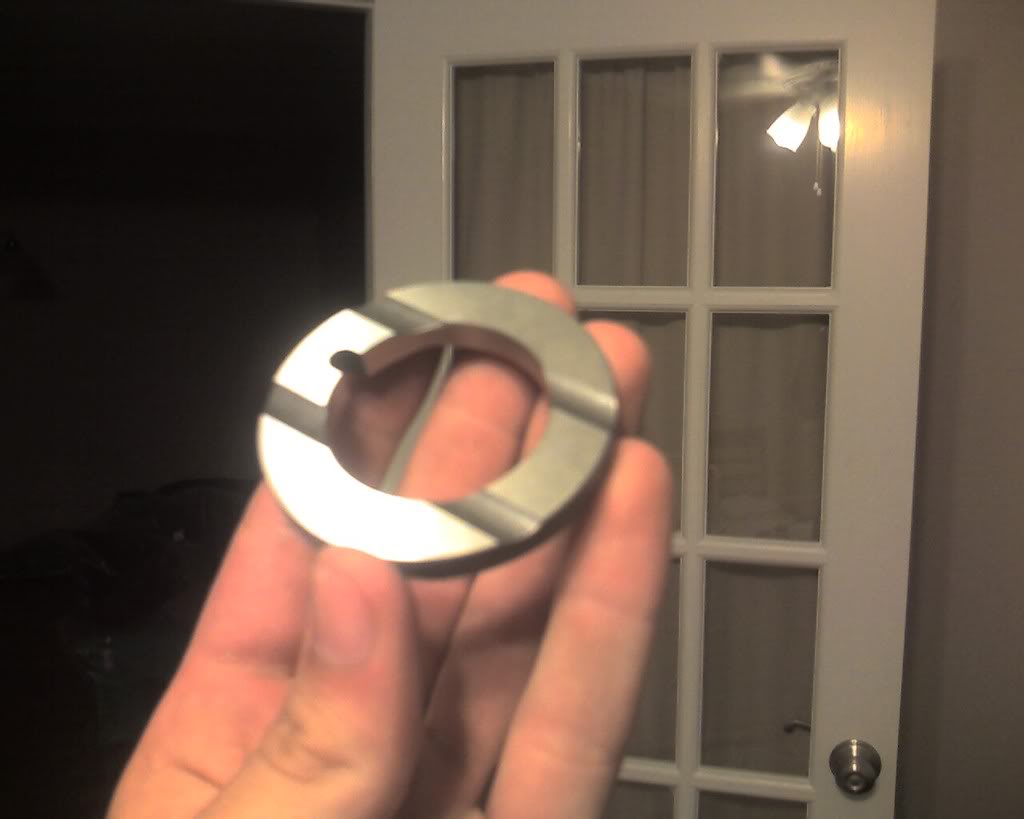

heres the upgraded parts

Name:  DSC02623.jpg
Views: 375
Size:  37.2 KB

Name:  Photo_051608_001.jpg
Views: 378
Size:  44.4 KB
protunedperformance is offline
Old 06-21-10, 10:21 AM
  #16
Full Member
5 Year Member
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: NOLA
Posts: 195
Likes: 0
Liked 1 Time in 1 Post

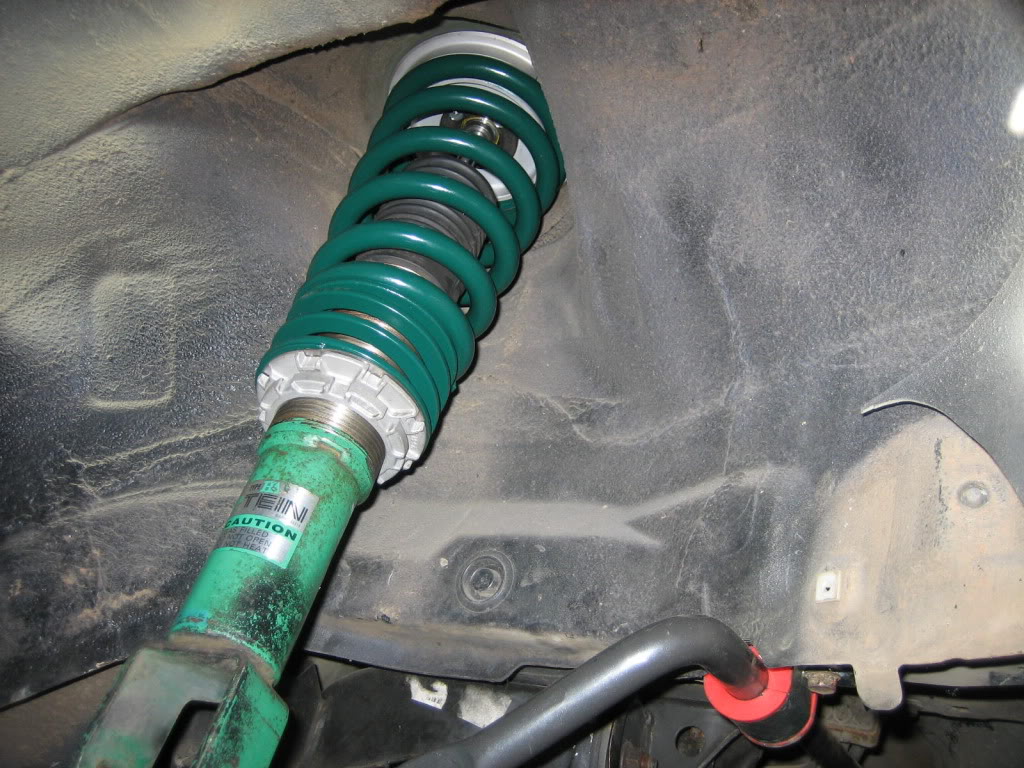

tein coilovers. paid 550 shipped for these. it was such a good deal it was hard to pass up. not my first cice for coilovers but the will get the job done.

Name:  IMG_1431.jpg
Views: 383
Size:  180.4 KB
protunedperformance is offline
Old 06-25-10, 04:00 PM
  #17
Full Member
5 Year Member
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: NOLA
Posts: 195
Likes: 0
Liked 1 Time in 1 Post

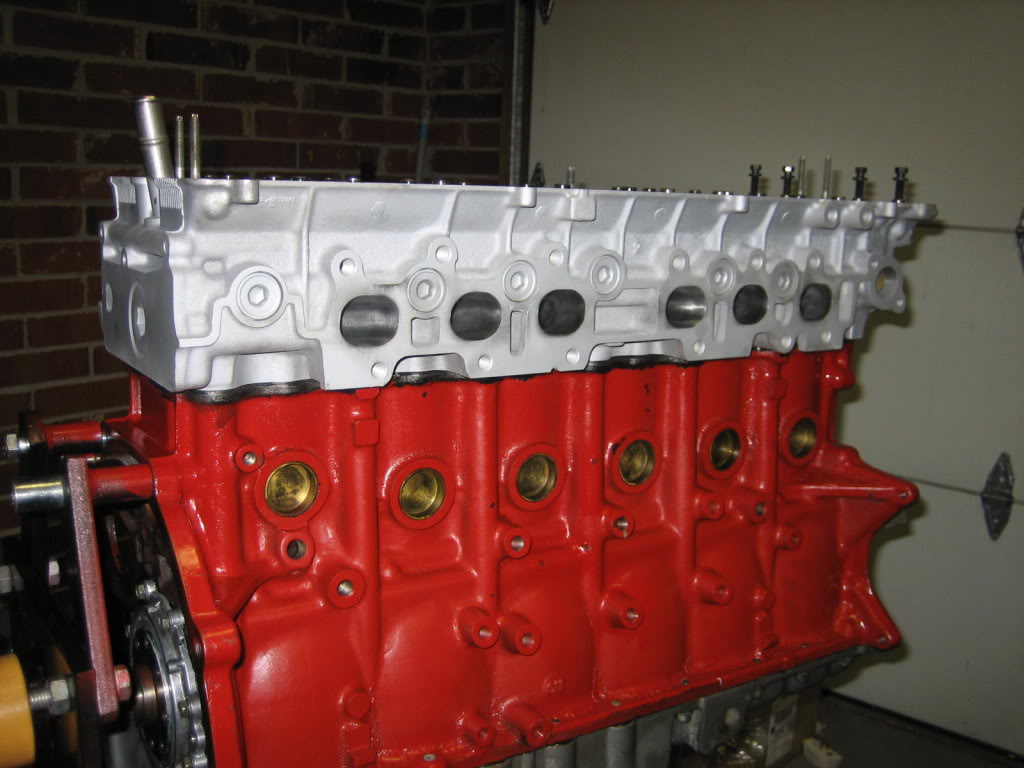

got the head mounted up

Name:  IMG_1421.jpg
Views: 373
Size:  105.5 KB

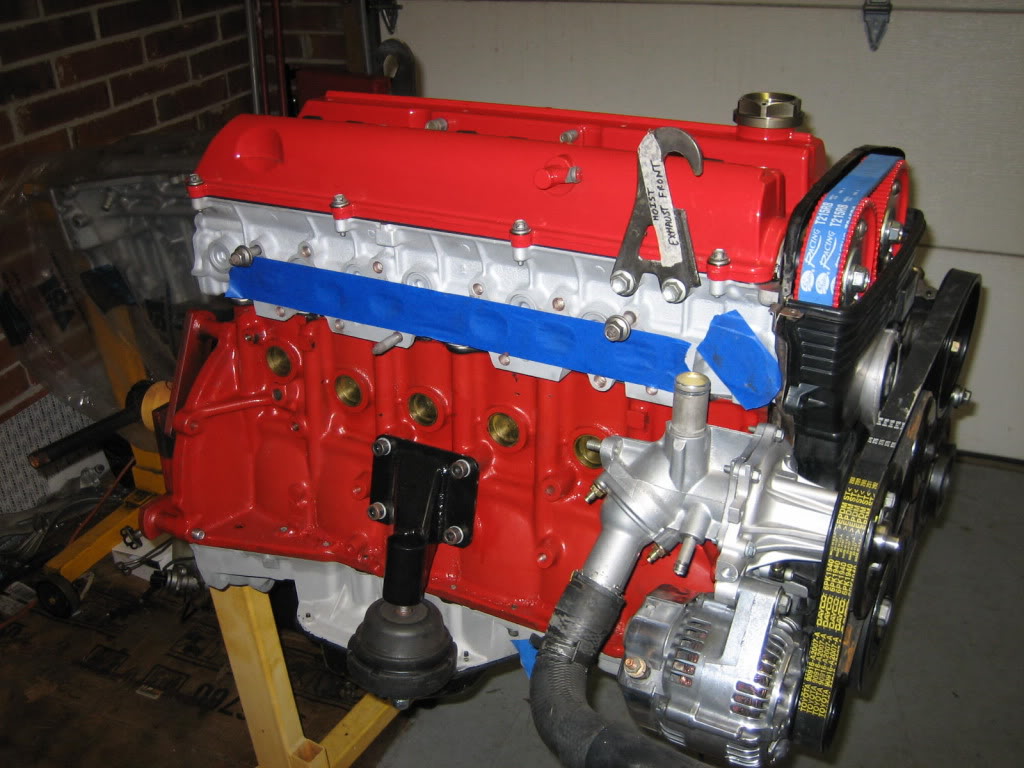

got the accessories mounted on the engine

Name:  IMG_1519.jpg
Views: 372
Size:  146.6 KB

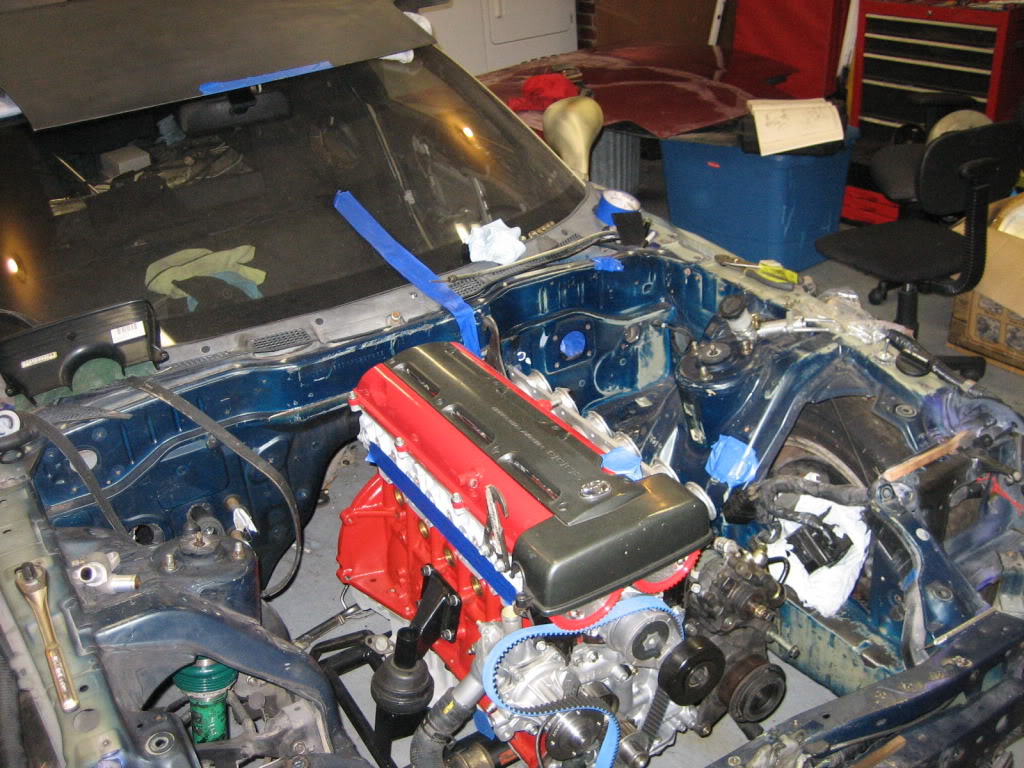

this is back when i mounted up the engine before i took it out to paint it.

Name:  IMG_1464.jpg
Views: 381
Size:  197.7 KB
protunedperformance is offline
Old 06-25-10, 07:48 PM
  #18
I'm on a Boat!
10 Year Member
iTrader: (15)

ProjectD's Avatar

Join Date: May 2003
Location: OK
Posts: 1,824
Likes: 0
Liked 0 Times in 0 Posts
Nice build

More pix please
ProjectD is offline
Old 06-28-10, 05:16 PM
  #19
Full Member
5 Year Member
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: NOLA
Posts: 195
Likes: 0
Liked 1 Time in 1 Post
and finally im getting to the wide body part of this build.

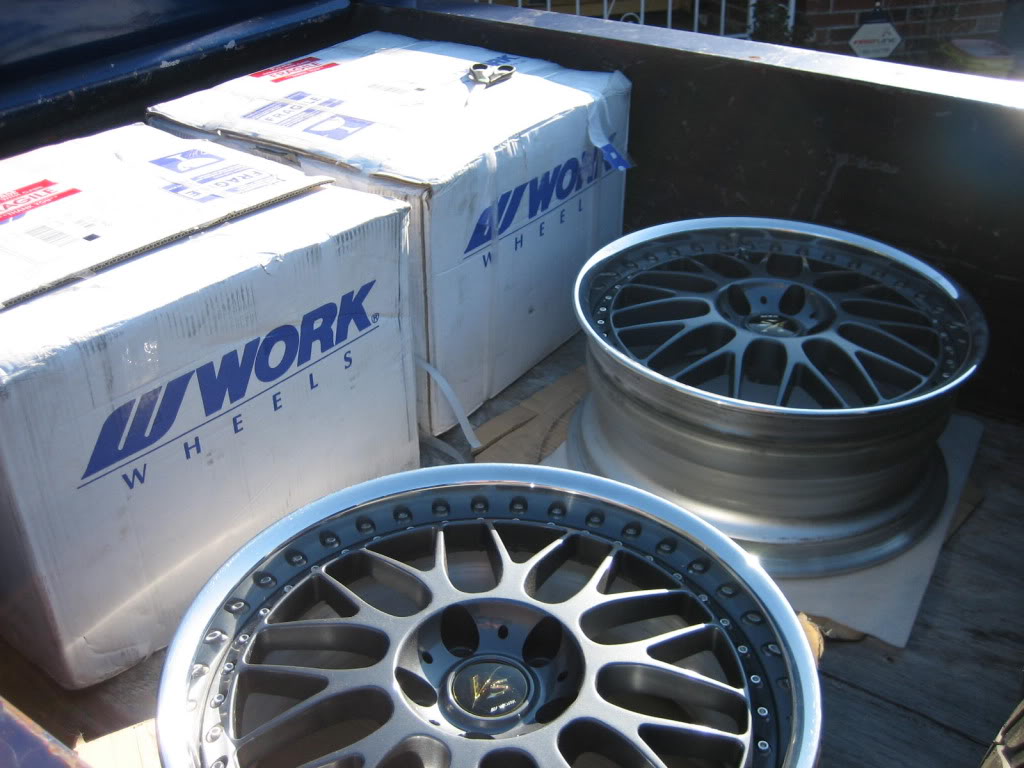

Heres the rims and tires...

Name:  IMG_1521.jpg
Views: 378
Size:  122.3 KB

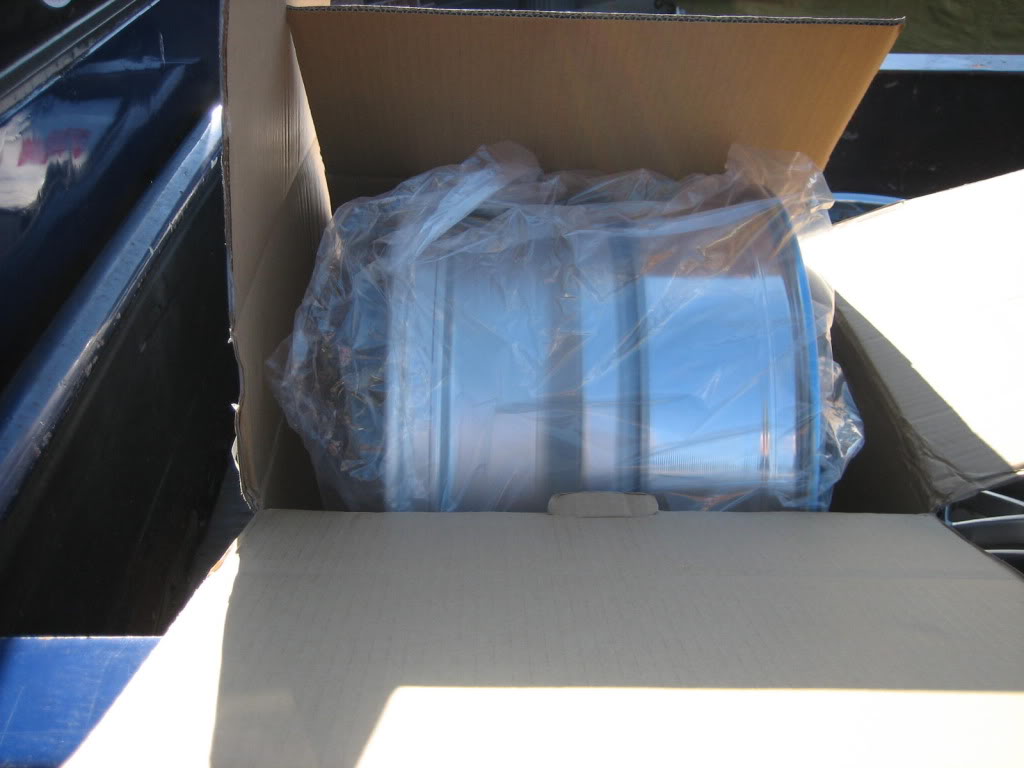

12 inch work vs-xx
Name:  IMG_1523.jpg
Views: 395
Size:  77.0 KB

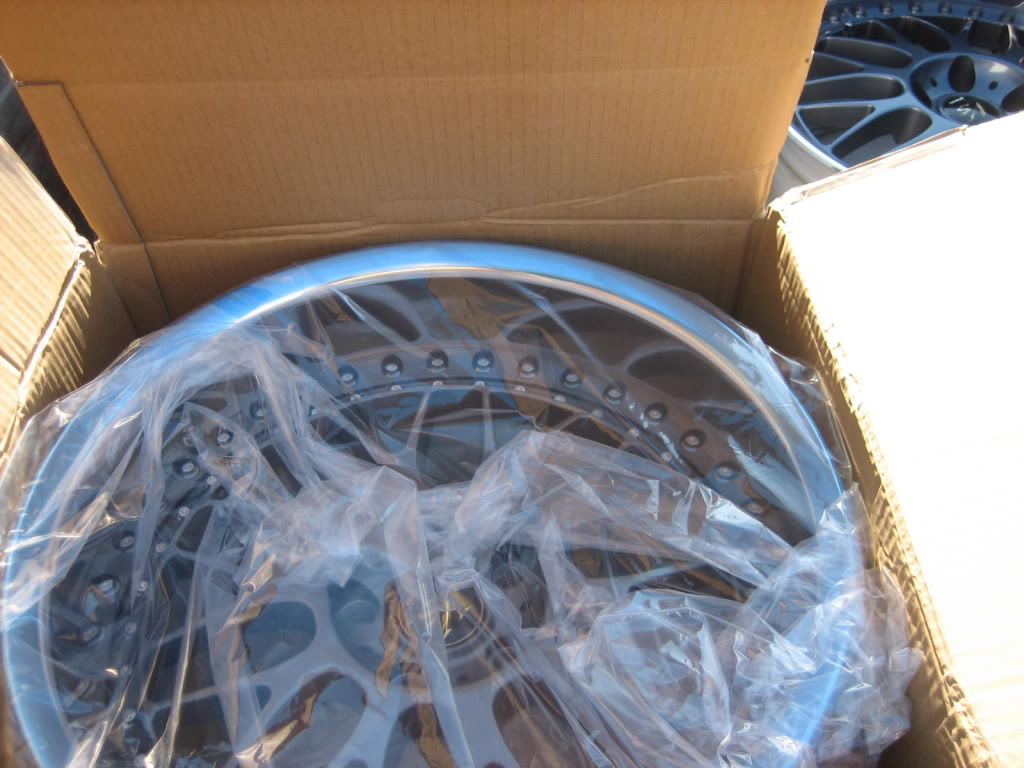

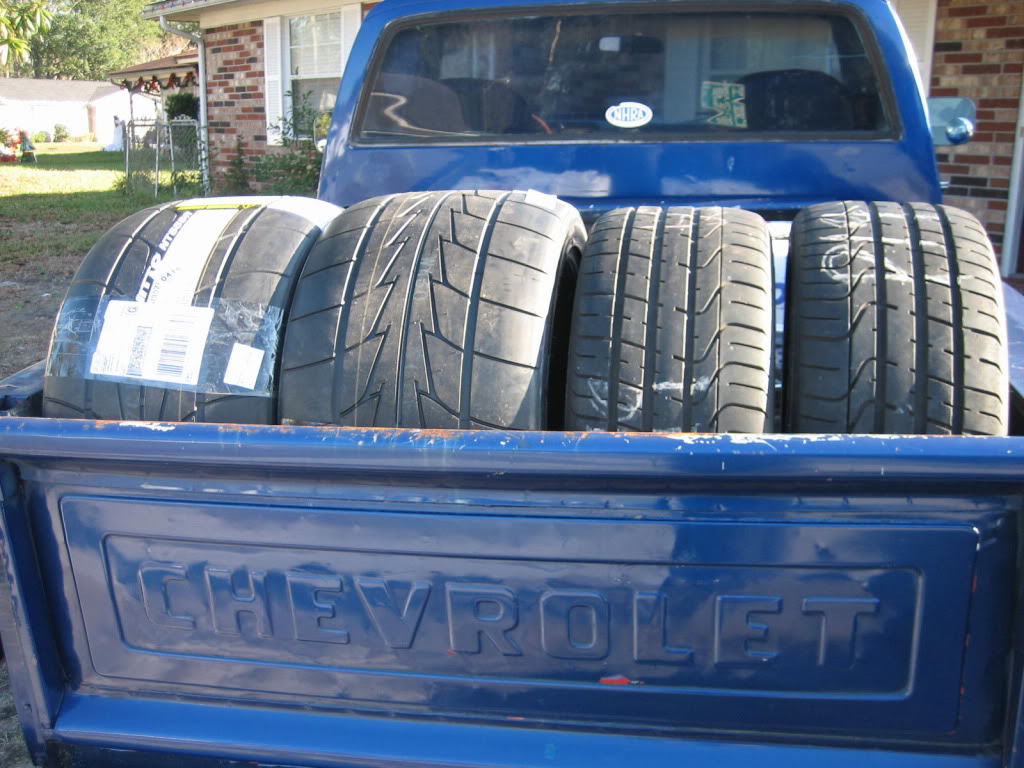

A nice set of 335's for the rear and some 235's for the front

Name:  IMG_1520.jpg
Views: 378
Size:  152.6 KB

Name:  IMG_1522.jpg
Views: 361
Size:  117.6 KB
protunedperformance is offline
Old 06-28-10, 05:17 PM
  #20
Full Member
5 Year Member
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: NOLA
Posts: 195
Likes: 0
Liked 1 Time in 1 Post

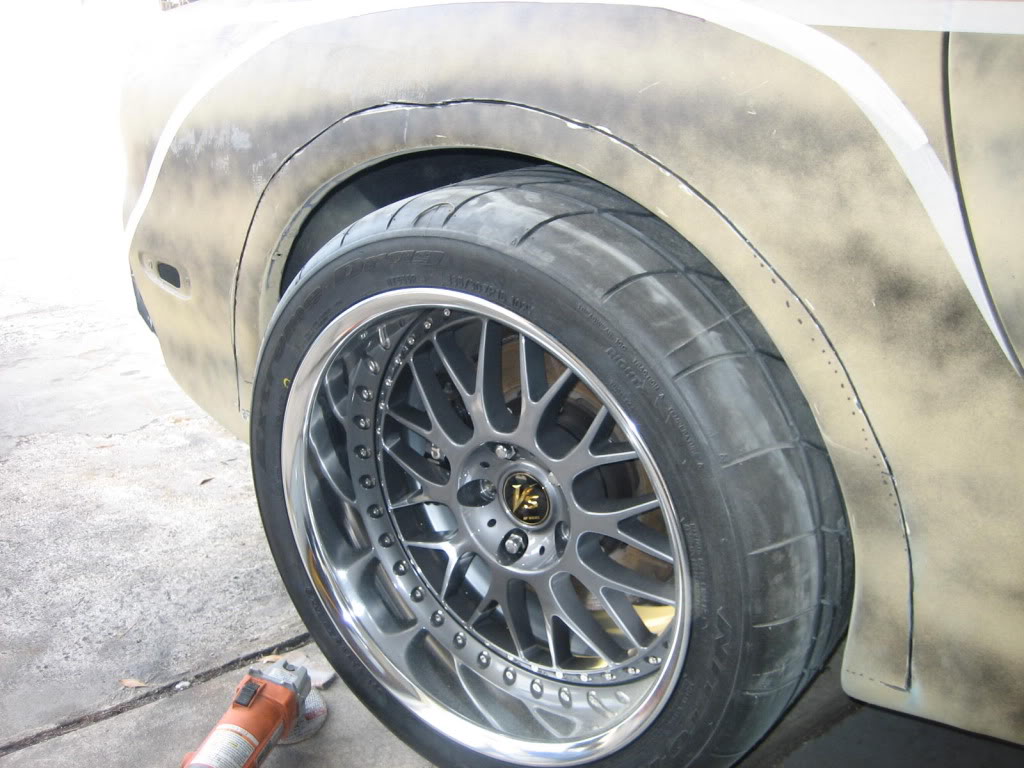

and heres the wide body, well just the rear for now...not sure if im gonna do the front.

the first cut
Name:  IMG_1927-1.jpg
Views: 376
Size:  135.5 KB

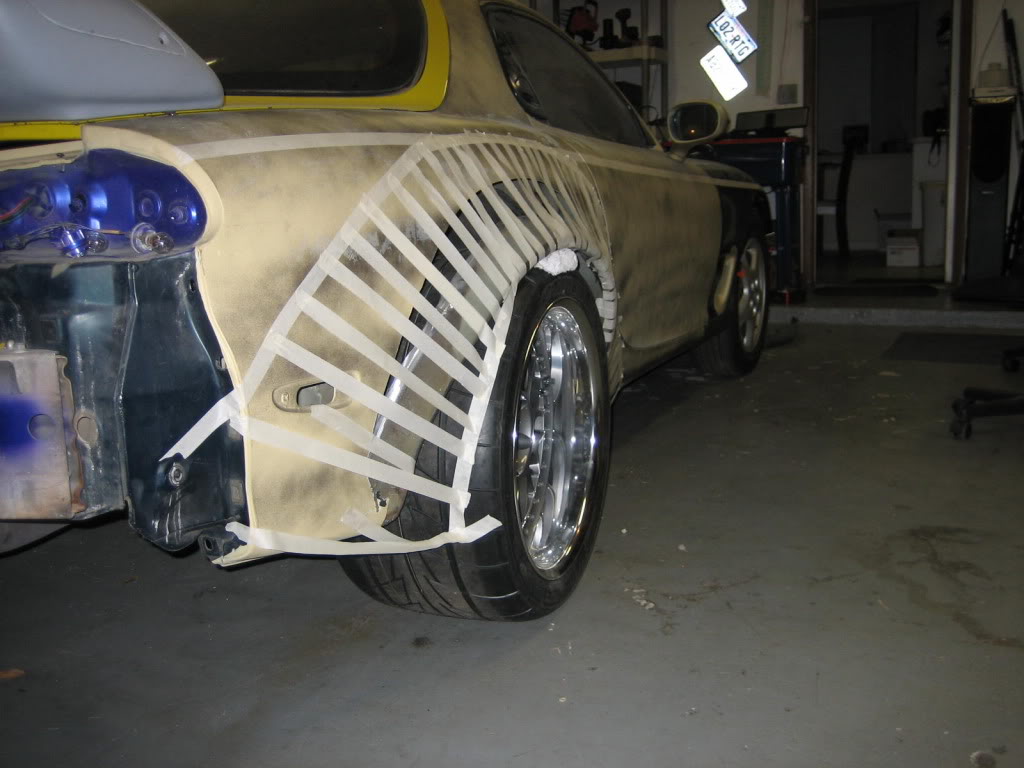

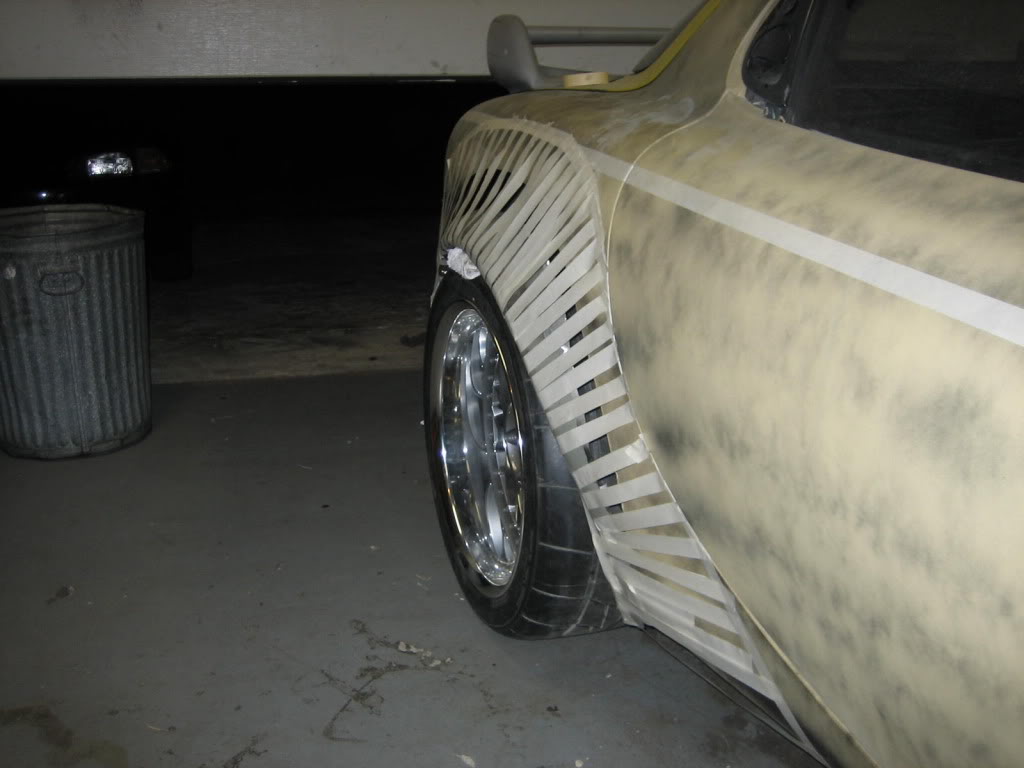

a little mock up action
Name:  IMG_1965-1.jpg
Views: 380
Size:  74.6 KB

Name:  IMG_1967-1.jpg
Views: 397
Size:  99.9 KB

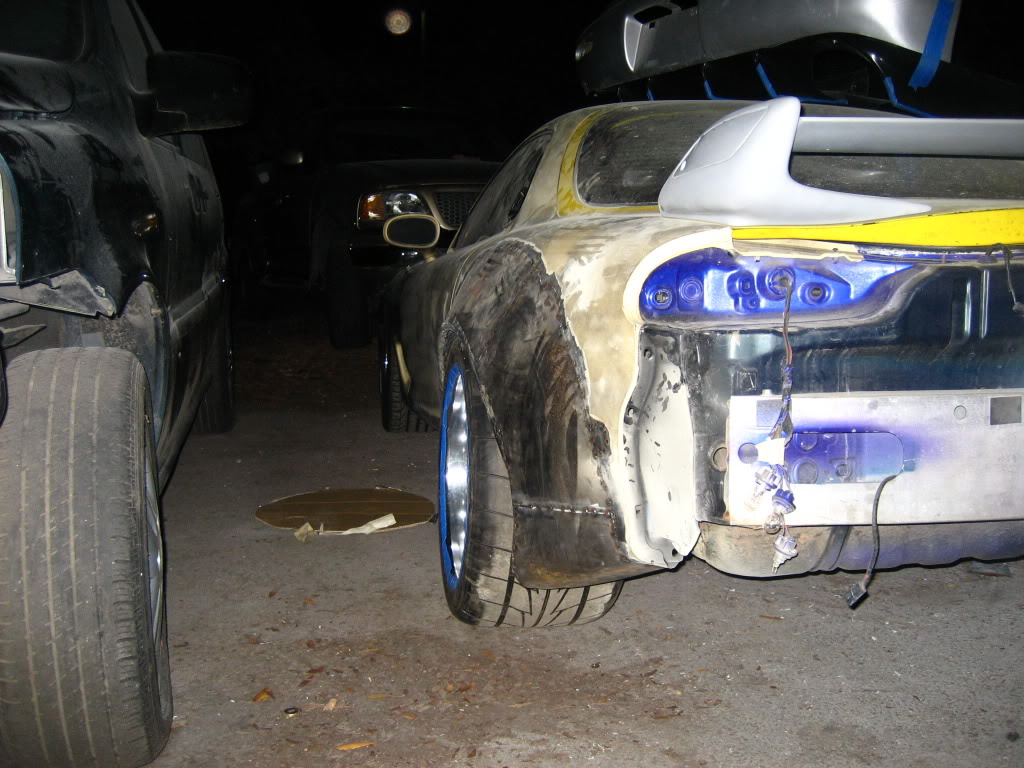

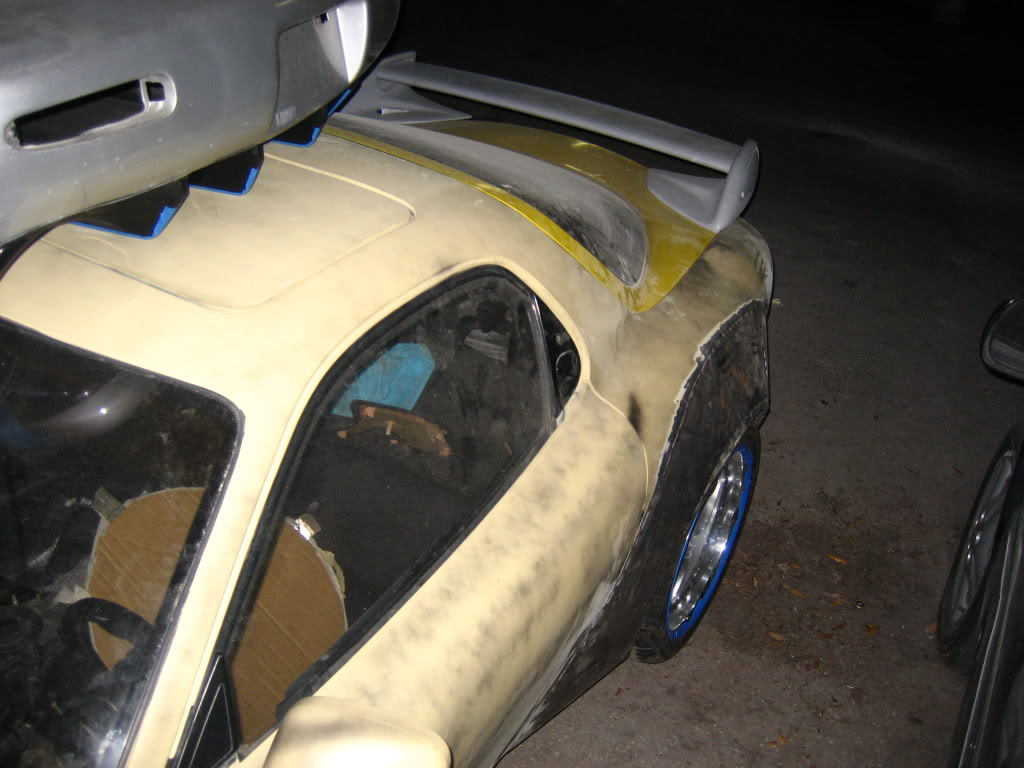

and some tack welded rear custome fenders.
Name:  IMG_2178.jpg
Views: 404
Size:  108.6 KB
protunedperformance is offline
Old 06-28-10, 05:18 PM
  #21
Full Member
5 Year Member
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: NOLA
Posts: 195
Likes: 0
Liked 1 Time in 1 Post


Name:  IMG_2180.jpg
Views: 371
Size:  154.9 KB
protunedperformance is offline
Old 06-28-10, 05:19 PM
  #22
Full Member
5 Year Member
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: NOLA
Posts: 195
Likes: 0
Liked 1 Time in 1 Post

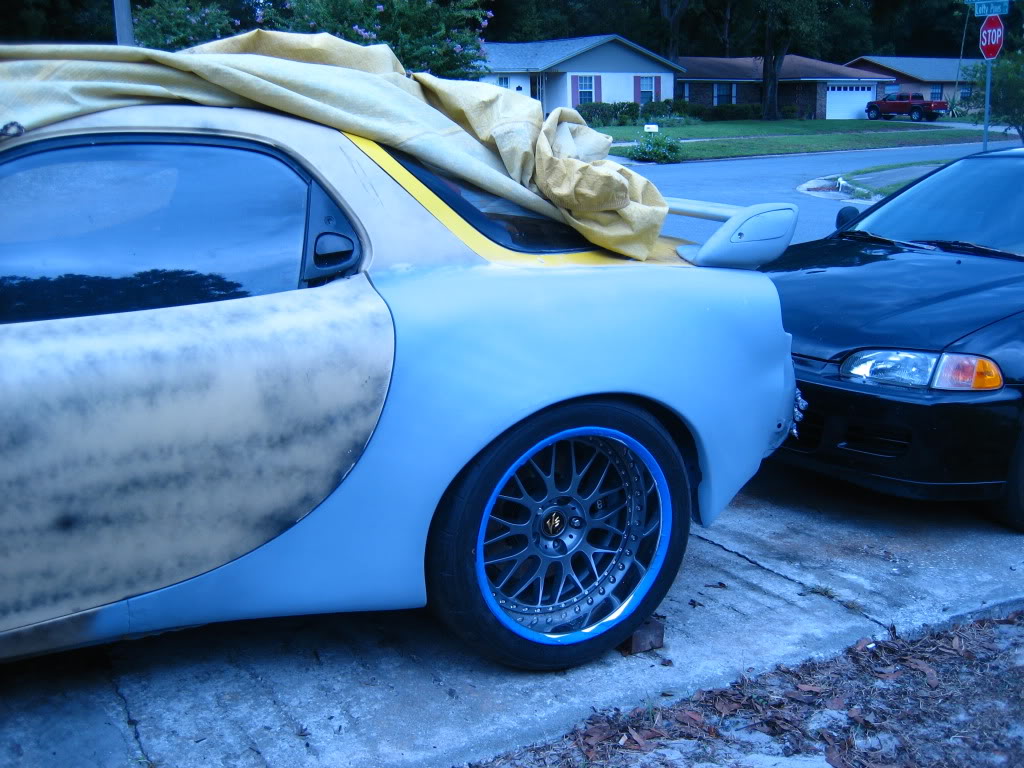

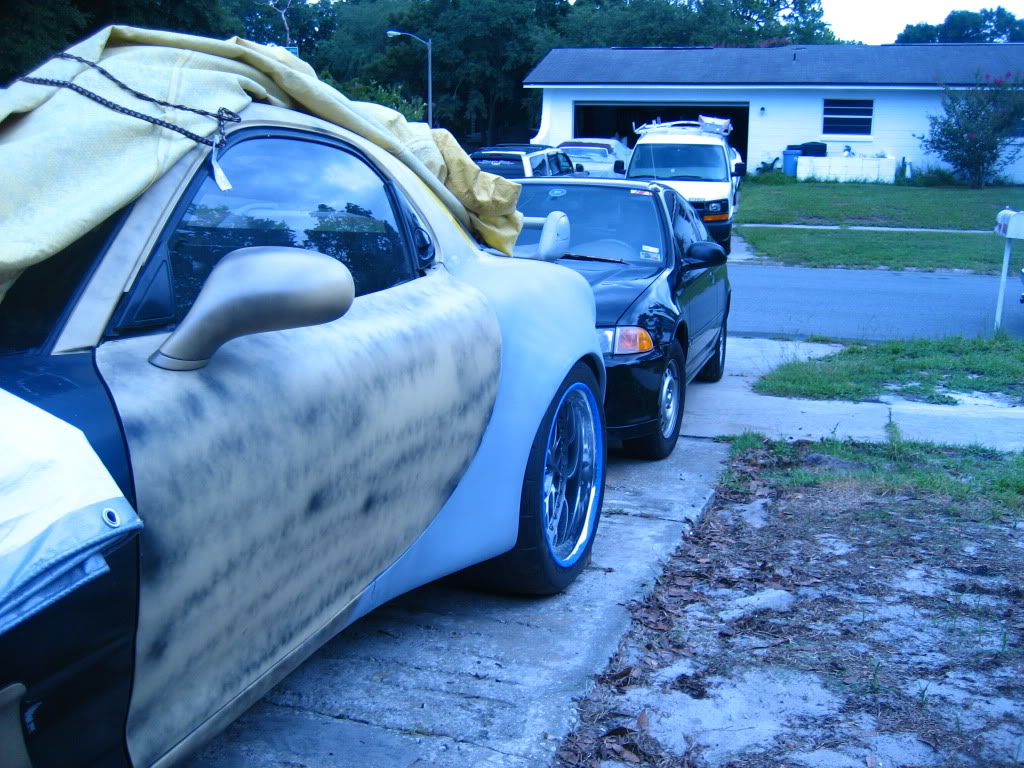

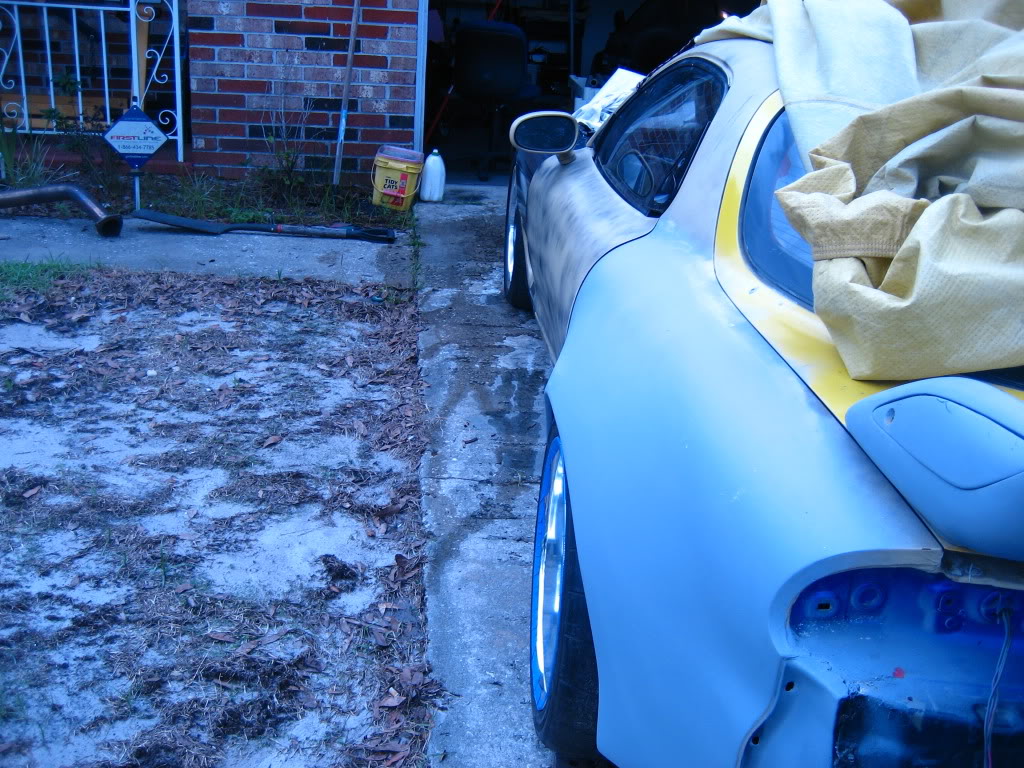

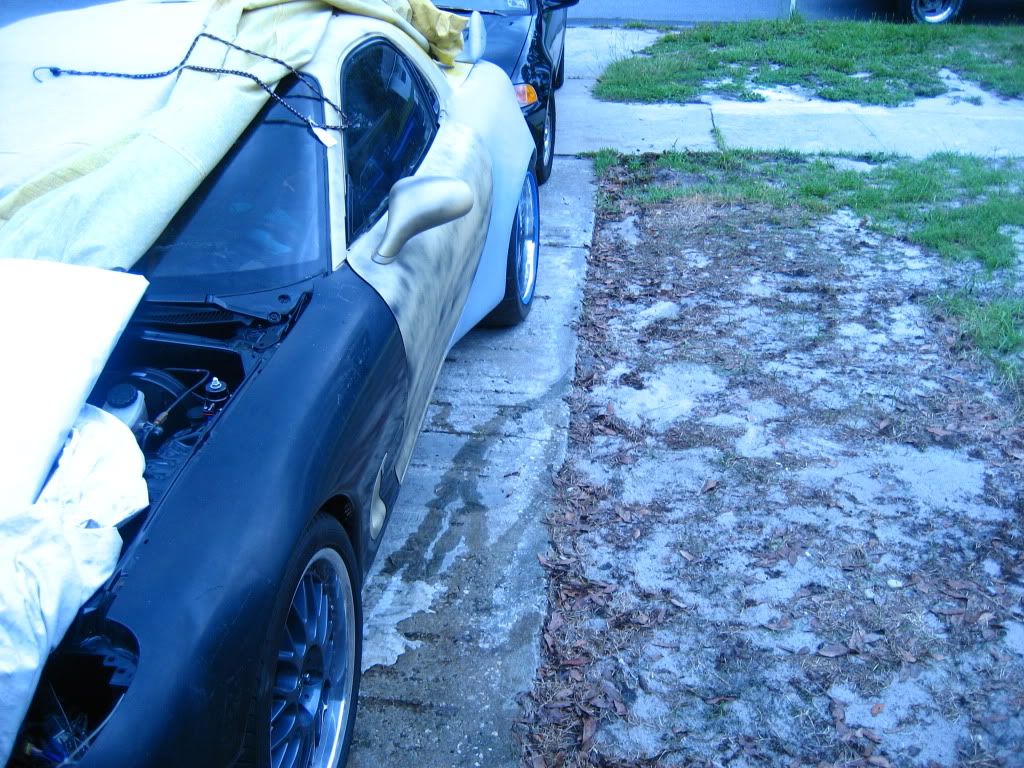

pics of the rear fenders primed and ready for paint. the wheels are not aligned and the height of the car is not set, still gotta get to that. sorry for the bad lighting.

Name:  IMG_2296.jpg
Views: 379
Size:  214.1 KB

Name:  IMG_2295.jpg
Views: 367
Size:  232.0 KB

Name:  IMG_2294.jpg
Views: 389
Size:  164.5 KB

Name:  IMG_2293.jpg
Views: 380
Size:  192.3 KB
protunedperformance is offline
Old 06-28-10, 05:40 PM
  #23
Semi P-PORT
iTrader: (1)

Join Date: Feb 2010
Location: DC Metro Area
Posts: 79
Likes: 0
Liked 0 Times in 0 Posts
Pretty sick project.
bhop is offline
Old 07-19-10, 02:10 AM
  #24
Full Member
5 Year Member
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: NOLA
Posts: 195
Likes: 0
Liked 1 Time in 1 Post

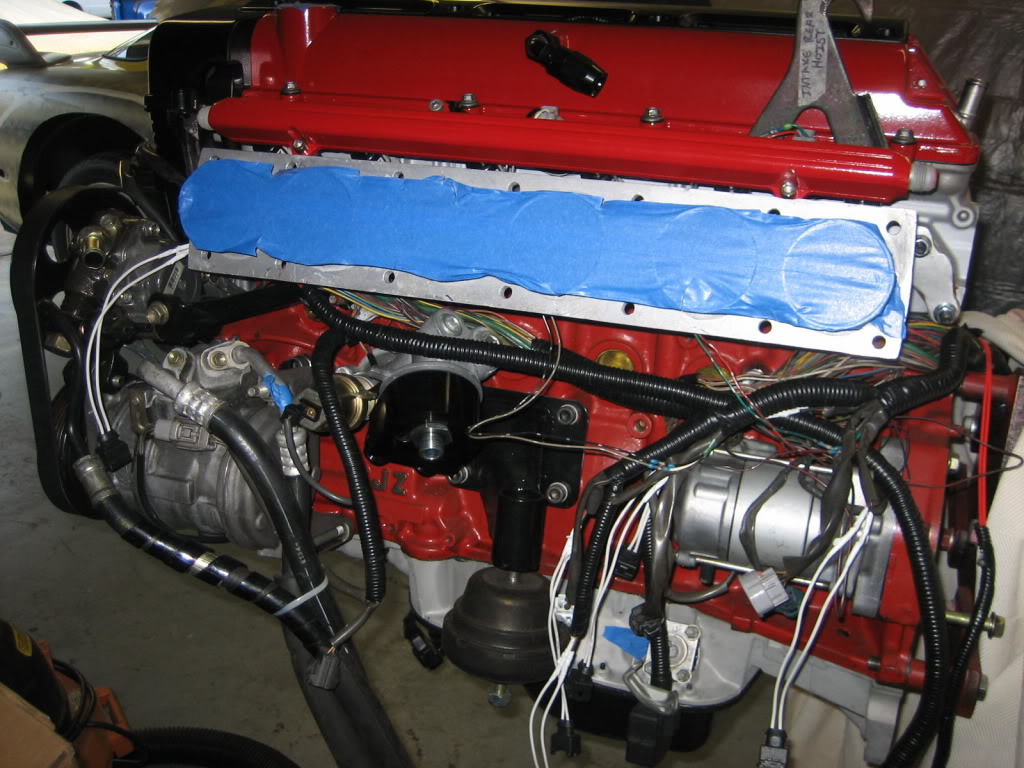

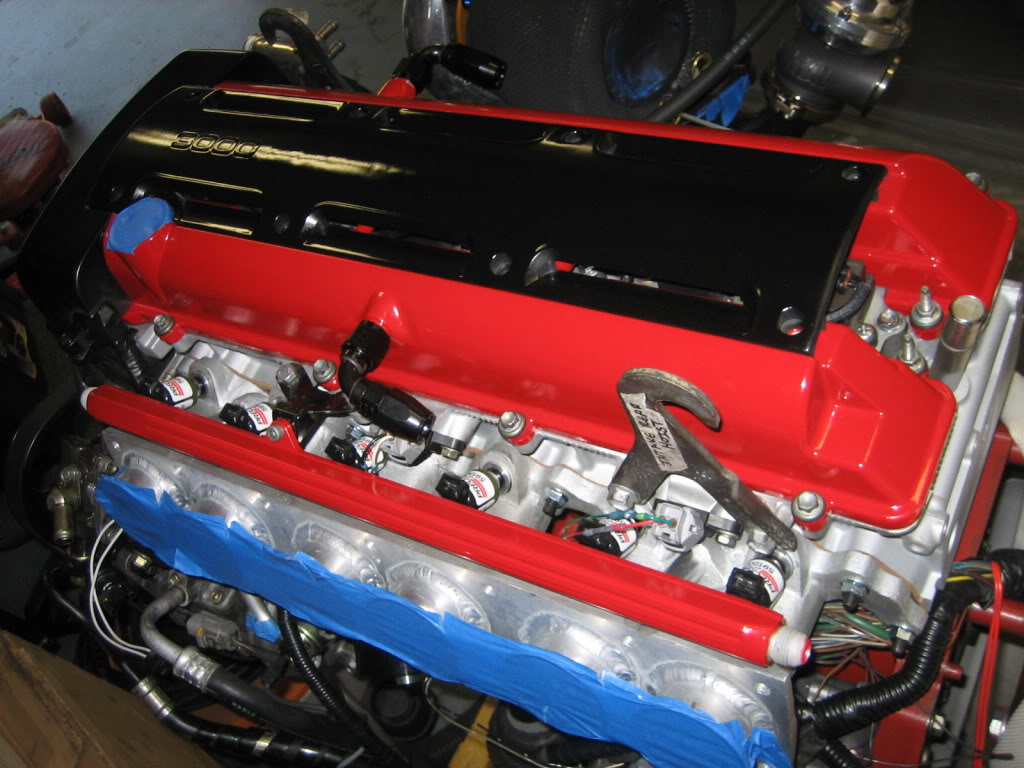

FL

Name:  IMG_2032.jpg
Views: 399
Size:  145.6 KB

Name:  IMG_2033.jpg
Views: 373
Size:  158.1 KB
protunedperformance is offline
Old 07-19-10, 03:47 AM
  #25
dorito powered
5 Year Member
iTrader: (5)

KKMpunkrock2011's Avatar

Join Date: Mar 2008
Location: Lincoln, NE
Posts: 2,839
Likes: 0
Liked 0 Times in 0 Posts
eees so shinee
KKMpunkrock2011 is offline

Thread Tools
Search this Thread
Quick Reply: 93 rx7 2JZ turbo/r154 widebody


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
