ultimatejay

iTrader: (1)

Well, I searched all over and could not find any good info so here it goes. I installed a Weber sidedraft on my rx2 with a 12a and I need a cable bracket and it looks like my stock throttle cable will not work either- the length from the adjustment nuts to the end of the cable is too short. So can anyone help me out please? Thanks

Jarrett

Siraniko

iTrader: (13)

bend a smog or alternator bracket.

EDSRX3

I used the throtle cable from an 80's Toyota Celica. It had a 2 piece cable with a separate high idle adjustment that worked well with the original RX3 separate throtle cable.

ultimatejay

iTrader: (1)

Thanks guys for the help. What throttle cable can I use? My stock one is too short at the end where it hooks up to the carb. Can I use a first gen RX7 cable?

Siraniko

iTrader: (13)

I havent tried it on a RX-2 since most of my install are IDA's. The 1st gen throttle cable, the mount where it attaches to the firewall, is a push-in type and not secured by 2 bolts in like the pre-RX-7 stuff.

If I were you, just grab the FB cable only and insert it on the RX-2 cable housing. Secure it on the other end (pedal side) with the Home Depot special (ferule or somethign similar)

ultimatejay

iTrader: (1)

Thanks Mel. My original cable is broken right were it bolts to the firewall so I need a new one anyway. Can't I just enlargen the whole in my firewall to accept the push in style throttle cable? I'll make something work out.

Siraniko

iTrader: (13)

That should be fine but be sure to fabricate some sort of plate to secure it in the firewall.

I have a spare but you need to replace the cable itself. Let me knw so I can look for it. I know its there somewhere

RX744CSP

iTrader: (4)

I made a bracket for the throttle cable on my side draft from an engine removal loop, the problem was it had to bolt to the back of the air cleaner which flexed like it was made of chewing gum. So I got a piece of 1/4" aluminum plate about 3" longer than the air filter, traced the air filter bolt circle and various openings on it with an 'ear' sticking off of one end where the cable needed to mount and cut out all the various holes etc. I drilled a hole in the ear and slotted it on one side so I could slide the cable into the hole. I used slightly longer air filter mount bolts and nylon lock nuts to bolt it all up, it's super rigid. The 1st gen throttle cable had plenty of length for that setup.

ultimatejay

iTrader: (1)

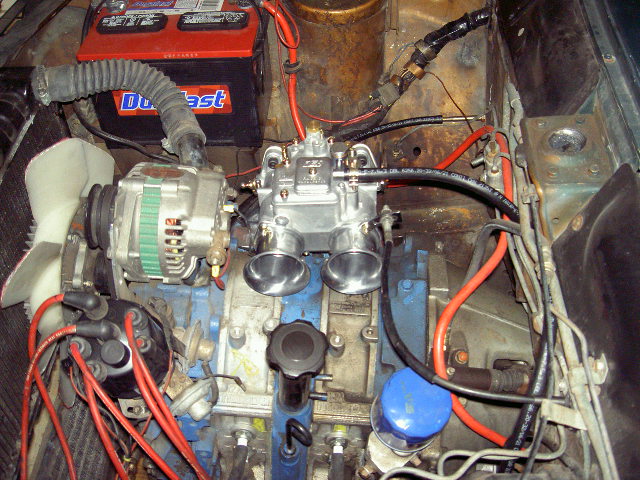

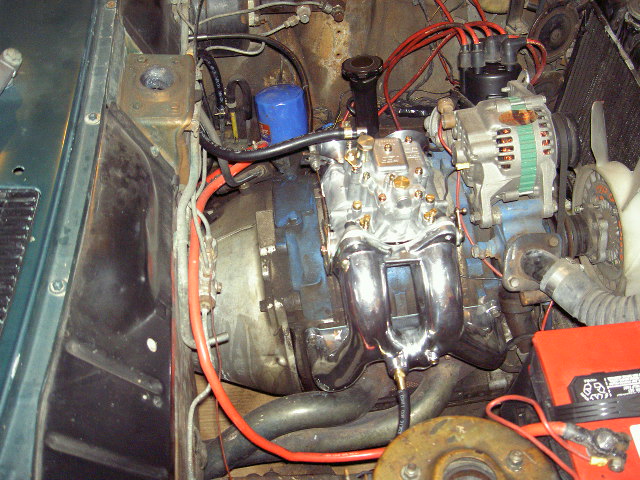

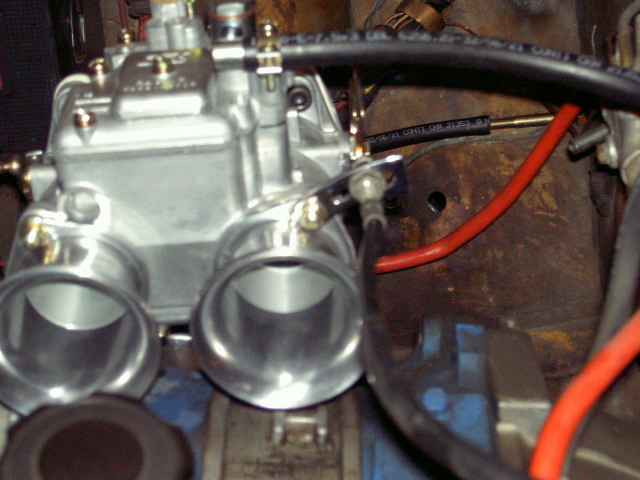

Alright I fixed my throttle cable and custom made a throttle bracket out of a throttle return spring bracket for a Chevy carb that I got from Autozone. I had to cut it a little bit and grind, but it turned out really well. I mounted it on the carb horn upper bolt. What do you guys think?

This carb/manifold set up is a one piece manifold and the carb is a Weber 48 I thinked choked down to a 47. Robert from Rotary Shack turbo prepped the carb for, The Wankler- Chris, and I bought it from him. I thought it was going to be way overjetted, but other than a split second bog if you romp on it at idle, it screams all the way through the powerband and my motor is a stock late model 12a. I match ported the intake ports as the manifold had the small primary intake ports. I also blocked the OMP and am pre mixing. I was very surprized by the power difference from my stock NIkki to this setup. I am guessing well over 30+hp. I have a RB header and single exhaust to a magna flow muffler. This is what's going to hold me till I save enough money for the 20b implant. I might turbo the 12a since this carb is ready to go. Well see. Thanks for the help guys.

Jarrett

ultimatejay

iTrader: (1)

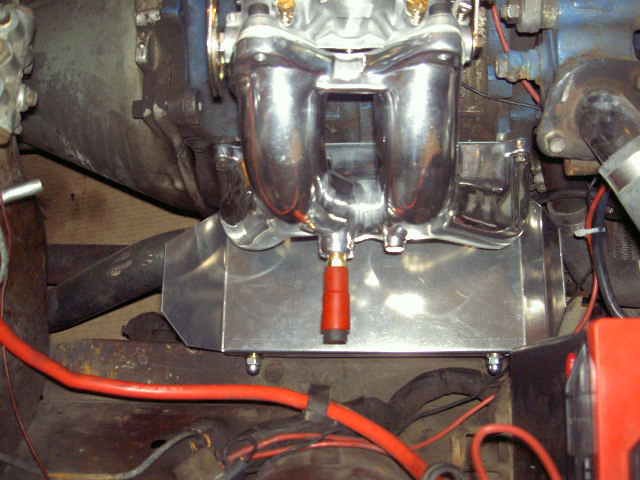

Here's a couple more shots and one with the new Racing beat heat shield. It works great.

Jaime Enriquez

Hey Ultimatejay...can I see a better pic of the shiny piece you are using to mount the cable to the carb itself?...or can you tell me where you got it. The one on my dco is completely different and sucks.

ultimatejay

iTrader: (1)

Jaime, the first pic above is pretty clear. I can try to get a real close up shot but my camera sucks. I used a throttle return spring bracket for a large 4 barrel american carb set up. I got it from Autozone. It was like 4 bucks. So far it works really well. As long as I get full throttle, nothing else matters. hehe.

680RWHP12A

im glad the carb is workin out for ya!!!... stop by the shop and we will try to get rid of the full throttle bog
oh, and please clean your engine bay for god sakes!!
