Old 03-10-13, 11:45 AM
  #176
E85 Addict

Thread Starter

gusfd3s's Avatar

Join Date: Jun 2007
Location: Stockholm
Posts: 519
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by tinytyrant
my general activities in a build.. loosen, remove, clean/replace, every now and again hammer/grind/cut something.

this build is ballistic... i am impressed to the point of being ashamed.
Wow, thanks!
gusfd3s is offline
Reply Like
Old 03-10-13, 12:04 PM
  #177
E85 Addict

Thread Starter

gusfd3s's Avatar

Join Date: Jun 2007
Location: Stockholm
Posts: 519
Likes: 0
Received 2 Likes on 2 Posts
Im going back to 13b as for now, all motor mounts etc will still work with the 20b but i still miss to many parts and dont want to spend that kind of money right now.

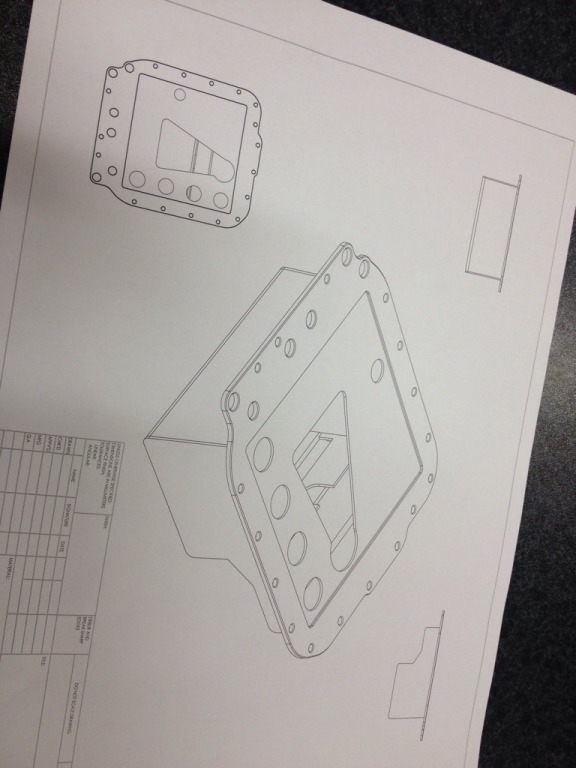

Stock oil pan wont fit with the new subframe so ive drawn a new one
Name: ADDD30DE-991B-42C0-9AFB-A1536CBE1AA0-18066-00001D777F901795_zpsca5fa871.jpg Views: 284 Size: 70.9 KB

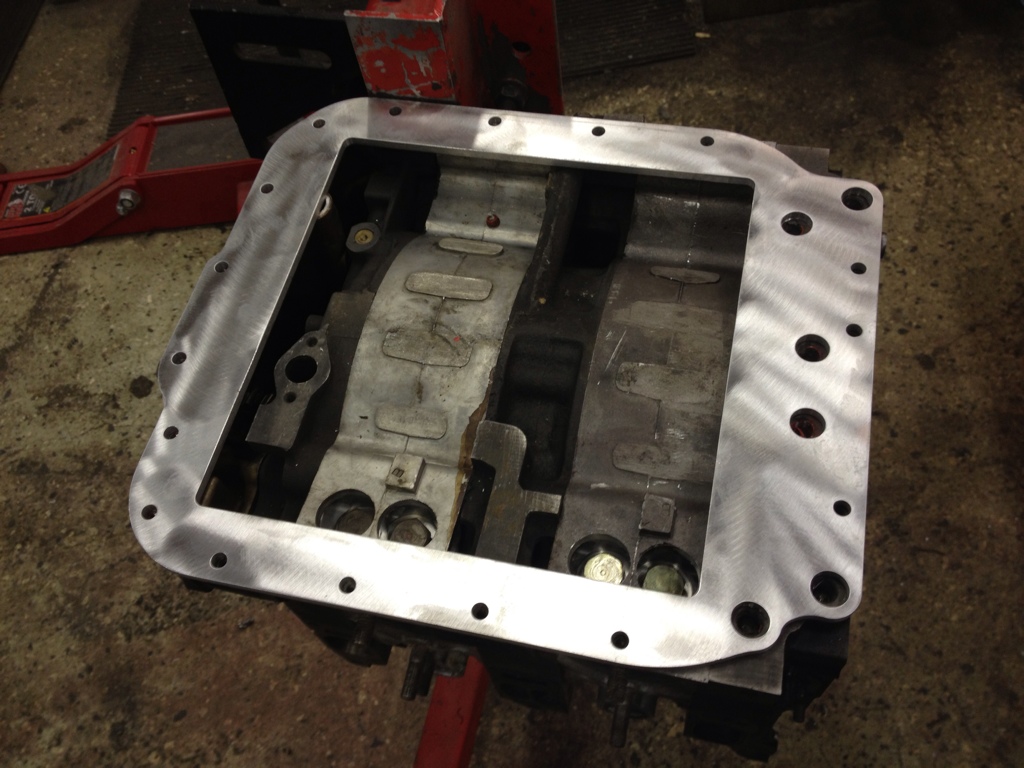

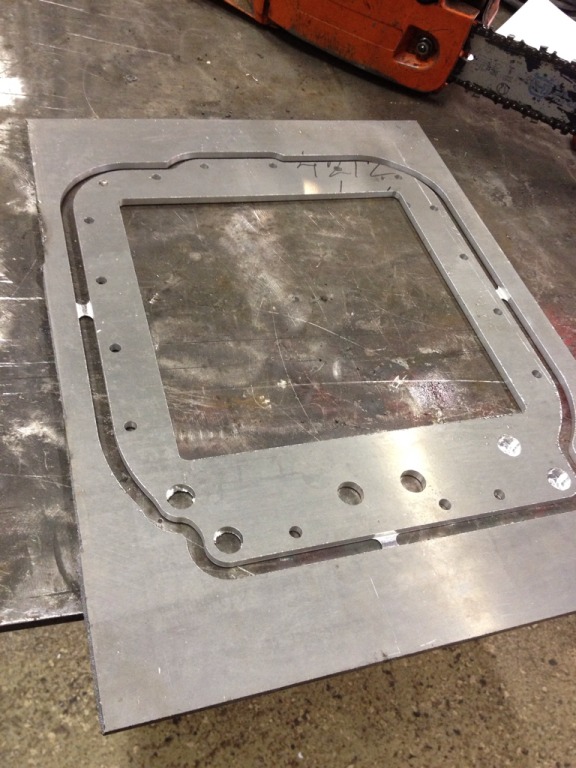

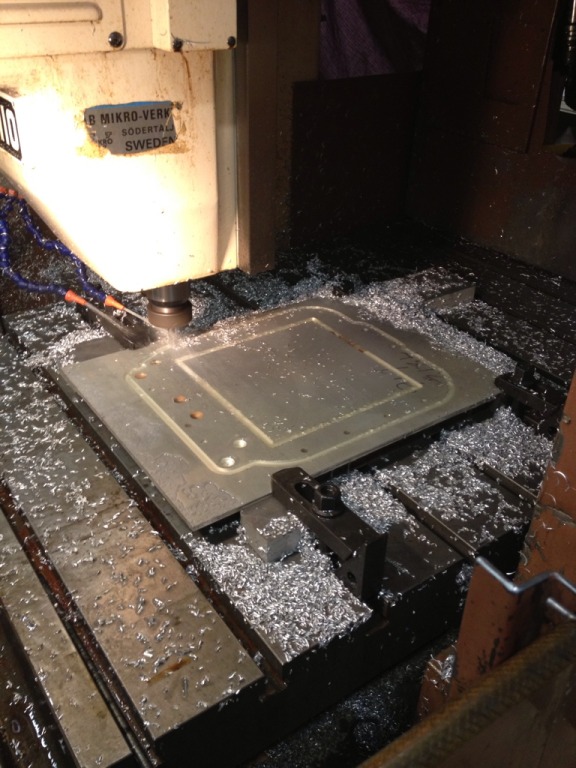

Milled out a 6mm thick flange
Name: 1DBA7592-F9B0-41EE-8BEF-E76F374895FB-18066-00001D7C45E25102_zps09a47c33.jpg Views: 260 Size: 125.9 KB
Name: F2242F1D-7C5F-4883-BEDB-74953EB3A63D-18066-00001D778483C798_zps89cc74c6.jpg Views: 259 Size: 123.2 KB
Name: 03EE0268-3E4F-4895-A909-C14383E0BFA5-18066-00001D778B1BDCD5_zps3a201653.jpg Views: 299 Size: 249.8 KB

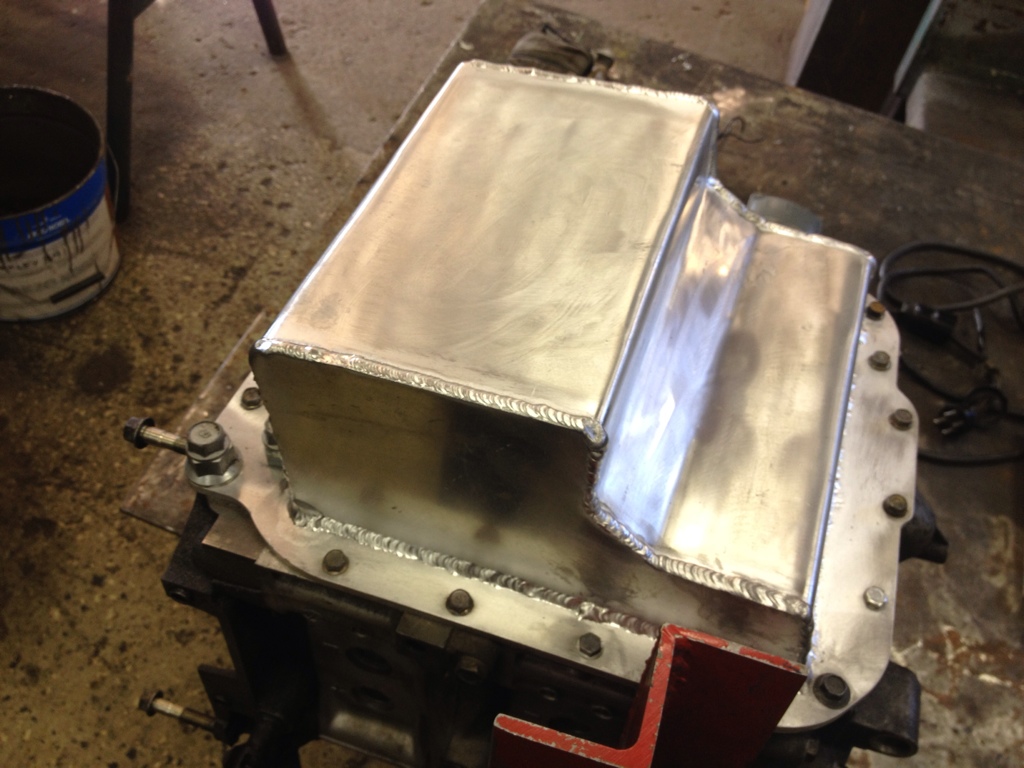

My 200amp welder didnt like the 6mm flange, i blew 4 fuses in total :-) i need more seat time on alu welding...
Name: A927F842-D463-47AE-8CE0-82472810A911-18066-00001D779744E529_zps25f0f425.jpg Views: 265 Size: 234.6 KB

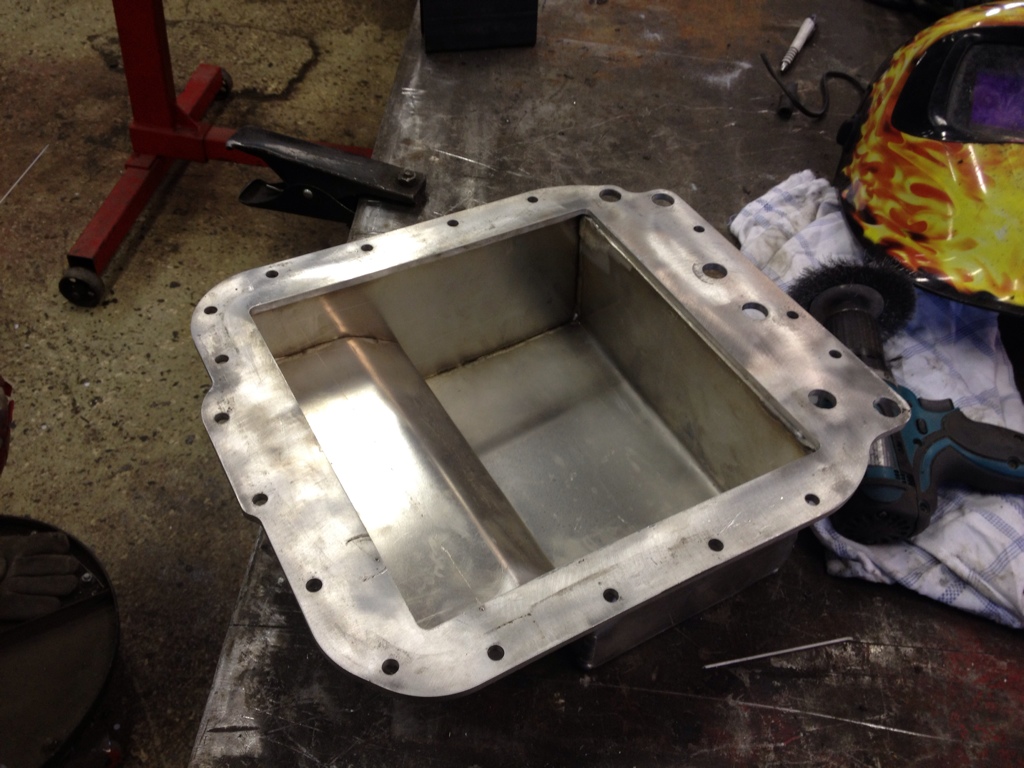

Will add baffles etc later
Name: 9F4008C3-F9FA-4105-93E5-30861CD08BD0-18066-00001D77A7174302_zpsabbda602.jpg Views: 265 Size: 261.3 KB

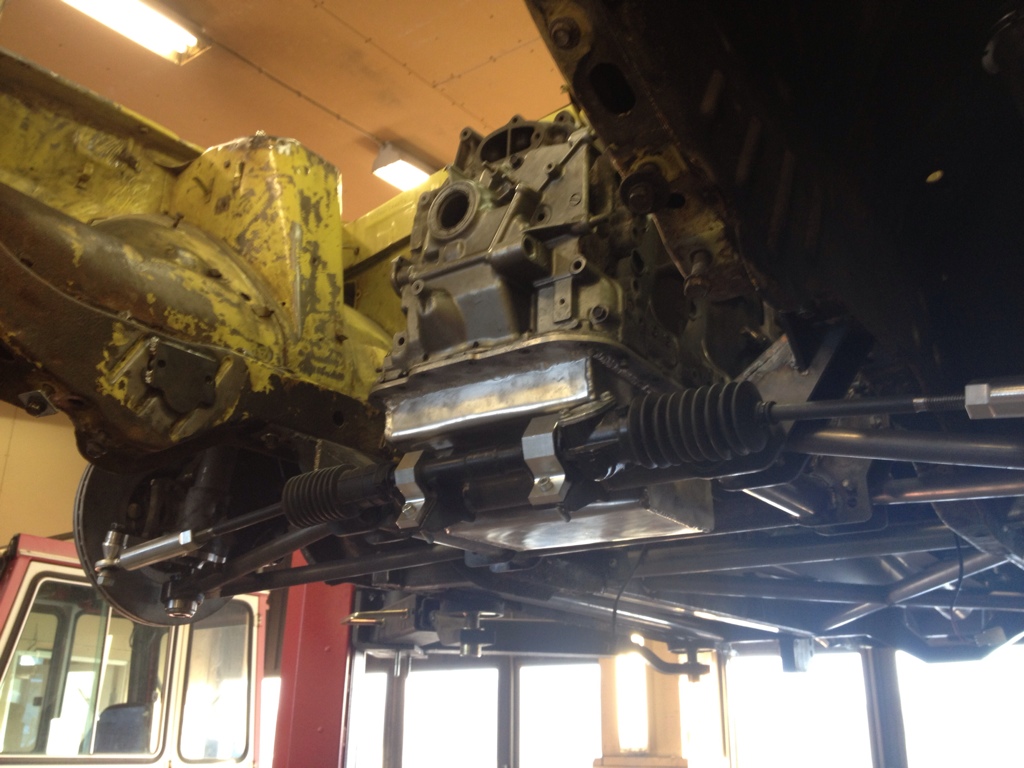

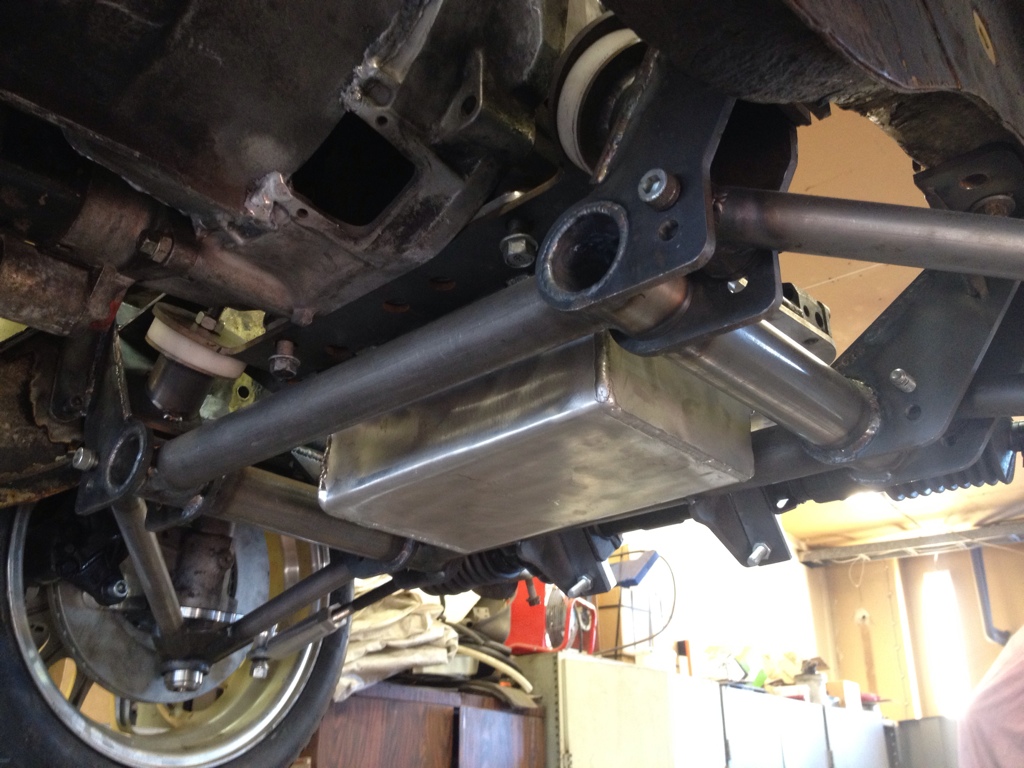

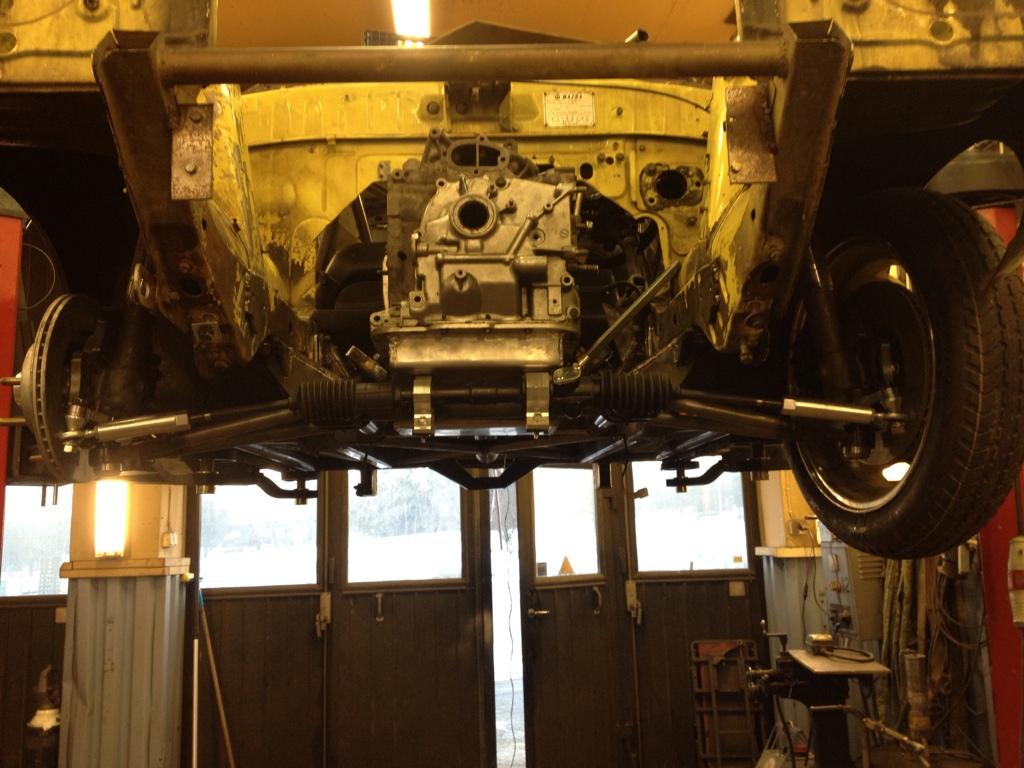

Test fit
Name: BA8A6614-2F08-48BD-ABBA-8AFBBB741E8B-18066-00001D77A20E03C7_zpsb8e26dbe.jpg Views: 262 Size: 234.6 KB
Name: DC3FC49F-CB93-4F5A-BC92-669BBA872A3B-18066-00001D779C7D935F_zpsd6824ab1.jpg Views: 264 Size: 265.4 KB
Name: C192DB13-D3E3-4047-899D-02F4D2FC5BA3-18066-00001D77AC870922_zps2baeb118.jpg Views: 282 Size: 286.3 KB
gusfd3s is offline
Reply Like
Old 03-10-13, 12:13 PM
  #178
RX for fun

iTrader: (13)

Siraniko's Avatar

Join Date: Aug 2001
Location: Socal
Posts: 15,926
Likes: 0
Received 22 Likes on 19 Posts
very nice.
Siraniko is offline
Reply Like
Old 03-11-13, 02:30 AM
  #179
Full Member

Stredrotor's Avatar

Join Date: Nov 2009
Location: Tasmania, Australia
Posts: 99
Likes: 0
Received 0 Likes on 0 Posts
Loving this build.

I would like to do somthing like this with my spare Mazda 929 (RX4) hardtop shell.
Stredrotor is offline
Reply Like
Old 03-29-13, 12:25 PM
  #180
E85 Addict

Thread Starter

gusfd3s's Avatar

Join Date: Jun 2007
Location: Stockholm
Posts: 519
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by Stredrotor
Loving this build.

I would like to do somthing like this with my spare Mazda 929 (RX4) hardtop shell.
Dont forget to start a thread when you do! :-) i really like your 20b build!

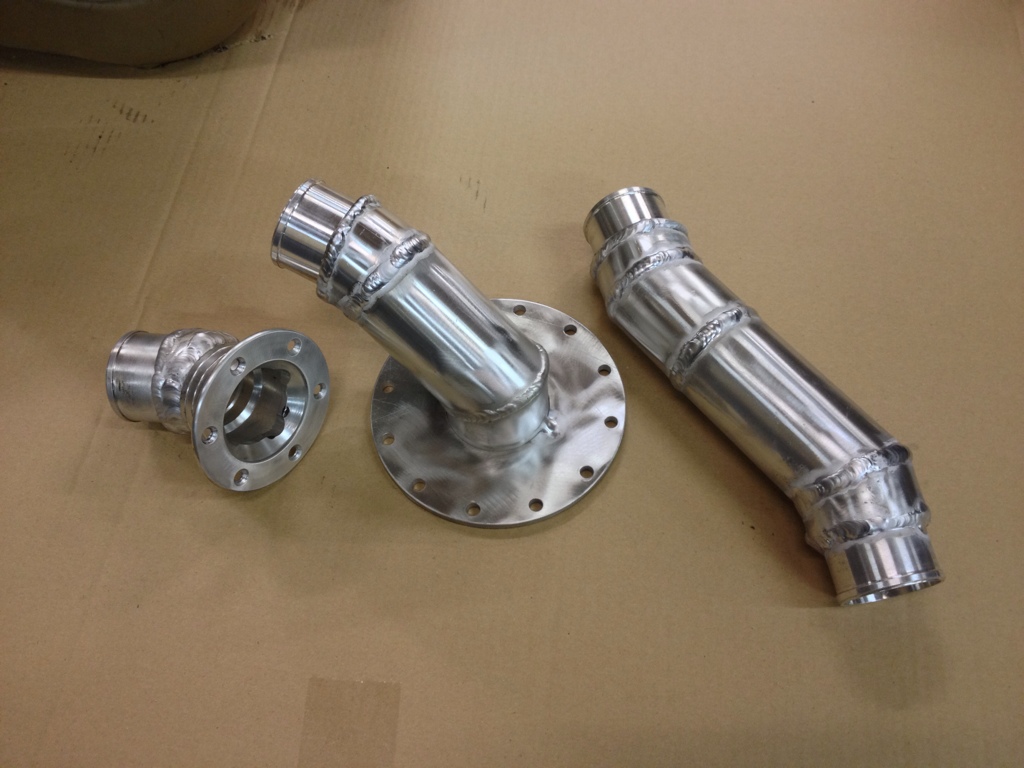

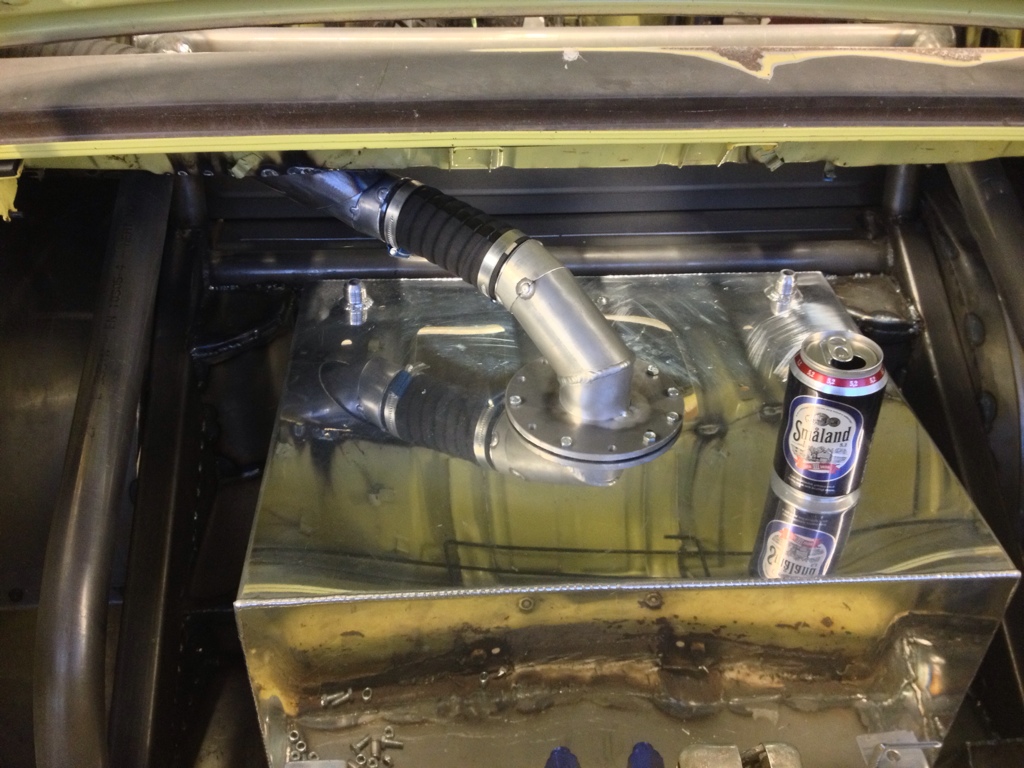

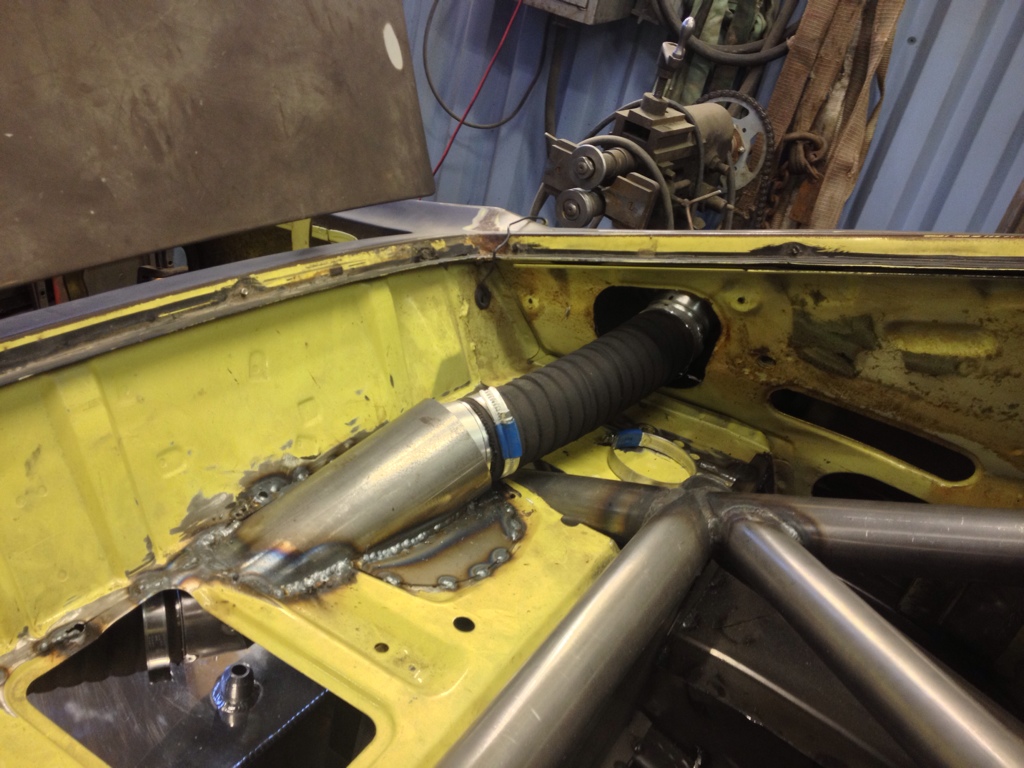

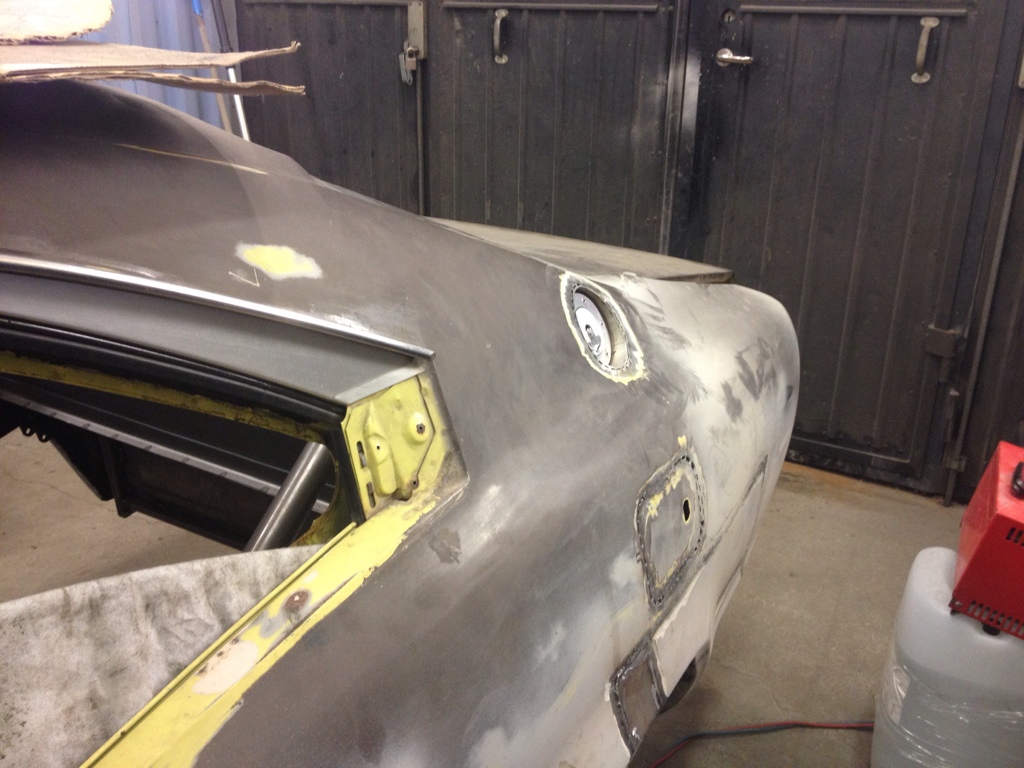

New filler neck
Name: 2A2A6D63-DEF8-4E9E-AF3C-FB0431CA0D7B-1426-0000020E1741EE67_zps662542a1.jpg Views: 268 Size: 274.4 KB
Name: 8D48F00D-191E-437E-A9AD-E2216151ABED-1426-0000020E2403DF81_zpsc0aae86f.jpg Views: 289 Size: 267.0 KB
Name: B6956D77-3973-4028-BF5B-371977CE8984-595-00000122A4B64232_zps31f1e7c0.jpg Views: 278 Size: 213.8 KB
Name: E4790185-136A-45D6-B9CB-34EEBEF9834F-1426-0000020E3305DB4F_zps2ee42b27.jpg Views: 259 Size: 262.3 KB

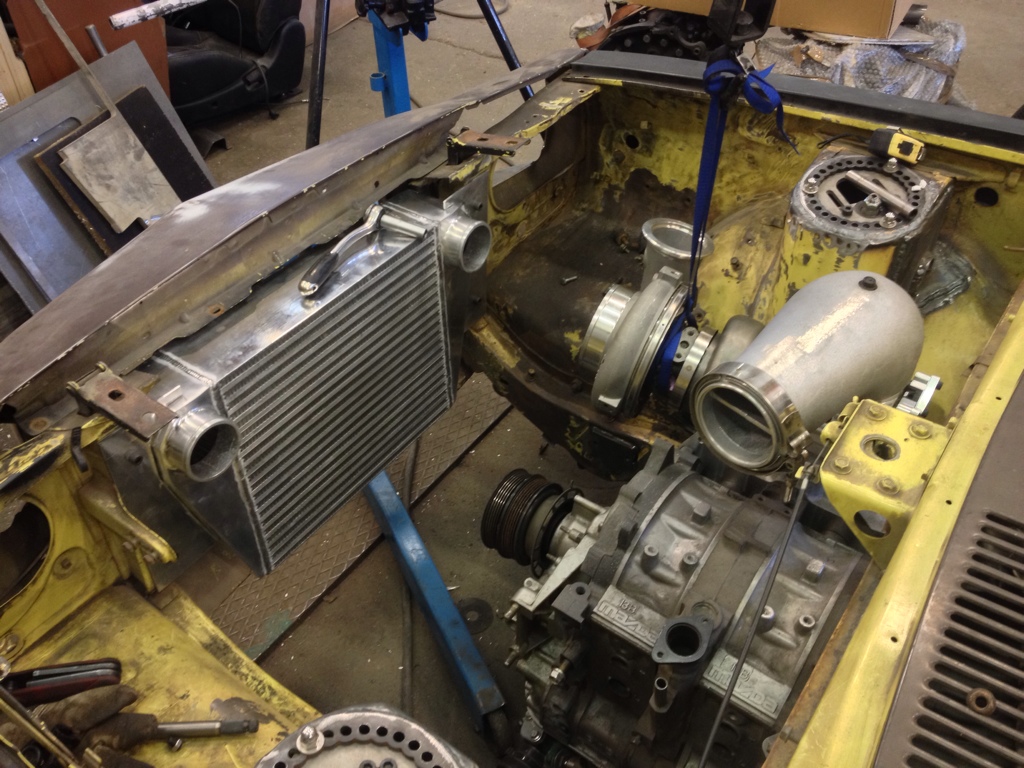

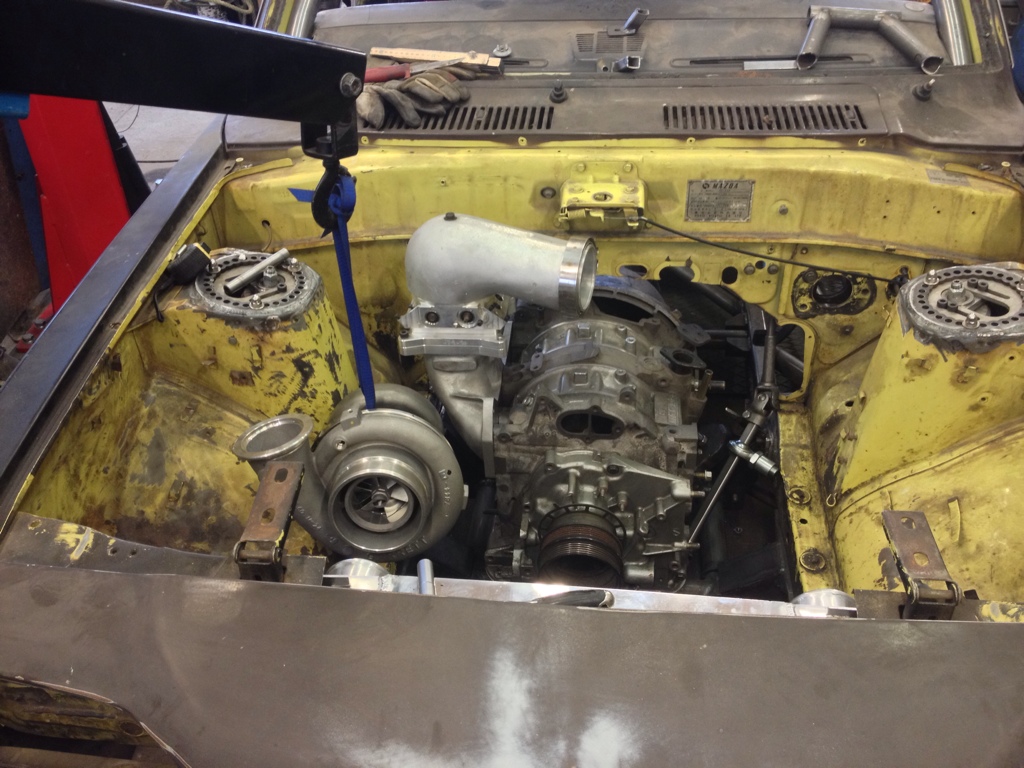

And some new candy :-)
Name: C1456717-38FB-4D49-9C42-559FEA833C3D-1426-0000020DF9456BB9_zpsbb190fa6.jpg Views: 268 Size: 302.3 KB
Name: 8B47DF54-FC17-40A1-8A1D-9EA06961D529-1426-0000020E00798AF8_zpse9668908.jpg Views: 268 Size: 333.6 KB
gusfd3s is offline
Reply Like
Old 03-29-13, 01:04 PM
  #181
Senior Member

iTrader: (1)

mazda1200's Avatar

Join Date: Dec 2006
Location: fontana CA.
Posts: 610
Likes: 0
Received 0 Likes on 0 Posts
looking nice .
mazda1200 is offline
Reply Like
Old 03-31-13, 01:16 PM
  #182
E85 Addict

Thread Starter

gusfd3s's Avatar

Join Date: Jun 2007
Location: Stockholm
Posts: 519
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by mazda1200
looking nice .
Thank you sir!

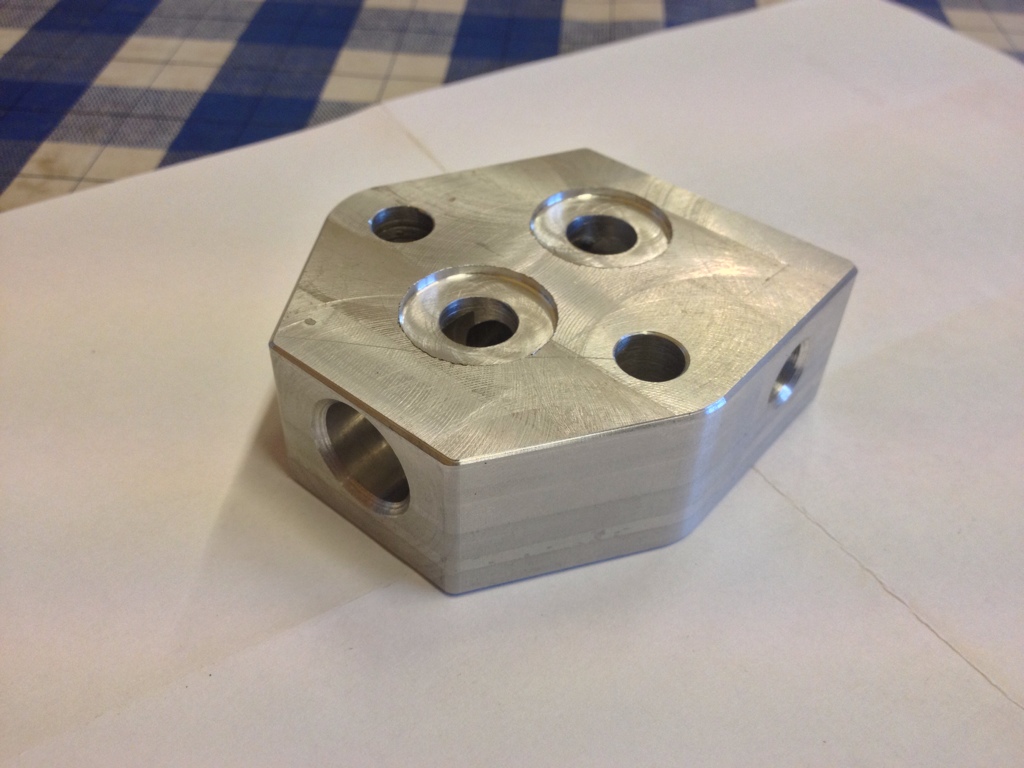

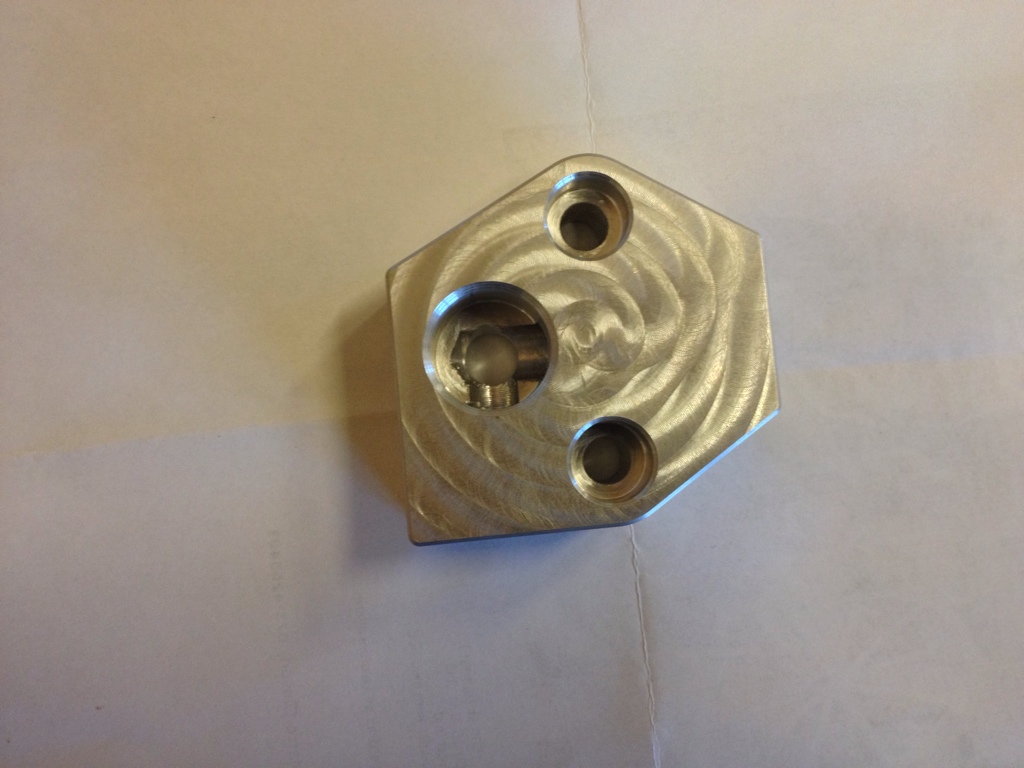

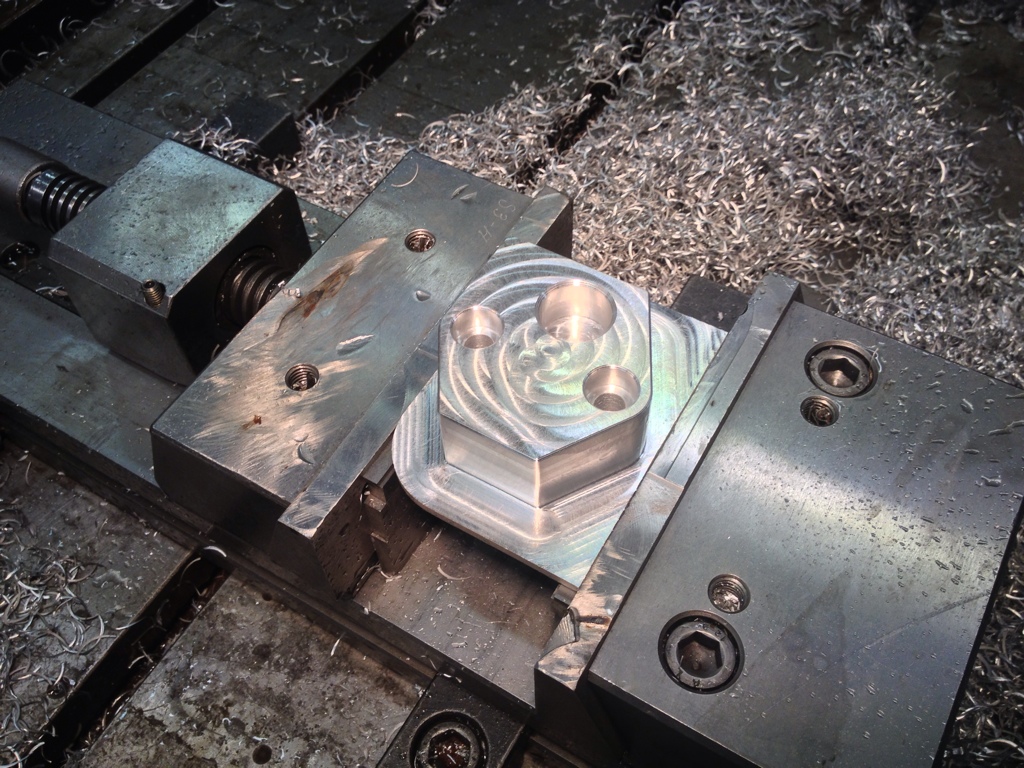

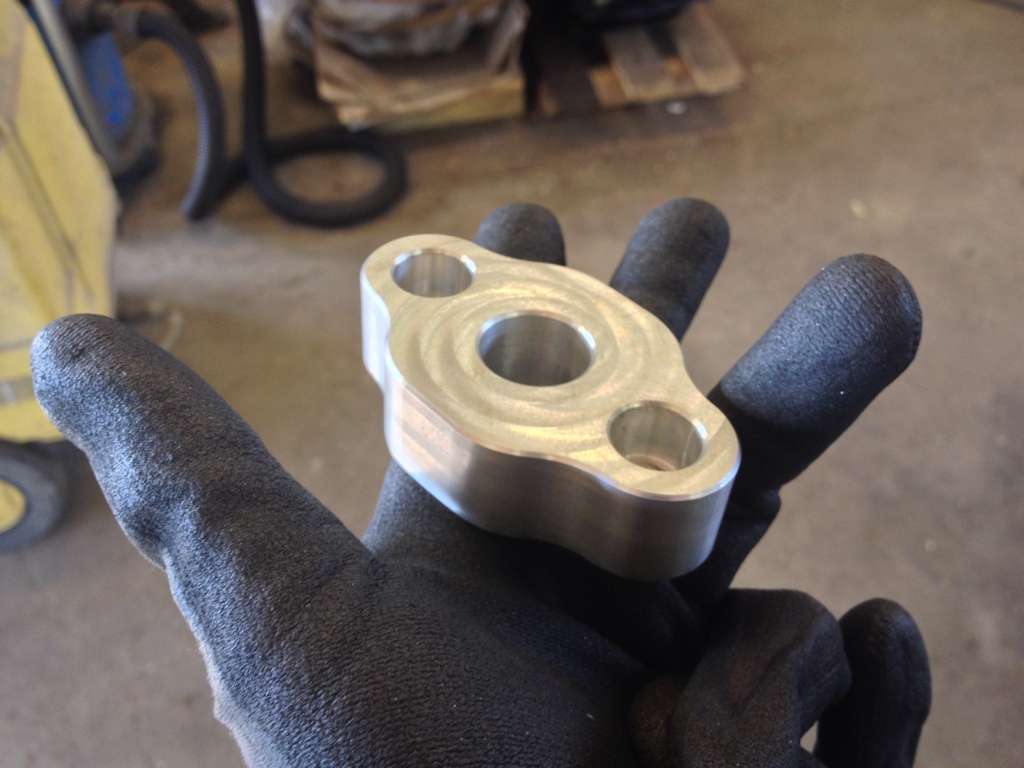

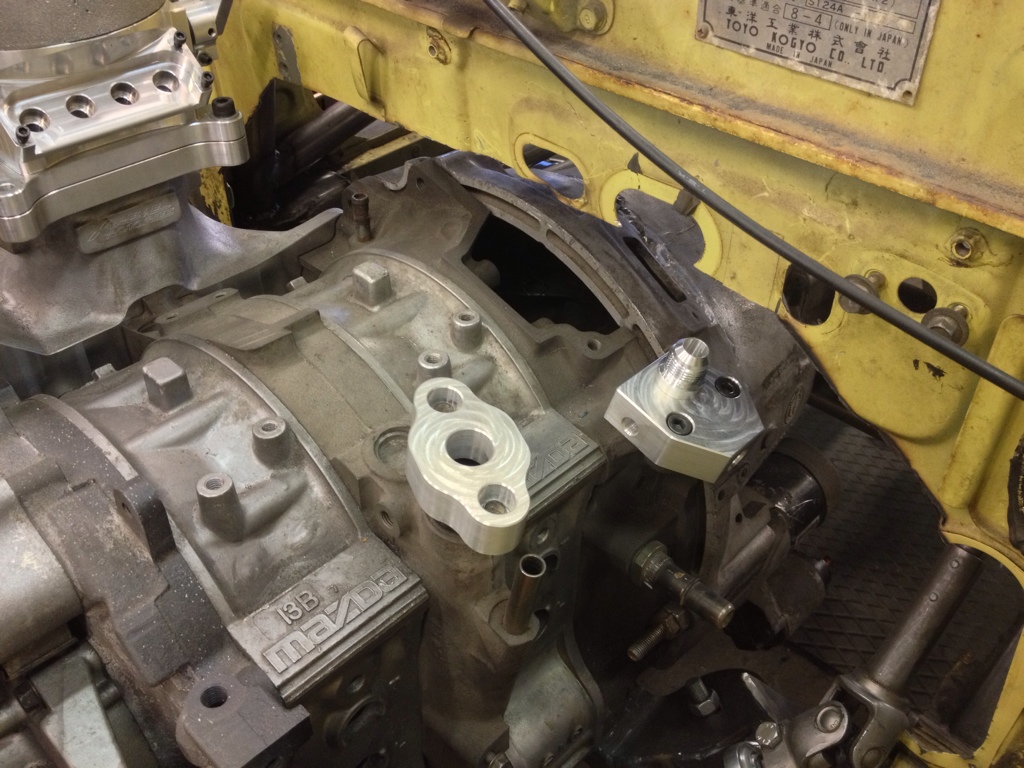

Mini update!

Name: 55F28187-CE57-4FC0-946E-F6CD3A12771F-145-0000000577832D59_zps9fd54d84.jpg Views: 254 Size: 225.5 KB
Name: 3E6C8C69-B880-4300-A217-36FEB1CB6818-145-0000000582D2B7B4_zps662d489f.jpg Views: 252 Size: 393.0 KB
Name: FF420BBE-0341-4970-9240-B63BD1C30CFB-145-00000005A89E49B2_zpsf1363027.jpg Views: 267 Size: 187.9 KB
Name: 5153A85F-1358-47A1-8E81-15DF04EE3FF4-145-00000005B0F853B1_zps9ae38e07.jpg Views: 256 Size: 202.7 KB
Name: F01C0A93-D37D-4567-8131-0F2E4D8F079E-145-00000005B6E9AB56_zps8bf02509.jpg Views: 255 Size: 310.3 KB
gusfd3s is offline
Reply Like
Old 03-31-13, 02:42 PM
  #183
Full Member

iTrader: (1)

bo0557's Avatar

Join Date: Feb 2009
Location: UK
Posts: 141
Likes: 0
Received 0 Likes on 0 Posts
Very very nice build mate - you are very skilled in your machining and skills awesome work!!!
bo0557 is offline
Reply Like
Old 03-31-13, 09:24 PM
  #184
Senior Member

iTrader: (1)

mazda1200's Avatar

Join Date: Dec 2006
Location: fontana CA.
Posts: 610
Likes: 0
Received 0 Likes on 0 Posts
what motor is it and what gas are you running on it.
mazda1200 is offline
Reply Like
Old 04-01-13, 03:57 AM
  #185
E85 Addict

Thread Starter

gusfd3s's Avatar

Join Date: Jun 2007
Location: Stockholm
Posts: 519
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by mazda1200
what motor is it and what gas are you running on it.
It is a rew engine and will be running e85
gusfd3s is offline
Reply Like
Old 04-04-13, 01:50 PM
  #186
E85 Addict

Thread Starter

gusfd3s's Avatar

Join Date: Jun 2007
Location: Stockholm
Posts: 519
Likes: 0
Received 2 Likes on 2 Posts

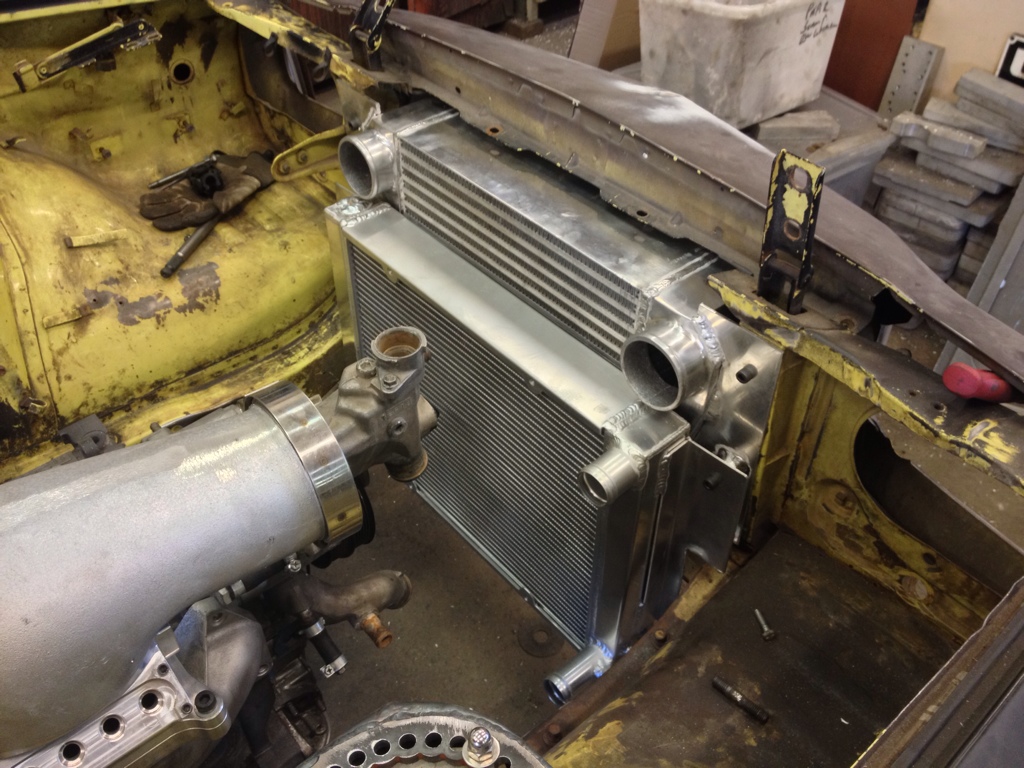

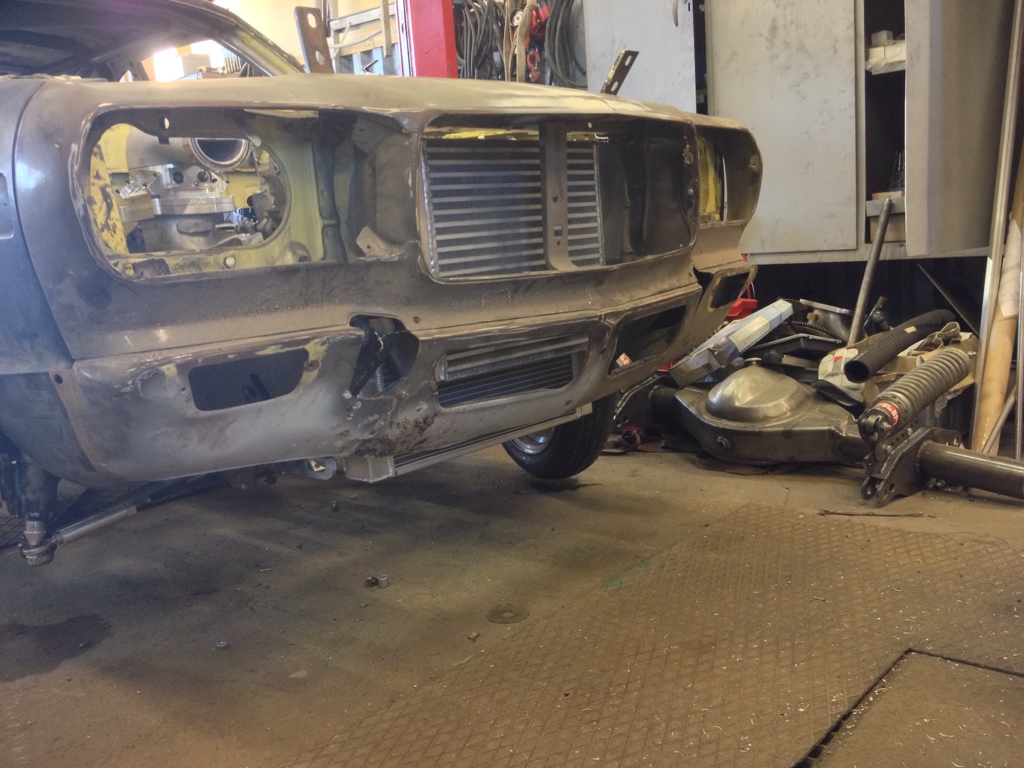

Water cooler
Name: D0A54CCA-D43A-46E2-8F92-A30A5023CB14-3197-000004D37DF38255_zpsae989815.jpg Views: 253 Size: 317.7 KB
Name: 8CD6B4F5-8B41-4369-9ECF-4EB75818F91B-3197-000004D387799172_zps157c1053.jpg Views: 245 Size: 284.1 KB

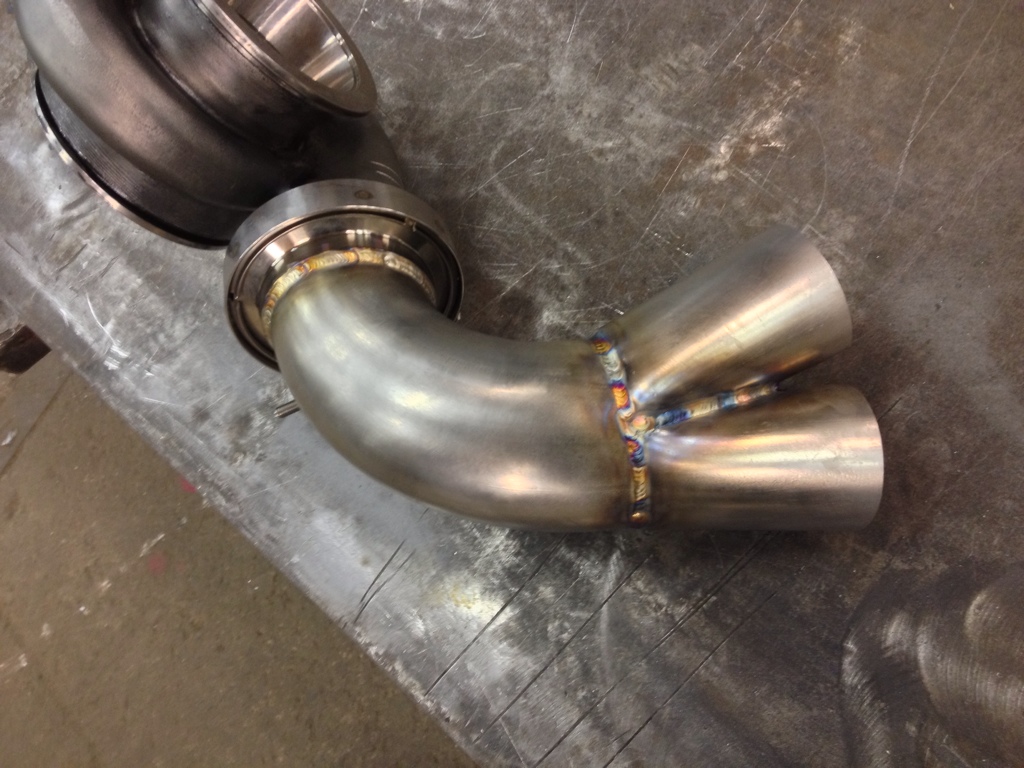

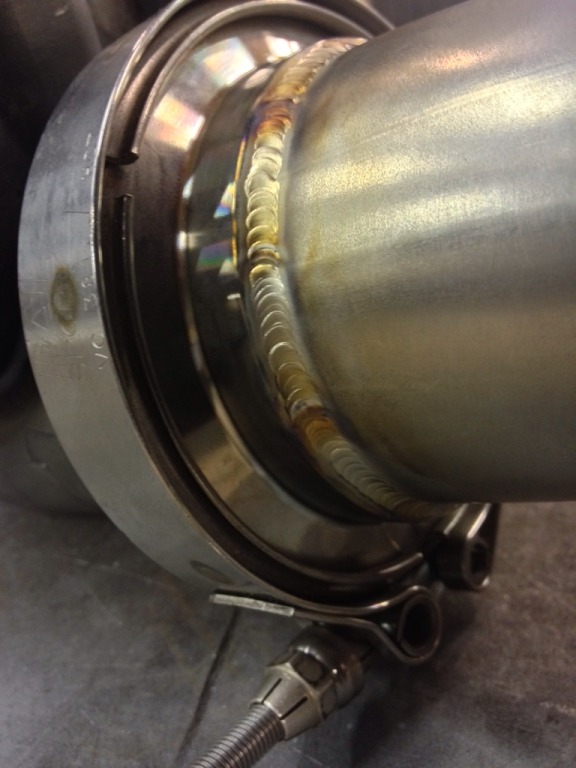

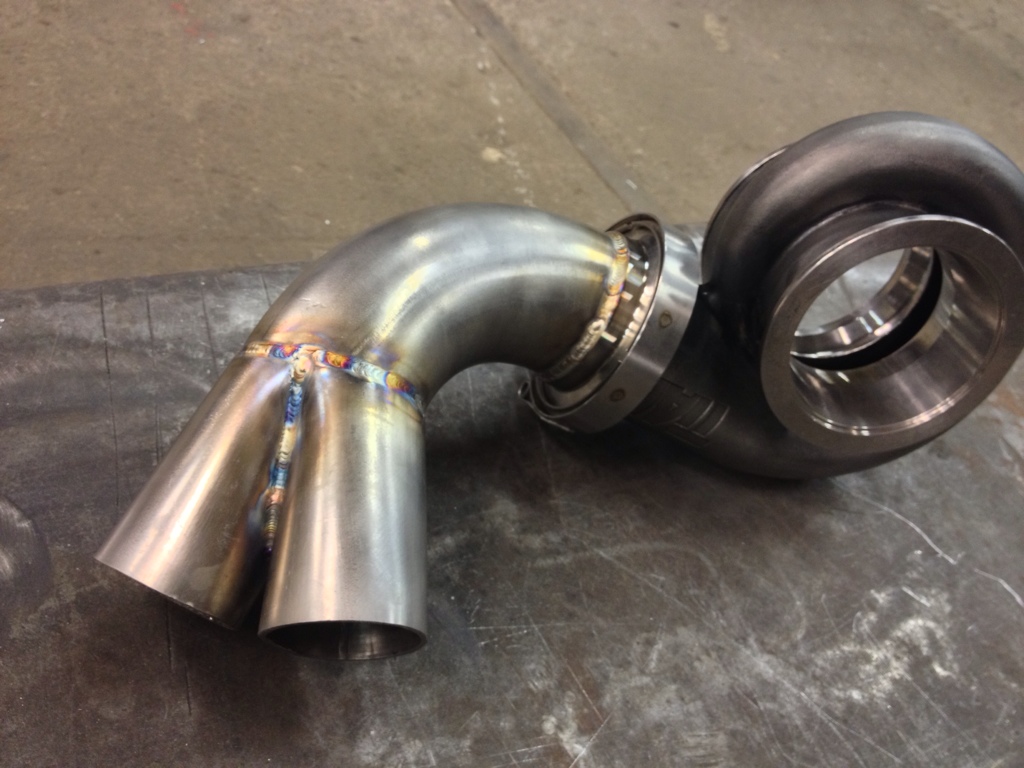

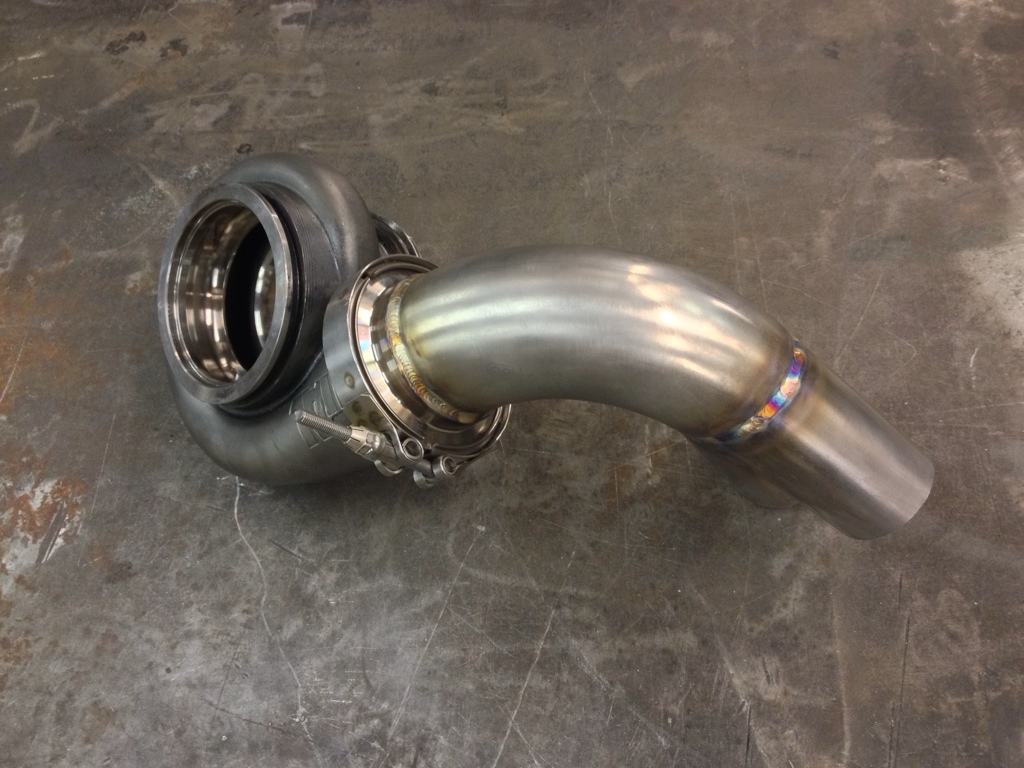

Started on the turbo manifold, finished the collector tonight.
Name: 1779B18E-B42D-40EE-9206-F462F1320306-3197-000004D3A642C354_zps441bb98b.jpg Views: 260 Size: 227.7 KB
Name: 2A1535AC-1BC0-4B4D-91EE-A3118376E6B9-3197-000004D395D11A47_zpsfe7e7347.jpg Views: 245 Size: 269.8 KB
Name: 01038453-C134-4E05-A028-F7A0A0E24678-3197-000004D39B810CD2_zps4d76da26.jpg Views: 272 Size: 274.7 KB
Name: E58B841D-3AF7-46E5-8050-7E5B63056E12-3197-000004D3A15C1B70_zps31468c29.jpg Views: 252 Size: 84.3 KB
gusfd3s is offline
Reply Like
Old 04-04-13, 01:55 PM
  #187
Senior Member


Customisbetter's Avatar

Join Date: Jun 2012
Location: Michigan
Posts: 462
Received 0 Likes on 0 Posts
Beautiful!
Customisbetter is offline
Reply Like
Old 04-06-13, 01:31 PM
  #188
E85 Addict

Thread Starter

gusfd3s's Avatar

Join Date: Jun 2007
Location: Stockholm
Posts: 519
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by Customisbetter
Beautiful!
Thanks!!

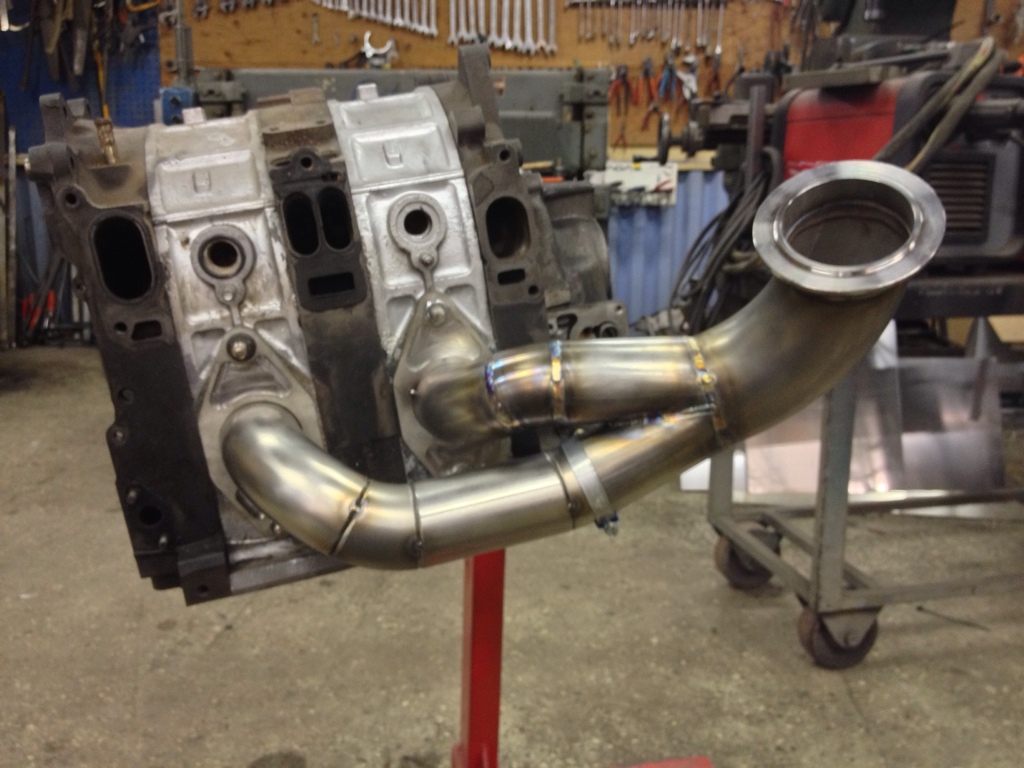

Some work today
Name: 9BA97979-78CB-4D9B-B55A-A17613C40A85-4766-0000070F624D2376_zpsaf9293a6.jpg Views: 246 Size: 241.8 KB
gusfd3s is offline
Reply Like
Old 04-07-13, 12:45 PM
  #189
E85 Addict

Thread Starter

gusfd3s's Avatar

Join Date: Jun 2007
Location: Stockholm
Posts: 519
Likes: 0
Received 2 Likes on 2 Posts

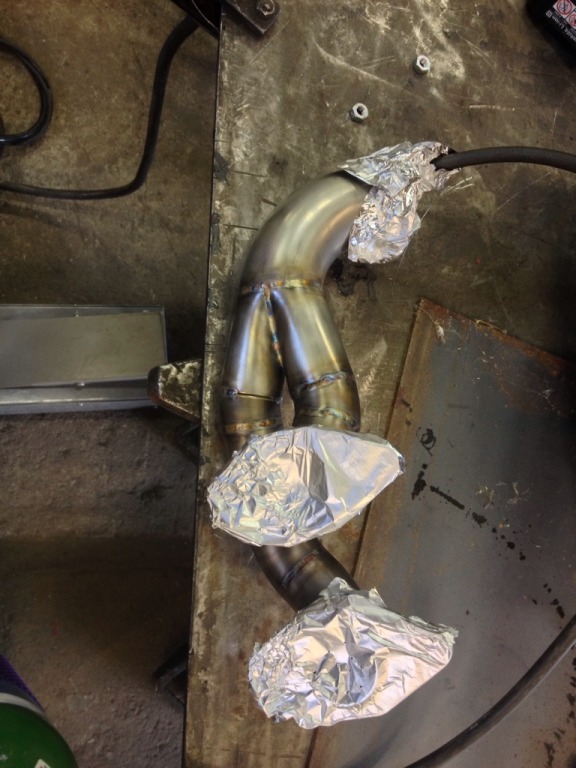

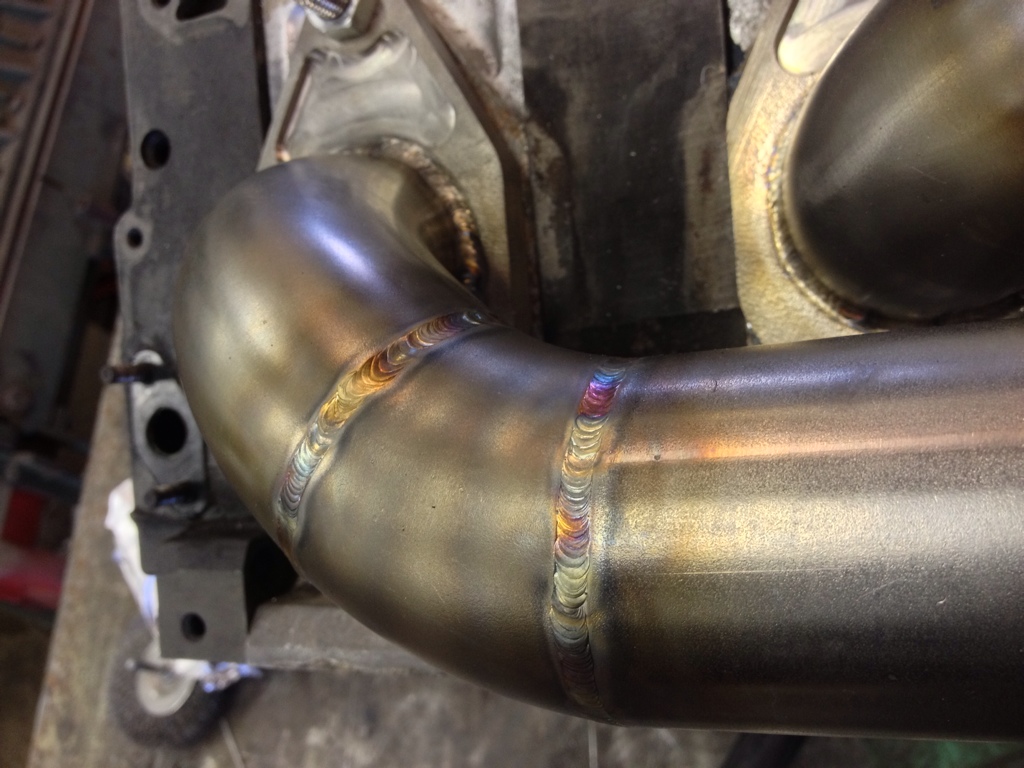

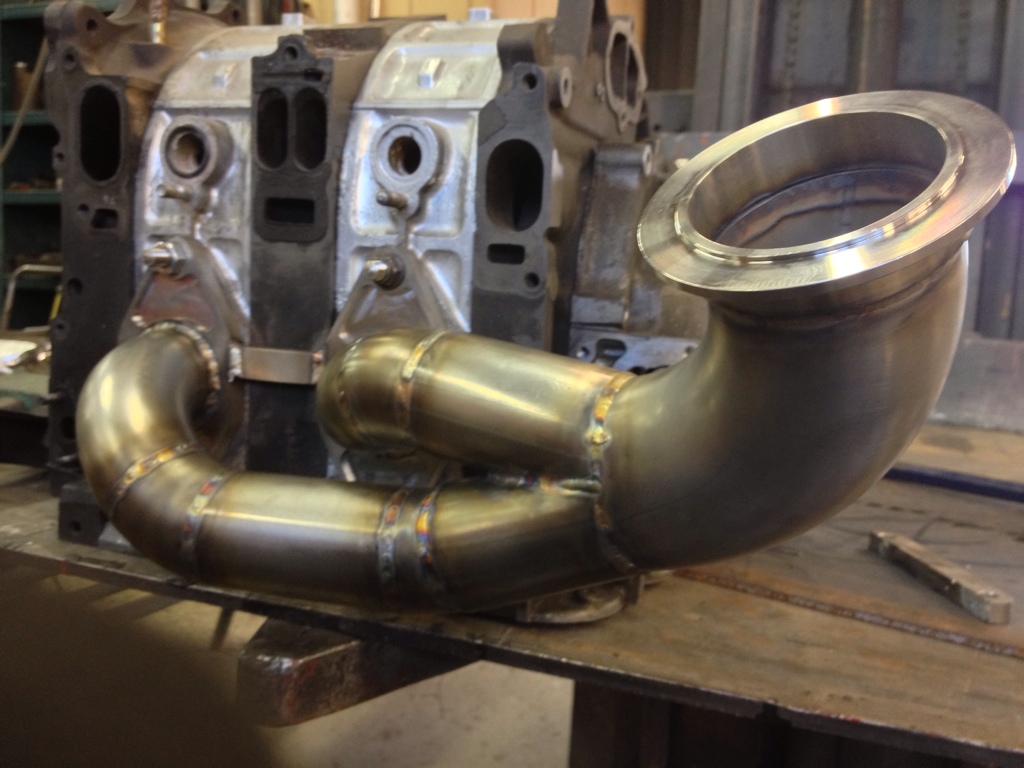

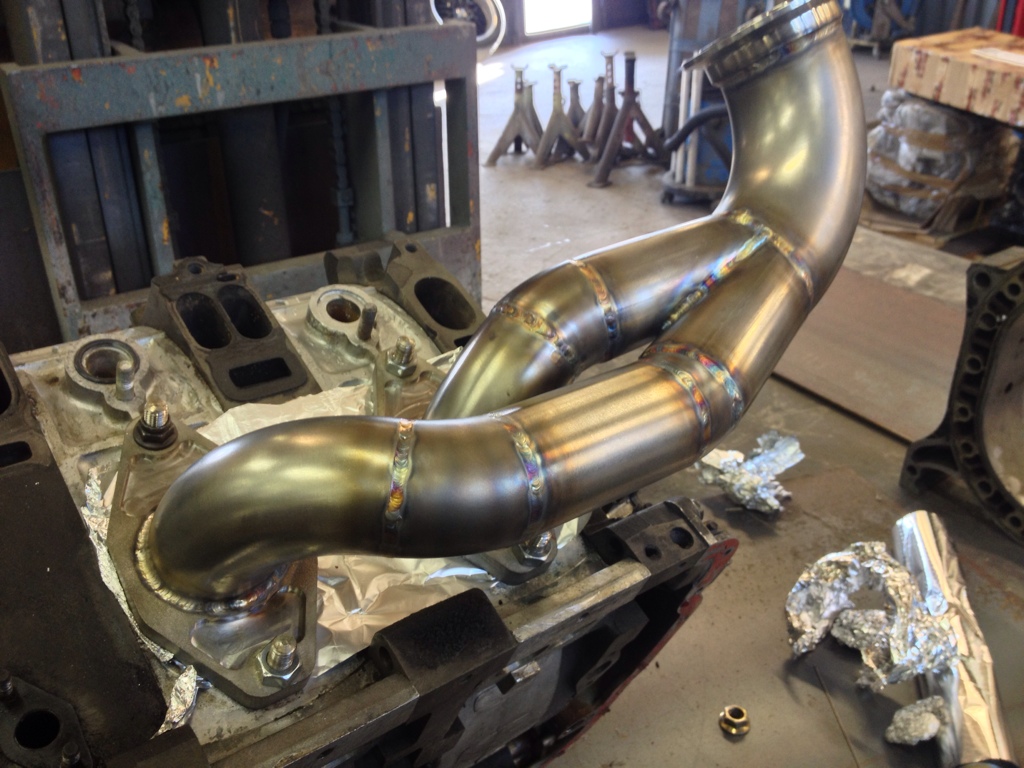

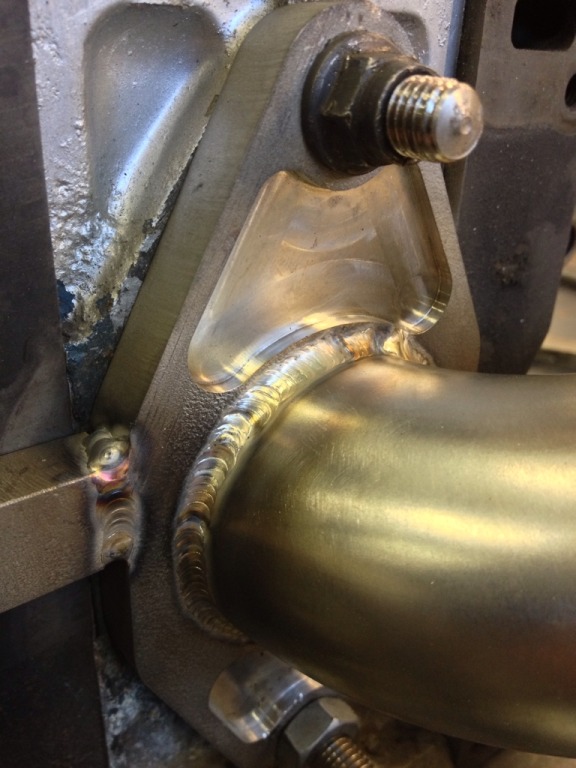

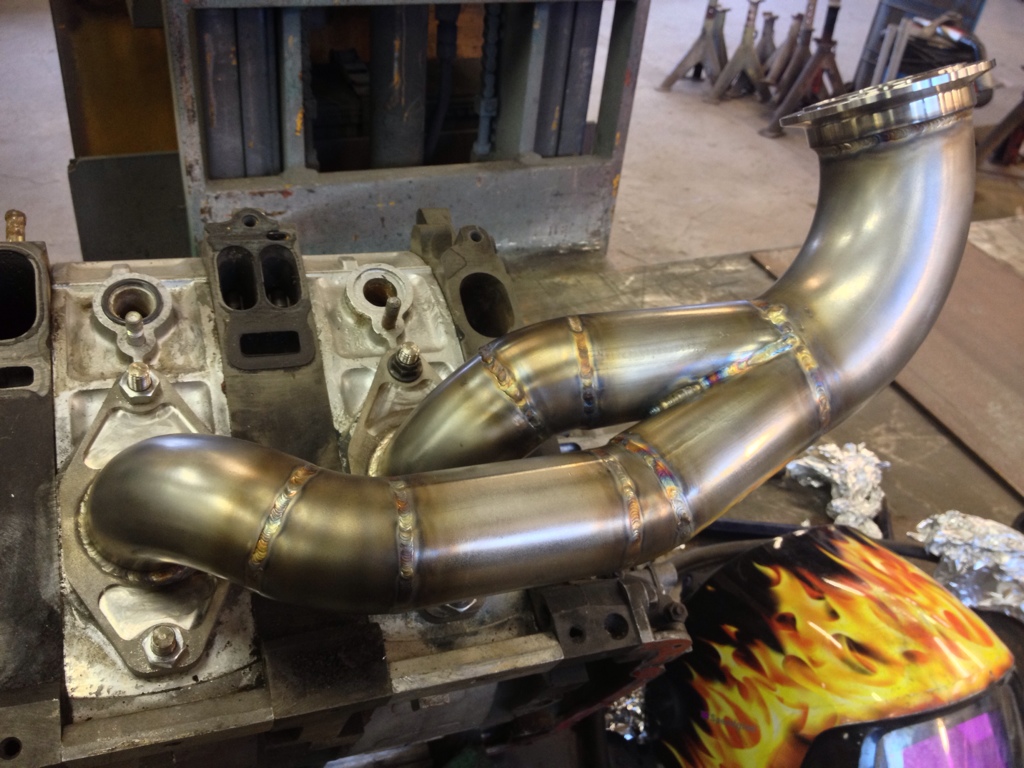

Todays work
Name: 5937FB7B-E7C7-49EA-B56D-BEE07A7C3906-483-00000035C125BA55_zpsddd8e936.jpg Views: 241 Size: 110.6 KB
Name: DAFA9F84-74BD-47B3-8FB3-1E2369F22F1B-483-00000035DEA20138_zps287b835c.jpg Views: 243 Size: 276.2 KB
Name: 36C94C74-94FE-4A5B-9837-28E5CE369833-483-00000035E46CD6D3_zps37a34857.jpg Views: 247 Size: 222.7 KB
Name: FA3973CB-C076-4D1C-8847-10D86135D880-483-00000035C775493E_zpsa0461f8b.jpg Views: 256 Size: 279.7 KB
Name: D5453DB3-1140-4A5C-91F4-FD4DFA1CD807-483-00000035D345BF6B_zps40cfea42.jpg Views: 245 Size: 100.4 KB
Name: 146EF54F-7D47-4016-B1E7-BC384E870718-483-00000035D8DF8F1D_zpsddfafd6b.jpg Views: 250 Size: 244.2 KB

kof skrev:
Grymt måste ta tag i och lära mig använda svetsen ser ja nu
Ja svetsa är kul! :-)

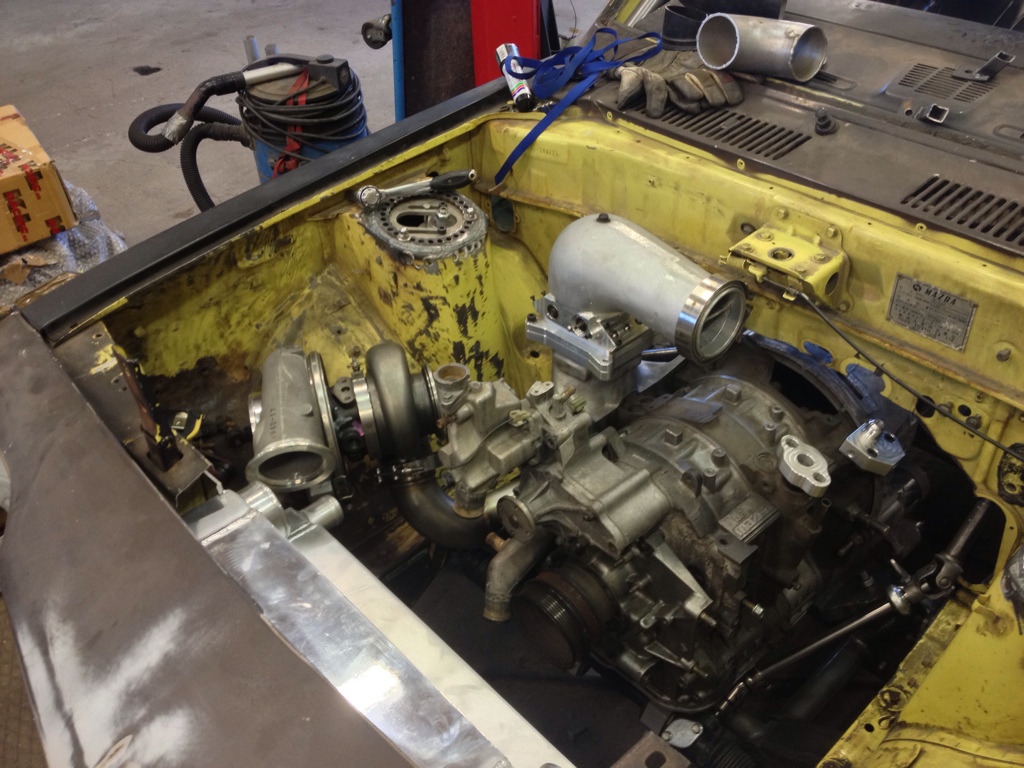

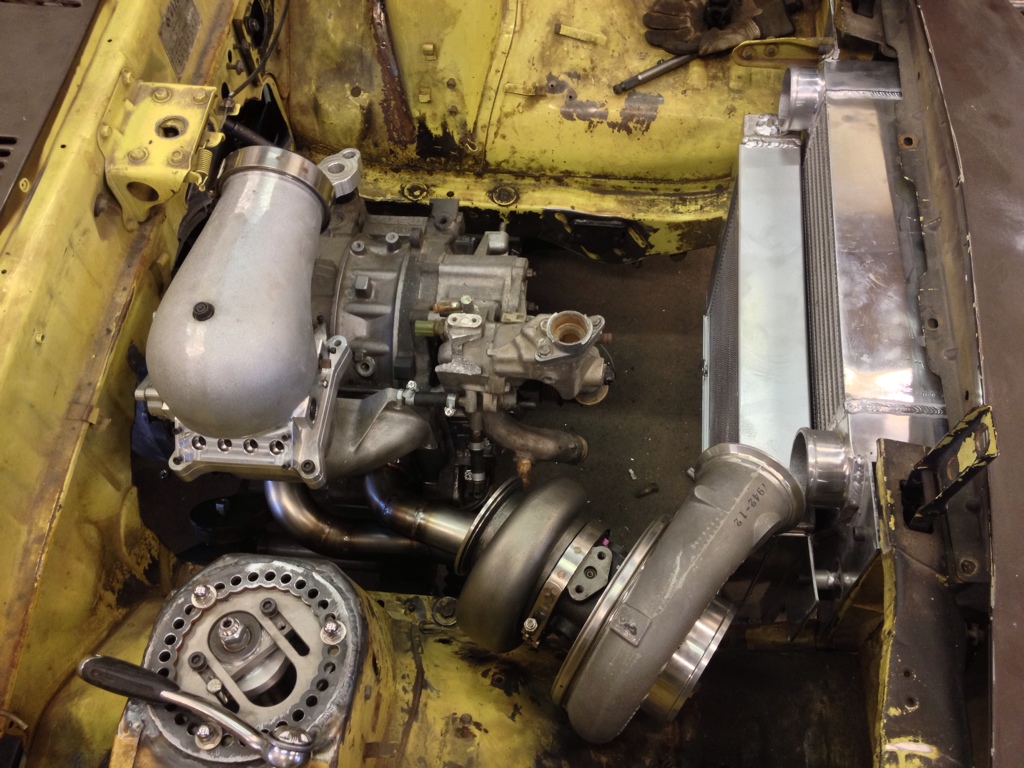

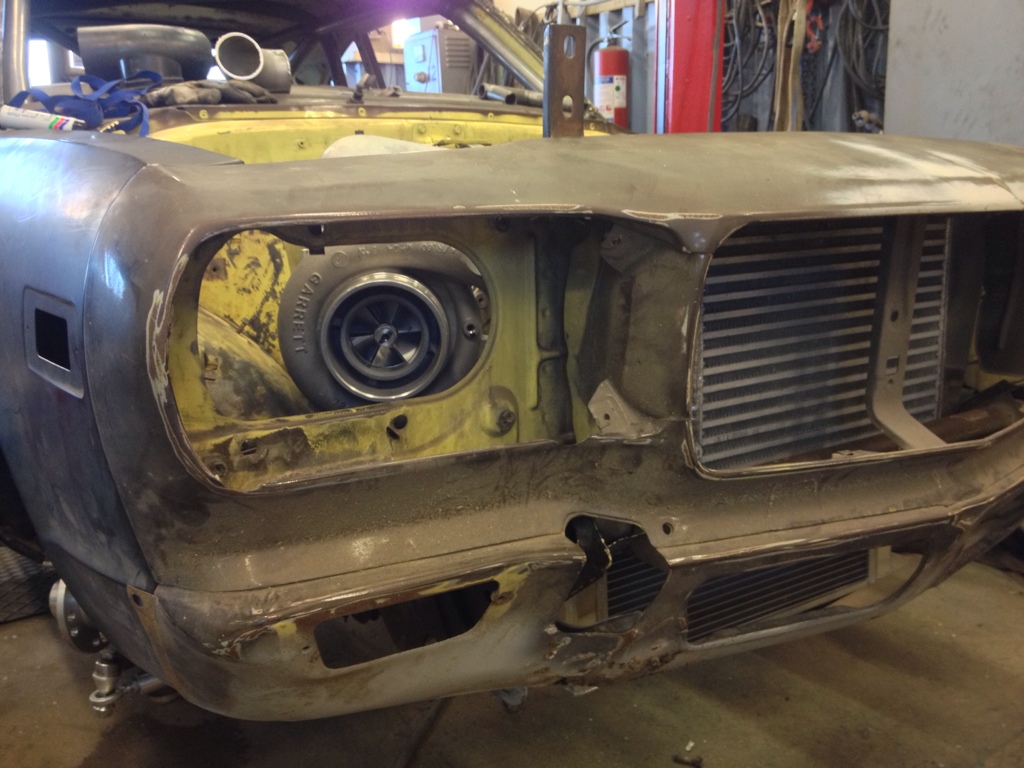

Några fler bilder
Name: B63D35CA-3838-4A33-AFF9-20D2AF778894-483-0000003B41860025_zps8430f158.jpg Views: 259 Size: 299.2 KB
Name: F8742051-C0A9-41FE-897C-4306730F2947-483-0000003B52ADF118_zps1cfeee29.jpg Views: 263 Size: 320.7 KB
Name: D00430BB-B465-46BF-858B-D5A9EF86CED6-483-0000003B4C66F248_zpsf5c2b146.jpg Views: 244 Size: 259.7 KB
gusfd3s is offline
Reply Like
Old 04-11-13, 04:14 PM
  #190
E85 Addict

Thread Starter

gusfd3s's Avatar

Join Date: Jun 2007
Location: Stockholm
Posts: 519
Likes: 0
Received 2 Likes on 2 Posts

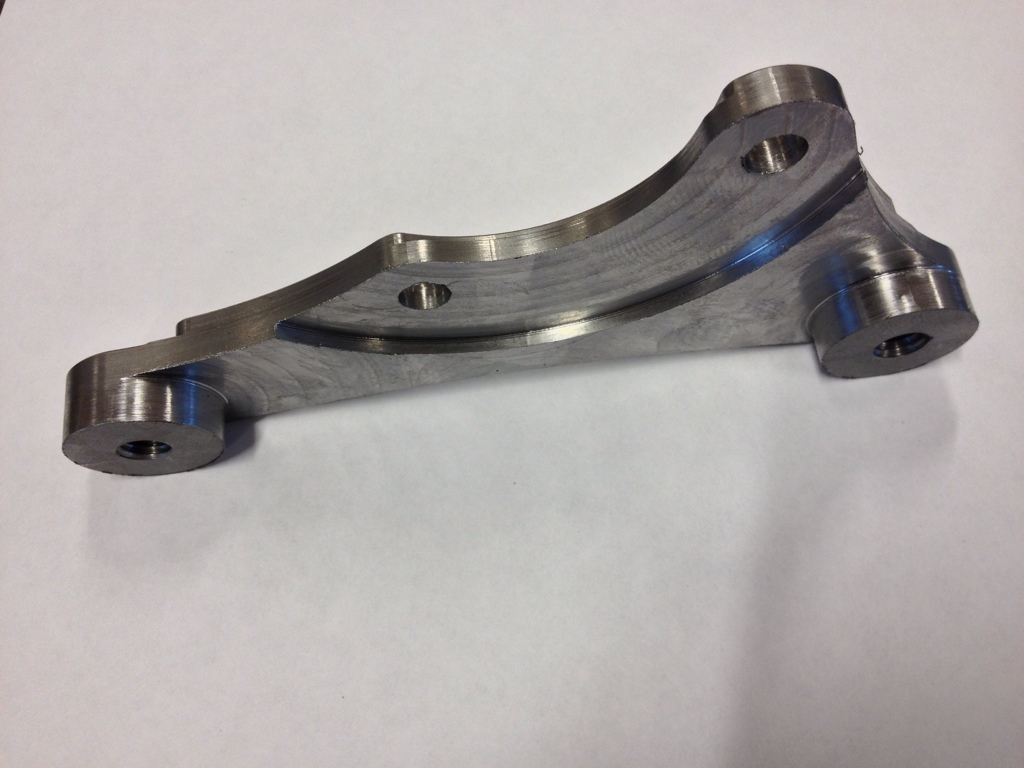

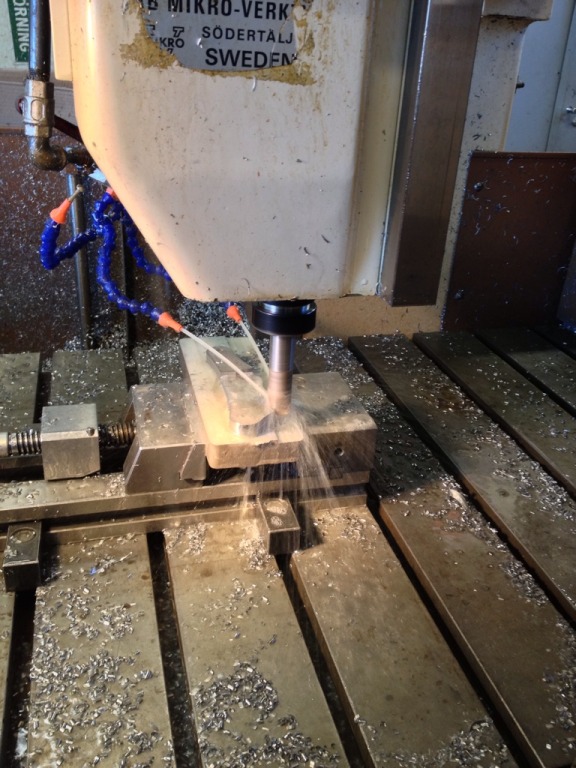

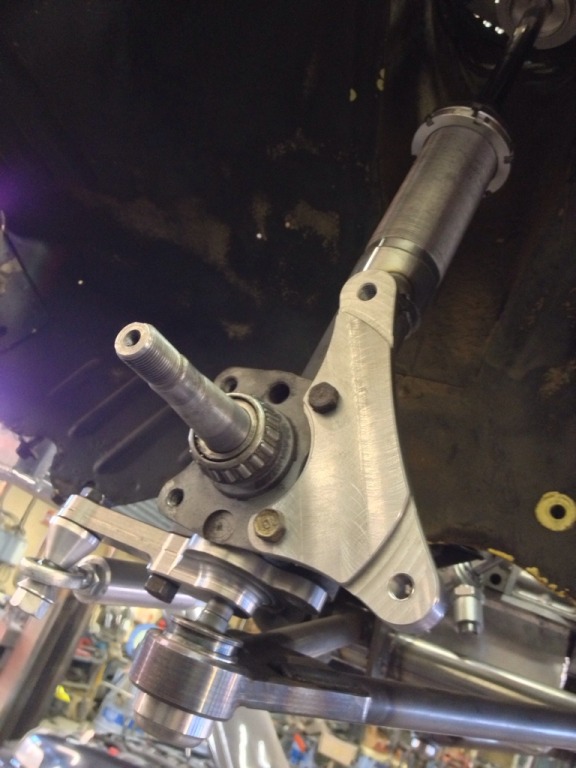

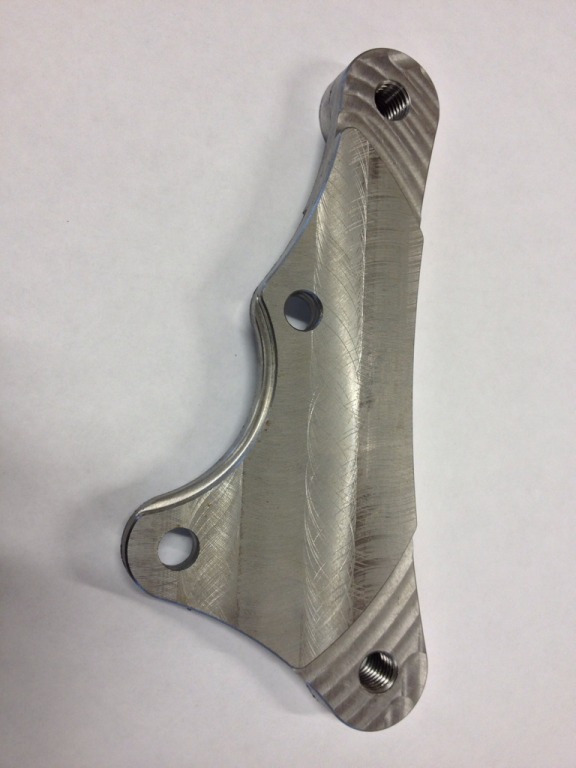

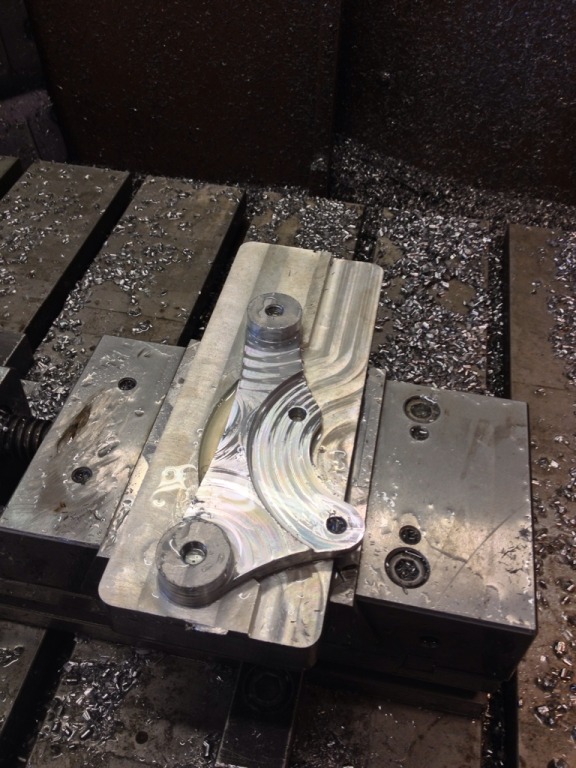

Sometimes you do stuff a little bit to early.. I made my caliper adapers with measures from a worn rotor.. The measures were off ofcourse.

Making new ones, left one is done

Name: EFE3F0D5-855A-4F48-8E49-AD0E23DD14C7-3158-00000439346787DC_zps338ab63d.jpg Views: 247 Size: 138.9 KB
Name: 57613CAE-176B-4B26-9B90-7E37E702A2DE-3158-000004393B57DB22_zps0cf25c07.jpg Views: 246 Size: 135.6 KB
Name: 59E45C3B-3E2E-41A1-97A6-F29DD1DB3CD5-3158-0000043947996302_zpsfb5b3b21.jpg Views: 250 Size: 68.3 KB
Name: 174F9687-7ACD-49AA-AB78-DCE473E0383D-3158-000004394C5D0266_zpsd94e85ec.jpg Views: 267 Size: 189.4 KB
Name: 0EF6B53D-BF73-4E28-BB26-A0C50D539347-3158-0000043957DD4786_zps0ca4a0c6.jpg Views: 266 Size: 90.7 KB
gusfd3s is offline
Reply Like
Old 05-10-13, 10:21 AM
  #191
Junior Member


marquez1681's Avatar

Join Date: May 2008
Location: los angeles
Posts: 21
Likes: 0
Received 0 Likes on 0 Posts
really nice... ***** to the wall
marquez1681 is offline
Reply Like
Old 05-10-13, 09:57 PM
  #192
Full Member


EZDUZT's Avatar

Join Date: Apr 2008
Location: New Zealand
Posts: 136
Received 3 Likes on 2 Posts
i love seeing your updates ive been following your build for a while keep up the good work and keep posting
EZDUZT is offline
Reply Like
Old 08-12-13, 05:00 PM
  #193
32psi+

iTrader: (42)

Copeland's Avatar

Join Date: Sep 2006
Location: Raleigh, NC
Posts: 1,323
Received 40 Likes on 32 Posts
We need updates!!

Amazing build so far!
Copeland is offline
Reply Like
Old 08-14-13, 12:47 AM
  #194
E85 Addict

Thread Starter

gusfd3s's Avatar

Join Date: Jun 2007
Location: Stockholm
Posts: 519
Likes: 0
Received 2 Likes on 2 Posts
Thanks guys, appreciate it!

been working alot this summer, no time for the cars

I've done some small things..

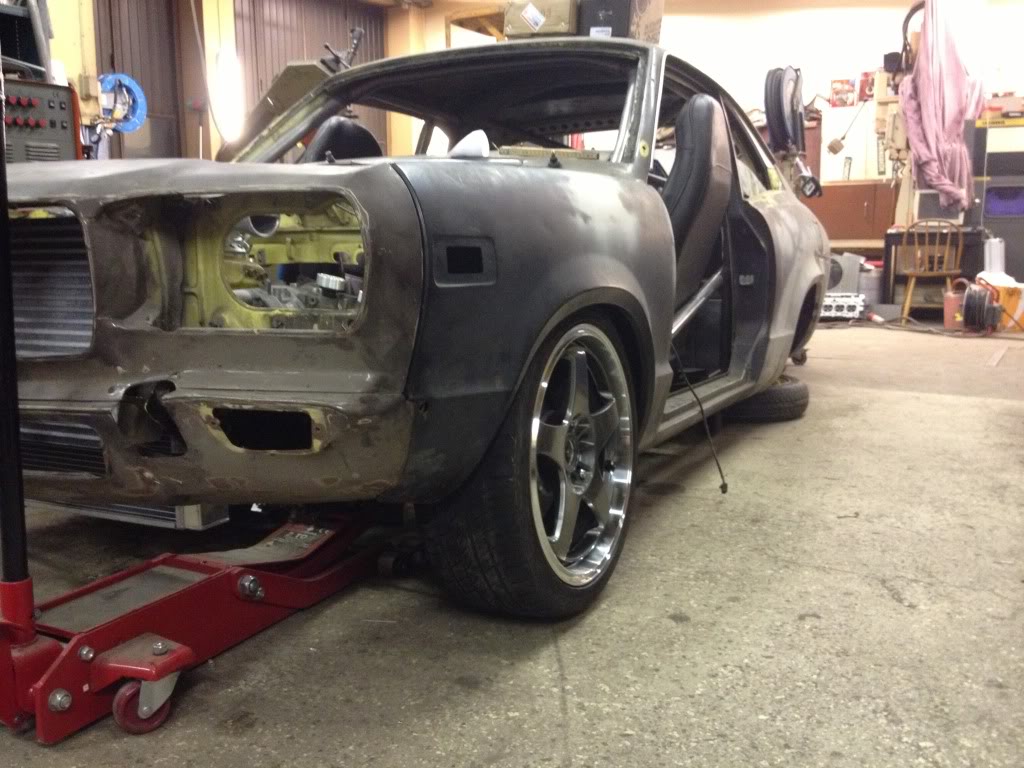

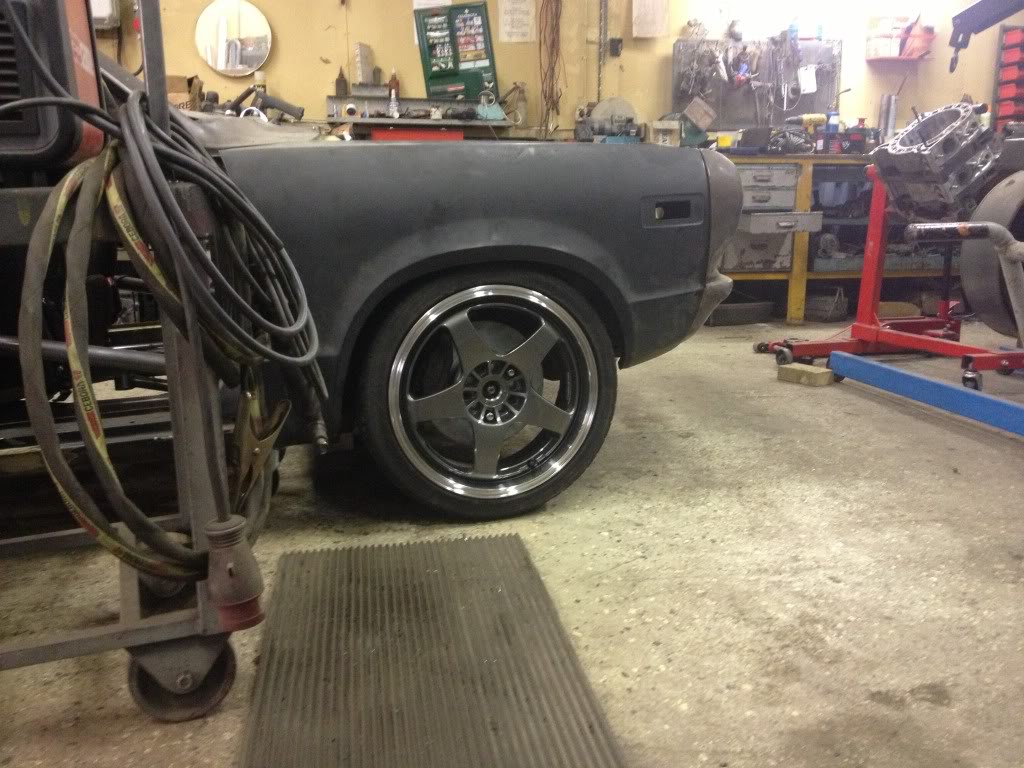

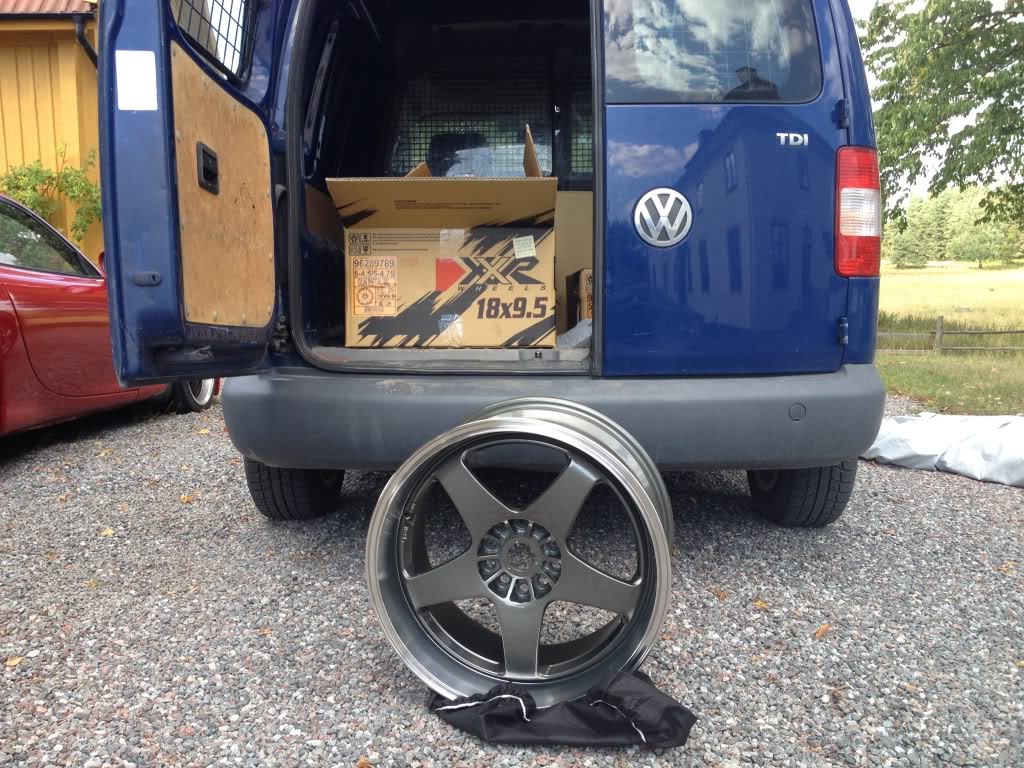

Got my wheels! 17x7 front and 18x9.5 rear
Name: null_zpsb8fd6f71.jpg Views: 249 Size: 225.4 KB
Name: null_zps933a3049.jpg Views: 261 Size: 127.7 KB

i need to space out the wheels aprox 15mm, the tire is hitting the struts.. i also wanted to center the brake disc and wheels with this spacer since the aerospace hubs doesn't do this.

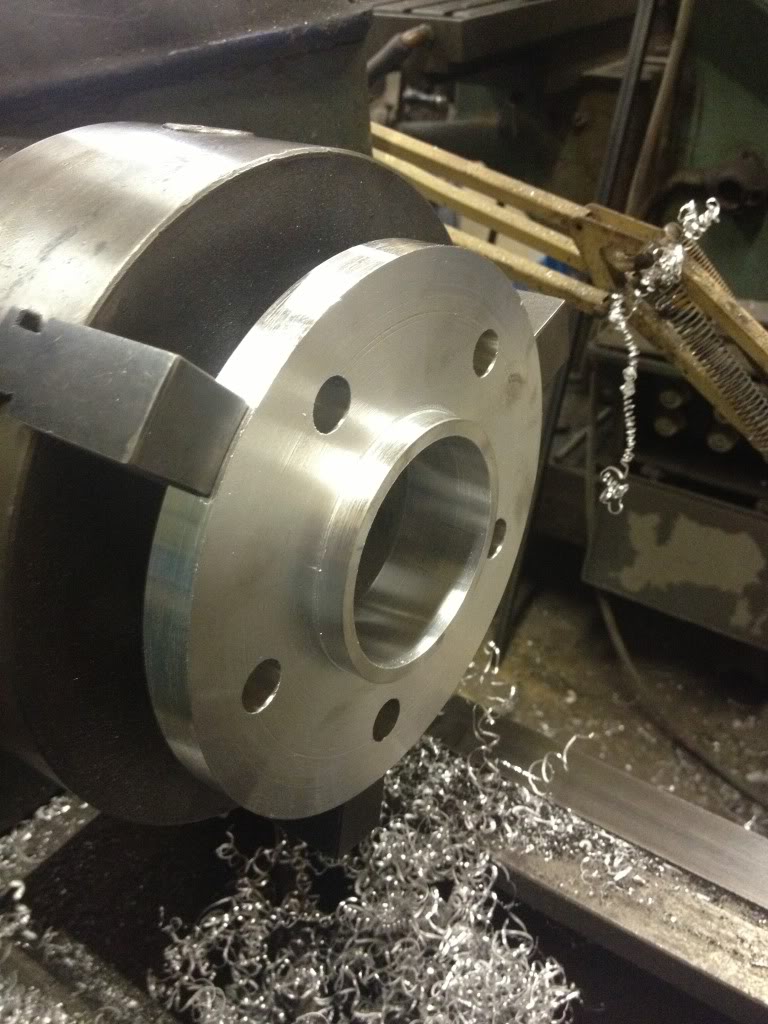

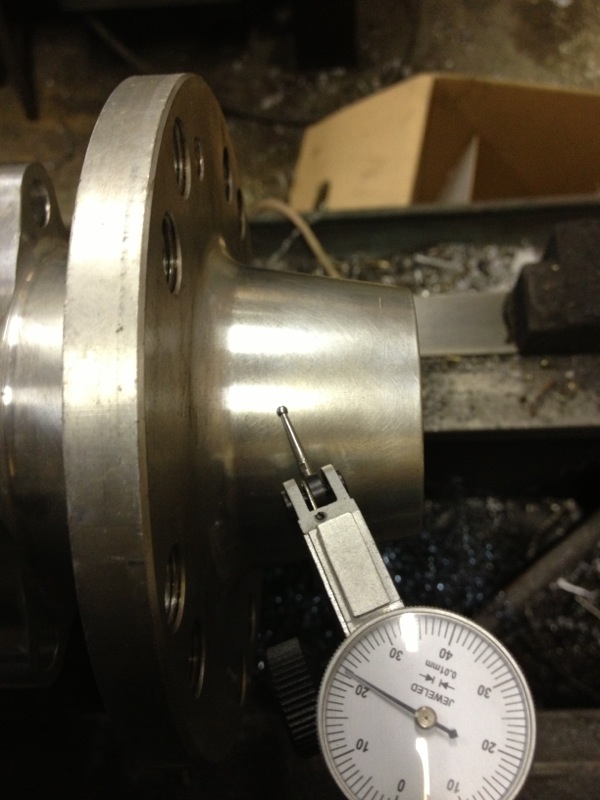

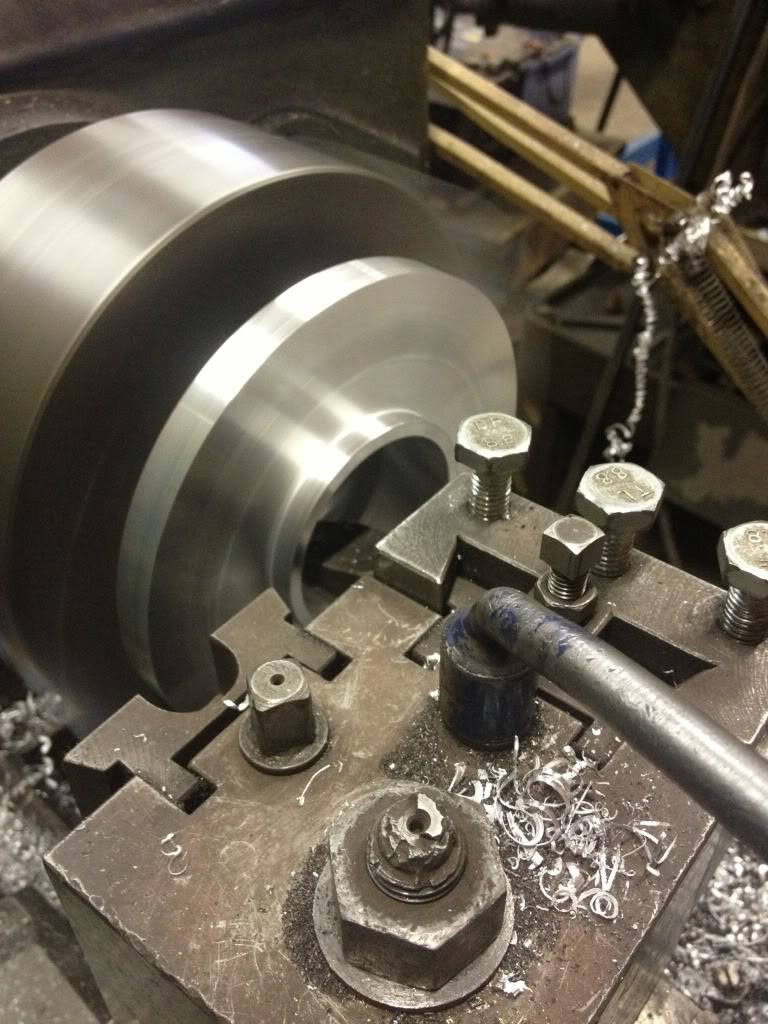

made some mods in the lathe

before
Name: null_zps2cca66f8.jpg Views: 290 Size: 103.6 KB

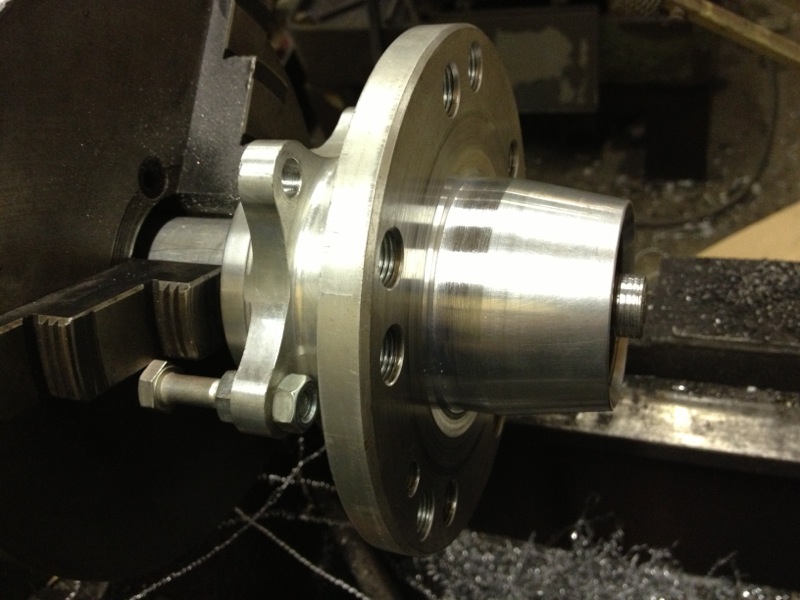

after
Name: null_zps9342d51f.jpg Views: 253 Size: 111.8 KB

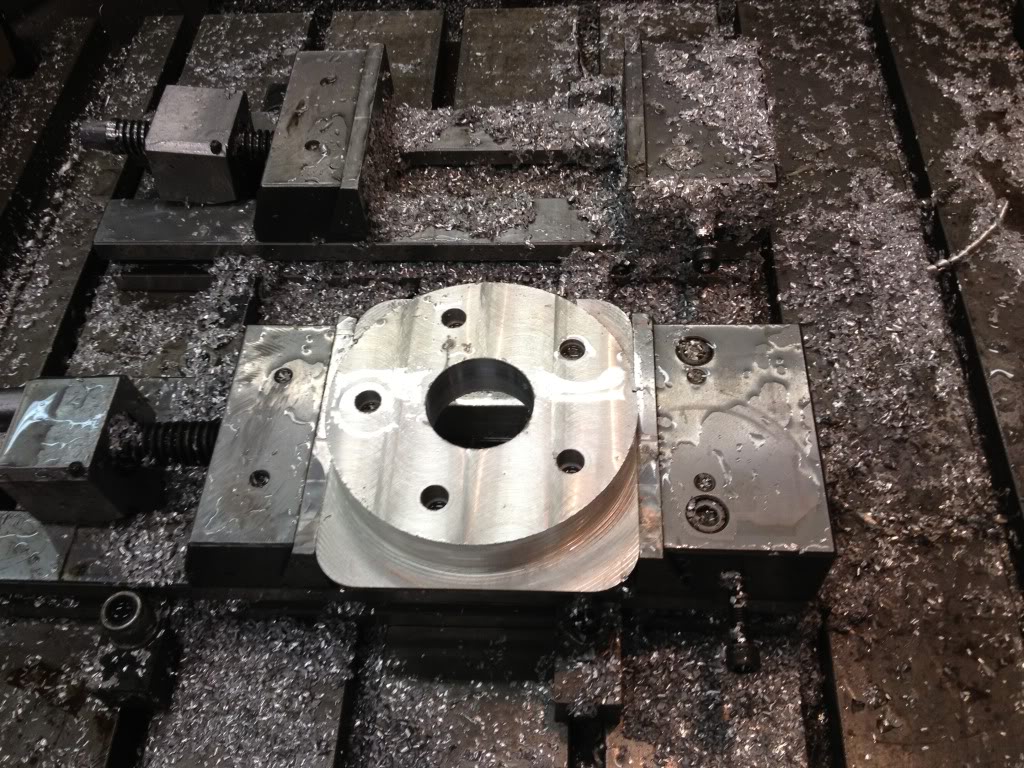

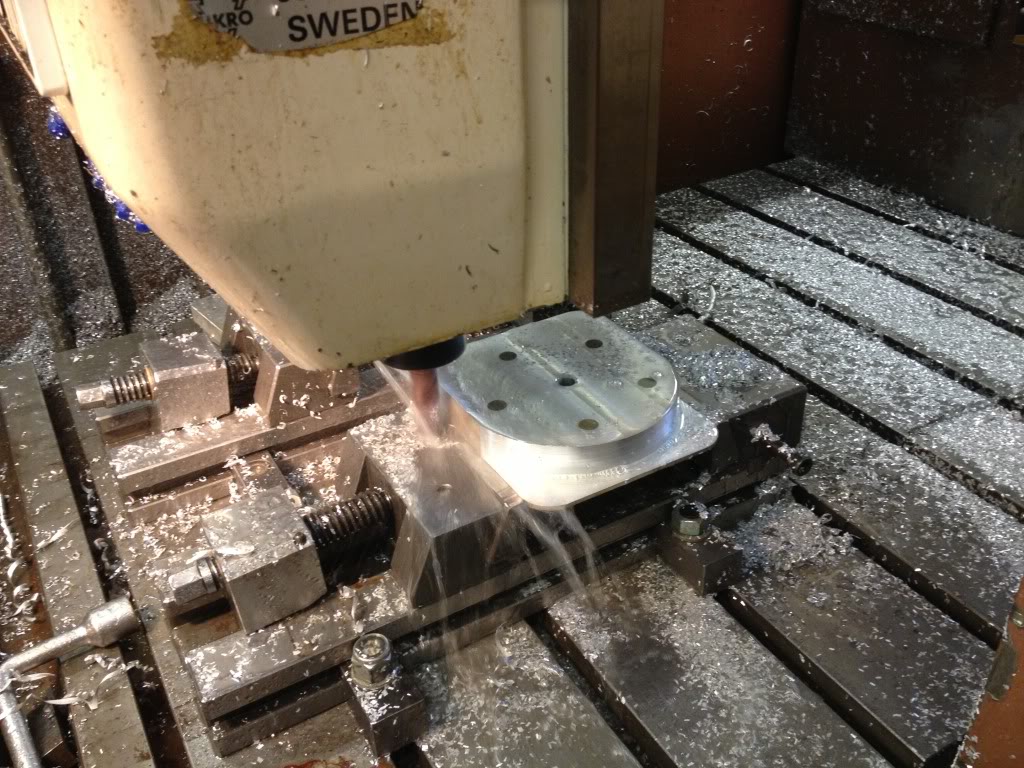

didn't have any round bar so had to mill some first
Name: null_zps0bf1ea77.jpg Views: 261 Size: 185.5 KB
Name: null_zpsbda22b32.jpg Views: 249 Size: 215.4 KB

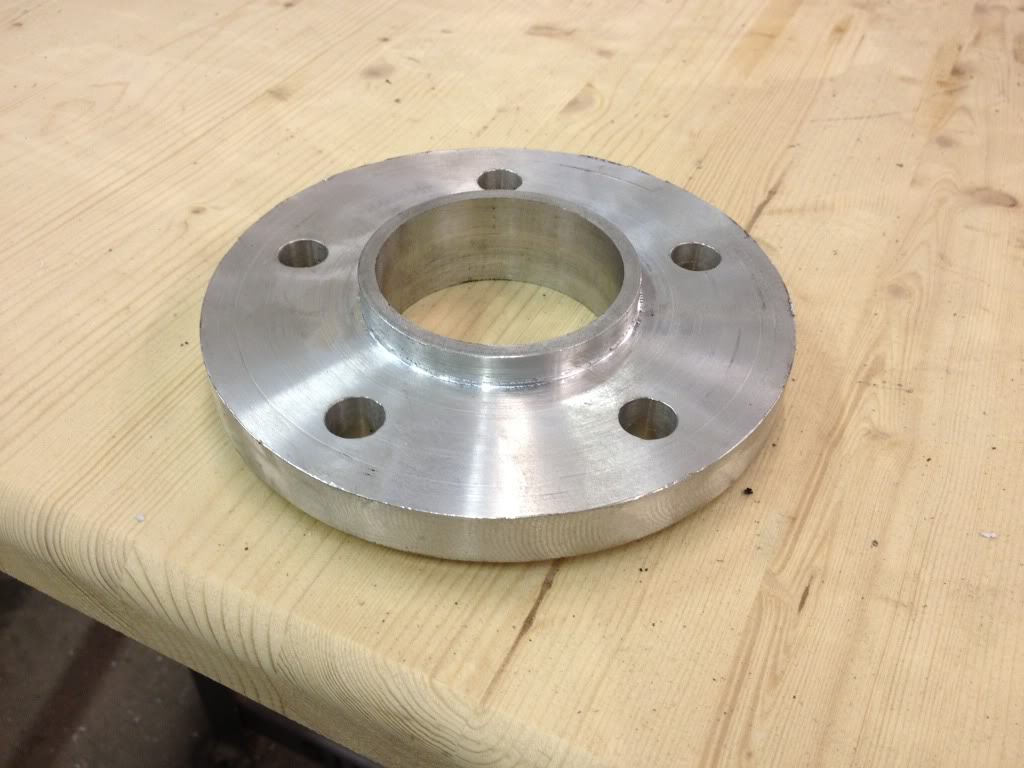

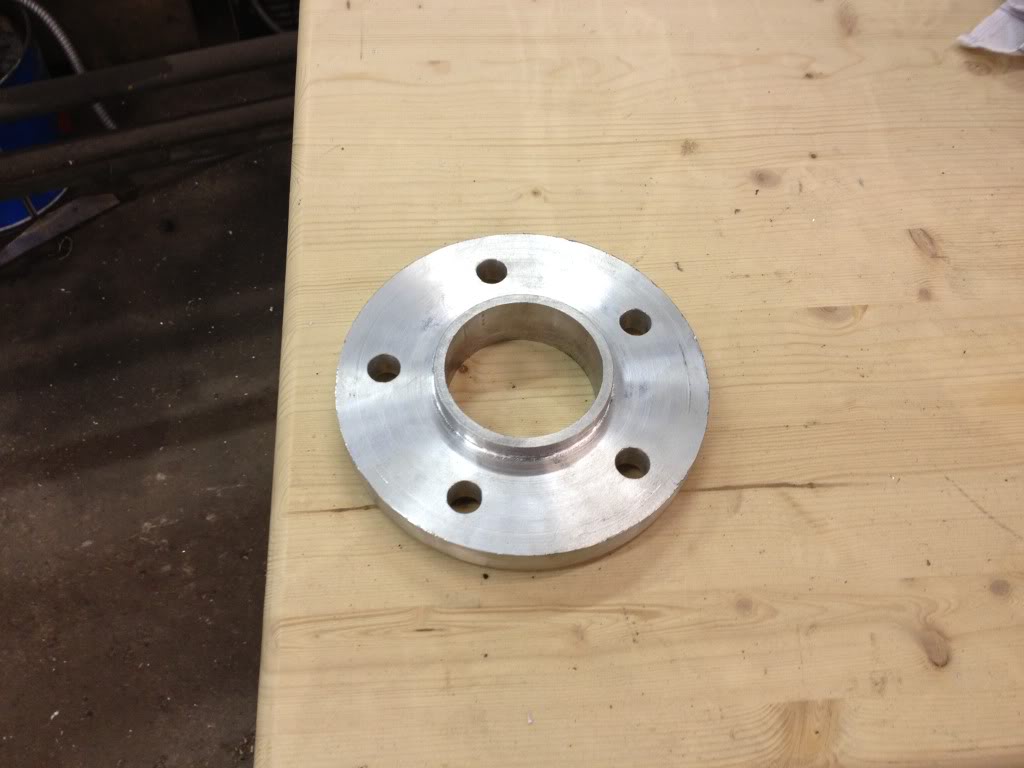

after lathe work
Name: null_zps83d4f73e.jpg Views: 259 Size: 88.6 KB
Name: null_zpsf4ee0440.jpg Views: 261 Size: 72.1 KB

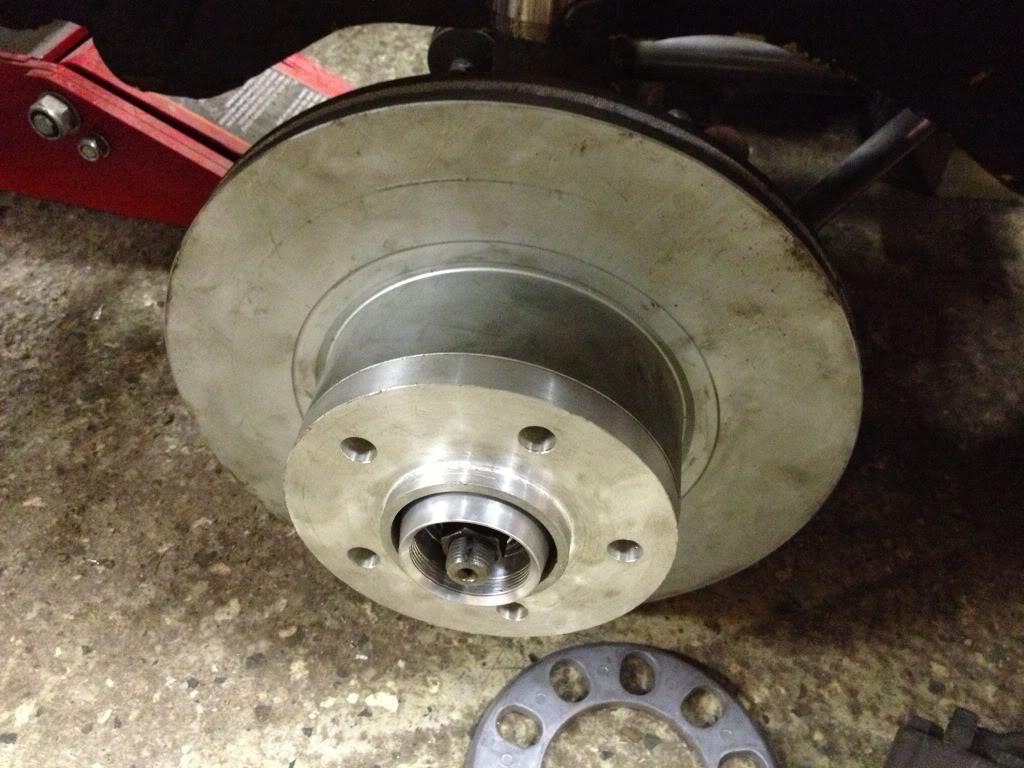

finished product
Name: null_zps8194fe63.jpg Views: 245 Size: 138.6 KB
gusfd3s is offline
Reply Like
Old 08-14-13, 07:11 AM
  #195
Full Member

iTrader: (3)

tinytyrant's Avatar

Join Date: Dec 2012
Location: Sydney
Posts: 135
Likes: 0
Received 0 Likes on 0 Posts
"17x7 front and 18x9.5 rear"

this'll certainly look unique as far as old school mazdas go.
tinytyrant is offline
Reply Like
Old 08-14-13, 10:17 AM
  #196
E85 Addict

Thread Starter

gusfd3s's Avatar

Join Date: Jun 2007
Location: Stockholm
Posts: 519
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by tinytyrant
"17x7 front and 18x9.5 rear"

this'll certainly look unique as far as old school mazdas go.
i wanted 17" in rear but was to long delivery time on those so ill try 18" first :-P
gusfd3s is offline
Reply Like
Old 08-14-13, 02:05 PM
  #197
E85 Addict

Thread Starter

gusfd3s's Avatar

Join Date: Jun 2007
Location: Stockholm
Posts: 519
Likes: 0
Received 2 Likes on 2 Posts

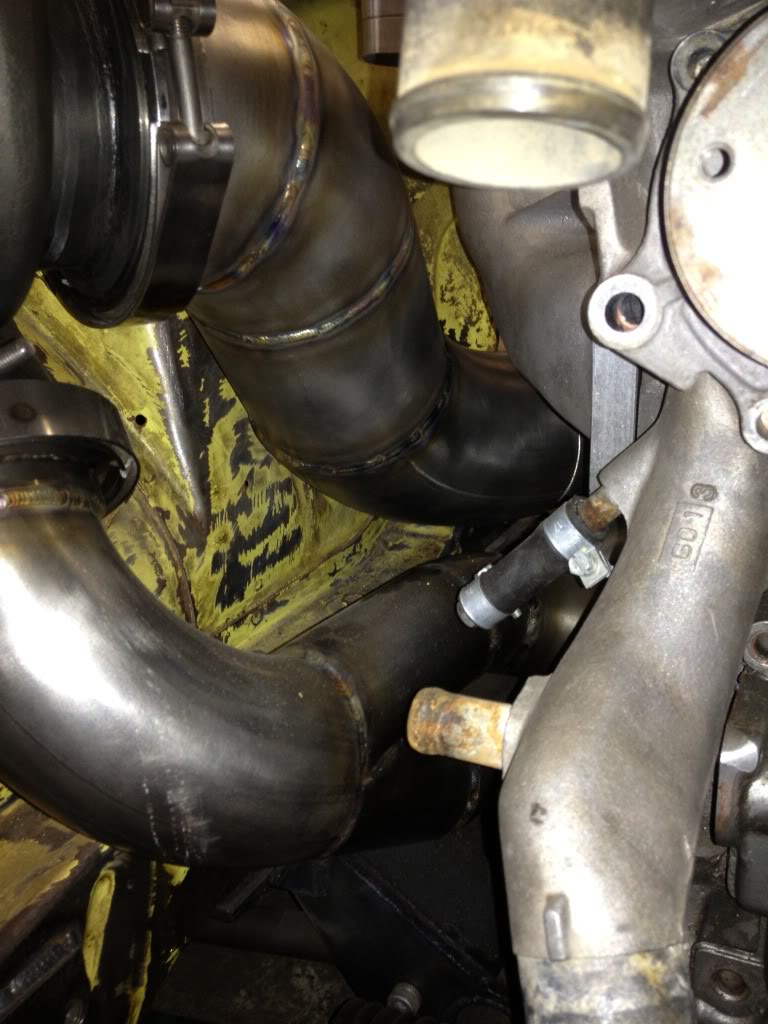

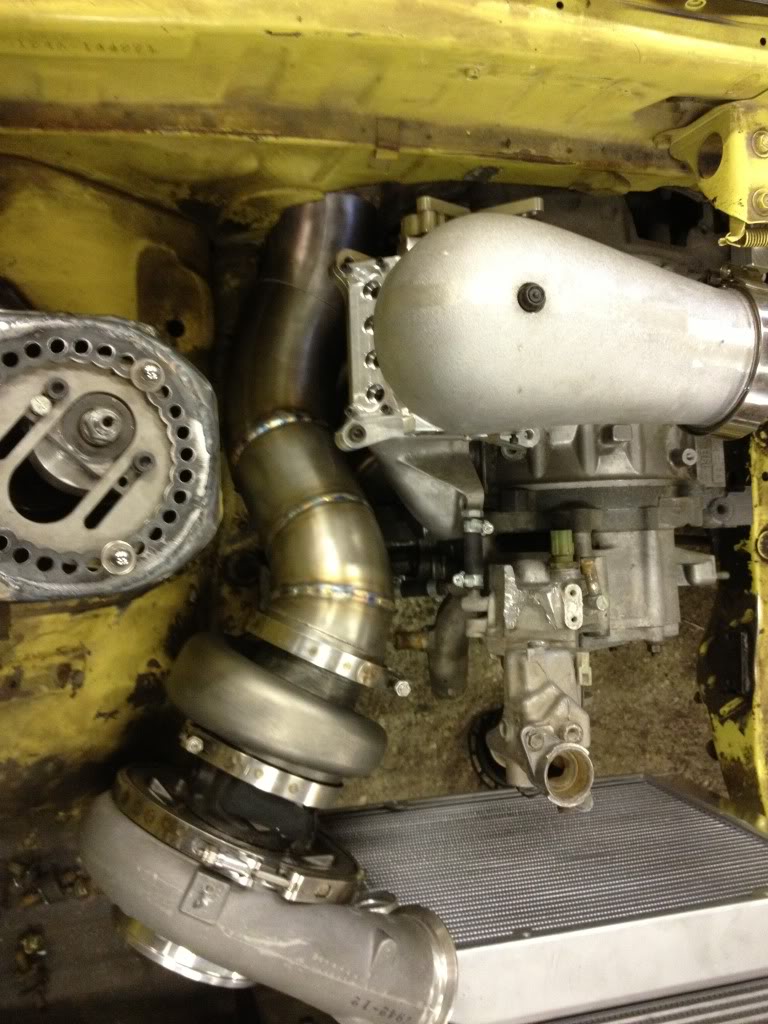

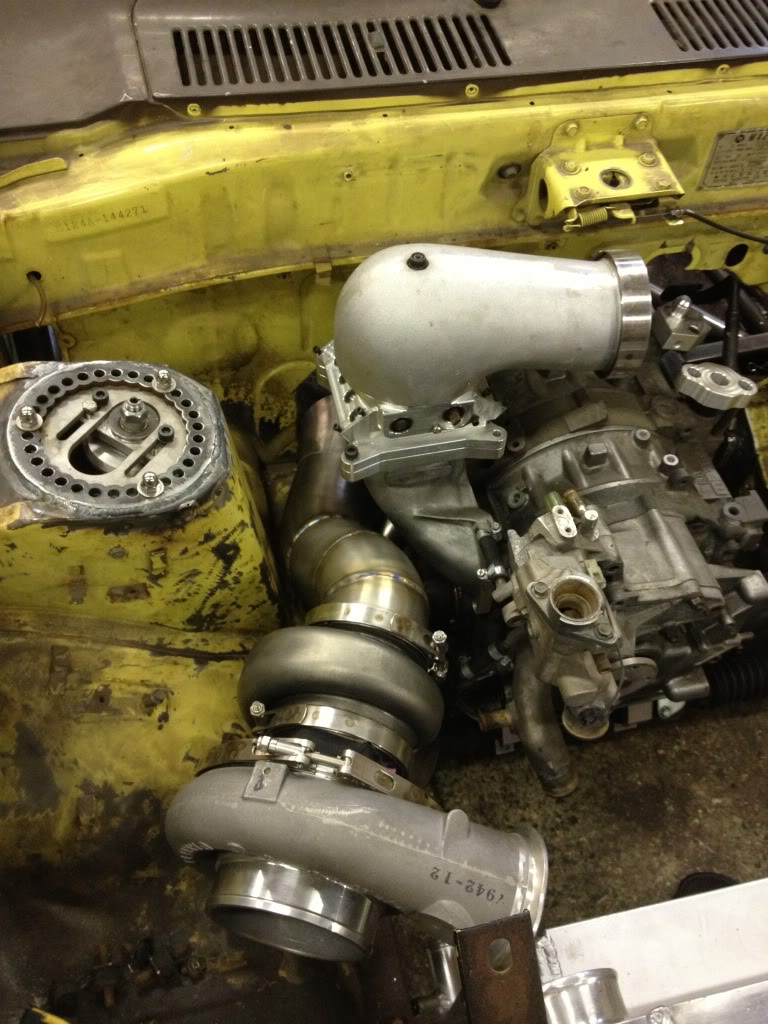

Some pipe work
Name: null_zpsb8830b57.jpg Views: 258 Size: 125.5 KB
Name: null_zps40d9e0c3.jpg Views: 277 Size: 134.6 KB
Name: null_zps74fad1fa.jpg Views: 256 Size: 102.2 KB
gusfd3s is offline
Reply Like
Old 08-14-13, 03:26 PM
  #198
Senior Member

iTrader: (7)

bufferovrflo's Avatar

Join Date: Dec 2010
Location: Las Vegas
Posts: 385
Likes: 0
Received 1 Like on 1 Post
Amazing work! Keep the updates a coming!
bufferovrflo is offline
Reply Like
Old 08-14-13, 03:51 PM
  #199
500+hp club

iTrader: (26)

silverfdturbo6port's Avatar

Join Date: Sep 2007
Location: .
Posts: 2,211
Likes: 0
Received 4 Likes on 4 Posts
Nice work so far!
silverfdturbo6port is offline
Reply Like
Old 08-17-13, 12:30 PM
  #200
E85 Addict

Thread Starter

gusfd3s's Avatar

Join Date: Jun 2007
Location: Stockholm
Posts: 519
Likes: 0
Received 2 Likes on 2 Posts
Thanks guys!

Finished the other one today..
Name: null_zpsadb2e84b.jpg Views: 251 Size: 141.3 KB
Name: null_zpsc55c5935.jpg Views: 268 Size: 121.9 KB

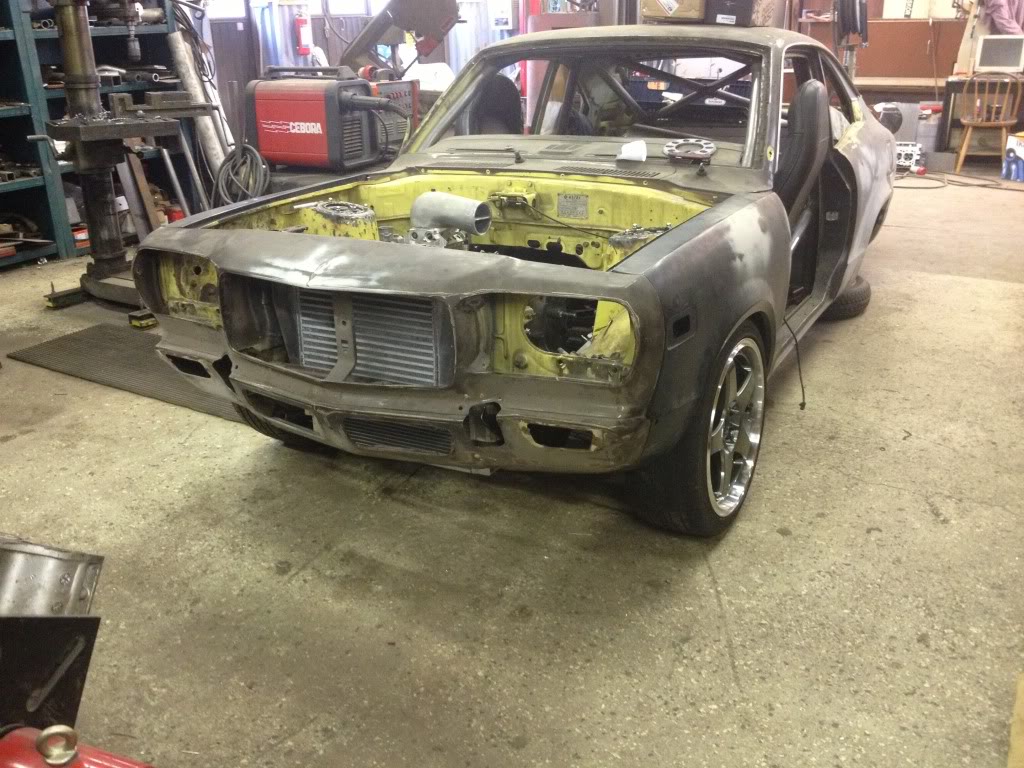

And finally she stands on her own wheels :-) atleast in front..
Name: null_zpsc2a494d6.jpg Views: 279 Size: 167.8 KB

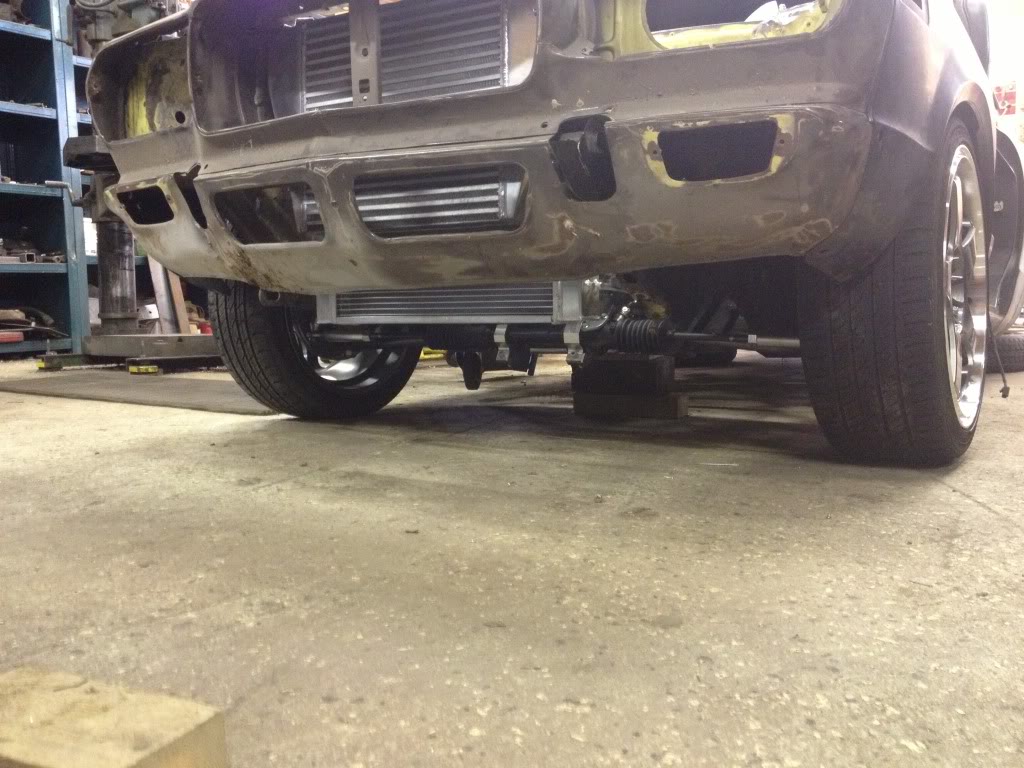

Name: null_zpsa14e038d.jpg Views: 266 Size: 132.0 KB

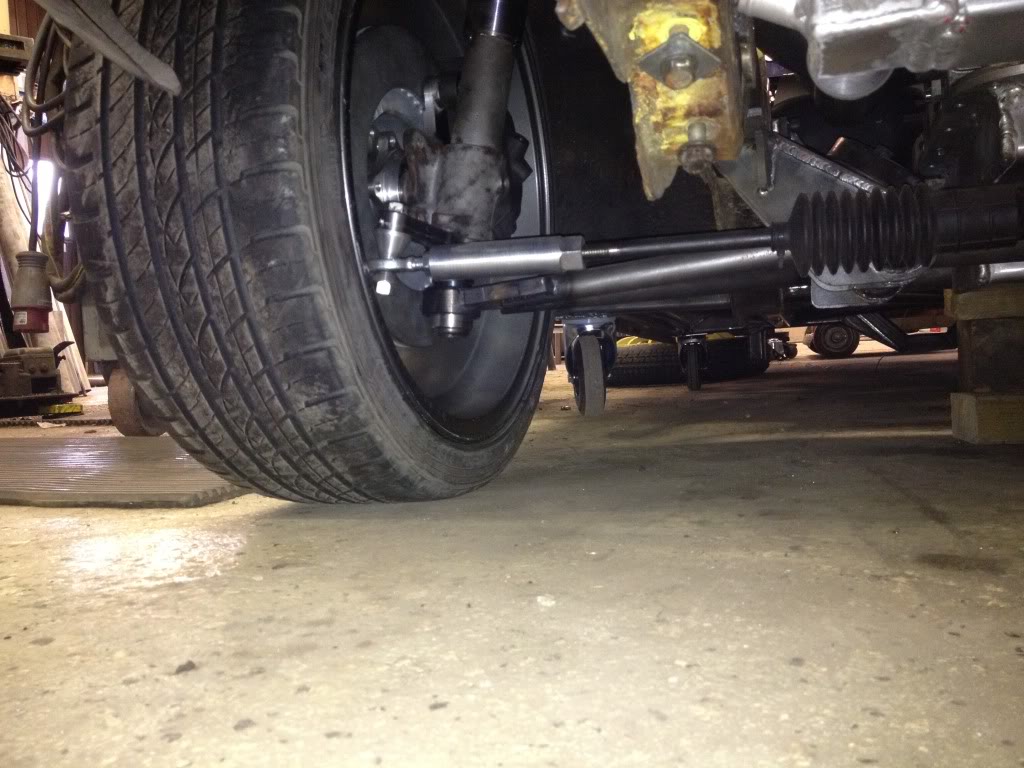

Name: null_zps3a7f3866.jpg Views: 245 Size: 119.3 KB

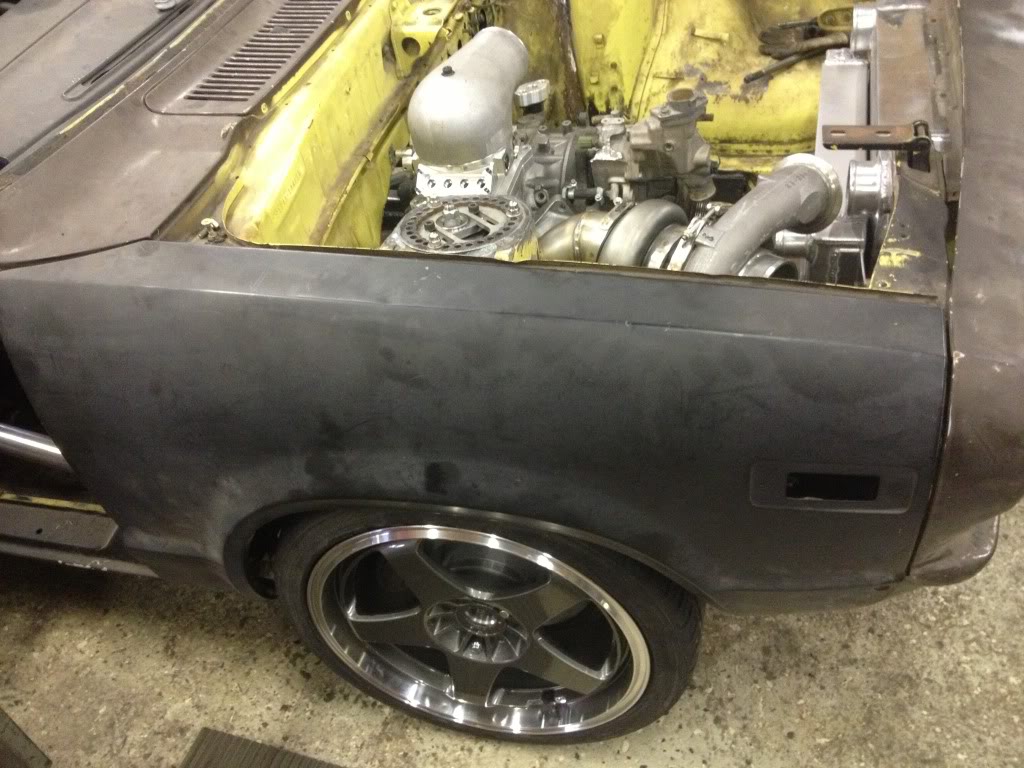

Name: null_zpsccb13d48.jpg Views: 252 Size: 132.3 KB
Name: null_zps53fb813a.jpg Views: 255 Size: 136.8 KB
gusfd3s is offline
Reply Like



Advanced Search

All times are GMT -5. The time now is 01:41 AM.
