Old Aug 17, 2013 | 03:23 PM
Share
  #201
Copeland's Avatar
Copeland
32psi+
Tenured Member: 15 Years
iTrader: (42)

Joined: Sep 2006
Posts: 1,323
Likes: 40
From: Raleigh, NC
I love this build, it's amazing. Can't wait to see what's next!
Reply
0
Old Aug 19, 2013 | 09:30 PM
Share
  #202
chino_rx3's Avatar
chino_rx3
Luis Rx3 Project
Tenured Member: 15 Years
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Jun 2007
Posts: 1,320
Likes: 24
From: SARASOTA ,Florida
Looking good with those wheels
Reply
0
Old Sep 1, 2013 | 02:20 PM
Share
  #203
gusfd3s's Avatar
gusfd3s
Thread Starter
E85 Addict

Joined: Jun 2007
Posts: 519
Likes: 2
From: Stockholm
Thanks!

The car is finally back on the lift after 5 months.. :-)

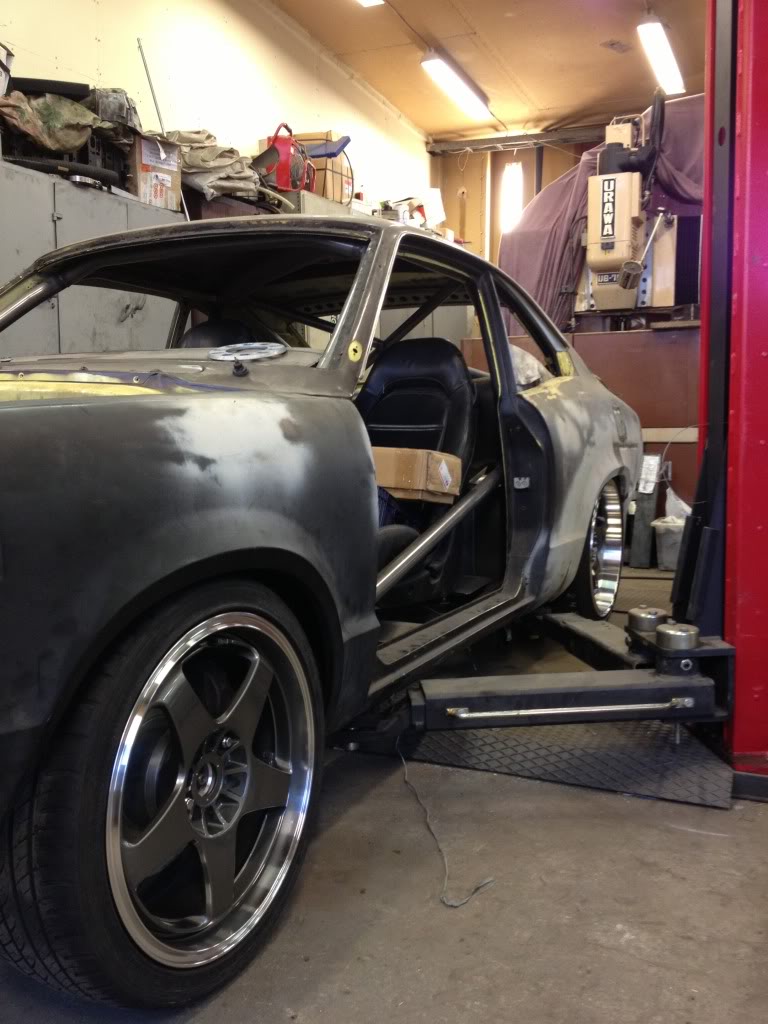

Mock-up with the rear wheels..
Name: null_zps4739abf7.jpg Views: 368 Size: 108.7 KB

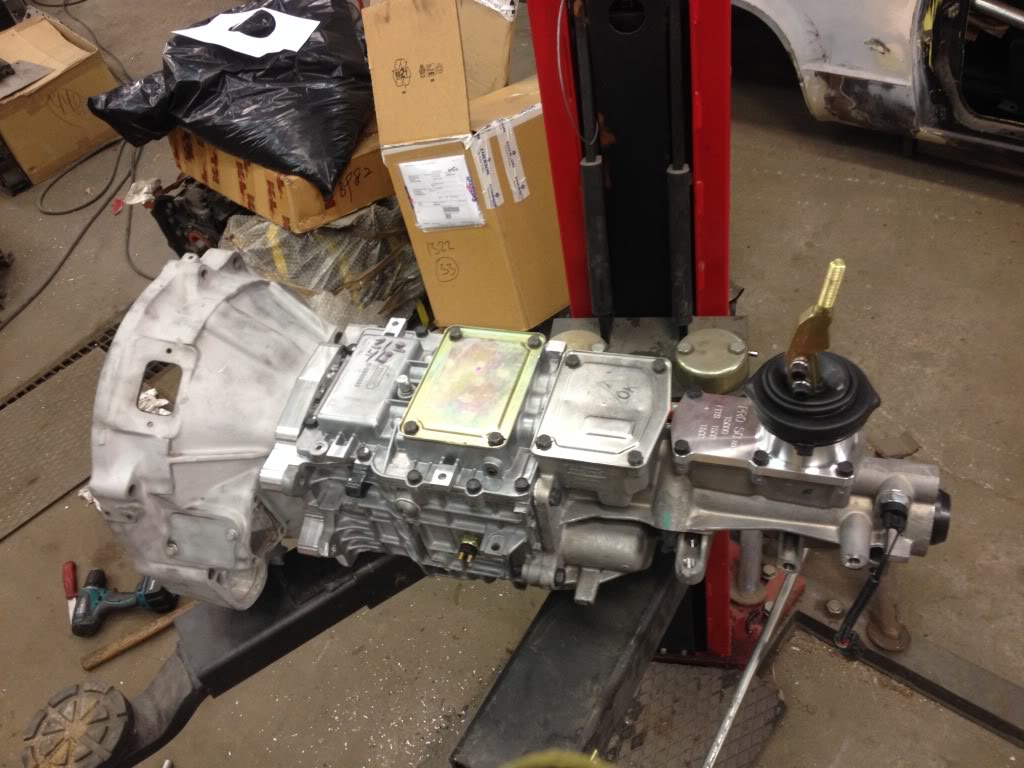

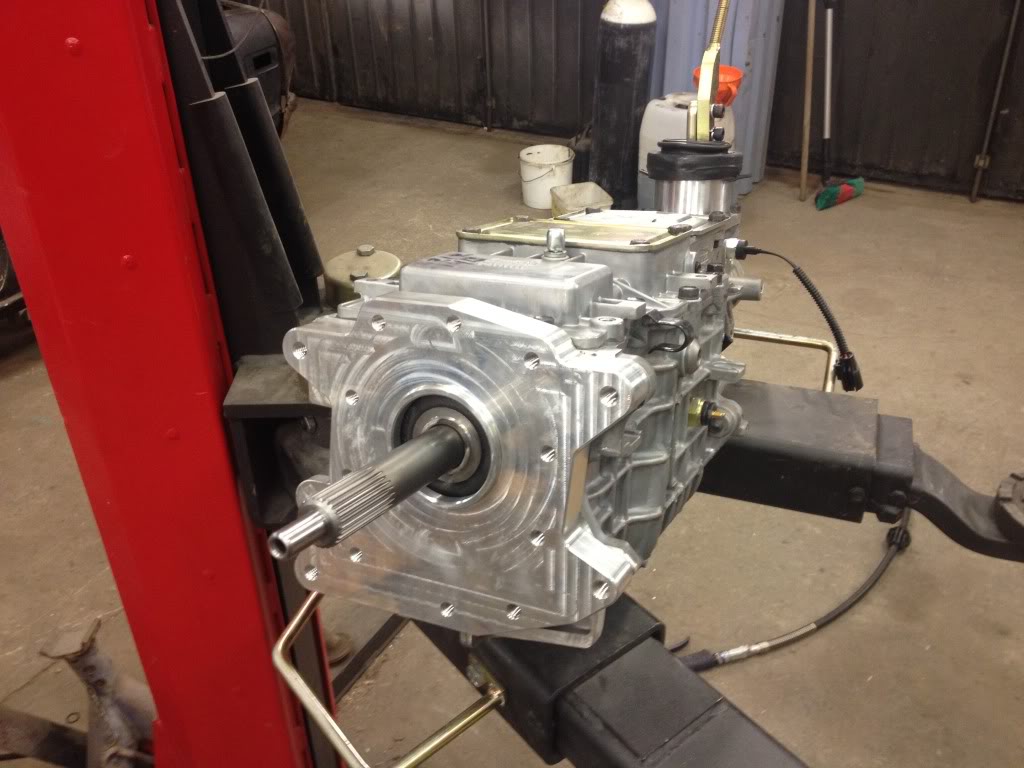

Sold my bmw trans.. Going for a better tranny!

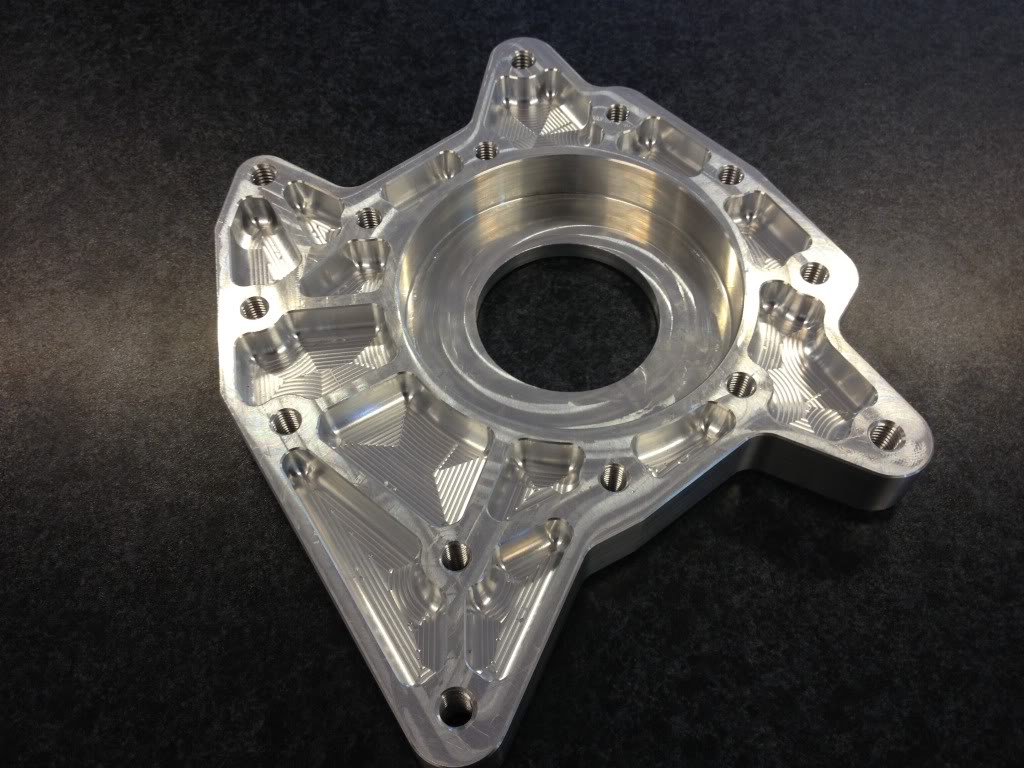

Tko-fd bellhousing adapter
Name: null_zps95df6b6d.jpg Views: 354 Size: 125.1 KB

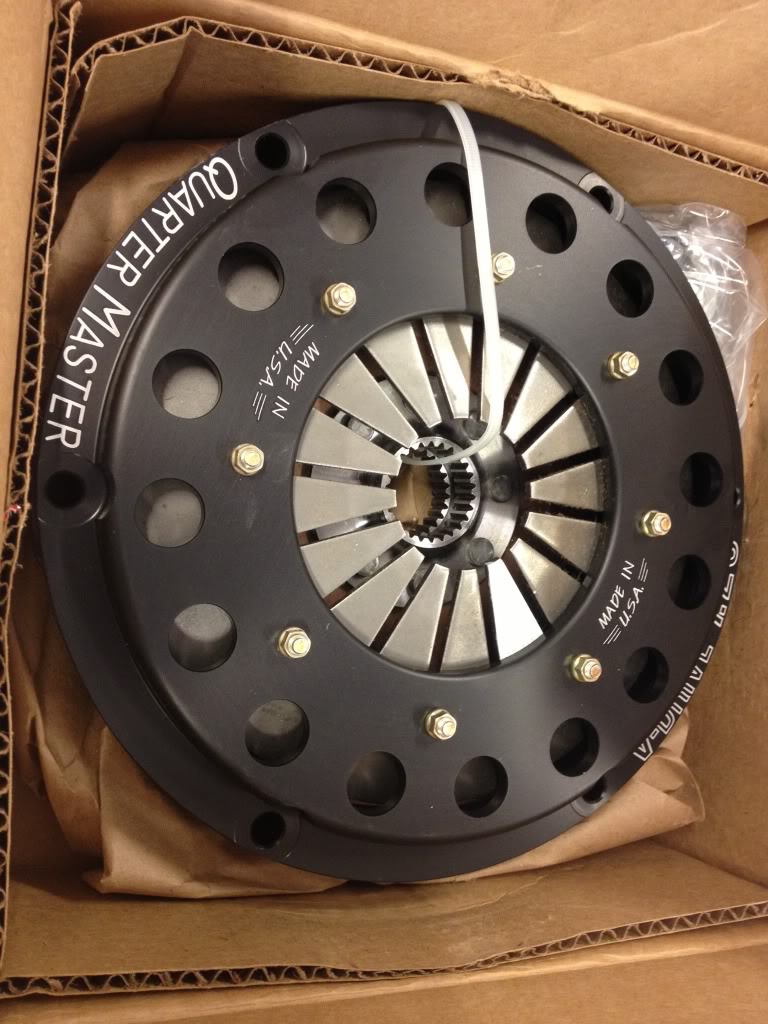

Quarter master twin cerametallic
Name: null_zpsee5d4e06.jpg Views: 349 Size: 124.2 KB

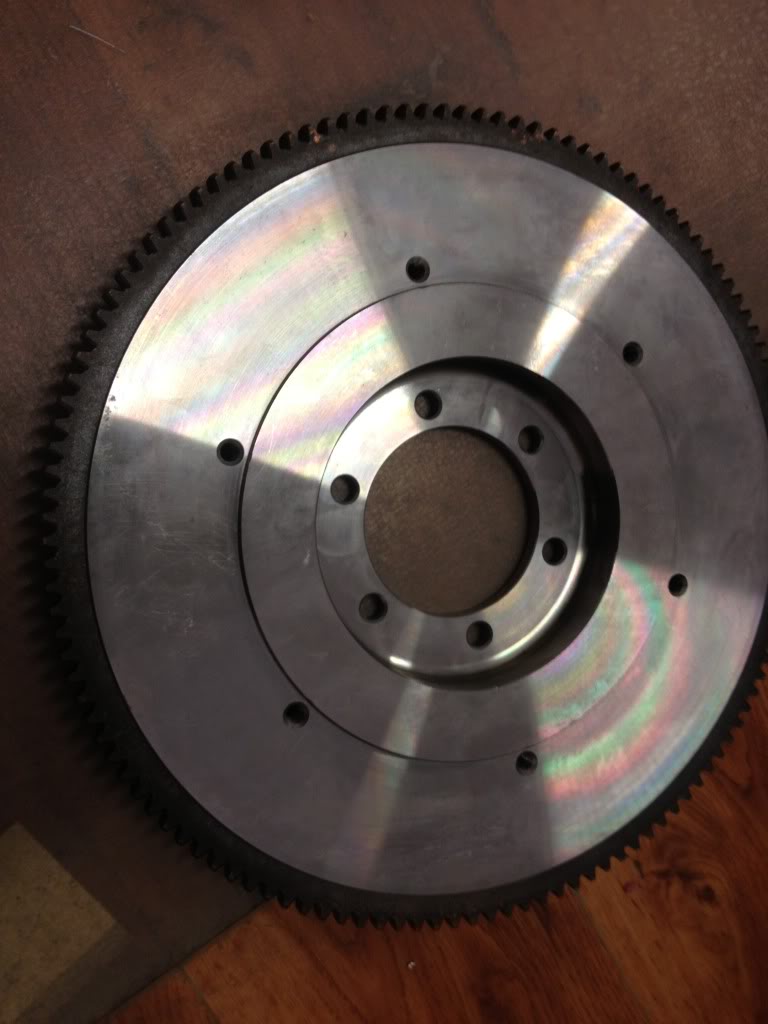

Chromolly flywheel
Name: null_zps1003ccf1.jpg Views: 336 Size: 65.4 KB

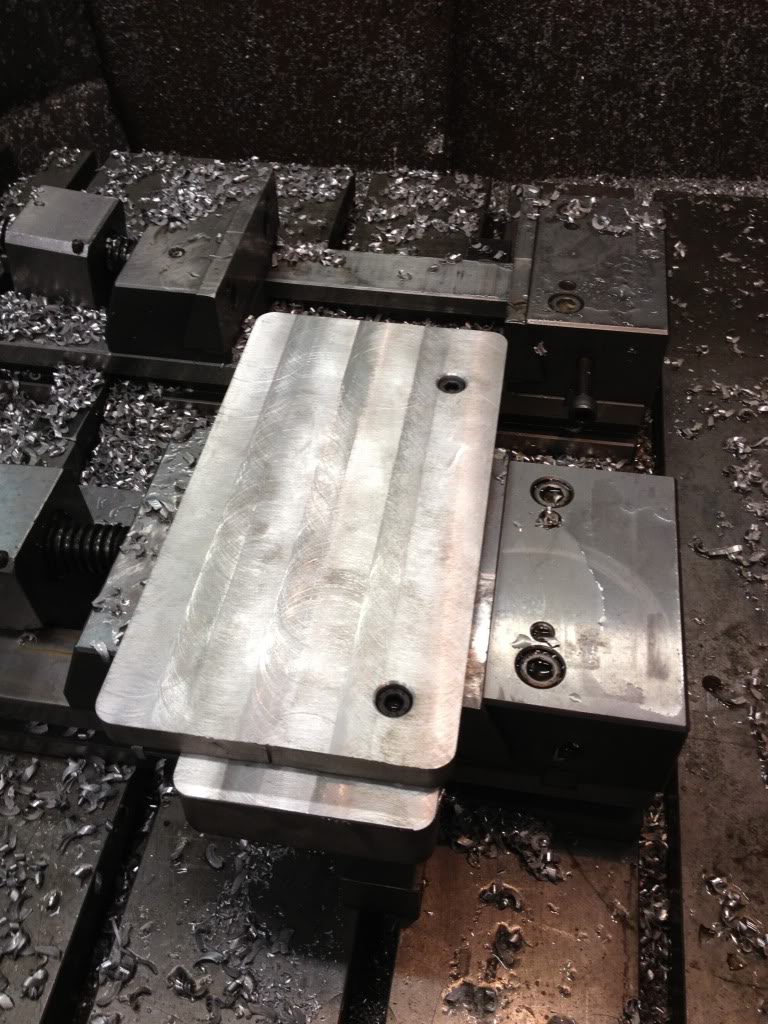

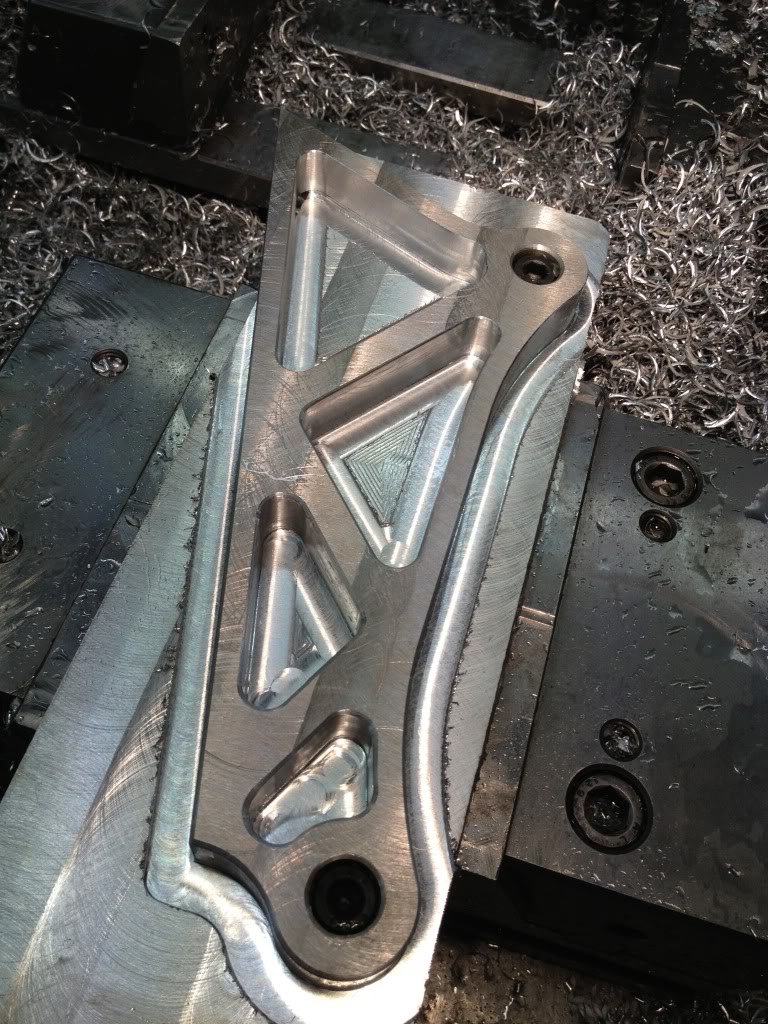

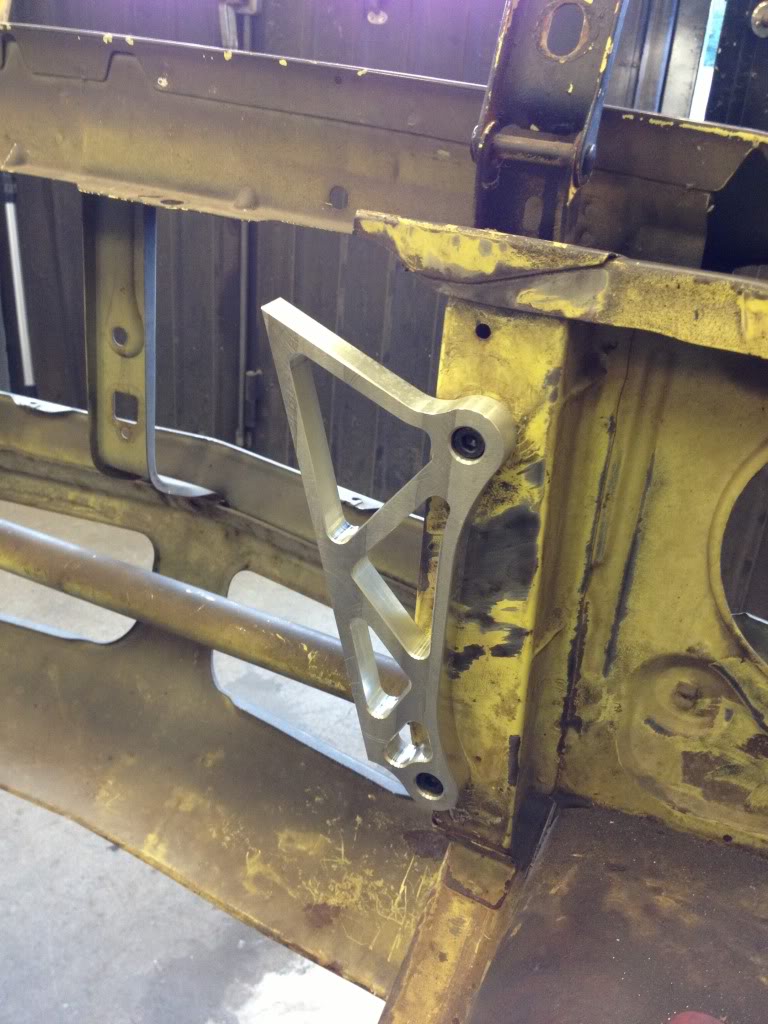

I just started on new intercooler mounting brackets :-)
Name: null_zps19948ee7.jpg Views: 325 Size: 158.9 KBName: null_zps73d1d0fd.jpg Views: 318 Size: 202.3 KB

Right one is done
Name: null_zpseb7562d5.jpg Views: 313 Size: 117.2 KB

You can also follow this build on facebook, search for 'gus performance'
Reply
0
Old Sep 1, 2013 | 04:17 PM
Share
  #204
estevan62274's Avatar
estevan62274
#garageguybuild
Veteran: Air Force
Tenured Member: 20 Years
Liked
Community Favorite
iTrader: (33)

Joined: May 2002
Posts: 3,451
Likes: 1,060
From: Space Coast, Florida
Awesome fab work!

Love this build!
Reply
0
Old Sep 8, 2013 | 01:01 PM
Share
  #205
gusfd3s's Avatar
gusfd3s
Thread Starter
E85 Addict

Joined: Jun 2007
Posts: 519
Likes: 2
From: Stockholm
Thanks :-)

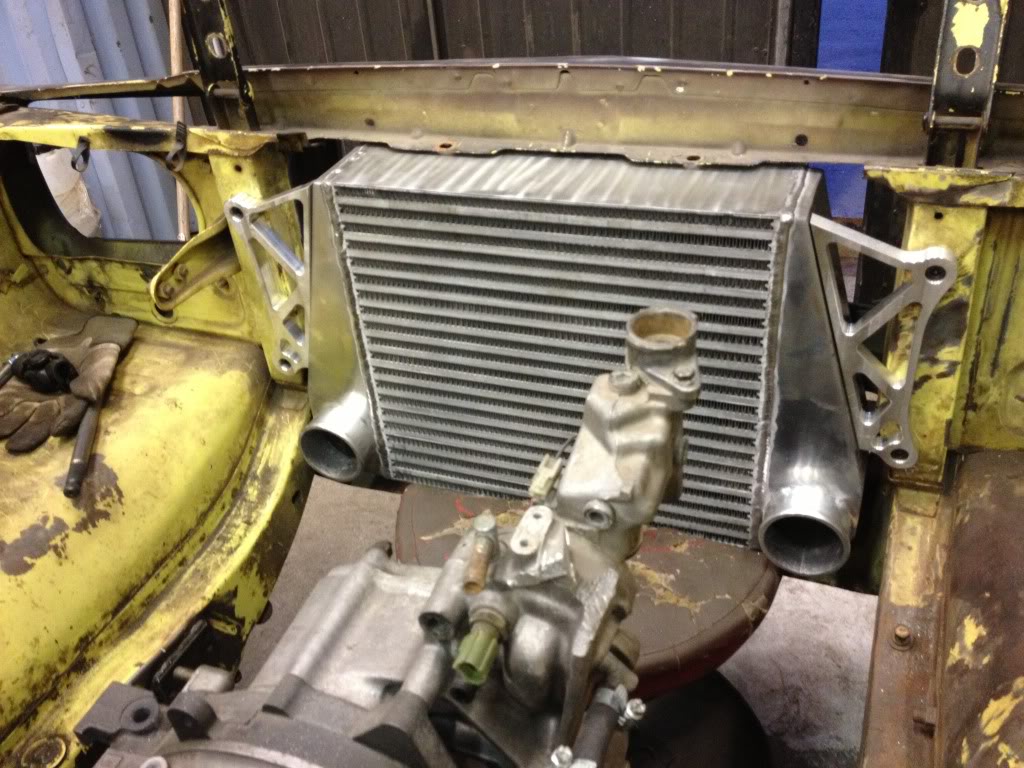

Some more work..
Name: null_zps1aea898c.jpg Views: 324 Size: 147.3 KB

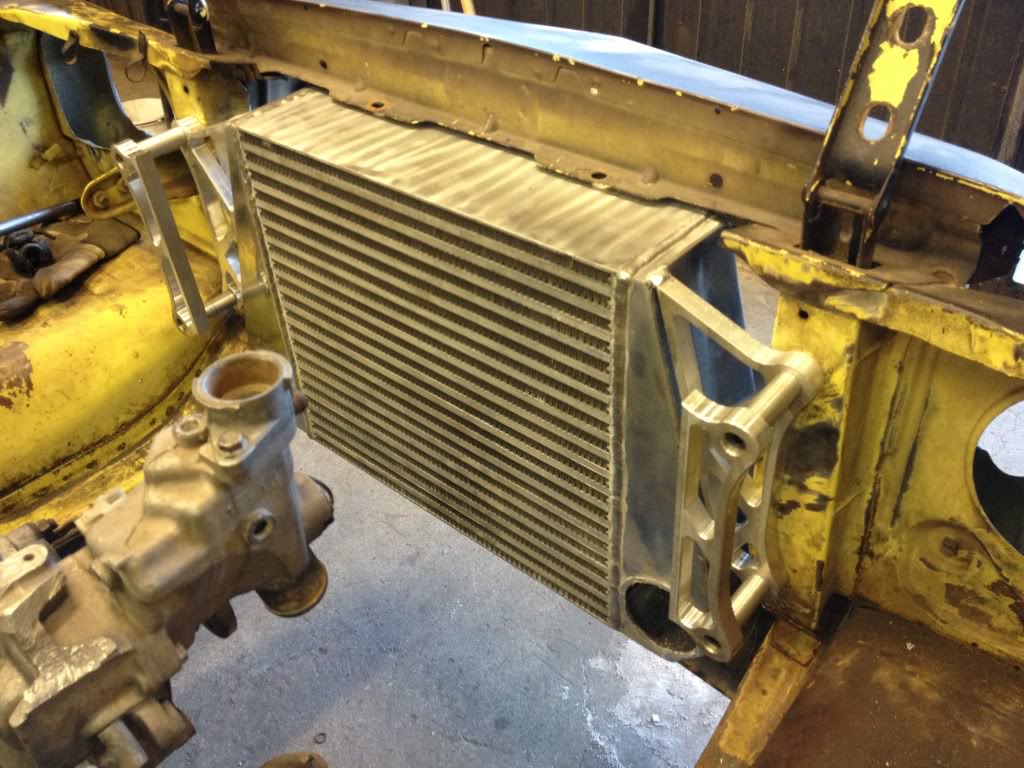

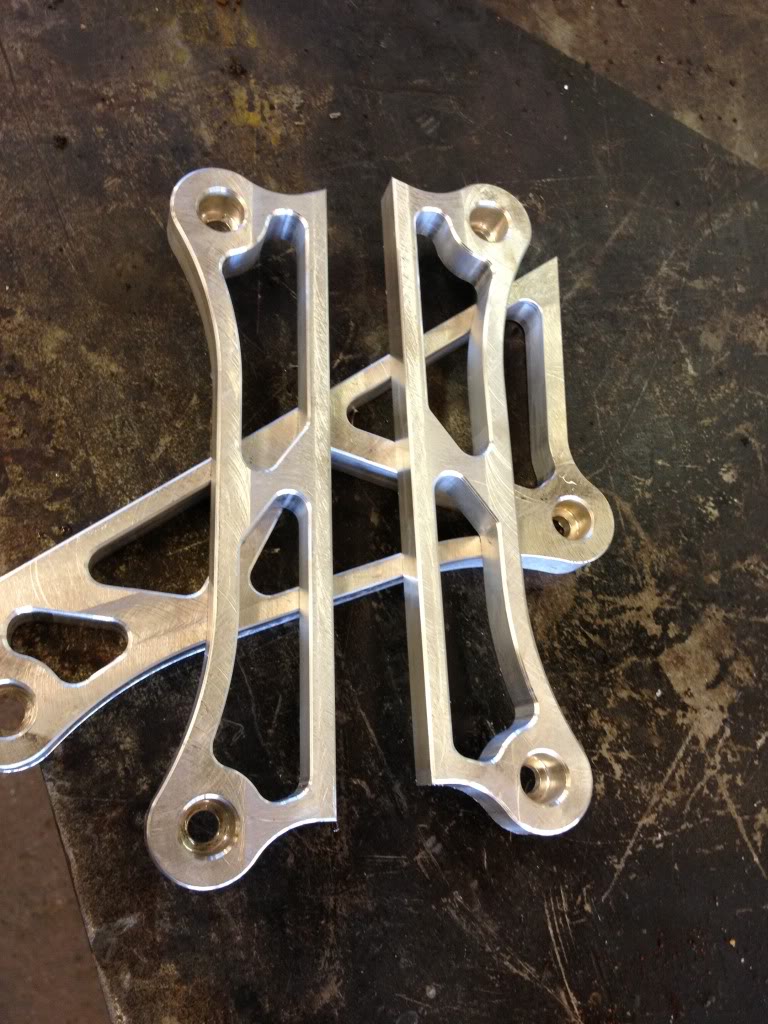

Radiator brackets..
Name: null_zpse4cd073a.jpg Views: 312 Size: 146.4 KB
Name: null_zps020afa9f.jpg Views: 317 Size: 162.8 KB
Reply
0
Old Sep 8, 2013 | 01:09 PM
Share
  #206
tegheim's Avatar
tegheim
Senior Member
Tenured Member 15 Years

Joined: Nov 2003
Posts: 533
Likes: 3
From: Sweden
Top Notch!
Reply
0
Old Sep 22, 2013 | 03:41 PM
Share
  #207
gusfd3s's Avatar
gusfd3s
Thread Starter
E85 Addict

Joined: Jun 2007
Posts: 519
Likes: 2
From: Stockholm
Small update,

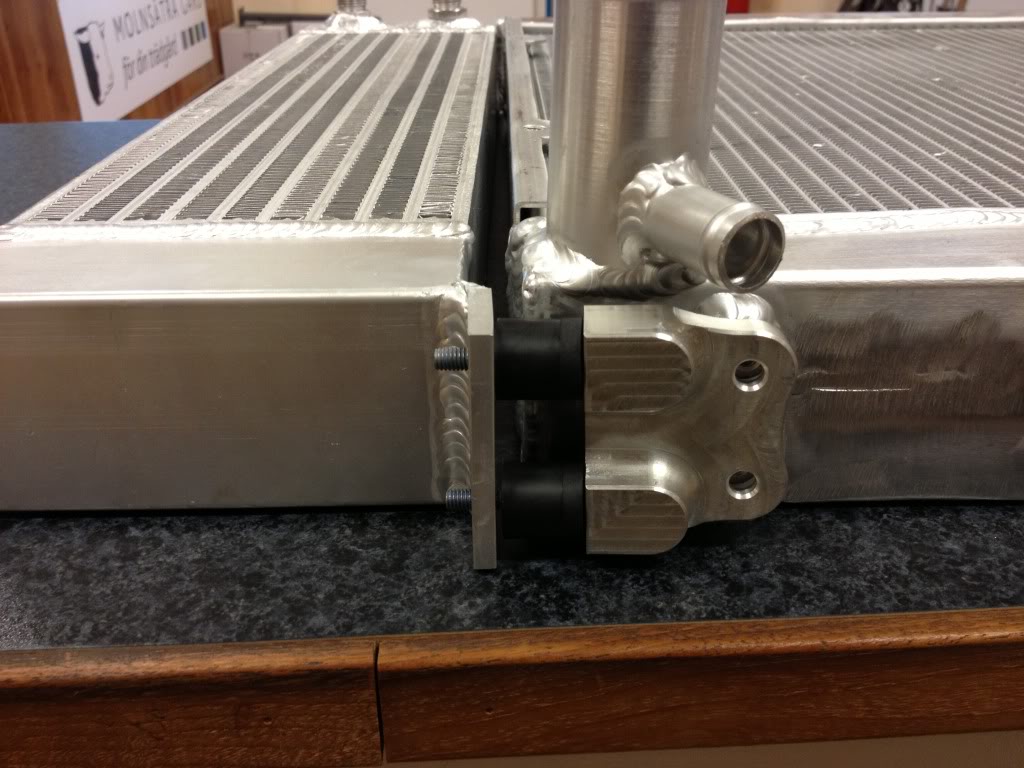

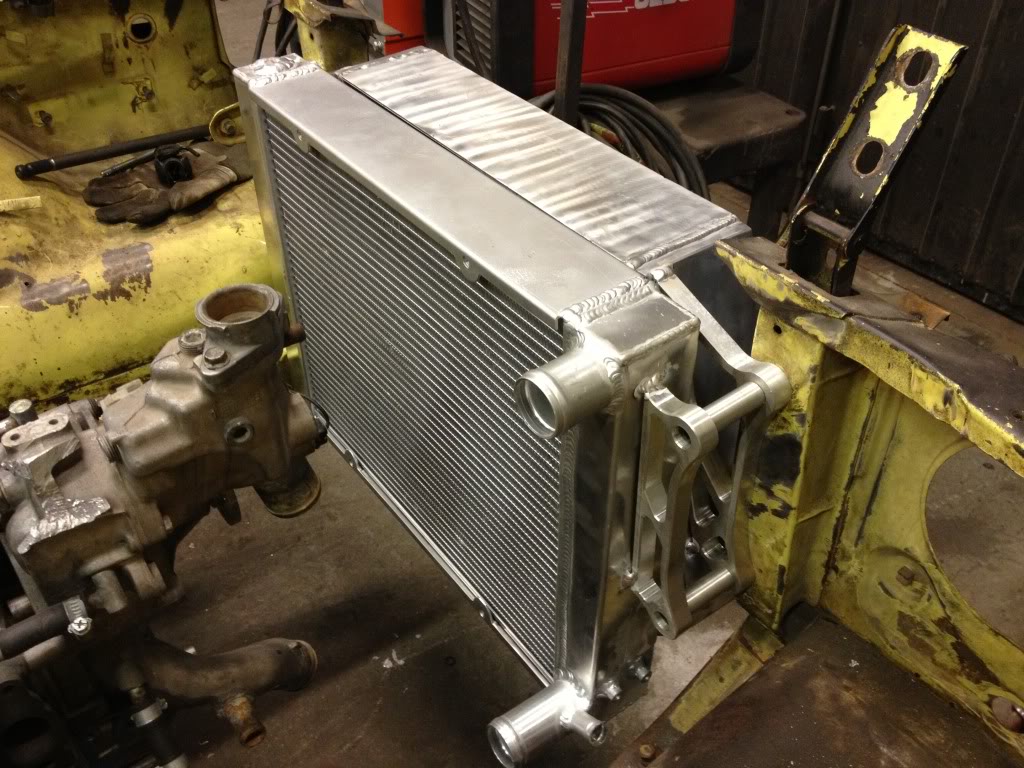

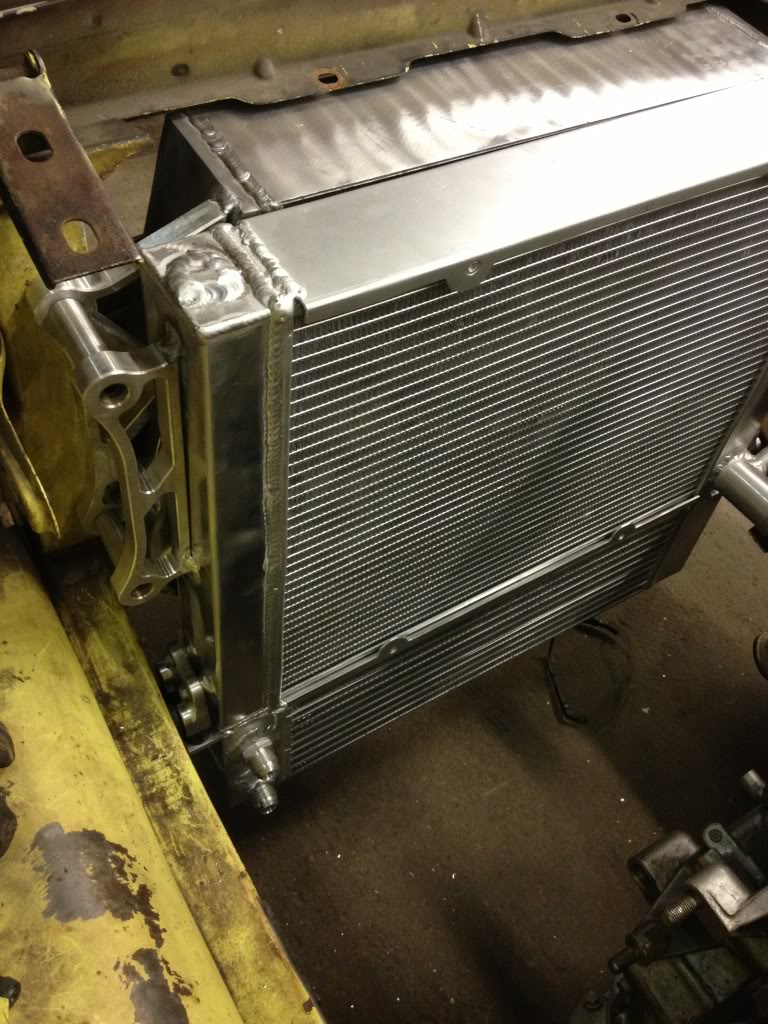

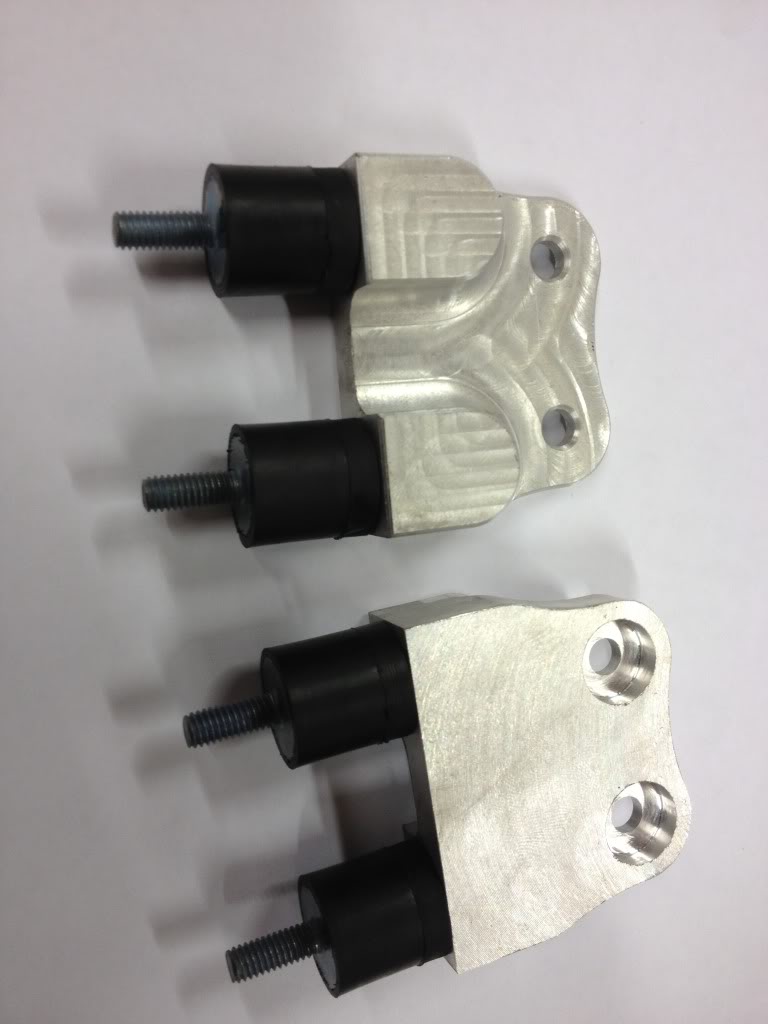

Some more work on the cooler setup.

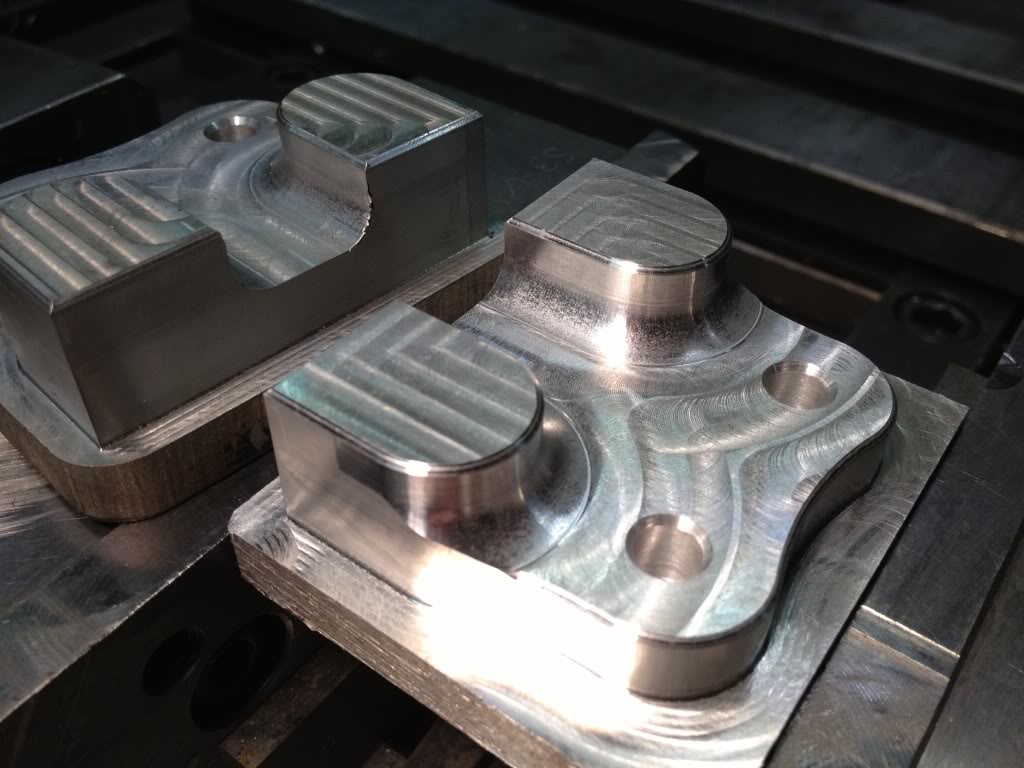

Name: null_zps6af10750.jpg Views: 320 Size: 161.8 KB
Name: null_zps77d3940d.jpg Views: 310 Size: 104.2 KBName: null_zps779fa229.jpg Views: 311 Size: 56.9 KB
Name: null_zpsacb4361c.jpg Views: 321 Size: 112.2 KB
Name: null_zps1670e630.jpg Views: 319 Size: 174.9 KB

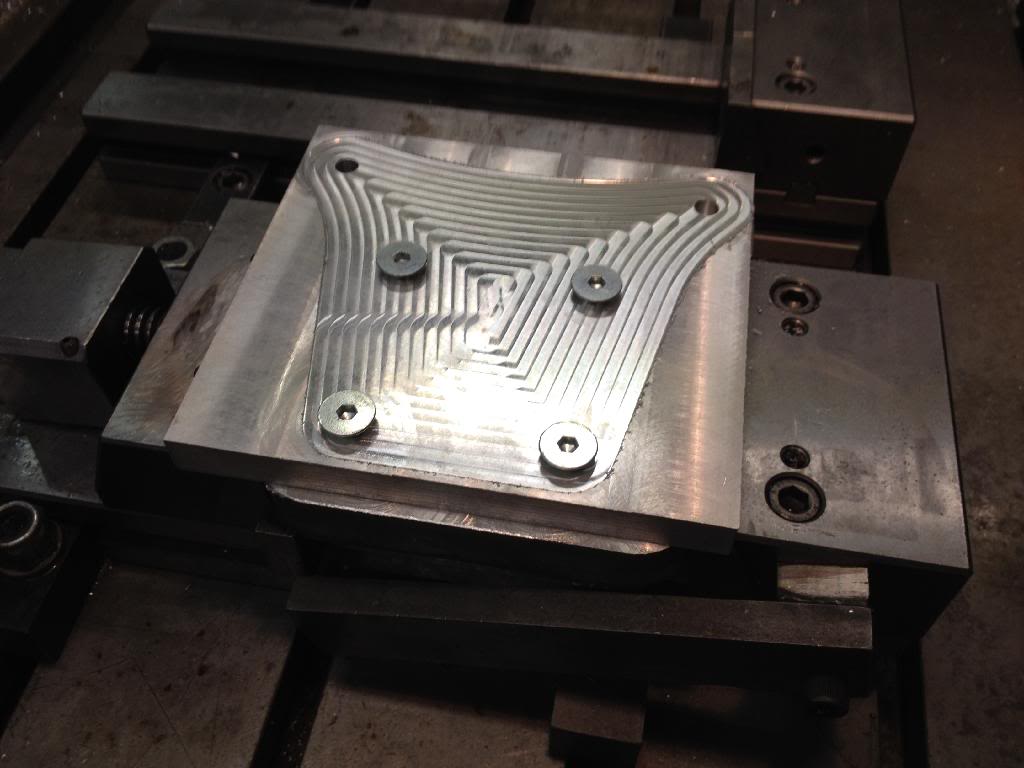

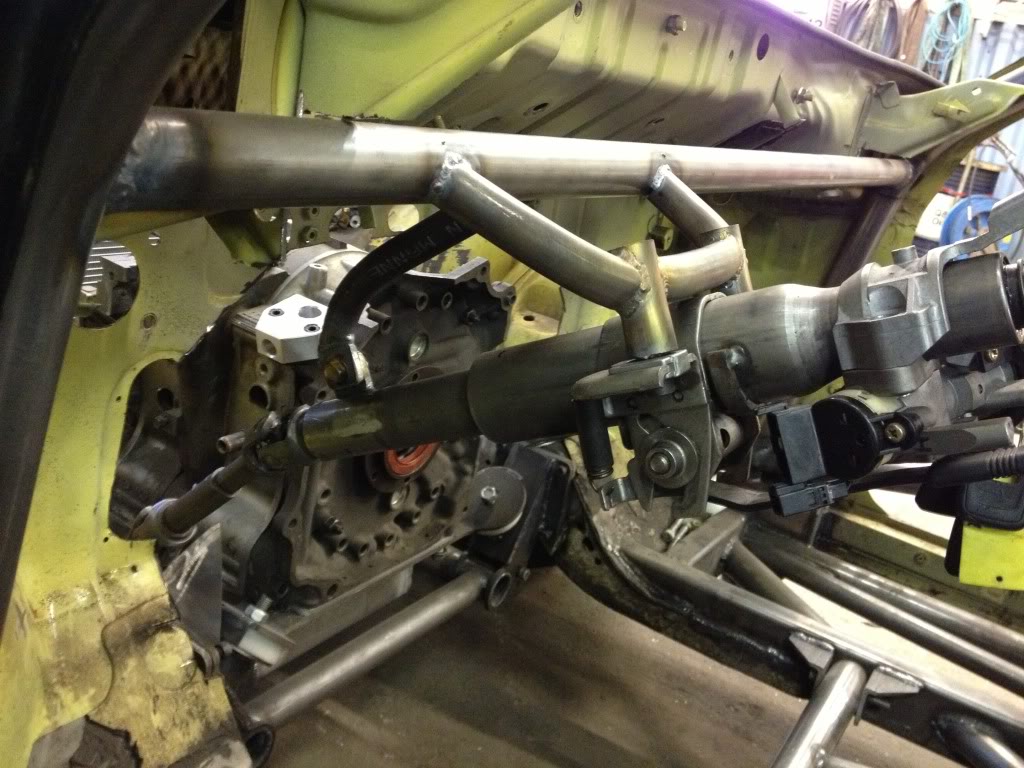

Steering column mounts
Name: null_zpsa9f9d9e5.jpg Views: 326 Size: 133.6 KB
Reply
0
Old Sep 22, 2013 | 06:55 PM
Share
  #208
Siraniko's Avatar
Siraniko
RX for fun
Tenured Member 15 Years
iTrader: (13)

Joined: Aug 2001
Posts: 15,926
Likes: 25
From: Socal
dont forget that you need a space between the main pulley and radiator. its not easy to find a elec radiator fan that will pull alot of CFM. disregard if you have a plan for a pusher fan.
Reply
0
Old Sep 22, 2013 | 07:37 PM
Share
  #209
cfamilyfix's Avatar
cfamilyfix
Rotary Freak
Tenured Member: 15 Years
iTrader: (15)

Joined: Aug 2010
Posts: 1,735
Likes: 2
From: Brooklyn NY
You sir are very talented. How many hours went into THAT set up? Awesome!
Reply
0
Old Sep 22, 2013 | 07:39 PM
Share
  #210
KansasCityREPU's Avatar
KansasCityREPU
Out In the Barn
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (9)

Joined: Mar 2005
Posts: 6,702
Likes: 1,250
From: KC
Will you be using an oil temperature thermostat?
Reply
0
Old Sep 23, 2013 | 01:29 AM
Share
  #211
gusfd3s's Avatar
gusfd3s
Thread Starter
E85 Addict

Joined: Jun 2007
Posts: 519
Likes: 2
From: Stockholm
Originally Posted by Siraniko
dont forget that you need a space between the main pulley and radiator. its not easy to find a elec radiator fan that will pull alot of CFM. disregard if you have a plan for a pusher fan.
That wont be a problem, i can fit a 20b in there, the motor is moved back about 130mm. Im going to use a 16" electric fan on the rad!
Reply
0
Old Sep 23, 2013 | 01:31 AM
Share
  #212
gusfd3s's Avatar
gusfd3s
Thread Starter
E85 Addict

Joined: Jun 2007
Posts: 519
Likes: 2
From: Stockholm
Originally Posted by cfamilyfix
You sir are very talented. How many hours went into THAT set up? Awesome!
I have no idea :-) many hours...
Reply
0
Old Sep 23, 2013 | 01:33 AM
Share
  #213
gusfd3s's Avatar
gusfd3s
Thread Starter
E85 Addict

Joined: Jun 2007
Posts: 519
Likes: 2
From: Stockholm
Originally Posted by KansasCityREPU
Will you be using an oil temperature thermostat?
Yes, in my fd im using a earl oil thermostat, it has been working good.
Reply
0
Old Sep 23, 2013 | 08:42 AM
Share
  #214
KansasCityREPU's Avatar
KansasCityREPU
Out In the Barn
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (9)

Joined: Mar 2005
Posts: 6,702
Likes: 1,250
From: KC
Originally Posted by gusfd3s
Yes, in my fd im using a earl oil thermostat, it has been working good.
I'm using the same Earls thermostat. Your setup looks much nicer then mine.

Reply
0
Old Sep 27, 2013 | 06:38 AM
Share
  #215
12AMiata's Avatar
12AMiata
Engine builder
Tenured Member 05 Years

Joined: Sep 2012
Posts: 37
Likes: 1
From: Washington
Awesome work gusfd3s. Where did you learn your Solidworks skills? I have Solidworks but only basic skills and would love to be able to use it at your level.
Reply
0
Old Sep 27, 2013 | 07:53 PM
Share
  #216
Stredrotor's Avatar
Stredrotor
Full Member

Joined: Nov 2009
Posts: 99
Likes: 0
From: Tasmania, Australia
Nice billet work there! Keep it up
Reply
0
Old Oct 6, 2013 | 03:43 AM
Share
  #217
gusfd3s's Avatar
gusfd3s
Thread Starter
E85 Addict

Joined: Jun 2007
Posts: 519
Likes: 2
From: Stockholm
Originally Posted by 12AMiata
Awesome work gusfd3s. Where did you learn your Solidworks skills? I have Solidworks but only basic skills and would love to be able to use it at your level.
Thanks, just put many hours into it!
Reply
0
Old Oct 6, 2013 | 03:44 AM
Share
  #218
gusfd3s's Avatar
gusfd3s
Thread Starter
E85 Addict

Joined: Jun 2007
Posts: 519
Likes: 2
From: Stockholm
Name: null_zps90b0dbb5.jpg Views: 318 Size: 123.1 KB

Name: null_zps23a2efae.jpg Views: 328 Size: 96.1 KB
Name: null_zpse61942ce.jpg Views: 309 Size: 118.5 KB
Reply
0
Old Oct 6, 2013 | 04:39 PM
Share
  #219
Stredrotor's Avatar
Stredrotor
Full Member

Joined: Nov 2009
Posts: 99
Likes: 0
From: Tasmania, Australia
Originally Posted by gusfd3s

I've got one of those cardboard boxes!
Reply
0
Old Oct 10, 2013 | 12:44 PM
Share
  #220
gusfd3s's Avatar
gusfd3s
Thread Starter
E85 Addict

Joined: Jun 2007
Posts: 519
Likes: 2
From: Stockholm
Originally Posted by Stredrotor
I've got one of those cardboard boxes!
I know

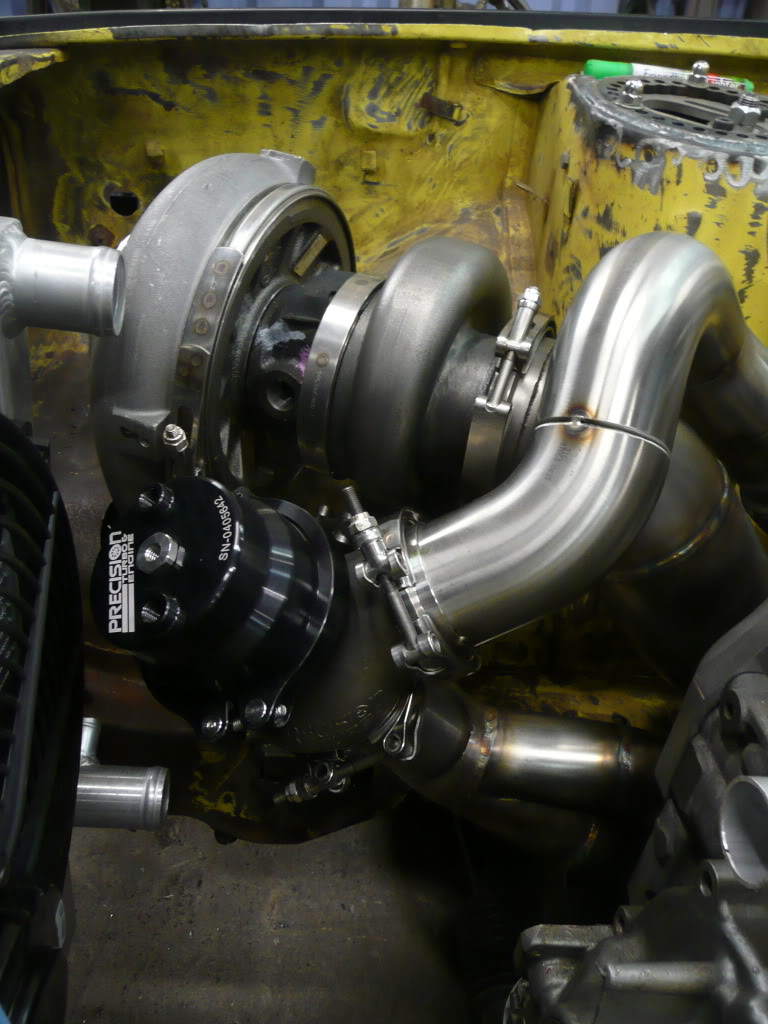

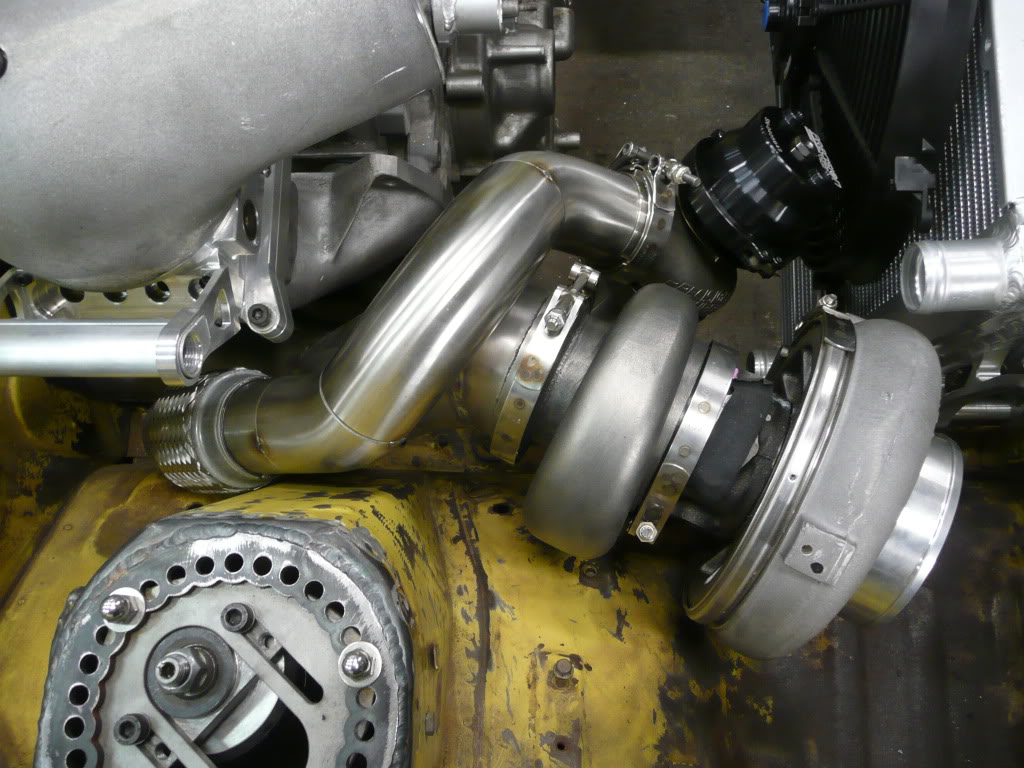

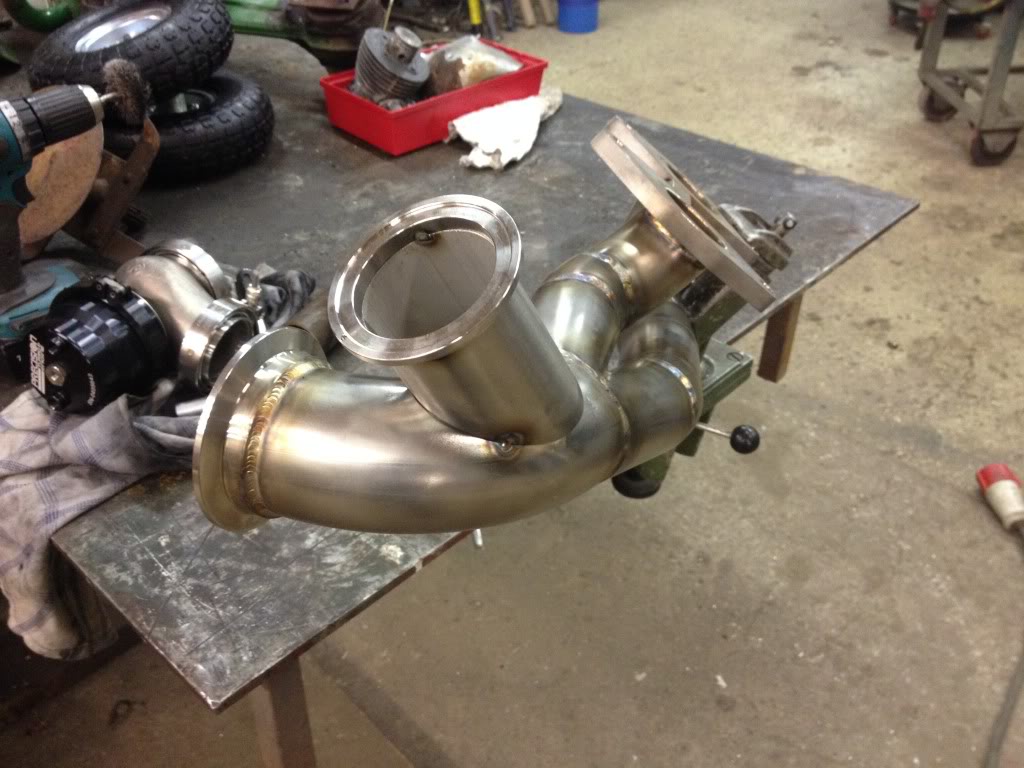

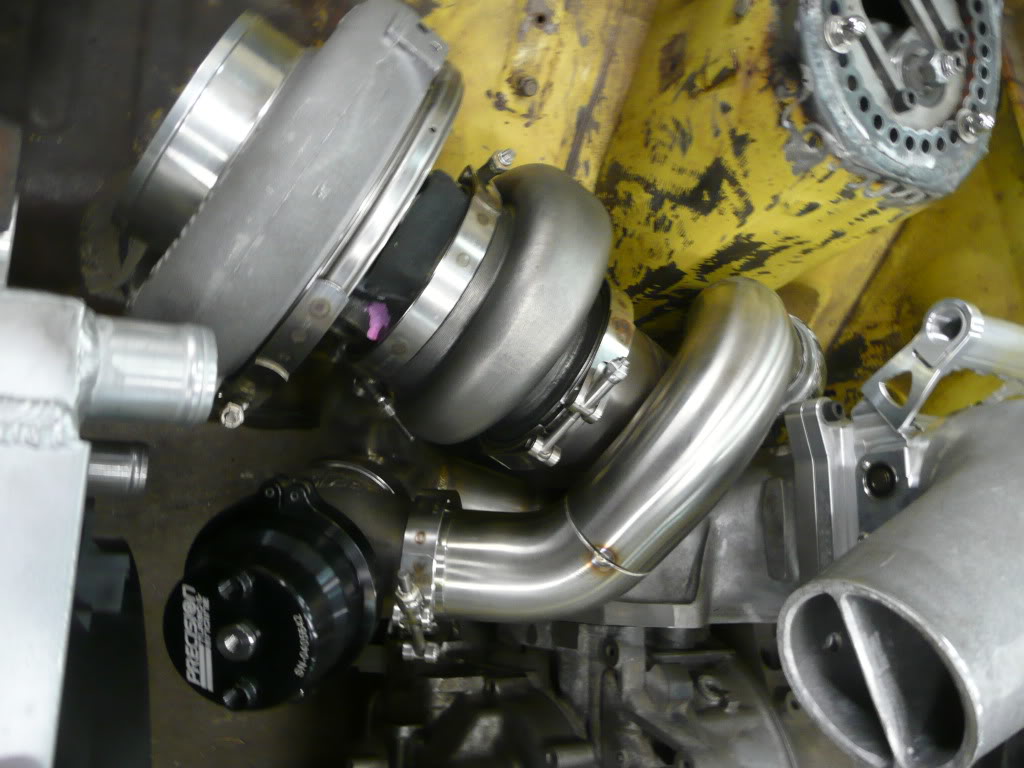

Wastegate.. Some welding left!
Name: null_zps74a40adc.jpg Views: 313 Size: 106.5 KB
Name: null_zps11b4af8c.jpg Views: 320 Size: 105.9 KB
Name: null_zps0426917a.jpg Views: 317 Size: 102.2 KB
Name: null_zpsc6cf565f.jpg Views: 315 Size: 136.4 KB
Reply
0
Old Dec 16, 2013 | 02:24 PM
Share
  #221
gusfd3s's Avatar
gusfd3s
Thread Starter
E85 Addict

Joined: Jun 2007
Posts: 519
Likes: 2
From: Stockholm
Update!

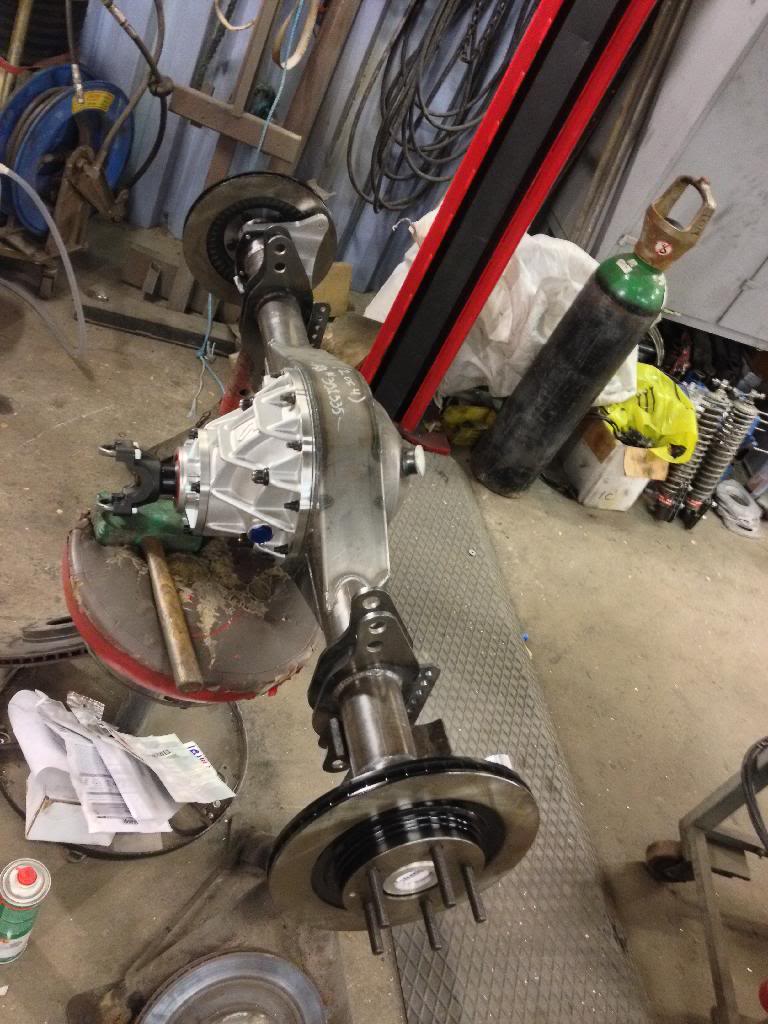

Some rear end candy!
Name: 7E0A703A-9A12-4BC0-BF88-05AA553A53E0_zpssyparmod.jpg Views: 301 Size: 101.8 KB

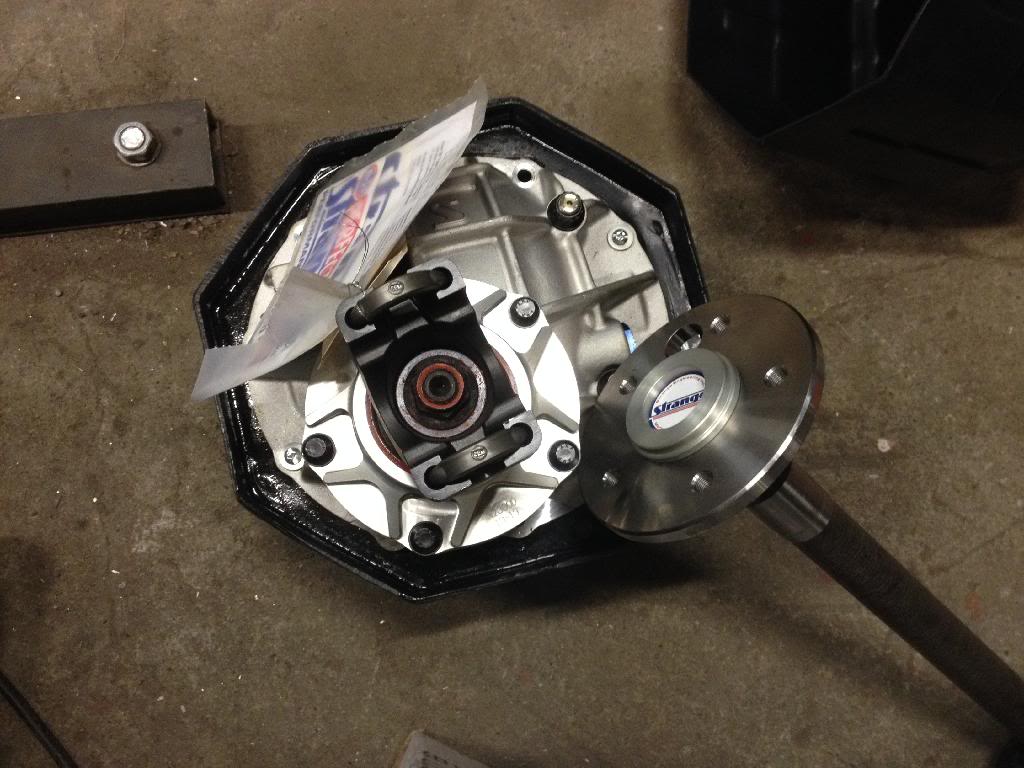

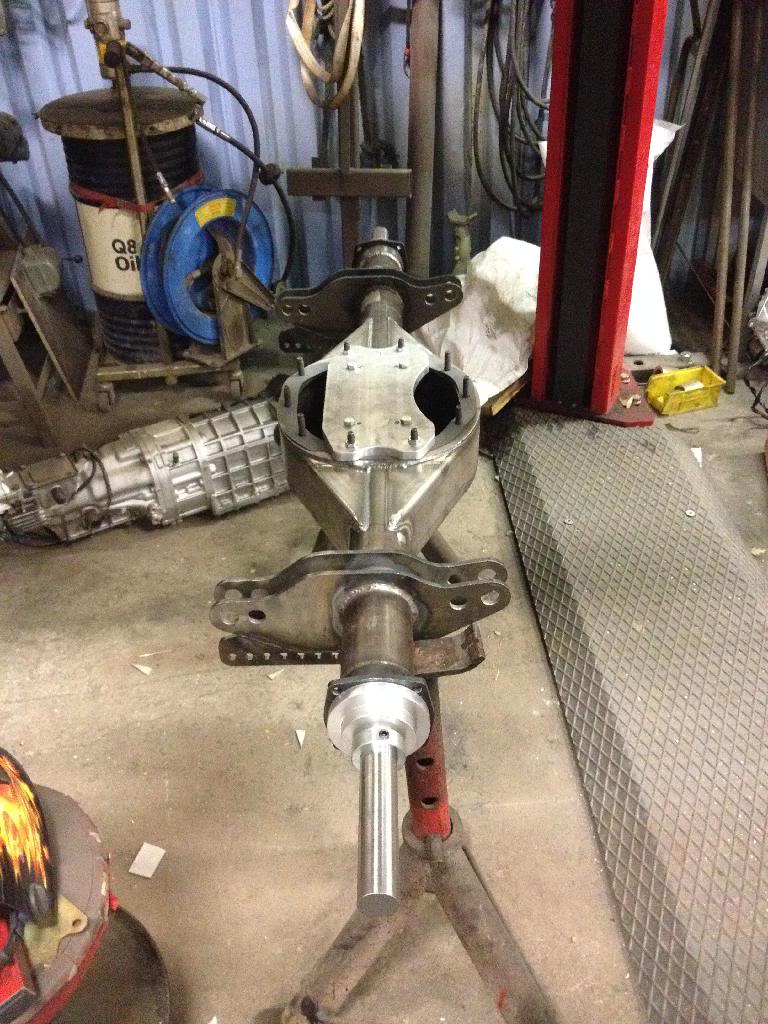

Rear housing cut to the right length and ready to weld the end housings.
Name: 37D99418-DD4E-4107-93E6-7CB96C7DFE74_zpsiadjlcmf.jpg Views: 321 Size: 144.4 KB

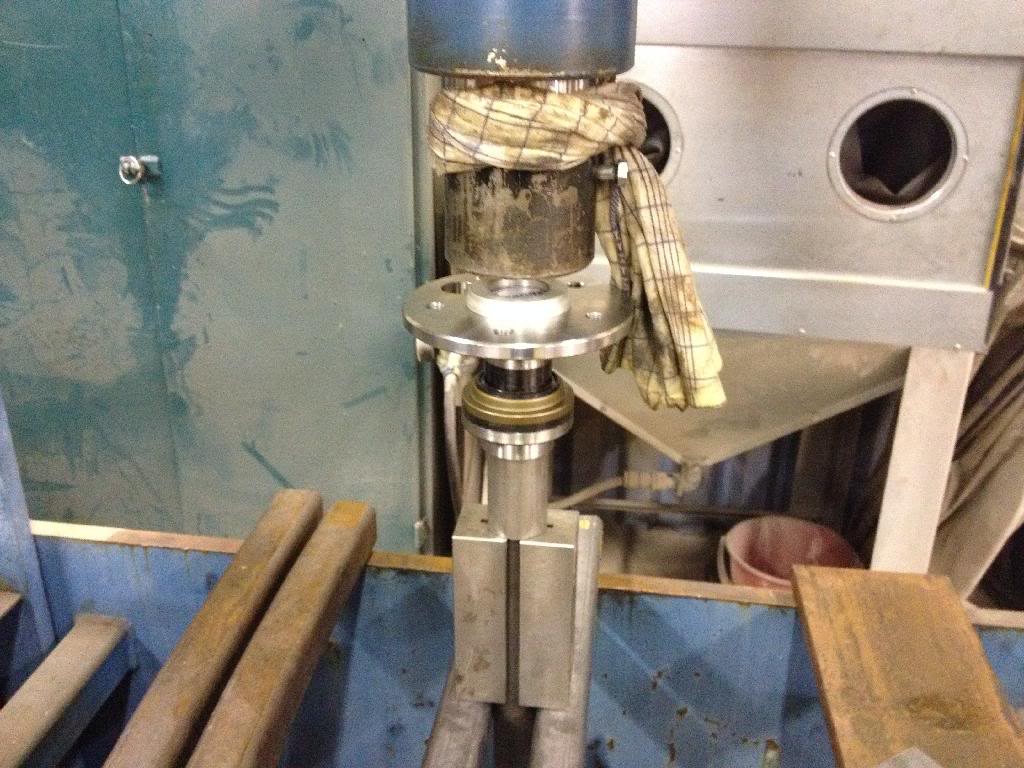

Pressing the bearings
Name: 725C54A1-0782-404A-B3A5-58F5C4AD9C48_zpsyncokrie.jpg Views: 306 Size: 115.4 KB

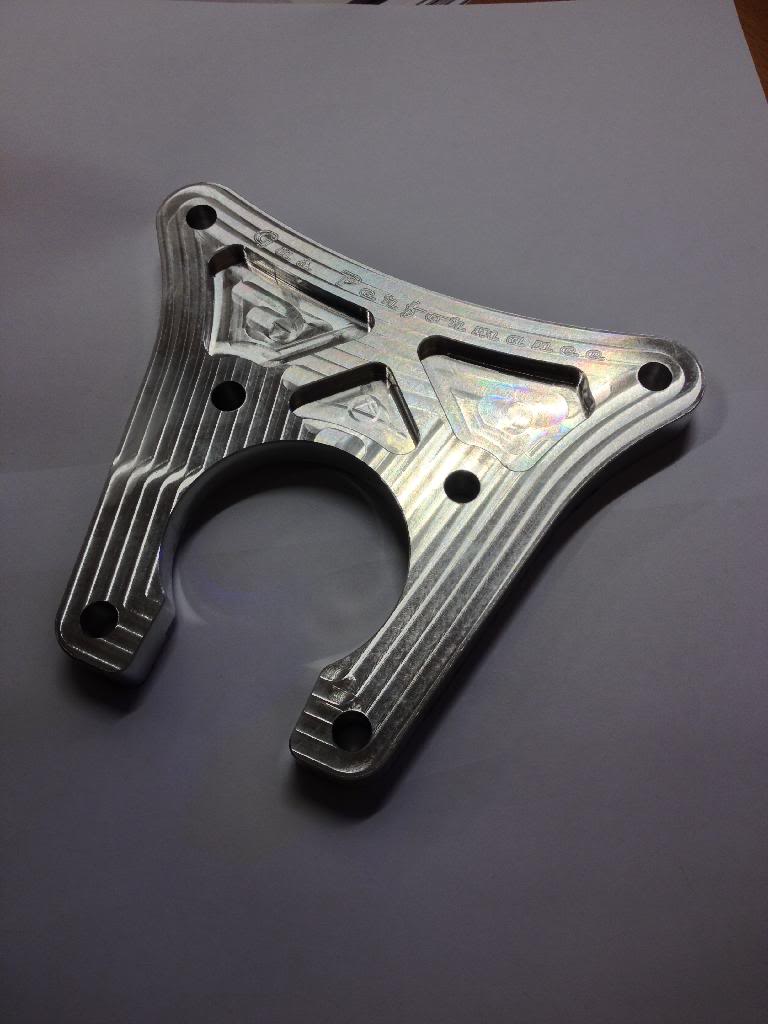

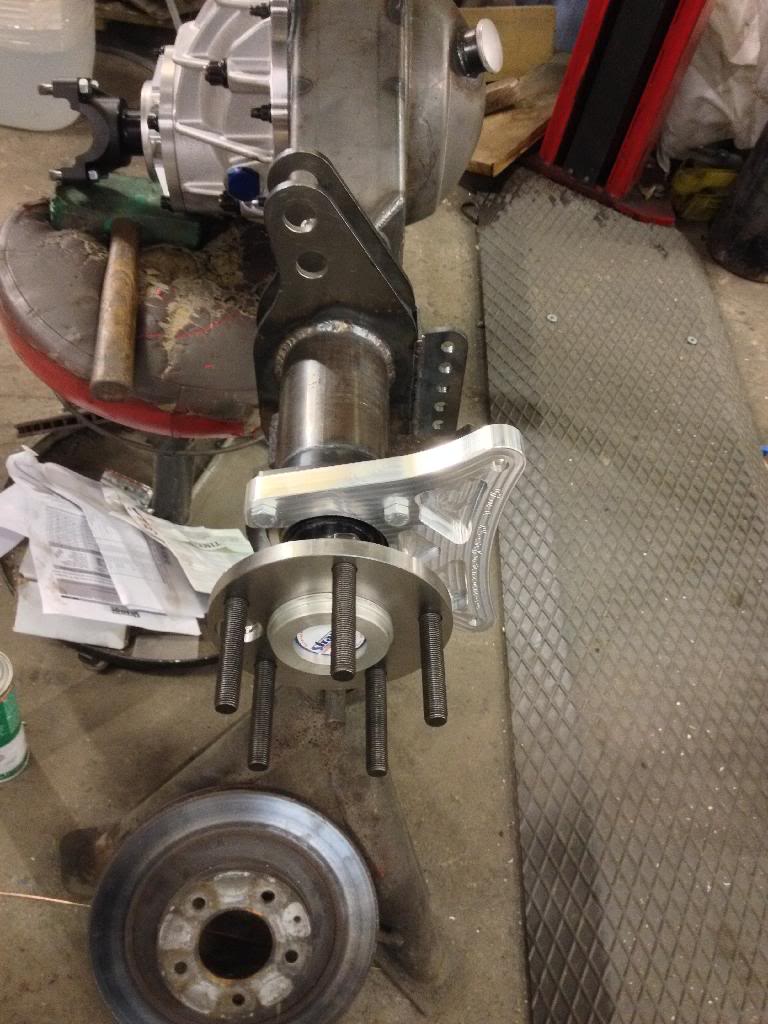

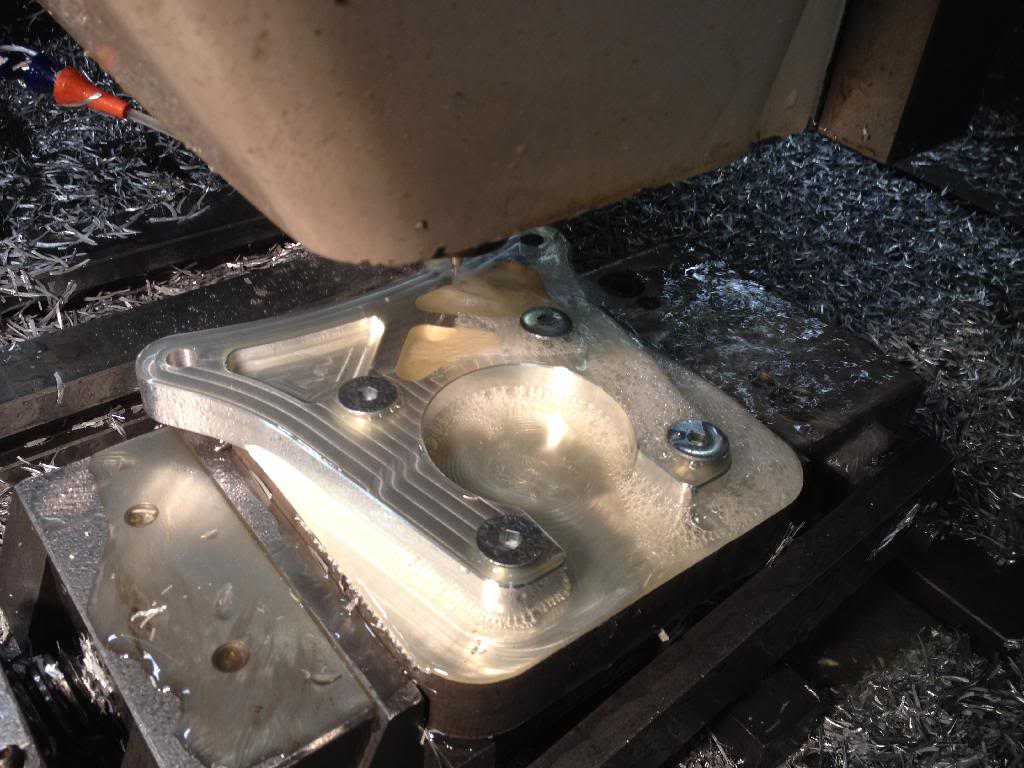

Bearing retainer and caliper mount
Name: 5CAE0C46-2A70-41A4-9EE8-48DE35B95D27_zpsxaxj6tqb.jpg Views: 322 Size: 67.4 KB
Name: C20C8A00-CA1C-46CC-9748-520D0E787119_zpsmhl6tzww.jpg Views: 307 Size: 104.7 KB

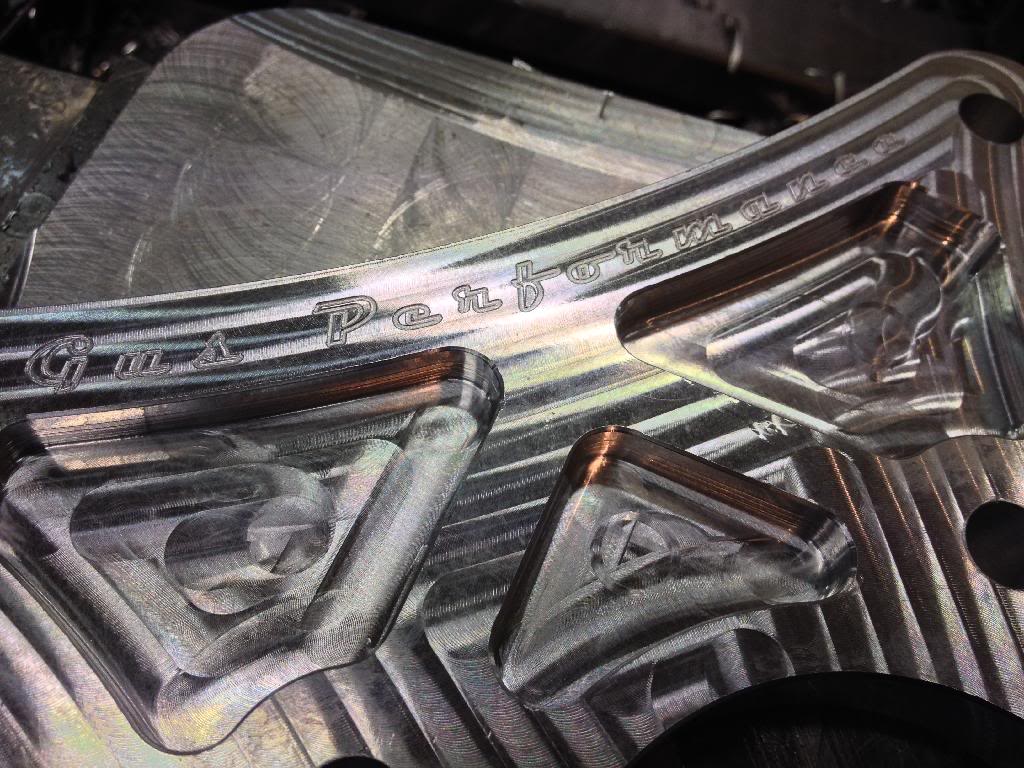

Finished
Name: 70365FF2-EBA3-4E24-806C-EA49F105B869_zpsjyt5r4tb.jpg Views: 311 Size: 150.6 KB
Name: 457F6BA5-3828-470E-99A2-D646D8F12833_zpstanuvv8t.jpg Views: 303 Size: 63.4 KB

Test fit
Name: 15EF14F8-7926-4D0E-B64D-88061F325AFA_zpsp2syj70s.jpg Views: 334 Size: 105.6 KB

Ready for wheels!
Name: 741590B6-B430-4838-85F4-5701720DBF80_zps3t1vkg67.jpg Views: 305 Size: 117.2 KB

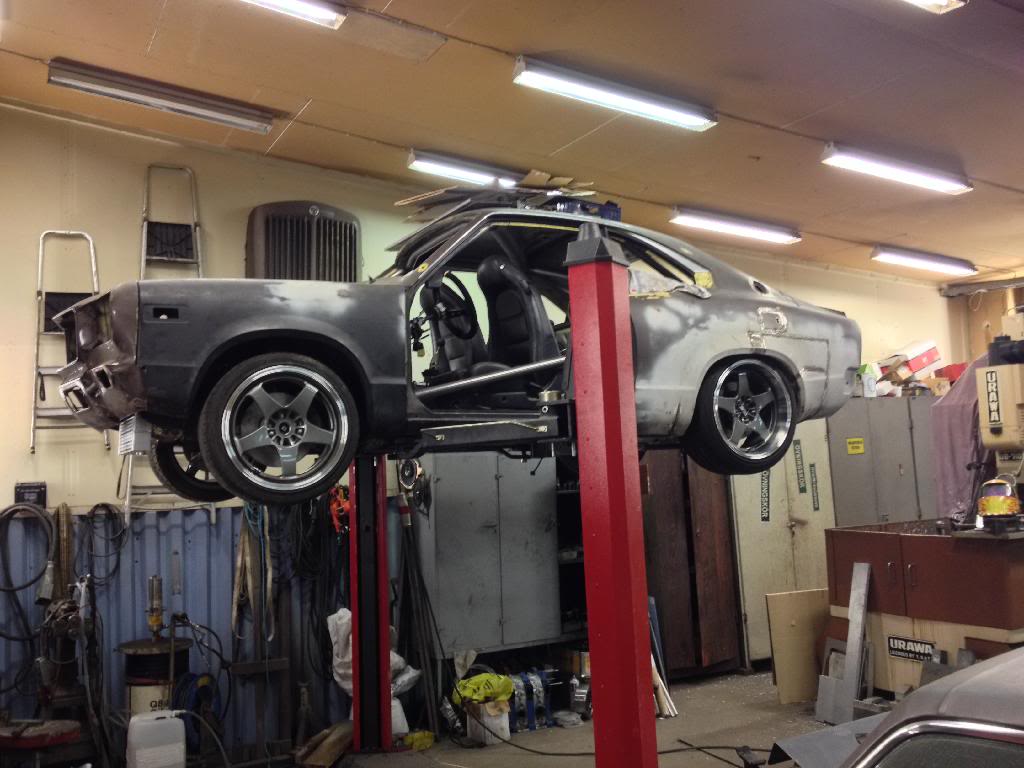

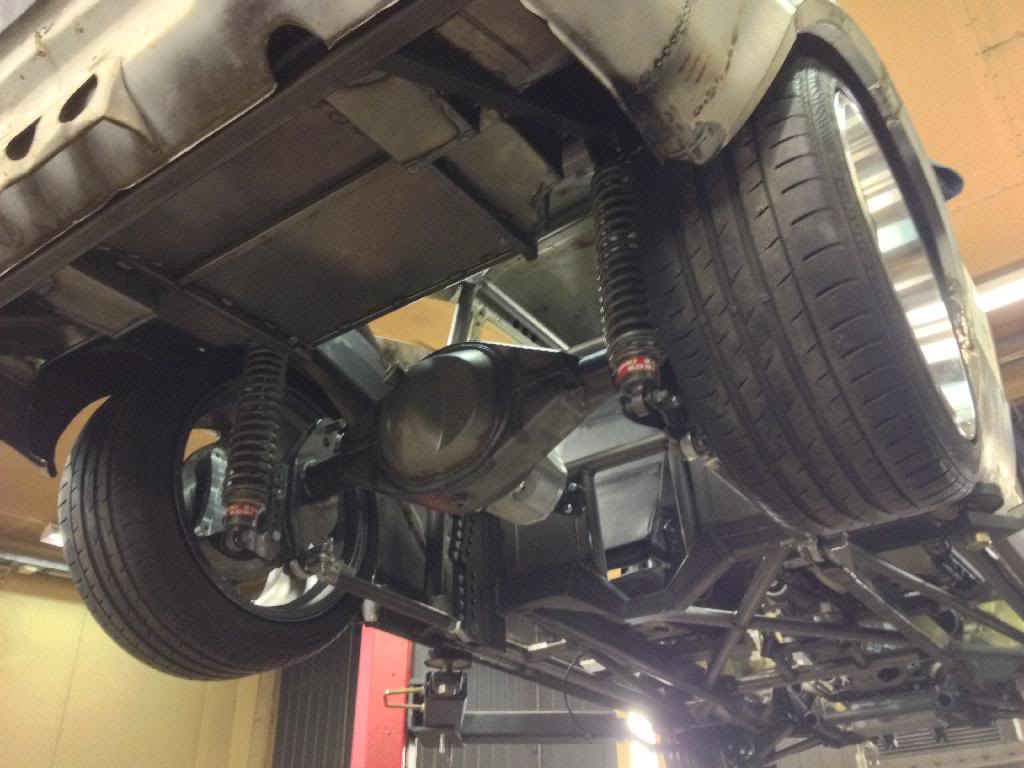

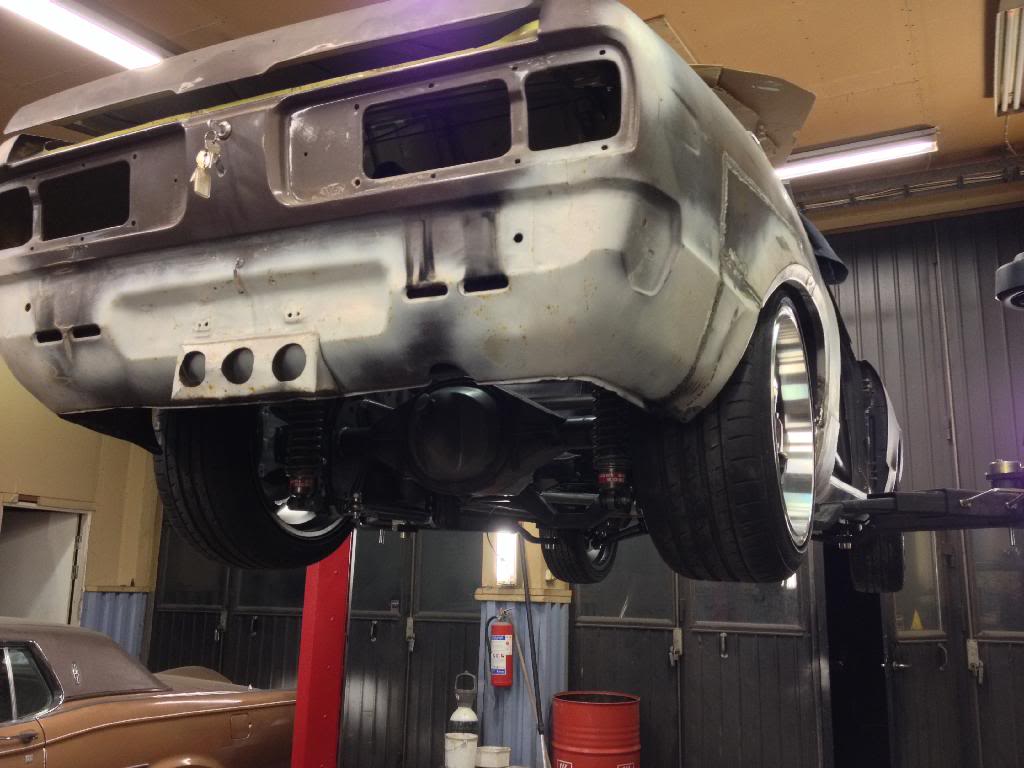

It has been a long time since the car had 4 wheels..
Name: D8B738B3-3096-41A0-B343-F27BC231F01D_zpswwb01qvl.jpg Views: 312 Size: 92.1 KB
Name: 7AF49EE2-0354-4952-8694-2CB3038632DB_zpskhquohmj.jpg Views: 312 Size: 84.6 KB
Name: 6F839CD3-EC57-4CFD-8388-9973B8035D0A_zps8zgdapnh.jpg Views: 309 Size: 82.5 KB
Reply
0
Old Dec 16, 2013 | 02:25 PM
Share
  #222
gusfd3s's Avatar
gusfd3s
Thread Starter
E85 Addict

Joined: Jun 2007
Posts: 519
Likes: 2
From: Stockholm

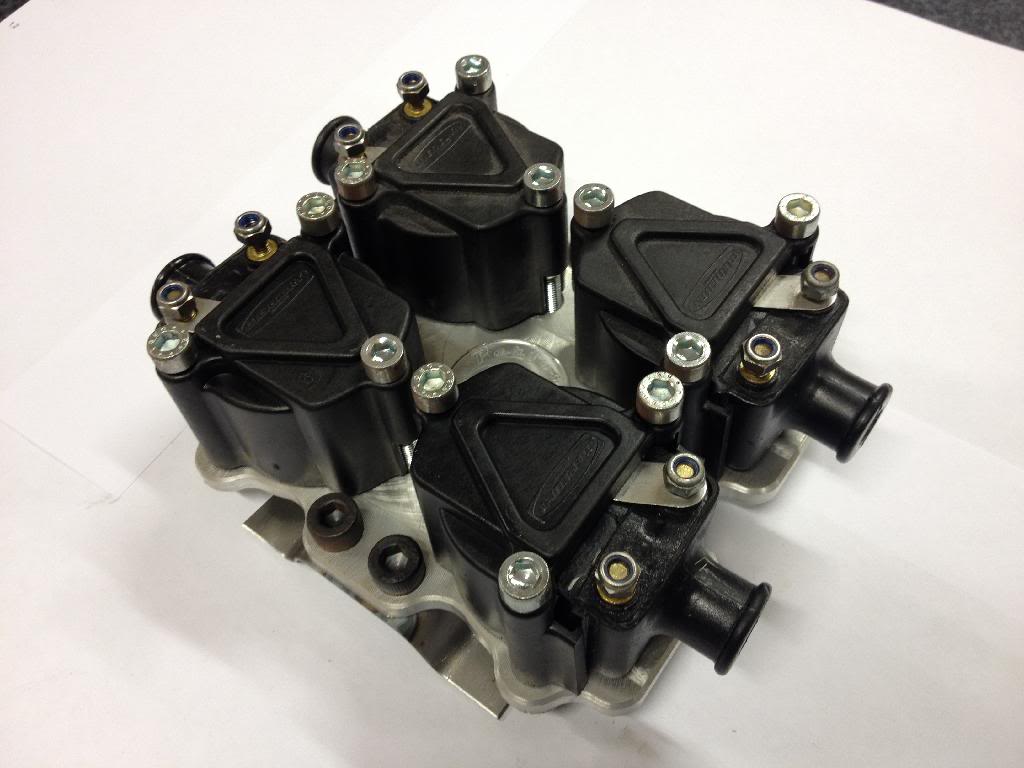

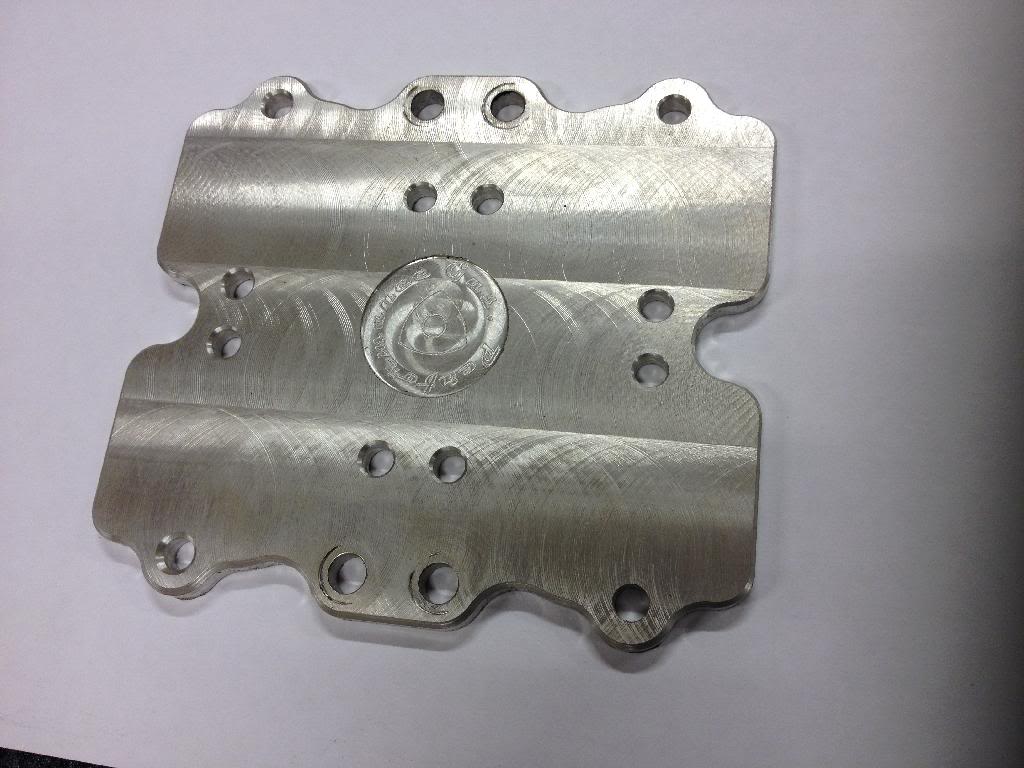

Also made a bracket for my coils
Name: BBAC9D5E-7A27-4F7F-A790-CF888997EBAC_zps37x7bncf.jpg Views: 313 Size: 85.8 KB
Name: E5FA42DE-A0B7-43B6-87C3-16E02A848093_zpsoniot8cx.jpg Views: 308 Size: 64.4 KB
Reply
0
Old Dec 17, 2013 | 02:23 AM
Share
  #223
63hardtop's Avatar
63hardtop
Junior Member

Joined: Dec 2013
Posts: 24
Likes: 0
From: 530 Nor Cal
Being a new member, I just had the pleasure of going through this entire thread. Automotive/machining **** is what it is... You, sir, have amazing patience and skill. I noticed your first post said you did not feel confident in your abilities. What an amazing build to come out of that mindset. VERY nice work and beyond impressive. Most impressive thread I've ever come across.
Reply
0
Old Dec 17, 2013 | 11:12 AM
Share
  #224
gusfd3s's Avatar
gusfd3s
Thread Starter
E85 Addict

Joined: Jun 2007
Posts: 519
Likes: 2
From: Stockholm
Originally Posted by 63hardtop
Being a new member, I just had the pleasure of going through this entire thread. Automotive/machining **** is what it is... You, sir, have amazing patience and skill. I noticed your first post said you did not feel confident in your abilities. What an amazing build to come out of that mindset. VERY nice work and beyond impressive. Most impressive thread I've ever come across.
thank you for your kind comment!
Reply
0
Old Jan 26, 2014 | 03:24 AM
Share
  #225
gusfd3s's Avatar
gusfd3s
Thread Starter
E85 Addict

Joined: Jun 2007
Posts: 519
Likes: 2
From: Stockholm

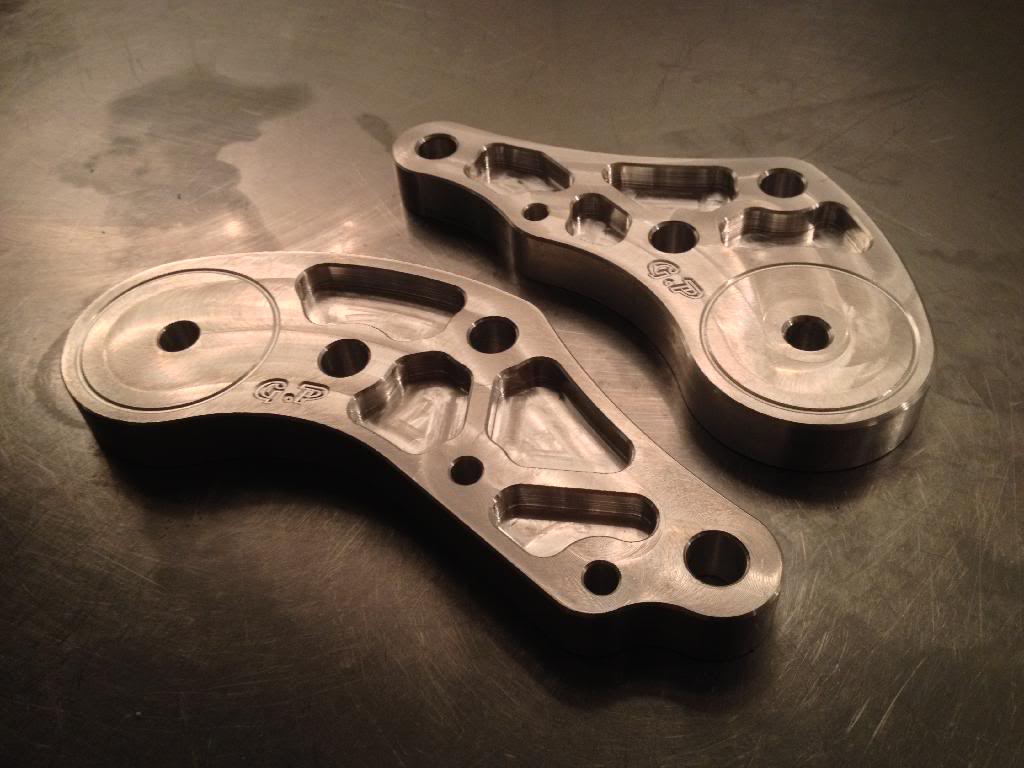

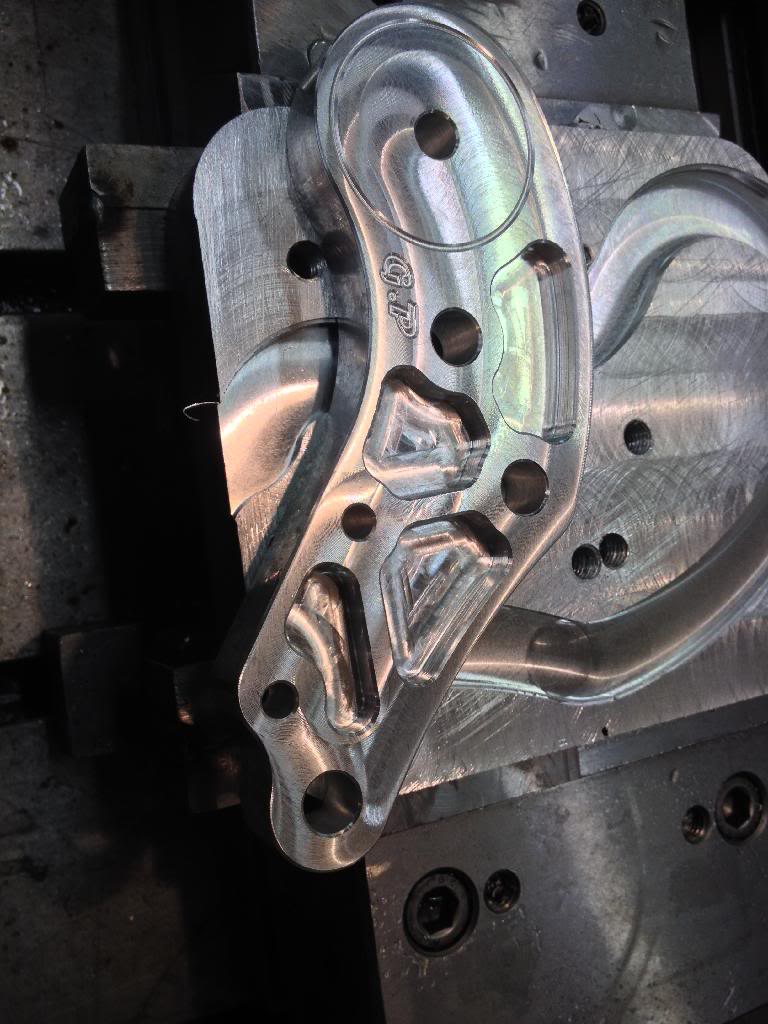

I redesigned my motor mounts, didnt like the old one.
Name: 9BAC995F-7A9F-4B81-AF86-186C7CBAC044_zpsbxhxw1t2.jpg Views: 308 Size: 103.2 KB
Name: FFFCBDC8-F44E-4E3B-AC13-0C7B4337EED2_zps5um4lhu0.jpg Views: 312 Size: 78.7 KB

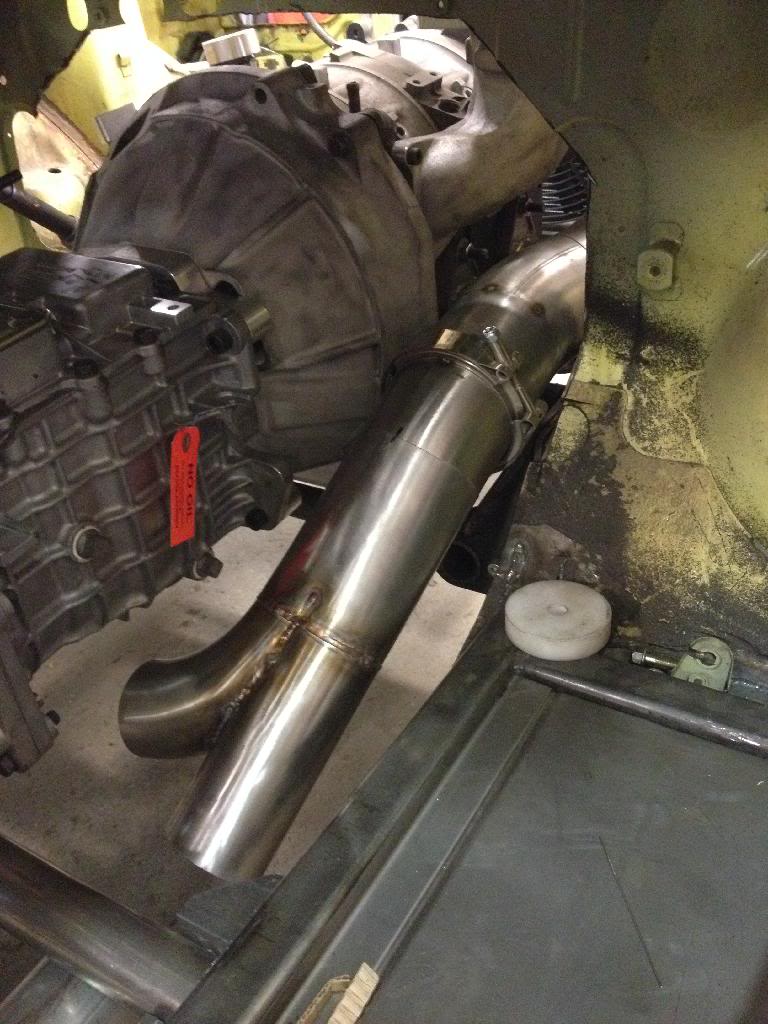

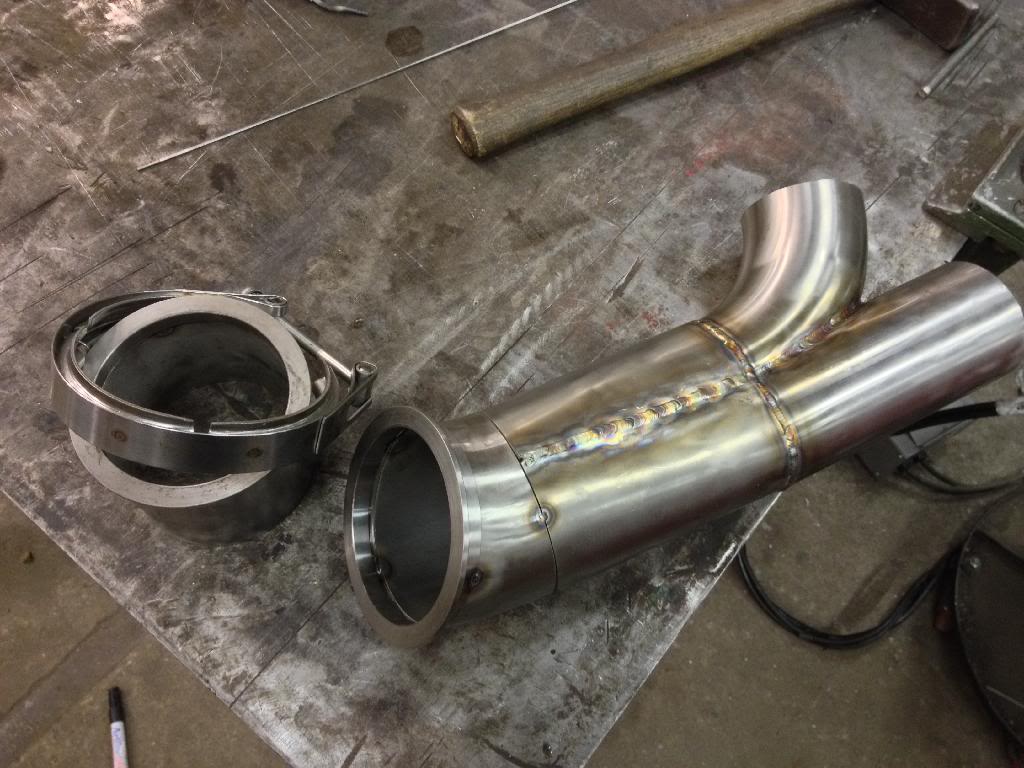

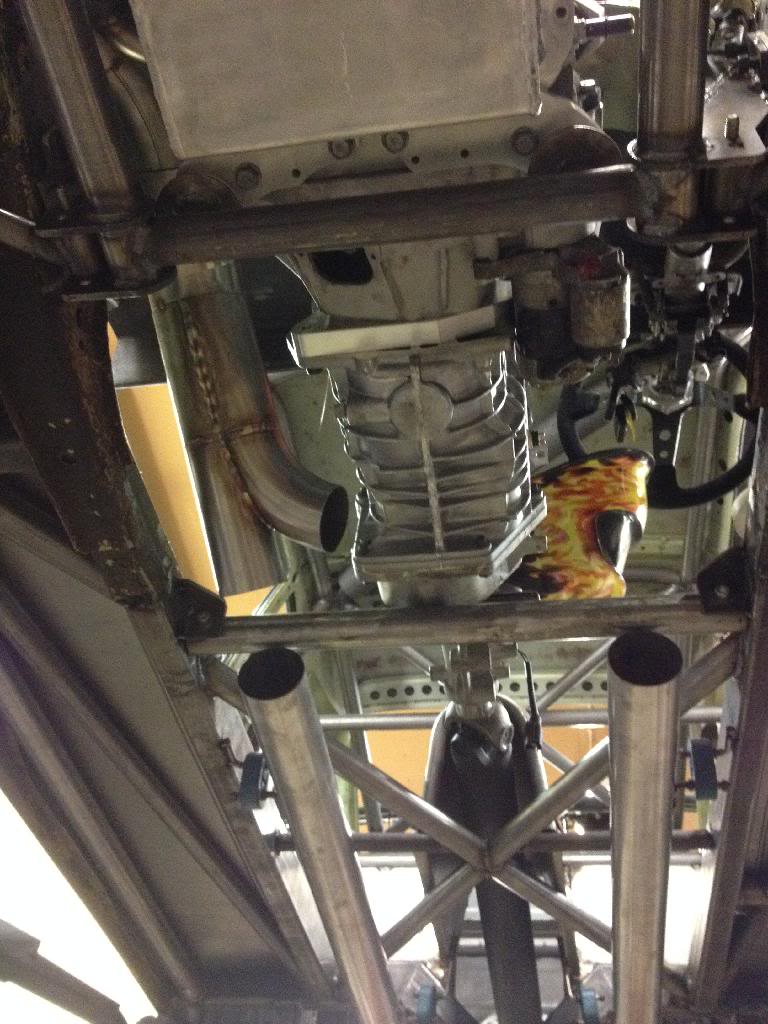

Yesterday i started on the exhaust, there was no way to fit a 4" pipe under the car so went with dual 3" after the dp.
Name: FFAA7227-D7B6-429B-98DA-D87C469BA871_zpsmjgbdlwq.jpg Views: 305 Size: 87.2 KB
Name: 1FA37F20-B376-44EC-890A-5DBC51D058D6_zpsh4s6exdi.jpg Views: 304 Size: 107.1 KB
Name: 56ECCAB0-5BA7-4CCE-80FE-81B481CADBA1_zpstu2px71l.jpg Views: 306 Size: 109.2 KB

Name: 6E630326-E5D7-4ADD-9A34-3E0ADA1A4FE6_zps3pi16eef.jpg Views: 302 Size: 108.8 KB
Reply
