turbo_dave

iTrader: (50)

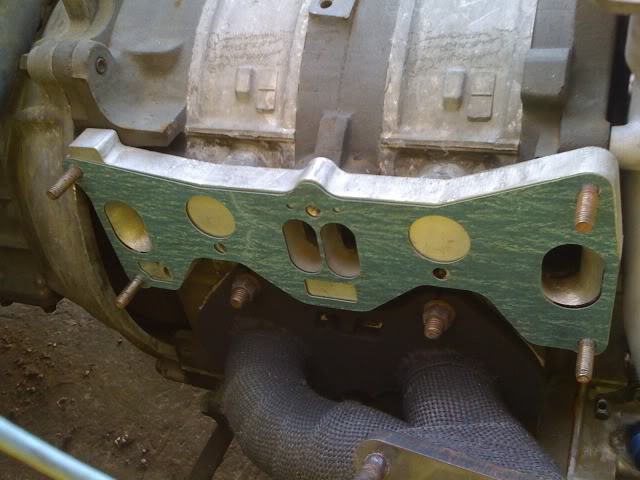

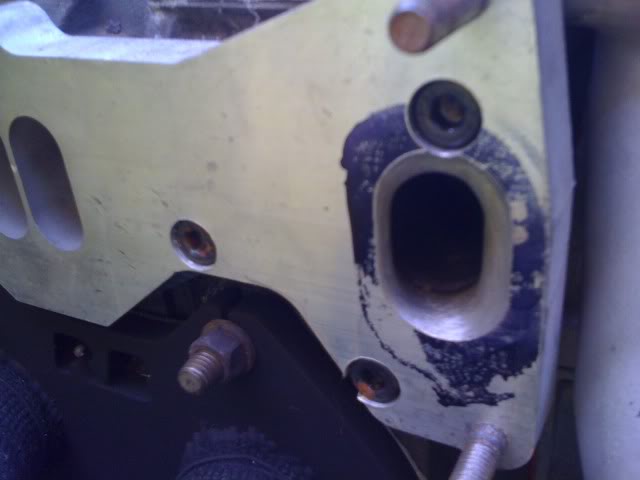

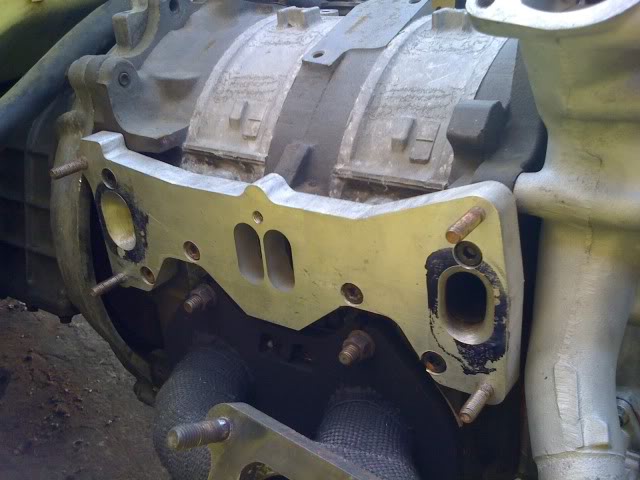

So I'm bored at work now and decided to post up on what I have been working on the past few days for my brother.so my brother bought the car about a year ago and he finally decided to start getting it going.when he got the car it was running with a rx7 12a motor and a oldschool 5spd trans,it was running a mikuni sidedraft carb and a 1 piece intake manifold.so I convinced him to take carb out and do a budget efi set up using all the turbo rx7 injection,s5 lim,s5 lim,and stock top mount intercooler.I'm doing all the wiring for the stock efi myself also. in order to use all this I had a adapter plate made so I can bolt up the turbo intake manifold to the 12a block.I bought a 3/4" aluminum plate and also bought a s5 lim gasket then I went to a place where they do water jet cutting and had them cut the outline of the gasket and center ports.I had to do the outer ports myself since water jet cutting only does straight cuts and he ports on the plate had to be in an angle,I also did all the drilling and tapping of the holes on the plate myself also.plate fits good with no problems.I also had some steel 1/2" flanges made for the stock s4 rx7 turbo so I can make a manifold for it.12a motor is all stock and I'm probably going to run about 8-10 pounds of boost since we are using the stock ecu.Im also going to run an external wastegate so boost can be controlled better.Here are some pics of the engine bay and I will post more later of the car also.

turbo_dave

iTrader: (50)

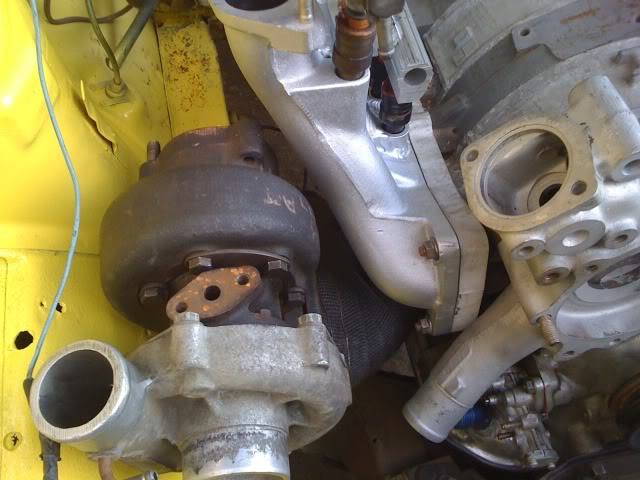

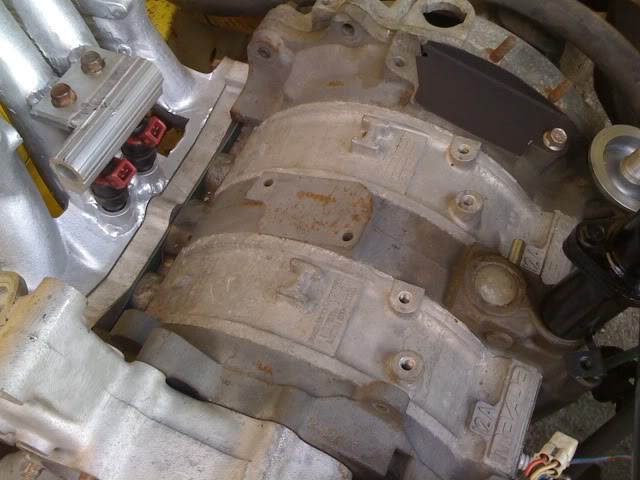

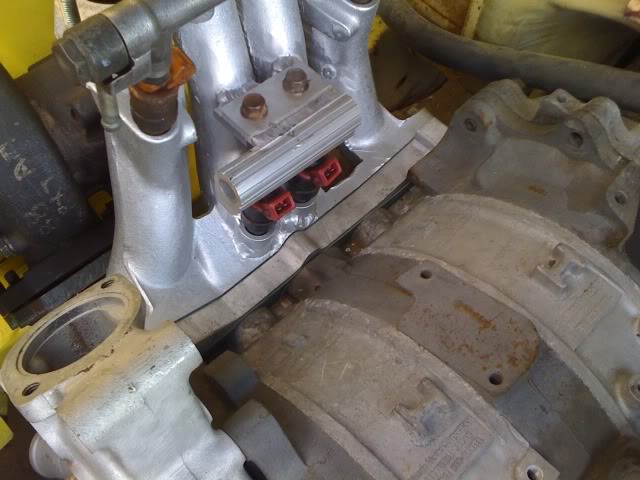

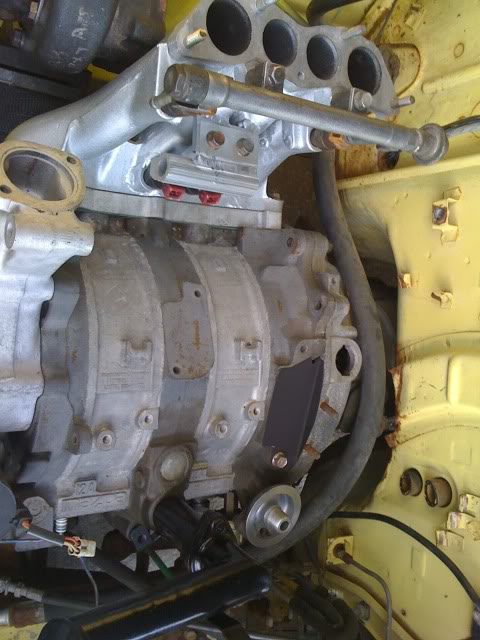

More engine pictures,also had some injector bungs welded on the lim and had a fuel rail done for it.

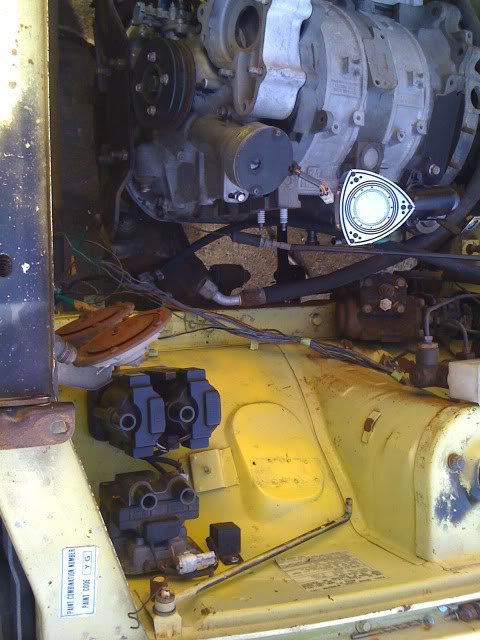

This is where I'm mounting the coils and most of the relays for the ecu.

cptpain

iTrader: (1)

good **** bro!

cant wait to see more progress, i've always wanted to do a custom 12A-T setup

blwfly

iTrader: (4)

sweet.
u dont have bolts for the middle of the lim?

turbo_dave

iTrader: (50)

not the 2 nuts just the middle bolt on top of the ports,since no water is going through there i figure it wont be a big deal.

teddyrx2

iTrader: (33)

nice...i love it

blwfly

iTrader: (4)

cool hope its sufficent enough.
got a picture of the whole car??
gonna need a fb lsd for that car now lol.

turbo_dave

iTrader: (50)

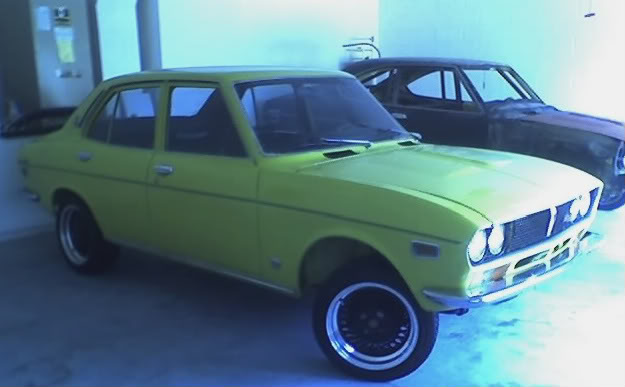

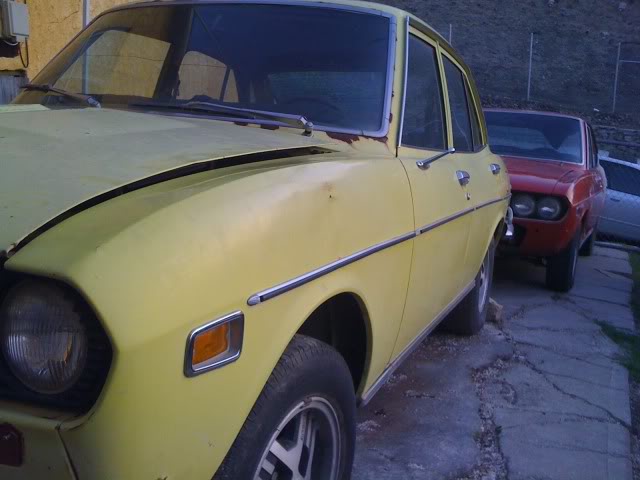

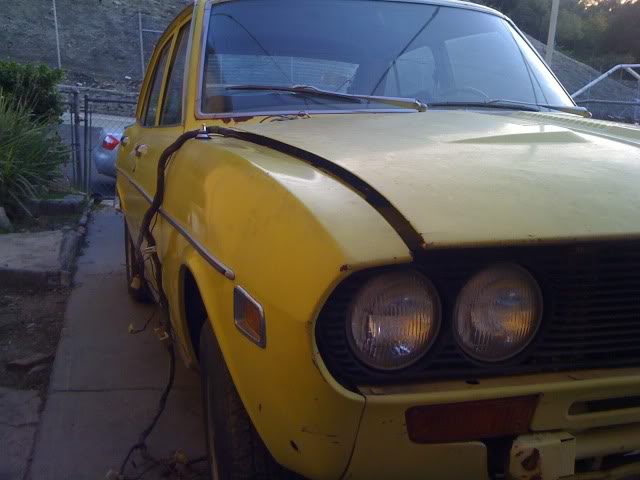

pictures of car






nothing pretty but you get the idea.i also have a set of weld draglites that we might put on,we are still debating on the weld draglites or the epsilon mesh set we also got.

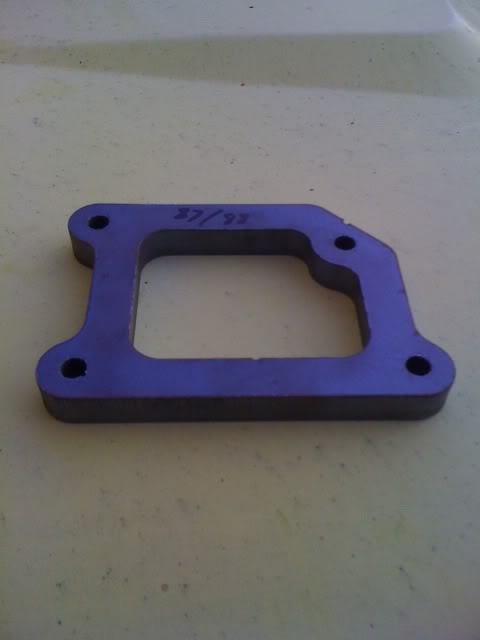

here is a pic of the flanges i had made for the s4 turbo.i got like 4 left.

turbo_dave

iTrader: (50)

so i was doing some electrical toaday,got one of the harness done.it is the driver side harness that powers the ecu,coils,crank angle sensor,and the main circuit relay that powers the fuel pump.here are some pics.

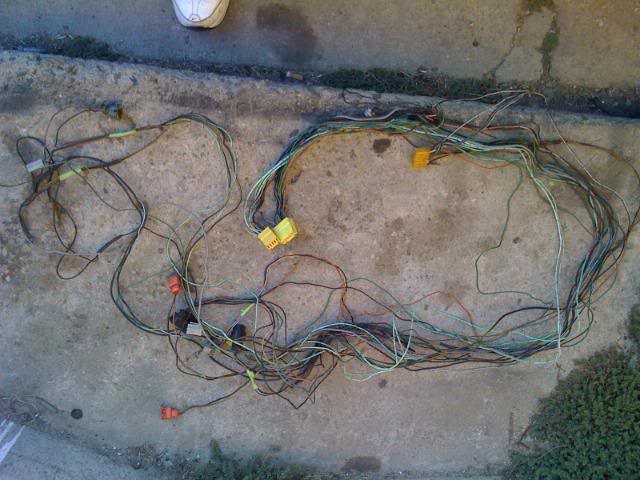

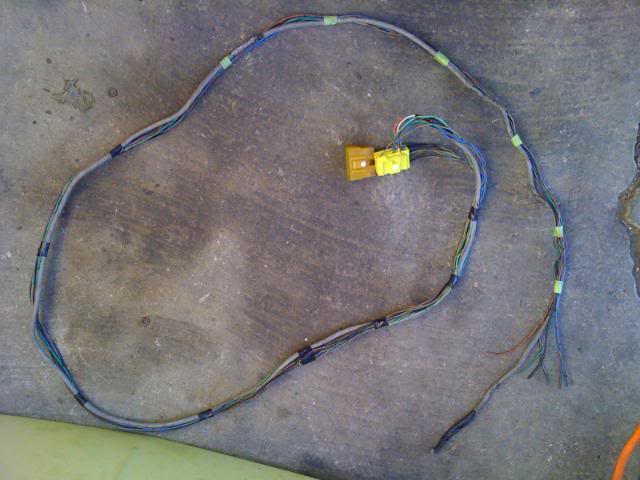

after removing alot of wires from a rx7 dash harness i ended up with this.

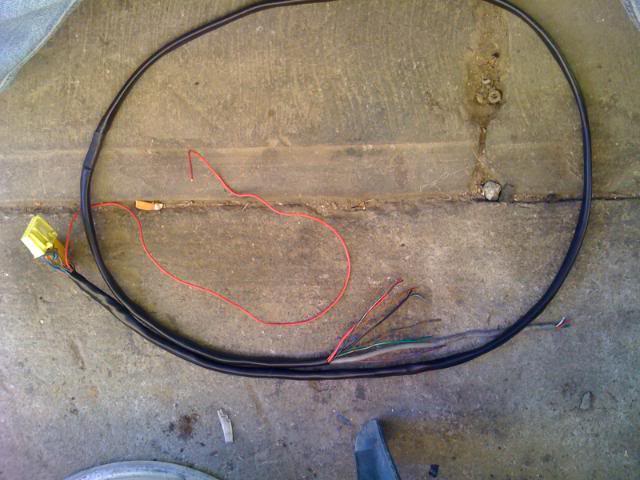

and just to clean it up a bit and make it look nicer i got some vinyl tubing and i ended up with this.

got to do the engine harness next,now thats going to be fun.

1973rx3

Awesome work!

blwfly

iTrader: (4)

lol i never wired in the pump circuitand relay i guess that could be bad for when the ecu fuel cuts lol boom.. thats if i ever add a turbo'..

put the epsilon mesh's on they will look awsome.

turbo_dave

iTrader: (50)

i never use that fuel circuit relay either this is my first time,but i figure it would be good to have since it makes the fuel pump work only when the engine is rotating,so no boom for me lol.

blwfly

iTrader: (4)

you should try the intank mod with this project.might save some cash i didnt find it to hard or challenging only when the tig welder died lol.

so u have a plain jane s4 ecu? isnt it going to run rich..
it apears u have 460 in primarys and 550 in secondarys
a rteck 2.1 could help out with timming and fuel curve what was your plan for that? considering the smaller engine..

or was it more of a lets see how it goes.lol

turbo_dave

iTrader: (50)

Actually it has 88 TII 550 primarys but going to switch them out for the low imp 87 tII's,secondarys are GSL-SE injectors 720 I believe or close to that.you can never run too rich on a turbo car,well at least that's what i thought.first going to run the car with just the stock ecu and see how it runs and if it does run rich I will send it out to rTek,rotaries love fuel anyways especially turbo's.I will learn as I go since I never done a 12a turbo using 13b turbo injection.

turbo_dave

iTrader: (50)

Blwfly I think I will try out the in tank fuel pump idea,I have an external msd pump that I was going to use might give it a shot.so far the only parts that i have paid out of pocket was the intake adapter plate and getting the lower intake manifold modified for the primary injectors, everything else i had or traded parts for.the welder I have has been working great,but still working on doing good welds since I havnt been welding for too long.

trochoid

iTrader: (6)

Very nicely done. IMHO, this will be the most effective and safest way to turbo a 12A. I don't know why others keep trying to go blow thru/draw thru carb when they have so many tuning issues that increases the chances of losing the engine before it's optimally tuned.

mannymazda

iTrader: (8)

Your doing a heck of a job there with that RX2 Dave. Keep us all updated, can't wait to see the finished product!!! In my opinion you should go with the Mesh look, because chrome wheels don't look good on lighter paint colors. Black brings out the light and Chrome brings out the dark!!!

Siraniko

iTrader: (13)

nope....Dave will use a 22" rims ala aussie boys. THis is in case he decides to go 4 wheeling and LA is underwater LOL

turbo_dave

iTrader: (50)

i dont like rims bigger than 16" wacky just not my style on these oldschools.i think 15" are a perfect size for these cars, but in my white coupe i might have to run 16" so they can clear the big brakes.

Siraniko

iTrader: (13)

15s are perfect. 16 is kinda pushng it but doable (as I've done it in the RX-3), just requires playing with correct back space if the rim is wider than 8

turbo_dave

iTrader: (50)

here is the engine harness,hopefully monday i will get it done and looking nice.

rx71king

iTrader: (6)

looks cool...i like what u did to the intake

meca

Very nice budget build Dave.......4 550cc low-IMP square would be just fine! since you are runnin a stock ecu .It will fall into safe mode .

arghx

iTrader: (3)

n/m

ultimatejay

iTrader: (1)

NIce Dave but all you need is another project.... when are you going to finish you car????
