REPU REDO (REW T66 platform)
01-24-14, 06:55 PM
#53
Thanks for the complements!
Put the REPU on the dyno to see where it was at, due to the cold I only took it up to 6,000 rpms because it was boost creeping over 22psi on a 12lb spring. I also had the stock 7's&9's spark plugs in and did not want to risk it. I was running pretty low timing (around 5 deg @5,500 rpm) to make sure it was on the safe side. I am going to put the 10 range plugs along with another aux nozzle pre turbo and hopefully get to take it to the 8,000 rpm red line on a warmer day. It made 350rwhp@5,500 rpms, not bad for 10.2 afr's and retarded timing.
REPU low rpm dyno test - YouTube
Put the REPU on the dyno to see where it was at, due to the cold I only took it up to 6,000 rpms because it was boost creeping over 22psi on a 12lb spring. I also had the stock 7's&9's spark plugs in and did not want to risk it. I was running pretty low timing (around 5 deg @5,500 rpm) to make sure it was on the safe side. I am going to put the 10 range plugs along with another aux nozzle pre turbo and hopefully get to take it to the 8,000 rpm red line on a warmer day. It made 350rwhp@5,500 rpms, not bad for 10.2 afr's and retarded timing.
REPU low rpm dyno test - YouTube
01-31-14, 07:14 PM
#54
Went back to the dyno on a warmer day with a 9psi spring in the waste gate and ran out of fuel @ 7,000 rpm's due to the pumps with a max boost of 18-19. I was able to get 427 whp and the torque was still rising. I am going to wait till spring time weather, but I think I am going to do a water to air intercooler and just crank the boost up till it doesn't creep.
Last edited by kevinbtz; 01-31-14 at 07:18 PM.
01-31-14, 09:55 PM
#55
Went back to the dyno on a warmer day with a 9psi spring in the waste gate and ran out of fuel @ 7,000 rpm's due to the pumps with a max boost of 18-19. I was able to get 427 whp and the torque was still rising. I am going to wait till spring time weather, but I think I am going to do a water to air intercooler and just crank the boost up till it doesn't creep.
01-31-14, 11:41 PM
#56
Thanks. Yep, from a 500. They should have flowed enough, but rain got in a test relay while the truck was getting wired and made the pumps run till the battery was totally dead, which I think hurt them. Probably just going to pick up a 044.
02-02-14, 11:21 AM
#58
Thanks, and good luck on your awesome project. That 20b is going to sound beautiful! Right now with the temps only getting up to 60 it only gets traction in 4th with the used 17/45/245 RS3 rubber, hopefully with a little more weight moved to the rear and the new 255 rubber I am saving till the temperature comes up it will hook a little better. It was hooking good in third, then I took about 13lbs of brackets and unneeded parts off the back and then it started spinning when ever the boost hit.
02-09-14, 02:49 PM
#59

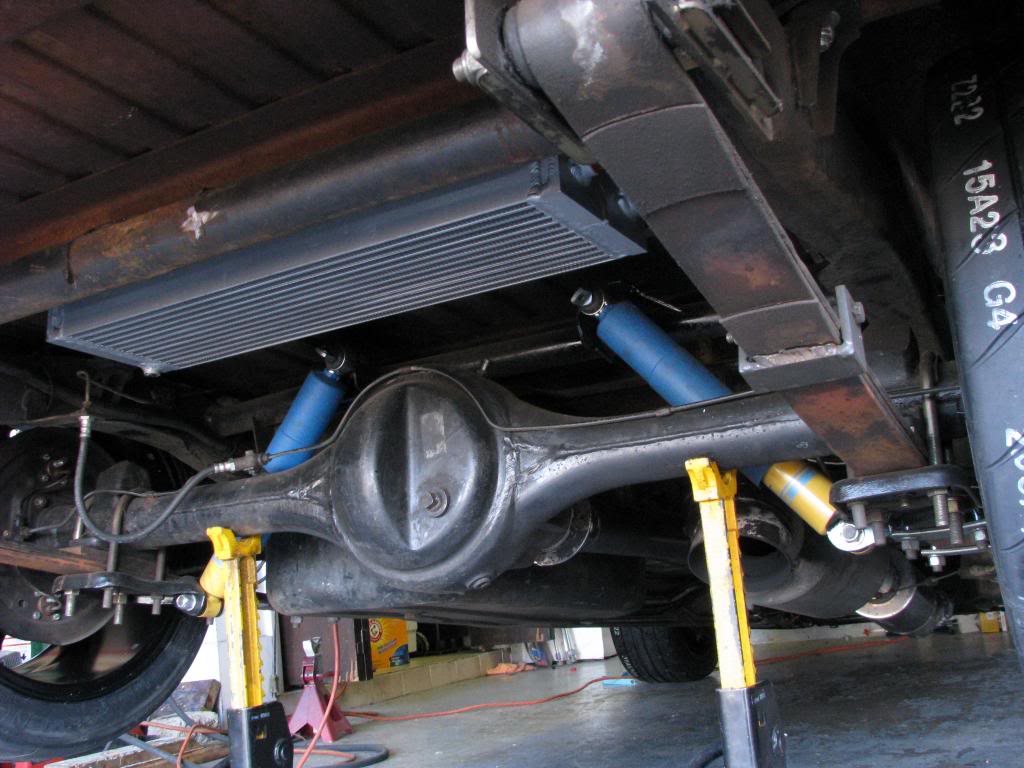

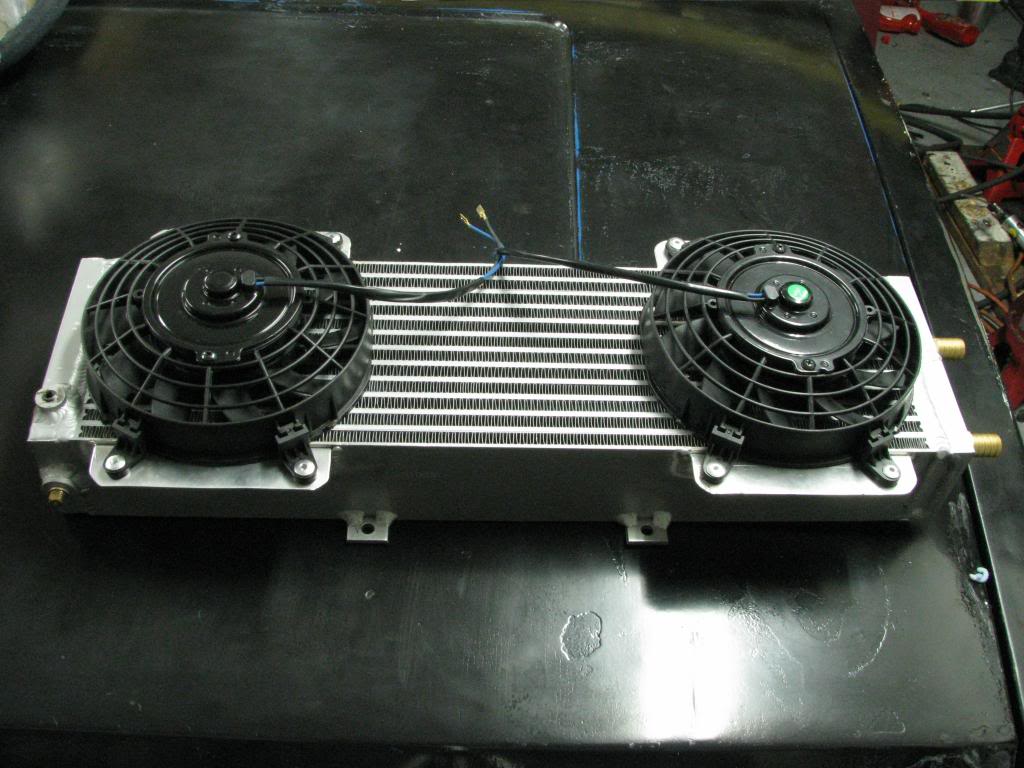

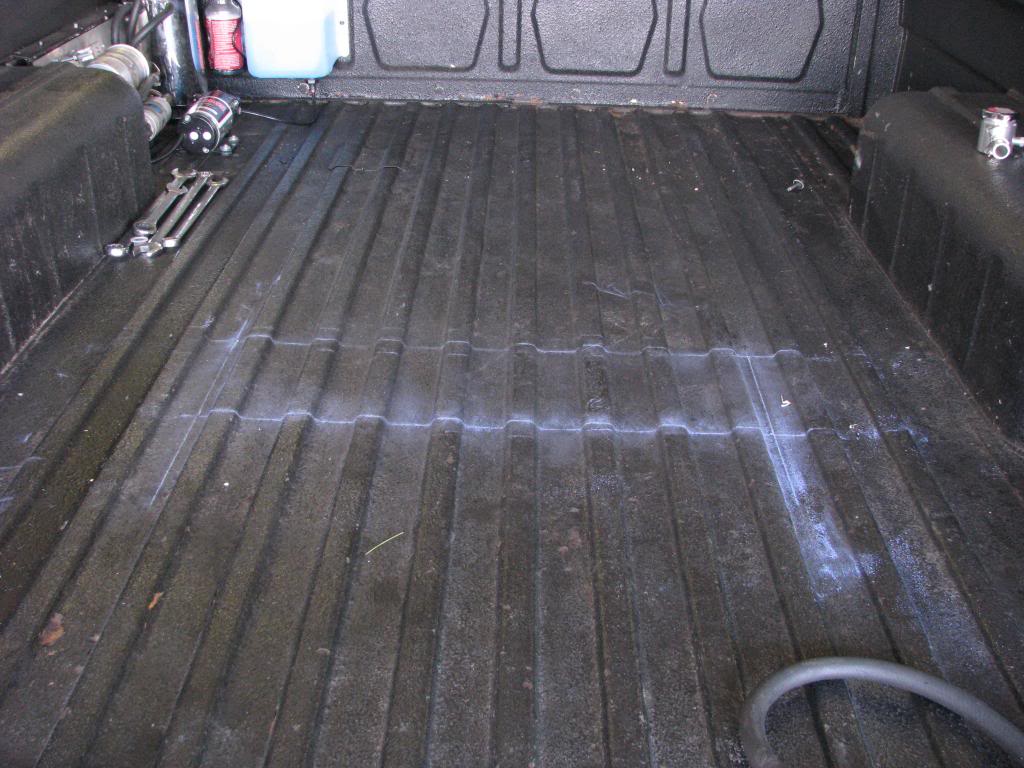

Because of the boost creep issue I am going to add a budget water to air kit and relocate the alternator. I am going to go with a budget kit from FrozenBoost and upgrade to there larger heat exchanger that I will install in the bed of the truck right behind the rear axle to help out the weight distribution. My theory is that it is creeping up to 22psi so I think if I run 24-25psi it should be over the boost creep zone, if it does not stop creeping by 25psi I will just redo/replace the wastegate setup. Here is the kit I will be getting.
Water to Air Intercooler Kit
Water to Air Intercooler Kit
03-10-14, 01:11 AM
#61

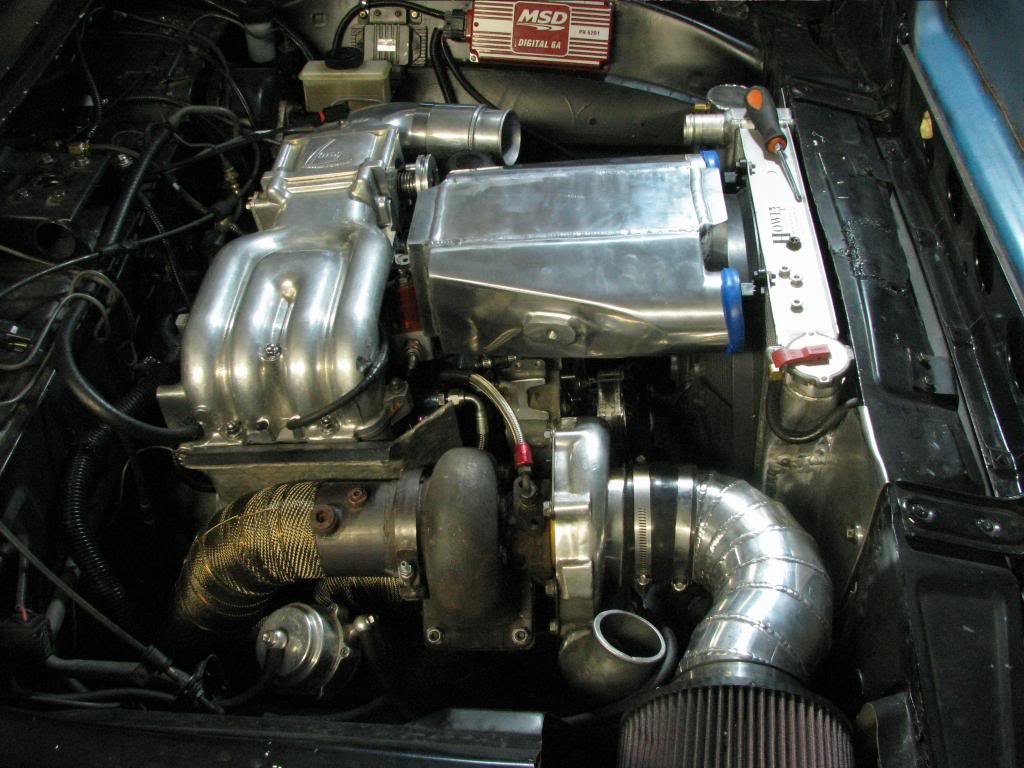

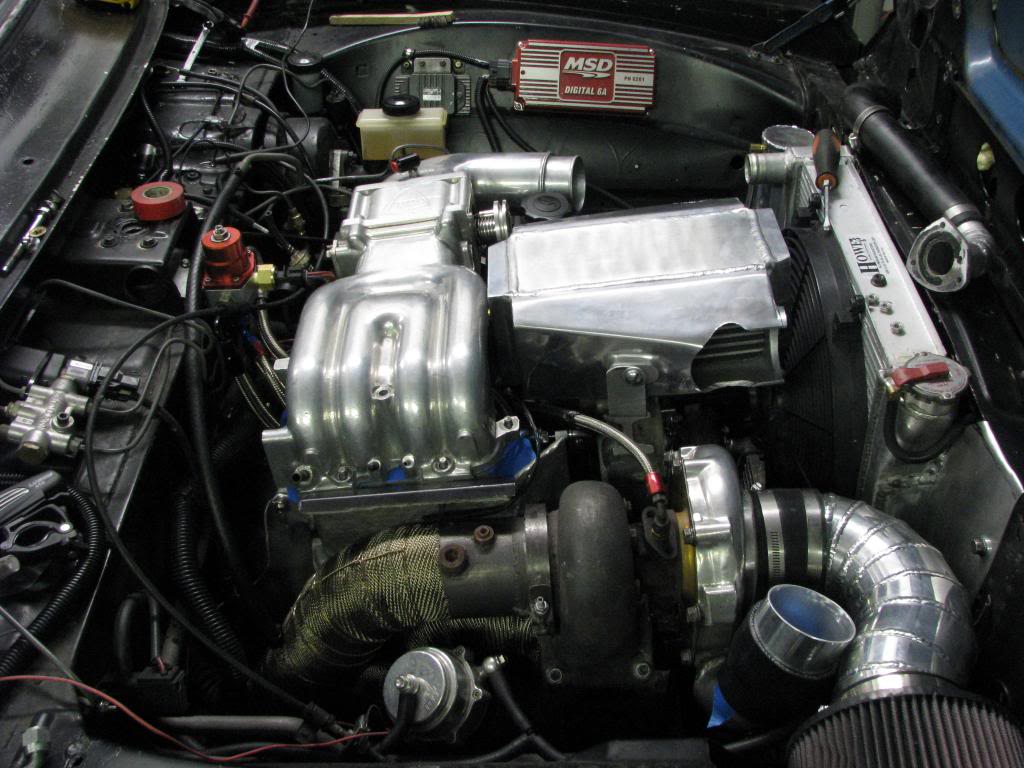

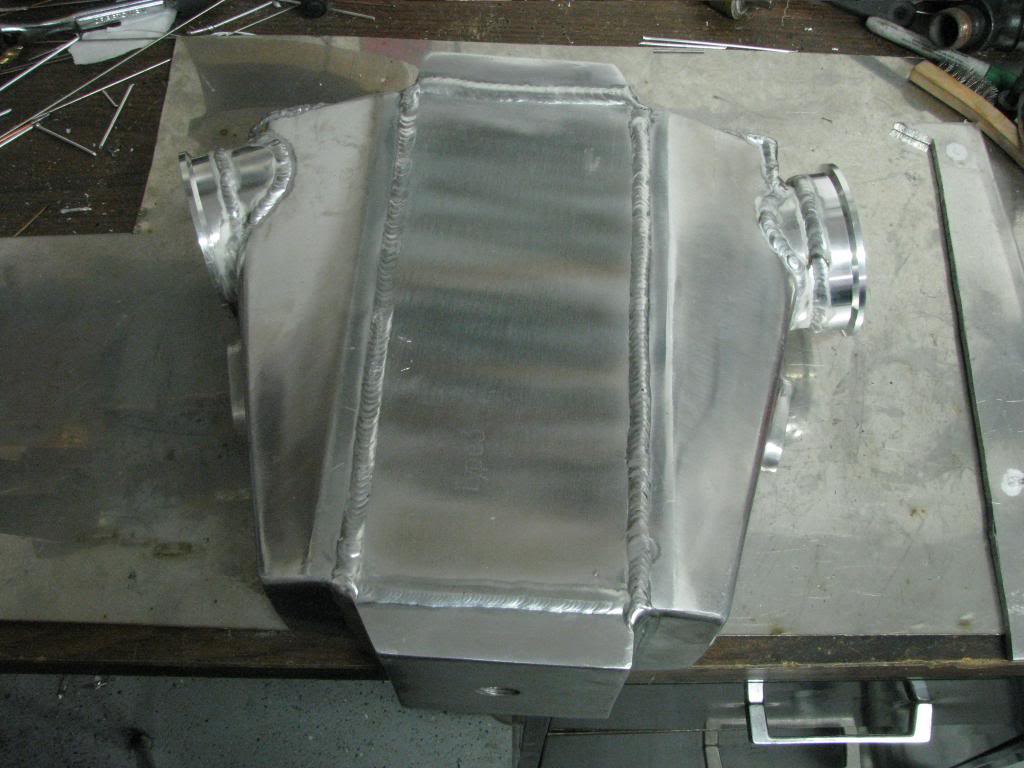

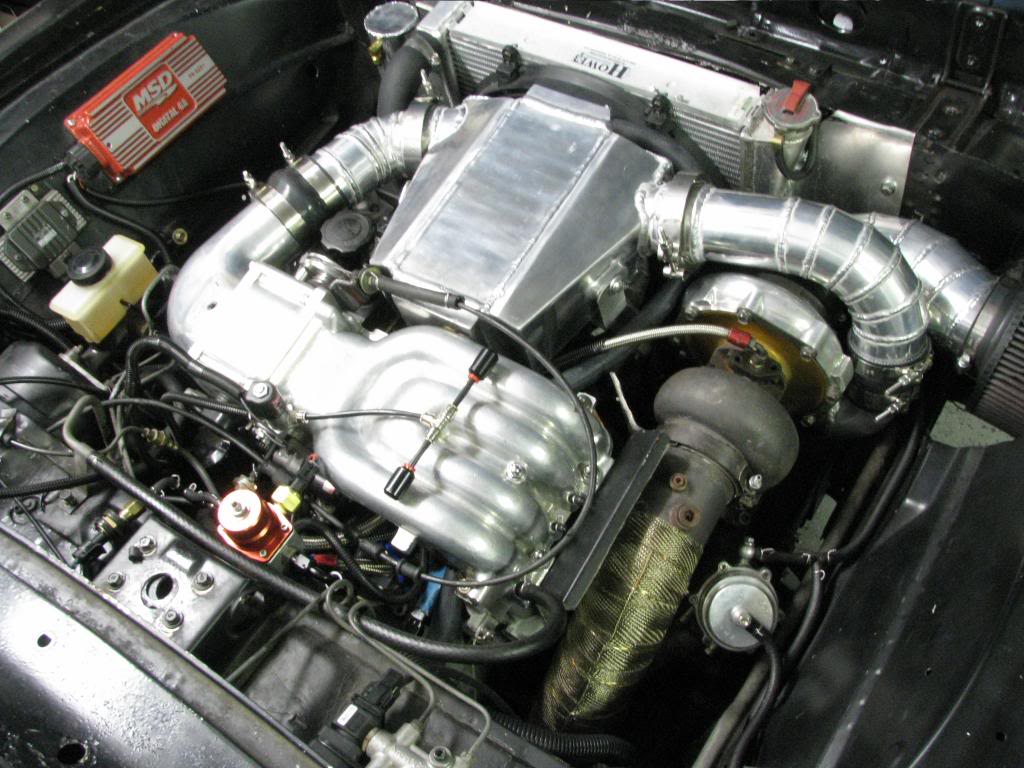

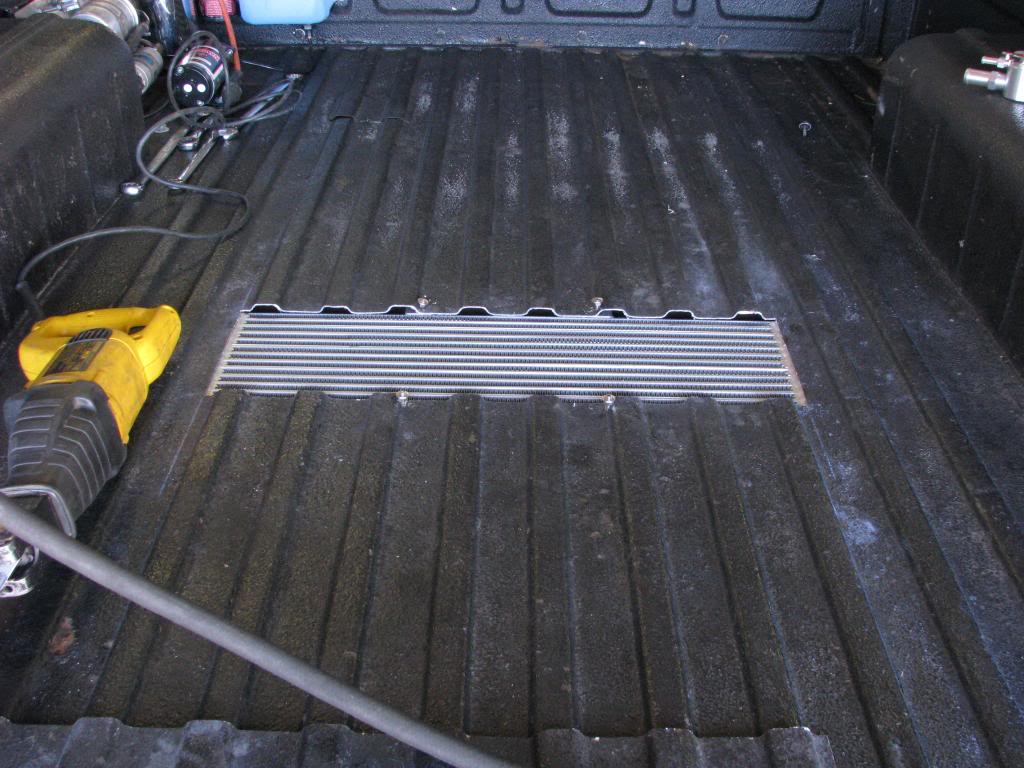

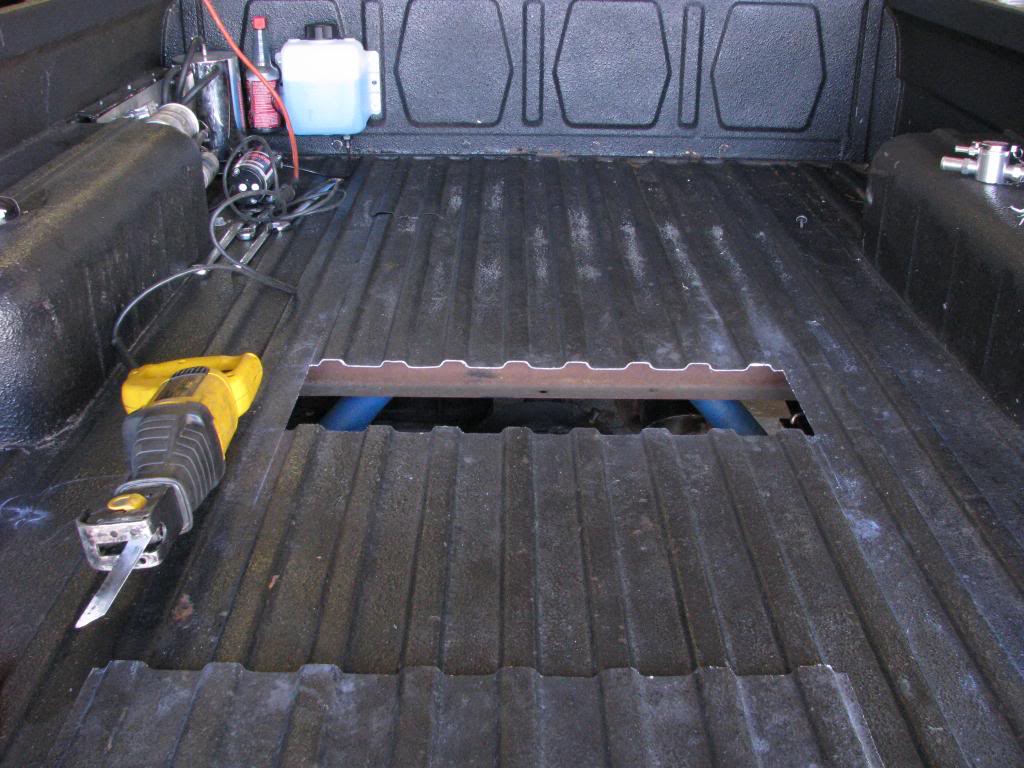

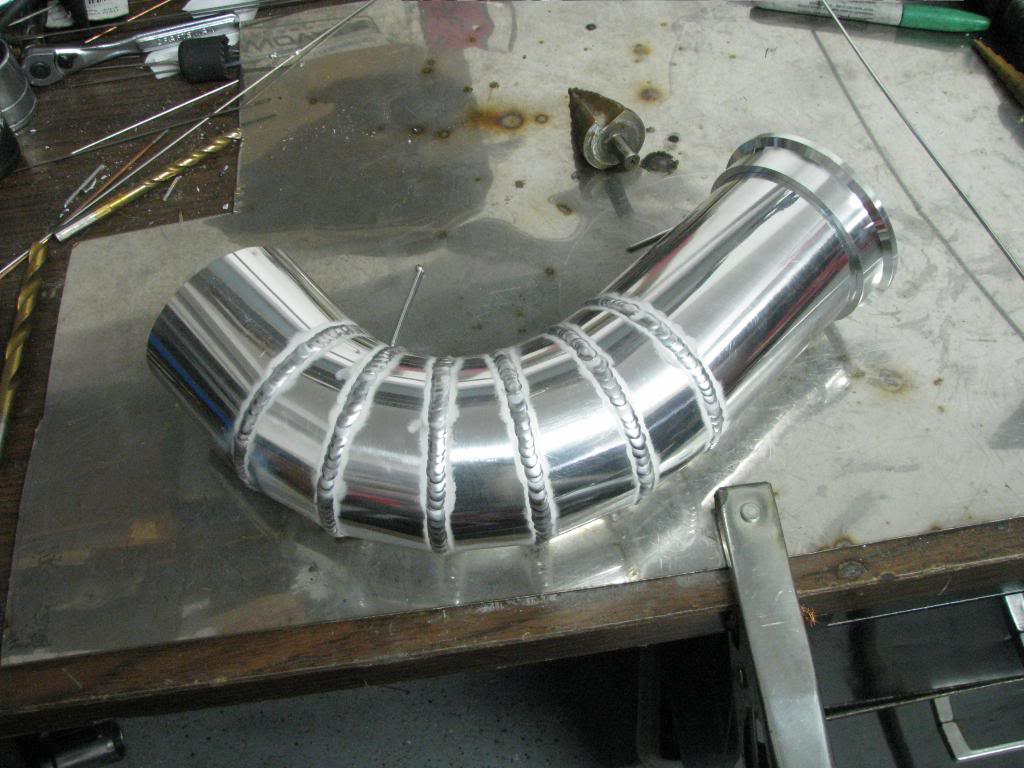

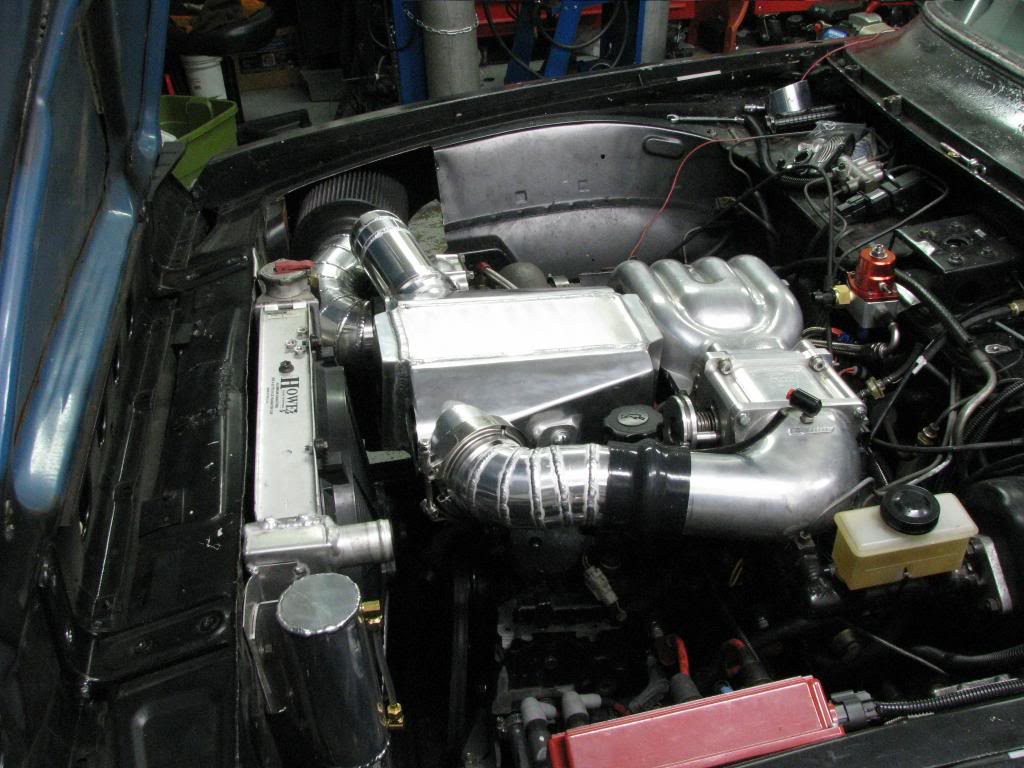

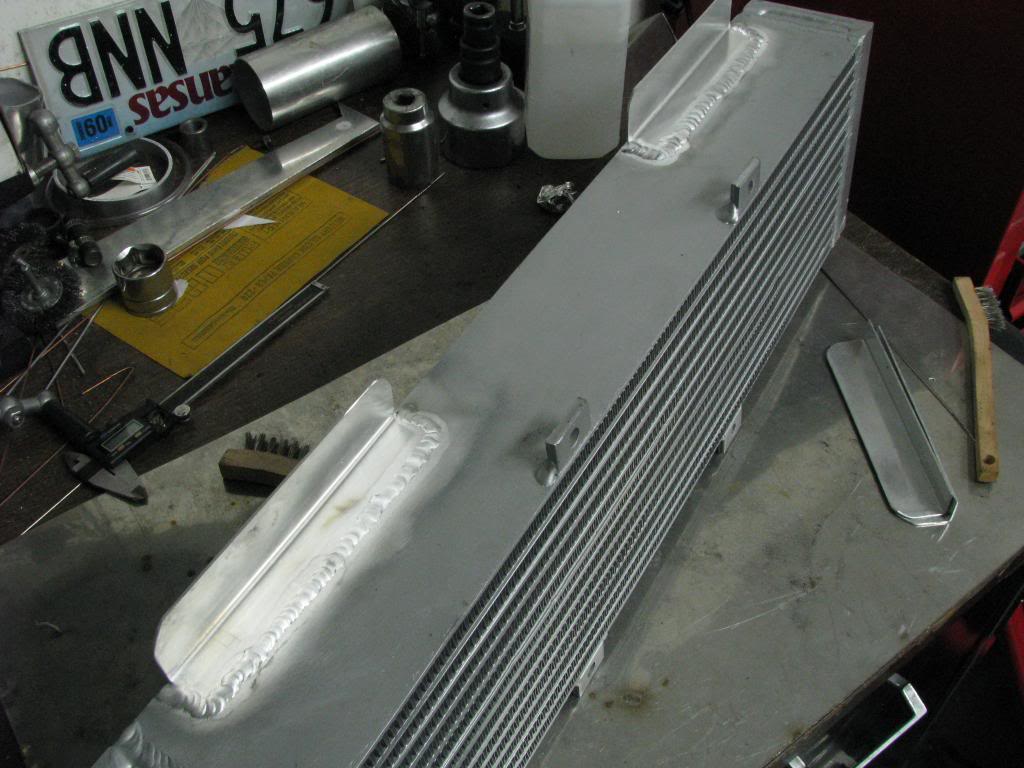

Started to work on the water to air intercooler mounting and piping. Had to relocate the FPR and while I was at it, added a sending unit so I can data log the fuel pressure.

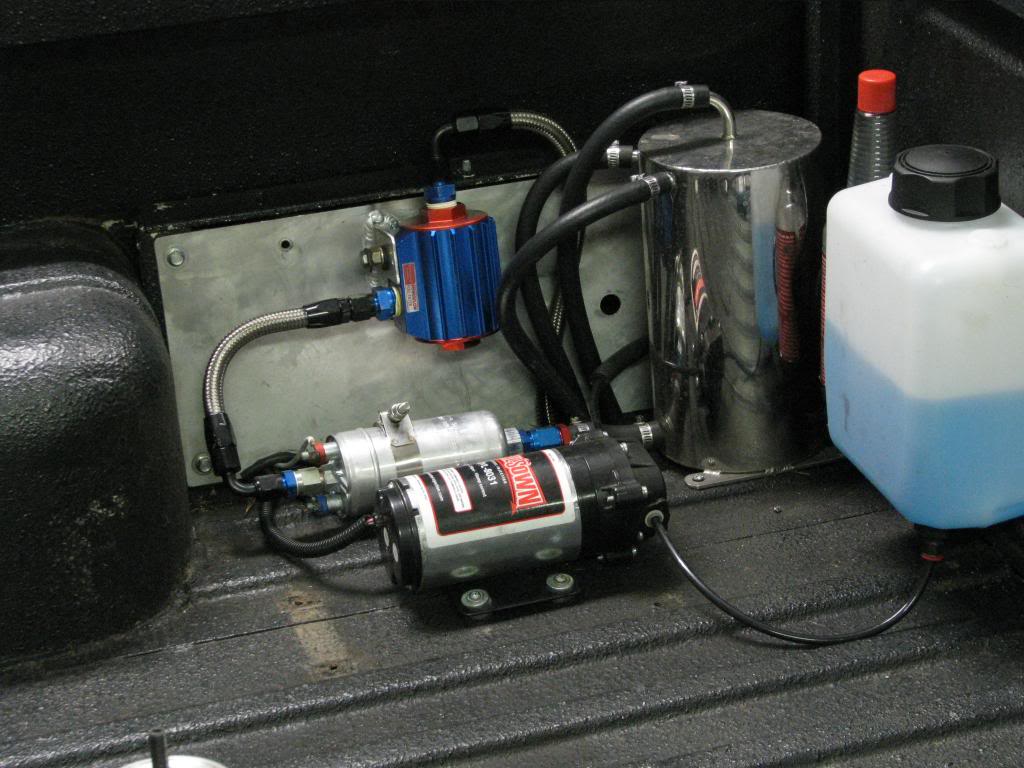

And the new Bosch fuel pump and filter setup.
And the new Bosch fuel pump and filter setup.
Last edited by kevinbtz; 03-10-14 at 01:22 AM.
03-15-14, 11:30 PM
#65
Thanks, your truck is looking sweet!
Thanks, yea the brakes will be done with the FD IRS install. I will find out for sure if my brakes are up the the task next weekend at a national solo autocross that is supposed to be a pretty big course.
Yep, not many REPUs made it to Arkansas. It always seems to catch peoples attention for one reason or another.

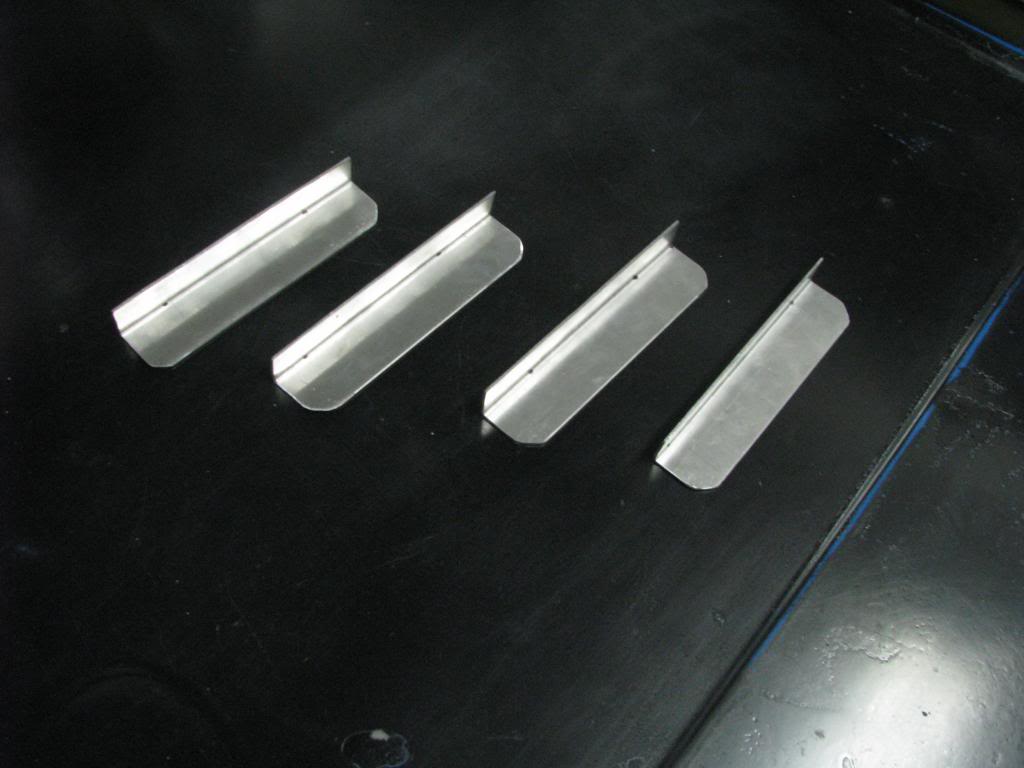

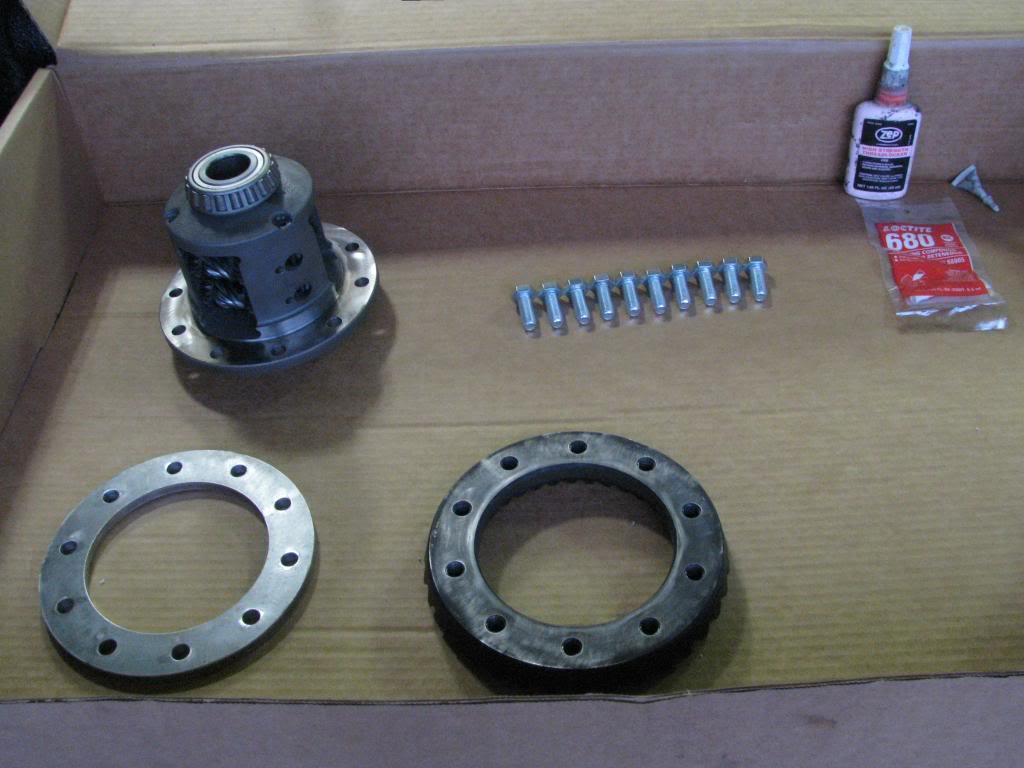

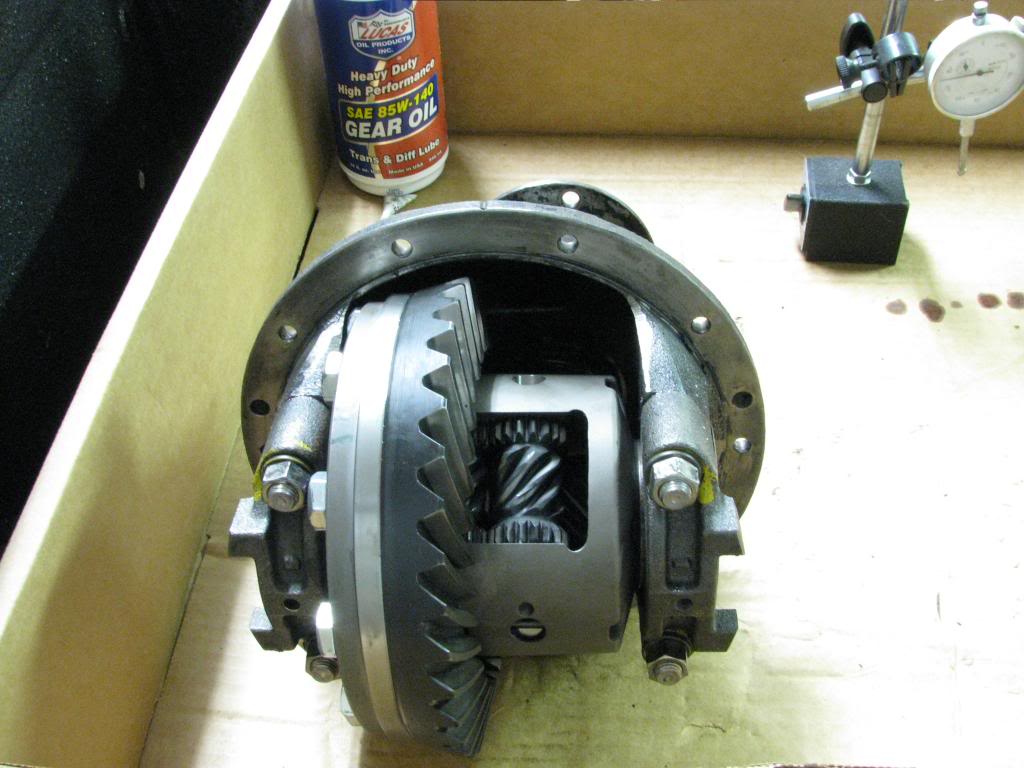

Had the spacers made for the FD differential, cant wait to see what this truck can do not that it should hookup better.

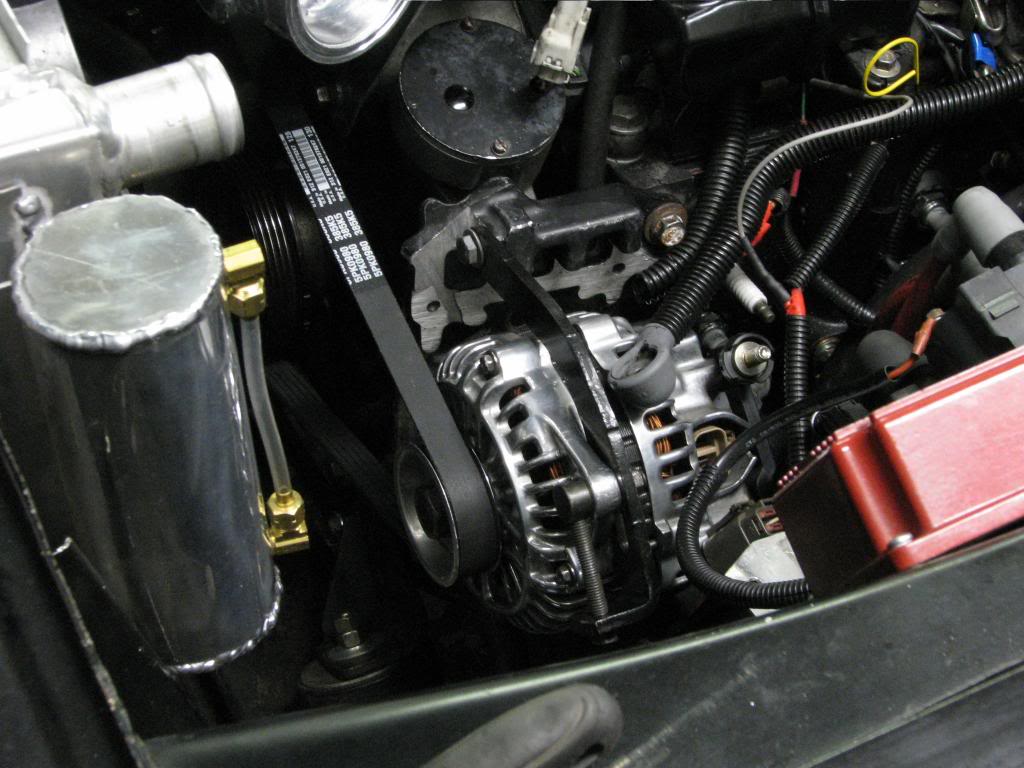

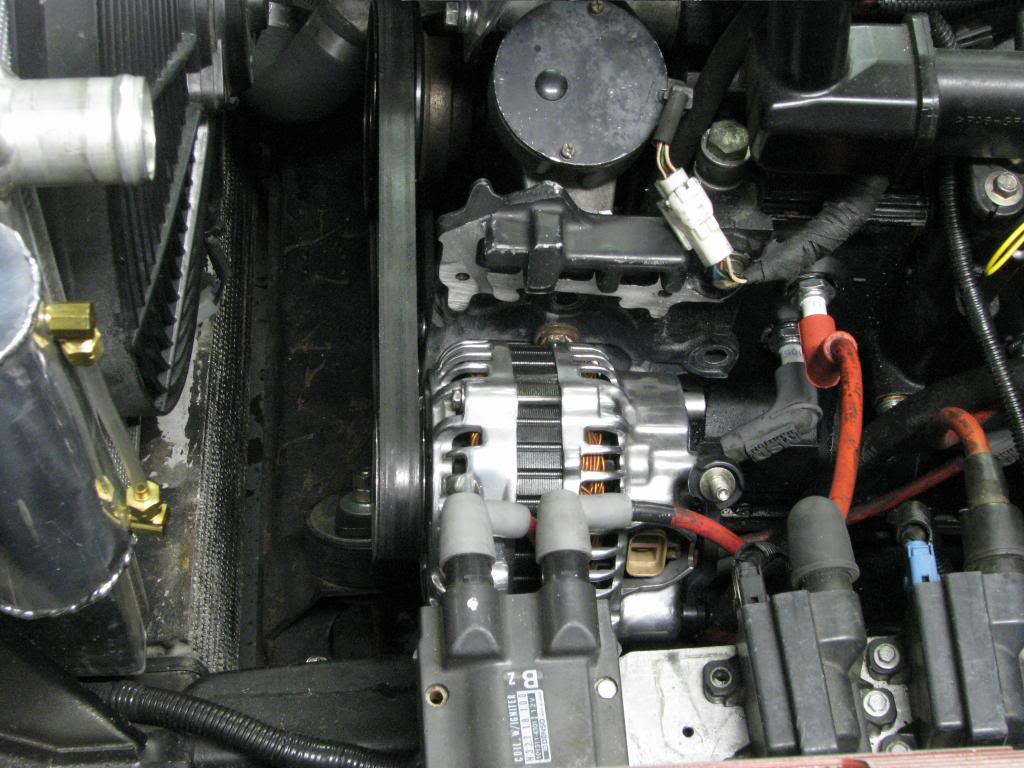

Also put the finishing touches on the side mount alternator bracket.
Yep, not many REPUs made it to Arkansas. It always seems to catch peoples attention for one reason or another.
Had the spacers made for the FD differential, cant wait to see what this truck can do not that it should hookup better.
Also put the finishing touches on the side mount alternator bracket.
03-17-14, 12:38 AM
#66

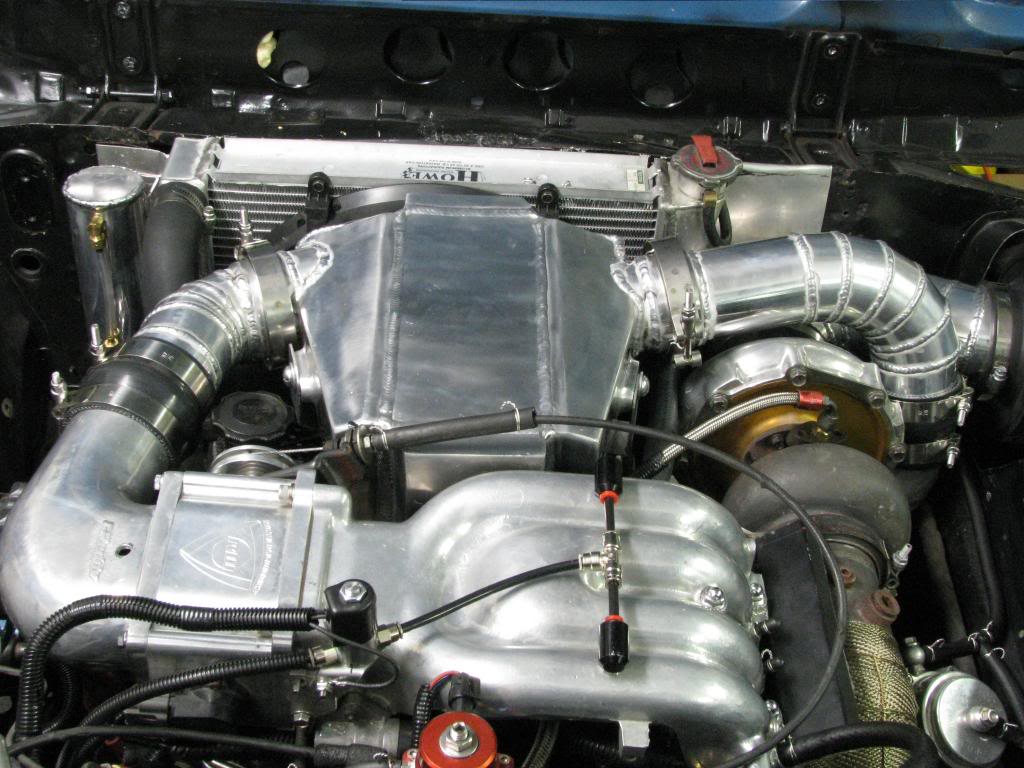

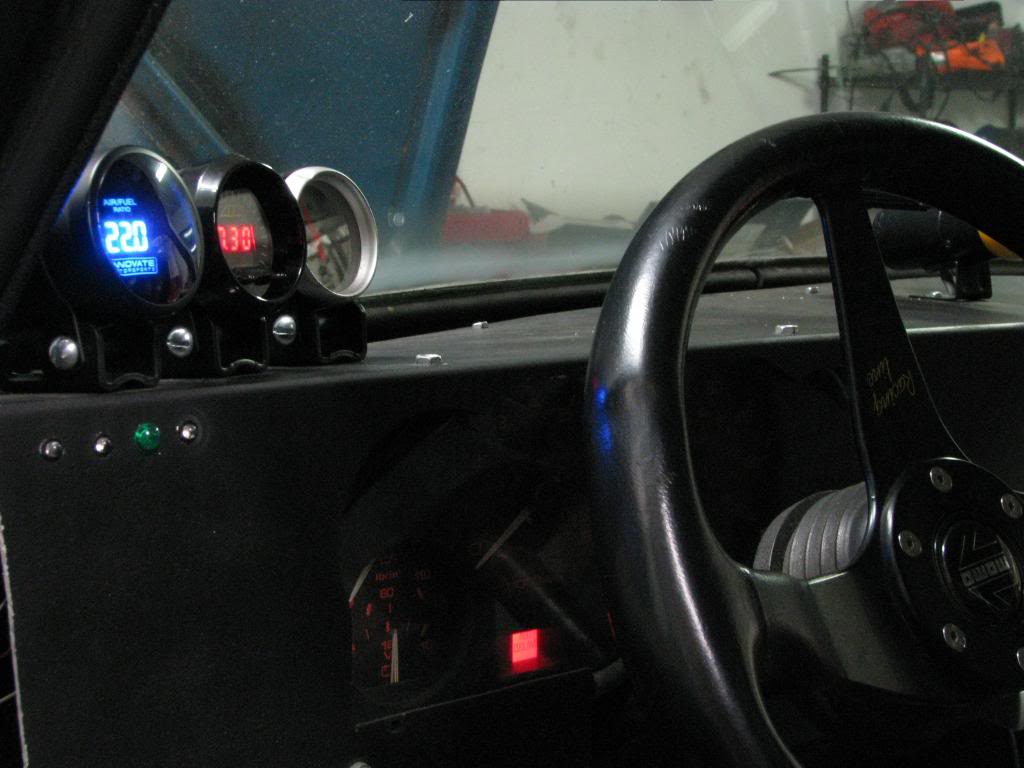

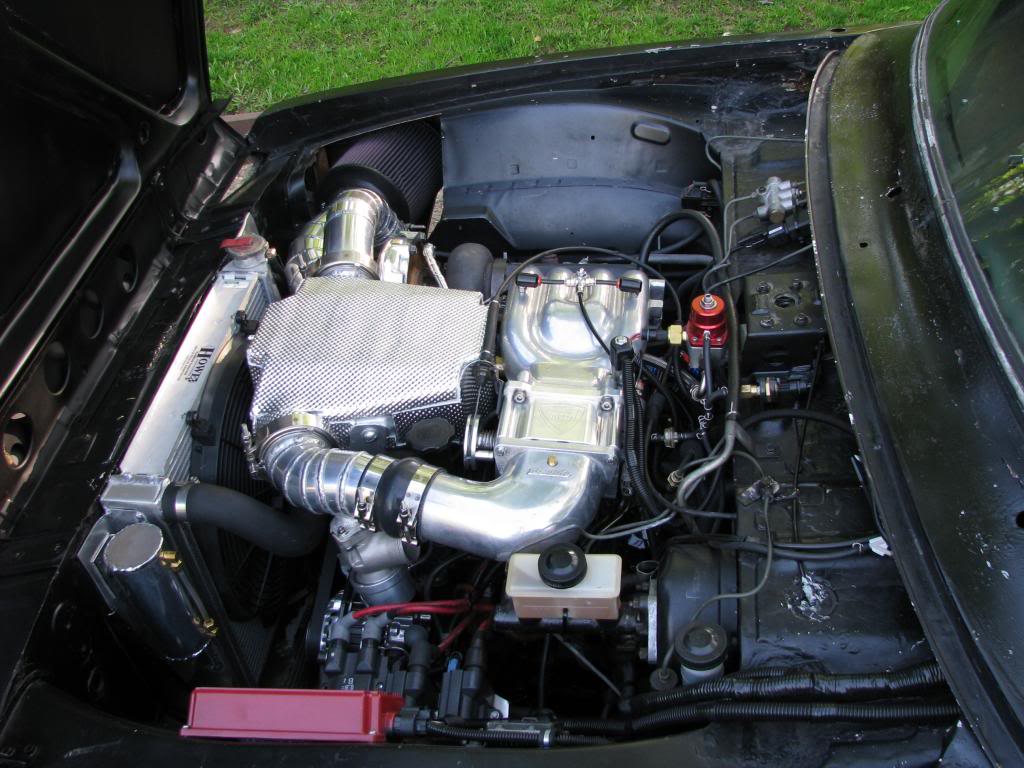

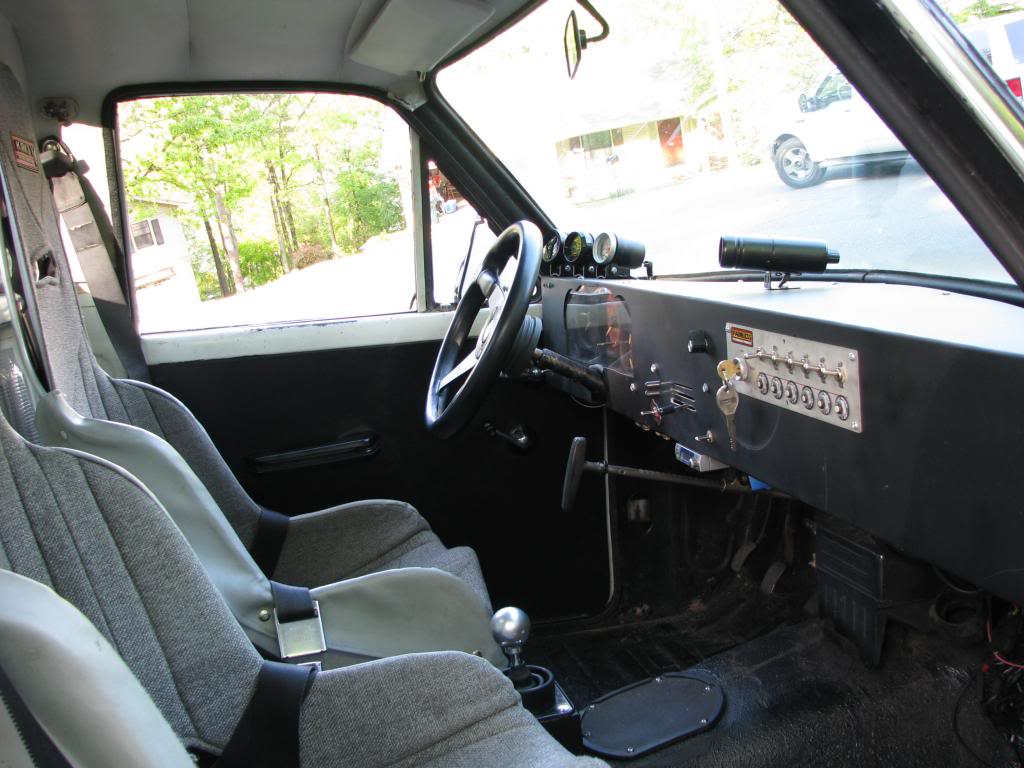

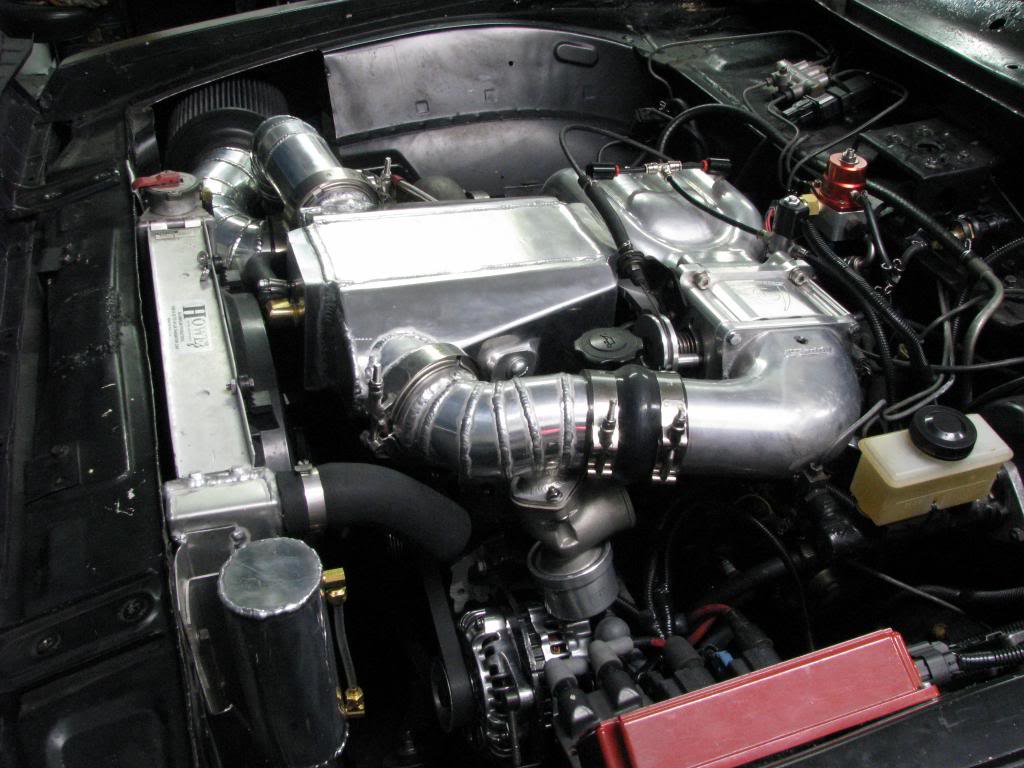

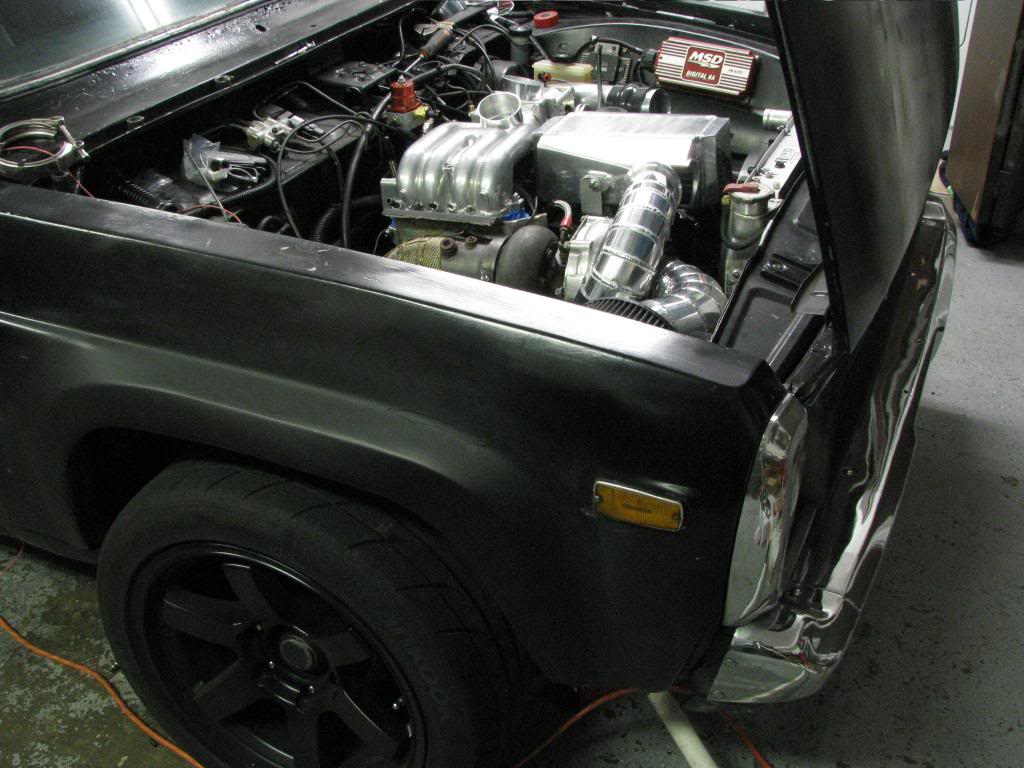

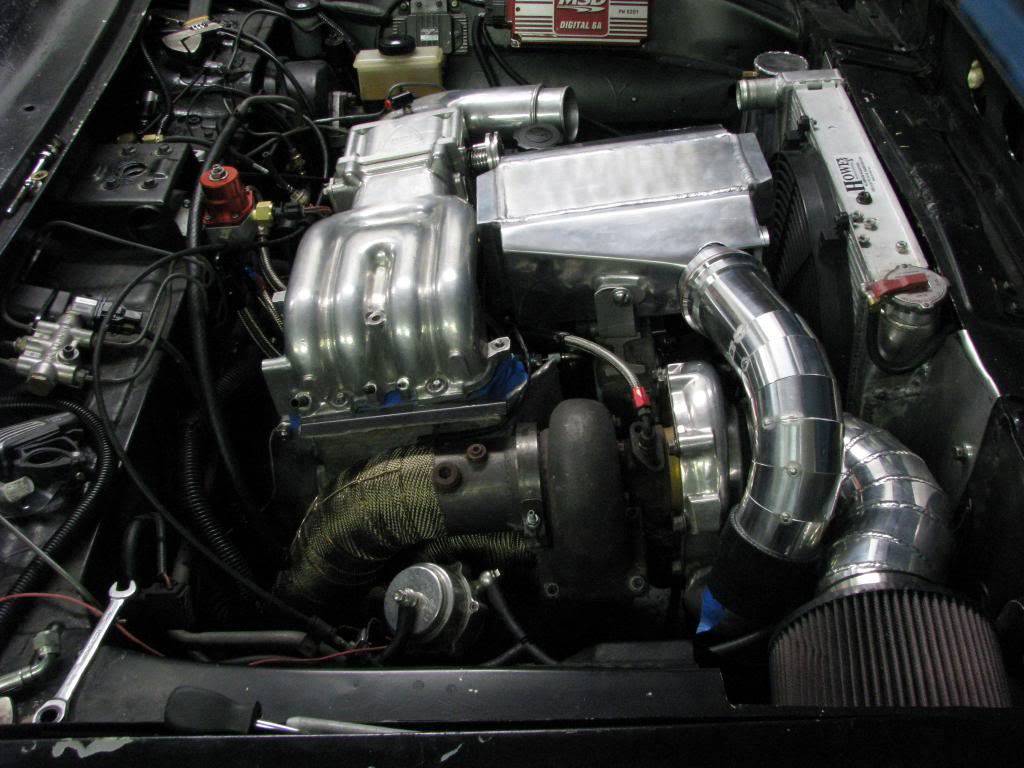

Finished up all the loose ends in the engine bay and installed a serial gauge for the aem ems. The gauge is a little tricky to program to get its full potential but it looks like it is going to add the safety warnings that the V1 EMS is lacking.
06-11-14, 07:51 PM
#71
REPU has been doing great, its been my daily driver for a while with no problems. I have been running 20psi and am wanting to up it to 22-24 once I get my ait's down a bit.
ARSCCA REPU Auto Cross - YouTube
ARSCCA REPU Auto Cross - YouTube
