REPU Creamsicle Build

Hi everyone, not getting much interest in my project on the other forum and since I'm constantly lurking here I figured I would continue my progress here.

Starting point:

This 1975 was restored by Gary in California. He did some amazing work but his style wasn't completely to my liking. I purchased it about 5 years ago and this is how it looked back then.



I quickly got the truck ready for camping duty and since it had only been shuttled back and forth to a few car shows my TODO list was pretty long.

1) New Clutch master/slave
2) Raise the suspension back up
3) Install hitch
4) Install brake controller and 7 pin harness
5) Get the heater working
6) Get the wipers working
7) Get the turn signals working
8) Get the horn working
9) Interior and dash lights
10) Radio
11) Speedometer cable
12) Exhaust work (it was way too loud below 3,500RPM)
13) New wheels (harder than it looked to find something)
14) New battery

I'm sure there were a few other items on the list, despite the beautiful body work, the car's restoration wasn't up to the task of doing much more than a few cruise nights and car shows. Most of the wiring under the dash was missing or not connected. Even the headlight bulbs were incorrect and causing fuses to blow with the high beams on. Anyway, I got everything up to snuff and I used it several times a year for camping trips, car shows, and driving around town in fair weather. It has been out in the rain a few times but it stays garaged all winter.






Plans for this winter are as follows...

1) More power
2) Safer wiring
3) Fresh Interior

I started by getting a dyno of its current state. With a racing beat header and 2.5" exhaust and the emissions equipment removed, it put down a respectable 114 hp to the wheels. I'm not shooting for massive power gains, but the build will be something a little different. I haven't been towing with it as much lately so the focus is more on making the engine bay pop at car shows, and the wheels spin around town.


Last edited by chuyler1; 01-27-16 at 05:16 PM.
chuyler1 is offline
Reply With Quote
Old 01-27-16, 05:19 PM
  #2
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 508
Thanked 14 Times in 10 Posts
With some help from Lui @ Wankelworks, we're going to install an Adaptronic ECU, AAW chassis harness, and lots of other goodies.





The wiring harness is out and the interior is gutted. That's as far as I have gotten so far.





chuyler1 is offline
Reply With Quote
Old 01-27-16, 06:04 PM
  #3
Lapping = Fapping
iTrader: (12)

Jeff20B's Avatar

Join Date: Aug 2001
Location: Near Seattle
Posts: 15,510
Thanked 31 Times in 29 Posts
The classic white rims look really good on it. Basically what my red truck aspires to look like some day.

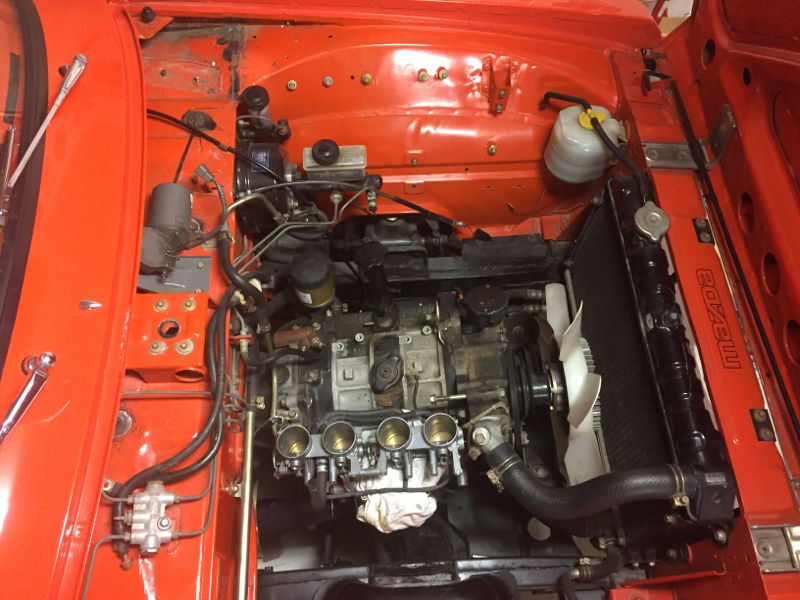

Any pics of the engine bay? I'm not into EFI but hopefully it'll work out well for you.
Jeff20B is offline
Reply With Quote
Old 01-27-16, 07:01 PM
  #4
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 508
Thanked 14 Times in 10 Posts

Last edited by chuyler1; 01-27-16 at 07:24 PM.
chuyler1 is offline
Reply With Quote
Old 01-27-16, 08:06 PM
  #5
REPU Garage
iTrader: (17)

Join Date: Jun 2007
Location: Northern Colorado
Posts: 623
Thanks: 0
Thanked 0 Times in 0 Posts
Wow, nice REPU! I wish mine had body work and paint in as good condition.
Turbo8 is offline
Reply With Quote
Old 01-28-16, 02:23 PM
  #6
Junior Member

Join Date: Jan 2016
Location: Chester, VA
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
Absolutely beautiful work. Miss mine dearly, but my current relationship with an RX7 will do I guess.
Firesmitty is offline
Reply With Quote
Old 01-31-16, 03:29 PM
  #7
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 508
Thanked 14 Times in 10 Posts

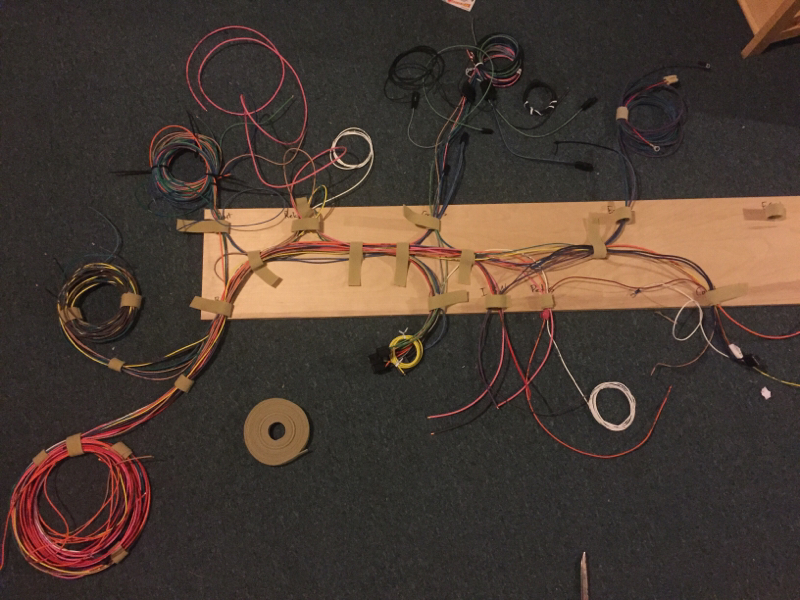

Made progress on the new wiring harness using everything supplied by the AAW Highway 22 kit. However there is a lot missing and I need to come up with a few solutions to completely replace the factory harness.

Missing or requires modification:
* relays and harness for wipers
* relays for low/high headlights
* relays to combine turn signals and brake
* relay for fuel pump
* relay for ignition
* reverse light wiring
* alternator warning light wiring



REPU Creamsicle Build-image-2368019846.jpg
chuyler1 is offline
Reply With Quote
Old 02-20-16, 09:28 AM
  #8
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 508
Thanked 14 Times in 10 Posts
New firewall back board to replace the one that smelled like 40 year old mold.









Also new bulkhead connector that will help with the forthcoming wire tuck.

chuyler1 is offline
Reply With Quote
Old 02-25-16, 12:59 PM
  #9
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 508
Thanked 14 Times in 10 Posts
Drilled and tapped the holes for bucket seats. Only issue is that I will have to remove the exhaust and heat shield to get the bolts in from the other side. I'll wait until I'm ready to install the seats permanently before I do that.

Since all the holes are placed I decided to get started on the sound deadening.

chuyler1 is offline
Reply With Quote
Old 02-26-16, 12:06 AM
  #10
Rare for a Reason
iTrader: (13)

Narfle's Avatar

Join Date: Nov 2002
Location: Dagobah
Posts: 5,280
Thanked 54 Times in 43 Posts
Love the build. How does it pull that camper?
Narfle is offline
Reply With Quote
Old 02-26-16, 11:15 AM
  #11
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 508
Thanked 14 Times in 10 Posts
I hang out in 4th gear on the highway at about 60 mph and it buzzes along quite nicely. I don't have a 5th gear (yet) so I'd be doing that anyway. The only time I've had to downshift to maintain speed on the highway is through Franconia Notch which I think has a grade over 6%. I add a few extra PSI to the Gabriel air shocks to level the suspension and as long as the trailer is loaded properly there isn't any sway unless I get up over 65 mph. I also add a little extra air to the rear tires. Braking isn't spectacular so I up the boost on my brake controller. I would not advise hauling more than 1,000lbs without electronic brakes. If you plan to tackle the Rockies, this truck isn't going to cut it, but short trips under a few hours are OK. Gas mileage is around 12-13 which is pretty much identical to the mileage I get towing the same camper with my 2013 CX9.

Keep in mind that RV and trucking magazines back in the day wrote great reviews for using this truck with in-bed campers because it had quiet revving power. It outclassed the typical 1.6L and 1.8L motors in the majority of the mini trucks. Until Toyota offered the 2.2L 20R in the Hilux, the 13B had the most torque available by a long shot.
chuyler1 is offline
Reply With Quote
Old 03-04-16, 11:45 PM
  #12
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 508
Thanked 14 Times in 10 Posts
Some work on the wiring harness this week.

Ignition switch and steering column all terminated.



Tail light module for a trailer will serve as relay for brakes and turn signals. Easy to replace if it fails because I added quick release terminals. This particular model has a separate 12v power supply so I won't have high current running through steering column switch.



Additional bank of relays for low/high wipers and low/high headlights. This along with the trailer module should tuck up under the gauge cluster out of sight.



Took me a while to translate the OEM wiper relay box into a dual SPDT format I could understand.



The OEM harness had full power for headlights going through the steering column so I'm going to intercept those feeds and power the lights from a higher gauge cable.



I also added some RAAMatt BXT to the transmission hump and rear of the cab. I ordered the wrong carpet so finishing it off didn't happen.



chuyler1 is offline
Reply With Quote
Old 03-08-16, 11:13 PM
  #13
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 508
Thanked 14 Times in 10 Posts
More carpet came in today so I took a break from wiring to trim and install the rear cab carpeting. Lots of cutting and gluing. I hope the Super77 holds it in place.

chuyler1 is offline
Reply With Quote
Old 03-09-16, 10:59 AM
  #14
Eats, Sleeps, Dreams Rotary
iTrader: (19)

papsmagu's Avatar

Join Date: Sep 2004
Location: South Florida
Posts: 3,240
Thanks: 0
Thanked 1 Time in 1 Post
great upgrade. i remember when that truck was for sale. glad it went to a good home.
papsmagu is offline
Reply With Quote
Old 09-11-16, 09:49 AM
  #15
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 508
Thanked 14 Times in 10 Posts
Spent some time on the seats this rainy afternoon. First shot is the old leather, second is the new Katzkin Leather kit.



chuyler1 is offline
Reply With Quote
Old 09-11-16, 09:50 AM
  #16
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 508
Thanked 14 Times in 10 Posts
Working on installing the Atkins pulley kit.



Had to grind off this rivet on the original pulley.



Got the water pump and crank pulleys on. Side mount installed. Also mounted the new Spal 16" electric fan. However the alternator I bought won't work with the side mount kit so I'm going to get an FD alternator instead.



chuyler1 is offline
Reply With Quote
Old 09-11-16, 10:25 PM
  #17
Senior Member
iTrader: (5)

ROTARY_ADDICT-1's Avatar

Join Date: Aug 2016
Location: claremont, CA
Posts: 397
Thanks: 0
Thanked 6 Times in 6 Posts
nice repu
ROTARY_ADDICT-1 is offline
Reply With Quote
Old 09-13-16, 12:50 AM
  #18
Senior Member
10 Year Member
iTrader: (1)

mazda1200's Avatar

Join Date: Dec 2006
Location: fontana CA.
Posts: 609
Thanks: 0
Thanked 0 Times in 0 Posts
looking nice
mazda1200 is offline
Reply With Quote
Old 09-14-16, 02:37 PM
  #19
Full Member

Medevack1's Avatar

Join Date: Jul 2014
Location: Winston Salem NC
Posts: 241
Thanks: 0
Thanked 0 Times in 0 Posts
nICE jOB!!
Medevack1 is offline
Reply With Quote
Old 09-16-16, 07:27 PM
  #20
Strength & Unity
iTrader: (1)

2wankel's Avatar

Join Date: Jul 2004
Location: CT
Posts: 1,946
Thanks: 0
Thanked 0 Times in 0 Posts
Beautiful REPU!
2wankel is offline
Reply With Quote
Old 09-20-16, 11:14 PM
  #21
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 508
Thanked 14 Times in 10 Posts
I did a little more wiring tonight. Just tucking things in and making sure all the runs are the right length. I still have to install a ton of harness terminals but the fuse box is in, relays are in, and steering column is all hooked up.







chuyler1 is offline
Reply With Quote
Old 09-21-16, 09:40 PM
  #22
REPU Garage
iTrader: (17)

Join Date: Jun 2007
Location: Northern Colorado
Posts: 623
Thanks: 0
Thanked 0 Times in 0 Posts
I really need to re-wire my REPU. It's a hodge-podge of fixes on top of fixes on top of wires going to nowhere. I just don't want to do haha.
Turbo8 is offline
Reply With Quote
Old 09-22-16, 10:26 AM
  #23
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 508
Thanked 14 Times in 10 Posts
Yeah, I didn't want to cut into the harness and I knew I was adding so much more. This is a thankless job though. Understanding how all the OEM switches and relays worked was a nightmare but I've made improvements to every circuit. I'm selling the old unmolested harness to anyone wanting to keep things original, but after adding up the cost of all the terminals and wire I had to purchase to replicate it, I'm not letting it go cheap.

I don't have any photos but last night I started working on the gauge cluster. I was about to wire it up but then I remembered the speedometer flutter I was having. I opened up the gauge and cleaned off all the gunk on the screw gears and oiled them with some bicycle chain lube. I'm not a clocksmith but I'm hoping that helps.

Tonight I'm going to direct wire all the gauges and lights to the pigtail harness from the AAW kit. My circuit board has seen better days and the last time I was poking around with it I noticed a few connections between the round oem harness and the gauges weren't working or had poor connectivity but the gauges and lights themselves work fine. I'll take a bunch of photos. I should be able to get all of them working again. The only one I'm worried about is the tach honestly. I'm not sure how that will function with the Adaptronic ECU controlling the coils.
chuyler1 is offline
Reply With Quote
Old 09-23-16, 01:24 PM
  #24
Senior Member
iTrader: (1)

xp882's Avatar

Join Date: Mar 2001
Location: chino,CA,USA
Posts: 265
Thanks: 0
Thanked 1 Time in 1 Post
do you know where gary had your grill chromed at?
xp882 is offline
Reply With Quote
Old 09-24-16, 04:16 PM
  #25
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 508
Thanked 14 Times in 10 Posts
Originally Posted by xp882 View Post
do you know where gary had your grill chromed at?
Sorry no, but I remember him telling me it was the hardest part to chrome. I know nothing about the process other than what I've seen on shows. I know it's not cheap, and the chrome work was part of the reason I bought this truck.
chuyler1 is offline
