REPU Creamsicle Build

Old 10-04-16, 10:30 AM
  #26
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 728
Thanked 28 Times in 23 Posts
The gauge cluster is finished and back in the truck. Some of the circuits were fried on the board but the gauges themselves were fine so I wired up the AAW harness direct to each gauge and added diodes where they were needed to get the warning lights to function as originally intended. For some of the lights, I replaced the twist-in bulb holders for pigtails so the power goes direct to the bulb. Tonight was the first time I got to test things in the truck. I still have lots to connect but I'm hearing the new relays click on and off so the end is near.





Also, the intake came in. I need some fabrication done before it will mount up...but at least it is here.





chuyler1 is offline
Old 10-21-16, 11:31 PM
  #27
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 728
Thanked 28 Times in 23 Posts


Knocked off some more wiring this evening.

1) main fuse with shunt for ammeter is in.
2) stereo amp is all hooked up except for speaker wires
3) gauge cluster is in
4) wiring harness for radio is done

Verified the following which was very exciting: Dash lights work with dimmer switch, I can hear low beam and high beam relays clicking on. Radio turns on and remembers presets. Ammeter works.

Heater 3-way switch does not work. The wiring is pretty beat up. I'm going to have to open it up and clean the contacts. Not looking forward to that because it means disconnecting all the cables and remembering how it all goes back together.
chuyler1 is offline
Old 10-22-16, 02:57 PM
  #28
Senior Member
iTrader: (1)

xp882's Avatar

Join Date: Mar 2001
Location: chino,CA,USA
Posts: 270
Thanks: 0
Thanked 1 Time in 1 Post
maybe mark the cables and take pics?
thats what i try and do
Originally Posted by chuyler1 View Post


Knocked off some more wiring this evening.

1) main fuse with shunt for ammeter is in.
2) stereo amp is all hooked up except for speaker wires
3) gauge cluster is in
4) wiring harness for radio is done

Verified the following which was very exciting: Dash lights work with dimmer switch, I can hear low beam and high beam relays clicking on. Radio turns on and remembers presets. Ammeter works.

Heater 3-way switch does not work. The wiring is pretty beat up. I'm going to have to open it up and clean the contacts. Not looking forward to that because it means disconnecting all the cables and remembering how it all goes back together.
xp882 is offline
Old 10-24-16, 10:42 PM
  #29
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 728
Thanked 28 Times in 23 Posts
Heater fan switch and controls restored with new harness and cleaned up contacts and stretched springs inside to make sure it will work like new. Hardest part, as I expected, was connecting back up the cables and making sure they have the correct range from side to side.







chuyler1 is offline
Old 10-25-16, 07:21 AM
  #30
Moderator
iTrader: (12)

Join Date: Apr 2013
Posts: 1,139
Thanked 40 Times in 36 Posts
nice, looking forward to seeing how this turns out.
Johnny Kommavongsa is offline
Old 10-26-16, 08:38 PM
  #31
Eats, Sleeps, Dreams Rotary
iTrader: (19)

papsmagu's Avatar

Join Date: Sep 2004
Location: South Florida
Posts: 3,244
Thanks: 0
Thanked 1 Time in 1 Post
Awesome work. What do you plan on doing w TB's? Run two per rotor? They look really nice!!!
Originally Posted by chuyler1 View Post
Heater fan switch and controls restored with new harness and cleaned up contacts and stretched springs inside to make sure it will work like new. Hardest part, as I expected, was connecting back up the cables and making sure they have the correct range from side to side.







papsmagu is offline
Old 10-27-16, 09:59 AM
  #32
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 728
Thanked 28 Times in 23 Posts
Originally Posted by papsmagu
Awesome work. What do you plan on doing w TB's? Run two per rotor? They look really nice!!!
Yes, one for each port on the 4 port motor. Smaller separate TBs should provide more torque.

Center console is in, checking off more circuits...





1) Radio is wired up and sending audio to the amplifier

2) Heater controls are wired up and functioning

3) All dash lights work with the dimmer

4) 12v acc works

5) Parking brake light works

6) harness for trailer brake controller is ready to go

7) Exhaust Overheat light is wired, but haven't tested the sensor, not even sure i will install it. I might use the light to display something from ECU instead.
chuyler1 is offline
Old 10-27-16, 11:19 PM
  #33
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 728
Thanked 28 Times in 23 Posts
Not much to show tonight but I did manage to connect the wipers and verify my relay work from months ago was done right. It's so exciting to see the wipers move and stop at the right spot!

I also connected the heater core and played around with the exhaust temp sensor. This little thing is supposed to be bolted to the passenger floor and set off a light in the dash if it gets too hot. Only problem, it takes a serious amount of heat to set it off. You'd smell your shoes burning before this thing alerted you. I got it to trigger outside the car, but I couldn't get it to trigger mounted to the floor...so I'm not going to bother hooking up the warning light.

chuyler1 is offline
Old 11-13-16, 10:59 PM
  #34
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 728
Thanked 28 Times in 23 Posts
Wire tuck for the front end complete. I can check off turn signals, marker lights, head lights, high beams, horn, and electric fan. It's nice to see this old face again.







I'm also working on a panel to mount the ECU and O2 sensor module.









chuyler1 is offline
Old 04-18-17, 04:41 PM
  #35
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 728
Thanked 28 Times in 23 Posts
The intake is ready for me to pick up, so this project is finally back on track.

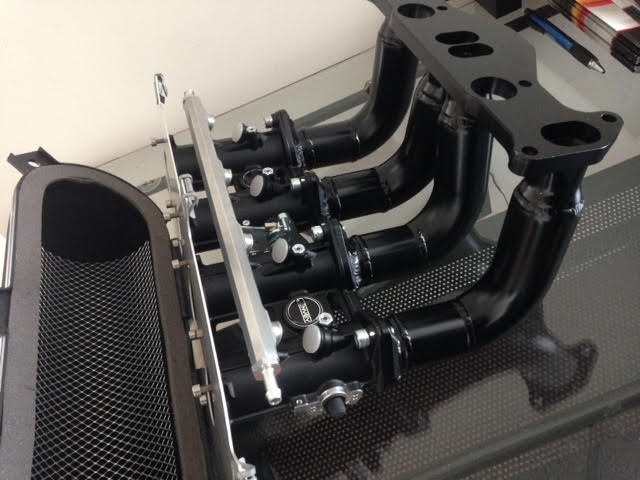

Attached Thumbnails REPU Creamsicle Build-unnamed.jpg
chuyler1 is offline
Old 04-18-17, 05:22 PM
  #36
Senior Member
iTrader: (6)

ROTARY_ADDICT-1's Avatar

Join Date: Aug 2016
Location: claremont, CA
Posts: 412
Thanks: 0
Thanked 6 Times in 6 Posts
nice work very clean repu
ROTARY_ADDICT-1 is offline
Old 04-20-17, 01:31 PM
  #37
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 728
Thanked 28 Times in 23 Posts
After months of waiting, I finally have an intake manifold.









Last night I started messing with the throttle linkage. Some assembly required.





chuyler1 is offline
Old 04-20-17, 01:36 PM
  #38
Rare for a Reason
iTrader: (13)

Narfle's Avatar

Join Date: Nov 2002
Location: Dagobah
Posts: 5,422
Thanked 82 Times in 60 Posts
Bruh.

Your metal brake is dope too.

Last edited by Narfle; 04-20-17 at 01:38 PM.
Narfle is offline
Old 04-20-17, 01:42 PM
  #39
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 728
Thanked 28 Times in 23 Posts
Originally Posted by Narfle
Bruh.

Your metal brake is dope too.
Lol, i make a better wood crafter than a metal fabricator. Didn't make for the tightest bend but it got the job done.
chuyler1 is offline
Old 04-20-17, 01:45 PM
  #40
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 728
Thanked 28 Times in 23 Posts
Oh yeah, and I now have a place for that O2 sensor as well. Not my work, just more stuff I farmed out to my local fabricator.
chuyler1 is offline
Old 04-20-17, 05:37 PM
  #41
Senior Member
iTrader: (6)

ROTARY_ADDICT-1's Avatar

Join Date: Aug 2016
Location: claremont, CA
Posts: 412
Thanks: 0
Thanked 6 Times in 6 Posts
intake looks nice
ROTARY_ADDICT-1 is offline
Old 05-19-17, 09:56 PM
  #42
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 728
Thanked 28 Times in 23 Posts
Making progress this week.

Rear lights and trailer hitch are all wires up now. Turn signals, hazards, brake lights, and reverse lights are all up and running.

O2 sensor, reverse switch on transmission and starter are all plugged in.



Coils are mounted and custom short spark plug wires connected.



I fabbed up a bracket to mount the vacuum line manifold to the back side of the throttle bodies using some angle aluminum from Home Depot.



Lui stopped by to help out with the engine wiring harness.





Meanwhile I snaked 8ga wire through the cabin to connect the alternator to the fuse box.



We need to figure out what size injectors fit this fuel rail and procure a few more fittings, then we should see this truck up and running in a week or two.
chuyler1 is offline
Old 05-21-17, 05:55 PM
  #43
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 728
Thanked 28 Times in 23 Posts
Swapped out the old fuel pump fora walbro unit. I will revisit this later with proper fittings but that will require removing the bed to access the rest of the lines.





chuyler1 is offline
Old 05-25-17, 06:02 PM
  #44
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 728
Thanked 28 Times in 23 Posts
Painted vacuum hard lines and installed new orange mishimoto vacuum hose. Also competed the engine harness bulkhead connector.

chuyler1 is offline
Old 05-25-17, 10:40 PM
  #45
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 728
Thanked 28 Times in 23 Posts
Coolant ports blocked off, OMP blocked off (going to pre-mix), intake finally bolted in place, and vacuum lines sorted.







chuyler1 is offline
Old 05-27-17, 01:30 PM
  #46
Senior Member

Join Date: Jul 2007
Location: Worcester, UK. Ex-NZ
Posts: 357
Thanked 2 Times in 2 Posts
I like! :o
JSmall is offline
Old 06-13-17, 08:34 AM
  #47
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 728
Thanked 28 Times in 23 Posts
Working on the fuel system.











chuyler1 is offline
Old 07-21-17, 07:00 AM
  #48
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 728
Thanked 28 Times in 23 Posts
Started the truck up for the first time yesterday. It still needs to be tuned but we got it to idle. There were a few things to iron out over the last few days but it's all sorted now.

Fuel pump was junk. I diagnosed everything else and had it working at one point but as soon as I upped the fuel pressure it conked out. I picked up an OEM replacement for an '89 Ford F-150 at the parts store that comes with a lifetime warranty.

Alternator wires were reversed so the dash lights weren't coming on. Easy fix.

Throttle position sensor was on backwards. It was symmetrical to mount on either side and the instructions weren't all that clear...but it was another quick fix once we saw the values reversed on the ECU.

Thermostat wasn't opening so I replaced that to be safe.



chuyler1 is offline
Old 08-07-18, 02:36 PM
  #49
Rare for a Reason
iTrader: (13)

Narfle's Avatar

Join Date: Nov 2002
Location: Dagobah
Posts: 5,422
Thanked 82 Times in 60 Posts
Thought I saw some cool pictures on FB. How's it running? Any updates?
Narfle is offline
Old 08-07-18, 07:12 PM
  #50
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2012
Location: NH
Posts: 728
Thanked 28 Times in 23 Posts
I've got the tune about 85% there. Some timing issues off throttle I may need an expert to look into, and I think I'm having some fuel starvation issues messing with transients...or I just need a better flowing fuel filter. Anyway, it was good enough to get me to the top of Mount Washington and back down.

REPU Creamsicle Build-photo670.jpg

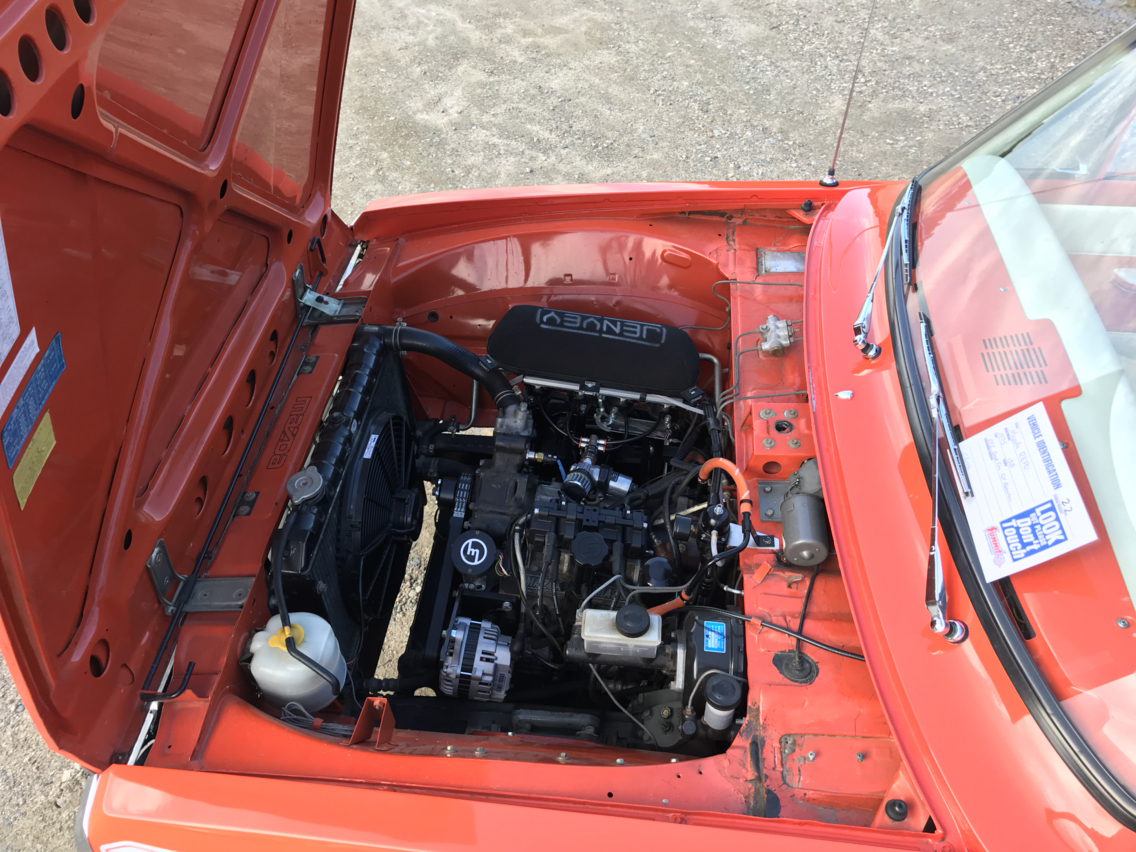

REPU Creamsicle Build-photo20.jpg

REPU Creamsicle Build-photo986.jpg

REPU Creamsicle Build-photo819.jpg

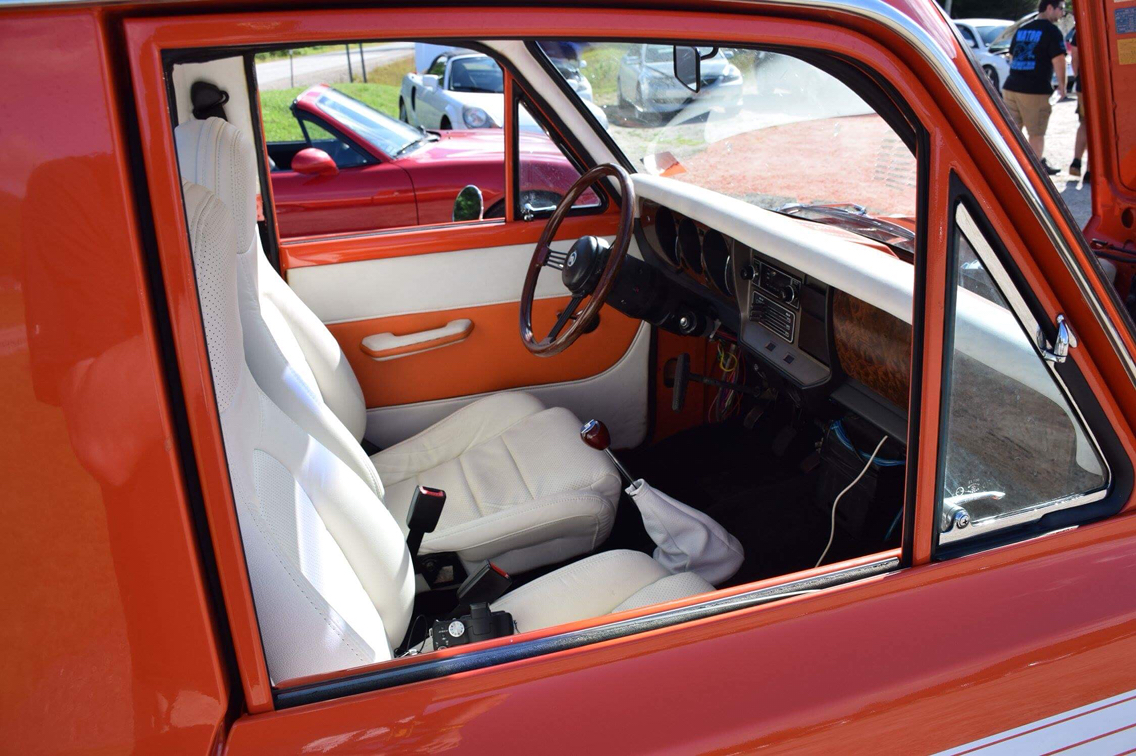

REPU Creamsicle Build-photo868.jpg
chuyler1 is offline
