My new 73 Rx2!

Old 11-25-15, 11:53 PM
  #151
Rx2 > FD
Thread Starter
iTrader: (10)

sen2two's Avatar

Join Date: Apr 2005
Location: Florida, Orlando
Posts: 3,332
Likes: 0
Received 3 Likes on 3 Posts

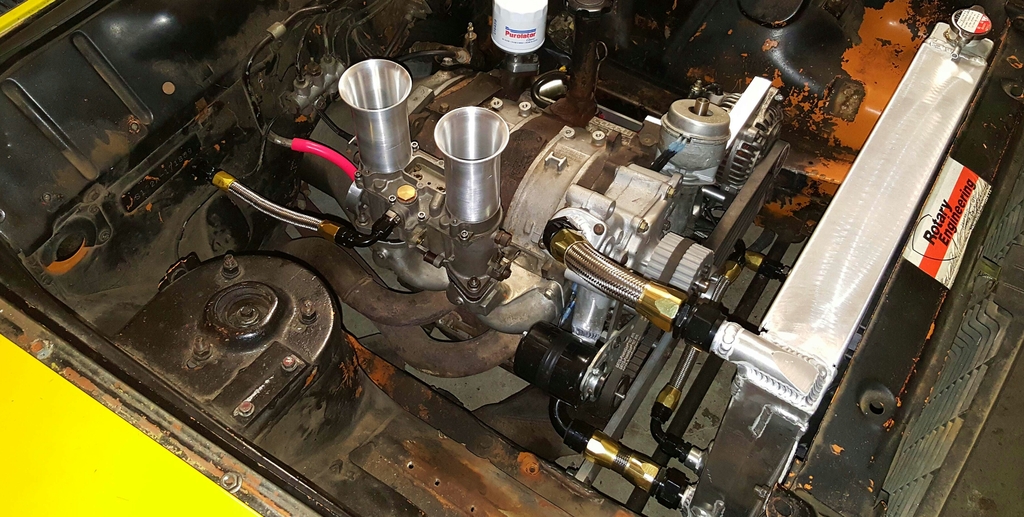

Getting there....

Name:  20151125_205855-1_zpszb6azibn.jpg
Views: 214
Size:  467.0 KB

Name:  20151125_210740-1_zps4mdlr7ip.jpg
Views: 240
Size:  361.9 KB
sen2two is offline
Old 12-12-15, 08:41 PM
  #152
Rx2 > FD
Thread Starter
iTrader: (10)

sen2two's Avatar

Join Date: Apr 2005
Location: Florida, Orlando
Posts: 3,332
Likes: 0
Received 3 Likes on 3 Posts
Once again spending way too much time making a simple part complex. But hey, that's what makes it such an enjoyable hobby. But I need to stop messing around and get this thing to DGRR!

Fuel level sight gauge. There will be no electric level. I don't want to add wires and clutter if it's not necessary.


Starts off like this:

Name:  20151120_171931_zpss32o3q6k.jpg
Views: 185
Size:  107.8 KB

Drill holes for tapping. My lathe is down right now, so I did this all in the mill.

Name:  20151120_172358-1_zps3fq6ap5o.jpg
Views: 185
Size:  139.8 KB

Then swapped to this collet block to make it look fancy

Name:  20151205_142436_zps9wfpetfb.jpg
Views: 185
Size:  99.0 KB
sen2two is offline
Old 12-12-15, 08:43 PM
  #153
Rx2 > FD
Thread Starter
iTrader: (10)

sen2two's Avatar

Join Date: Apr 2005
Location: Florida, Orlando
Posts: 3,332
Likes: 0
Received 3 Likes on 3 Posts

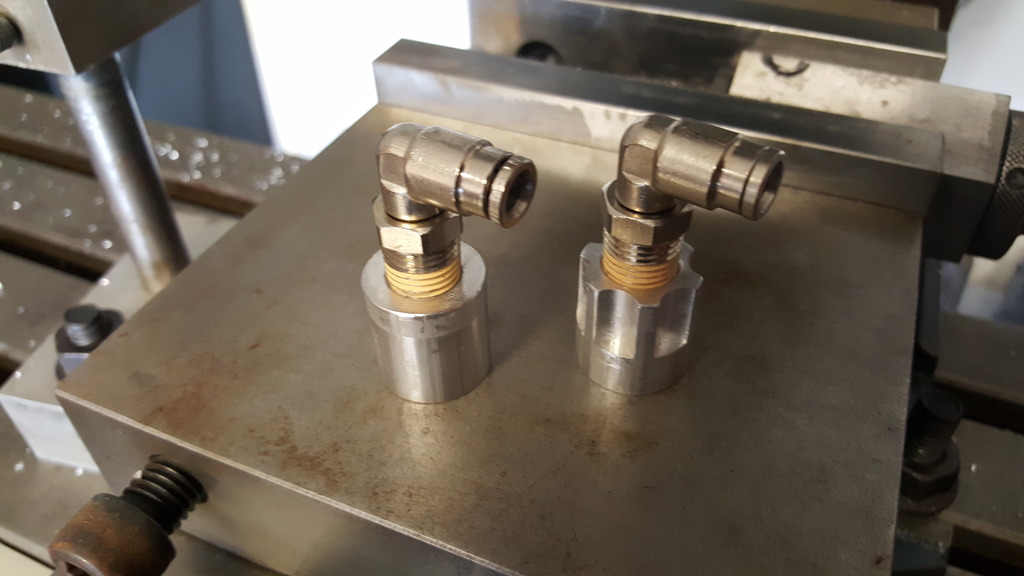

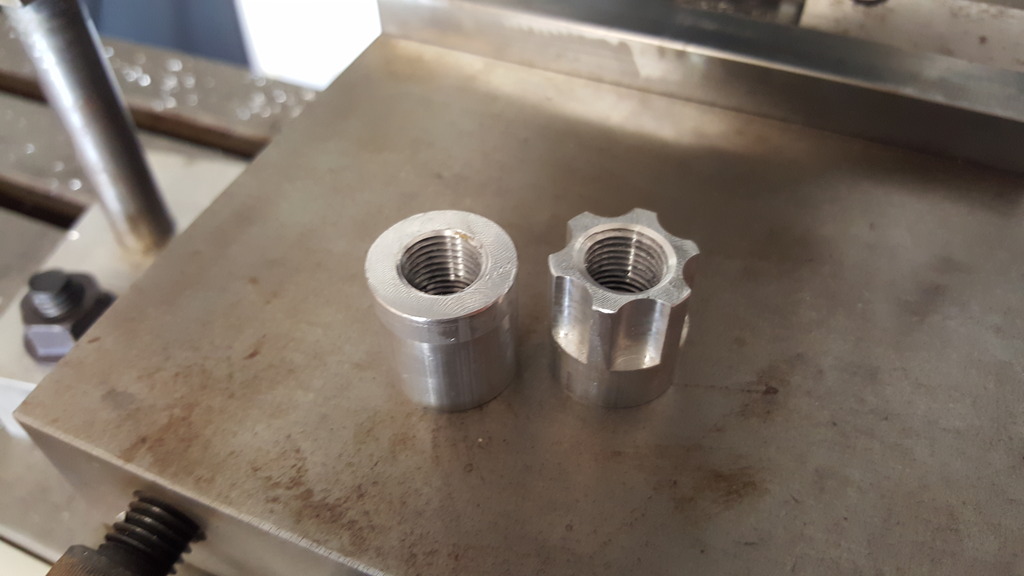

Plain vs. Fancy. I think it was worth the extra 30 minutes to do this.

Name:  20151205_142559_zps0vcmeqzb.jpg
Views: 193
Size:  103.5 KB

Name:  20151205_142633_zpsaiddvcnp.jpg
Views: 193
Size:  117.1 KB
sen2two is offline
Old 12-12-15, 08:46 PM
  #154
Rx2 > FD
Thread Starter
iTrader: (10)

sen2two's Avatar

Join Date: Apr 2005
Location: Florida, Orlando
Posts: 3,332
Likes: 0
Received 3 Likes on 3 Posts
Annnnnnnddddd..... Done. Time to put some gas in it and see if she runs! Hopefully, now that I can actually adjust my fuel pressure correctly, and it has a return line to not overrun the fuel bowl. It will actually run half decent. Instead of over flowing the float so bad the car would run for about a minute even after I disconnect the battery, lol.


Name:  20151205_153337-1_zpsr2t1fqdb.jpg
Views: 184
Size:  169.1 KB
sen2two is offline
Old 07-27-16, 12:13 PM
  #155
Full Member

Medevack1's Avatar

Join Date: Jul 2014
Location: Winston Salem NC
Posts: 241
Likes: 0
Received 0 Likes on 0 Posts
Great Post!!
Medevack1 is offline
Old 12-22-17, 02:12 AM
  #156
Junior Member

Join Date: Jun 2003
Location: NEW ZEALAND
Posts: 8
Likes: 0
Received 0 Likes on 0 Posts
i am after an IDF inlet manifuold, do you have a spare to sell or know where one my be for sale?, cheers matt
MATT is offline
Old 03-09-19, 09:03 AM
  #157
Rx2 > FD
Thread Starter
iTrader: (10)

sen2two's Avatar

Join Date: Apr 2005
Location: Florida, Orlando
Posts: 3,332
Likes: 0
Received 3 Likes on 3 Posts
Well... a little over 3 years since I have posted anything. Not much has been done in that time. most of it the car sat as I was unsure of the direction i wanted to take with the car. Now I have a decent idea. So... out comes the 12a street port. and progress on the Renesis PP build begins!

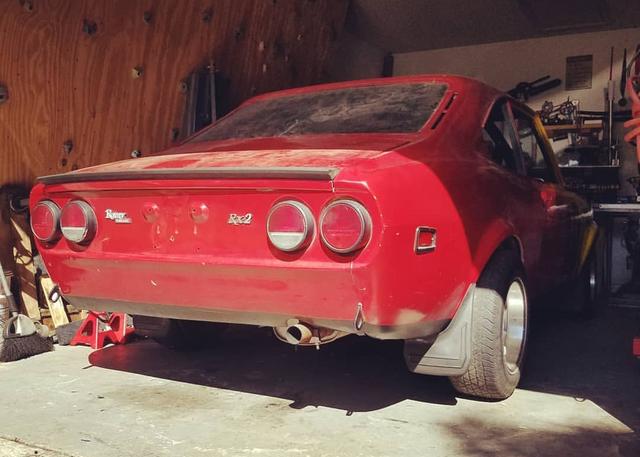

Dusty ol' Bitch. Time to get some love.

sen2two is offline
Old 03-09-19, 09:04 AM
  #158
Rx2 > FD
Thread Starter
iTrader: (10)

sen2two's Avatar

Join Date: Apr 2005
Location: Florida, Orlando
Posts: 3,332
Likes: 0
Received 3 Likes on 3 Posts

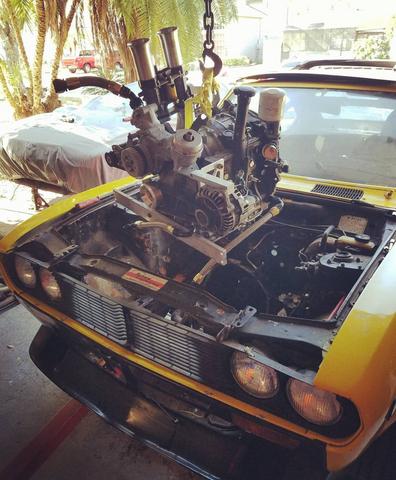

12a no more...



sen2two is offline
Old 03-09-19, 09:08 AM
  #159
Rx2 > FD
Thread Starter
iTrader: (10)

sen2two's Avatar

Join Date: Apr 2005
Location: Florida, Orlando
Posts: 3,332
Likes: 0
Received 3 Likes on 3 Posts

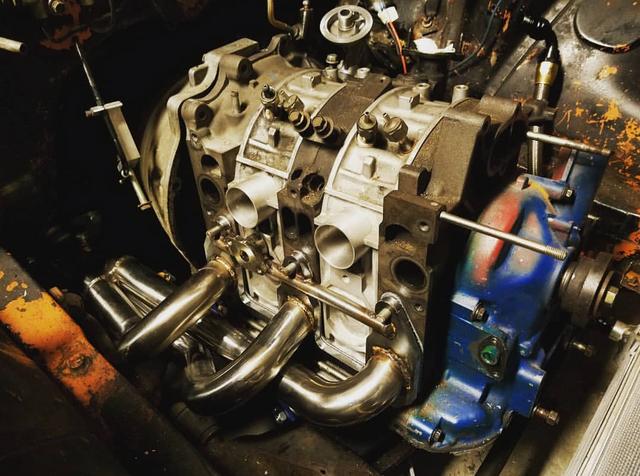

Mocking up the Reni-PP with some cheap headers. There will be some modification needed for them to fit. but saves me a ton of time on starting from scratch.

The engine is just kinda sitting there resting on the sub-frame. I will be pushing it back and keeping it about that low. The Renesis is about 1.5" longer than a normal 13b. So I wanted to keep the weight as centered as possible.

sen2two is offline
Old 03-09-19, 09:10 AM
  #160
Rx2 > FD
Thread Starter
iTrader: (10)

sen2two's Avatar

Join Date: Apr 2005
Location: Florida, Orlando
Posts: 3,332
Likes: 0
Received 3 Likes on 3 Posts

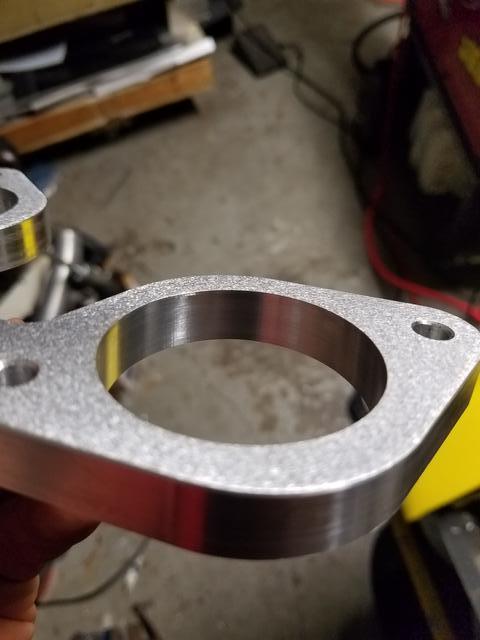

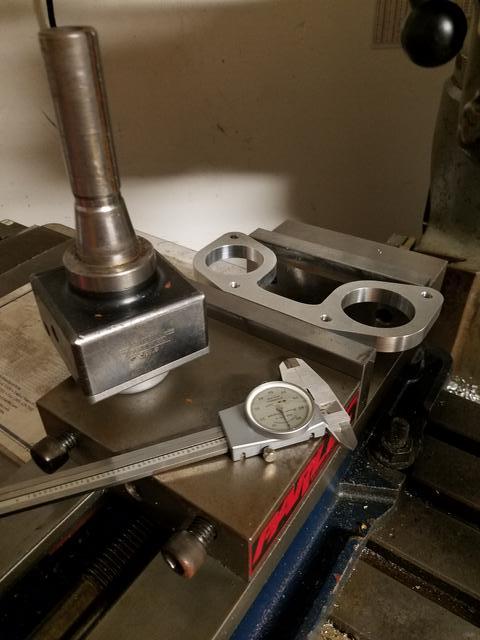

I am using a 51IDA Racing Beat Weber. This flange was for 48mm. So I needed to open up the bores some.







Done...




sen2two is offline
Old 03-09-19, 09:11 AM
  #161
Rx2 > FD
Thread Starter
iTrader: (10)

sen2two's Avatar

Join Date: Apr 2005
Location: Florida, Orlando
Posts: 3,332
Likes: 0
Received 3 Likes on 3 Posts

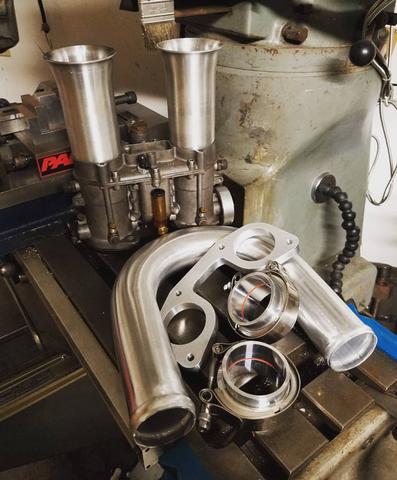

The start of the Intake manifold Build.

sen2two is offline
Old 03-09-19, 05:22 PM
  #162
Full Member

Join Date: Dec 2018
Location: queens ny
Posts: 150
Received 5 Likes on 5 Posts
good weberrrrrrr ..... somethings need to be left simple ..
rx71king2 is offline
Old 03-11-19, 04:12 PM
  #163
wants some ube

IamRobbyah's Avatar

Join Date: Feb 2005
Location: North Bay/Cali
Posts: 239
Received 0 Likes on 0 Posts
Kudos to such an awesome build so far! I love that the old pics all still work too.
IamRobbyah is offline
Old 03-12-19, 12:51 PM
  #164
Rx2 > FD
Thread Starter
iTrader: (10)

sen2two's Avatar

Join Date: Apr 2005
Location: Florida, Orlando
Posts: 3,332
Likes: 0
Received 3 Likes on 3 Posts

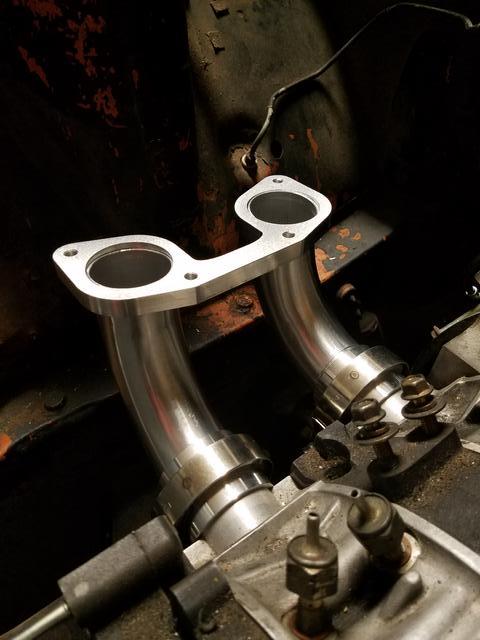

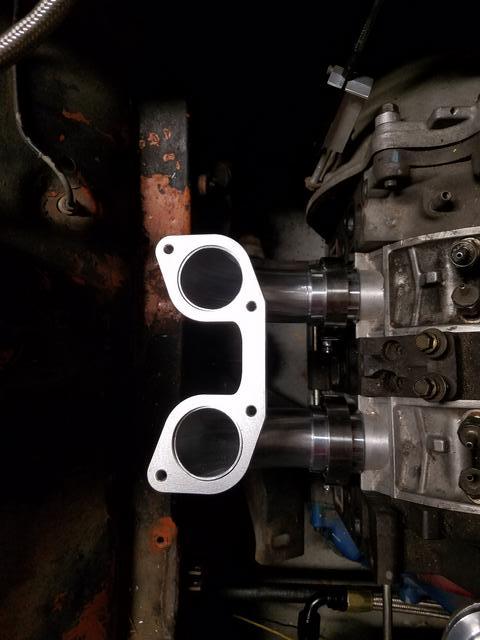

Intake manifold has been cut to size. I made it the shortest I plan to go, this way I can easily and length to the runners or the Velocity stacks to see if another length would give me more usable power.

The V-band connection might be an overkill. But, I wanted to give the Rx2 the quality it deserves. I do not plan to shortcut this car.





[img]https://i.imgur.com/chgOfOv.jpg[/img]


sen2two is offline
Old 03-12-19, 12:55 PM
  #165
Rx2 > FD
Thread Starter
iTrader: (10)

sen2two's Avatar

Join Date: Apr 2005
Location: Florida, Orlando
Posts: 3,332
Likes: 0
Received 3 Likes on 3 Posts

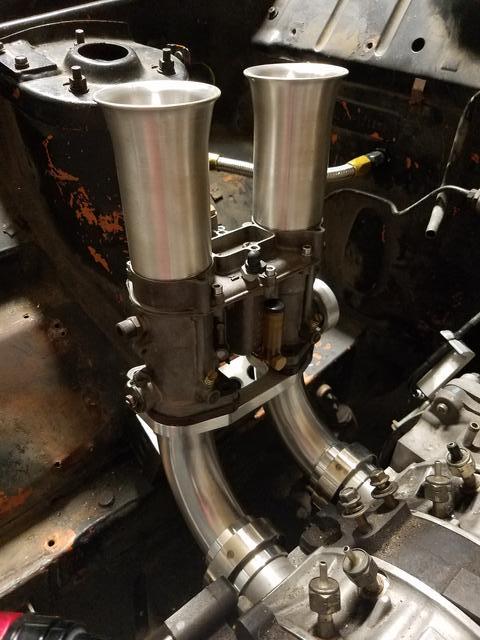

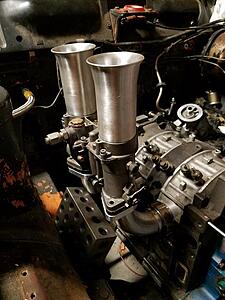

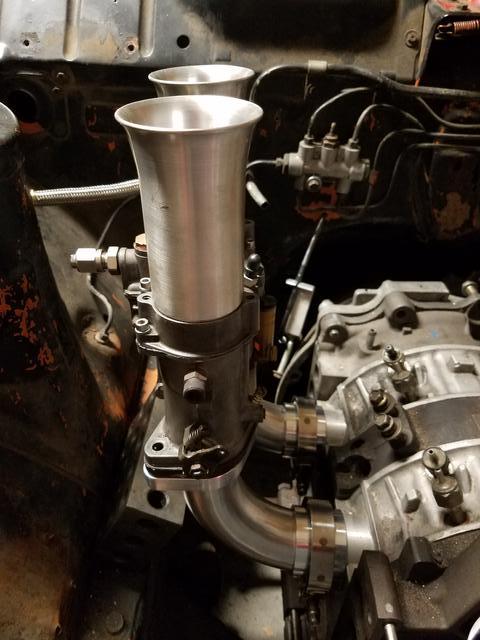

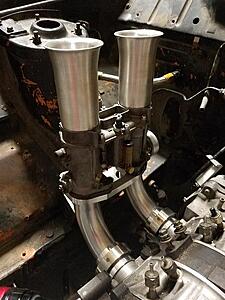

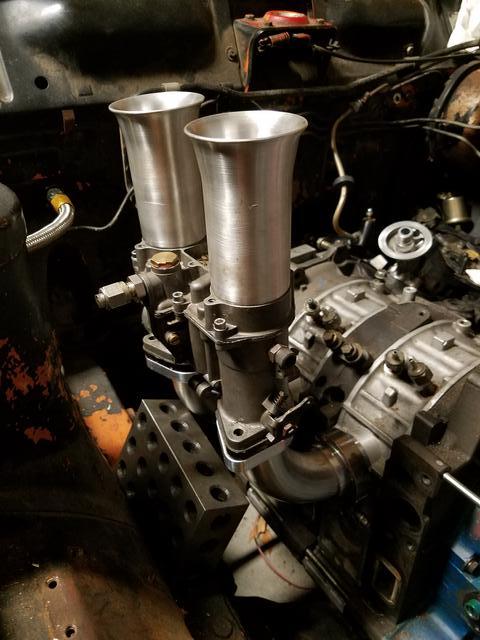

Few pics of the manifold mocked up (Not yet welded) with the Webers. The Webers are in good condition. But I plan to have them Powder Coated to clean up the look some.





sen2two is offline
Old 03-14-19, 09:01 AM
  #166
Rotary power
iTrader: (5)

kutukutu1's Avatar

Join Date: Jan 2008
Location: Southfield, MI
Posts: 1,075
Received 4 Likes on 4 Posts
A beauty.
kutukutu1 is offline
Old 03-14-19, 12:27 PM
  #167
DPG Burnout
iTrader: (51)

rotorholic's Avatar

Join Date: Jul 2005
Location: DALLAS TX
Posts: 2,059
Likes: 0
Received 1 Like on 1 Post
Originally Posted by sen2two View Post
Few pics of the manifold mocked up (Not yet welded) with the Webers. The Webers are in good condition. But I plan to have them Powder Coated to clean up the look some.





Them horns tall enough for you? intake looks clean but I wouldn't go solid mount on the engine if staying carbureted, that float bowl might splash fuel with heavy vibrations

Last edited by rotorholic; 03-14-19 at 12:31 PM.
rotorholic is offline
