check this mini rotary out..
09-27-04, 04:16 AM
#1
Zoom-ing Goon.
Thread Starter
Join Date: Oct 2003
Location: Cape Cod, MA
Posts: 262
Likes: 0
Received 0 Likes
on
0 Posts
check this mini rotary out..
thought id share this, i may not be the first to post it, but i still think its cool..
http://www.osengines.com/engines/osmg1400.html
http://www.osengines.com/engines/osmg1400.html
09-27-04, 07:12 PM
#4
Keep Right Except to Pass
I couldn't either. I want to check out the counterweights. I didn't see one in the parts listing.
And what the Hell is a "O.S. Bubbleless Clunk"? Maybe that's their secret name for it. lol
I'll bet it's part of the eshaft. The CW anyway.
RC planes would be a cool way to throw away money.
And what the Hell is a "O.S. Bubbleless Clunk"? Maybe that's their secret name for it. lol
I'll bet it's part of the eshaft. The CW anyway.
RC planes would be a cool way to throw away money.
10-02-04, 09:35 PM
#5
I like the idea.
Join Date: May 2002
Location: (303)
Posts: 315
Likes: 0
Received 0 Likes
on
0 Posts
This is the O.S. Wankel .30 Rotary Engine for radio control models.
FEATURES: Perfect for .25-.35 size aircraft Tremendous horsepower for its size Compact and highly power efficient, also smooth running and quiet PI (peripheral inlet) version
INCLUDES: One Assembled Engine w/#RE Glow Plug Expansion-Style Muffler One Engine Mount . One Spinner Nut One Set of Instructions
REQUIRES: Propeller: 9x5-6, 9.5x5, or 10x5 Fuel and Fuel Filter .
SPECS:
Displacement: 4.97cc (.30 cu in)
Carburetor: 4.6mm bore
Output: 1.27 bhp at 17,000 RPM
Weight: 335g (11.8 oz)
Practical RPM: 2,500 - 18,000 RPM
Crankshaft thread: 1/4-28
Length (back of engine mount to front of drive washer): 60.5mm(2.38")
Height (not including carb or muffler): 58.3mm (2.29")
Width (not including carb or muffler): 65.7mm (2.59")
Suggested propeller sizes: Sport & Scale: 8x6, 9x5-6, 9.5x5, or 10x5
Break-in propeller: 10x5
COMMENTS: This requires a special #RE glowplug
FEATURES: Perfect for .25-.35 size aircraft Tremendous horsepower for its size Compact and highly power efficient, also smooth running and quiet PI (peripheral inlet) version
INCLUDES: One Assembled Engine w/#RE Glow Plug Expansion-Style Muffler One Engine Mount . One Spinner Nut One Set of Instructions
REQUIRES: Propeller: 9x5-6, 9.5x5, or 10x5 Fuel and Fuel Filter .
SPECS:
Displacement: 4.97cc (.30 cu in)
Carburetor: 4.6mm bore
Output: 1.27 bhp at 17,000 RPM
Weight: 335g (11.8 oz)
Practical RPM: 2,500 - 18,000 RPM
Crankshaft thread: 1/4-28
Length (back of engine mount to front of drive washer): 60.5mm(2.38")
Height (not including carb or muffler): 58.3mm (2.29")
Width (not including carb or muffler): 65.7mm (2.59")
Suggested propeller sizes: Sport & Scale: 8x6, 9x5-6, 9.5x5, or 10x5
Break-in propeller: 10x5
COMMENTS: This requires a special #RE glowplug
10-04-04, 07:22 PM
#6
Rican Engineering
Join Date: Sep 2003
Location: orlando florida
Posts: 141
Likes: 0
Received 0 Likes
on
0 Posts

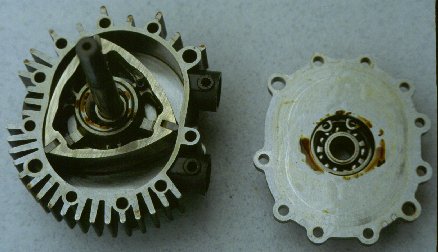

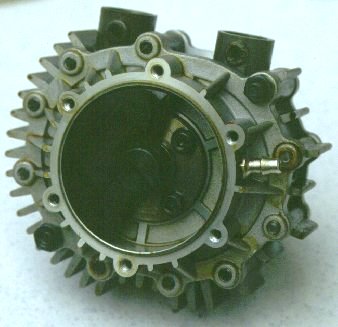

its pretty cool i have one i have the .30 ill try to find the internal pics , i had plans on making a little rx-7 , with a regular Rc frame and puting the os engine in it , i have it laying around till i get around to it . there expensive though , about $320 at a local hobby shop
Trending Topics
10-21-07, 02:42 PM
#15
RX-8 SE3P
Join Date: Aug 2005
Location: Newport Beach, CA
Posts: 11
Likes: 0
Received 0 Likes
on
0 Posts
Chassis/Drive for Tamiya-Mazda-787B
its pretty cool i have one i have the .30 ill try to find the internal pics , i had plans on making a little rx-7 , with a regular Rc frame and puting the os engine in it , i have it laying around till i get around to it . there expensive though , about $320 at a local hobby shop

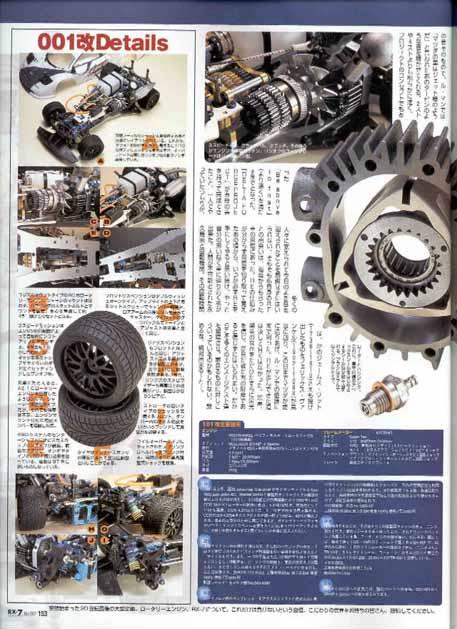

KINETIK_FD3S, Can you give me any more information on the manufacturer of the kit in your post #12? Then I could just buy the kit and put the 787B body on it. Also, is that a transmission I see in the article? How many gear ratios?
