Narfle

iTrader: (16)

I just hope you get the engine and car your deserve. There's no reason an stock-ish N/A rotary should fall apart.

Bearzah

iTrader: (6)

Haha!!!

I've driven my car HARD everywhere sense the new engine... 16,000 miles in 1.5 years and counting...
Just got back from a 500+ mile drive up to The Ridge in Shelton...
Build them right... Tune them well... Monitor your gauges... Enjoy!!!

TOOSHORT_88

iTrader: (15)

Bearzah who tuned your beast?

Bearzah

iTrader: (6)

...I did

snivley whiplash

iTrader: (4)

well having been on the showroom stock endurance series in a factory backed rx7 for two years i guess the driving style never goes away...... anyone wanna go for a ride when its done? The little woman drive just like me. we get along great.

silverfdturbo6port

iTrader: (26)

so who is building the new motor and what are you going to put in it?

Noxi

iTrader: (4)

Since I was there when the engine was assembled I figured I would chime in, This was an emergency rebuild like stated before, most of his Gsl-se were toasted due to low oil pressure, we spent hours cleaning and replacing bad parts to get an functional engine ready for assembly Hell I even donated parts to this build to get him on the road to work and back

When Armyofone assembled the engine He told Joe that the Apex seals he had would not last and he should look into getting a fresh set asap with an oring kit to tear apart and replace the seals

Joe I saw your engine in Armyofones garage two weeks ago and damn man I wish I had more parts up in the oly area to donate to get you back on the road, This time do it right and listen to Armyofones Advice!

Glad to see you are not selling your ride brother good luck to you

TOOSHORT_88

iTrader: (15)

Bearsah 1.5 yrs and beating the car? Thats a good tuner! Can u tune my fc? Haltech e6k

Bearzah

iTrader: (6)

Absolutely... I love a challenge!! I haven't had the opportunity to play with a Haltech yet (although I have the software on my laptop))... Im game as long as you have good gauges (wideband, boost, water temp, etc) and supporting fuel system (larger injectors, external FPR, good fuel pump, etc)... I can help get your car up to snuff for tuning if its not there yet too... BRAP!!!

TOOSHORT_88

iTrader: (15)

All digital gauges
Boost
Wideband
Egt
Fuel pressure
Oil psi
Water temp

720/1680
20B fuel pump areomotive fpr
Gt3582R /divided1.15 hotside p trim turbine clipped
60Mm hks wg
Tial bov
Have meth system plumbed but not hooked up to power yet.
All this was built by
Jason dayberry

Bearzah

iTrader: (6)

Sounds like she's ready to start tuning!!!
What boost you running now?
AFRs?

TOOSHORT_88

iTrader: (15)

I blew her up on a tune from another car with simular mods.
All I need is hard seals and soft seals rotor bearings pressed in and I can rebuild her!

TOOSHORT_88

iTrader: (15)

My agressive massive street ported irons and housing are clean and painted ready to go!

ArmyOfOne

iTrader: (12)

Could you post a pic of those beautiful ports for me please?

ArmyOfOne

iTrader: (12)

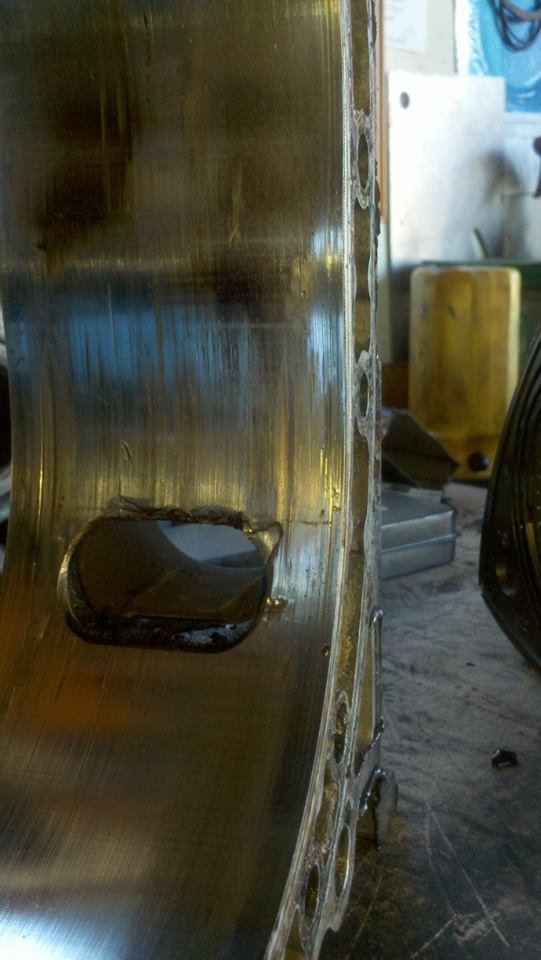

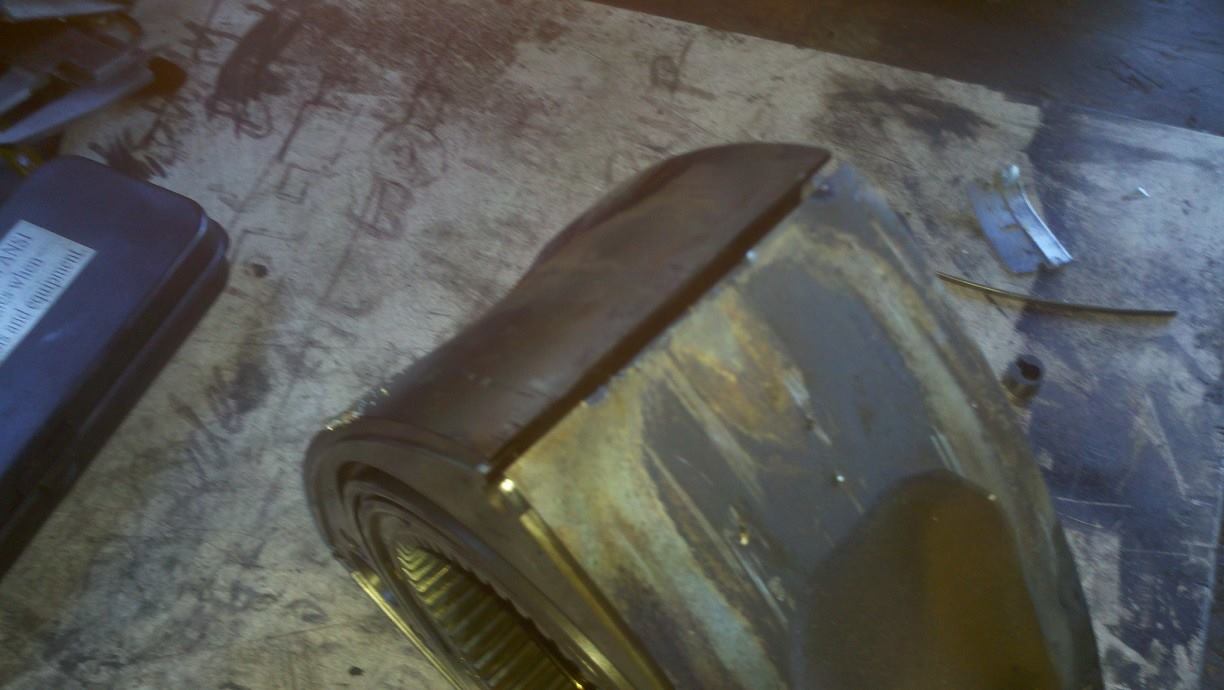

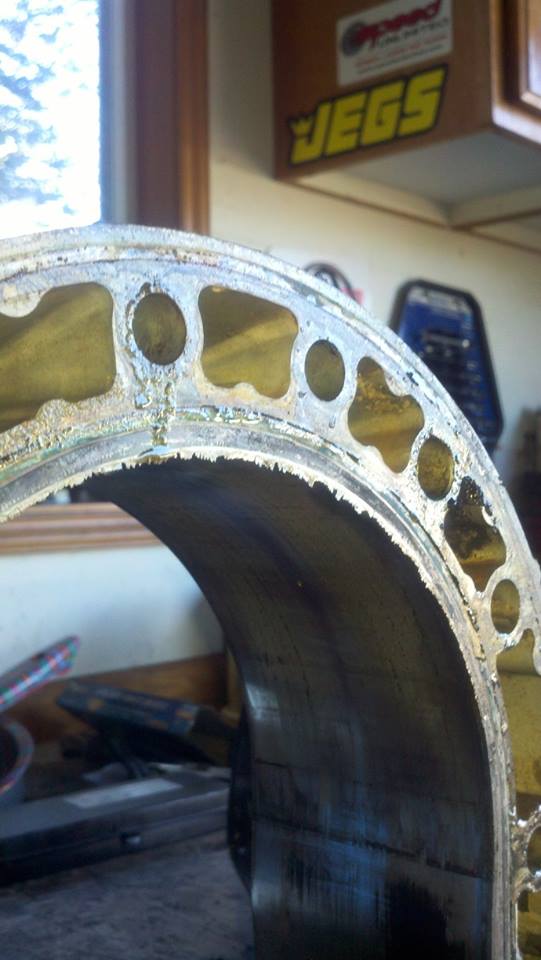

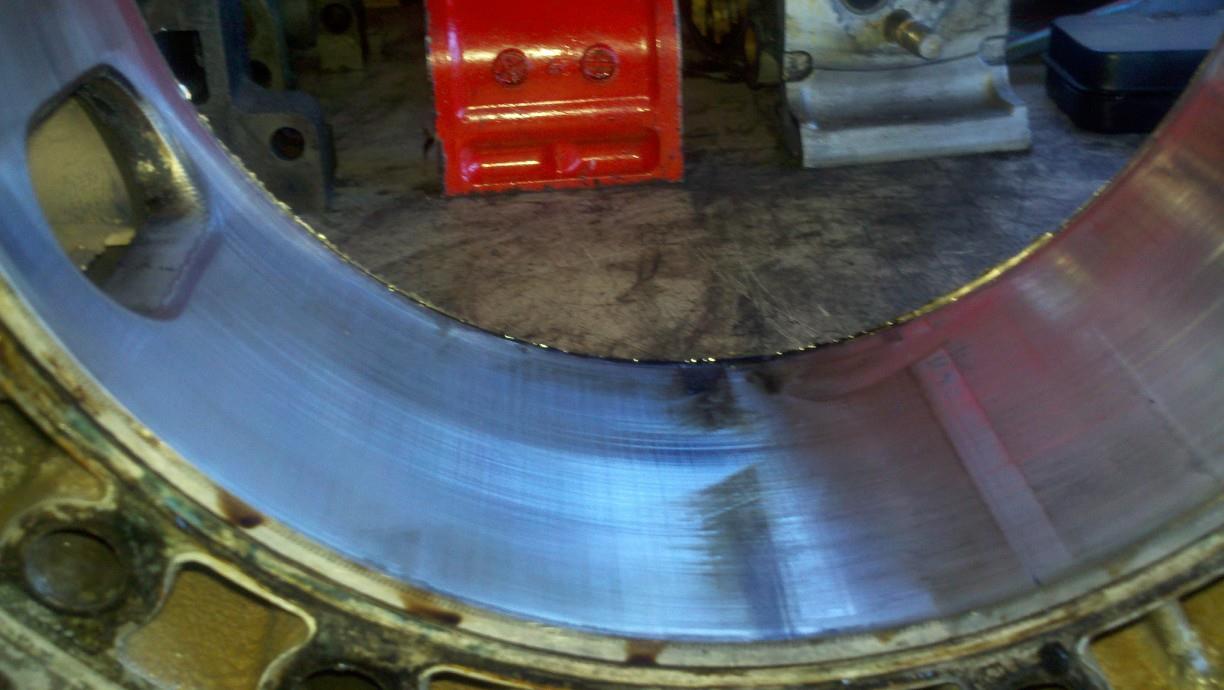

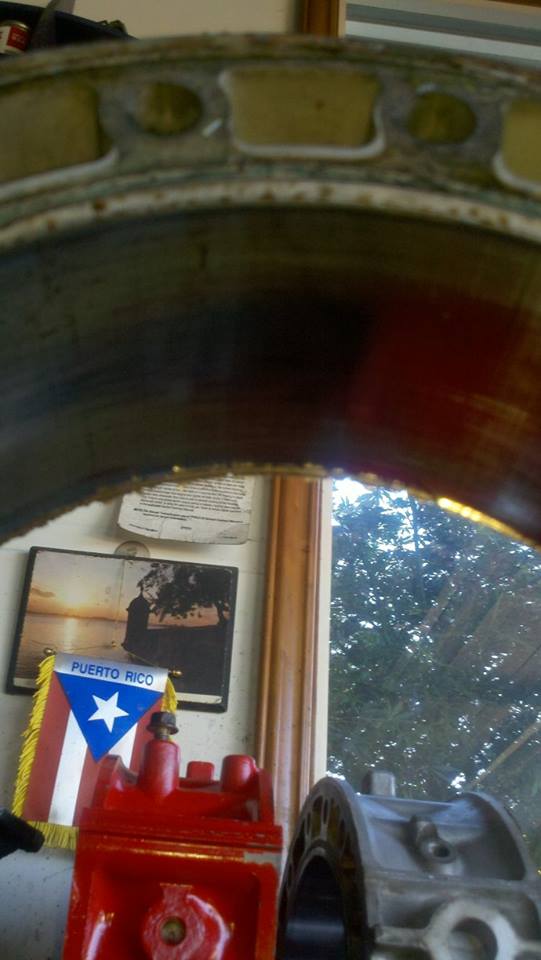

Well as I thought, 2 apex seals broken leading to massive trauma to the housings causing a massive compression hemorrage. Corner piece for front apex seal caused the strangest damage I have ever seen in this area. It appears that the chrome surface melted and was pressed against the iron. Extreme finger slicin' sharpness, akin to the Ginsu Knife (TM). bearings appeared to be in good shape except for the rear main. No damage to stationary or rotor gears.

ArmyOfOne

iTrader: (12)

final analysis of the damage is consistent with Over reving as there was rotor contact with the irons combined with apex seals that were beyond wear limit in height.

snivley whiplash

iTrader: (4)

could the knife edge be caused by lack of oil from failed omp? not sure how long it ran before I started adding two stroke to fuel, maybe two or three days.

ArmyOfOne

iTrader: (12)

As I said, I have never seen this type of damage to the chrome surface before. It was caused by a stuck, spring loaded, misaligned Apex seal corner piece. Doesn't matter now, moving onto a better build anyway. Also remember that these were heavy S3 13B rotors, the more weight the lower the redline. We are fixing this right MEOW!

silverfdturbo6port

iTrader: (26)

I have a two pairs of 9:7:1 s5 na rotors let me know if you guys want to put a set into the new engine.
light rotors, large ports, full balance and clearanceing would be fun to drive

ioTus

iTrader: (5)

THE setup.


do it. HEY, ey... DO it.

silverfdturbo6port

iTrader: (26)

even better would be some renesis rotors 10:1. And machine the apex groove deeper to accept wankle seals. And use fd hardened stationary gears, clearenced and balanced.

ioTus

iTrader: (5)

I've wondered about that setup forevs. Remedies rotors would fit?

Bearzah

iTrader: (6)

Lol.. I'd never thought of the Renisis as a "remedy" for anything...

snivley whiplash

iTrader: (4)

build be based on s5 irons turbo oil pump with s5 high compression rotors, and light flywheel. will have all new apex seals and springs ect. no more high rpm running for me going to retune for better midrange pull and drivability. Just purchased new innovate wideband as well as a few other upgrade parts. will be fun to be back in the 7 again.

Adam12A

I just put a rev limiter on mine 8k on a MSD 6AL. It's pretty annoying but it keeps me from beating on it daily.
