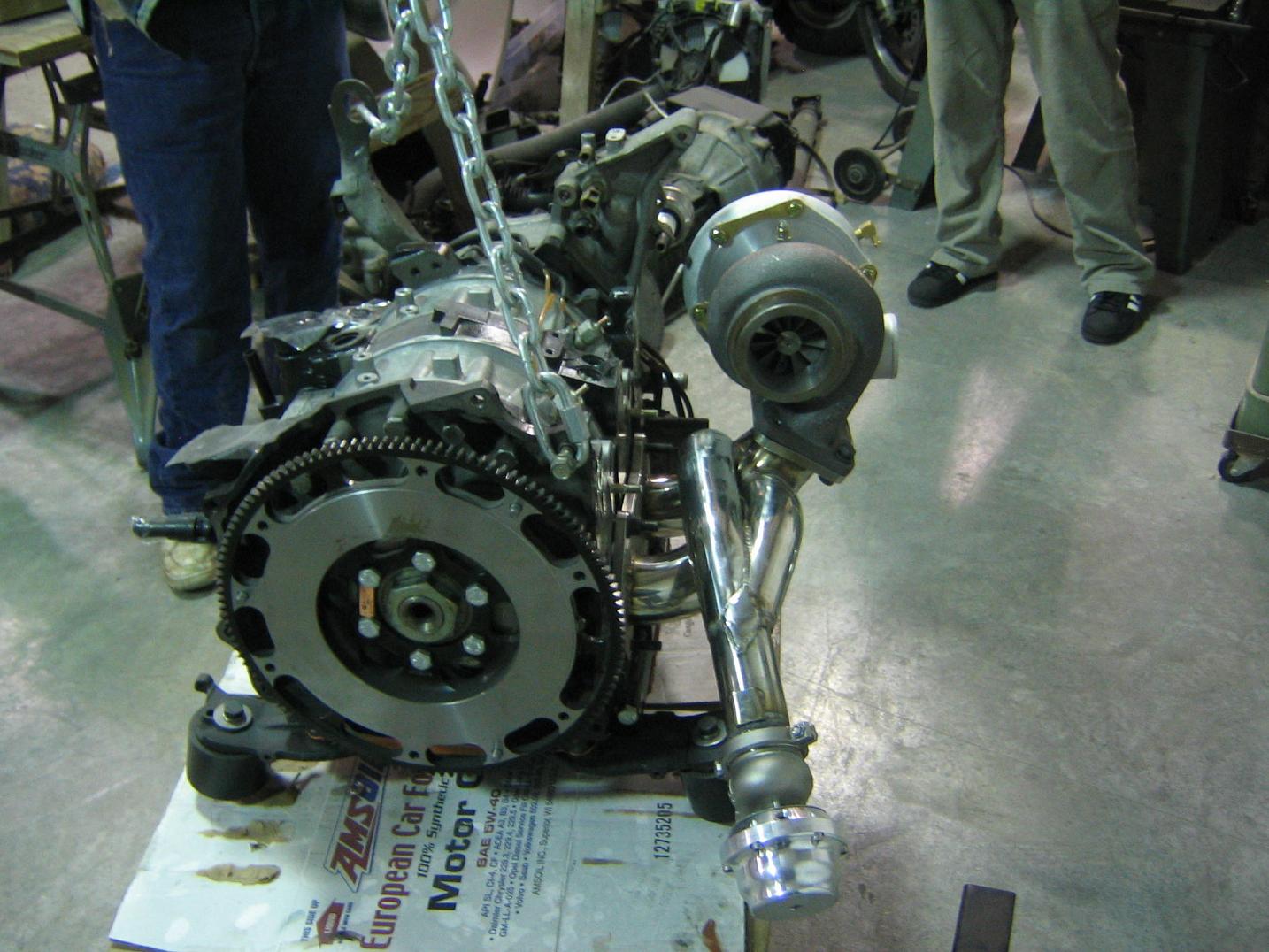

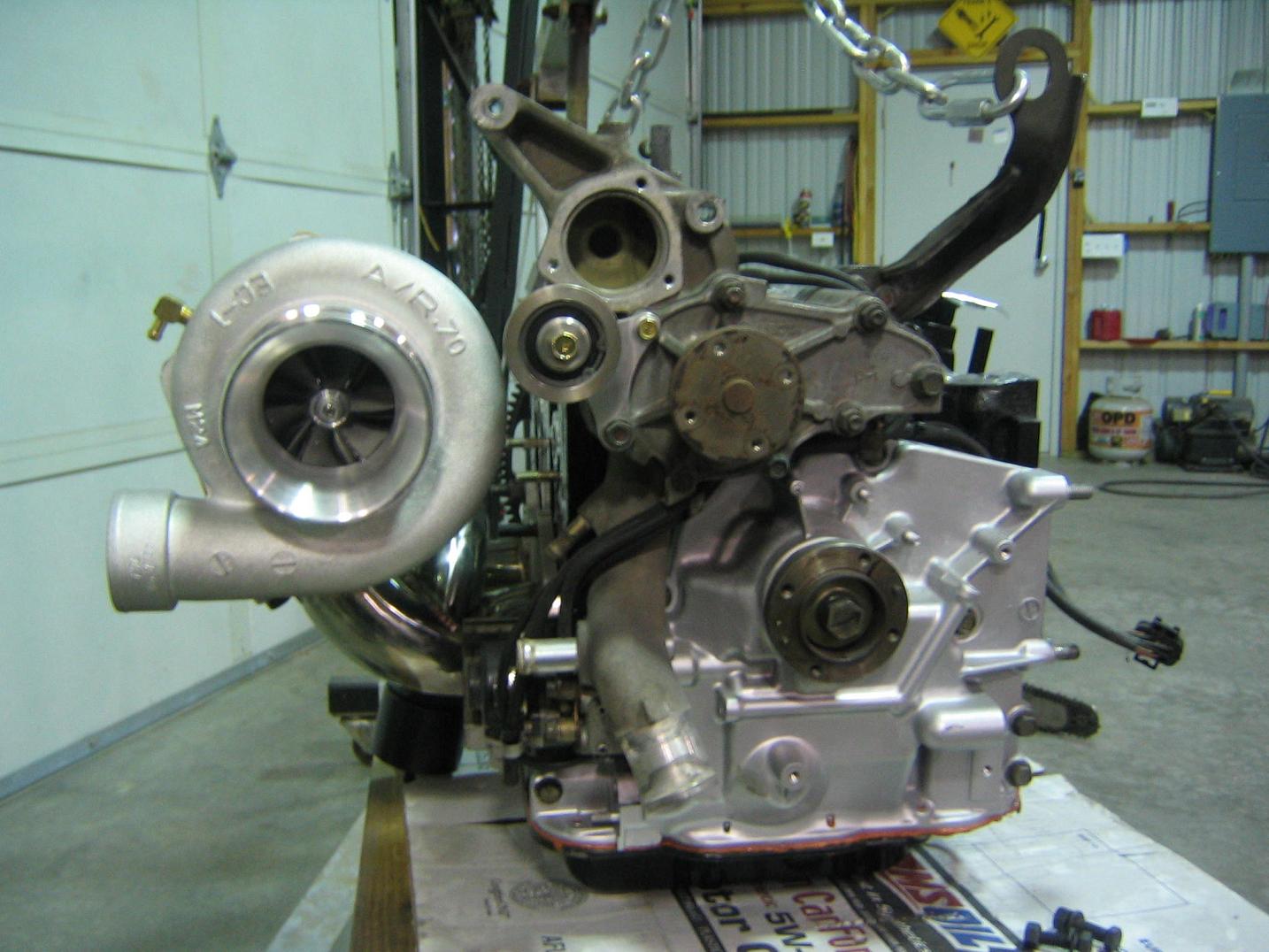

Well This has turned out to be quite the project, but it's coming along , with thanks to Frank (flyrx7) for doing the R&R. I got all the big parts out of the way not it's just a matter of putting it all back to gether, the fuel system is goint to be fun, not sure how that goes to gether lol . but heres soe pictures.



what turbo is that?

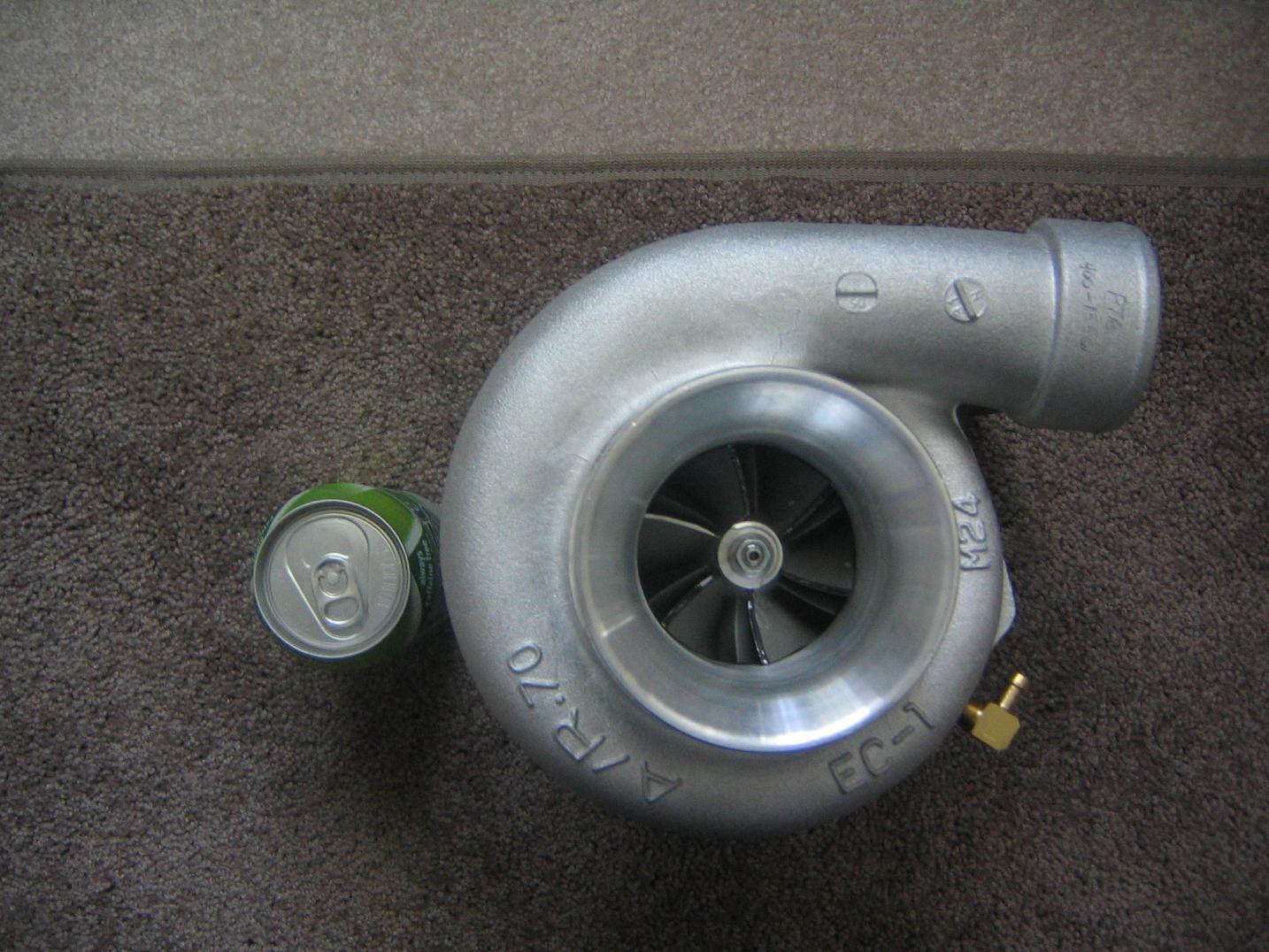

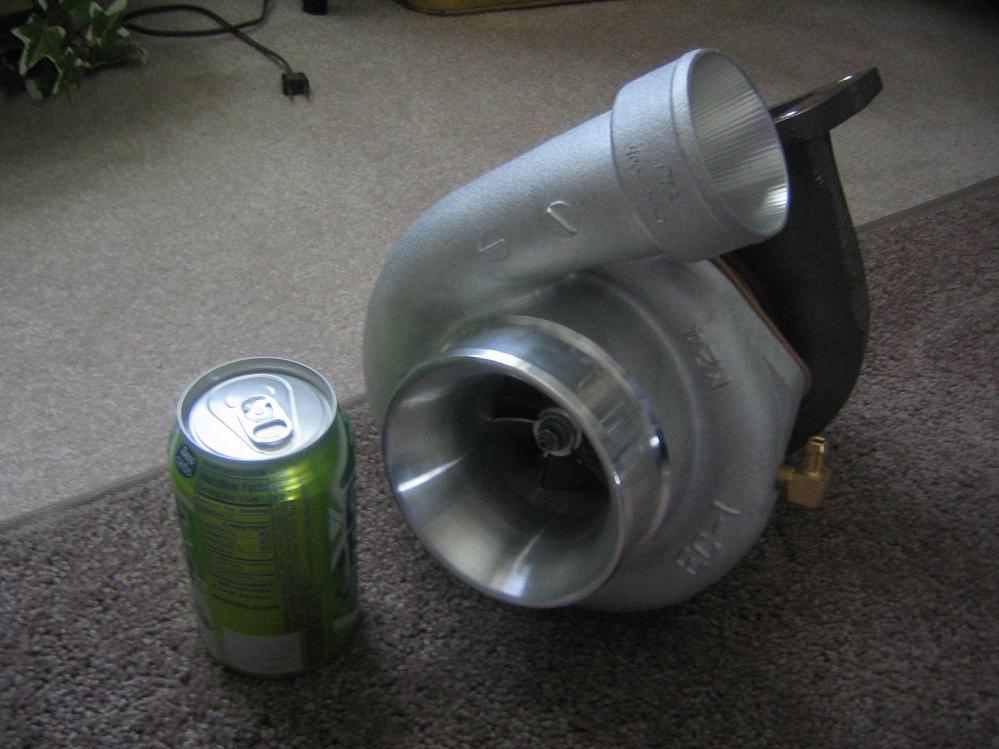

That is a Precison Turbo PT67 it's a 67mm inducer .70 cold .96 hot p trim. i think i may want to go bigger



if you do, ill buy the turbo? im local.... about an hour and 20 mins from olympia

i was looking for a turbo....are u going to be going bigger this winter?



Nice, I have seen you crusing around Olympia and was wondering how you car was coming. I know what you mean about the fuel system. I have a complete system that is all hooked up with aftermarket secondary rail and modified primary rail if you want to come take a look at it so that you can get a better idea.

Just though Id offer since you are the one responsible for getting me tied up in this whole forum mess

David



BTW what is your entire setup? Are you releasing that?



I did a pretty complete single conversion. fuel,ecu,exhaust,big turbo, intercooler, 3mm ported engine, 9lb flywheel, so she'll rev like a street bike. im excited, all the other goodies to get the job done. Im aiming for 450rwhp at 15psi



I assume that you are going with 850 primaries and 1600 or 1300 secondaries.

Nice on the flywheel...that is really light...



Damn dude. Its gettin close. Havent seen you on here for a while. I met you at the Big BBQ. I had the red FD. Glad to see your making progress on it. Hope it all comes together well. Let me know when its done, I really wanna see that baby runnin.



nice to see your making some progress. Saw your block at lopi's last time I was there... which was quite a while ago.

When is it going to be put in the FD?



should have been done last month you slacker.



Just curiouse why you decided on the pt67 vs. one of the A spec gt35r t4 setups. They are offering the 35R T4 with an RS wheel now. I really wanted to use the pt67 also, its cheap, pretty proven, i just dont like that its a journal bearing center. I was slightly concerned about spool time on track days. Is that an OBX manifold?

CJG



Yeah thats the OBX mani, I had the flange hacked off for my Tial waste gate has a V-band. I got a deal i couldn't pass up on the turbo. I kinda wish i had of gone bigger. Im not going to be tracking the car, so Spool wasn't a big concern. for the fuel I have 550/1680cc and a walbro 255 pump.



If you didnt score the pt67 then which turbo would you have gone with?

CJG



My lord that turbo is almost as big as the engine
That will be amazing.
Hopefully it will all be done soon.

Good luck, and have fun!



you wanna see a big turbo, go in the single turbo section and check out the guy who just made 642 RWHP. he is running the GT42R, now thats a big turbo, 101mm inducer..
CJG
