Vacuum Thingamabob
#3
Junior Member
Join Date: Jul 2008
Location: Chico. CA
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Looking at the picture of the "rat's nest" found in [https://www.rx7club.com/showthread.php?t=919553], it looks like it might be a "delay valve."
#5
Full Member
iTrader: (2)
Join Date: Nov 2007
Location: Rhode Island
Posts: 97
Likes: 0
Received 0 Likes
on
0 Posts
#6
Junior Member
Join Date: Jul 2008
Location: Chico. CA
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Could these be what you need? http://cgi.ebay.com/ebaymotors/Mazda...Q5fAccessories
Trending Topics
#8
Full Member
Thread Starter
Join Date: Dec 2010
Location: Las vegas
Posts: 142
Likes: 0
Received 0 Likes
on
0 Posts

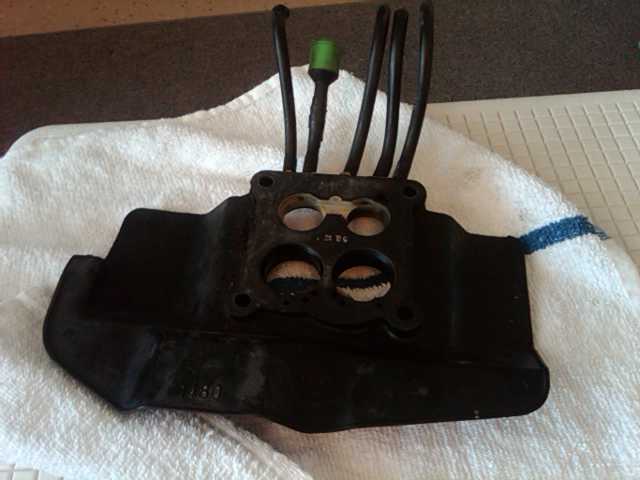

Ok cool thanks everyone. Also the black plastic "spacer" or carb/manifold plate, it is made of plastic which has vacuum lines coming off of it, is this for the rats nest (emissions)? The seals are stuck on there like they have been there since 1984, any kind of solvent that can aid in removing them without damaging the plastic? I have never seen anything like it.
#10
Full Member
Thread Starter
Join Date: Dec 2010
Location: Las vegas
Posts: 142
Likes: 0
Received 0 Likes
on
0 Posts
I already started removing the gaskets, they were definitely installed, the carb rebuild kit came with new gaskets, one for the carb/plastic and one for the plastic/manifold. All of the vacuum hose channels in this plastic piece were clogged and I am not really sure why these channels are there. The new gasket covers them up, I am lost, What the hell is this plastic piece for? emissions?
#11
Top Down, Boost Up
iTrader: (7)
I won't claim to know much about carbed rotaries, but the black plastic throttle body spacer on FI cars (such as the GSL-SE and 2nd gens) has a number of channels/openings that feed the nipples on the intake manifold. Some come out before the throttle plates, and some come out directly after if vacuum is needed. These connections are used for various things like emissions solenoids, the PCV system and other things. You'll need to read the 1st gen FSM to find out what the 5 vacuum/air lines do on your engine. Do not assume they're not needed without looking their purpose up first.
For FI cars, there were no gaskets used; manifold -> spacer -> throttle body. If the gaskets you have would disable the vacuum/air ports, they're not something that was used in stock form.
For FI cars, there were no gaskets used; manifold -> spacer -> throttle body. If the gaskets you have would disable the vacuum/air ports, they're not something that was used in stock form.
#12
Moderator
iTrader: (2)
i've never found the need to use gaskets on that plastic spacer. all of that is made together that's why ur having a hard time removing it. if ur still using all the emissions stuff, and need those vac connections from that spacer, it may not work right now but can't be for certain since i always removed all the emissions and capped all those off and just left it under the carb since it is also a spacer. never tried to see how it would run without it.
#13
Full Member
Thread Starter
Join Date: Dec 2010
Location: Las vegas
Posts: 142
Likes: 0
Received 0 Likes
on
0 Posts
I think I screwed myself by trying to scrape off the old gaskets, why the hell would they include new ones in the carb rebuild kit if they aren't needed. Now I have to find a replacement spacer or try and get this one as level as possible so as to not have any vacuum leaks.
#15
Full Member
Thread Starter
Join Date: Dec 2010
Location: Las vegas
Posts: 142
Likes: 0
Received 0 Likes
on
0 Posts
Sooooooo, should I use the new gaskets or not? The black phenolic carb spacer appears to have a permanent set, There were no gaskets when I removed the carb and spacer.........
#16
Junior Member
Join Date: May 2011
Location: Bakersfield, CA
Posts: 27
Likes: 0
Received 0 Likes
on
0 Posts
The spacer gaskets are bonded from the factory. If they look good, don't scrape them off!!! If it's too late for that, you can get one used or from a junkyard. Another option is to be careful and scrape the gaskets off. Then when its time for reassembly, use a product called Tite-seal. I had good luck with it.
