Trouble removing the rear counterbalance
#1
Rotary Student
Thread Starter
Join Date: Aug 2013
Location: Mobile, AL
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
Trouble removing the rear counterbalance
I r am have trouble remove weight balance rear. Lol, after removing the counterbalance nut (which took some SERIOUS MAN POWER) we tried removing the rear counterbalance to no avail. We have tried a pully puller and prying it off but we are having no luck at all. Any tips or methods to this? Thanks!
#2
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
pry bar and a sledge hammer or GOOD hammer from different angles.
It is on a "Keyway',and a tapered shaft so that is why it is hard to get off.
Once you nudge it from different directions by placing a Pry bar in between the CW and that rear seal ring.Bang the bar and then change position of the bar or rotate the CW to get another angle on it.
It will pop.
It is on a "Keyway',and a tapered shaft so that is why it is hard to get off.
Once you nudge it from different directions by placing a Pry bar in between the CW and that rear seal ring.Bang the bar and then change position of the bar or rotate the CW to get another angle on it.
It will pop.
#3
Rotary Student
Thread Starter
Join Date: Aug 2013
Location: Mobile, AL
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
So yeah, as I was awaiting moderator approval over the message I managed to get it off! And maaaan it was a b!7c#! We tried two differen pully removers, tried beating around all the edges with a rubber mallet, tried prying it from every angle, and nothing.
I was scrounging around the garage looking for anything that could help and found this random what could only be described as a door hinge. It just happened to have the proper spacings drilled into it.

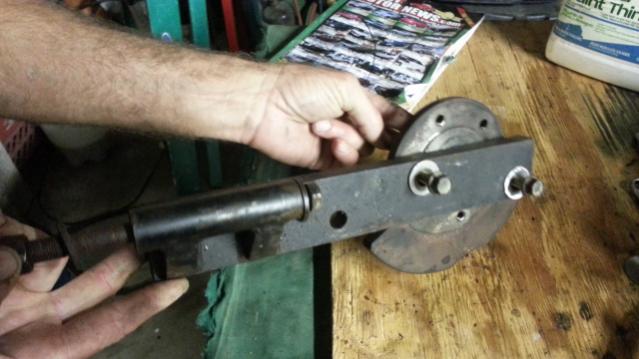

We took two screws and ran it through the spacings into the counterbalance, making sure to tighten them little by little making the bar flush with the end of the eccentric shaft. Holding the long 'handle', we used a ratchet to continue to tightening the bolts and lo and behold the counterbalance popped off!!!

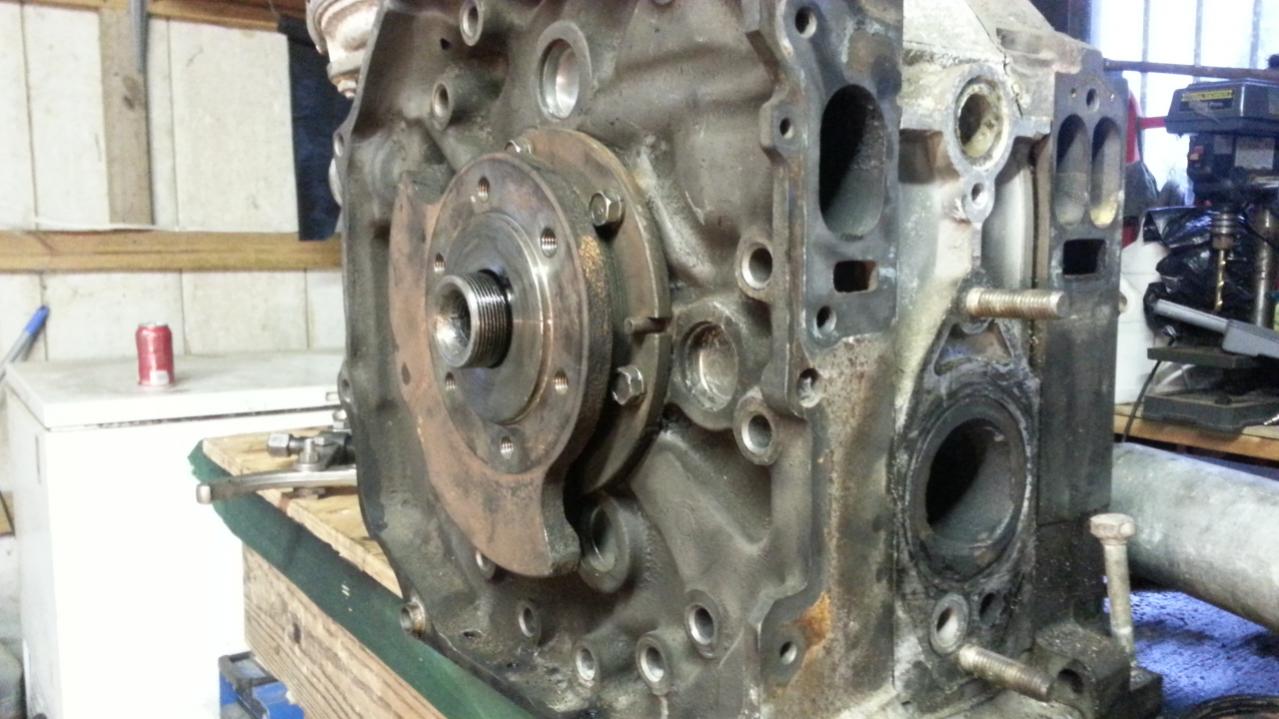

I searched everywhere and only found one post about this and it was never solved by the individual, so I thought this info may be useful to someone that has one as seized as this one was. This engine had been sitting for 5 years but luckily was well lubricated inside. Picture is of tool attatched to counterbalance right after it popped off.
Also, why is the counterbalance nut tourqued to 350FT/LBS!?!?! Was a nightmare to remove!!!
I was scrounging around the garage looking for anything that could help and found this random what could only be described as a door hinge. It just happened to have the proper spacings drilled into it.
We took two screws and ran it through the spacings into the counterbalance, making sure to tighten them little by little making the bar flush with the end of the eccentric shaft. Holding the long 'handle', we used a ratchet to continue to tightening the bolts and lo and behold the counterbalance popped off!!!
I searched everywhere and only found one post about this and it was never solved by the individual, so I thought this info may be useful to someone that has one as seized as this one was. This engine had been sitting for 5 years but luckily was well lubricated inside. Picture is of tool attatched to counterbalance right after it popped off.
Also, why is the counterbalance nut tourqued to 350FT/LBS!?!?! Was a nightmare to remove!!!
#4
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
Well the counterweight is bolted to 350 or Better ..
BECAUSE..How would you like a 28 pound piece of metal Rotating at 8 Thousand RPM to come flying by your Legs!!!!!!
Mazda looked at the Designers of this and noticed that they were all SHORT,so they thought ..HMMM..Put the Nut on Tighter and they Will not get their Legs Chopped OFF!..and look like Munchkins!
BECAUSE..How would you like a 28 pound piece of metal Rotating at 8 Thousand RPM to come flying by your Legs!!!!!!
Mazda looked at the Designers of this and noticed that they were all SHORT,so they thought ..HMMM..Put the Nut on Tighter and they Will not get their Legs Chopped OFF!..and look like Munchkins!
#5
Rotary Student
Thread Starter
Join Date: Aug 2013
Location: Mobile, AL
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
I know there is a reason for it being so tight, but I dont think you can legally get an air compressor that goes over 200ft/lbs unless its for industrial use. We have a huge one and it only goes up to 180ft/lbls. I watched the video with aaron cake in them and he made it look SO EASY.
I dont understand how one man can untorque that bolt so easy with hand tools and no breaker bar, that guy is a herculean god. Lol
Counterbalance off and painting engine today, at least all that is out of the way.
I dont understand how one man can untorque that bolt so easy with hand tools and no breaker bar, that guy is a herculean god. Lol
Counterbalance off and painting engine today, at least all that is out of the way.
#6
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
he is not Herculean..he just goes out with This chick!
LINK:http://www.mazdatrix.com/pictures/fa...lywheelFAQ.mpg
LINK:http://www.mazdatrix.com/pictures/fa...lywheelFAQ.mpg
#7
Rotary Student
Thread Starter
Join Date: Aug 2013
Location: Mobile, AL
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
Oh *snap* snap! That explains everything, supreme hammer skills! Well, at least I know a 6ft breaker bar and me bouncing on the end is equal to about 360ft/lbs of pressure haha. But I will probably go to a shop and have someone with the tools torque it down for me when I'm ready to reassemble this puppy.
Trending Topics
#8
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
I actually got a 18 wheeler Wheel Repair Truck to come to my house and got the Dude to slide under the car and Zip my Flywheel nut off.I called again when it was ready to go back on..ZIP..done..NO CHARGE for the call back!..Yahoo!!
It was a local shop,and the guy charged me 20 bucks Total!!!..(I could not have made a better choice!)
It was a local shop,and the guy charged me 20 bucks Total!!!..(I could not have made a better choice!)
#9
Rotary Student
Thread Starter
Join Date: Aug 2013
Location: Mobile, AL
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
Lol, thats amazing..! My stepdad is a carpenter supreme, and is usually given parts randomly for helping people clean out old houses or garages. We actually were having a hard time finding ANYTHING that was big enough to loosen the nut! We started with a pipe wrench and that hella didn't work xD Eventually looking around he remembered he got a socket set from an old truck driver for helping him out, and whadya know? The largest socket in the set was the perfect fit for that nut!! So glad he had that... Harbor freight had the socket in a set for $175 or I would've had to order it online and wait, and I HAD to have it off THAT day!
#10
Urban Combat Vet
iTrader: (16)
In the absence of your dad's gifted socket set, Sear's Craftsman sells the sockets alone. 2 1/4" is (functionally) the same as 54mm. If you have a compressor, Harbor Frieght sells impacts up to 700 ft./lbs for < $100. I bought one that goes to 450 ft/lbs for something like $60, and it worked fine on more than one FW nut....though it doesn't look like they offer that one anymore. Regardless, quick application of torque is best. Now if you think the flywheel nut is bad, wait until you tackle the front hub bolt. That'll make your vocabulary expand.
#11
Moderator
iTrader: (3)
Now if you think the flywheel nut is bad, wait until you tackle the front hub bolt. That'll make your vocabulary expand.
