random hoses and some other stuff
#1
Stuck On 7
Thread Starter
random hoses and some other stuff
so to some of you these might seem stupid but I'm new so i figured id ask.. i posted pics with descriptions edited into them to make it simple. check them out and let me know please. Thanks
#2
Top Down, Boost Up
iTrader: (7)

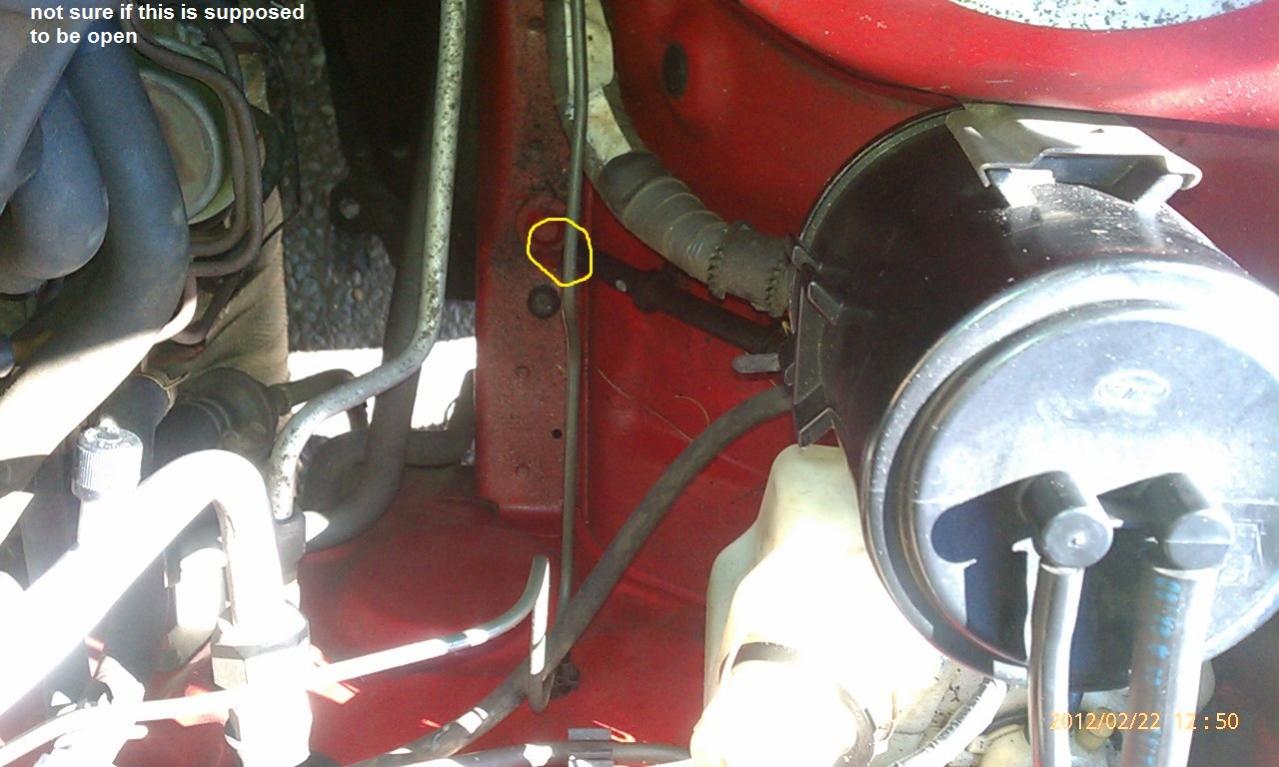

1) That is the drain line for the charcoal canister. Normal.

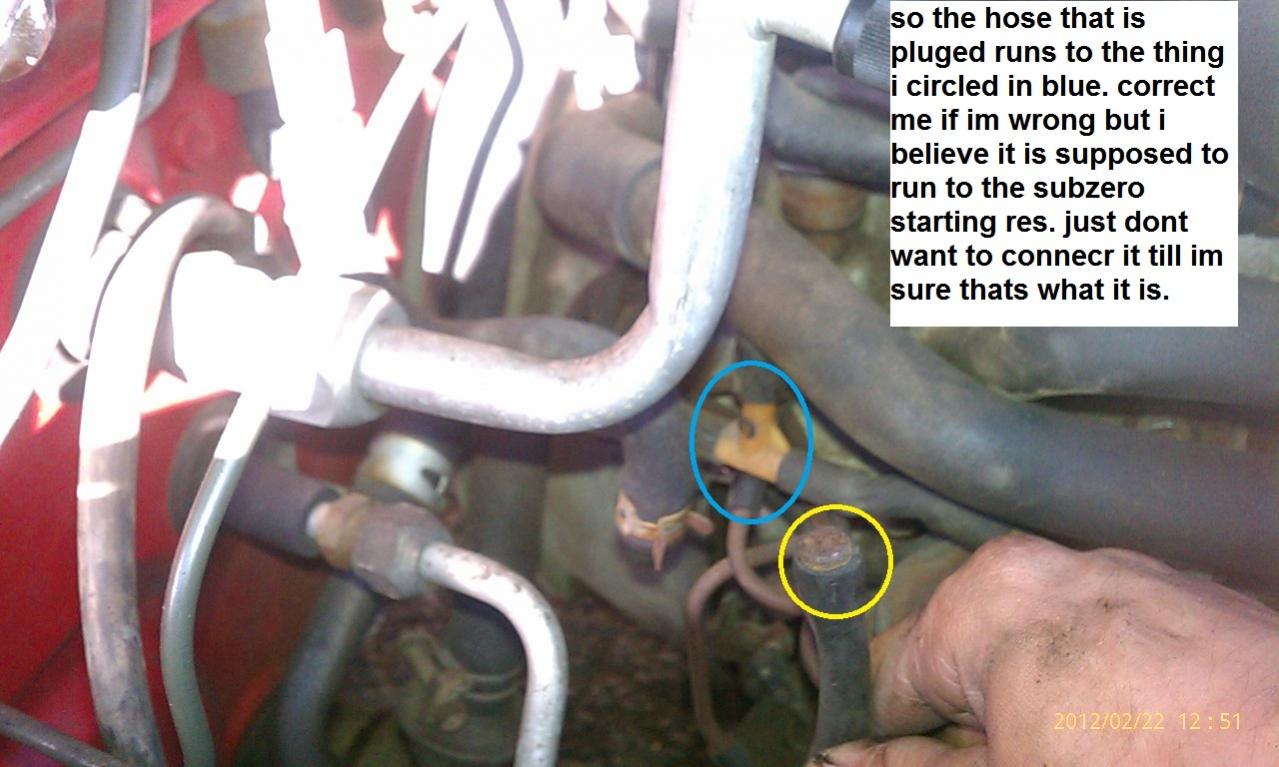

2) The blue circle is on what looks like a tee'd vacuum line for the secondary injector bleeds. This is not at all related to the subzero start system, which was recalled on a TSB in the '90s. It should stay disconnected, and it looks like someone stuck a bolt in the end of the hose.

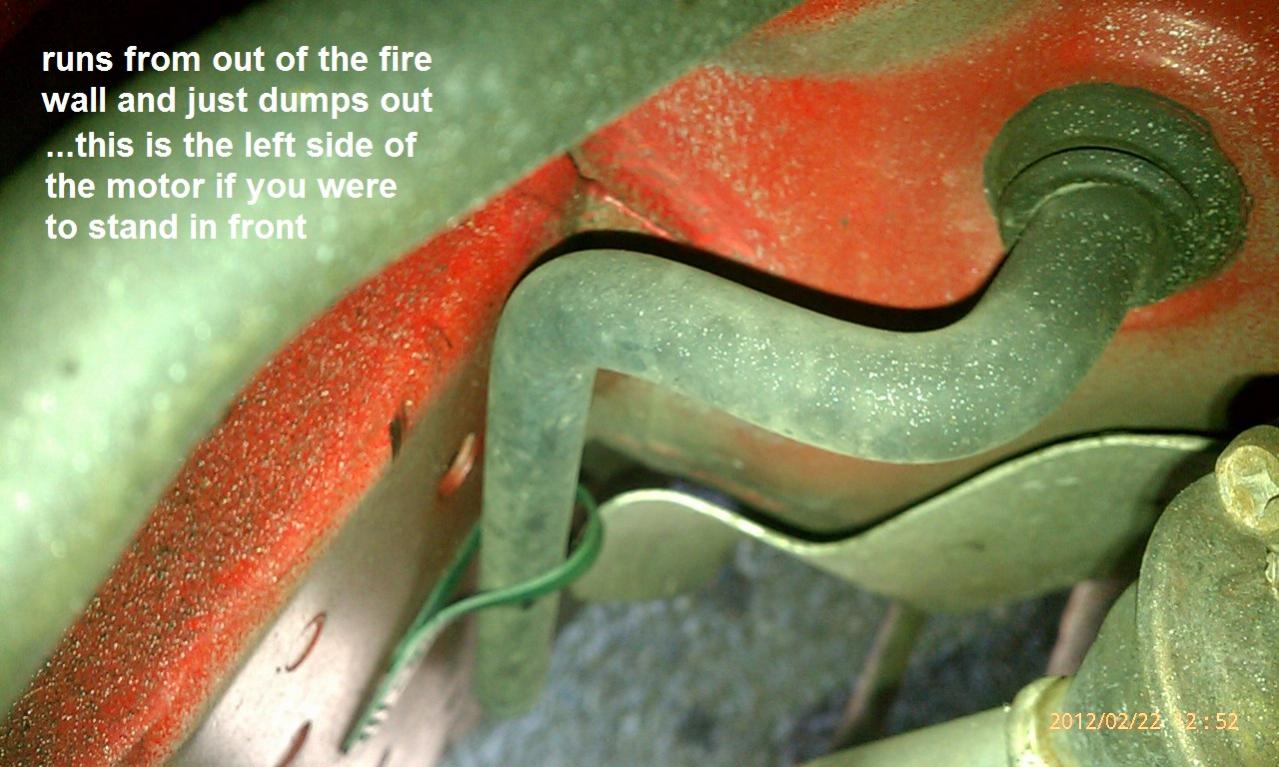

3) Drain line for the A/C system (I think). It's normal.

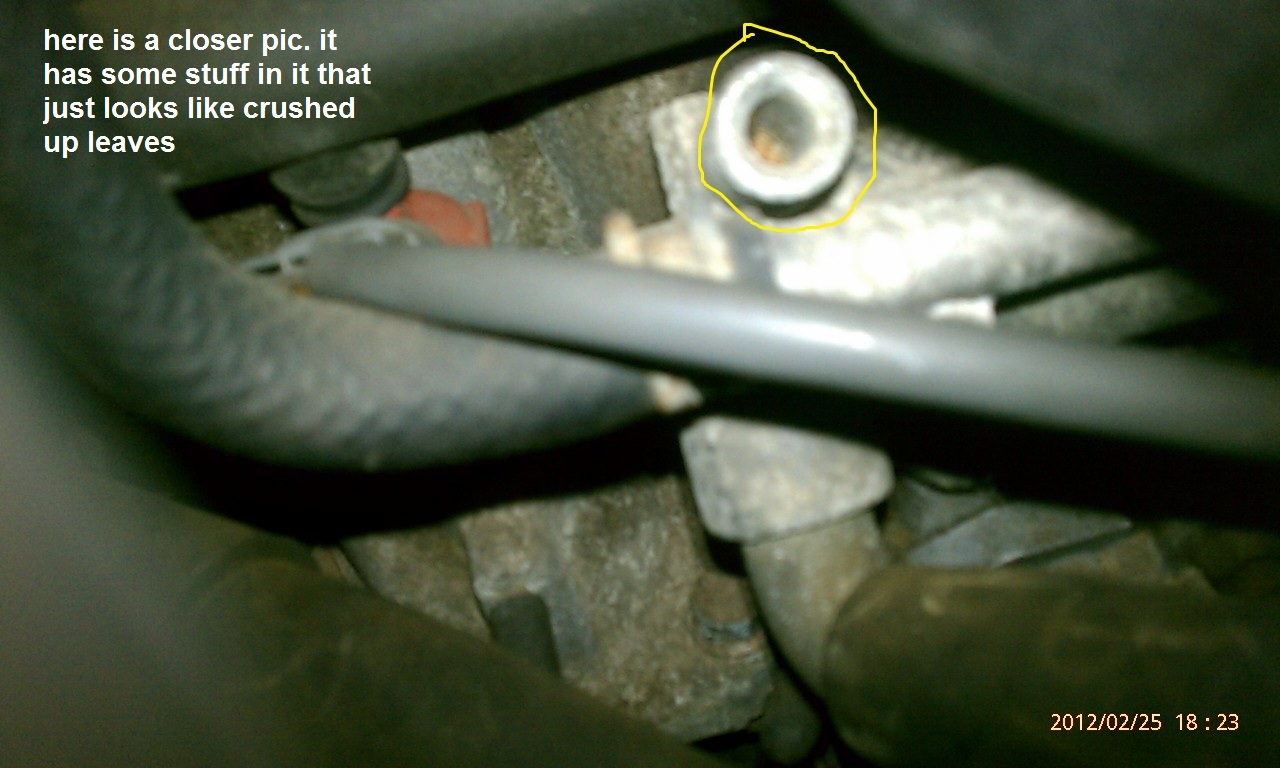

4/5) That is just part of the casting on the BAC valve. On turbo models, there is an adjustment screw to mess with idle speed. On NAs, it's just sealed off, since the adjustment screw is on the TB.
2) The blue circle is on what looks like a tee'd vacuum line for the secondary injector bleeds. This is not at all related to the subzero start system, which was recalled on a TSB in the '90s. It should stay disconnected, and it looks like someone stuck a bolt in the end of the hose.
3) Drain line for the A/C system (I think). It's normal.
4/5) That is just part of the casting on the BAC valve. On turbo models, there is an adjustment screw to mess with idle speed. On NAs, it's just sealed off, since the adjustment screw is on the TB.
