Moving on to Power Mirrors
Just got stock power mirrors; my 84 didn't come with.

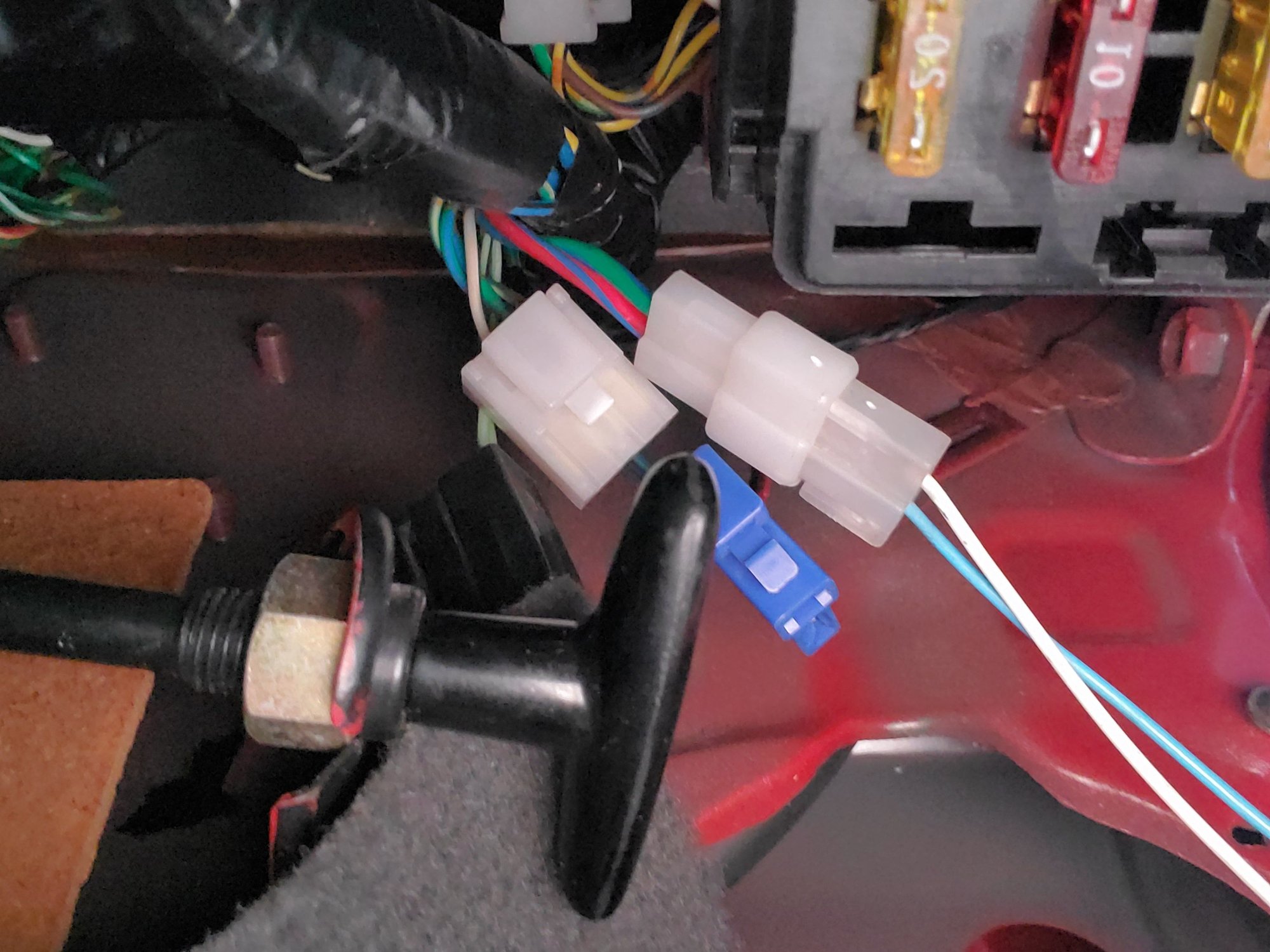

I'm assuming the thick block connector in the middle of the picture is for the power mirrors, yes in?
There is a for prong coming out of each mirror; how is it all connected? I don't see a four connector receiver under the dash.
I'm assuming the thick block connector in the middle of the picture is for the power mirrors, yes in?
There is a for prong coming out of each mirror; how is it all connected? I don't see a four connector receiver under the dash.
The following users liked this post:
Phineas (12-24-20)
#3
Out In the Barn
iTrader: (9)
You'll want to find the six pin remote control mirror switch and trace that out to each door. The four pin mirror connector mates with the door harness and then the door harness will tee off to the mirror switch harness in the cabin. You'll need to trace all that out under the dash.
#4
Senior Member
Thread Starter

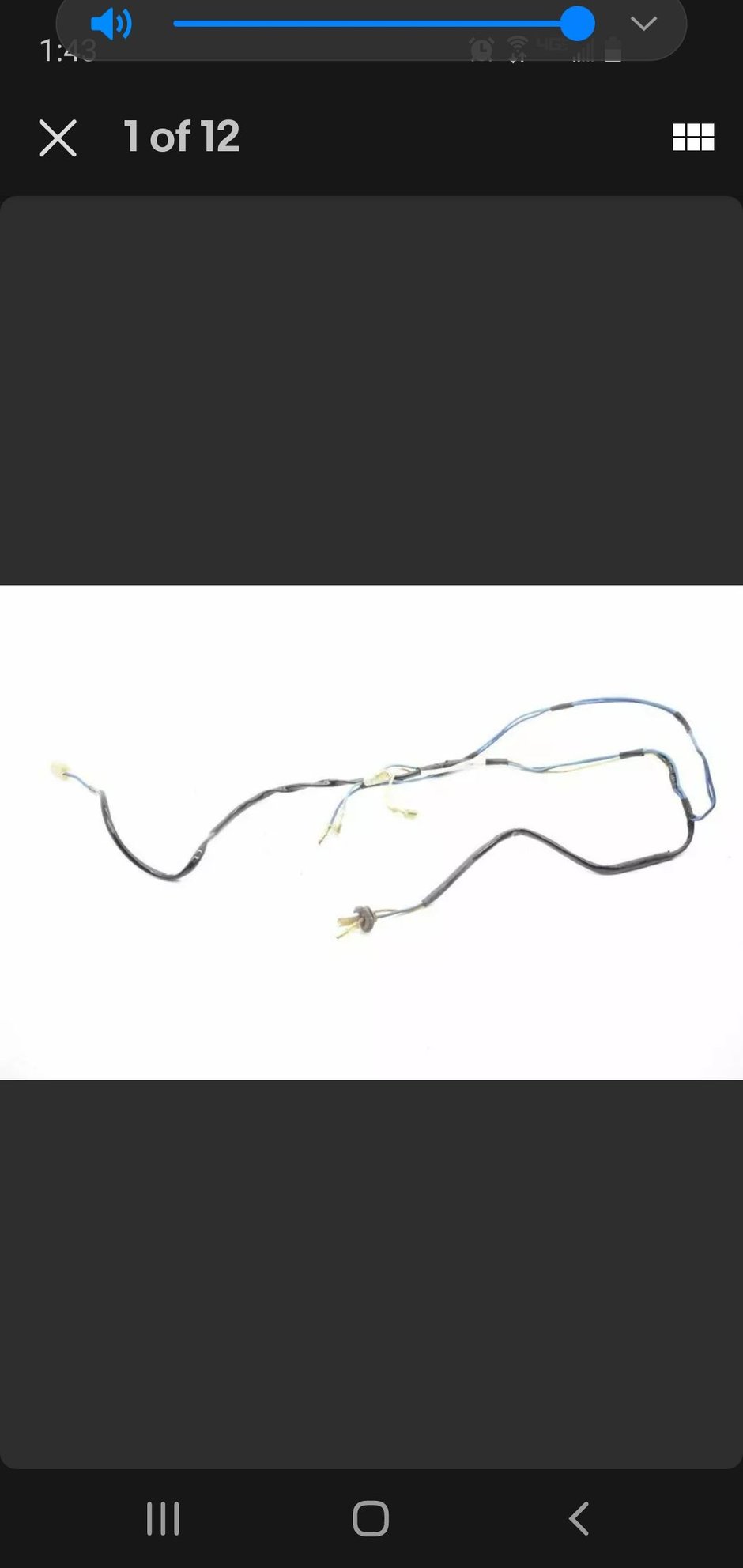

Is this a door harness that would have a connector to the FB power mirrors? Is this what ties the actual mirror to the four pin split in the dash.
If yes should this be in the door, if wired for such?
If yes should this be in the door, if wired for such?
