General Turbo Intake Q
I'm fairly new to turbos, and I just made a nasty discovery.
When boosting, if the pressure gets "too high", above 10 lbs. or so, the air intake leading to my turbo pops out of the rubber sleeve.
I've tried getting a new sleeve but maybe I'm not installing it properly?
The previous owner had some custom pipe work done and I've noticed that this pipe doesn't have a lip on it. Does that matter?
Can anyone point me in the right direction?
When boosting, if the pressure gets "too high", above 10 lbs. or so, the air intake leading to my turbo pops out of the rubber sleeve.
I've tried getting a new sleeve but maybe I'm not installing it properly?
The previous owner had some custom pipe work done and I've noticed that this pipe doesn't have a lip on it. Does that matter?
Can anyone point me in the right direction?
#2
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Without a lip, it's almost always going to pop off. Depending on what material the pipe is made of you may just be able to bend a lip by crimping, or you may need to weld on some tabs.
Posting a picture would help.
Posting a picture would help.
#3
Turbo Newb
Thread Starter
Join Date: Feb 2010
Location: richmond virginia
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts

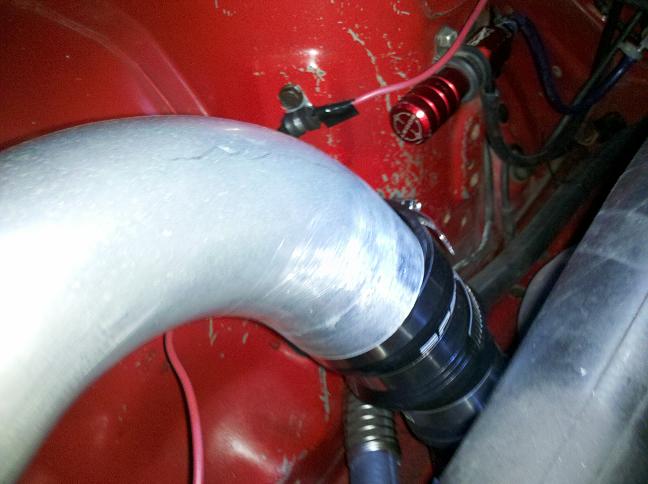

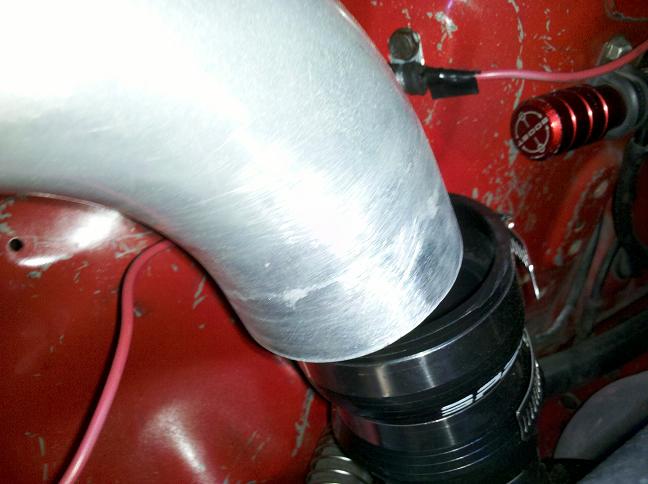

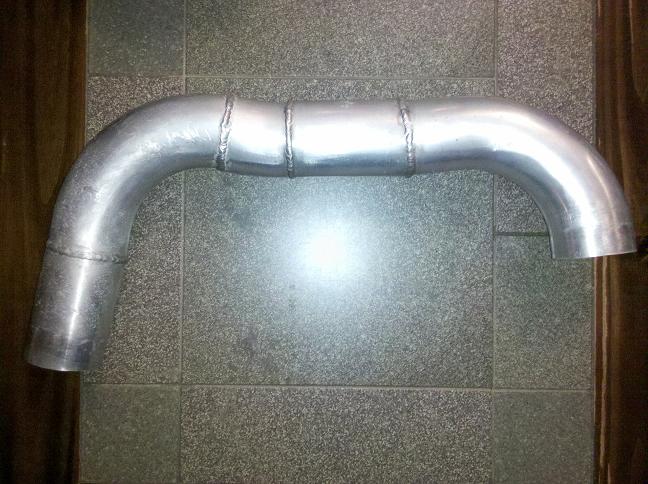

Here are the pics. The turbo in this rx is totally custom (read P.I.T.A.). As you can see, the pipe has no lip. I'm not sure if I could crimp a lip for it myself.
#4
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Yeah, that's just a failure waiting to happen.
You can weld a little bump to the jaws of a vice grip and grind out a divet on the other side of the jaw. Then just work around the lip to make your crimp.
Worst case, you can use some epoxy such as JB-Weld to form a lip.
You can weld a little bump to the jaws of a vice grip and grind out a divet on the other side of the jaw. Then just work around the lip to make your crimp.
Worst case, you can use some epoxy such as JB-Weld to form a lip.
#5
Turbo Newb
Thread Starter
Join Date: Feb 2010
Location: richmond virginia
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
I ended up having to add a lip to both ends of each pipe leading from the turbo to the intake. I got a local shop, United Welding, to put a bead around each tip. It's been working great.
Thanks for the advice!
Thanks for the advice!
#6
I ended up having to add a lip to both ends of each pipe leading from the turbo to the intake. I got a local shop, United Welding, to put a bead around each tip. It's been working great.
Thanks for the advice!
Thanks for the advice!
#7
Junior Member
Join Date: Apr 2012
Location: vancouver, bc
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
If it blows off again try somthing like these http://www.turbohoses.com/Clamp.htm
I have smooth surface pipes on my psd pushing 27psi with this style clamp and no issues
I have smooth surface pipes on my psd pushing 27psi with this style clamp and no issues
Trending Topics
#8
make a small bead around the tip of the piping w JB weld. or ive even riveted around the whole end of the pipe to form a small lip which makes it impossible to pop off with a clamp
