otori_2013

Hello everyone, I have a nice 93 that i picked up. But I need a ton of help and will be asking a lot of questions till its done. Just to note this is my first rx7 so everything is new (alot diff. than my eclipse)

So the first thing i want to do is get my dash back in to the car, and need to know (i could not find) if there is a good write up on how to put it back in and if not can you please tell me how to do it

thank you

Sgtblue

iTrader: (16)

I've never personally seen a how-to thread on a dash re-install. The only suggestion I have is going to the 3rd Gen. Stickys and download a copy of the Factory Service Manual and/or find a downloadable version of the 93 wiring diagrams.

otori_2013

Because this is my first fd I don't know what's missing. (Pics would help me a lot)

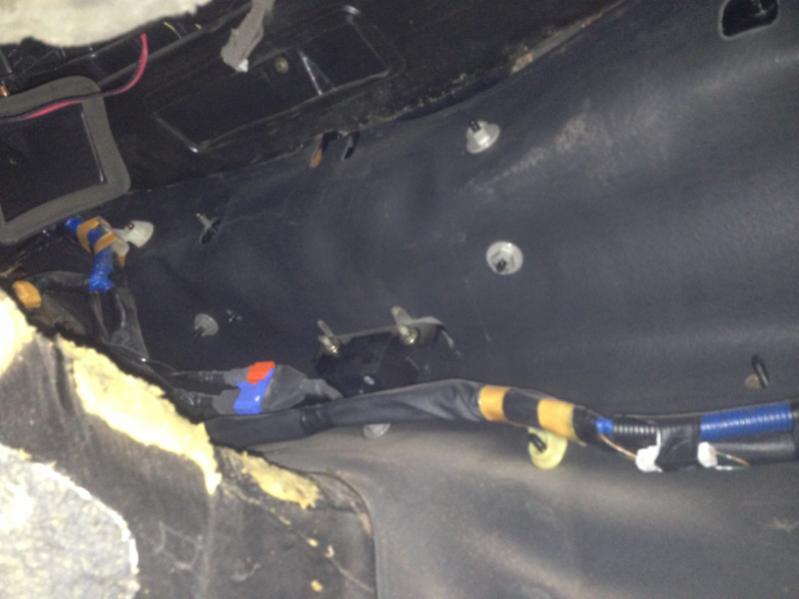

Passenger side center

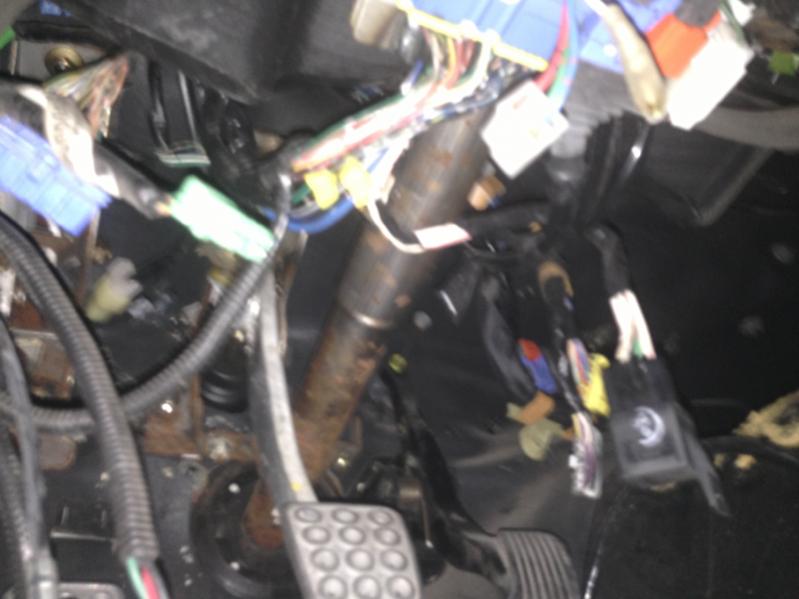

Under drivers side

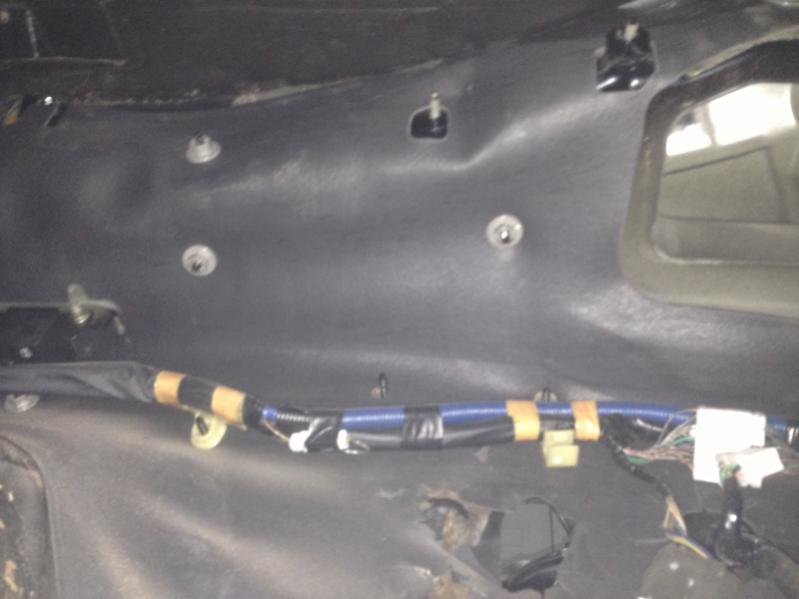

Under passenger side

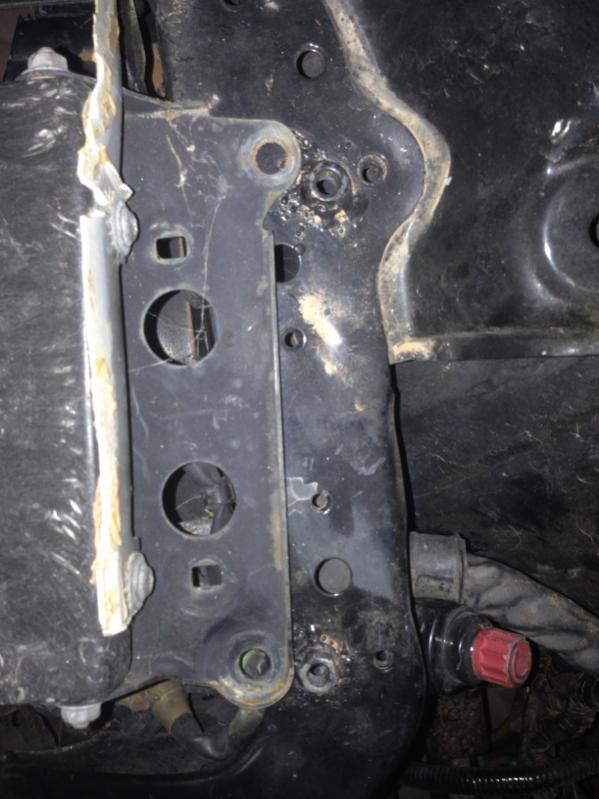

Also are the two nuts not suppose to be there?

reo

iTrader: (4)

please help this man, can vouch for his honesty. The car cane from me and was torn apart by persons unknown. was too much project for me.

madbouncy

I pulled the dash in my FD in the parking lot using the factory manual and I didn't have any issues with it. Only thing I recommend that I had come up was to pull the A-pillar trim pieces as I ended up with a small tear pulling the dash out through the door. All the little sheet metal brackets can wreak havoc if you let them.1

It's been awhile since I had it out so I can't really help you with the pictures but the manual has all the mounting points in it.

Rusty 13B

Ah - the joys of cleaning up someone elses mess!!! Yip - the FSM manual is a must.
I use the ones here

http://wright-here.net/files/manuals...highlights.pdf


and electrical stuff

http://wright-here.net/files/manuals...%20diagram.pdf


There is a whole pile of them in the link.

otori_2013

OMG Rusty your the best. thank you!

Rusty 13B

No worries mate - these pages are a great resource. All the best.

otori_2013

alright I have a few questions. there is no abs parts under my hood (Im not a fan of abs) do i have to replace it or can i keep it without and if i can is there anything i have to do to make the brakes work?

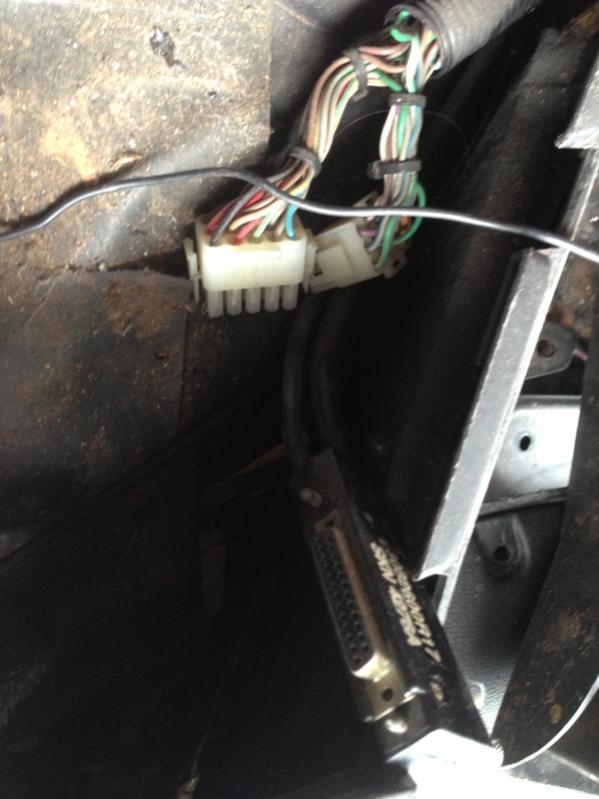

next i found this plug in the back panel under the hatch on the drivers side. looks kinda like a computer plug. could you tell me what it is.

otori_2013

otori_2013

ttt

otori_2013

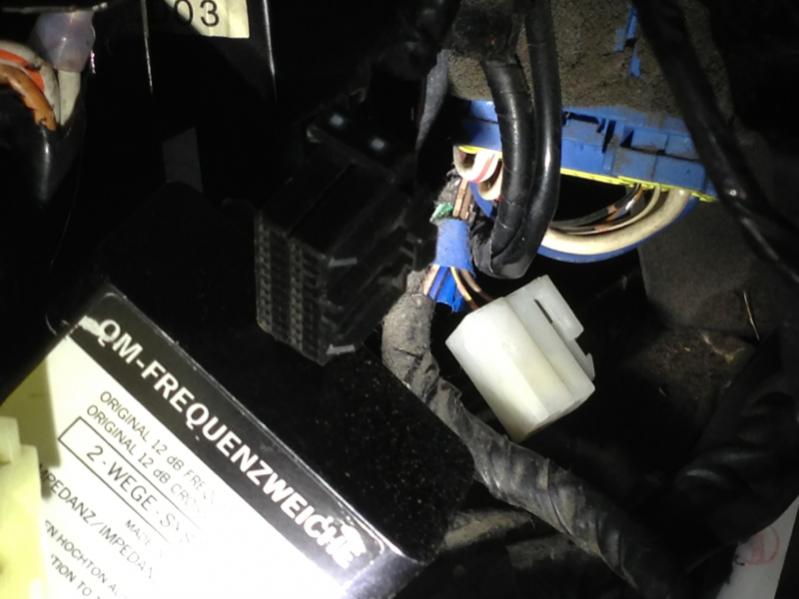

Alright I have most of the dash plugged in but I have two plugs I can't find where the go.



It's the black one in front and the white one behind.

SonicRaT

iTrader: (6)

Easiest way to track that down will be to go through the common connectors list at the end of the wiring diagram listed above.

otori_2013

i have checked it and i cant find them. they are in the kick panel on the drivers side.

Also none of my dash lights kick on ex the high beam light.
