Dumbfounded T2 s4

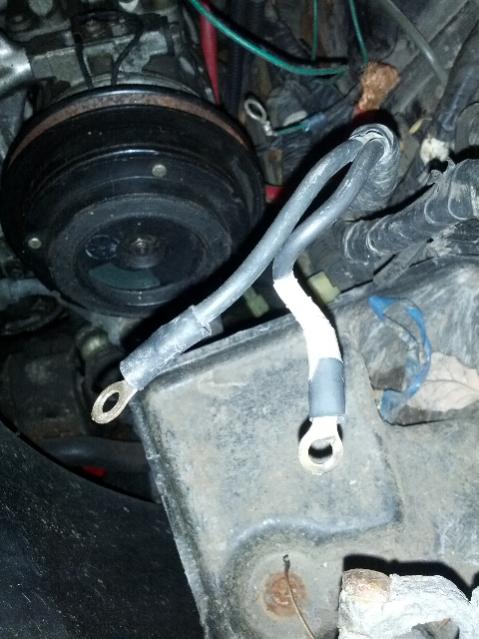

Ok well I am drawing a blank I got a rx7 awhile back an its been sitting awhile and the guy before me had cut the a section off the engine harness got a new one then tried to install it having issues finding out what goes where its the section from the battery to alternator then to the starter and by the battery there are 2 wires figured they were grounds but nope put a battery in and tryed to put it to the frame sparks flew ha so no grounding do they go to the ignitor packs?
03-17-14, 10:19 PM
#2
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
the battery harness has a small black wire that will go to the Engine bay fuse box.If you are getting sparks to ground then that tells you it is Positive,so hook it up as a positive,to the nearest point of the fuse block at the front of the car.
The leading coils only have a small 2 wire connector on the body harness to feed it,so no other wires from the battery harness are involved with the coils.
The leading coils only have a small 2 wire connector on the body harness to feed it,so no other wires from the battery harness are involved with the coils.
03-17-14, 10:59 PM
#4
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
use a ohm meter and touch the positive battery post and look for continuity on those wires.
The positive from the battery splits to the alternator and also to the fuse block.
Note: the positive is the one that does NOT have the yellow stripe.It is plain black.
The positive from the battery splits to the alternator and also to the fuse block.
Note: the positive is the one that does NOT have the yellow stripe.It is plain black.
03-18-14, 12:52 PM
#6
Alright thanks guys hopefully today if its nice going to work on it i dont know if there is another harness for just the coils cause there are no wires going to or from coil packs but i will worry about that later just trying to get power in the car
Joe
Joe
03-18-14, 04:24 PM
#7
Well I put the wires on and we got power some of the interior lights and headlights tail lights & hazards so I fix my main issue with just getting power from the battery to the car but now I need to find out what wires are not connected right because there's no power to windows sunroof turn signals and just basically ignition and basic dash lights and stuff like that
Trending Topics
03-19-14, 12:39 PM
#8
i got the blinkers sunroof and some dash lights but still need to get the starter figured there was this green little wire that i thought it was the boost gauge well hooked it up an i herd a click sound then somewhat like a computer i have fuel coming from tank so glad about that but noticed that i have a pretty big leak behind the intake. It is like a bolt behind is not completly screwed in or something but that is a later issue
03-21-14, 12:31 AM
#9
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
there is a single wire that goes to the solenoid on the starter and it has a female spade connector on it,
Either green or blue wire.( forget now).
That wire gives 12 volts to the solenoid when keyed to start so it can engage the starter,
NO wire connected?.then no Signal from switch to starter..no start.
Either green or blue wire.( forget now).
That wire gives 12 volts to the solenoid when keyed to start so it can engage the starter,
NO wire connected?.then no Signal from switch to starter..no start.
03-21-14, 10:29 AM
#12
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts

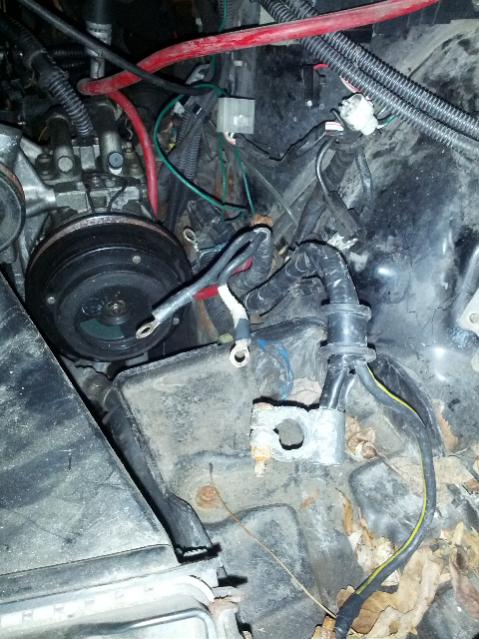

If I am right the coil connector is under the 2 plasti-covered ribbed wires that you show in the pic.
2 wire white connector...harness connector for leading coil.
Look at the coil itself it will tell you.
Kind of hard for me to exactly tell you as I have done so many mods I got rid of the stock coils long time ago.
2 wire white connector...harness connector for leading coil.
Look at the coil itself it will tell you.
Kind of hard for me to exactly tell you as I have done so many mods I got rid of the stock coils long time ago.
03-22-14, 03:21 PM
#14
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
No,there is not.The coils are the same between turbo and NA.
As I mentioned it "looks like" the connector.I may be wrong as your engine bay is not exactly complete.
You shoould be able to get wiring diagrams off of Foxed.ca
Most connectors are specific so they will show you what they look like and how they are wired.(colors)
As I mentioned it "looks like" the connector.I may be wrong as your engine bay is not exactly complete.
You shoould be able to get wiring diagrams off of Foxed.ca
Most connectors are specific so they will show you what they look like and how they are wired.(colors)
